Whitaker 93M User manual

93M
Paper Folder
www.WhitakerBrothers.com

www.WhitakerBrothers.com

Safety Precautions
1
Please read these operating instructions
before putting the machine into
operation and observe the safety
precautions.
Children must not operate the machine!
Do not touch or insert foreign objects
into any rotating part during operation.
www.WhitakerBrothers.com

Safety Precautions
2
Keep long hair clear of machine!
Take care of ties and other loose
pieces of clothing!
Remove any paper clips!
www.WhitakerBrothers.com

Installation
3
Connect the power cord to a single
phase socket .
120V/4A
Insert the 1st fold plate(long plate)
into the studs (A) and (B) and lock into
position.
When the 2nd fold plate(short plate)
put in，Please see clearly the labels at
both ends as shown.
Put the label indicator: Zigzag fold,
Letter fold, and Double fold into the
machine. With three folding methods:
Letter fold, Zigzag fold, Double fold.
www.WhitakerBrothers.com

Installation
4
When 2nd fold plateput in，Please see
clearly the labels at both ends as
shown.
Put the label indicator: only single
fold into the machine as shown .Only
of single fold.
Check that the 2nd fold plate is in the
correct position.
Opening the receiving paper platform,
pull out the receiving paper stopper.
Opening the insert paper platform, pull
out the supplementary insert paper
plate.
www.WhitakerBrothers.com

Installation
5
Setting the paper size and folding
position.
Open the paper guides by loosening
the 2 screws and push towards the
sides.
Move the paper guides to the edge of
the paper. Tighten the screws.
Press down the paper guide and insert
paper as far as possible.
www.WhitakerBrothers.com

Installation
6
Paper Ready:
Fan the paper stack.
Do not fold curly paper.
Do not fold wet paper.
Do not fold paper with clips or
staples.
www.WhitakerBrothers.com

Installation
7
This machine has four folding
patterns,(LT、LG).
Classified as:
1. Letter fold
2. Zigzag fold
3. Double Fold
4. Single Fold
Check that the paper has been folded
correctly and if necessary adjust the
stopper plate on the 1st fold plate
and/or 2nd fold plate. As soon as the
1st fold plate is correct, adjust the 2nd
fold.
1st fold plate
Adjust stopper plate on the 1st fold plate:
Adjust stopper plate on the 2nd fold plate:
2nd fold plate
stopper plate
stopper plate
www.WhitakerBrothers.com

Installation
8
Turn the 2nd fold plate 180 degrees
(script is in reversed position) and put
back into the machine.
Setting the paper delivery roller
according to folding patterns.
LT
LG
LG
L
G
LT
LT
LT
LG
LG
L
G
LT
LT
2nd fold plate
Adjust 2nd fold plate:
Instruction Label:
www.WhitakerBrothers.com

Operation Guide
9
Switch on the main switch.
Press the START key →paper will be
folded.
Examples of folds on page 15~17
www.WhitakerBrothers.com

Operation Guide
10
If number of folding paper setting is
required, press increase button. Press
once, each for 10 sheets up.
Counter returns to “0” when pressing
the “C” button.
Disconnect from the main socket if not
used for a longer period.
www.WhitakerBrothers.com

Troubleshooting
11
The machine cover must be closed.
Mount the 1st fold plate according to
instruction. See “Installation”.
www.WhitakerBrothers.com

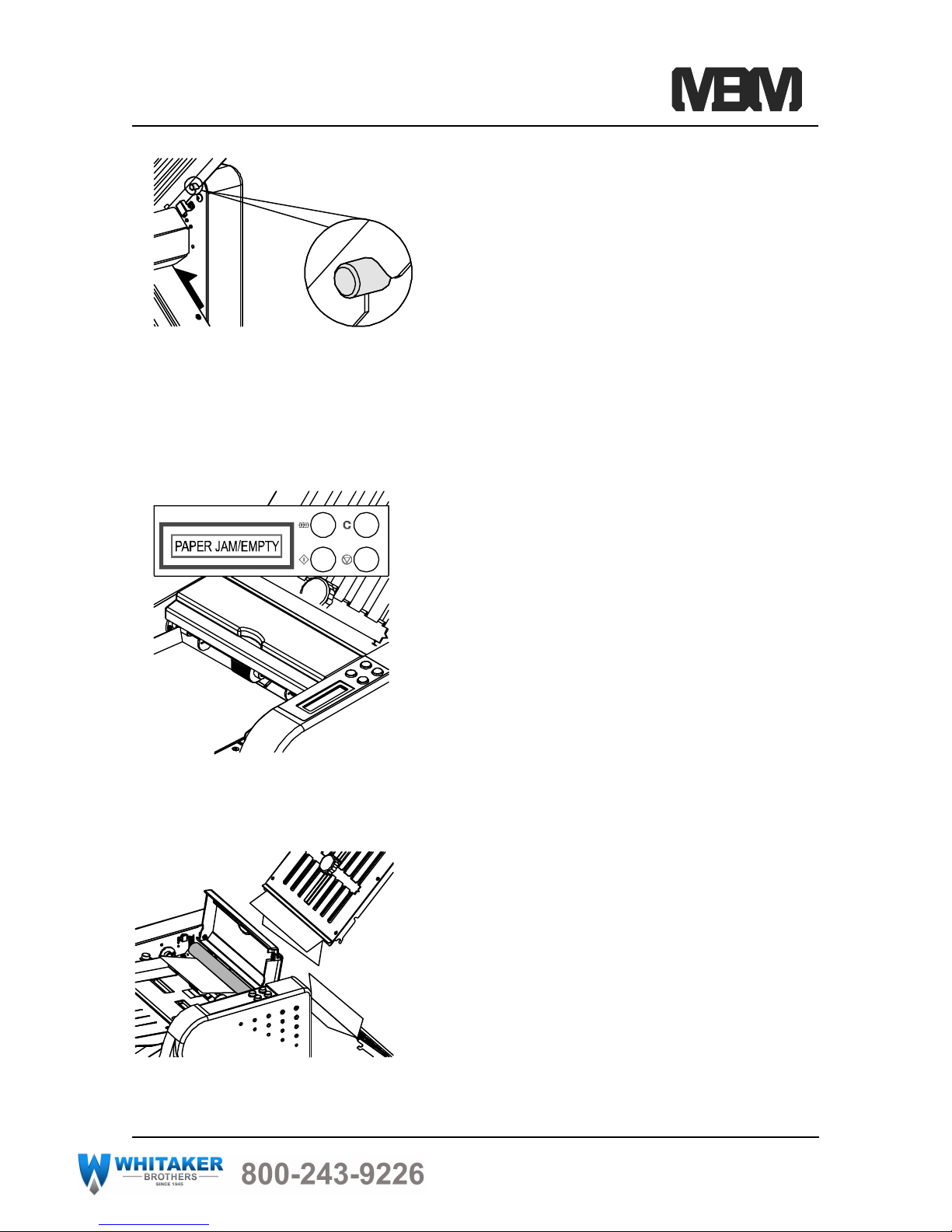

Troubleshooting
12
Fix the fold plate tightly (the hook of
the fold plate click on the supportive).
Clear the Jammed paper/refill the
paper feeder.
Remove both fold plates and any
paper debris.
Open the roller cover. Remove paper
debris from the machine. Making sure
no debris is left in the paper guides.
www.WhitakerBrothers.com

Troubleshooting
13
Press the “C” button to clear up the
malfunctions.
Switch off the machine and wait 1min
before switching on again.
www.WhitakerBrothers.com

Troubleshooting
14
Remove both fold plates and any
paper debris.
Clear the jammed paper.
www.WhitakerBrothers.com

Adjustment
15
Adjust stopper plate position
Letter Fold Deviations of stopper plate from label indicator
A. too long A. too short
B. too long B. too short
A、B、C not up to standard
1.First adjust A side to
standard, use label
indicator as basic
benchmark. According
to paper thickness,
slightly move the
stopper plate on the
1st fold plate. Adjust
A side as 1/3 of the
paper length.
2.Then adjust B side,
use label indicator as
benchmark, relative to
paper thickness slightly
move the stopper plate
on the 2nd fold plate,
adjust to standard.
www.WhitakerBrothers.com

Adjustment
16
Adjust stopper plate position
Zigzag Fold Deviations of stopper plate from label indicator
A. too long A. too short
B. too long B. too short
A、B、C not up to standard
1.First adjust C side to
standard, use label
indicator as basic
benchmark. According
to paper thickness,
slightly move the
stopper plate on the
1st fold plate. Adjust
C side as 1/3 of the
paper length.
2.Then adjust A side,
use label indicator as
benchmark, relative to
paper thickness slightly
move the stopper plate
on the 2nd fold plate,
adjust to standard.
www.WhitakerBrothers.com

Adjustment
17
Adjust stopper plate position
Single Fold Deviations of stopper plate from label indicator
A. too long A. too short
A. too long A. too short
B. too long B. too short
A、B、C not up to standard
Double Fold
1.First adjust the 1st
fold plate according to
single opposite folding
method, adjust to 1/2 of
the paper length.
2.Then adjust the 2nd
fold plate, use label
indicator as
benchmark, relative to
paper thickness slightly
move the stopper plate,
adjust to standard.
www.WhitakerBrothers.com

Adjustment
18
Wipe the rubber folding roller,
Wipe the surface on the feeding rollers
with MBM roller cleaner.
Wipe the rubber folding roller.
