Operating instructions
Betriebsanleitung
Mode d'emploi
Manual de instrucciones
Example: Model 232.50.100 per ATEX
Pressure gauge model 2, NS100 and NS160 per ATEX
Druckmessgerät Typ 2, NG 100 und NG 160 nach ATEX
Manomètre type 2, diam. 100 et diam. 160 selon ATEX
Manómetro modelo 2, DN100 y DN 160 según ATEX
II 2 GD c TX X

ES
FR
DE
EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
2
© 2010 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d‘emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta!
Operating instructions model 2 per ATEX Page 3-18
Betriebsanleitung Typ 2 nach ATEX Seite 19-34
Mode d’emploi type 2 selon ATEX Page 35-50
Manual de instrucciones modelo 2 según ATEX Página 51-67

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 3
1. General information 4
2. Safety 5
3. Specications 11
4. Design and function 12
5. Transport, packaging and storage 13
6. Commissioning, operation 14
7. Maintenance and cleaning 17
8. Dismounting and disposal 17
Annex: EU declaration of conformity 34
Contents
Contents
Declarations of conformity can be found online at www.wika.com.

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
4
1. General information
The pressure gauge described in the operating instructions has
been designed and manufactured using state-of-the-art technology.
All components are subject to stringent quality and environmental
criteria during production. Our management systems are certied to
ISO 9001 and ISO 14001.
These operating instructions contain important information on
handling the pressure gauge. Working safely requires that all safety
instructions and work instructions are observed.
Observe the relevant local accident prevention regulations and
general safety regulations for the instrument‘s range of use.
The operating instructions are part of the product and must be kept
in the immediate vicinity of the instrument and readily accessible to
skilled personnel at any time.
Skilled personnel must have carefully read and understood the
operating instructions, prior to beginning any work.
The manufacturer’s liability is void in the case of any damage
caused by using the product contrary to its intended use,
non-compliance with these operating instructions, assignment of
insuciently qualied skilled personnel or unauthorised modica-
tions to the pressure gauge.
The general terms and conditions, contained in the sales documen-
tation, shall apply.
Subject to technical modications.
1. General information

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 5
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: PM 02.02, PM 02.04, PM 02.15,
PM 02.22, PM 02.24
Explanation of symbols
WARNING!
... indicates a potentially dangerous situation, which can
result in serious injury or death, if not avoided.
Information
... points out useful tips, recommendations and information
for ecient and trouble-free operation.
WARNING!
... indicates a potentially dangerous situation in the
hazardous area, resulting in serious injury or death, if not
avoided.
2. Safety
WARNING!
Before installation, commissioning and operation, ensure
that the appropriate pressure gauge has been selected in
terms of measuring range, design and specic measuring
conditions.
The compatibility of the materials under pressure with the
medium must be checked!
1. General information / 2. Safety

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
6
In order to guarantee the measuring accuracy and
long-term stability specied, the corresponding load limits
must be observed.
Non-observance can result in serious injury and/or
damage to equipment.
Further important safety instructions can be found in the
individual chapters of these operating instructions.
2.1 Intended use
These pressure gauges are used for measuring pressure within hazard-
ous areas in industrial applications.
The pressure gauge has been designed and built solely for the
intended use described here, and may only be used accordingly.
The manufacturer shall not be liable for claims of any type based on
operation contrary to the intended use.
2.2 Personnel qualication
WARNING!
Risk of injury should qualication be insucient!
Improper handling can result in considerable injury and
damage to equipment.
The activities described in these operating instructions
may only be carried out by skilled personnel who have
the qualications described below.
2. Safety

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 7
2. Safety
Skilled personnel
Skilled personnel are understood to be personnel who, based on their
technical training, knowledge of measurement and control technology
and on their experience and knowledge of country-specic regulations,
current standards and directives, are capable of carrying out the work
described and independently recognising potential hazards.
2.3 Safety instructions for pressure gauges per ATEX
WARNING!
Non-observance of these instructions and their contents
may result in the loss of explosion protection.
WARNING!
It is imperative that the application conditions and safety
requirements of the EU-type examination certicate are
followed.
Pressure gauges must be grounded via the process
connection.
Permissible ambient temperature
Model 232/262/PG23CP -40 ... +60 °C (unlled)
Model 233/263/PG23CP -20 ... +60 °C (glycerine lling)
-40 ... +60 °C (silicone oil lling)
Model PG23LT -70 ... +60 °C (silicone oil lling)
Attention! In the case of gaseous media, the temperature may
increase due to compression warming. In these cases it may be neces-
sary to throttle the rate of change of pressure or reduce the permissible
medium temperature.

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
8
Permissible medium temperature
The permissible medium temperature not only depends on the instru-
ment design, but also on the ignition temperature of the surrounding
gases, vapours or dusts. Both aspects have to be taken into account.
Potentially explosive gas atmosphere
Required
temperature class
(ignition
temperature of gas
or vapour)
Maximum permissible medium temperature
(in the measuring system)
Models 232, PG23CP
(dry gauges)
Models 233, PG23LT, PG23CP
(liquid-lled gauges)
T6 (T > 85 °C) +70 °C +70 °C
T5 (T > 100 °C) +85 °C +85 °C
T4 (T > 135 °C) +120 °C +100 °C
T3 (T > 200 °C) +185 °C +100 °C
T2 (T > 300 °C) +200 °C +100 °C
T1 (T > 450 °C) +200 °C +100 °C
Hazardous dust atmosphere
For dusts, the procedure specied in ISO/IEC 80079-20-2 for determin-
ing the ignition temperature has to be applied.The ignition temperature
is determined separately for dust clouds and dust layers, respectively.
For dust layers, the ignition temperature depends on the dust layer
thickness per IEC/EN 60079-14.
Ignition temperature
of dust
Maximum permissible medium temperature
(in the measuring system)
Dust cloud: TCloud < 2/3 TCloud
Dust layer: TLayer < TLayer − 75 K − (Reduction depending on the layer
thickness)
The permissible maximum medium temperature must not exceed the
lowest determined value, even in case of a malfunction.
2. Safety

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 9
Handling of materials
Avoid handling of materials that react dangerously with the materials
used for the instrument, and substances liable to spontaneous
combustion.
Cleaning
Clean the measuring instrument with a moist cloth. Ensure that due to
the cleaning no electrostatic charge will be generated.
2.4 Special hazards
WARNING!
For hazardous media such as oxygen, acetylene, amma-
ble or toxic gases or liquids, and refrigeration plants,
compressors, etc., in addition to all standard regulations,
the appropriate existing codes or regulations must also be
followed.
From pressure gauges which do not correspond to a
safety version per EN 837 highly pressurised media might
leak out through the possibly bursting window in case of a
component failure.
For gaseous media and operating pressures > 25 bar a
pressure gauge with safety version S3 is recommended
per EN 837-2.
For additional important safety instructions see chapter "2.3 Safety
instructions for pressure gauges per ATEX".
WARNING!
Residual media in dismounted pressure gauges can result
in a risk to persons, the environment and equipment.
Take sucient precautionary measures.
2. Safety

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
10
2. Safety
2.5 Labelling / safety marks
Dial
ATEX marking: II 2 GD c TX X
Serial number
Product Label
Model
Year of manufacture
Before mounting and commissioning the instru-
ment, ensure you read the operating instructions!
Instruments bearing this mark on the dial are safety pressure
gauges with solid bae wall per EN 837 (S3).
 

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 11
3. Specications
Pressure limitation
Models 232.50, 233.50, 232.30, 233.30, 262.50, 263.50, 262.30,
263.30, PG23LT, PG23CP:
Steady: full scale value
Fluctuating: 0.9 x full scale value
Short time: 1.3 x full scale value
Models 232.36 and 233.36:
Steady: end value of measuring range
Fluctuating: 0.9 x end value of measuring range
Short time: overload range
Temperature eect
When the temperature of the measuring system deviates from the refer-
ence temperature (+20 °C): max. ±0.4 %/10 K of full scale value
IP Ingress protection 1) (per IEC/EN 60529)
Model 2, PG23CP: IP65, IP66
Model PG23LT for scale range > 0 ... 16 bar: IP66 / IP67
Model PG23LT for scale range ≤ 0 ... 16 bar: IP65
For further specications see WIKA data sheet PM 02.02, PM 02.04,
PM 02.15, PM 02.22 or PM 02.24 and the order documentation.
1) For general use, no ATEX requirement
3. Specications

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
12
4. Design and function
4. Design and function
Description
Nominal size 100 and 160 mm
The instruments measure the pressure by means of resilient
bourdon tube pressure elements
The measuring characteristics are in accordance with the EN 837-1
standard
In accordance with the EN 837-1 standard, pressure gauges with
“S3” marking are safety pressure gauges whose enclosing and
pressurised components are designed with a solid bae wall.
Models with “S3” marking are 232.30, 233.30, 262.30, 263.30,
232.36 and 233.36. Models PG23LT and PG23CP are optionally
available as an “S3” variant.
Scope of delivery
Cross-check scope of delivery with delivery note.

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 13
5. Transport, packaging and storage
5.1 Transport
Check pressure gauge for any damage that may have been caused by
transport.
Obvious damage must be reported immediately.
5.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during trans-
port (e.g. change in installation site, sending for repair).
5.3 Permissible storage temperature
Model 2, PG23CP: -40 ... +70 °C
Model PG23LT: -70 ... +70 °C
5. Transport, packaging and storage

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
14
6. Commissioning, operation
6. Commissioning, operation
Mechanical connection
In accordance with the general technical regulations for pressure
gauges (e.g. EN 837-2 "Selection and installation recommendations for
pressure gauges").
Pressure gauges must be grounded via the process connection.This is
why electrically conductive sealings should be used at the process
connection. Alternatively, take other measures for grounding.When
screwing gauges in, the force required for this must not be applied
through the case, but rather through the spanner ats (using a suitable
tool) provided for this purpose on the square shaft of standard
connections.
For parallel threads, use at gaskets, lens-type sealing rings or WIKA
prole sealings at the sealing face
 . With tapered threads (e.g. NPT
threads), sealing is made in the threads
 using suitable sealing
material (EN 837-2).
Spanner ats Sealing in the
thread

Sealing face 
The torque depends on the seal used. Connecting the gauge using
a clamp socket or a union nut is recommended, so that it is easier to
orientate the gauge correctly.
Installation with
open-ended spanner

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 15
6. Commissioning, operation
When a blow-out device is tted to a pressure gauge, it must be
protected against being blocked by debris and dirt.
Requirements for the installation point
If the measuring point is not suciently stable a measuring instru-
ment support such as a bracket or ange should be used for fastening
(possibly via a exible capillary). If vibrations cannot be avoided by
taking suitable measures during installation, liquid-lled instruments
should be used. Instruments must be protected against coarse dirt and
wide uctuations in ambient temperature.
Installation
Nominal position per EN 837-1 / 9.6.7 Figure 9: 90° ( ⊥ )
Process connection lower mount (LM) or back mount (BM)

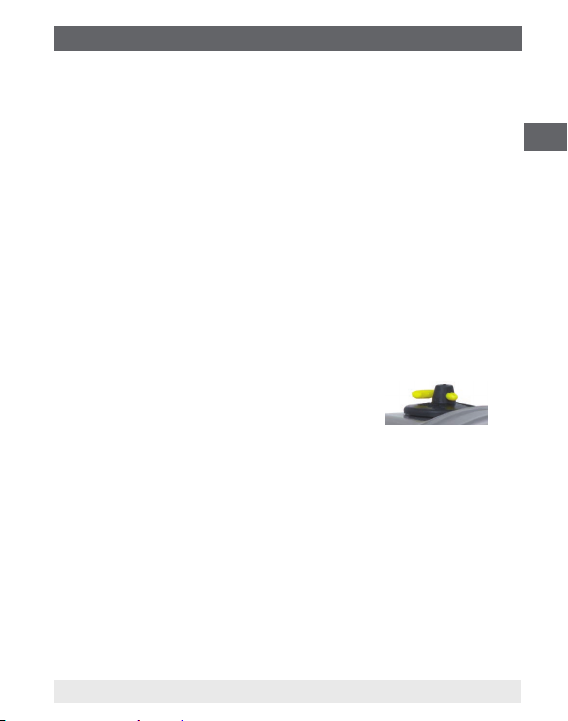

After mounting, set the compensating valve (if available) from
CLOSE to OPEN. The version of the vent
valve depends on the model and can deviate
from the illustration!
For outdoor applications, the selected installation location has to
be suitable for the specied ingress protection, so that the pressure
gauge is not exposed to impermissible weather conditions.
In order to avoid any additional heating, the instruments must not be
exposed to direct solar irradiation while in operation!
To ensure that the pressure can be safely vented in the case of
failure instruments with blow-out device or blow-out back must keep
a minimum distance of 20 mm from each object.

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
16
Permissible ambient and operating temperatures
When mounting the pressure gauge it must be ensured that, taking into
consideration the inuence of convection and heat radiation, no devia-
tion above or below the permissible ambient and medium temperatures
can occur. The inuence of temperature on the display accuracy must
be observed.
Permissible vibration load at the installation site
The instruments should always be installed in locations free from vibra-
tion.
If necessary, it is possible to isolate the instrument from the mount-
ing point by installing a exible connection line between the measur-
ing point and the pressure gauge and mounting the instrument on a
suitable bracket.
If this is not possible, the following limit values must not be exceeded:
Frequency range < 150 Hz
Acceleration < 0.7 g (7 m/s2)
Filling level testing
The liquid lling must be checked on a regular basis.
The liquid level must not drop below 75 % of the gauge diameter.
Commissioning
During the commissioning process pressure surges must be avoided at
all costs. Open the shut-o valves slowly.
6. Commissioning, operation

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX 17
7. Maintenance and cleaning / 8. Dismounting and ...
7. Maintenance and cleaning
7.1 Maintenance
The instruments are maintenance-free.
The indicator and switching function should be checked once or twice
every year.The gauge must be disconnected from the process to check
with a pressure testing device.
Repairs are only to be carried out by the manufacturer or appropriately
trained skilled personnel.
7.2 Cleaning
CAUTION!
Clean the pressure gauge with a moist cloth.
Wash or clean the dismounted pressure gauge before
returning it, in order to protect personnel and the
environment from exposure to residual media.
8. Dismounting and disposal
WARNING!
Residual media in dismounted pressure gauges can
result in a risk to persons, the environment and equip-
ment.
Take sucient precautionary measures.
8.1 Dismounting
Only disconnect the pressure gauge once the system has been
depressurised!
When dismounting, close the compensating valve (if available).
8.2 Disposal
Incorrect disposal can put the environment at risk. Dispose of instru-
ment components and packaging materials in an environmentally
compatible way and in accordance with the country-specic waste
disposal regulations.

EN
2080268.08 01/2017 EN/DE/FR/ES
WIKA operating instructions pressure gauge, model 2 per ATEX
18

DE
WIKA Betriebsanleitung Druckmessgerät, Typ 2 nach ATEX 19
2080268.08 01/2017 EN/DE/FR/ES
1. Allgemeines 20
2. Sicherheit 21
3. Technische Daten 27
4. Aufbau und Funktion 28
5. Transport, Verpackung und Lagerung 29
6. Inbetriebnahme, Betrieb 30
7. Wartung und Reinigung 33
8. Demontage und Entsorgung 33
Anlage: EU-Konformitätserklärung 34
Inhalt
Inhalt
Konformitätserklärungen nden Sie online unter www.wika.de.

DE
WIKA Betriebsanleitung Druckmessgerät, Typ 2 nach ATEX20
2080268.08 01/2017 EN/DE/FR/ES
1. Allgemeines
Das in der Betriebsanleitung beschriebene Druckmessgerät wird
nach den neuesten Erkenntnissen konstruiert und gefertigt.
Alle Komponenten unterliegen während der Fertigung strengen Quali-
täts- und Umweltkriterien. Unsere Managementsysteme sind nach
ISO 9001 und ISO 14001 zertiziert.
Diese Betriebsanleitung gibt wichtige Hinweise zum Umgang mit
dem Druckmessgerät.Voraussetzung für sicheres Arbeiten ist die
Einhaltung aller angegebenen Sicherheitshinweise und Handlungs-
anweisungen.
Die für den Einsatzbereich des Druckmessgerätes geltenden örtli-
chen Unfallverhütungsvorschriften und allgemeinen Sicherheitsbe-
stimmungen einhalten.
Die Betriebsanleitung ist Produktbestandteil und muss in unmittel-
barer Nähe des Druckmessgerätes für das Fachpersonal jederzeit
zugänglich aufbewahrt werden.
Das Fachpersonal muss die Betriebsanleitung vor Beginn aller Arbei-
ten sorgfältig durchgelesen und verstanden haben.
Die Haftung des Herstellers erlischt bei Schäden durch bestim-
mungswidrige Verwendung, Nichtbeachten dieser Betriebsanleitung,
Einsatz ungenügend qualizierten Fachpersonals sowie eigenmächti-
ger Veränderung am Druckmessgerät.
Es gelten die allgemeinen Geschäftsbedingungen in den Verkaufsun-
terlagen.
Technische Änderungen vorbehalten.
1. Allgemeines
