Operation Manual
Infrared Heater
(61989)
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
© by WilTec Wildanger Techni GmbH Seite 1
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

The information contained in this document is subject to change without prior notice. o part of this
document can be copied or duplicated in another form without the prior written consent of WilTec
Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in
this user manual or the connection diagram.
Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual
is complete, accurate and updated, errors cannot always be avoided. In the event of problems with
this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would li e to report the following mista es:
_______________________________ ____________________________________
Customer Service WilTec Wildanger Technik GmbH
e-mail: [email protected]
Tel: ++49 2403 55592-0
Introduction
Thank you for purchasing this quality product. To minimize the ris of injury we urge that our
clients ta e some basic safety precautions when using this device. Please read the operation
instructions carefully and ma e sure you have understood its content.
Leave the maintenance, adjustment and repair to qualified technical personnel. In case of
unauthorised intervention, the 2-year warranty is no longer valid! Keep these operation instructions
safe.
© by WilTec Wildanger Techni GmbH Seite 2
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

Safety Instructions (A+B)
A-Electrical Connection Safety
Check whether your appliance and power cord are damaged before operating your appliance.
Check whether there is any crack, disjoint or scratch on the filament (heating tube). If any, contact
with your authorized technical service.
If you appliance or power cord is damaged, do not operate your appliance and return it to your
technical service.
Make sure that the main electricity circuit is 220-240V and 110-120V, 50-60Hz and the connec-
tion is fused.
Check the safety of the network. The fuse must be 25A.
Do not use your infrared heater together with another appliance plugged to the same multiple
sockets or connected to the same fuse.
Use your appliance with a properly earthed plug.
The earthed plug must fall outside heating field and hot surface.
The power cord must not be left on or around the frame of your infrared appliance.
Unplug your appliance when you won’t operate it for a long term or will conduct cleaning or main -
tenance.
The damaged heater glass must be exchanged.
If the cable of the heater should be damaged, this may be replaced only by the authorized ser -
vice.
If has to be notified that the mounting in the bath must be so that the persons in the bath can not
reach the controls.
It has to be notified that the product has to be installed at a dry location and may not be wet.
B-Safe distances required for installation on the wall, high temperature and fire protection
Attention! The appliance must only be operated in a horizontal position with max±15°slope. In
case of operations in angels larger than 5°in horizontal position or of vertical operations, the heat-
ing loop wire may fall into disuse shortly.
ever install your appliance on a combustible surface (carton etc.)
The distance of your appliance from the ground is to min 1.8 m (6 feet).
The distance of your appliance from the ceiling is to be min 0.7 m (2.5 feet).
The distance of your appliance from the living beings is to be min 1 m (3.5 feet).
The distance of heating area of your appliance from the materials such as wood, carton, cloth
etc., must be min 1 m (3.5 feet).
Do not cover your appliance and do not hang any clothing over the heater or do not place any
clothing on or near the appliance.
Do not stick anything into the protective grid.
Do not make use of your heater to light up cigarette or similar materials.
Supervision is needed when this product is used anywhere near children. The appliance is not in-
tended for use by children or other persons without assistance or supervision if their physical,
sensory or mental capabilities prevent them from using it safely.
Risk of Fire-keep combustible material such as furniture, papers, cloths, and curtains at least 0.9
m (3 feet) from the front of the heater and away from the sides and rear.
Warning-TO REDUCE THE RISK OF FIRE
1) Do not place any objects such as furniture, papers, cloths, and curtains at least 0.9m (3 feet) from
the front of the heater and away from the sides and rear when the heater is plugged in.
2) Do not place the heater near a bed because objects such as pillows or blankets can fall off the
bed and be ignited by the heater.
3) Always unplug the heater if it is not being used.
© by WilTec Wildanger Techni GmbH Seite 3
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

4) Avoid the use of an extension cord because the extension cord may overheat and cause a risk of
fire. However, if you have to use an extension cord, the cord shall be 14 AWG minimum size and
rated not less than 2000 watts.
5) Do not operate within 7.6 m (25 feet) of flammable material.
ever block the front grill of the heater.
The heater is not suitable for hazardous locations.
ever attempt to service the heater without disconnecting its power source.
C-Cleaning and Maintenance Instructions
Unplug your heater first.
Unplug power cable ever pull your power cable to
unplug your heater
Take out the front grid to clean the reflector (reflecting mirror) and the filament and apply the in-
structions.
Repair and Service
Attention! Only technical services and persons authorized may serve, repair and replace the
parts of this heater.
Distinguished Customer:
Please read safety instructions carefully for the security of you, your family and your belong-
ings before operating your appliance.
© by WilTec Wildanger Techni GmbH Seite 4
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

\\
Installation
Installation Instructions
Installation on the wall: Attention! The appliance must be installed on the solid surfaces like concrete
and metal.
ever install on flammable surfaces!

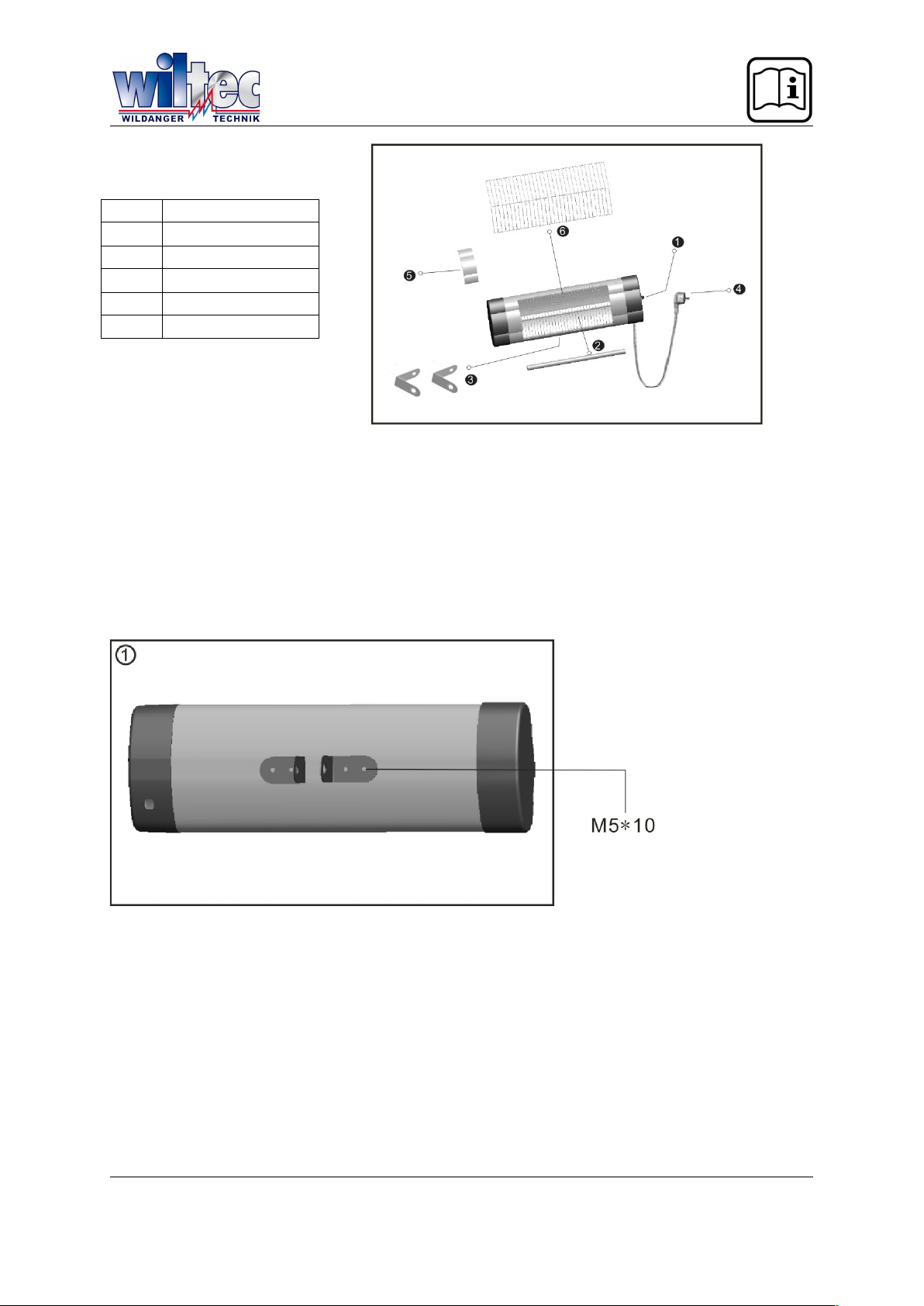

1. Install the product fixed bracket to the products, using four M5X10 screw fixed stent products.
© by WilTec Wildanger Techni GmbH Seite 5
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de
1 switches
2 heating element
3 mounting
4 cable
5 safety cover
6 bonnet

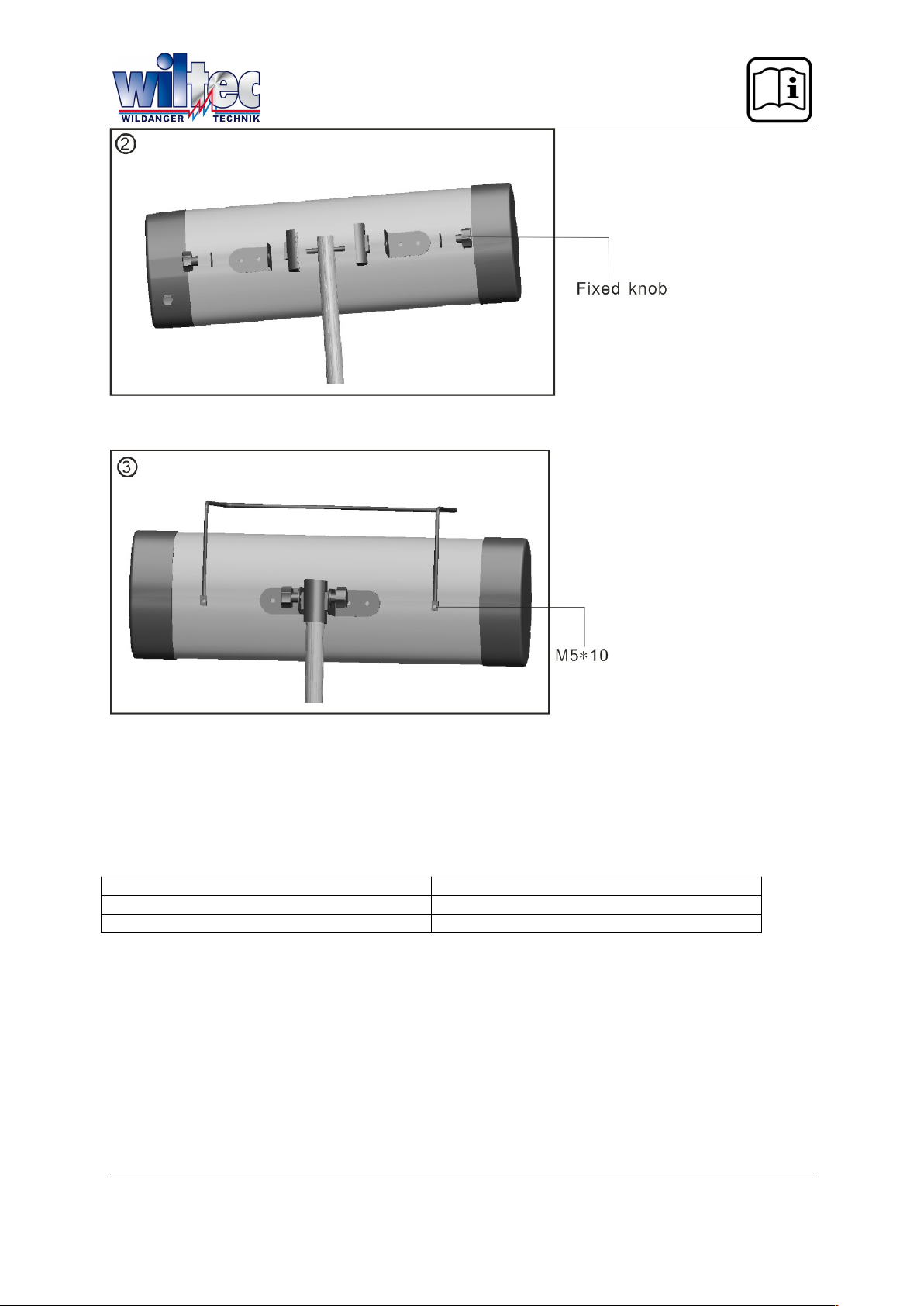

2. Make the fixed knob on the pipe loosen, make the product holder according to the figure (2) sets on
the pipe component
Make the handle match with aluminum alloy backboard hole site, take 2 * M5 screw to fix the handle
Technical Information-Heating Area / Size
Product ame / Model / Volt / Watt / Heating Area / Size
Voltage AC220V-240V~
Frequency 50Hz
Electric power(W) 2000W
© by WilTec Wildanger Techni GmbH Seite 6
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

Cleaning and Maintenance Instructions
Maintenance
Attention! Careful and regular maintenance of Infrared Heater considering our instructions assume
great importance so as to attain a long and efficient operation of your appliance.
1- Check the filthiness of the Reflector and IR-Filament at least once a month. If necessary, apply
cleaning and maintenance instructions.
2- The number of checks may be increased considering the amount of the dust in the environment.
3- Check the deformation of the Reflector, Wire and Frame visually while cleaning the appliance. In
case of any deformation, consult to your technical service.
4- Check the power cord and plug visually while cleaning the appliance. In case of any deformation,
consult to your technical services.
5- It is recommended to change the reflector every 2 years for the purpose of more efficient opera-
tion of you appliance.
Cleaning
Attention! Regular and careful cleaning helps your heater operate for longer years and more effi-
ciently.
1- Unplug your power cord for your safety before cleaning your appliance.
2- Take out the front grid wire through the inlets on the frame using a slotted screwdriver.
3- Make sure that the power is off for your safety. Power cord plug must be unplugged.
4- The reflector and filament must be cleaned with a soft cloth, a smooth brush or cool or dry air. The
cloth may be damp but never too wet and the cleaner should not include any chemical.
5- Refrain from using cleaning material likely to damage the reflector (cleanser etc.).
6- Insert the wire grid using a slotted screwdriver.
Technical Service
Attention! Only technical services and persons authorized may serve, repair and replace the spare
parts of this heater.
Points to be considered before shipping the product to the technical service:
1- Make sure that the thermostat of your appliance is in “0”mode.
2- Make sure that the plug, to which the appliance is connected, has power, check the fuse and
power cord. If the plug lacks power, consult to an electrician.
3- Make sure that the appliance has been installed in accordance with the instructions in the manual.
If the installation is inaccurate, consult to technical service.
© by WilTec Wildanger Techni GmbH Seite 7
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were
implemented in the law related to electrical and electronic equipment and appliances.

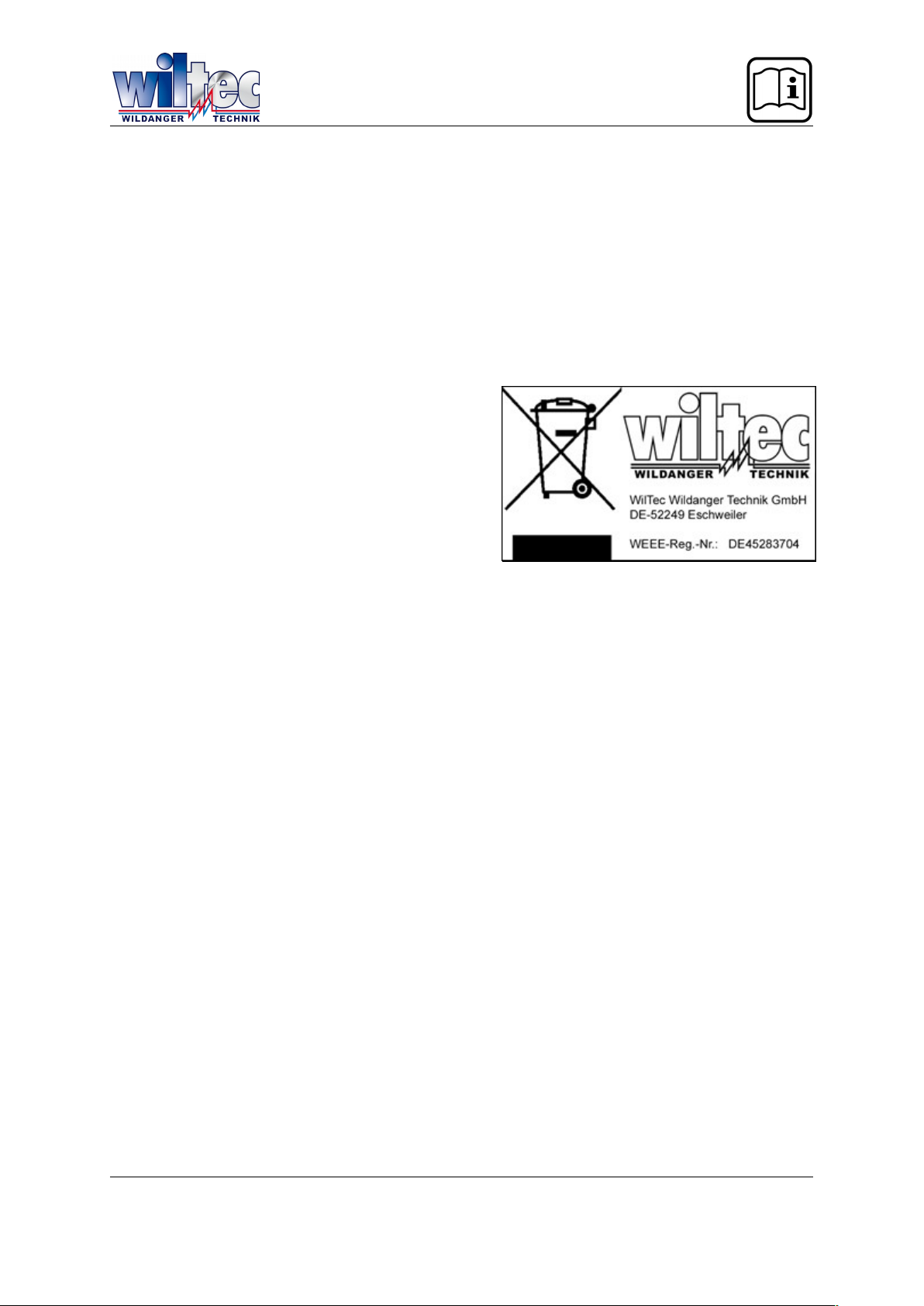

All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal
household waste but must be disposed to a recycling
collection point for electronic and electrical waste
equipment. By contributing to the correct disposal of
this article you protect the environment and the health
of your fellow men. Environment and health are
threatened by inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
