Operating Manual
Infrared Heating Panel
64390–64396
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 2
http://www.wiltec.de 07 2023-1
The information contained in this document may alter at any time without prior notice. No part of this
document may be copied or otherwise duplicated without prior written consent. All rights reserved.
WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man-
ual, nor in the diagrams and illustrations shown.
Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating
manual is complete, accurate, and up-to-date, errors cannot be ruled out entirely.
If you have found an error or wish to suggest an improvement, we look forward to hearing from you.
Send us an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler – Germany
To return your goods for exchange, repair, or other purposes, please use the following address. Atten-
tion! To allow for a trouble-free complaint or return, it is important to contact our customer service team
before returning your goods.
Retourenabteilung
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler – Germany
E-mail: [e-mail]
Tel: [phone]
Fax: [phone]

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 3
http://www.wiltec.de 07 2023-1
Introduction
Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to
always take some basic safety precautions when using this product. Please read this operating manual
carefully and make sure that you understand it.
Keep these operation instructions in a safe place.
Safety instructions
Warning symbols
Symbol
Meaning
This symbol indicates a middle-grade risk. Non-compliance might lead to serious inju-
ries or to death.
Voltage warning — This symbol indicates a risk on injury or danger of death caused
by voltage.
This symbol found on the device states that it is forbidden to place objects (such as
towels, clothes, etc.) onto the device or directly in front of it. The device must not be
covered to avoid overheating and fire.
This symbol found on the device indicates dangers to persons caused by hot surfaces.
This symbol found on the device states that it is forbidden to spray liquids onto the
device.
This symbol found on the device and the information following it state that the manual
must be read.
Warning notices
Thoroughly read this manual before putting this device into operation or before using it. Keep this manual
near the device or its place of use.
Read all safety precautions and instructions. Disobeying the warning and instructions might lead to
electric shocks, fire, and/or severe injuries. Keep all warnings and instructions for future reference.
Warning!
•This device can be used by children from 8 years on as well as by persons with reduced phys-
ical, sensory, and mental abilities or lack of experience and knowledge if they are supervised or
have been instructed concerning the proper and safe use of the device and are able to under-
stand the risks connected to it.
•Children must not play with the device. Children may only clean and maintain the device if they
are supervised.
•Children under 3 years must be kept away from the device, unless they are supervised contin-
uously.
•Children aged between 3 and 7 years may only switch the device on and off if it has been placed
or installed in a normal operation position and if they are supervised or have been instructed
concerning the safe use of the device and are able to understand the risks connected to it.

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 4
http://www.wiltec.de 07 2023-1
Warning!
•Do not use the device in small rooms with persons present who are not able to leave the room
on their own and are not supervised continuously.
•Certain components of the device can become very hot and cause burns. Pay special attention
in case children or needy persons are present.
•It is dangerous to install the device near curtains and other flammable materials. To avoid burns,
the following persons should be very careful when using the device: babies and children, per-
sons with sensitive skin, old persons, sick persons, persons being under the influence of alcohol
or medicine.
•Remove the protective film (on the front part) before use.
•Make sure that the input voltage is comprised between 220–240 V, 50 Hz and that the power
supply is made according to the regulations. Make sure that the left wire is zero and the right
one life and that the device is well earthed.
•The devices consume more energy than small electric devices; therefore, a separate 10 A+
socket is required.
•Do not operate this device in areas exposed to explosion hazards.
•Install the device in an upright and stable position.
•Let the device dry off after cleaning it with a damp material. Do not operate it as long as it is
wet.
•Do not use the device with your hands being damp or wet.
•Do not expose the device to direct water splashes.
•Do not insert objects or parts of your body into the device.
•Do not cover the device nor transport it during operation.
•Do not sit on the device.
•This product is not a toy! Keep children and animals away. Do not leave the device unsupervised
during its operation.
•Check all accessories and connection parts before every use to know if they are intact. Do not
use the device if it has damaged parts.
•Make sure that all electric cables outside the device are protected against damages (e.g.,
caused by animals). Do not use the device if electric cables or the electric connection are dam-
aged!
•The electric connection must meet the indications of the section “Technical data.”
•Only plug the mains plug into a socket that is correctly earthed.
•Do not use the device if the socket or cable are overcharged.
•When using an extension cable, keep in mind the power consumption of the device, the length
of the cable, and the intended purpose. Completely unroll the extension cable and avoid electric
overcharges.
•Before performing maintenance, care, or repair of the device, unplug the plug. Do not pull the
power cable to unplug the plug from the power socket.
•Switch the device off and pull the plug out of the socket when the device is not in use.
•Never use the device if you detect damages to the plug or cable. If the cable is damaged, a
qualified person must replace it to avoid any danger. Damaged cables cause serious risks.
•When installing the device, respect the minimum distances to the wall and other objects and the
conditions of operation as stated in the “Technical data” section.
•Never drill into the heating panel.
•Do not use the device in direct proximity to curtains.
•Do not place the device on a flammable surface.
•During operation, do not touch the surface of the device to avoid burns.
•Before transporting and/or inspecting the device, wait for it to cool down.
•Do not use the device near bathtubs, showers, swimming pools, or water tanks. There is the
risk of an electric shock!
•The device must be installed so that persons in a bathtub or under a shower cannot touch any
switch of regulator.
•Heating panels installed to a wall must be at a height of more than 0.6 m.
•Heating panels installed to a ceiling must be at a height of more than 1.8 m.

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 5
http://www.wiltec.de 07 2023-1

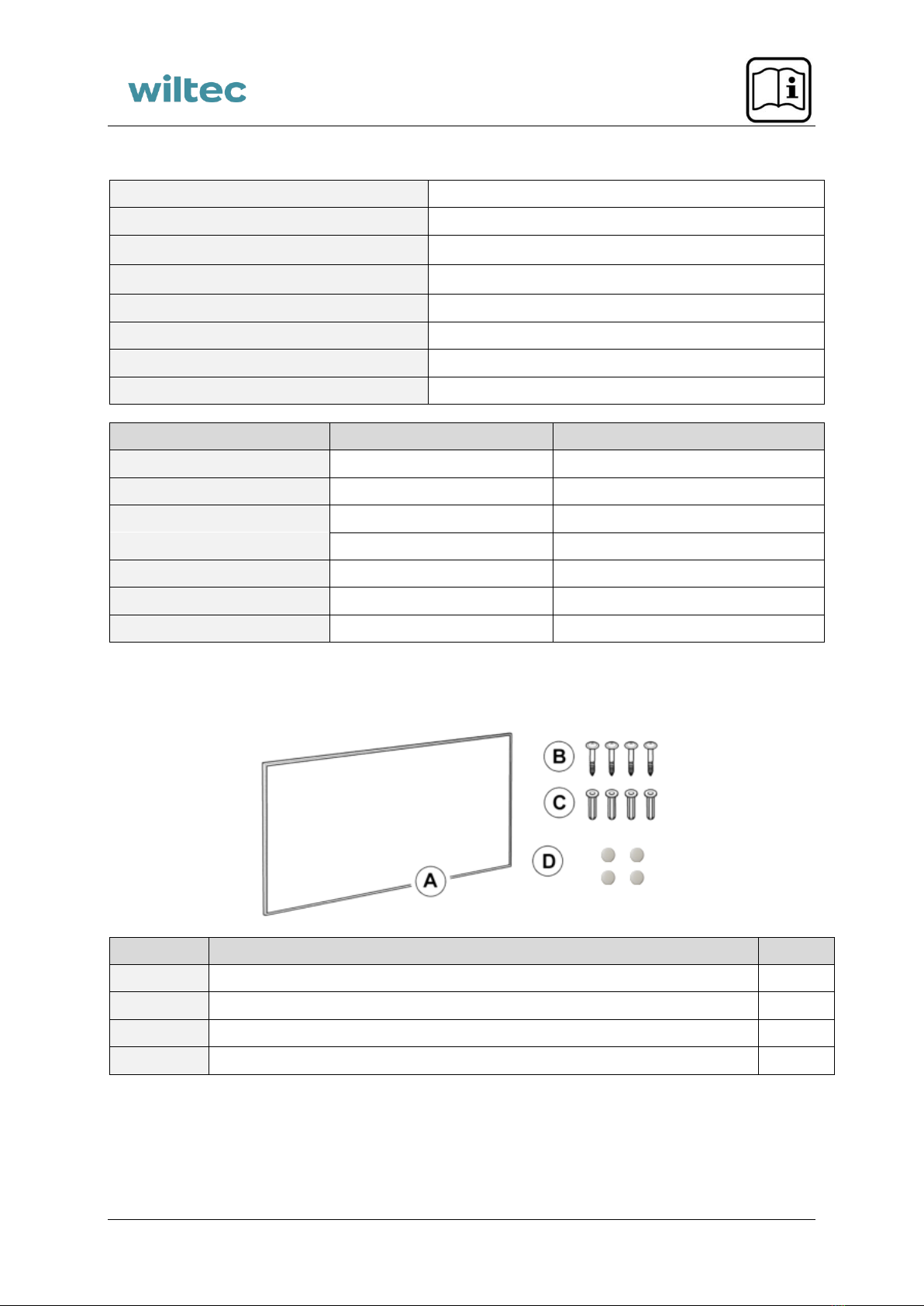

Technical specifications
Heating element
Carbon crystal
Heating type
Remote infrared heating
Input voltage (V/㎐)
220–240 / 50
Surface temperature (℃)
mostly 80–100
Frame
Aluminium
IP code
IP54 (without plug)
Protection against excessive temperature
Yes
Length of mains cable (m)
1.9
Model
Power (W)
Current (A)
64930
290
1.3
64931
350
1.5
64932
400
1.7
64933
520
2.3
64934
700
3.0
64935
850
3.7
64936
1050
4.6
Scope of delivery
Letter
Name
Quantity
A
Heating panel
1
B
Screws
4
C
Dowels
4
D
Rubber plug
4

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 6
http://www.wiltec.de 07 2023-1
Assembly
№
Name
1
Heating layer
2
Aluminium frame
3
Insulating layer
4
Aluminium foil fabric
5
Mounting hole
Installation
Make sure to remove the protective film from the front.
1. Bring the panel to the correct position and mark the holes of the frame. Drill four holes in a wall
or ceiling using a 6-mm rotary drill. Make sure that the positions of the holes are correct.
2. Plug the dowels into the holes.

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 7
http://www.wiltec.de 07 2023-1
3. Stick the screws through the fixation holes of the front plate and screw them into the dowels.
4. Cover the open holes with the rubber plugs.
Troubleshooting chart
Problem
Possible cause
Proposed solution
The device makes noises when
charged with electricity.
Structural tension of the insulat-
ing material
This is a normal behaviour.
The surface of the device has
slightly risen.
Thermal expansion of the sur-
face material
This is a normal behaviour.
The surface of the device is a bit
warm.
1. Voltage too low
2. Low ambient temperature
1. Install voltage regulator.
2. This is a normal behaviour.
Cleaning and maintenance
Actions to be taken before maintenance
Voltage warning!
•Do not touch the device with your hands being damp or wet.
•Hold the plug while pulling the cable out of the socket.
•Wait for the product to completely cool down.
Attention! Works that involve opening the device may exclusively be done by an authorised spe-
cialist.
Cleaning the device
Voltage warning!
•Never immerse the device into water!
•Clean the device with a soft, damp, and lint-free cloth.

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 8
http://www.wiltec.de 07 2023-1
•Make sure that no humidity penetrates into the casing. Protect the electric components against
humidity.
•Do not use aggressive detergents such as cleaning sprays, solvents, alcoholic detergents, or
abrasive substances to dampen the cloth.
•After cleaning, wipe the device dry.
Storage
When not in used, the device must be stored under the following conditions:
•Store in a dry place away from frost and heat!
•Store in upright position and away from dust and direct sunlight! Store covered, if necessary,
to avoid the dust penetrates into the device!
•Store without any other devices or objects standing on the device to avoid damages!
Information requirements for models with remote thermostat
Model
Nominal heat
output Pnom
(kW)
Min. heat out-
put (indicative)
Pmin (kW)
Max. continu-
ous heat output
Pmax.c (kW)
At nominal
heat output
elnom (kW)
At minimal
heat output
elmin (kW)
64930
0.29
0.29
0.29
N/A
N/A
64931
0.35
0.35
0.35
N/A
N/A
64932
0.4
0.4
0.4
N/A
N/A
64933
0.52
0.52
0.52
N/A
N/A
64934
0.7
0.7
0.7
N/A
N/A
64935
0.85
0.85
0.85
N/A
N/A
64936
1.05
1.05
1.05
N/A
N/A
Type of heat input, for electric storage local space heaters only (select one)
Description
Unit
Manual heat charge control, with integrated thermostat
No
Manual heat charge control with room and/or outdoor temperature feedback
No
Electronic heat charge control with room and/or outdoor temperature feedback
No
Fan assisted heat output
No
Type of heating power/room temperature control (select one)
Description
Unit
Single stage heat output and no room temperature control
No
Two or more manual stages and no room temperature control
No
With mechanic thermostat room temperature control
No
With electronic room temperature control
No
Electronic room temperature control plus day timer
No
Electronic room temperature control plus week timer
Ja

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 9
http://www.wiltec.de 07 2023-1
Other control options (multiple selections possible)
Description
Unit
Room temperature control with presence detection
No
room temperature control with open window detection
No
With distance control option
Yes
With adaptive start control
No
With working time limitation
Yes
With black bulb sensor
No

© by WilTec Wildanger Technik GmbH Item 64390–64396 Page 10
http://www.wiltec.de 07 2023-1
Regulations for waste disposal
The Waste Electrical and Electronic Equipment Directive (WEEE Directive, 2012/19/EU) of the EU was
implemented in the German law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE directive are labelled with the symbol of a crossed-
out wheeled rubbish bin. This symbol indicates that this electric device must not be disposed of with the
domestic waste.
WilTec Technik GmbH is registered with the German registration authority EAR (Stiftung Elektro-
Altgeräte Register) under the WEEE-registration number DE45283704.
Disposal of used electrical and electronic devices (in-
tended for use in the countries of the European Union
and other European countries with a separate waste
collection system for these devices).
The symbol on the packaging or the product itself indi-
cates that this product must not be treated as normal
domestic waste but must be disposed of at a recycling
collection station for electrical and electronic waste.
By disposing of this product correctly, you contribute to
the protection of the environment and the health of your
fellow people. Inappropriate disposal threatens the en-
vironment and health.
Material recycling helps to reduce the consumption of raw materials.
Additional information about the recycling of this product can be provided by your local commune, the
municipal waste disposal facilities, or the store where you purchased the product.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
52249 Eschweiler Germany
Important note:
Reproduction and any commercial use (of parts) of this operating manual, requires a written permission
of WilTec Wildanger Technik GmbH.
