WilTec ARTICLE 60252 User manual

Operation Manual
ARTICLE 60252
Panel Radiator
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ
insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
© by WilTec Wildan er Technik GmbH Seite 11
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

The information contained in this document is subject to change without prior notice. o part of this
document can be copied or duplicated in another form without the prior written consent of WilTec
Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in
this user manual or the connection diagram.
Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual
is complete, accurate and updated, errors cannot always be avoided. In the event of problems with
this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report the followin mistakes:
_______________________________ ____________________________________
Customer Service WilTec Wildanger Technik GmbH
e-mail: [email protected]
Tel:++ [phone]
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or
electric shock we ur e that our clients take some basic safety precautions when usin this
device. Please read the operation instructions carefully and make sure you have understood its
content.
Always use a grounded power connection with the appropriate mains voltage. You can
nd the corresponding mains voltage on the type plate. If you have any doubts about the
connection being grounded, have it checked by a qualied professional. Never use a
faulty electric cable.
o not inspect the electrical part of the pressure pond lter in a wet or damp
environment or when you are wet yourself and protect it from direct sunlight. Install this
device in a safe location so that nobody can step on the cable, fall over or damage it.
isconnect the power plug before cleaning it and use only a damp cloth for cleaning.
Avoid using cleaning agents and make sure that no liquid enters the electrical part of the pump.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised
intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
© by WilTec Wildan er Technik GmbH Seite 12
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

Save more than 50% of the heatin costs of your room
READ THE INSTRUCTIONS CAREFULLY: Read and follow all instructions carefully. Place the in-
struction manual in a safe place for future reference. Do not allow anyone who has not read these in -
structions to assemble, switch on, adjust, or operate the heater.
Important safety instructions
PLEASE READ AND KEEP THESE IMPORTANT SAFETY INSTRUCTIONS.
When usin electrical equipment, basic precautions should always be taken to reduce the risk
of fire, electric shock and personal injury, includin the followin :
READ THROUGH ALL I STRUCTIO S BEFORE USI G THIS HEATER.
DO OT USE THIS HEATER I THE IMMEDIATE VICI ITY OF A BATHTUB, SHOWER OR
SWIMMI G POOL. WAR I G: THE HEATER IS OT EQUIPPED WITH A DEVICE FOR
ROOM TEMPERATURE CO TROL.
DO OT USE THIS HEATER I SMALL ROOMS IF THERE ARE PEOPLE I THE ROOM WHO
CA OT LEAVE THE ROOM O THEIR OW , U LESS THEY ARE U DER CO STA T SU-
PERVISIO .
CHILDRE OT BE EAR THE DEVICE U LESS THEY ARE CO TI UOUSLY SUPERVISED.
CHILDRE MAY O LY SWITCH THE APPLIA CE O /OFF IF IT HAS BEE CORRECTLY
PLACED OR I STALLED I ITS I TE DED ORMAL OPERATI G POSITIO A D THEY RE-
CEIVE APPROPRIATE I STRUCTIO S OR SUPERVISIO FOR THE SAFE USE OF THE AP-
PLIA CE A D U DERSTA D THE HAZARDS I VOLVED. CHILDRE SHOULD OT CO -
ECT, SET, CLEA OR CARE THE MACHI E OF THE MACHI E.
THIS DEVICE MAY BE USED BY CHILDRE 8 YEARS OF AGE A D OLDER A D BY PER-
SO S WITH REDUCED PHYSICAL, SE SORY OR ME TAL ABILITIES OR LACK OF EXPERI-
E CE A D K OWLEDGE IF THEY RECEIVE ADEQUATE SUPERVISIO OR DETAILED I -
STRUCTIO S FOR THE SAFE USE OF THE DEVICE A D U DERSTA D THE HAZARDS AS-
SOCIATED THEREWITH. CHILDRE ARE OT ALLOWED TO PLAY WITH THE DEVICE.
CLEA I G A D MAI TE A CE BY THE USER MUST OT BE CARRIED OUT BY CHIL-
DRE WITHOUT SUPERVISIO .
© by WilTec Wildan er Technik GmbH Seite 13
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

IF THE POWER CORD IS DAMAGED, IT MAY O LY BE REPLACED BY THE MA UFAC-
TURER OR A AUTHORIZED SERVICE PART ER. THE CABLE MUST BE REPLACED BE-
FORE THE DEVICE IS PUT I TO OPERATIO I ORDER TO AVOID HAZARDS.
ATTE TIO - SOME PARTS OF THIS PRODUCT MAY BE VERY HOT A D CREATE BUR -
I GS. SPECIAL ATTE TIO IS REQUIRED WHE CHILDRE A D VUL ERABLE PERSO S
ARE PRESE T.
I ORDER TO AVOID OVERHEATI G, THE HEATER MUST OT BE COVERED.
THE HEATER MUST OT BE USED IF THE GLASS PA ES (PLASTER) ARE DAMAGED.
The heater must not be installed directly below a wall socket.
Do not use this heater with an external program switch, timer, or any other device that automati-
cally turns on the heater, as there is a risk of fire if the heater is covered or incorrectly installed.
The heater gets hot when in use. To avoid burns, do not bring naked skin into contact with hot
surfaces. Keep flammable materials such as furniture, pillows, bedding, paper, clothing and cur-
tains at least 0.9 m (3 feet) from the front, sides and back of the heater.
Extreme caution is necessary when using this heater near children or disadvantaged persons and
when leaving the heater unattended.
Always disconnect the heater from the mains when it is not in use.
Do not operate the heater with a damaged cable or plug, or after malfunctions have occurred, the
heater has been dropped or otherwise damaged. Take them to an authorized workshop for in-
spection, electrical or mechanical adjustment or repair.
For indoor use only. For wall mounting only. Do not use outdoors.
This heater is not intended for use in bathrooms, laundry rooms and similar indoor areas. ever
position the heater so that it can fall into the bathtub or other water containers.
Do not route the power cord under any materials. Do not cover the power cord with rugs, runners,
or similar covers. Do not operate the heater after malfunctions have occurred. Do not operate the
heater when the alarm sounds (or lights up). Disconnect the power connection on the fuse box
and have the heater checked by a qualified electrician before reusing it.
© by WilTec Wildan er Technik GmbH Seite 14
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

To prevent possible fire, the space between the heater and the wall intended for the air inlet or
outlet must not be blocked in any way.
This heater has hot and sparking parts inside. Do not use in areas where petrol, paint or
flammable liquids are stored or used.
Use this heater only as described in this manual. Any other use not recommended by the manu -
facturer may result in fire, electric shock, or personal injury.
Avoid using an extension cord as the extension cord may overheat and pose a potential fire haz-
ard.
To avoid overloading a circuit, the heater must not be connected to a circuit (e.g. multiple socket)
to which other devices are already connected. Do not connect the heater below a socket.
It is normal for the plug to feel warm. However, a loose fit between the outlet (plug-socket) and
the plug can cause overheating and deformation of the plug. Contact a qualified electrician to re-
place loose or worn sockets.
The performance of this heater can vary and the temperature can be so intense that the skin can
burn. This heater is not recommended for people with reduced heat sensitivity or an inability to re-
act to burns.
© by WilTec Wildan er Technik GmbH Seite 15
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

PLEASE RETAI THESE I STRUCTIO S.
Instructions for unpackin and fixin to the wall
Unpack the package and find the heater together with the accessory pack.
1. Mark the positions of the four holes on the wall. (The heater must be installed 0.2 m - 1.5 m above
the floor and 1.0 m below the ceiling).
2. Drill the holes from the accessory pack using the drill attachment.
3. Fit the extension tube (the side with arrows should be upside down) into the holes and fix it with
the screws (ST4 * 45mm).
4. Mount the plastic fasteners (side with arrows should be upside down) to the four holes of the panel
radiator and tighten with the screws (M5 * 8mm).
5. Place the panel heater with the plastic fasteners in the extension pipes and tighten it with screws
(ST3 * 12mm) on the sides.
6. To uninstall the unit from the wall, use a screwdriver to loosen only the screws (ST3 * 12mm) that
lock the plastic fasteners and extension tubes and then remove them.
7. Make sure that the distance between the bottom of the heater and the floor is not less than 20cm
when the heater is installed.
© by WilTec Wildan er Technik GmbH Seite 16
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

1. Place the free standing feet on the ground. Align the recesses on both feet. Place the foot on the
switch side at least 12 cm from the other foot and carefully insert the heater into the recesses.
2. Screw the two screws into the holes on the feet.
COMMISSIONING
To put the heater into operation, please follow the instructions below:
1. Check the heater to make sure it is not damaged.
2. Plug in the plug and switch on the device at the illuminated on/off switch.
3. If you do not want to heat the room, switch off the heating.
4. If you do not use the heater for a long period of time, remove the plug from the outlet.
PARTS OF THE CONTROL UNIT
a. On/off switch
b. Control panel
c. Radiator
© by WilTec Wildan er Technik GmbH Seite 17
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

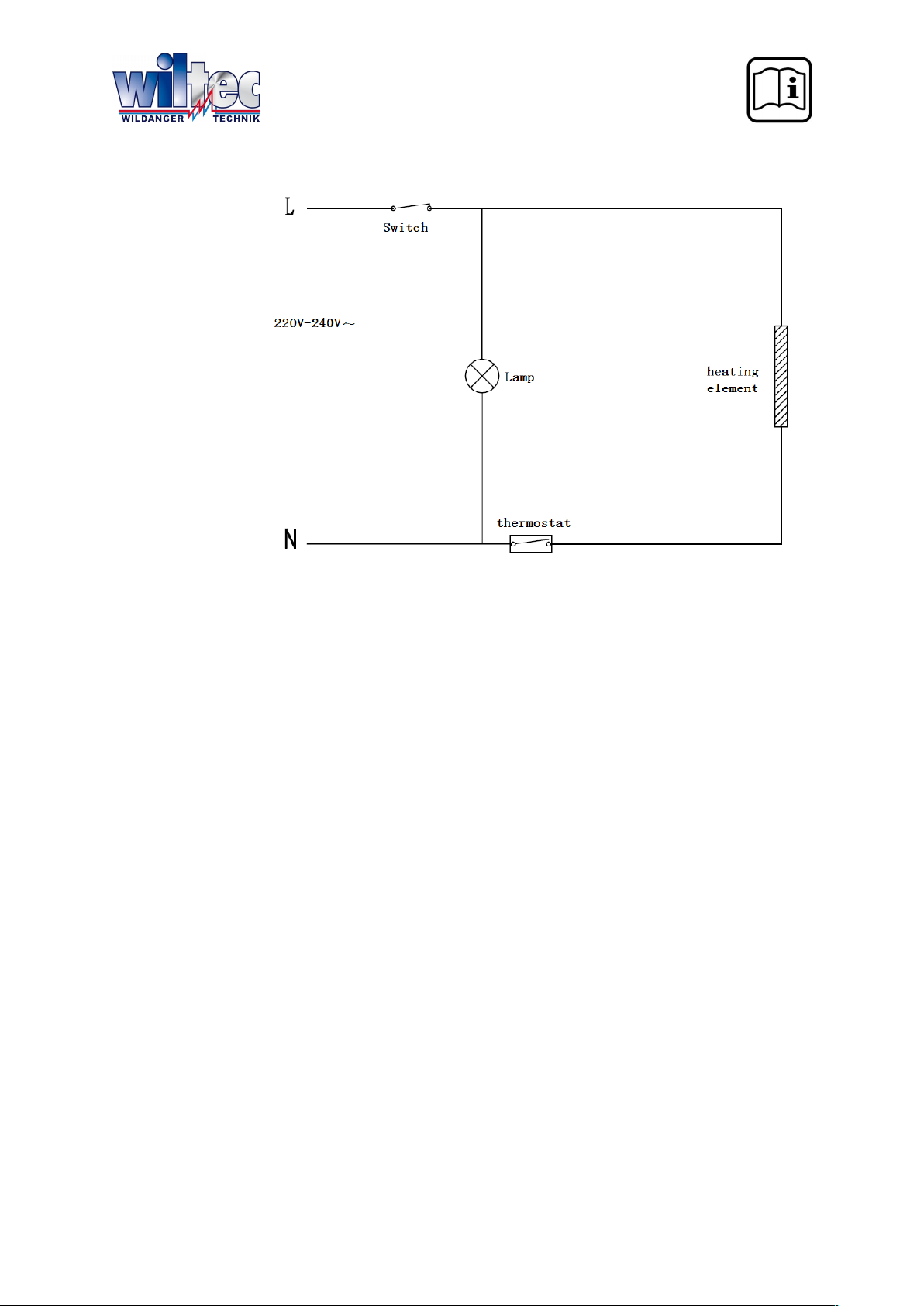

ELECTRICAL CIRCUIT DIAGRAM
TROUBLESHOOTING
If your heater does not work, please follow the instructions below:
Make sure that your circuit breaker or fuse is working properly.
Make sure that the heater is connected to the mains and that the socket is working properly.
If the O /OFF switch in the O position is not illuminated, send the heater directly to the service
center for repair.
NOTE: IF YOU HAVE A PROBLEM WITH YOUR HEATING, PLEASE REFER TO THE INFORMA-
TION IN THE USER MANUAL. PLEASE DO NOT TRY TO OPEN OR REPAIR THE HEATER
YOURSELF. THIS WILL VOID THE WARRANTY AND COULD RESULT IN DAMAGE OR INJURY.
IF THE PROBLEM PERSISTS, PLEASE CONTACT THE DEALER.
CLEANING AND STORAGE
Before cleaning your heater, turn the heater off and let it cool down. Disconnect the power to the appli -
ance. The housing can be wiped with a damp cloth and then dried. Do not use abrasive cleaners or
furniture polishes as these may damage the surface. To remove the heater from the wall for cleaning
or renovation, open the screw cap and remove the screws from the wall.
For short-term storage, simply pull out the plug. For long-term storage, you can remove the heater
from the wall or cover it with a suitable material.
© by WilTec Wildan er Technik GmbH Seite 18
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

TECHNICAL DATA
Model- o.: 60262
Voltage: 220-240V, 50/60Hz
Power: 425 Watt for IWH01 (please read the package information and make sure that your input volt-
age matches the rated input voltage).
Deviations of all technical data: approx. +5%, -10%.
Places with moderate winter: 12 m2 room (425W), 16 m2 room (550W)
Places with cold winters: 9m2 room (425W), 12 m2 room (550W)
PACKLIST
- Radiators: 1 piece
- Accessory pack 1 set:
1 x drill bit (8mm)
4 x extension pipe
4 x screws (ST4 * 45mm)
4 x plastic fastenings
4 x screws (M5 * 8mm)
4 x screws (ST3 * 12mm)
1 x instruction manual
The statutory warranty applies. Please contact your supplier for warranty information. Have your proof
of purchase ready.
© by WilTec Wildan er Technik GmbH Seite 19
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de

Disposal re ulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were
implemented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal
household waste but must be disposed to a recycling
collection point for electronic and electrical waste
equipment. By contributing to the correct disposal of
this article you protect the environment and the health
of your fellow men. Environment and health are
threatened by inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildan er Technik GmbH Seite 20
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de
