WTP-8866-15/19DPLUS
User’s Manual
PN: 205G00WTP88661 V1.1
Copyright  2013, ALL RIGHTS RESERVED.

II
Greeting & Setup
Thank you for purchasing the WTP-8866-15/19DPLUS Panel PC.
We wish that this unit will be durable and reliable in providing your
needs. Please follow the instructions below to ensure the unit
continues to have high performance
Unpacking
After opening the carton, there will be a unit with an accessory box.
Examine the contents to see if there are damages to the unit and
if all accessories are present.
Setting up
Please read this manual carefully and remember to keep this
manual for future reference.
Safety Instructions & Cleaning
The unit has undergone various tests in order to comply with
safety standards. Inappropriate use may be dangerous. Please
remember to follow the instructions below to insure your safety
during the installation and operating process.
Transporting & Placement of unit
1. When moving the unit on a cart; be very cautious. Quick stops,
excessive forces and uneven surfaces may cause the cart to
overturn thus risking the unit to fall to the ground.
2. If the Monitor display unit does fall to the ground, immediately
turn the power off and disconnect cords. Then contact a service
technician for repairs. Continual use of the unit may result

III
cause a fire or electric shock. Also, do not repair the unit on
your own.
3. Before suspending the unit, make sure the material used for
suspension is sturdy and stable. If not properly suspended, the
display unit may fall and cause serious injury to people standing
nearby as well as to the unit itself.
4. If you wish to mount the display unit, remember to use only the
mounting hardware recommended by the manufacturer.
Electrical and Power Source Related
1. This Monitor display unit must operate on a power source as
shown on the specification label. If you are not sure what type
of power supply used in the area, consult your dealer or local
power supplier.
2. The power cords must not be damaged. Applied pressure, added
heat, and tugging may damage the power cord.
3. The power cord must be routed properly when setup takes place.
We advise that this aspect measure is to prevent people from
stepping on the cords or while the unit is suspended to prevent
flying objects from getting tangled with the unit.
4. Do not overload the AC outlets or extension cords. Electrical
shocks or fires may occur from overloading.
5. Do not touch the power source during a thunderstorm.
6. If your hands are wet, do not touch the plug.
7. Use your thumb and index finger, grip firmly on the power cord
to disconnect from the electrical socket. By pulling the power
cord, may result in damaging it.
8. If the unit is not going to be in use for an extended period of

IV
time, remember to disconnect the unit.
9. Connect the unit to a power source with the same numerical
value as spec. label shown. Please use only the power cord
provided by the dealer to ensure safety and EMC compliance.
Various Factors of Environment
1. Having liquids seep in or inserting objects into the unit may
result in electric shocks from taking and/or short circuiting the
internal parts.
2. Do not place unit near heat generating sources.
3. Do not place the unit in a location where it will come in contact
with fumes or steam.
4. If water has flow in or seep in, immediately disconnect power.
Then contact a service technician for repairs.
Servicing, Repairing, Maintenance & Safety Checks
1. If the unit is not functioning properly, observe the performance
level of the display closely to determine what type of servicing
is needed.
2. Do not attempt to repair the unit on your own. Disassembling
the cover exposes users’ to high voltages and other dangerous
conditions. Notify and request a qualified service technician for
servicing the unit.
3. If any of the following situations occur turn the power source off
and unplug the unit. Then contact a qualified service technician
(a) The unit is soaked with liquids.
(b) The unit is dropped or damaged.
(c) If smoke or strange odor is flowing out of the unit.

V
(d) If the power cord or plug is damaged.
(e) When the functions of the unit are dysfunctional.
4. When part replacement is needed. Make sure service technician
uses replacement parts specified by the manufacturer, or those
with the same characteristics and performance as the original
parts. If unauthorized parts are used it may result in starting a
fire, electrical shock and/or other dangers.
Battery Installation
Follow below instructions and notice the caution for replacing and
disposing of the RTC Lithium battery CR2032 for safety
consideration.
CAUTION:
There is danger of explosion, if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer. Dispose of used batteries according to the
manufacturer’s instruction.
The specification is subject to change without notice.

VI
Version Change History
Date
Version
Description
Remark
2013/10/21
V1.0
First release
2014/3/10
V1.1
Power spec. modify

VII
Table of Contents
System Overview(WTP-8866-15D PLUS)......................................8
System View...................................................................................................12
System Overview (WTP-8866-19D PLUS)...................................13
System View...................................................................................................17
BIOS Setup Information................................................................22
2.1 Main Menu..............................................................................................23
2.2 Advanced Menu....................................................................................... 24
2.3 PCI Subsystem Setting............................................................................26
2.4 Advanced BIOS Feature Setup................................................................28
2.29 Password Description............................................................................60
B. Wake UPon LAN Function.......................................................62

8
System Overview(WTP-8866-15D PLUS)
System
CPU
AMD Fusion processor T40N
Chipset
AMD A55E
Graphic
AMD Radeon HD6320
Audio
Realtek ALC662, HD CODEC
LAN
Realtek 8111E x 2
Memory
DDR3 1066 MHz (max 4G)
SATA
1 x SATA II (Max. Data Transfer Rate 300 MB/s)
BIOS
Brand: AMI
Flash ROM size: 16M
Display
Brand
Tianma
Model
TM150TDS50
Resolution (pixel)
1024x768 XGA
Active Area (mm)
304.128 (W) x 228.096 (V)
Outline Dimensions (mm)
326.5 (H) × 253.5 (V) × 11.8
Pixel Pitch (mm)
0.297
Mode
TN
Number of Colors
16.7M
View Angle (H/V)
160/160
Brightness (cd/m2)
400
Contrast Ratio
600:1
Response Time (ms) (at
25°C)
8
Backlight
LED
Weight (g)
1000
life time<Hrs>
50000

9
Touch Screen
AMT 28115 resistive touch screen
Characteristics
Resistive
( 5 wire)
Model name
AMT 28115
Touch Resolution
4096x4096
Stylus use possible
beyond finger
No Limitation, can use any stylus
Glove use possible
Any type glove
Light transmittance
80+-3%
Hardness
3H
Response time
20 ms
Front Panel
Protection –IP65
V
Touch screen Life
36 million activations
Warranty
5 wire: 3 years
Characteristics
Resistive
( 5 wire)
Characteristics
Resistive
( 5 wire)
Touch Controller
RES PENMOUNT 6300, USB TOUCH
Storage
HDD 2.5” SATA HDD drive bay x 1
CF 1 x bootable Compact Flash slot for CF type I/II storages
Expansion slots
Mini-PCIe 52 pin card-edge type x 1 support half/full size (for
WLAN module)
External water/dust resistant I/O (rear side)

10
USB
USB 2.0 x 3 (one is accessible behind front bezel, 2
at rear sides)
LAN
RJ-45 x 1 (Gigabit Ethernet) and PoE power input
Audio
Line-out x 1, with 3.5mm phone jack connector
Power
Power DC-In connector x 1
Power Input DC12V
Power Adapter AC 90 ~ 264V / 47 ~ 63 Hz / DC output 12V,
Power ON/Off and reset buttons at rear side
Mechanical & Environmental
Material construction SUS304 stainless steel enclosure
CPU cooling by Heat sink cooling
Gasket between enclosure and touch screen to minimize residual
material
Water and dust protection IP66 / NEMA4X
Operation Temperature 0~40 ℃ (IEC60068-2-2, no air flow
condition, fanless cooling)
Storage Temperature -20~60 ℃
Operation Relative Humidity 10%~90%, non-condensing
Storage Relative Humidity 10%~90%, non-condensing
Dimensions 395 x 345 x 65 (width, height, thickness)
Mounting VESA (100x100 mmxmm)
WTP-8866-15D PLUS Net weight 8.8 KG
WTP-8866-15D PLUS +Wall Mount net weight: 12 KG
WTP-8866-15D PLUS +Wall Mount gross weight: 13.5 KG
Packing list

11
1. WTP-8866-15D PLUS
2. CD-Title for driver and manual
3. Power adapter
4. Power cord
5. Options
Regulatory
FCC-A, CE (EMC)

12

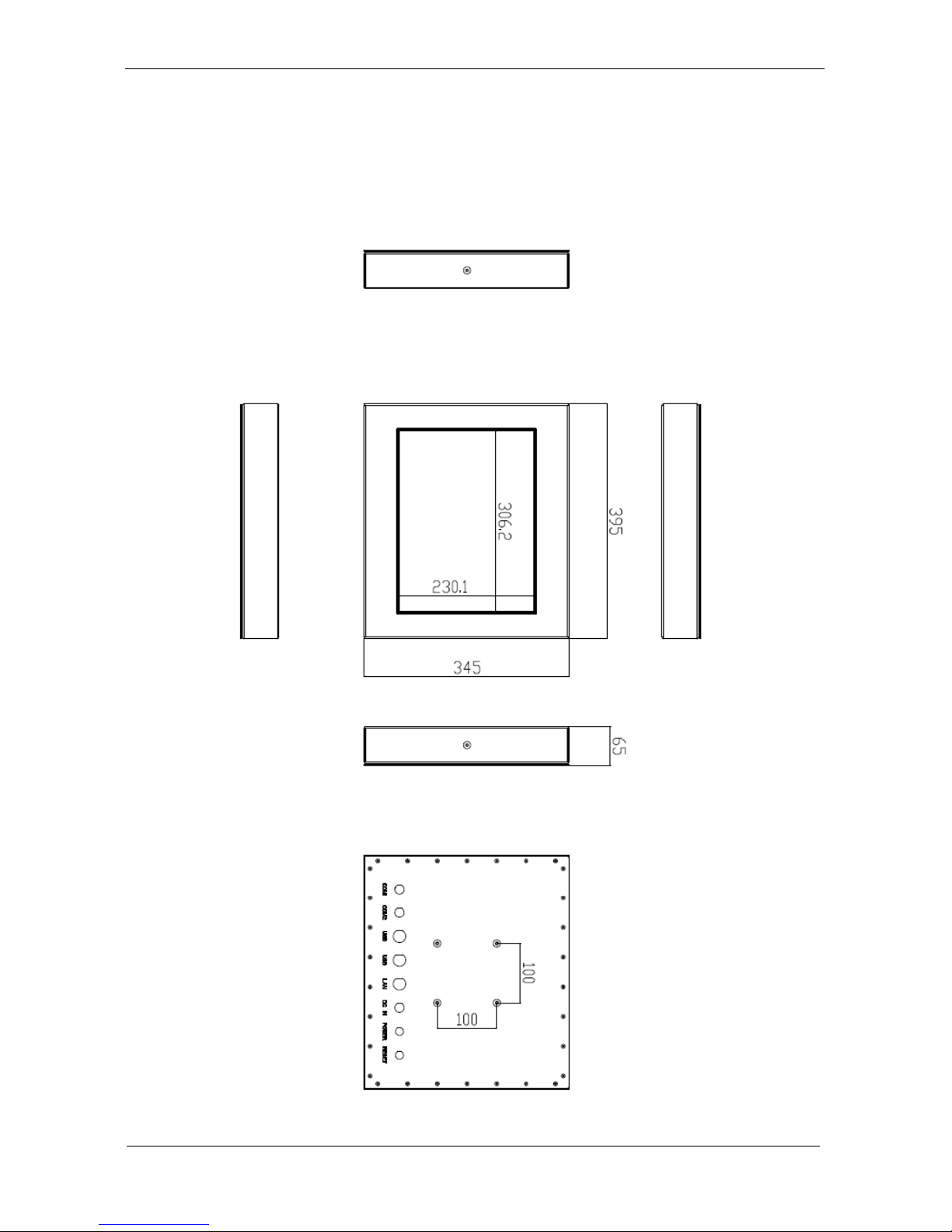

System View

13
System Overview (WTP-8866-19D PLUS)
System
CPU
AMD Fusion processor T40N
Chipset
AMD A55E
Graphic
AMD Radeon HD6320
Audio
Realtek ALC662, HD CODEC
LAN
Realtek 8111E x 2
Memory
DDR3 1066 MHz (max 4G)
SATA
1 x SATA II (Max. Data Transfer Rate 300 MB/s)
BIOS
Brand: AMI
Flash ROM size: 16M
Display
Panel AUO G190EG01 V0
Size
19"
Model
G190EG01 V0
Resolution (pixel)
SXGA (1280 x 1024)
Aspect Ratio
5:4
Active Area (mm)
376.32 (H) x 301.06(V)
Pixel Pitch (mm)
0.294
Mode
Normally White
Number of Colors
16.7M
Color Saturation (NTSC %)
72
View Angle (H/V)
170 / 160
Brightness (cd/m²)
450 (Typ. Center point)
Contrast Ratio
1000 : 1 (Typ)
Response Time (ms) (at
25°C)
5 (Typ)

14
Power Consumption
(W)(typ)
26.71 W
Interface
2ch LVDS
Supply Voltage (V)
5
Backlight
CCFL
Outline Dimensions (mm)
396.0 x 324.0 x 18.5
Weight (g)
2400 (Typ)
Touch Screen
AMT
Model name
AD-2511
Type
5 wire RES
Glove
Any type glove
Stylus
No Limitation, can use any stylus
Interface
USB
Light Transmission
80± 3%
Hardness
3H
Glass thickness
1.8mm
Linearity
X ≦ 1.5%, Y ≦ 1.5%
Active area
212x159.20
Resolution
4096x4096
Lifetime
36 million activations
Touch Controller
RES PENMOUNT 6300, USB TOUCH
Storage
HDD 2.5” SATA HDD drive bay x 1
CF 1 x bootable Compact Flash slot for CF type I/II storages
Expansion slots

15
Mini-PCIe 52 pin card-edge type x 1 support half/full size (for
WLAN module)
External water/dust resistant I/O (rear side)
USB
USB 2.0 x 3 (one is accessible behind front bezel, 2
at rear sides)
LAN
RJ-45 x 1 (Gigabit Ethernet) and PoE power input
Audio
Line-out x 1, with 3.5mm phone jack connector
Power
Power DC-In connector x 1
Power Input DC12V
Power Adapter AC 90 ~ 264V / 47 ~ 63 Hz / DC output 12V,
Power ON/Off and reset buttons at rear side
Mechanical & Environmental
Material construction SUS304 stainless steel enclosure
CPU cooling by Heat sink cooling
Gasket between enclosure and touch screen to minimize residual
material
Water and dust protection IP66 / NEMA4X
Operation Temperature 0~40 ℃ (IEC60068-2-2, no air flow
condition, fanless cooling)
Storage Temperature -20~60 ℃
Operation Relative Humidity 10%~90%, non-condensing
Storage Relative Humidity 10%~90%, non-condensing
Dimensions 395 x 345 x 65 (width, height, thickness)
Mounting VESA (100x100 mmxmm)
WTP-8866-19DPLUS Net weight 8.8 KG

16
WTP-8866-19DPLUS+Wall Mount net weight: 12 KG
WTP-8866-19DPLUS+Wall Mount gross weight: 13.5 KG
Packing list
6. WTP-8866-19DPLUS
7. CD-Title for driver and manual
8. Power adapter
9. Power cord
10. Options
Regulatory
FCC-A, CE (EMC)

17

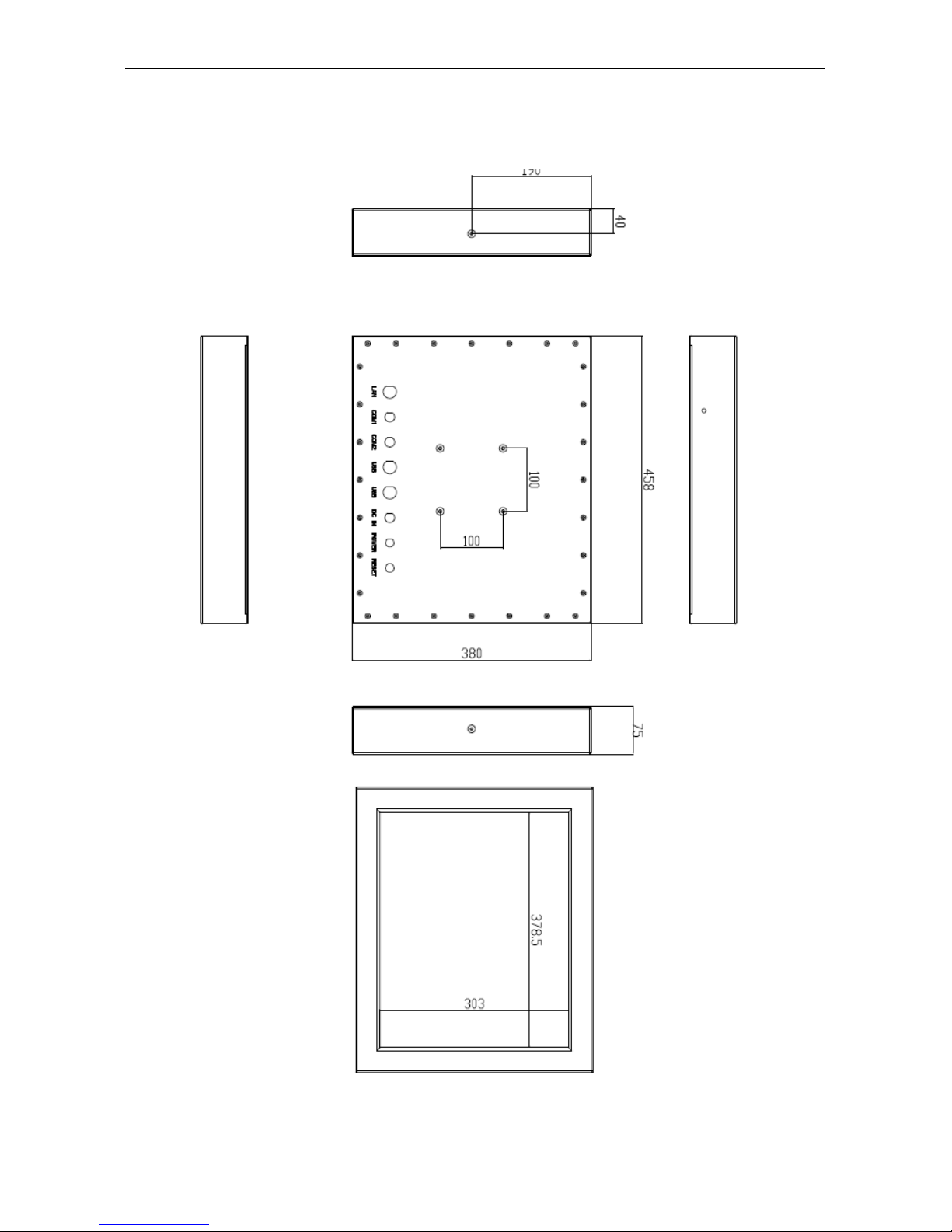

System View

18
Setting up the System
The following is a summary of the steps in setting up the
system for use.
CAUTION: Make sure that power to the system and
each of the devices to be connected is switched OFF
before plugging in the connectors.
1. Make any required external connections such as the
keyboard, and mouse.
2. Plug the appropriate end of the power cord into the power
connector of the system. Then plug the other end of the power
cord to an electrical outlet.
3. Press the power switch of the system to turn on the system’s
power.
4. If necessary, run the BIOS SETUP program to configure the
system (see Chapter 3).
5. Install the software drivers if necessary.

19
Installing System Software
Recent releases of operating systems from major vendors include
setup programs, which load automatically and guide you through
hard disk preparation and operating system installation. The
guidelines below will help you determine the steps necessary to
install your operating system on the Panel PC hard drive.
NOTE: Some distributors and system integrators
may have already pre-installed system
software prior to shipment of your Panel PC.
Installing software requires an installed HDD. Software can be
loaded in the WTP-8866-15/19DPLUS Panel PC using any of below
methods:
Method 1: Use the Ethernet
You can use the Ethernet port to download software from the
net to the HDD that has been pre-installed in
WTP-8866-15/19DPLUS Panel PC
Method 2: Use the COM Port
By connecting another PC to the WTP-8866-15/19DPLUS Panel
PC with an appropriate cable, you can use transmission
software to transmit Operation System Software to the HDD
that has been pre-installed in the WTP-8866-15/19DPLUS Panel
PC.
Method 3: Use a External CD-ROM
In order to boot up system from USB-CD/DVD drive, please
connect USB-CD/DVD drive, turn on computer power, keep on
pressing “F11” key, go into BIOS quick boot menu, select
“USB-CD ROM”, WAIT FOR 20 SECONDS, then press enter,
system OS will boot up from USB-CD/DVD drive directly

20
Then you can use the external CD-ROM to transmit the software
to the HDD that has been pre-installed in the
WTP-8866-15/19DPLUS Panel PC
