Wincomm WTP-8B66-15O User manual

WTP-8B66-15O
User’s Manual
Version V1.0
Copyright 2016, ALL RIGHTS RESERVED.
All other brand names are registered trademarks of their respective owner

Copyright Notice
Copyright © 2015
All Rights Reserved.
Printed in Taiwan.
The information contained in this document is subject to change without any notices.
Acknowledgments
Greeting & Setup
Thank you for purchasing theWTP-8B66-15O-15O Panel PC. We wish that this unit will be durable and reliable in
providing your needs. Please follow the instructions below to ensure the unit continues to have high performance
Unpacking
After opening the carton, there will be a unit with an accessory box. Examine the contents to see if there are
damages to the unit and if all accessories are present.
Setting up
Please read this manual carefully and remember to keep this manual for future reference.
Safety Instructions & Cleaning
The unit has undergone various tests in order to comply with safety standards. Inappropriate use may be
dangerous. Please remember to follow the instructions below to insure your safety during the installation and
operating process.
Transporting & Placement of unit
1. When moving the unit on a cart; be very cautious. Quick stops, excessive forces and uneven surfaces may
cause the cart to overturn thus risking the unit to fall to the ground.
2. If the Monitor display unit does fall to the ground, immediately turn the power off and disconnect cords. Then
contact a service technician for repairs. Continual use of the unit may result cause a fire or electric shock. Also,
do not repair the unit on your own.
3. Having two or more people transporting the display unit is recommended. In addition, when installing the open
frame by suspending it also requires two or more people.
4. Before suspending the unit, make sure the material used for suspension is sturdy and stable. If not properly
suspended, the display unit may fall and cause serious injury to people standing nearby as well as to the unit
itself.
5. If you wish to mount the display unit, remember to use only the mounting hardware recommended by the
manufacturer.
Electrical and Power Source Related
1. This Monitor display unit must operate on a power source as shown on the specification label. If you are not
sure what type of power supply used in the area, consult your dealer or local power supplier.
2. The power cords must not be damaged. Applied pressure, added heat, and tugging may damage the power
cord.
3. The power cord must be routed properly when setup takes place. We advise that this aspect measure is to
prevent people from stepping on the cords or while the unit is suspended to prevent flying objects from getting

tangled with the unit.
4. Do not overload the AC outlets or extension cords. Electrical shocks or fires may occur from overloading.
5. Do not touch the power source during a thunderstorm.
6. If your hands are wet, do not touch the plug.
7. Use your thumb and index finger, grip firmly on the power cord to disconnect from the electrical socket. By
pulling the power cord, may result in damaging it.
8. If the unit is not going to be in use for an extended period of time, remember to disconnect the unit.
9. Connect the unit to a power source with the same numerical value as spec. label shown. Please use only the
power cord provided by the dealer to ensure safety and EMC compliance.
Various Factors of Environment
1. Do not insert objects into the openings.
2. Do not have liquids seep into the internal areas of the Monitor display unit.
3. Having liquids seep in or inserting objects into the unit may result in electric shocks from taking and/or short
circuiting the internal parts.
4. Do not place the Monitor display unit in the presence of high moisture areas.
5. Do not install the Monitor display unit in a wet environment.
6. Do not place near unit near heat generating sources.
7. Do not place the unit in a location where it will come in contact with fumes or steam.
8. Remember to keep the Monitor display unit away from the presence of dust.
9. If water has flow in or seep in, immediately disconnect the open frame unit. Then contact a service technician
for repairs.
Ventilation Spacing
1. Do not cover or block the openings on the top and back sides of the display unit. Inadequate ventilation may
cause overheating thus reducing the lifespan of the unit.
2. Unless proper ventilation is present, do not place unit in an enclosed area; such as a built-in shelf. Keep a
minimum distance of 10 cm between the display unit and wall.
Cleaning the unit
1. Remember to turn off the power source and to unplug the cord from the outlet before cleaning the unit.
2. Carefully dismount the unit or bring the unit down from suspension to clean.
3. Use only a dry soft cloth or clean room wiper when cleaning the LCD panel or touch screen surface. Use a soft
cloth moistened with mild detergent to clean the display housing.
4. Remember to avoid having liquids seep into the internal components.
Servicing, Repairing, Maintenance & Safety Checks
1. If the unit is not functioning properly, observe the performance level of the display closely to determine what
type of servicing is needed.
2. Do not attempt to repair the Monitor display unit on your own. Disassembling the cover exposes users’ to high
voltages and other dangerous conditions. Notify and request a qualified service technician for servicing the
unit.
3. If any of the following situations occur turn the power source off and unplug the unit. Then contact a qualified
service technician

i. A liquid was spilled on the unit or objects have fallen into the unit.
ii. The unit is soaked with liquids.
iii. The unit is dropped or damaged.
iv. If smoke or strange odor is flowing out of the open frame unit.
v. If the power cord or plug is damaged.
vi. When the functions of the unit are dysfunctional.
4. When part replacement is needed. Make sure service technician uses replacement parts specified by the
manufacturer, or those with the same characteristics and performance as the original parts. If unauthorized
parts are used it may result in starting a fire, electrical shock and/or other dangers.
Battery Installation
Follow below instructions and notice the caution for replacing and disposing of the RTC Lithium battery CR2032 for
safety consideration.
CAUTION:
There is danger of explosion, if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instruction.

Version Change History
Date Version Description Remark
2016/07/28 Draft First release Ivy
2016/08/29 V1.0 Final release Ivy

2
How to Use This Manual .................................................... 3
System Overview ..................................................... 4

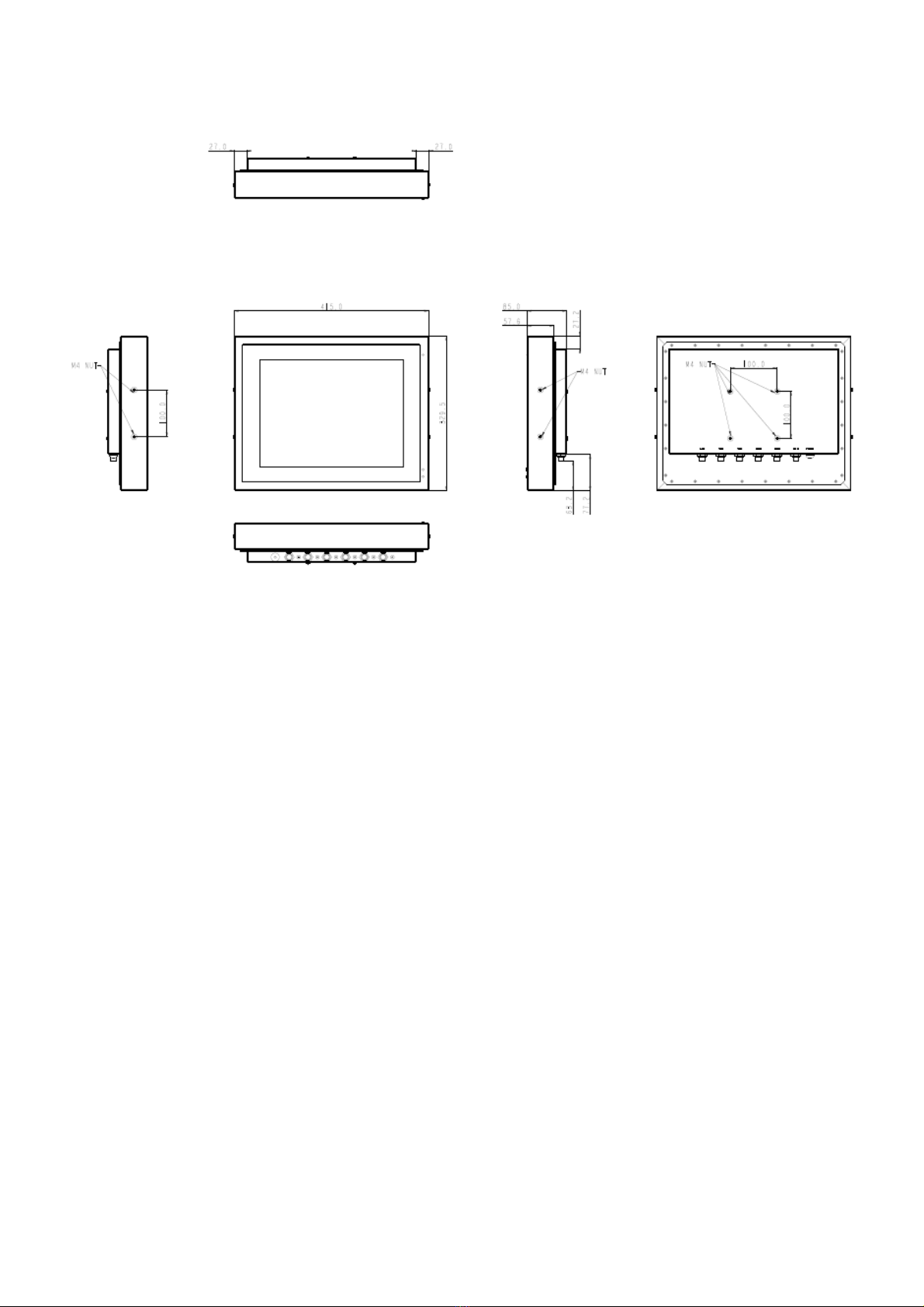

System View ....................................................................... 9
Setting up the System........................................................ 10
Installing System Software ............................................... 10
Installing the Drivers......................................................... 10
BIOS Setup Information......................................... 12
Appendix .............................................................. 20
A. Jumper settings and Connectors ........ 20
Visor Assemble Instruction .......................... 38

3
How to Use This Manual
This manual is written for the system integrator, PC technician and knowledgeable PC end user. It describes how to
configure yourWTP-8B66-15O Panel PC to meet various operating requirements. The user’s manual is divided
into three chapters, with each chapter addressing a basic concept and operation of the server board.
Chapter 1: System Overview - presents what you have inside the box and gives you an overview of the
product specifications and basic system architecture for theWTP-8B66-15O Panel PC.
Chapter 2: System Installation - describes how to set up the system.
Chapter 3: BIOS Setup Information - specifies the meaning of each setup parameter, how to get advanced
BIOS performance and update to a new BIOS. Additionally, the POST checkpoint list will give you a guide for
troubleshooting.
The contents of this manual are subject to change without prior notice. These changes will be incorporated in new
editions of this manual.
Touch Chemical Resistance

4
System Overview
System
CPU Intel® Atom E3845 processor 10W
Graphic Intel® HD Graphics
AN Intel I210-IT Gigabit Ethernet x 2
Memory Dual Channel, two DDR3 SODIMM socket support up to 8GB DDR3L-1333
Serial ATA SATA II controller (3.0Gb/sec) Port x 2
Serial port External RS232/RS422/RS485 x 1(Set BIOS, RS485 auto flow), RS232 x 1
Internal RS232 x 1
RS232 (Jumper 5V, 12V) x1
USB External USB 2.0 M12 x 4
Internal Mini-PCIE x 2(default) or USB 2.0 pinhead x 2(co-layout)
Touch x 1
USB 2.0 Pin head X 2
WDT Generates system reset; 256 segments, 0, 1, 2…25
BIOS
Brand: AMI
Flash ROM size: 64Mb
Support RTC wakeup /Wake on AN /Power on after power failure/PnP/ACPI/RTC

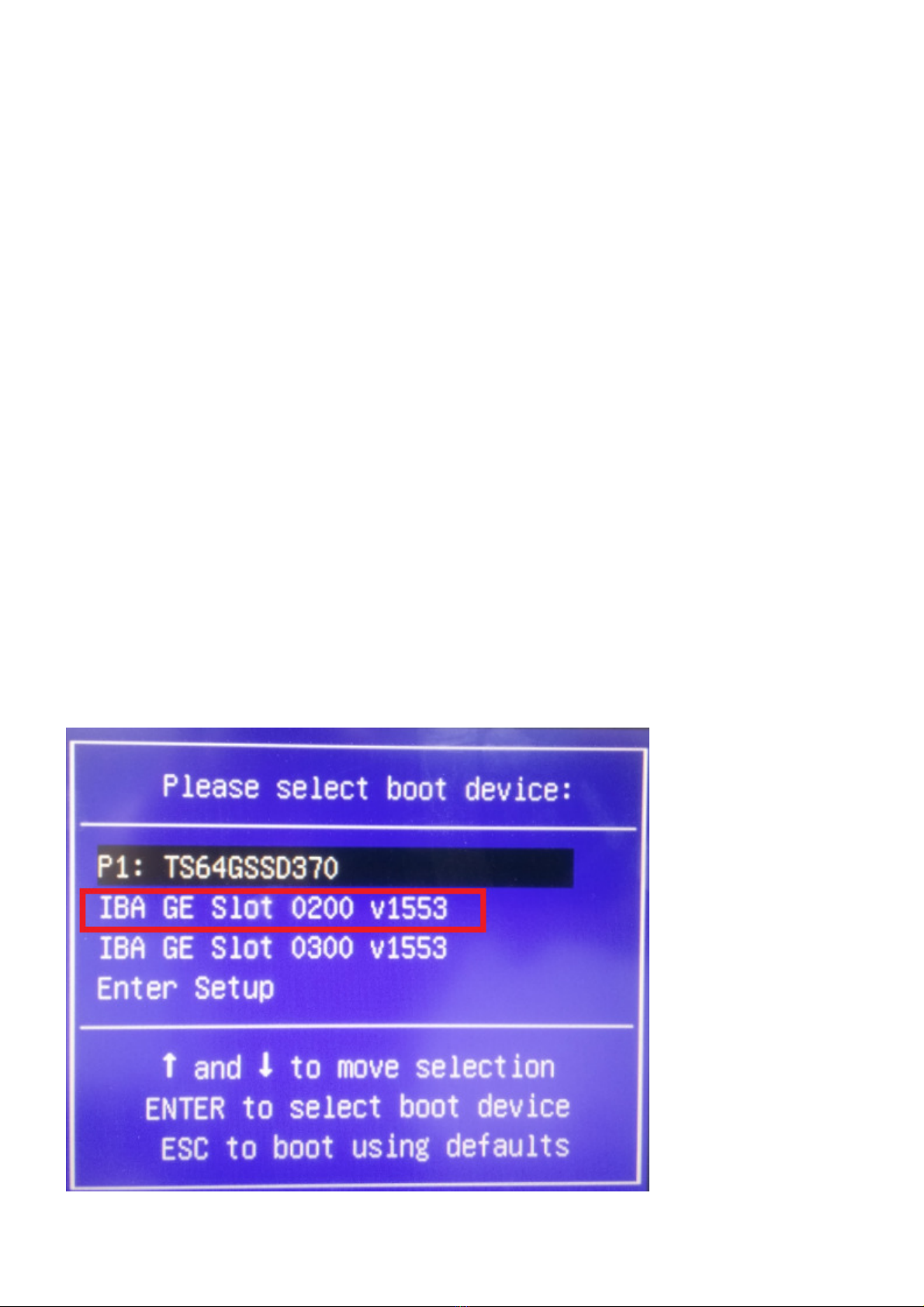

Press F11 to Quick boot menu.
Select First LAN port for PXE boot.

5
Display
Brand Civue
Resolution (pixel) XGA (1024 x 768 pixels)
Active Area (mm) 304.1 (H) x 228.1(V) (15.0”diagonal)
Outline Dimensions (mm) 326.5 x 253.5 x 11.528
Pixel Pitch (mm) 297x297
Display Mode Normally white
Vie Angle (H/V) 80/70
Brightness (cd/m2) 1000
Contrast Ratio 700:1
Response Time (ms) (at 25°C) Tr 5 Tf 11
Backlight ED
Weight (g) 1134
life time<Hrs> 50000
Touch Screen
Brand DMC
Glove Special glove for PCT only
Number of fingers defult setting : 1pt
Interface USB
Light Transmission 91%
Hardness Over 5H
Glass thickness 2.35mm( included adhesive sheet 1.15mm)
Active area 305x229mm
Vie ing area 308.6x232.2
Lifetime 50000000 hits
Touch limitations
Dry / Moisture
Drag Normal
Placement Angle of elevation 0∘~ 90∘
UI Design UI icon spacing & edge > mm
Gloves special glove for PCT only
Point 1pt
Touch Point Accuracy +/- 5mm. (Note)
*Note: the touch point accuracy around edge about 1.5cm = +/- 15mm(max)

6
Water drip / pouring et
Drag Medium risk of false touch
Placement Angle of elevation 0∘~ 90∘
UI Design UI icon spacing & edge > mm
Gloves special glove for PCT only
Point 1pt
Touch Point Accuracy +/- 5mm. (Note)
*Note: the touch point accuracy around edge about 1.5cm = +/- 15mm(max)
Storage
SSD 128GB 2.5" SATA SSD 3MG2-P x 1
Expansion slots
Mini-PCIe 52 pin card-edge type x 2 support half/full size (for W AN module)
External ater/dust resistant I/O (rear side)
USB 1 x M12 8pin for USB 1/2
1 x M12 8pin for USB 3/4
COM 1 x M12 8pin for COM 1/RS-232/422/485 (Default RS-232)
1 x M12 8pin for COM 2/RS-232
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485: Tx+, Tx-, Rx+, Rx-, GND
AN 1 x M12 8pin for AN 1
Power 1 x M12 5pin DC power connector
Po er
Power DC-In connector x 1
Power Input DC 7V~32V
Power Adapter input 100-277V~ 47 ~ 63 Hz / DC output 24V,,
Power Consumption 40.9W
Optical solutions
1. Sunlight readability by optical bonding between touch and CD
bonding thickness 1mm
transmission rate >95%.

7
LED status indicator
1. System power on: green
2. SSD accessing: orange
Auto control
1. CD dimming
2. CD brightness ( panel brightness down till 33% when panel T-case is 80°C )
Mechanical & Environmental
Material construction SECC powder coating, light color, full flat chassis type
Cooling Design Smart Fan x 2 (panel T-case is 70°C and over70°C)
Water and dust protection IP66 / NEMA4X
Operation Temperature ow temperature: -20°C
High temperature (IEC-60068-2-5):
W/ 1120W/m
2
solar energy: 45°C
W/ 900W/m
2
solar energy: 51°C
Air flow (semi-outdoor): -20~60°C
Storage Temperature -20~65 ℃
Operation Relative Humidity 10%~90%, non-condensing
Storage Relative Humidity 10%~90%, non-condensing
Dimensions 415x329.5.5x85
Net Weight 10.2kg
Gross Weight 16kg
Mounting VESA (100x100 mmxmm), Side mount (M6*2)
Sunlight readable Covered with full flat AR glass
OS support Win7 32Bit, Win7 64Bit, Win8 32Bit, Win8 64 Bit, and Win10 64 Bit
Options
1. Wireless or WIFI and BT kit (2 ant)
2. Waterproof COM cable, cable length is 2 meters
3. Waterproof USB cable, cable length is 2 meters
4. Waterproof AN cable, cable length is 2 meters
Packing list
1. WTP-8B66-15O
2. DVD-Title for driver and manual
3. Power adapter
4. Power cord
5. Shelter case

8
Regulatory
FCC, CE (EMC), VCCI class B
Shock/Vibration/Drop
Customization:
1. Barcode reader
2. IP67
Configurations:
WTP-8B66-15O, CPU E3845, Wide temp 2G RAM, wide temp128G SSD, 4 USB, 2 COM, 1 AN
Shock Vibration Drop
General
Operating:
Pulse shape ： Half-sine
waveform
Impact acceleration ： 15g
Pulse duration ： 11 ms
Number of shocks ： 18
shocks (3 shock for each
±
axis)
Orientation ：± X, ± Y and ±
Z axes
Operating:
5 ~ 500Hz , Acceleration ： 1.0G
Sweep time ： 15 minutes
Number of cycle ： 1 cycle for each axis
Vibration axes ： X, Y and Z
According to
ISTA Project 2A
to determine a drop height in
the following chart.
(test surface: concrete, with
packing)6 surfaces
Package-product
Weight
Drop
Height
21-40.99 lb
(9.53-18.59kg)
32 in.
(0.813
m)

9
System View
WTP-8B66-15O Outline Drawing

10
Setting up the System
The following is a summary of the steps in setting up the system for use.
CAUTION: Make sure that power to the system and each of the devices to be connected is switched OFF before
plugging in the connectors.
1. Make any required external connections such as the keyboard, and mouse.
2. Plug the appropriate end of the power cord into the power connector of the system. Then plug the other end of
the power cord to an electrical outlet.
3. Press the power switch of the system to turn on the system’s power.
4. If necessary, run the BIOS SETUP program to configure the system (see Chapter 3).
5. Install the software drivers if necessary.
Installing System Software
Recent releases of operating systems from major vendors include setup programs, which load automatically and
guide you through hard disk preparation and operating system installation. The guidelines below will help you
determine the steps necessary to install your operating system on the Panel PC hard drive.
NOTE: Some distributors and system integrators may have already pre-installed system software prior to
shipment of your Panel PC.
Installing software requires an installed HDD. Software can be loaded in theWTP-8B66-15O Panel PC using any of
below methods:
Method 1: Use the Ethernet
You can use the Ethernet port to download software from the net to the HDD that has been pre-installed
inWTP-8B66-15O Panel PC
Method 2: Use the COM Port
By connecting another PC to theWTP-8B66-15O Panel PC with an appropriate cable, you can use transmission
software to transmit Operation System Software to the HDD that has been pre-installed in theWTP-8B66-15O
Panel PC.
Method 3: Use a External CD-ROM
In order to boot up system from USB-CD/DVD drive, please connect USB-CD/DVD drive, turn on computer
power, keep on pressing “F11” key, go into BIOS quick boot menu, select “USB-CD ROM”, WAIT FOR 20
SECONDS, then press enter, system OS will boot up from USB-CD/DVD drive directly
Then you can use the external CD-ROM to transmit the software to the HDD that has been pre-installed in
theWTP-8B66-15O Panel PC
Installing the Drivers
After installing your system software, you will be able to set up the LAN, VGA, Audio and USB functions. All drivers
are stored in a CD disc, which can be found in your accessory pack.
The various drivers and utilities in the disc have their own text files that help users install the drivers and understand
their functions.

11
Follow the sequence below to install the drivers:
Step 1 – Install Intel® INF Driver
Step 2 – Install Intel® VGA Driver
Step 3 – Install Intel® LAN Driver
Step 4 – Install Audio Driver
Step 1 – Install Intel® INF Driver
1. Open fie of chipset
2. Click on the setup.exe
3. Follow the instructions that the window shows
4. The system will help you install the driver automatically
5. Reboot system
Step 2 –Install Intel® VGA Driver
1. Open fie of VGA
2. Select the OS folder your system is
3. Click on the .exe file located in the OS folder
4. Follow the instructions that the window shows
5. The system will help you install the driver automatically
6. Reboot system
Step 3 – Install Intel® LAN Driver
1. Open fie of LAN
2. Click on the setup.exe
3. Follow the instructions that the window shows
4. The system will help you install the driver automatically
5. Reboot system
Step 4 – Install Audio Driver
1. Open fie of LAN
2. Click on the setup.exe
3. Follow the instructions that the window shows
4. The system will help you install the driver automatically
5. Reboot system

12
BIOS Setup Information
BIOS Introduction
The AMI BIOS (Basic Input / Output System) installed in your computer system’s ROM supports Intel processors.
The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports.
It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset
controlling the entire system.
BIOS Setup
The AMI BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS
ROM of the system stores the Setup utility. When you turn on the computer, the AMI BIOS is immediately activated.
Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del>
key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If
you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>,
<Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message
will appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change
entries, <F1> for help and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to
select from various setup functions and exit choices.
Main
This section provides information on the BIOS information, Memory information, and Battery information
System Date
Set the system date. Use the <Tab> key to switch between data elements.
System Time
Set the system time. Use the <Tab> key to switch between time elements.

13
Advanced
Launch OpROM Support
Launch PXE OpROM
Enables or disables Boot Option for Legacy Network Devices.
Launch Storage OpROM
Enables or disables Boot Option for Legacy Mass Storage Devices with Option ROM.
PCI Subsystem Settings
PCI ROM Priority
In Case of multiple Option ROMs (Legacy and EFI Compatible), specifies what PCI Option ROM to launch.
PCI Latency Timer
Value to be programmed into PCI Latency Timer Register.
VGA Palette Snoop
Enables or disables VGA Palette Registers Snooping.
PERR# Generation
Enables or Disables PCI Device to Generate PERR#.
SERR# Generation
Enables or Disables PCI Device to Generate SERR#.
Relaxed Ordering
Enables or Disables PCI Express Device Relaxed Ordering.
Extended Tag
If ENABLED allows Device to use 8-bit Tag field as a requester.
No Snoop
Enables or Disables PCI Express Device No Snoop option.
Maximum Payload
Set Maximum Payload of PCI Express Device or allow System BIOS to select the value
Maximum Read Request
Set Maximum Read Request Size of PCI Express Device or allow System BIOS to select the value.
ASPM Support

14
Set the ASPM Level: Force L0 – Force all links to L0 State : AUTO – BIOS auto configure : DISABLE – Disables
ASPM.
Extended Synch
If ENABLED allows generation of Extended Synchronization patterns.
ACPI Settings
Enables ACPI Auto Conf
Enables or Disables BIOS ACPI Auto Configuration.
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with
some OS.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.
S5 RTC Wake Settings
Wake System with Fixed Time
Enables or disables system wake on alarm event. When enabled, the system will wake on the time specified.
Wake system with Dynamic Time
Enables or disables system wake on alarm event. When enabled, the system will wake on the current
time+Increase minute(s).
CPU Configuration
Hyper-Threading
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS
(OS optimized for Hyper-Threading Technology)
Core-Multi Processing
Enable or Disable Core-Multi Processing mode.
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS
(Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.)
Limit CPUID Maximum
Disabled for Windows XP.
IDE Configuration
ATA or IDE Configuration
Select ATA or IDE configuration.
Configure SATA AS
Select a configuration for SATA controller.
HDD Acoustic Power Ma
Option to enable or disable HDD Acoustic Power Management.
DiPM
Option to enable or disable DiPM
Intel IGD SWSCI OpRegion
DVMT Mode Select
Selects DVMT Mode used by Internal Graphics Device.
DVMT/FIXED Memory

15
Selects DVMT/FIXED Mode Memory size used by Internal Graphics Device.
IGD – Boot Type
Select the Video Device which will be activated during POST. This has no effect if external graphics present.
LCD Panel Type
Select LCD panel used by Internal Graphics Device by selecting the appropriate setup item.
Panel Scaling
Select the LCD panel scaling option used by the Internal Graphics Device.
GMCH BLC Control
Back Light Control Setting
BIA Control
Spread Spectrum clock
>>Hardware: Spread is controlled by chip;
>>Software: Spread is controlled by BIOS.
TV1 Standard
TV2 Standard
Active LFP
Select the Active LFP Configuration.
No LVDS:VBIOS does not enable LVDS.
INT-LVDS:VBIOS enables LVDS driver by Integrated encoder.
SDV0 LVDS:VBIOS enables LVDS driver by SDV0.
USB Configuration
Legacy USB Support
Allows USB devices to be used in MS-DOS.
EHCI Hand-off
This is a workaround for 0Ses without EHCI hand-off support. The EHCI ownership change should be claimed
by EHCI driver.
USB transfer time-out
The time-out value for Control, Bulk, and Interrupt transfers.
Device reset time-out
USB mass storage device Start Unit command time-out.
Device power-up delay
Maximum time the device will take before it properly reports itself to the HOST Controller.
‘Auto’ uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.
F71869 Super IO Configuration
Serial Port 0 Configuration
Set Parameters of Serial Port 0 (COM A).
Serial Port 1 Configuration
Set Parameters of Serial Port 1 (COM B).
F71869 H/W Monitor
Monitor hardware status
Second Super IO Configuration
Serial Port 1 Configuration

16
Set Parameters of Serial Port 1 (COM C).
Serial Port 2 Configuration
Set Parameters of Serial Port 2 (COM D).
Serial Port 3 Configuration
Set Parameters of Serial Port 3 (COM E).
Serial Port 4 Configuration
Set Parameters of Serial Port 4 (COM F).
Serial Port Console Redirection
Serial Port Console Redirection.
Chipset
Host Bridge/South Bridge
This screen provides information on Host Bridge/South Bridge parameters.
