Wine Master WineC25 User manual

INFORMATION STATED ON THE NAMEPLATE OF THE APPLIANCE :
oModel : ………………………………..
oSerial N° : …………………………..
oDate of purchase : ………………………...
Juin 20
IMPORTANT :
It is recommended to note the serial number here above. It will
be necessary for ordering spare parts and for warranty.
.
Installation and user guide
WineC25 / C25S / C25SR
WINEC25X/WINEC25SX/WINEC25SRX

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 2
GB User manual
Table of contents
1. CELLAR EQUIPMENT ..................................................................................5
1.1. Evacuation room ................................................... 5
1.2. Cellar insulation ................................................... 6
1.2.1 Insulation of wall, ceiling and floor ............................................... 7
1.2.1. The door.................................................................... 8
1.2.3 Insulation of other elements ................................................. 8
2INSTALLATION OF WINE CONDITIONING UNIT WINEMASTER®................8
2.1 Wall drilling ............................. Erreur ! Signet non défini.
2.2 Sealing and wooden frame levelling ................................. 9
2.3 Fitting the air conditioner ......................................... 10
2.3.1. Removing the plastic cover ................................................. 10
2.3.2. Fitting the device into the wooden frame..................................... 11
2.3.3. Installing the water drain system ........................................... 11
3. USING THE AIR CONDITIONER WINEMASTER®.......................................13
3.2 Setting the temperature ........................................... 13
3.3. Standby mode................................................... 14
3.4. Automatic defrost ............................................... 14
4. MAINTENANCE OF THE AIRCONDITIONER WINEMASTER®......................14
4.3. Replacing the filter .............................................. 14
5. WARRANTY..............................................................................................15
5.1 Legal warranty..................................................... 15
5.2 2 years contractual warranty ....................................... 15
5.3 Warranty conditions .............................................. 15
5.4 Exclusions and limitations of warranty ............................. 16
GB

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 3
Introduction
You purchased an air conditioner WINEMASTER®and we thank you for your confidence.
From conception to commercialisation, everything has been implemented to offer an ex-
clusive and high quality product. Brainchild of a team who find in this a motivation to
ever give satisfy you, we hope that your wine conditioning unit WINEMASTER®will bring
you great storage and best wines aging for an incomparable pleasure.
Because the customer is at the heart of all our thoughts, we want to support you in your
first steps and lead you towards the best use of your air conditioner every day. Thus, you
will find in this manual technical information and practical advice to help you to deal with
the essential steps to installation and use.
In order that your wine tasting remains moments to share, WINEMASTER guarantees you
a sincere engagement, dedicated expertise and ongoing follow-up at your service!
The WINEMASTER team

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 4
Technical data
WINE C25 / C25S(R)/WINEC25X/WINEC25S(R)X
Weight
31 kg
Dimensions
540x380x525
Temperature setting
Preset at 12°C, adjustable between 8 & 18°C *
Maximum outside temperature
35°C **
Cooling power
550 W at 15°C **
Electric supply
235V-50 Hz + 3 m cable length
Electric power
400 W
Heating power
250 W (only for C25S(R)/WINEC25S(R)X)
The circuit breaker must be at least 16 Amps.
* The insulation quality and thickness has to be in accordance with the volume of the cellar and the set
temperature.
** The cooling performance is dependant from the outside temperature. Therefore, the set temperature of
12°C for the cellar cannot be maintained if the outside temperature reaches the 35°C.
If the thermal safety functions to often, there is a risk for the compressor to be damaged. In all cases, it
must be avoid that the outside temperature remains at 35°C, this high temperature should be limited
to the summer period.
Technical drawing

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 5
1. CELLAR EQUIPMENT
The air conditioner is build into the wall. For a correct functioning, the unit expels air at the outside to 20°C
approx above the sucked temperature. This air must be cooled in a well ventilated room or evacuated
outside.
1.1. Evacuation room
-The “hot “ side of the WINEMASTER must be inside a room ( exceptionally, an outdoor installation is possible if the
outside part is sheltered and protected from the weather (direct rain, snow, etc... ).
→For an outside installation, it is advisable to use WINE C25SR/WINEC25SRX
-Attention, starting the compressor at a temperature ≤ 0°C will destroy it.
→Never change the set temperature if the compressor is at a temperature of ≤ 0°C (this specification
doesn’t concern the model SR equipped with a heating belt on the compressor).
The air conditioner WINEMASTER®evacuates hot air inside a room that must be well ventilated
-Maximum temperature and non permanent ≤ 35°C
-Ideal temperature ≈20°C
Top view
- A space of at least 10 cm must remain all
around the WINEMASTER (for an easy re-
move of the cover and in order to avoid hot
air recycling).
-The wall where the device is built-in must
not be more than 220 mm thick. Other-
wise, the wall must be cut in a wedge
shape
-Beware of too small space outside the
wine cellar :
→Risk of re-sucking hot air
20°C
35°C

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 6

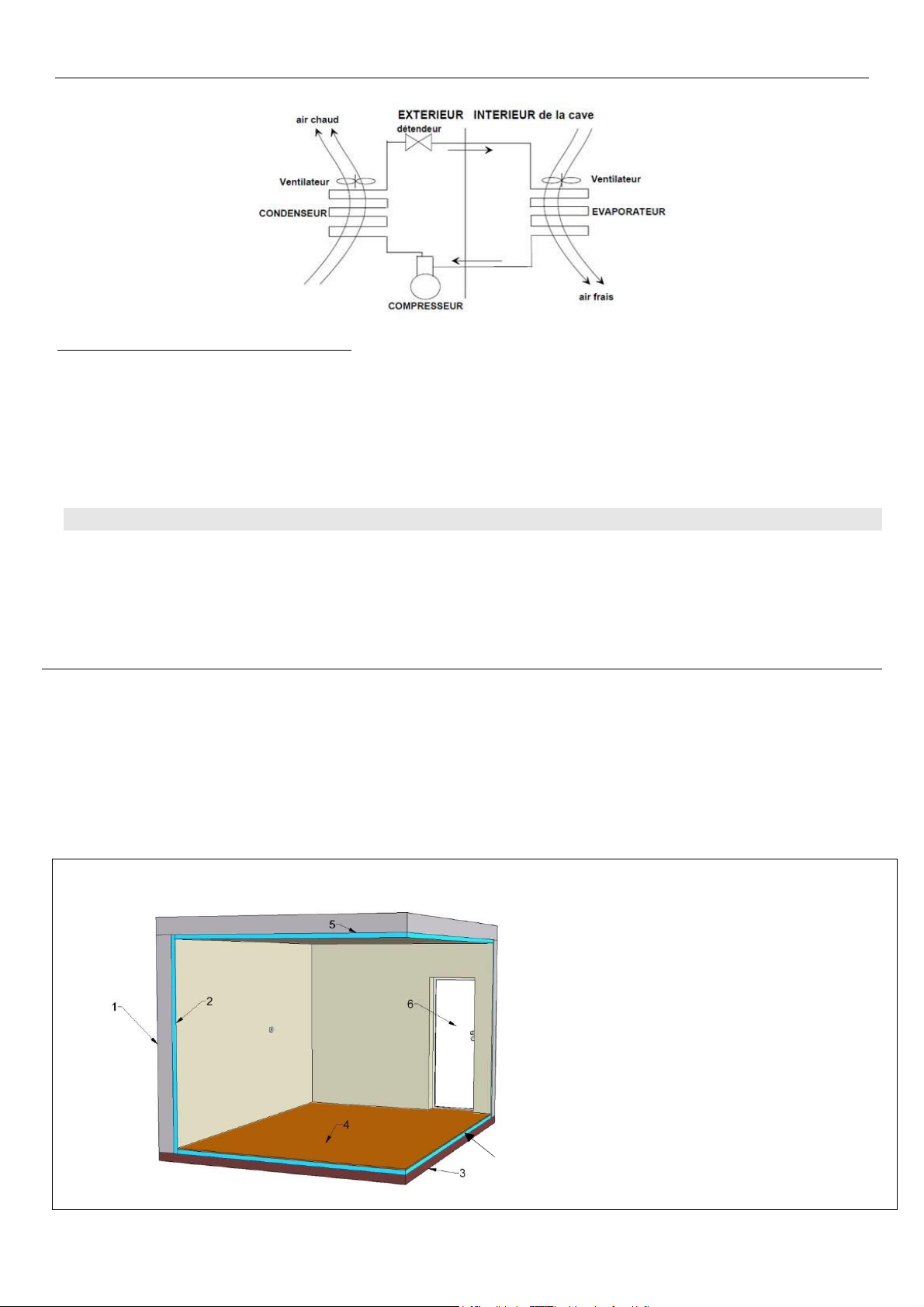

VENTILATED COLD OR « NO FROST »
The advantages of « ventilated cold »:
-No frost other than on the evaporator.
-Automatic defrosting and maximized refrigeration efficiency.
-Cold distribution improved by a permanent air circulation (without air stratification).
-The circulation of air allows maintaining the pre-selected temperature throughout the cel-
lar.
1.2. Cellar insulation
Insulation is essential for efficient functioning of the WINEMASTER®. A good insulation enables to main-
tain a stable temperature and humidity level. The chart on the next page will allow you to determine
the type and thickness of insulation needed in relation to the exterior volume of the cellar and model of the
WINEMASTER®, for an inside temperature of 12°C.
Complete insulation
The insulating elements should be preferably :
-By « tongue and groove » panels or
-By panels fused together
→IMPORTANT: Avoid the intrusion of heat and humidity which can alter the functioning.
View
1. WALL
2. INSULATION MATERIAL
3. GROUND LEVEL
4. FLOOR
5. CEILING
6. INSULATED DOOR
2

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 7
IMPORTANT
The WINEMASTER®warranty is only valid if the insulation is in compliance with the board « Insulation
selection » requirements for the whole cellar (walls, floor, door and ceiling) with perfect continuity of
insulation and an installation in accordance to the user guide.
Insulation selection
1.2.1 Insulation of wall, ceiling and floor
Type of insulation panels
You can select among the following type of panels :
-Usual panels,
-« Complex panels »: insulation is covered with a with a cover material (plaster, mineral …..)
-« Sandwich panels »: insulation is covered on each side with a wooden panel or plaster board.
Important: The covering of the panels protects the insulation against damage and guarantees its
longevity. Avoid using mineral fibres insulation (glass wool, rock woo, etc…) as they may ac-
cumulate moisture and lose their insulation power and avoid also thin film insulation that are not ef-
fective for cold.
DO YOU KNOW THAT ?
Some insulating materials are damaged by rodents ( mouse, rats...). If necessary, cover the insulation
with a protective lining on the inside of the cellar to avoid presence of mouse or rats.
→Polyurethane is an insulator that, due to its chemical composition, is not attacked by the rodents.
Floor insulation
The floor of the cellar must be able to support the shelves and the stored wine. Thus, it’s necessary to
choose insulation with adequate compression strength.
Volume of the
cellar (m³)
Polystyrene
expanded = 0,044
W/m°C
(mm)
Polystyrene
extruded
= 0,030 W/m°C
(mm)
Polyurethane foam
= 0,025 W/m°C
(mm)
6
40
30
30
8
50
40
30
10
60
40
40
12
70
50
40
14
70
50
40
16
80
60
50
18
90
60
50
20
90
70
60
22
100
70
60
24
110
70
60
25
110
80
60

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 8
Improve the load capacity of the insulation (particularly under the shelve legs) by using :
-« Complex » insulation panels covered by panels of higher load capacity.
-Cover the insulation panel with a wooden panel (at least 15 mm thickness), or every other
appropriated material.
1.2.1. The door
Door improves the insulation. Two solutions are possible:
-Insulate an existing door with the same insulation materials used for the walls of the
cellar. Provide a tight seal between the door frame and all sides of the door with a strip of foam
rubber for example.
-Use a specially WINEMASTER isothermal door with polyurethane and a sealing foam rubber.
Top view
1. INSULATED DOOR
2. INSULATION
3. SEALING TAPE
1.2.3 Insulation of other elements
Avoid placing a wine cabinet or freezer who generates heat in the cellar. Hot water
pipe from central heating going through the cellar have to be insulated too.
2INSTALLATION OF WINE CONDITIONING UNIT WINEMASTER®
THE UNIT HAS TO BE INSTALLED RESPECTING THE NATIONAL RULES
OF ELECTRIC INTALLATIONS.

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 9
2.1 Wall Drilling
Cut the wall in order to seal the wooden frame. The cut size need to be 525 mm long and 390 mm high.
Please be careful to leave at least 100 mm from the both ceiling : cellar and external.
Necessary material (not supplied)
Supplied material

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 10

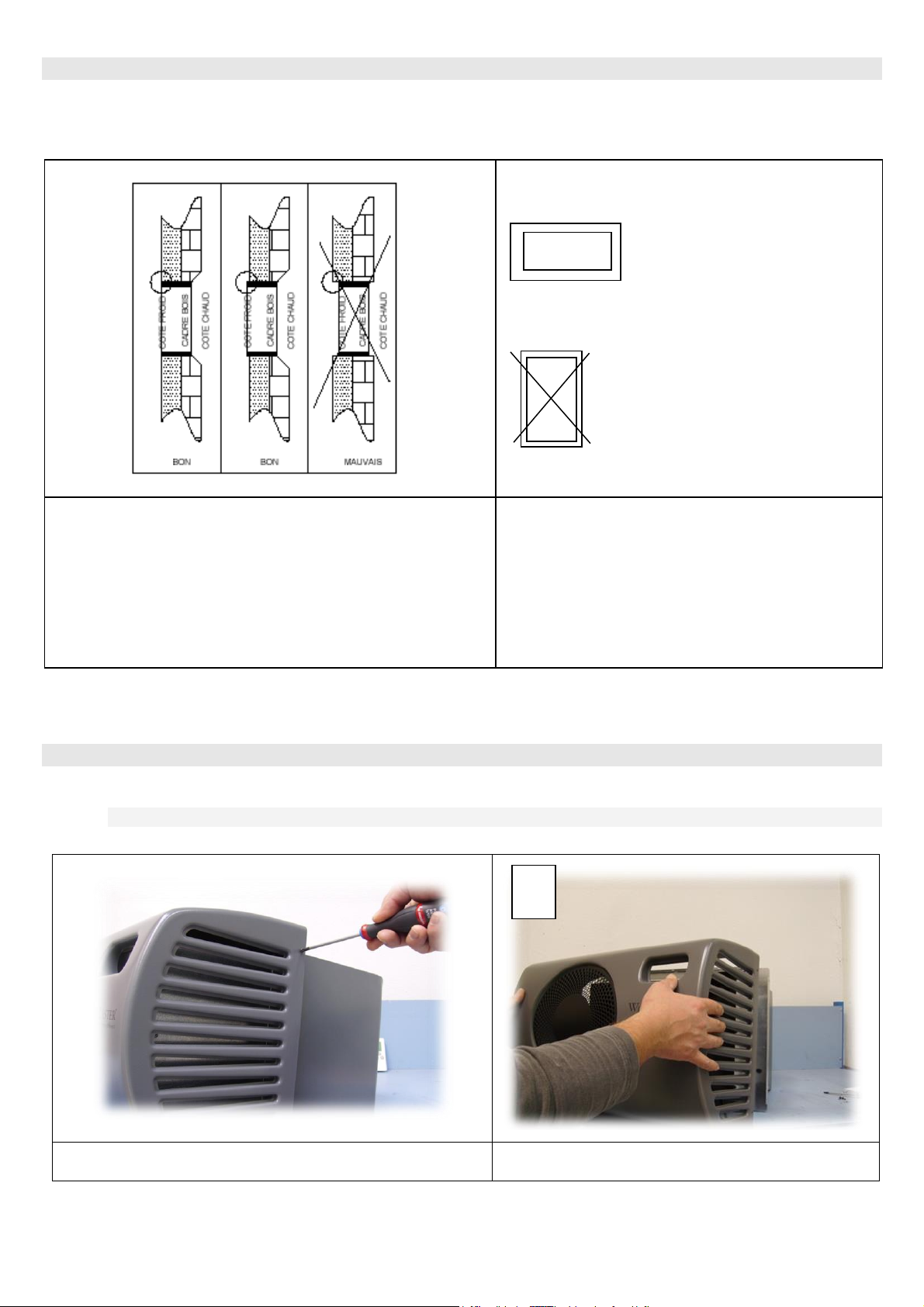

2.2 Sealing and wooden frame levelling
2.3 Fitting the air conditioner
2.3.1. Removing the plastic cover
Unscrew the 2 screws on each side of the air condi-
tioner
Remove the cover
CORRECT
INCORRECT
- Seal the wooden frame in order it fit flush with the
inner wall of the cellar.
- If the wall is thicker than the wooden frame, cut a
wedge-shape in the wall (more than 220 mm)
- Fill the joint between the wooden frame and the insu-
lation
- Do not put polyurethane foam between the unit and
the wooden frame ( for removing purpose).
The wooden frame must be level;
the widest side at the horizontal
1
2
2
1

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 11
2.3.2. Fitting the device into the wooden frame
Position the air-conditioner in the frame from inside
the cellar
Tighten the two screw/washer units at the top
Tighten the two screw/washer units on the side
2.3.3. Installing the water drain system
The electrical connection cable and the PVC condensate drain are situated inside the cellar. Check the seal
between the wooden frame and the Winemaster®.
If the power cable is damaged, it has to be replaced by the producer, his
after-sale service or qualified people in order to avoid any danger.
3
4
5

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 12

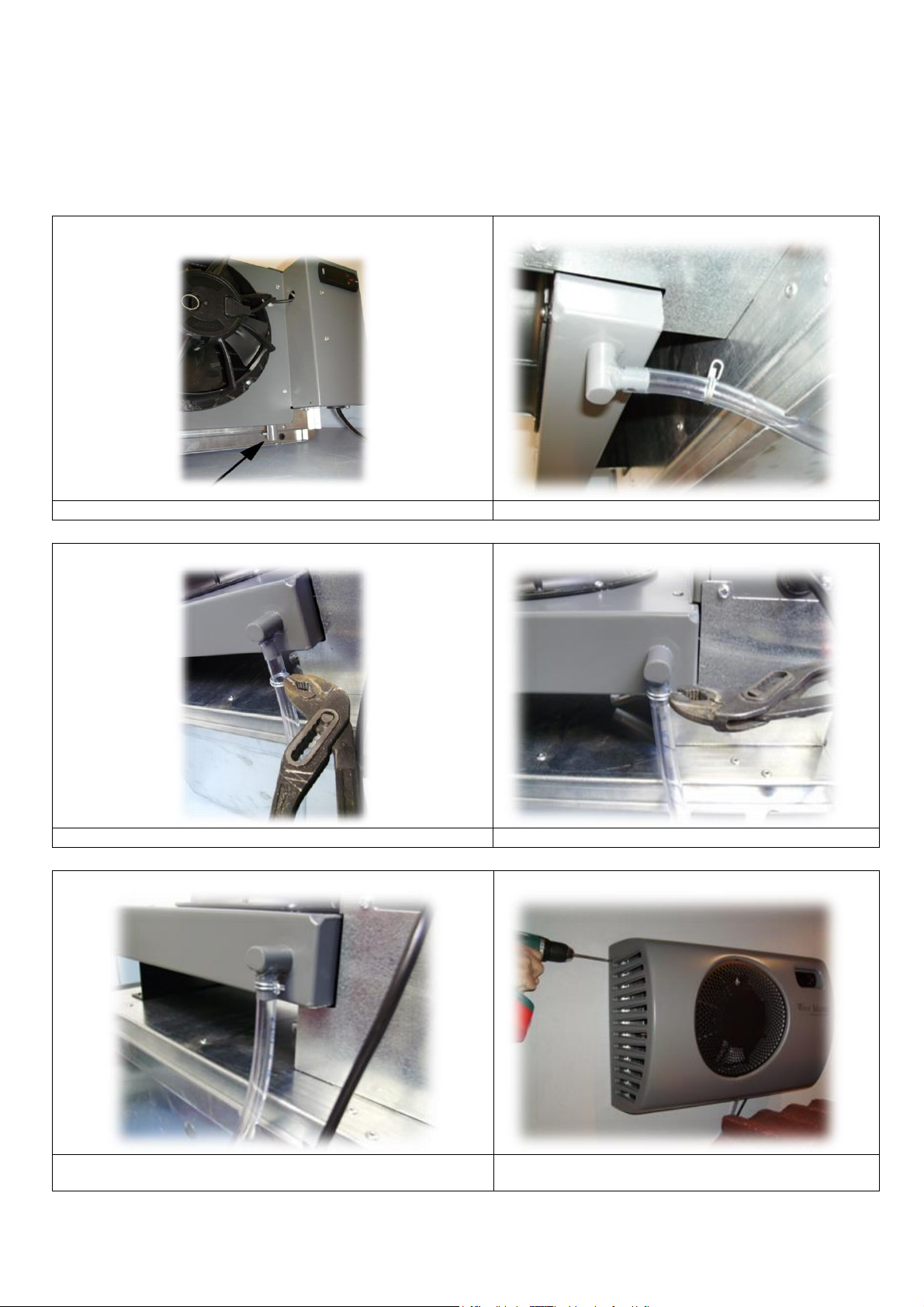

Flow from the condensate collection tray.
Push the PVC pipe on.
Pinch the collar to open it and slide it along the pipe
Place the collar as close to the pipe as possible
The pipe is well attached.
Refit the cover on the Winemaster and tighten the 4
screws
1
2
3
4
5
6

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 13
Important :
Wait for 24 hours before plugging on the air-conditioner
3. USING THE AIR CONDITIONER WINEMASTER®

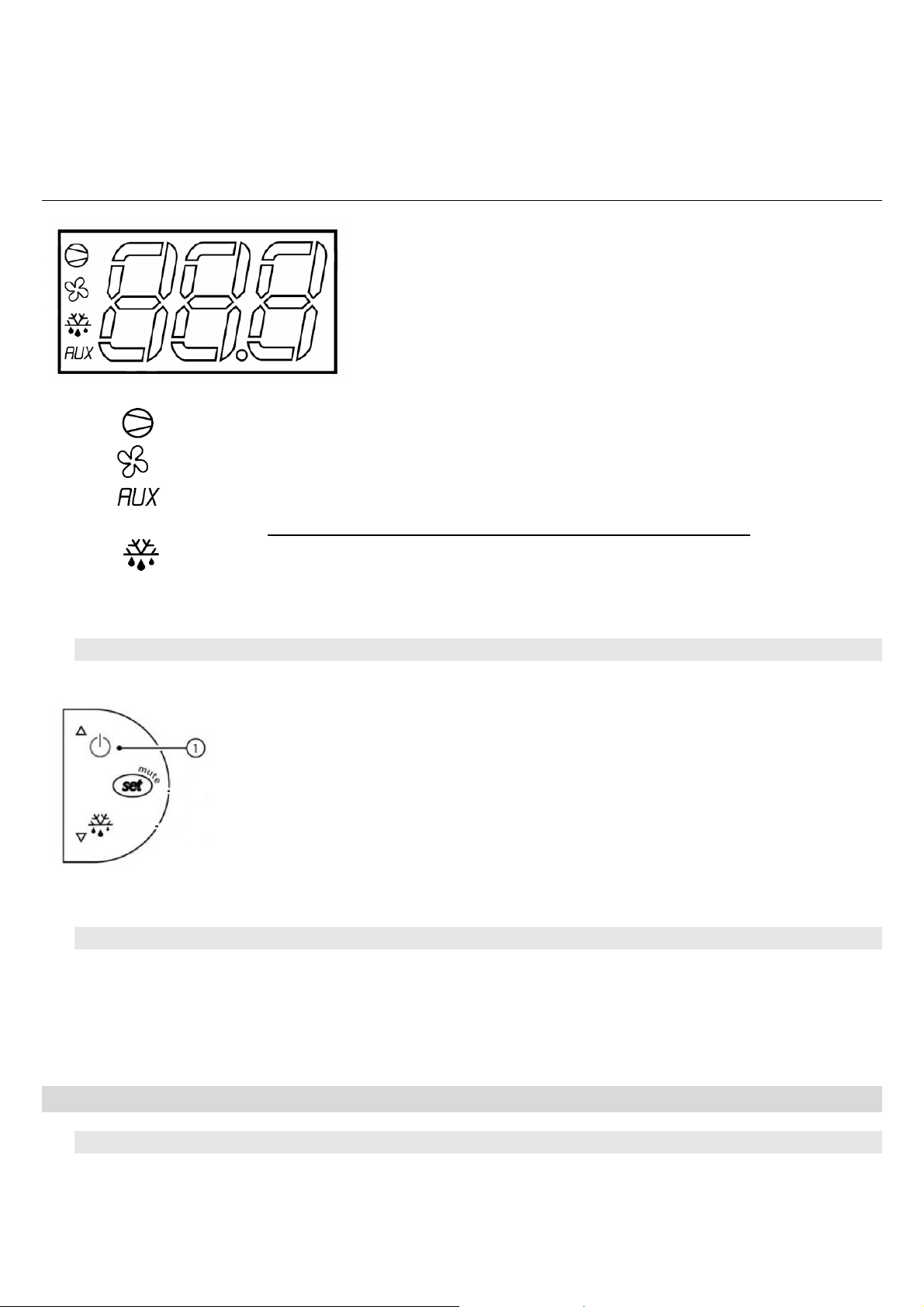

The thermostat indicates the temperature in the wine cellar with a precision of 2°C.
A temperature change of the air does not mean the same change of temperature of the liquid due to the
thermal capacity of the liquid.
The temperature is set at 12° C in the factory. During installation the set temperature must be controlled
and even adjusted as per following process.
3.1 Plugging the air conditioner WINE C25 /
C25S(R)/WINEC25X/WINEC25S(R)X
When you plug it to the electric socket:
-the fan in the cellar starts up immediately ( permanent ventilation « no frost »)
-If the temperature of the cellar is ≥as the thermostat setting, the compressor will run after 2 minute.
-If the temperature of the cellar is ≤as the thermostat setting, the compressor will not run.
The socket has to remain easily reachable after installation.
3.2 Setting the temperature
The setting of the targeted temperature of the cellar is made on the thermostat
-Press button one second until the targeted temperature is blinking.
-Use button to increase the temperature or
-Use button to lower the temperature.
-When the right temperature is set, press again on button to confirm .
-Appuyez sur le bouton une seconde jusqu’à ce que la température de
consigne clignote.
-Utilisez le bouton pour augmenter la température de consigne.
-Utilisez le bouton pour diminuer la température de consigne.
-Lorsque le réglage vous convient, appuyez sur le bouton pour valider.

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 14
Explanation of the main display symbols :
Red light = cold mode engaged (compressor working)
Red light = cooling fan high speed
Red light = heating mode engaged (resistance: C25S /C25SR/WINEC25SX/WINEC25SRX)
•Do not take care of this light for model C25/WINEC25X
Red light and message « DF » on display = defrost engaged
3.3. Standby mode
-Standby mode : maintain a 3 seconds pressure on button 1. The compres-
sor stops and the fan turn at low speed.
-The thermostat indicates « OFF » and also the cellar temperature.
-To come back, maintain again a 3 seconds pressure on button 1.
-The thermostat indicates « ON » during 1 second.
3.4. Automatic defrost
The thermostat of models C25/C25S(R)/WINEC25X and WINEC25S(R)X will run an automatic defrost time
several times a day. During this operation, the compressor is stopped, only the fan is functioning at low
speed. The condensate water produced during this period will be evacuated through the tube drain.
The display shows « DF » during the defrost time.
4. MAINTENANCE OF THE AIRCONDITIONER WINEMASTER®
4.3. Replacing the filter
→A filter check is recommended every 3 months.

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 15
It is not necessary to remove the cover in order to
replace the dust filter.
Raise the notch to release the filter and
take it out from underneath. Repeat the
same operation in reverse for the replace-
ment.
IMPORTANT :
- Regular filter cleaning (vacuum cleaner)
- Regular cleaning of outside grids (foliage…)
- Replace the dust filter when necessary and at least once a year
→SPOILED FILTER = DAMAGED WINE CONDITIONING UNIT
5. WARRANTY
5.1 Legal warranty
The contractual warranty is not exclusive, the fundraiser for the purchaser profit of the legal warranty
against latent defects that appliers in terms of articles 1641 and following from the Civil Code.
5.2 2 years contractual warranty
As a supplement to the legal warranty provided under the laws of the purchaser’s country, WINEMASTER
offers an additional 2 years contractual warranty against any manufacturing defect.
During this period of contractual warranty, WINEMASTER will replace any parts that have a manufacturer’s
defect.
In case of electric failure, WINEMASTER reserves the right to send an expert technician to inspect the
appliance before replacing any defective parts.
In case of refrigeration failure, WINEMASTER may require that the appliance is returned to the factory for
repair. Any interventions will take place according to the guidelines set in the “after sale service “doc-
ument.
Interventions and returns can only be done after written agreement from WINEMASTER after
sale Service.
5.3 Warranty conditions
The contractual warranty applies to all appliances installed and used in conformity with this « User
Manual". His application is conditioned by the presentation of the purchase invoice or for lack of its copy.
1
2

VERSION 2.1 06.2020
USER GUIDE WINE C25 /C25S(R)/WINEC25X/WINEC25S(R)X
Page 16
5.4 Exclusions and limitations of warranty
The warranty can refused in following cases:
-Insulation of the cellar or installation of the appliance not in compliance with the instructions of this
guide.
-Damage due to negligence, lack of maintenance or incorrect use of the WINEMASTER® (particularly
dirty filters).
-Exchange or repair of parts under warranty will not extend the 2 years warranty period
WINEMASTER cannot, in any case, be held liable for any direct or indirect damages resulting from the
failure of the air conditioner. The warranty is exclusively limited to the product itself.
The European Community attaching a great importance to the environment and the
waste processing, set up Directive 2002/96/CE relating to the Electric and Electronic
Component waste.
In accordance with this standard, the logo “barred dust bin” is obligatory.
This logo means that this product cannot be thrown in the household shelter.
It must be given to a suitable collection point for the treatment, valorisation, re-
cycling of Electric and Electronic components.
Acting like that you make a gesture for the environment and you contribute to the
safeguarding of the natural resources as well as to the protection of human health.
