INSTALLATION MANUAL AIR HEATER TYPE EH 1
Instruction manual
AIR HEATER
TYPE EH
Version: EH - EN - v00.02

INSTALLATION MANUAL AIR HEATER TYPE EH 2
Content
Content ............................................................ 2
Content ............................................................ 2
1 Introduction ............................................ 3
It is important to read this document before
starting the installation process. Store this
document close to the air heater for quick
reference. .................................................... 3
1.1 Symbols used in this manual ................ 3
Indicates a dangerous
situation that would lead to death or severe
injury. ........................................................... 3
1.2 Warranty ............................................... 3
2 Safety instructions .................................. 3
2.1 Installation ............................................ 3
2.1.1 Protection against dust ................. 3
2.1.2 Temperature .................................. 3
2.2 Use ......................................................... 3
2.3 Maintenance & Cleaning ...................... 4
2.3.1 Protection from water, IP class ..... 4
2.4 Children and vulnerable users .......... 4
3.1 Performance ......................................... 5
3.2 Dimensions............................................ 5
4. Installations ......................................... 6
4.1 Preparation ........................................... 6
4.1.1 Standards ....................................... 6
4.2 Positioning the air heater ..................... 6
4.2.1 Orientation ..................................... 6
4.3 Electrical connection............................. 8
4.3.1 Power supply ................................. 8
4.3.2 Fuse ................................................ 8
4.4 Room thermostat ................................. 8
4.4.1 Installation requirements .............. 8
4.4.2 Modulating room thermostat
installation .............................................. 9
4.4.3 Installation of multiple heaters on
one control unit ...................................... 9
5. Operating the air heater .................. 11
5.1. Minimum firing time ......................... 11
5.2 Delta-T-regulation .............................. 11
5.2.1 Switch off delta-T-regulation ...... 11
5.3 Summer ventilation ........................... 11
5.4 Overheating protection ..................... 11
5.4.1 Heating Elements ........................ 11
6 Commissioning the air heater .............. 11
6.1 Adjusting the settings ........................ 11
6.1.1 First use – thermostat .......... 12
7 Troubleshooting ................................... 12
7.1 Volatile lock outs ................................ 12
7.2 Temporary errors ............................... 12
7.3 Warnings............................................. 13
7.4 Instructions ......................................... 13
7.5 Additional troubleshooting ............... 13
8. Maintenance .................................... 13
8.1 Preparation ......................................... 13
8.2 Basic maintenance ............................. 13
9 Electrical wiring diagram...................... 15
10 Exploded view and spare parts ........ 16
11. Declaration of conformity ................ 17

INSTALLATION MANUAL AIR HEATER TYPE EH 3
1 Introduction
This manual is intended for the gas, electrical
and mechanical installer.
This document gives instructions on how to
use and maintain the air heater. It is most
important to follow the instructions in this
document for safe operation of this air heater.
It is important to read this document before
starting the installation process. Store this
document close to the air heater for quick
reference.
1.1 Symbols used in this manual
Indicates a dangerous
situation that would lead to death or severe
injury.
Indicates a potentially
dangerous situation that could lead to death,
severe injury or serious product damage.
Indicates a potentially
dangerous situation that could lead to injury
or product damage.
Indicates important
information that is not directly related to
safety.
1.2 Warranty
Using, installing or
maintaining this air heater in any other way
than described in this manual may cause
damage that voids the warranty.
Failing to follow the safety
instructions in this manual can lead to damage
to the air heater or the installation and void
the warranty.
2 Safety instructions
Always follow the safety instructions in this
chapter when installing, using or performing
maintenance on this air heater:
2.1 Installation
This air heater must be
installed and maintained by an authorized,
qualified and competent installer, using
calibrated equipment.
This air heater must be installed
and maintained in accordance with this manual,
national and local building regulations and local
health and safety regulations.
2.1.1 Protection against dust
Do not use the air heater in a
very dusty environment. Dust may accumulate
and cause a defect of the heater. This is also
the case for the room thermostat.
Cover the air heater while
spreading sawdust on the floor. This prevents
large amounts of dust from accumulating on
the heater.
The air heater can be used in
a dusty environment (e.g. a poultry shed) if
they are cleaned and maintained more
frequently.
2.1.2 Temperature
Do not install the heater in
places where the temperature can rise above
35°C. Higher temperatures cause the internal
components to degrade much faster.
2.2 Use
Make sure the area around
the air heater is dry when performing
maintenance on the air heater.
Always close the doors and
inspection hatches of the air heater, unless
when adjusting and checking the appliance.

INSTALLATION MANUAL AIR HEATER TYPE EH 4
2.3 Maintenance & Cleaning
Frequent maintenance and cleaning of the air
heater is necessary to ensure safe and proper
operation. Failure to do so could lead to
damage to the heater or its surroundings and
void the warranty.
2.3.1 Protection from water, IP class
Never use water when
cleaning electrical parts.
This air heater is not waterproof and has an
IP00B classification.
Do not expose the air heater
to rain, spray or dripping water.
2.4 Children and vulnerable users
This air heater can be used by children aged 8
years and above and by persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge, if they are
supervised or instructed concerning use of the
appliance in a safe way and understand the
hazards involved.
Children shall not play with
the air heater.
Children shall not clean and
maintain this air heater without supervision.

INSTALLATION MANUAL AIR HEATER TYPE EH 5
3 Technical specifications
3.1 Performance
Technical specification Unit
Type EH
EH10
EH15
EH25
EH30
EH40
Heat output (max.)
kW
9,9
15,0
24,9
29,7
39,6
Heat output (min.)
kW
3,3
7,5
9,9
9,9
19,8
Nominal Power
kW
10,1
15,2
25,1
29,9
39,8
Max. el. current per phase
A
15,5
2
2
,
9
37,2
44,2
59,0
Air output (warm.)
m
3
/h
3.100
3.100
3.000
3.000
4.400
Throw horizontal (max.)
m
23
23
22
22
28
Electrical connection (50 Hz)
V
400V+N
400V+N
400V+N
400V+N
400V+N
Weight
kg
25
26
28
30
34
Sound level (@5 m)
dB(A)
55
-
58
55
-
58
55
-
58
55
-
58
57
-
60
3.2 Dimensions
Figure 1 – Dimensions of the EH 10-40
Type
A
B
C
D
E
F
G
H
I
J
K
EH
10
-
30
570
490
390
125
420
380
140
280
230
195
420
EH 40
650
490
530
125
490
490
100
380
325
245
420

INSTALLATION MANUAL AIR HEATER TYPE EH 6
4. Installations
4.1 Preparation
Before installation, please use the data badge
to check:
- if the heater is in accordance with the
order;
- if the heater is suitable for the local
present provisions (gas type, gas pressure,
electrical supply etc).
Before leaving the factory, the air heater has
been tested for safety and has been set to the
operating settings. It has been configured for
the type of gas that is stated on the data
badge. Should there be any doubt about the
settings that apply to your situation, please
contact your supplier.
4.1.1 Standards
The installation must comply
with all applicable local and national
standards.
The air
heater must be
installed in accordance
with the relevant
requirements of the Gas
Safety regulations,
Electrical installation
regulations and or other
local regulations that
may apply.
4.2 Positioning the air heater
Keep the following requirements in mind
when choosing a location to install your air
heater:
Never install an air heater
close to flammable materials.
- Keep sufficient distance between the
heater and any obstructions. This is
both for safety reasons and to allow
access for service and maintenance
(figure 2).
- Make sure the air flow to and from
the heater is free from obstacles at
least 5 metres in front of the heater.
Also make sure the air intake is free
from obstacles.
- Make sure enough space remains to
open the door of the air heater.
- Make sure the wall can support the air
heater.

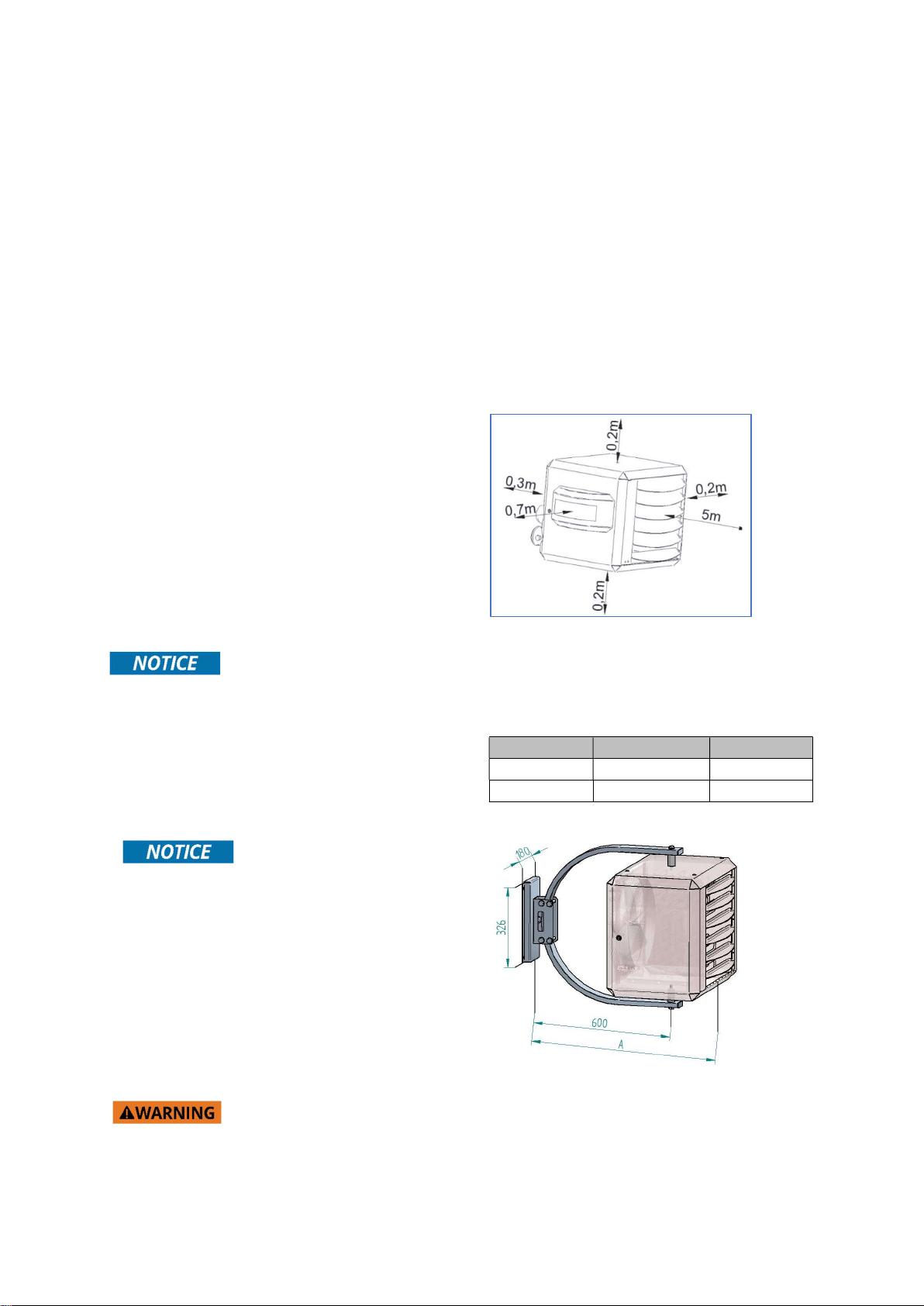

Figure 2 - Minimum clearances around the air
heater.
4.2.1 Orientation
Two different wall supports are available:
Model(s)
Wall support
Art. nr
EH 10
-
40
Wall support
GA8610
EH 10
-
40
Design
console
GA8630

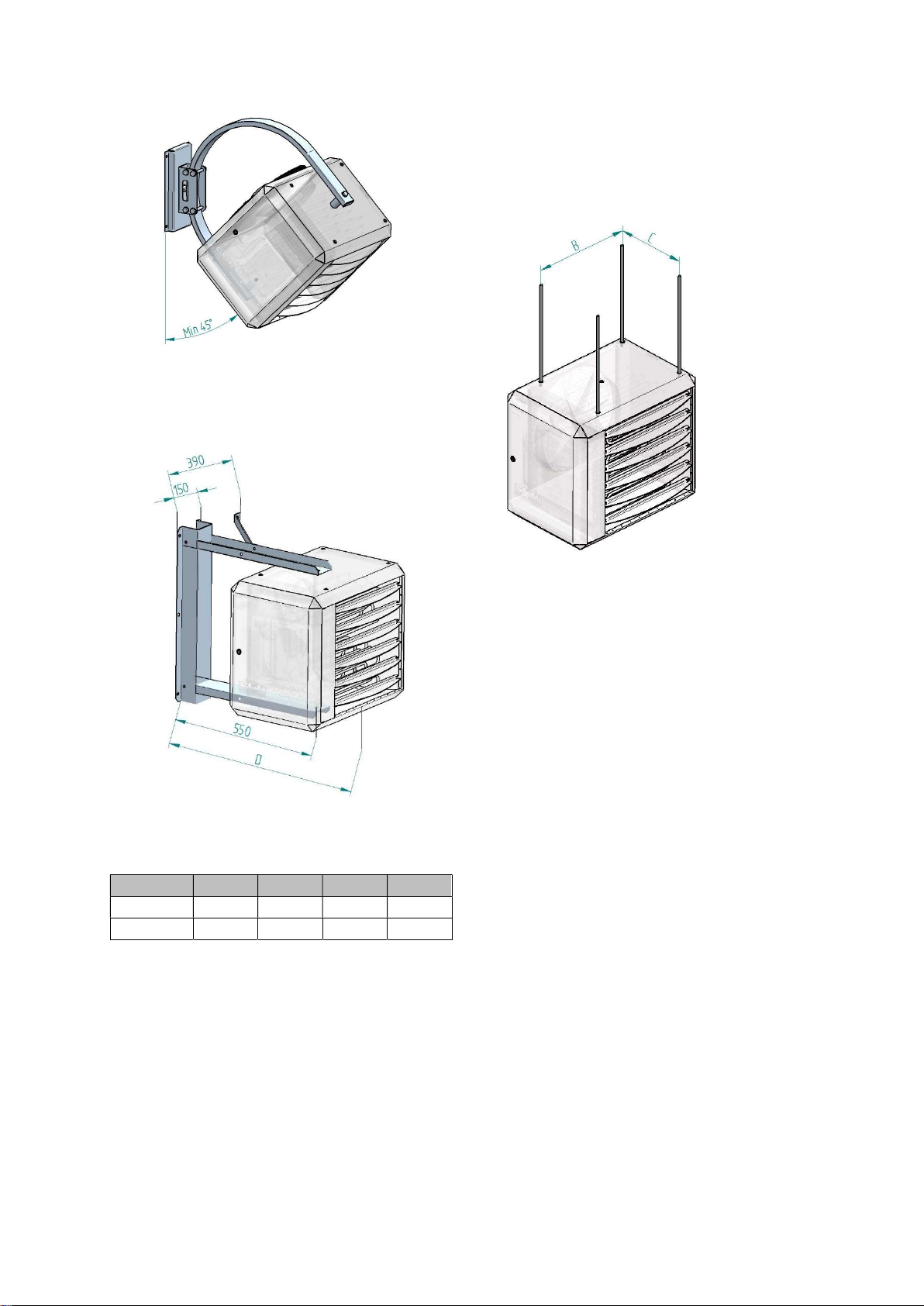

Figure 3 – Designconsole

INSTALLATION MANUAL AIR HEATER TYPE EH 7
Figure 4 – Designconsole, minimum 45 degrees
Figure 5 – Wall support
Figure 6 –Suspension with threaded bars M10
The air heater is equipped with threaded
sockets to suspend the unit (see the dimension
diagram in §3.2).
Use the suspension kit that is compatible with
your air heater. The suspension kit is not
delivered with the air heater. Contact your
supplier.
A
B
C
D
EH 10
-
30
795
380
280
745
EH 40
845
490
380
795

INSTALLATION MANUAL AIR HEATER TYPE EH 8
4.3 Electrical connection
The electrical installation must comply with
local and national requirements as well as IEE
regulations.
4.3.1 Power supply
The air heater requires an earthed power
supply of 230 V/AC. A supply of 400 V/AC +
Neutral is optional. The control circuit is a two
wire low voltage bus communication.
4.3.2 Fuse
One fuse is present on the air heater’s control
board (see the electrical wiring diagram in §9).
• When replacing this fuse, always use a
fuse of the same type (5AT).
4.4 Room thermostat
The heater can only be controlled with one of
the following Winterwarm modulating room
thermostats:
- The MTC: a modulating digital clock
thermostat with optimiser.
- The MTS: a modulating digital
thermostat.
- ON/OFF thermostat: a simple on/off
thermostat.
- Interface module; a specially designed
interface module for BMS systems.
Contact your supplier for more
information.
4.4.1 Installation requirements
Follow these requirements when placing the
thermostat to ensure the heater functions
correctly:
• Make sure that air can circulate around the
thermostat
• Make sure the sun does not shine directly
upon the thermostat.
• Do not place the thermostat on a cold wall.
• Place the thermostat on an inner wall free
from draught.
• Never place the thermostat within the throw
of the heater.
• Never mount the thermostat near the
aerials of internal communication
networks. These emit radiation that can
disturb the thermostat. Keep several
meters distance.
In all cases, the communication between the
heater and the thermostat is based on a two
wire, low-voltage connection. (see the
electrical wiring diagram in §9). Follow these
instructions to prevent malfunction of the
installation and damage to the thermostat or
air heater:
• Use a cable with the following
specifications:
o Signal cable.
o Shielded and twisted.
o Minimum dimensions: 1
x 2 x Ø0,8 mm2.
o Maximum length: 200 m.
Keep the thermostat cable
separated from the mains cables.
Connect the cable’s earth
shield only to the earth terminal inside the air
heater. Do not connect the other end of the
cable’s earth shield.
A cable with a thickness of less than 0.8mm will
result in a poor signal.
A cable that is not shielded
and twisted may result in a disturbed
communication in an EMC-unfriendly
environment.

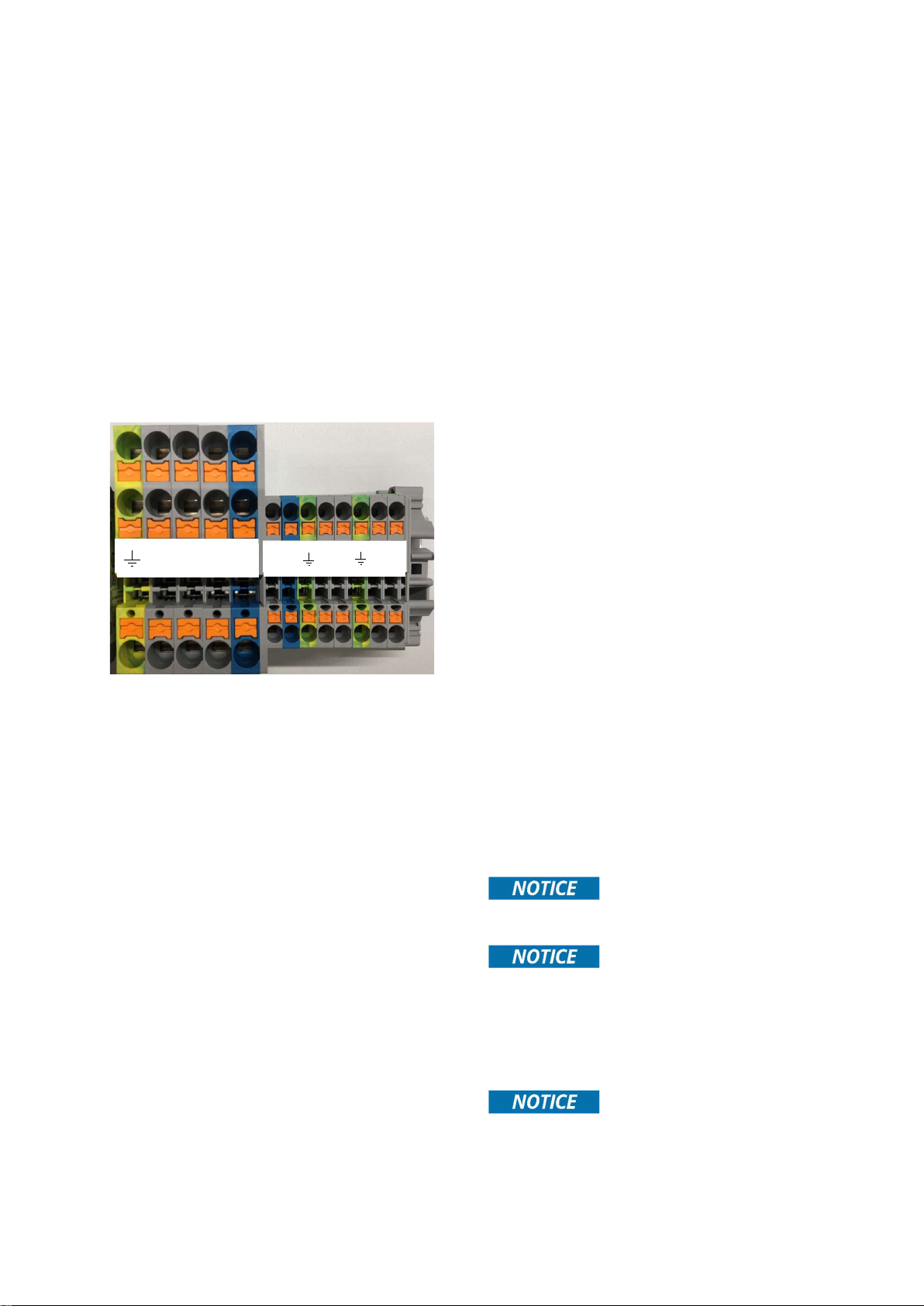

L1 L2 L3 N
11 12 4 5 6 7

INSTALLATION MANUAL AIR HEATER TYPE EH 9
4.4.2 Modulating room thermostat
installation
To connect the air heater to an MTC or MTS
thermostat, do the following:
1. Connect the two control wires to terminals
4 and 5 (see figures 7 & the electrical
wiring diagram in §9).
2. Set the S1 and J14 switches on the control
unit as follows (figure 8/9):
a. Set S1 to 1.
b. Set J14 to 1.
LThe air heater must be
switched off when setting the switches.
Otherwise the settings will have no effect
Figure 7 - Modulating thermostat connection.
Figure 8 – Positions of the S1 and J14 switches
Figure 9 - Location of the S1 and J14 switches
4.4.3 Installation of multiple heaters on
one control unit
An MTC, MTS room thermostat or Interface
module can control up to 8 air heaters. To
connect the air heaters, do the following
(figure 9):
This functionality does not
apply to an ON/OFF thermostat.
1. Connect the two wires of the
thermostat to terminals 4 and 5 of the
first air heater.
2. Connect the first air heater to the
second air heater.
3. Repeat for each subsequent air
heater.
Figure 9 – - Connection of multiple air heaters to a
modulating room thermostat.
Each air heater needs an unique number to be
recognised by the room thermostat. This
number can be set with the J14 switch on the
control unit of each air heater:
1. Set the S1 and J14 switches on the control
unit as follows (figure 13):
a. Set the S1 switch of the first air
heater to 1
b. Set the S1 switch of the other air
heaters to 2.
c. Set the J14 switch of the first air
heater to 1
d. Set the J14 switch of the second air
heater to 2, etc.
1 2 3 4 5 6 7 8
ON
1 0
S1 J14
PE L54N 54 54 54
22°C
L
N
PE L N
L
N
PE L N
L
N
PE L N
L
N
1 2 3 4 5 6 7 8
ON
1 0
1 2 3 4 5 6 7 8
ON
1 0
S1 J14
1 2 3 4 5 6 7 8
ON
1 0
123 ...8
1
2
3
22°C
L Neutal
4 5
L Neutal
4 5
L Neutal
4 5

INSTALLATION MANUAL AIR HEATER TYPE EH 10
Figure 10 - Positions of the S1 and J14
switches for the first three air heaters in a
system.
If the J14 switch of more than
one air heater is set to the same number, the
system will not work.
The air heater must be
switched off when setting the switches.
Otherwise the settings will have no effect.
1 2 3 4 5 6 7 8
ON
10
1 2 3 4 5 6 7 8
ON
1 0
S1 J14
1 2 3 4 5 6 7 8
ON
10

INSTALLATION MANUAL AIR HEATER TYPE EH 11
5. Operating the air heater
5.1. Minimum firing time
The heater will always fire for a minimum of 4
minutes, even if the heat demand stops. This
is to avoid a large number of start and stops.
5.2 Delta-T-regulation
The air heater can function as a de-
stratification fan. This is called delta-T
regulation and it is done via the room
thermostat, with a temperate measurement
sensor that is located on the air heater
The system fan is activated when the
temperature-difference between the sensor
on the heater (the delta-T NTC sensor) and the
sensor in the thermostat is bigger than 8oC
(standard factory setting). This procedure
ensures an even distribution of temperature
throughout the building, thus acting as a fully
automatic de-stratification fan.
5.2.1 Switch off delta-T-regulation
Delta-T regulation can be switched off when it
is not desired (e.g. when it causes discomfort).
This can be done in the Settings menu on the
room thermostat. See the user manual of the
special Room thermostat for more
information.
Delta-T regulation is
automatically switched off when the delta-T
sensor (sensor terminal J6) is disconnected.
5.3 Summer ventilation
The fan can be set to run in the summer.
Follow the instructions in the user manual of
the special Room thermostat.
5.4 Overheating protection
The air heater's heating elements are
protected from excessive temperatures.
5.4.1 Heating Elements
An NTC sensor is located near (or on) the
heating element. This sensor monitors the
heating element’s temperature.
If the heating element becomes too hot, this
sensor will cause the heating process to stop.
Depending on the temperature, the air heater
performs the following actions:
• Step 1: Power reduction (when possible).
• Step 2: Burner stop, followed by an
automatic restart when cooled down.
• Step 3: Burner stop, followed by a Lock
Out. A manual reset is required.
A manual reset can be
done on the electronic circuit board or
remotely with the special Room
thermostat.
6 Commissioning the air
heater
6.1 Adjusting the settings
Prior to packaging, the safety and functioning
of each air heater is checked in detail. In
general, the heater does not need to be
adjusted after installation. Follow these
instructions:
1. Switch on the electric supply with the
maintenance switch.
You are now able to observe the first start-up
and become familiar with the functioning of
the heater.
2. Instruct the end user of the about a
safe use of the air heater:
a. The location of the
maintenance switch.
3. Instruct the end user about the
operation of the heater:
a. Lock-out indication.
b. Reset

INSTALLATION MANUAL AIR HEATER TYPE EH 12
4. Instruct end user about the
necessary maintenance.
5. Leave this manual with the end user.
6.1.1 First use – thermostat
To commission the air heater via the room
thermostat, do the following:
 Put the thermostat in the highest position.
The start sequence is always the same.
 The air heater will burn for the minimal
firing time (see §5.1 for more information).
7 Troubleshooting
If the air heater malfunctions, first check if the
problem is caused by external circumstances
(e.g. no supply power). If the problem is not
caused by external circumstances, use the
tables and instructions in this chapter to fix
the air heater.
Please remember the built-in
waiting times of the air heater; the signals of
the LEDs and the code on the display. Do not
react too soon.
7.1 Volatile lock outs
The table below describes the volatile locks
outs that can occur. These can only be reset
by hand through the thermostat or by means
of the reset button on the control unit of the
appliance.
This button is located underneath the LED of
the control board. This LED will light up green
during normal function or in stand-by mode,
red in case of an error.
Display
Error type
Description
Case #
L
-
0, 2
and 3
Internal error
Intern
al error
13
L
-
4
E
-
error
E
-
error for more
than 24 uur
12
L
-
8
-
12
Intern
al error
Intern
al
error
13
L
-
15
Over
hea
tin
g
Heat
ing
Element
sensor is
overheated
3
L
-
17
-
19
Intern
al
error
Intern
al
error
13
L
-
25
Sensor
Error
Heat
ing
Element
sensor failure
4
L
-
27
-
31
Intern
al
error
Intern
al
error
13
L32
Sensor
error
Heating Element
sensor faillure
4
L
-
33
-
38
Intern
al
error
Intern
al error
13
L
-
43
Over
heat
error
Too many heat
ing
element sensor is
overheated alerts
3
7.2 Temporary errors
The table below describes the temporary
errors that can occur. These will disappear
automatically after the cause has been
resolved.
Display
Error typ
Description
Cas
e
#
E
-
00 to
04
Intern
al
error
Intern
al
error
13
E
-
05
Overh
ea
ting
Heat
ing
Element
sensor is
overheated
3
E
-
06 to
13
Intern
al
error
Intern
al
error
13
E14
Rela
y
s
error
Rela
y
s
has
switched while it
shuoldn’t have
16
E15 to
20
Intern
al
error
Intern
al
error
13
E
-
21
a
n
d
22
Heat
ing
Element
sensor error
Heat
ing
E
lement
sensor error
4
E
-
27
and
28
Heat
ing
Element
sensor error
Heat
ing
Elem
en
t
sensor short-
circuit
4
E
-
34
Reset
button
error
Too many reset
actions in a short
timespan
9
E
-
36
Overh
ea
ting
Heat
ing Element
sensor is
overheated
3
E
-
38
a
n
d
39
Heat
ing
Element
sensor error
Heat
ing
Elem
en
t
sensor not
detected
4
E
-
47
a
n
d
48
Heat
ing
Element
sensor error
Heat
ing
Element
sensor short-
circuit
4
E
-
49
-
64
Intern
al
error
Intern
al error
13
E
-
65
Voltage too
low
Supply voltage too
low for over 1
minute
E
-
66
Voltage too
low
Supply voltage too
high for over 1
minute

INSTALLATION MANUAL AIR HEATER TYPE EH 13
7.3 Warnings
The table below describes the temporary
warnings that can occur. The heater may still
be working, or stops until the cause has been
resolved.
Display
Error
Description
Cas
e
#
A
-
07
Overh
eating
Heat
ing Element
sensor is
overheated
3
7.4 Instructions
After identifying the problem, use the Case
number to find the possible cause in this
paragraph.
7.5 Additional troubleshooting
Case 3: Heating Element sensor is overheated
 Check if the connector J12 / J6 has
been plugged in correctly and if the
connection J12[1-4] (optional
overheat protection) has been
connected properly.
 Check if the system fan supplies
enough air.
Case 4: Heating Element sensor is overheated,
has not been detected or has been short-
circuited.
The Heating Element sensor consists
of two internal sensors. The readings
of these sensors may differ too much:
o Measure the resistance of
each sensor. The resistance
should be 20 KΩ at 25°C and
25 KΩ at 20°C.
o If the measured values differ
too much, replace sensor.
Case 9: Too many reset actions in a short
timespan
 This error will disappear after some
time or if the main power is
disconnected for a while.
Case 13: Internal error
 Isolate the electrical supply and
reenergise.
 If this does not help, replace the
burner control unit.
Case 16: Relay error
 Isolate the electrical supply. Check if
one of the relay has stuck while it was
switched. If yes; replace the relays.
 Reenergise the appliance . Check if
one of the relays switches at ones/too
soon. If yes: replacet the burner
control unit.
8. Maintenance
The air heater must be
inspected and cleaned once a year by a
qualified installer with sufficient knowledge of
the device.
8.1 Preparation
Sufficient maintenance is
critical in circumstances such as high humidity,
dust, high switching on/off frequency, etc.
Before performing maintenance on an air
heater that has already been installed, do the
following:
1. Set the thermostat to the lowest
setting.
2. Turn off the power supply to the air
heater using the maintenance switch.
Do not use water when
cleaning the air heater.
The heater must be
electrically isolated during servicing.
8.2 Basic maintenance
To perform basic maintenance on the air
heater, do the following:
When cleaning parts of the
air heater, use a dry cloth, brush, compressed
air or a vacuum cleaner. Never use a steel
brush.

INSTALLATION MANUAL AIR HEATER TYPE EH 14
1. Inspect the heating elements.
2. Clean the fan guard on the outside of
the heater. Clean the fan blades if
required.
3. Open the access panel.
4. Clean the inside of the air heater.
Focus on the following parts:
a. Body
b. Fan blades and motor
c. Heating elements
d. Temperature sensor
5. Check if the wiring, nuts and bolts are
properly secured and tightened.
Some checks can only be performed when the
heater is running. Do the following:
1. 1. Reconnect the air heater to the power
supply.
2. Switch on the air heater.
3. Check if the heater operates without
problems. See chapter 9 if any errors
occur.

INSTALLATION MANUAL AIR HEATER TYPE EH 15
9 Electrical wiring diagram
A complete electrical wiring diagram is shown in figure 11. The connections that are most important
to the installation process are shown in figure 12.
Figure 11 – - Electrical wiring diagram EH
Figure 12 – - Main connections for installation
20K@25°C
22°C
L
N
F1: 5AT
20K@25°C
20K@25°C
J9- 1
J9- 3
J9- 2
J9- 4
J6- 1
J6- 8
J6- 2
J6- 9
J6- 3
J6- 10
J6- 4
J6- 11
J6- 5
J6- 12
J6- 6
J6- 13
J7- 1
J7- 2
J7- 3
J7- 4
J7- 5
J7- 6
J7- 7
J7- 8
J7- 9
J7- 10
J12- 1
J12- 4
J12- 2
J12- 5
J12- 3
J12- 6
J8- 1
J8- 2
J6- 7
J6- 14
T1
J2- 1..6
J1- 1
J1- 5
J1- 2
J1- 6
J1- 3
J1- 7
J1- 4
J1- 8
J3- 2
J3- 6
J3- 1
J3- 7
J3- 3
J3- 8
J3- 4
J3- 9
J3- 5
J3- 10
J4- 2
J4- 3
J4- 5
J4- 4
J4- 1
J4- 6
J5- 1
J5- 2
J5- 4
J5- 3
43
1
2
J25 LED RESET
PE
5
4
J17
7
6
C4
C5
E1
P1
T1
T4
PE
RT
14
13
N
L
K2
LA1 A2
K1
A1 A2
K1
Control unit
966
K2
K1
L triac
12
11
M2
7
4
L1 L3L2 56
RT
3 x 400 V + N ~ 50 Hz
11 12
22°C
PE
N
L1 L2 L3 LN
N
Nrt. Connection type
C4 Modulating thermostat
C5 ON/OFF thermostat
E1 Power line EMI filter
K1 Relay low
K2 Relay high
M2 Modulated system fan (triac)
P1 Power supply 230V
T1 Temperature sensor (heating
element)
T4 Temperature sensor (delta-T)
K1
K2
L1
L2
L3
N
Control unit
966
diagram
PE
R2 R1

INSTALLATION MANUAL AIR HEATER TYPE EH 16
10 Exploded view and spare parts
N
o
.
Description
EH10
EH15
EH25
EH30
EH40
1
System
fan
IX4201
IX4201
IX4201
IX4201
IX4204
2
Rel
ay
l
ow
IE5201
IE5201
IE5201
IE5201
IE5202
3
Rela
y
h
i
g
h
IE5201
IE5201
IE5202
IE5202
IE5202
4
B
urner control unit
GE5903
GE5903
GE5903
GE5903
GE5903
5
H.
Element 2,5 kW
IE2510
IE2510
6
H.
Element 3,3 kW
IE2512
IE2512
IE2512
IE2512
7
Sensor
h.
element
GY3932
GY3932
GY3932
GY3932
GY3932
8
Delta
-
T sensor
GY3931
GY3931
GY3931
GY3931
GY3931
1
3
2
4
56
8
7

INSTALLATION MANUAL AIR HEATER TYPE EH 17
11. Declaration of conformity
Winterwarm Heating Solutions B.V.
Industrieweg 8
7102 DZ Winterswijk
The Netherlands
 Declares that Hot Air Heaters types:
 EH10, EH15, EH25, EH30 en EH40
 Are in accordance with the essential requirements of the relevant EU directives being:
 2014/35/EU (LVD) relating to the electric safety of appliances
 2014/30/EU (EMC) relating to the electromagnetic compatibility
 2006/42/EG (MD) relating to the safety of machinery
Goods should be installed and used in accordance with our instructions and with the applicable local
and international rules. Installation should be done by an authorized, qualified and competent
installer.
Winterswijk, 1 augustus 2020
Ir. M. Fiselier
Manager Research and Development.
