Wolf 24 inch E Series User manual

Induction and Electric Cooktops Installation Guide

INDUCTION AND ELECTRIC COOKTOPS
2 | Wolf Customer Care 800.222.7820
Contents
3Induction and Electric Cooktops
4Specications
9Installation
10 Troubleshooting
Features and specications are subject to change at any
time without notice. Visit wolfappliance.com/specs for the
most up-to-date information.
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specied.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.

wolfappliance.com | 3
Product Information
Important product information including the model and
serial number are listed on the product rating plate. The
rating plate is located on the bottom of the cooktop. Refer
to the illustration below.
If service is necessary, contact Wolf factory certied service
with the model and serial number. For the name of the
nearest Wolf factory certied service or for questions
regarding the installation, visit the contact & support section
of our website, wolfappliance.com or call Wolf customer
care at 800-222-7820.

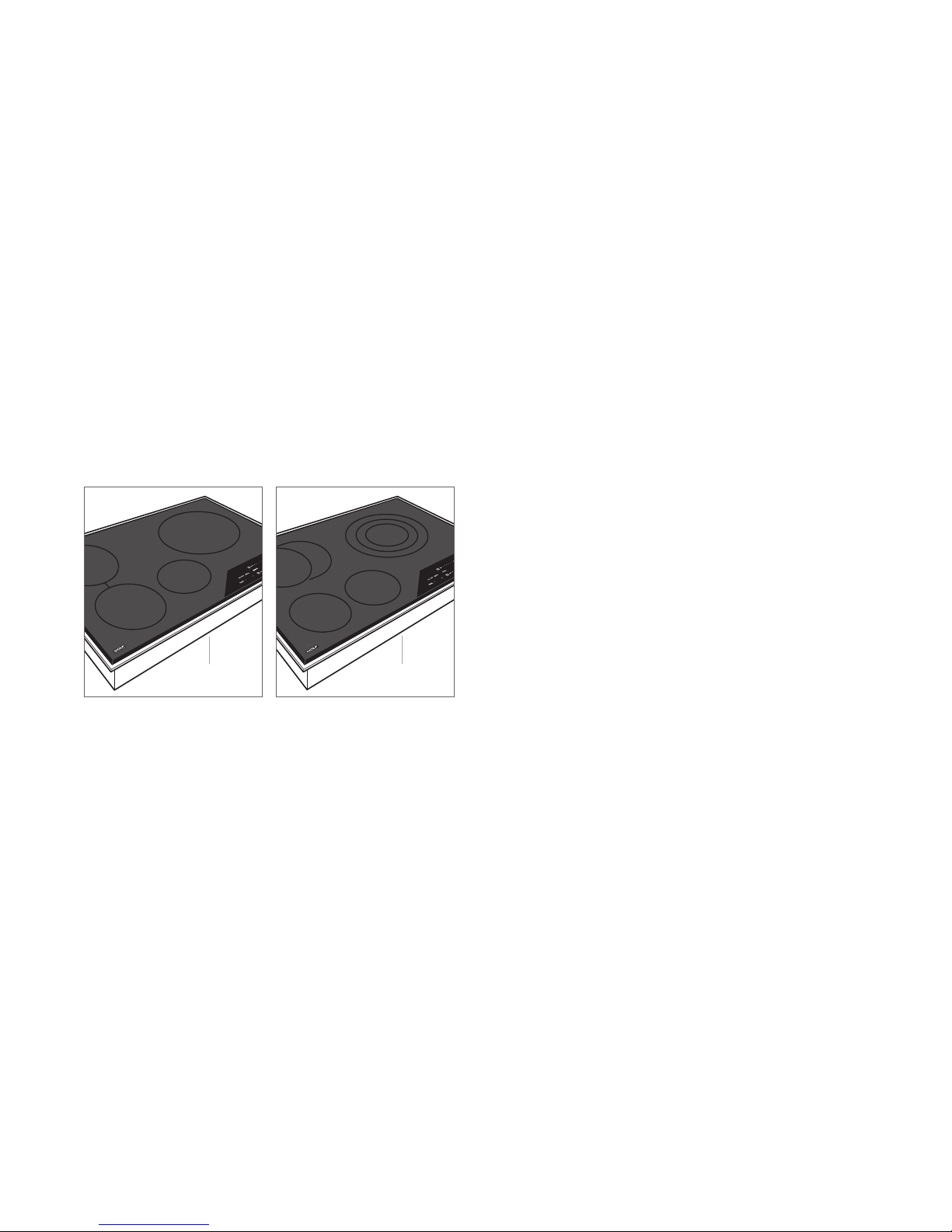

Induction cooktop. Electric cooktop.
RATING PLATE RATING PLATE
INDUCTION AND ELECTRIC COOKTOPS

4 | Wolf Customer Care 800.222.7820
Installation Requirements
A minimum 2" (51) is required from the bottom of the
cooktop to combustible materials.
Clearance is required for the conduit located at the right rear
of induction and electric cooktops. Refer to the illustration
below for dimensions.
Refer to the illustrations on pages 6–8 for additional
minimum clearances. Installation dimensions are the same
for induction and electric cooktops of the same width.
WARNING
Failure to locate the cooktop without proper clearances
will result in a re hazard.
SPECIFICATIONS
11/4"(32)
2"
(51)
2"
(51)

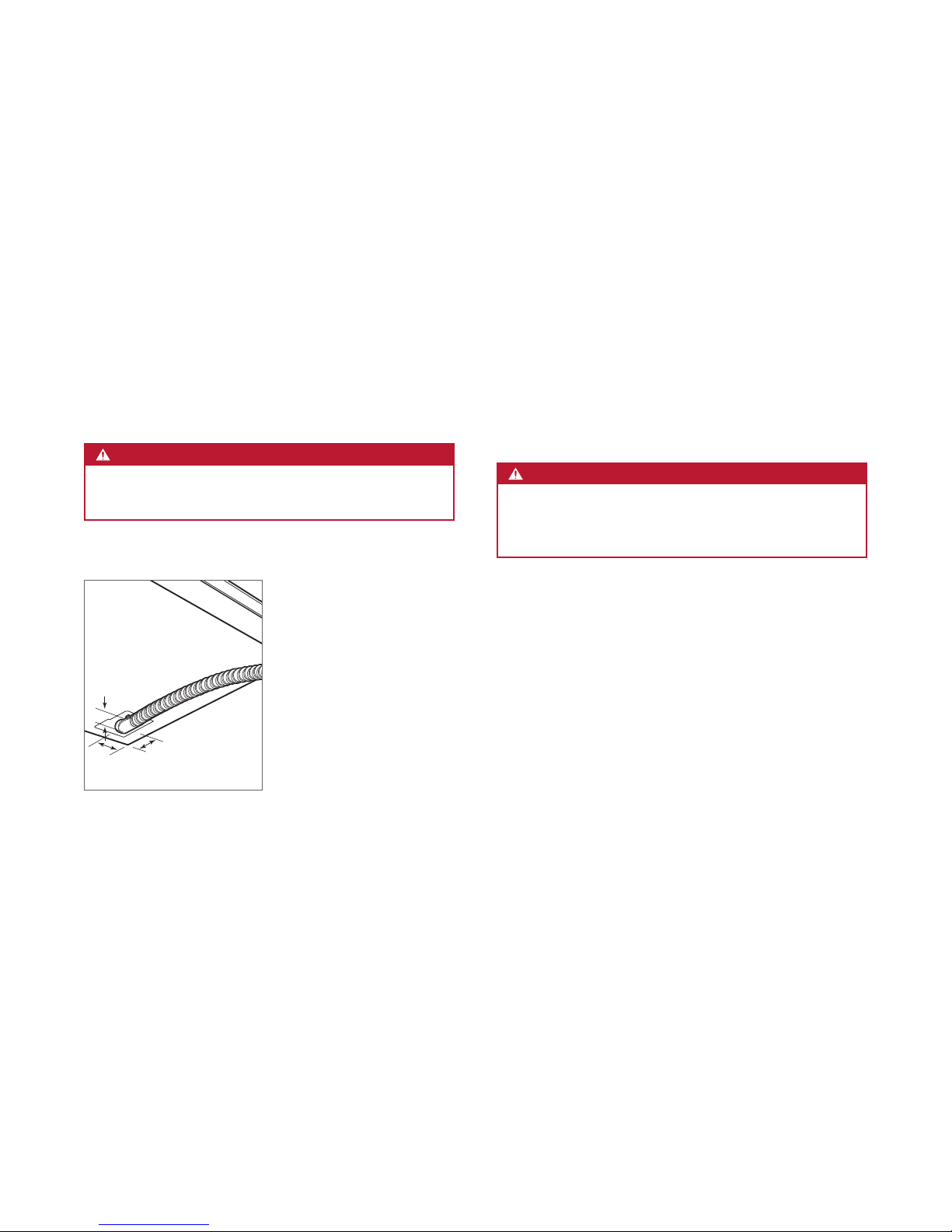

Conduit dimensions.
FLUSH INSTALLATION
Contemporary induction and electric cooktops can be
mounted ush with the top of the countertop, or as a frame-
less standard installation sitting on top of the countertop
surface. If the cooktop is to be mounted ush with the coun-
tertop, a recessed area surrounding the cooktop cut-out
must be provided. Wolf downdraft systems cannot be used
with contemporary induction and electric cooktops.
An installation kit and instructions required for a ush
installation are provided with the contemporary cooktop.
CAUTION
Flush installation is intended for granite, solid surface
or stone countertop surfaces only.
MULTIPLE COOKTOPS
When multiple cooktops or modules are installed side by
side, the countertop cut-out width is determined by adding
the width of each unit, then subtracting 1" (25). Refer to the
illustration below.
IMPORTANT NOTE: Contemporary induction and electric
cooktops are not designed to be installed in combination
with other cooktops.
CUT-OUT WIDTH
(COMBINED WIDTH OF COOKTOPS MINUS 1")
191/2"
(495)
CUT-OUT
DEPTH
21/2" (64)
21/2" (64)

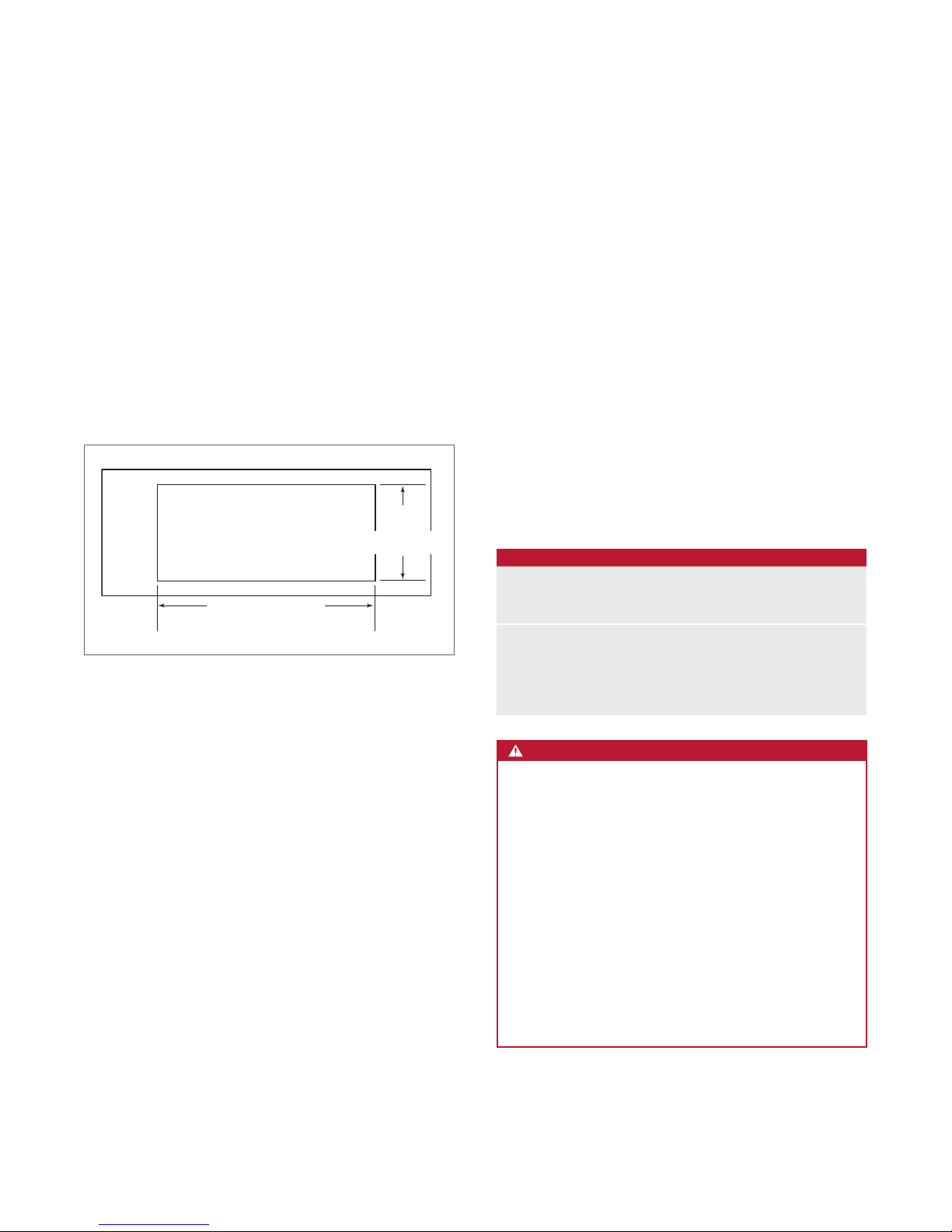

Countertop cut-out.

wolfappliance.com | 5
WARNING
The complete appliance must be properly grounded at
all times when electrical power is applied.
Do not ground appliance with the neutral (white) house
supply wire. A separate ground wire must be utilized.
If aluminum house supply wiring is utilized, splice the
appliance copper wire to the aluminum house wiring
using special connectors design and agency certied
for joining copper and aluminum. Follow the connector
manufacturer's recommended procedure carefully.
Improper connection can result in a re hazard.
SPECIFICATIONS
Induction cooktop. Electric cooktop.
RATING PLATE RATING PLATE
Electrical
Installation must comply with all applicable electrical codes.
Locate the electrical supply as shown in the illustrations
on the following pages. A separate circuit, servicing only
this appliance is required. A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption of
operation.
Performance may be compromised if the electrical supply is
less than 240 volts.
When multiple cooktops are installed side by side, each unit
must have its own separate recommended electrical circuit.
ELECTRICAL REQUIREMENTS
INDUCTION / ELECTRIC
Electrical Supply 3-wire, 240/208 VAC, 60 Hz
Conduit exible 4' (1.2 m)
SERVICE
15" Induction / Electric 20 amp dedicated circuit
24" Induction 30 amp dedicated circuit
30" Induction / Electric 40 amp dedicated circuit
36" Induction / Electric 50 amp dedicated circuit

6 | Wolf Customer Care 800.222.7820
SPECIFICATIONS

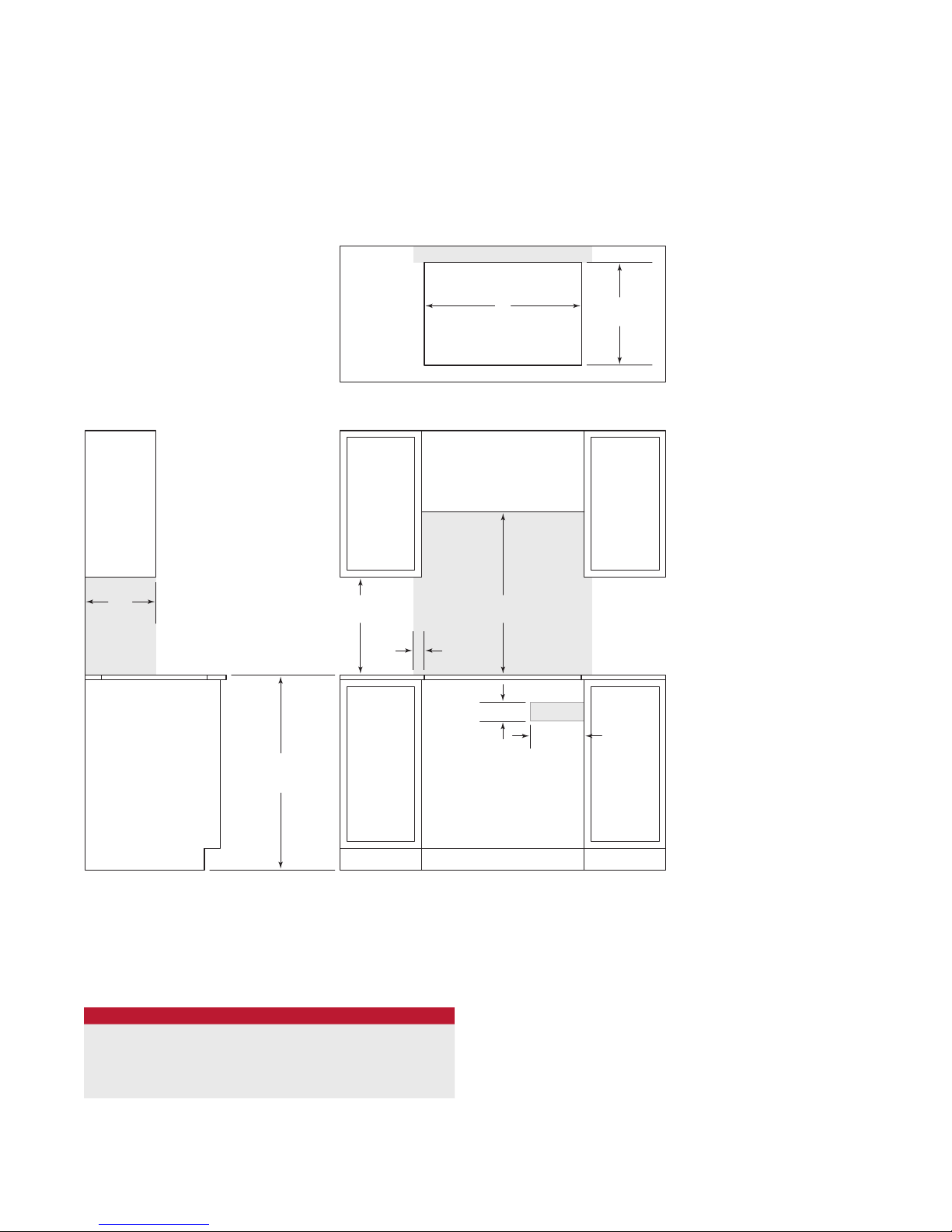

15" Cooktop
STANDARD INSTALLATION
14"
(356)
191/2"
(495)
21/2" (64)
21/2" (64)
FRONT VIEW
SIDE
VIEW
COUNTERTOP CUT-OUT
NO
TE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combus
tible materials cannot be located within this area.
13"
(330)
18"
(457)
E
30"
(762)
2"
(51)
36" (914) min
FLOOR TO
COUNTERTOP

wolfappliance.com | 7
SPECIFICATIONS
E
COUNTERTOP CUT-OUT
10" (254)
41/2" (114)
31/2" (89)
FRONT VIEW
SIDE
VIEW
NO
TE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combus
tible materials cannot be located within this area.
El
ectrical supply location only applies to installations with built-in oven.
30"
(762)
13"
(330)
18"
(457)
2"
(51)
W
WIDTH
191/2"
(495)
21/2" (64)
21/2" (64)
36" (914) min
FLOOR TO
COUNTERTOP
CUT-OUT WIDTH
INDUCTION / ELECTRIC COOKTOP W
24" Induction 221/8"(562)
30" Induction / Electric 29" (737)
36" Induction / Electric 35" (889)

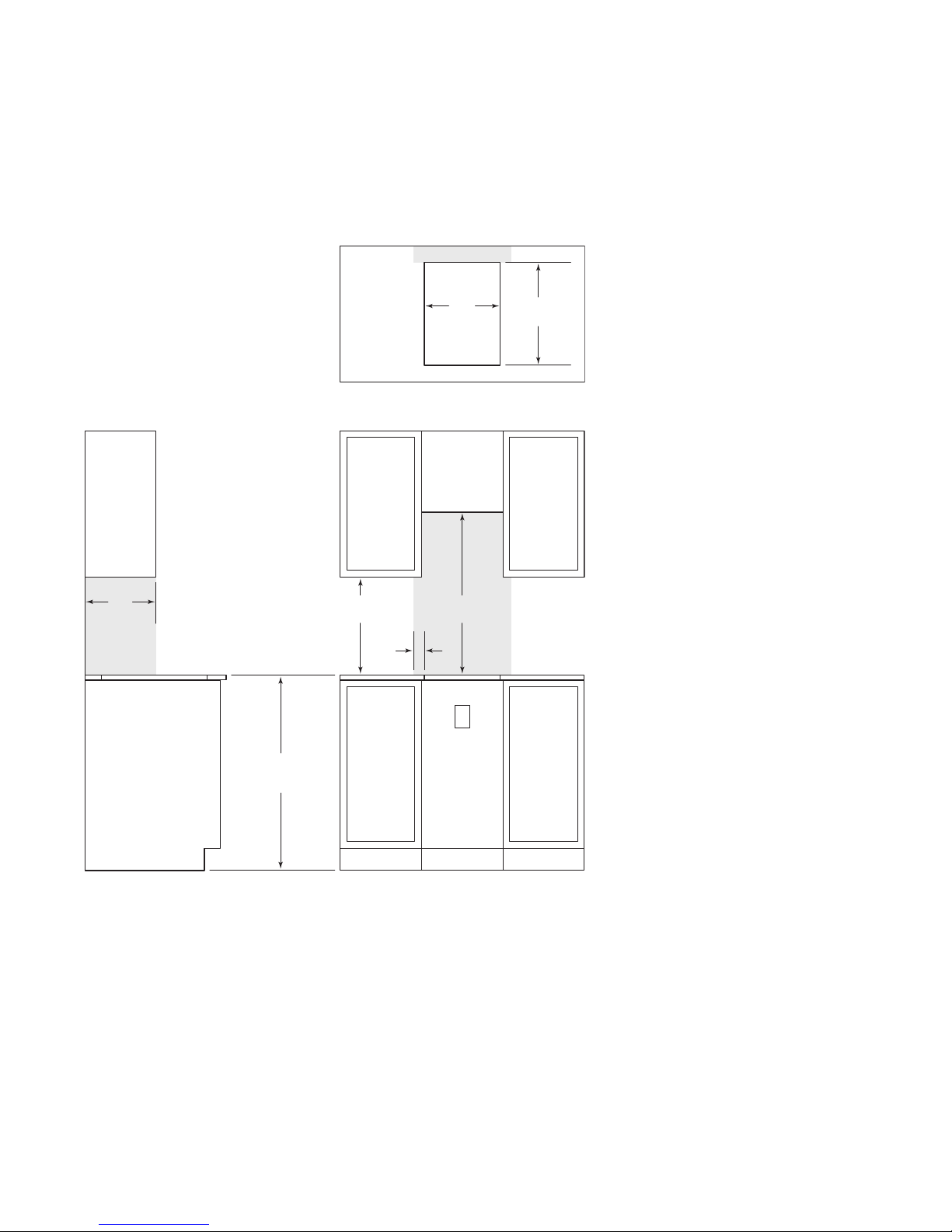

24", 30" and 36" Cooktops
STANDARD INSTALLATION

8 | Wolf Customer Care 800.222.7820
SPECIFICATIONS
24", 30" and 36" Cooktops
FLUSH INSTALLATION
E
A
RECESS
211/8"
(537)
RECESS
19/16" (40) min
W
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
191/2"
(495)
21/2" (64)
21/2" (64)
10" (254)
41/2" (114)
31/2" (89)
FRONT VIEW
SIDE
VIEW
NO
TE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combus
tible materials cannot be located within this area.
El
ectrical supply location only applies to installations with built-in oven.
Outsid
e corner radius 7/16"(11).
30"
(762)
13"
(330)
18"
(457)
2"
(51)
5/16" (8)
7/8"
(22) MAX
COUNTERTOP
PROFILE
36" (914) min
FLOOR TO
COUNTERTOP
CUT-OUT WIDTH
INDUCTION / ELECTRIC COOKTOP W A
24" Induction 221/8"(562) 233/4"(603)
30" Induction / Electric 29" (737) 301/8"(765)
36" Induction / Electric 35" (889) 361/8"(918)

CLEAT OPTION
For this installation, the countertop cut-out will be the same
size as the outer edge of the cooktop glass.
Attach L-shaped cleats to the perimeter of the countertop
cut-out. The top edge of the cleat can not be wider than
7/8"(22) and will be attached 5/16"(8) below the surface of the
countertop. Refer to the illustration below. Attach the cleats
to the countertop. Consult a countertop supplier for proper
methods of attachment.
INSTALLATION
Flush Installation
To ensure a proper installation, a template for the countertop
cut-out should be created using the cooktop glass.
ROUTING OPTION
For this installation, a recessed area surrounding the coun-
tertop cut-out is required. Fabrication of the recessed area
must take place before the countertop is installed.
This option is not recommended for countertops with a
molded backsplash.
7/8"(22)
5/16"(8) L-SHAPED
CLEATS
Support cleats.
wolfappliance.com
| 9

10 | Wolf Customer Care 800.222.7820
INSTALLATION
Cooktop Installation
Remove the cooktop and components from the shipping
package and recycle packing materials.
Lower the cooktop into the countertop cut-out. Center the
cooktop in the opening with the front edge aligned parallel
to the front edge of the countertop. Using a pencil, outline
the rear edge of the cooktop on the countertop. Remove the
cooktop.
Apply the foam strip provided, to the perimeter of the coun-
tertop opening. Refer to the illustration below. Do not seal
the cooktop to the countertop.
Insert the cooktop into the opening. Verify the cooktop is
aligned with the front edge of the countertop.
Attach the brackets provided, to the bottom of the unit.
Insert the 31/2"(89) clamping screws into the brackets. Use
a screwdriver to tighten the clamping screws against the
bottom of the countertop. Do not overtighten screws. Refer
to the illustration below.
Troubleshooting
IMPORTANT NOTE: If the cooktop does not operate prop-
erly, follow these troubleshooting steps:
•Verify electrical power is supplied to the cooktop.
•If the cooktop does not operate properly, contact Wolf
factory certied service. Do not attempt to repair the
cooktop. Wolf is not responsible for service required to
correct a faulty installation.
FOAM STRIP
COUNTERTOP
BRACKET CLAMPING
SCREW

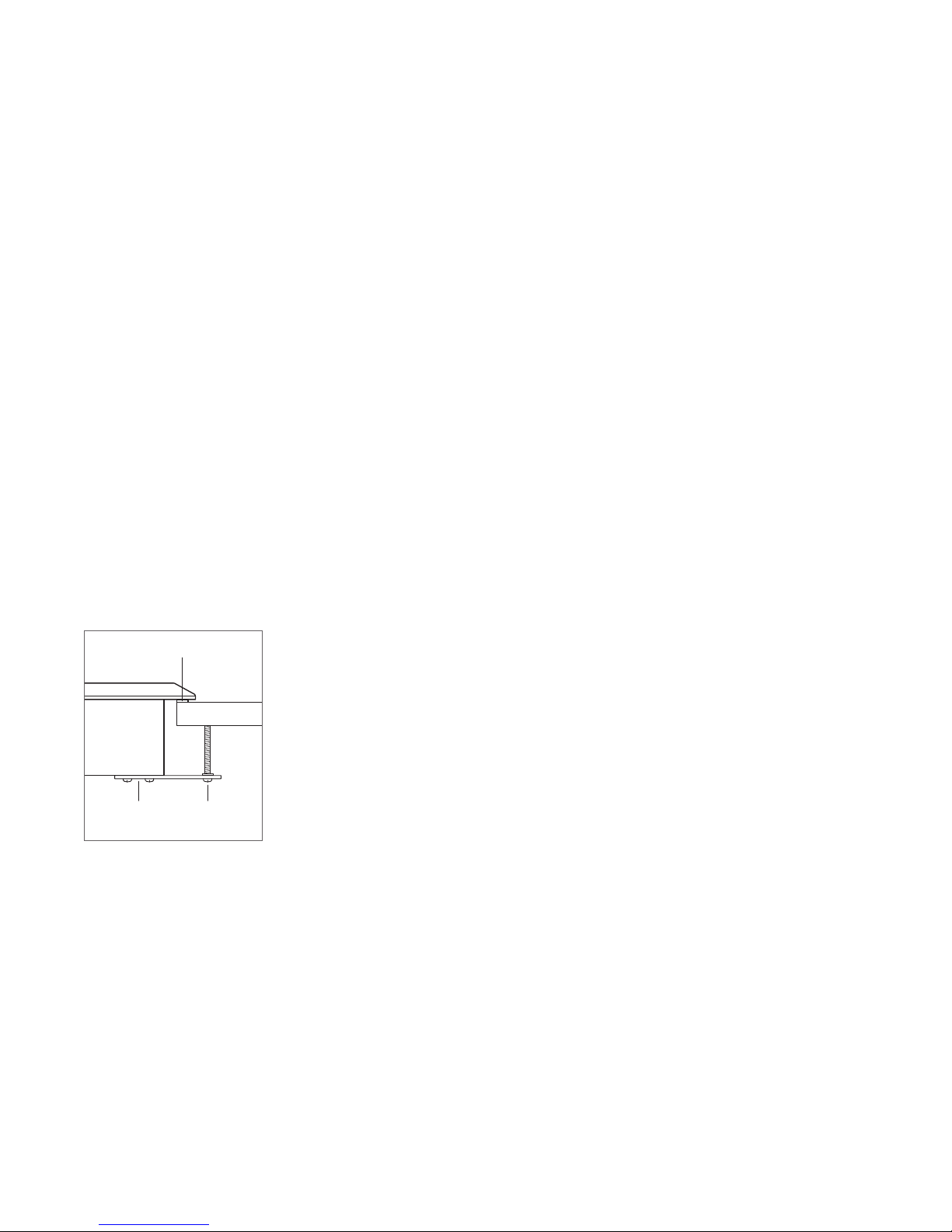

Cooktop installation.
