Wolf CTG Series User manual

General Information 2
Installation Information 6
Controls & Operation 13
Component Access & Removal 18
Troubleshooting Guide 26
Technical Data 29
Wiring Diagrams 31
subzero.com 800.222.7820
CT Gas Cooktop
Service Manual

Page 2
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
General Information
1-2
#802985 - Revision E - August, 2011
INTRODUCTION
This manual has been compiled to provide the most recent technical service information about this series. This
information will enable the service technician to troubleshoot and diagnose malfunctions, perform necessary repairs
and return a Wolf Gas Cooktop to proper operational condition.
The service technician should read the complete instructions contained in this Service/Training Manual before initiat-
ing any repairs on a Wolf Appliance.
* Some information in Section 2, Theory of Operation, has been provided by the American Gas Association
and reprinted with their approval.
IMPORTANT SAFETY INFORMATION
Below are the Product Safety Labels used in this manu-
al. The "Signal Words" used are WARNING and
CAUTION.
Please note that these safety labels are placed in areas
where awareness of personal safety and product safety
should be taken and lists the precautions to be taken
when the signal word is observed.
INDICATES THAT HAZARDOUS OR UNSAFE
PRACTICES COULD RESULT IN SEVERE PERSON-
AL INJURY OR DEATH.
Indicates that hazardous or unsafe practices could
result in minor personal injury or product and/or
property damage.
In addition, please pay attention to the signal word
“NOTE”, which highlights especially important informa-
tion within each section.
TECHNICAL ASSISTANCE
If you should have any questions regarding the appli-
ance and/or this manual, please contact:
Wolf Appliance, Inc.
ATTN: Service Department
P.O. Box 44988
Madison, WI 53744 - 4988
Customer Assistance
Phone #: (800) 332 - 9513
Facsimile #: (608) 441 - 5887
Technical Assistance
(For Technicians in Customer’s Homes Only)
Phone #: (800) 919 - 8324
Warranty Claims
Phone #: (800) 404 - 7820
Facsimile #: (608) 441 - 5886
Service Department e-mail Address:
[email protected]
Main Office Hours:
8:00 AM to 5:00 PM Central Time
Monday through Friday
(24/7 Phone Coverage)
This manual is designed to be used by Authorized Service Personnel only. Wolf Appliance, Inc.. assumes
no responsibility for any repairs made to Wolf appliances by anyone other than Authorized Service
Technicians.
The information and images are the copyright property of Wolf Appliance, Inc., an affiliate of Sub-Zero, Inc. Neither
this manual nor any information or images contained herein may be copied or used in whole or in part without the
express written permission of Wolf Appliance, Inc., an affiliate of Sub-Zero, Inc. © Wolf Appliance, Inc. all rights
reserved.

Page 3
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
General Information
1-4
#802985 - Revision E - August, 2011
WARRANTY INFORMATION
This page contains a summary of the 2 & 5 Year
Warranty that is supplied with every Wolf product,
followed by details and notes about the warranties.
TWO & FIVE YEAR Warranty Summary
• Two year TOTAL PRODUCT warranty, parts and
labor.
• Limited Parts Only Warranty for the 3rd through
5th year on the following parts only:
• Gas Burners (excluding appearance).
Warranty Details:
The warranty applies only to products installed for
normal residential use. The warranty applies only to
products installed in the United States or Canada.
Warranty NOTES:
• All warranties begin at the time of the initial
installation.
• All Warranty and Service information collected by
Wolf Appliance, Inc.. is arranged and stored
under the unit serial number and/or the cus-
tomer’s name. Please note that Wolf Appliance,
Inc. requests that you have the model serial
number available whenever contacting the facto-
ry or parts distributor.
•See Figure 1-1 for serial tag layout.
•See Figure 1-2 for serial tag location.
Wolf Appliance Company, LLC
FITCHBURG, WI
GAS
LEFT
REAR
LEFT
FRONT
VOLTS
CENTER
REAR
CENTER
FRONT
AMP
PRESS.
MAIN
REAR
RIGHT
FRONT
RIGHT
HERTZ
ELECTRICAL RATING
000 000 60
INPUT RATING EACH
BURNER-BTU/HR.
MODEL
NO.
SERIAL
ANSI Z21.1 2000 "HOUSEHOLD GAS COOKING APPLIANCES"
"CAN1-1.1-M81"
BD
801503

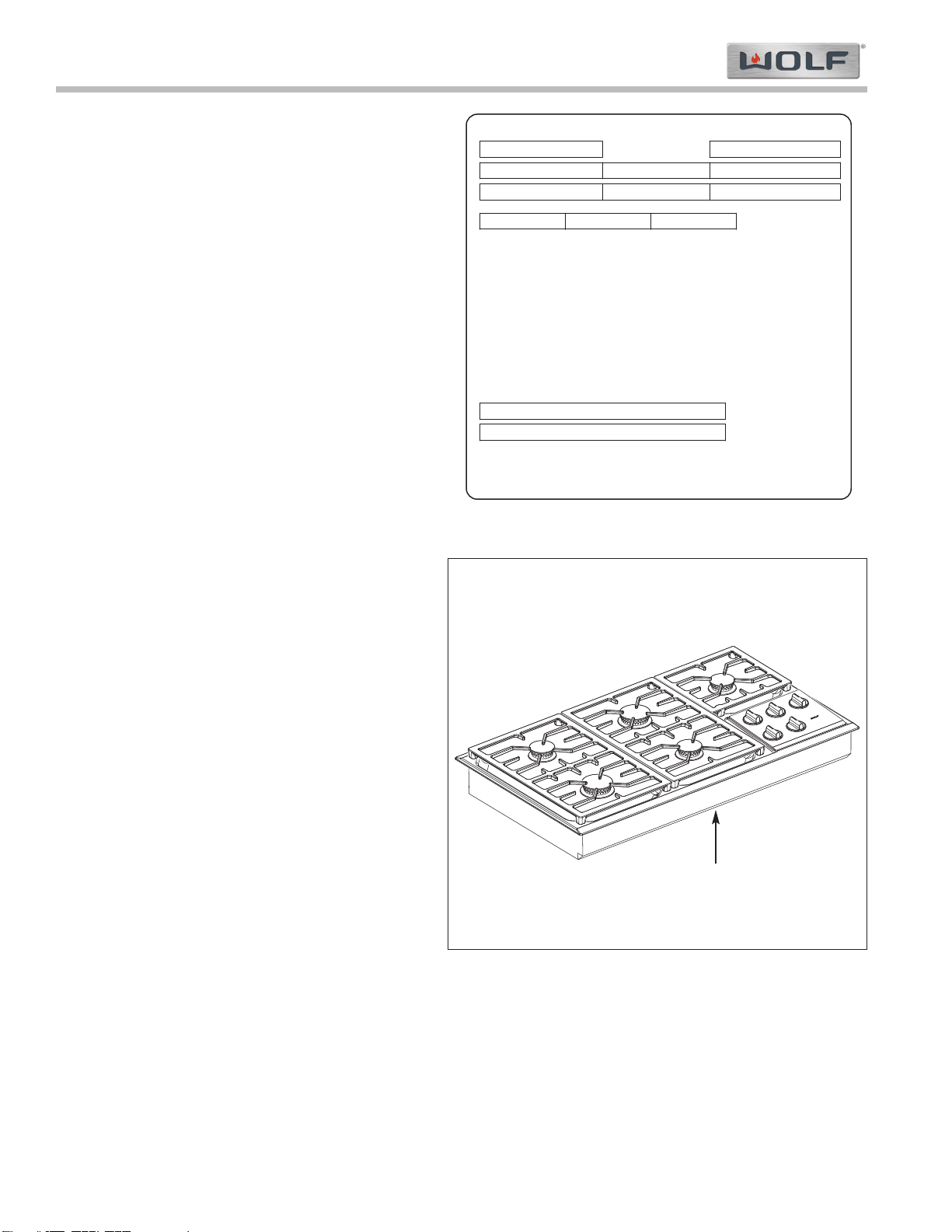

Figure 1-1. Typical Serial Tag Layout
Figure 1-2. The serial tag is located on the bottom of
the cooktop.
Serial Tag Location

Page 4
General Information
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
1-5 #802985 - Revision E - August, 2011
MODEL NUMBER KEY
Refer to this key for an example of the model numbers.
Model: CT 36 G / S
Product Type
Size
Fuel
Finish
Product Type
CT Cooktop
Size
15 15'' - inch wide unit
30 30'' - inch wide unit
36 36'' - inch wide unit
Finish
SClassic Stainless Steel
PPlatinum Stainless Steel (Not Available for IM, IG, IS and IF)
BCarbon Stainless Steel (Not available for Gas models. Not available for IM, IG, IS and IF)
Fuel (If Applicable)
LP Liquid Propane Gas
Natural Gas (If there is no “LP” at End of Model Number)

Page 5
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
General Information
1-6
#802985 - Revision E - August, 2011

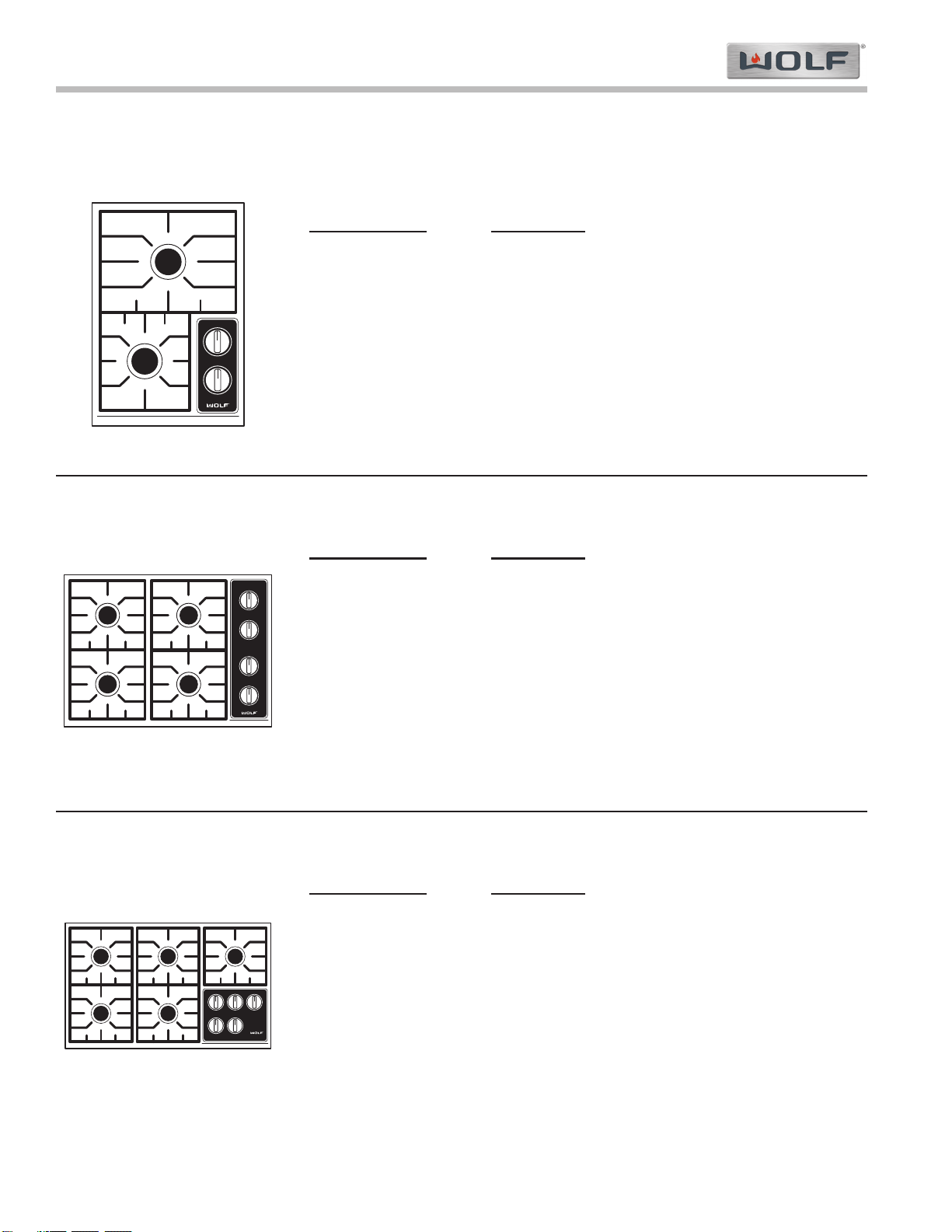

MODEL CONFIGURATIONS
Model Numbers Descriptions
CT30G/S Cooktop 30” Gas Stainless Steel Natural Gas
CT30G/S- LP Cooktop 30” Gas Stainless Steel Propane
CT30G/P Cooktop 30” Gas Platinum Stainless Steel Nat Gas
CT30G/P- LP Cooktop 30” Gas Platinum Stainless Steel Propane
• Four burner
• Two burners at 12,000 BTU
700 BTU’S delivered at simmer
• Two burners at 9,200 BTU
300 BTU’s delivered at simmer
30” Gas
36” Gas
Model Numbers Descriptions
CT36G/S Cooktop 36” Gas Stainless Steel Natural Gas
CT36G/S- LP Cooktop 36” Gas Stainless Steel Propane
CT36G/P Cooktop 36” Gas Platinum Stainless Steel Nat Gas
CT36G/P- LP Cooktop 36” Gas Platinum Stainless Steel Propane
• Five burner
• Two burners at 12,000 BTU
700 BTU’S delivered at simmer
• Three burners at 9,200 BTU
300 BTU’s delivered at simmer
Model Numbers Descriptions
CT15G/S Cooktop 15” Gas Stainless Steel Natural Gas
CT15G/S- LP Cooktop 15” Gas Stainless Steel Propane
• Two burner
• One burner at 12,000 BTU
700 BTU’S delivered at simmer
• One burner at 9,200 BTU
300 BTU’s delivered at simmer
15” Gas

Page 6
General Information
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
1-7 #802985 - Revision E - August, 2011
MODEL FEATURES for 15”, 30” & 36” GAS COOKTOPS
• Simmer on all burners
• Dual stacked sealed burners
• Single spark ignition with auto reignition for all burners
• 12,000 BTU/hr and 9,200 BTU/hr burners
• Low profile, continuous, porcelain-coated cast iron grates
• Smart porting of all burners
• Back lit illuminated control panel.
• Electric ratings: 110-120V/ 15 amp circuit
• Available in Natural or LP gas
• Two and Five year warranty

Page 7
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
Installation Information
2-2
#802985 - Revision E - August, 2011
INSTALLATION INFORMATION
This section of the manual covers some of the installation issues that a service technician may need to know when
servicing a Wolf Gas Cooktop. If additional installation information is needed after reviewing this section of the man-
ual, please refer to the Installation Guide or contact the Wolf Appliance Customer Service Department.
Electrical Requirements:
•110-120 volts AC, 60 Hertz, 15 ampere fused electrical supply.
•A timed-delay fuse or circuit breaker is recommended.
•Separate circuit serving only this appliance.
•Installation site must be equipped with a properly grounded 3-prong receptacle.
This appliance when installed must be properly grounded. This appliance is equipped with a 3-prong (grounding)
plug. The power cord must be plugged into a mating 3-prong ground-type receptacle (See Figure 2-1).
If a mating receptacle is not available, it is the obligation of the customer to have a properly grounded, 3-prong
receptacle installed by a qualified electrician.
If the electric receptacle or the power cord are not properly grounded and polarized, a shock hazard could exist and
the appliance may experience ignition problems.
• A SHOCK HAZARD COULD EXIST IF THE ELEC-
TRIC RECEPTACLE OR THE POWER CORD ARE
NOT PROPERLY GROUNDED AND POLARIZED.
• TO AVOID SHOCK HAZARD, NEVER REMOVE
THE GROUNDING PRONG FROM THE PLUG OF
THE POWER CORD.
Figure 2-1. Proper Polarity at Electric Receptacle
Grounding Type
Wall Receptacle
Neutral
Ground
Line
Voltage
(Power)
The appliance may experience ignition problems if
not properly grounded and polarized.

Page 8
Installation Information
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
2-3 #802985 - Revision E - August, 2011
GAS REQUIREMENTS:
NOTE: All Wolf gas appliances are manufactured to
work with natural gas or LP gas (Liquid Propane gas).
Natural Gas Manifold Pressure
Standard natural gas orifices on the appliance are set
for 5” WC (Water Column Pressure).
Liquid Propane Manifold Pressure
The standard propane gas orifices on the appliance are
set for 10” WC (Water Column Pressure).
Gas Supply Line Size
• 1/2 inch
Gas Supply Pressure
•Maximum line pressure for natural gas and LP is
14” WC; 1/2 psi (3.5 kPa).
•Minimum line pressure for natural gas is 7” WC.
•Minimum line pressure for LP gas is 11” WC.
Gas Shut-off Valve
The supply line must be equipped with an approved
shut-off valve. This valve should be located in accor-
dance to all national, local codes and ordinances (See
Figure 2-2).
NEVER USE OPEN FLAMES TO CHECK FOR GAS
LEAKS. ONLY USE A LEAK TESTING SOLUTION
OF SOAPY WATER OR AN ELECTRONIC LEAK
DETECTOR. DO NOT USE LIQUID NEAR VALVE
STEMS.
The maximum gas supply pressure to the regulator
should never exceed 14” WC (Water Column
Pressure); 1/2 psi (3.5kPa).

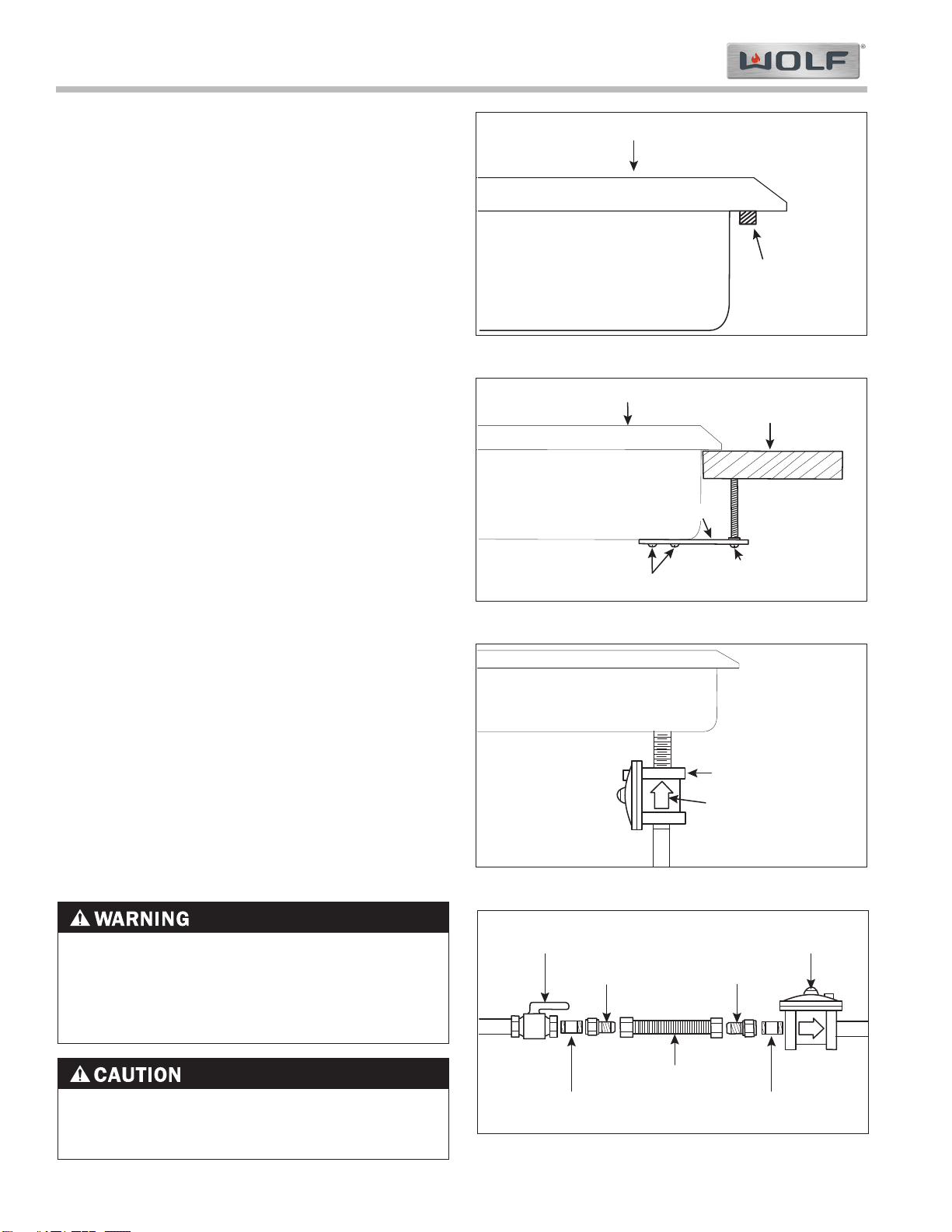

Shut-off Valve
(open position)
To Cooktop
Gas Supply Line
Figure 2-2. Shut-off Valve
Gas Pressure Regulator
To control and maintain a uniform gas pressure in the-
gas manifold, Wolf gas appliances must be connected
to the gas supply line through a pressure regulator.
The burner orifices are sized for the pressure delivered
by the regulator. Never attempt to operate a Wolf gas
appliance without the use of the proper pressure regu-
lator.
Leak Testing

Page 9
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
Installation Information
2-4
#802985 - Revision E - August, 2011

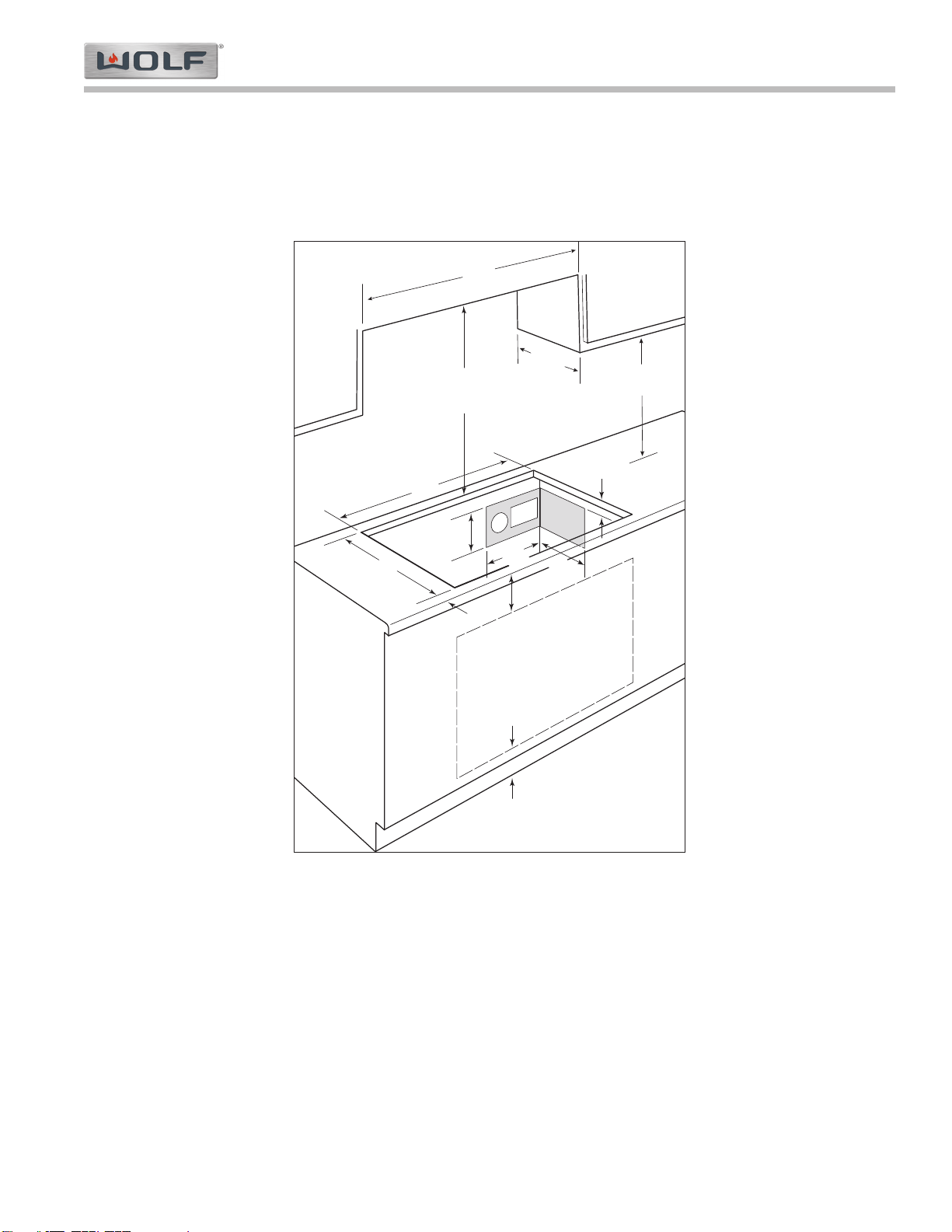

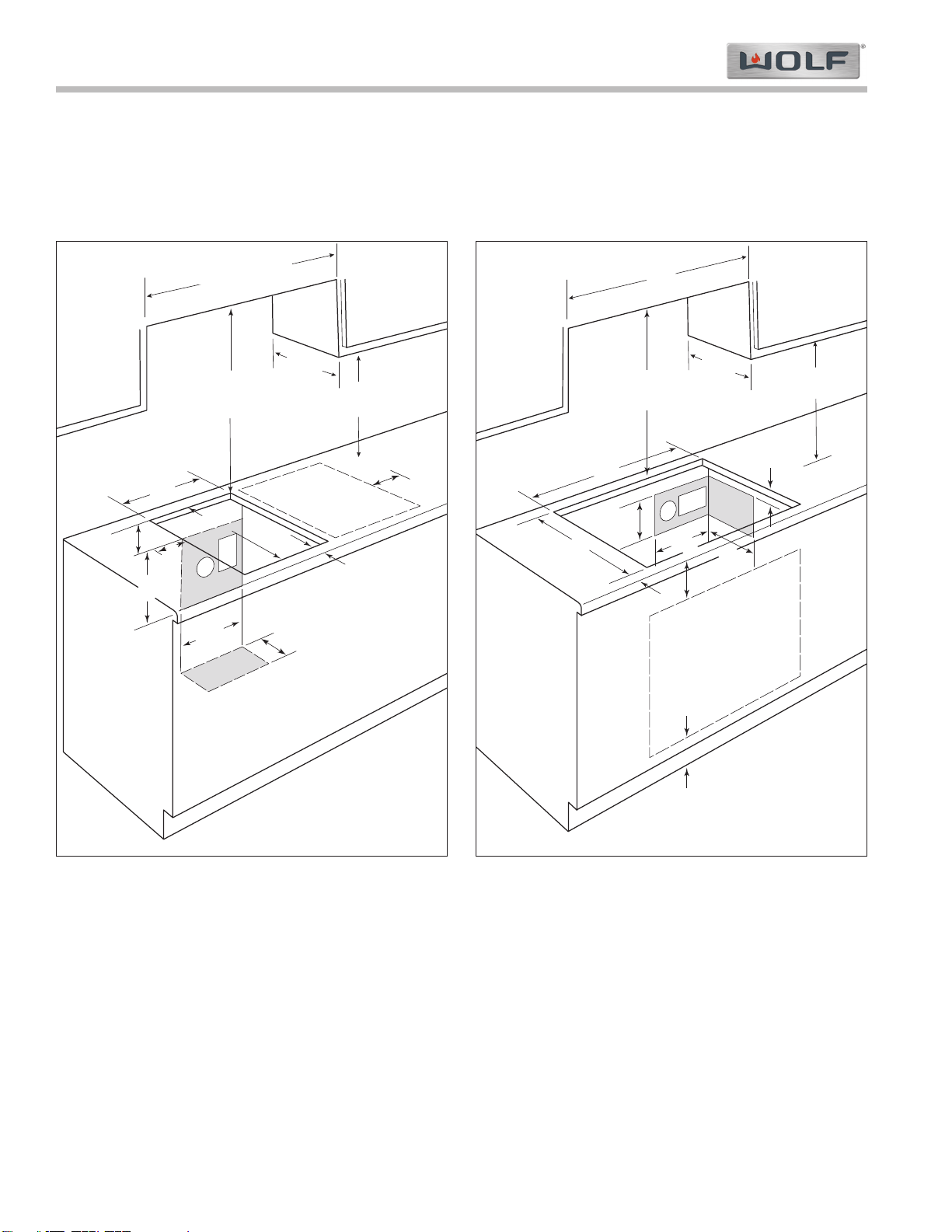

15” AND 30” GAS COOKTOP INSTALLATION DIMENSIONS
Area Requirements:
NOTE: Countertop opening dimensions that are shown must be used. Given dimensions provide required clear-
ances.
E
2
1
/ 2 " min
(6.4)
15"
(38.1)
15"
(38.1)
14"*
(35.6)
4"
(10.2)
5"
(12.7)
G
* Dimensions may vary
by ± 1/8" (.3 cm)
13"
(33.0)
24" or 30"***
18"**
(45.7)
Combined width
of all cooktops
(61.0 or 76.2)
to cooking surface
7"
(17.8)
7"
(17.8)
"*
19
1
/
4
(49.0)
** 18” (45.7cm) minimum clearance upper cabinet to countertop within 7” (17.8cm) minimum side clearance to
combustible surface above countertop.
*** 24” (61cm) minimum clearance between top of cooking surface and bottom of wood or metal cabinet which is
protected by not less than 1/4” (.6cm) flame retardant millboard covered with not less than No. 28 MSG sheet
steel, .015” (.04cm) stainless steel, or .024” (.06cm) aluminum or .02” (.05cm) copper.
*** 30” (76.2) minimum clearance between top of cooking surface and bottom of an unprotected wood or metal
cabinet.
NOTE: Do not seal cooktop to countertop.
15” Installation Dimensions
E
3
1
/ 2 "
(8.9)
10"
(25.4)
4"
(10.2)
10"
(25.4)
29"*
(73.7)
19
1
/ 4 "*
(48.9)
2
1
/ 2 "
min
(6.4)
3
1
/ 2 " min
(8.9)
30" oven cutout location
4
3
/ 4 " min
(12.1)
E
G
* Dimensions may vary
by ± 1/8" (.3 cm)
30"
(76.2)
13"
(33.0)
24" or 30"***
(61.0 or 76.2)
18"**
(45.7)
to cooking surface
30” Installation Dimensions

Page 10
Installation Information
Gas Cooktop (CTG) Series
Gas Cooktop (CTG) Series
2-5 #802985 - Revision E - August, 2011
36” GAS COOKTOP INSTALLATION DIMENSIONS
Area Requirements:
NOTE: Countertop opening dimensions that are shown must be used. Given dimensions provide required clear-
ances.
** 18” (45.7cm) minimum clearance upper cabinet to countertop within 7” (17.8cm) minimum side
clearance to combustible surface above countertop.
*** 24” (61cm) minimum clearance between top of cooking surface and bottom of wood or metal cabinet which is
protected by not less than 1/4” (.6cm) flame retardant millboard covered with not less than No. 28 MSG sheet
steel, .015” (.04cm) stainless steel, or .024” (.06cm) aluminum or .02” (.05cm) copper.
*** 30” (76.2) minimum clearance between top of cooking surface and bottom of an unprotected wood or metal
cabinet.
NOTE: Do not seal cooktop to countertop.
36" oven cutout location
19
1
/ 4 "*
(48.9)
35"*
(88.9)
E
2
1
/ 2 "
min
(6.4)
3
1
/ 2 "
(8.9)
10"
(25.4)
4"
(10.2)
10"
(25.4)
3
1
/ 2 " min
(8.9)
7
3
/ 4 " min
(19.7)
E
G
* Dimensions may vary
by ± 1/8" (.3 cm)
36"
(76.2)
13"
(33.0)
24" or 30"***
(61.0 or 76.2)
18"**
(45.7)
to cooking surface
36” Installation Dimensions
