Wolf Icbcg152tf/s User manual

Gas Cooktop

Installation Guide

Guía de instalación

Guide d’installation

Guida all’installazione

Installationsanleitung

Installatiehandleiding

安装指南

2 | English

Gas Cooktop

Contents

2Gas Cooktop

3Safety Precautions

3Speciﬁcations

7Installation

7Troubleshooting

Features and speciﬁcations are subject to change at any

time without notice.

Product Information

Important product information including the model and

serial number are listed on the product rating plate. The

rating plate is located on the bottom of the cooktop. Refer

to the illustration below.

If service is necessary, contact your authorized Wolf dealer.

Important Note

To ensure this product is installed and operated as safely

and eciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or prod-

uct damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

Rating plate location

RATING PLATE

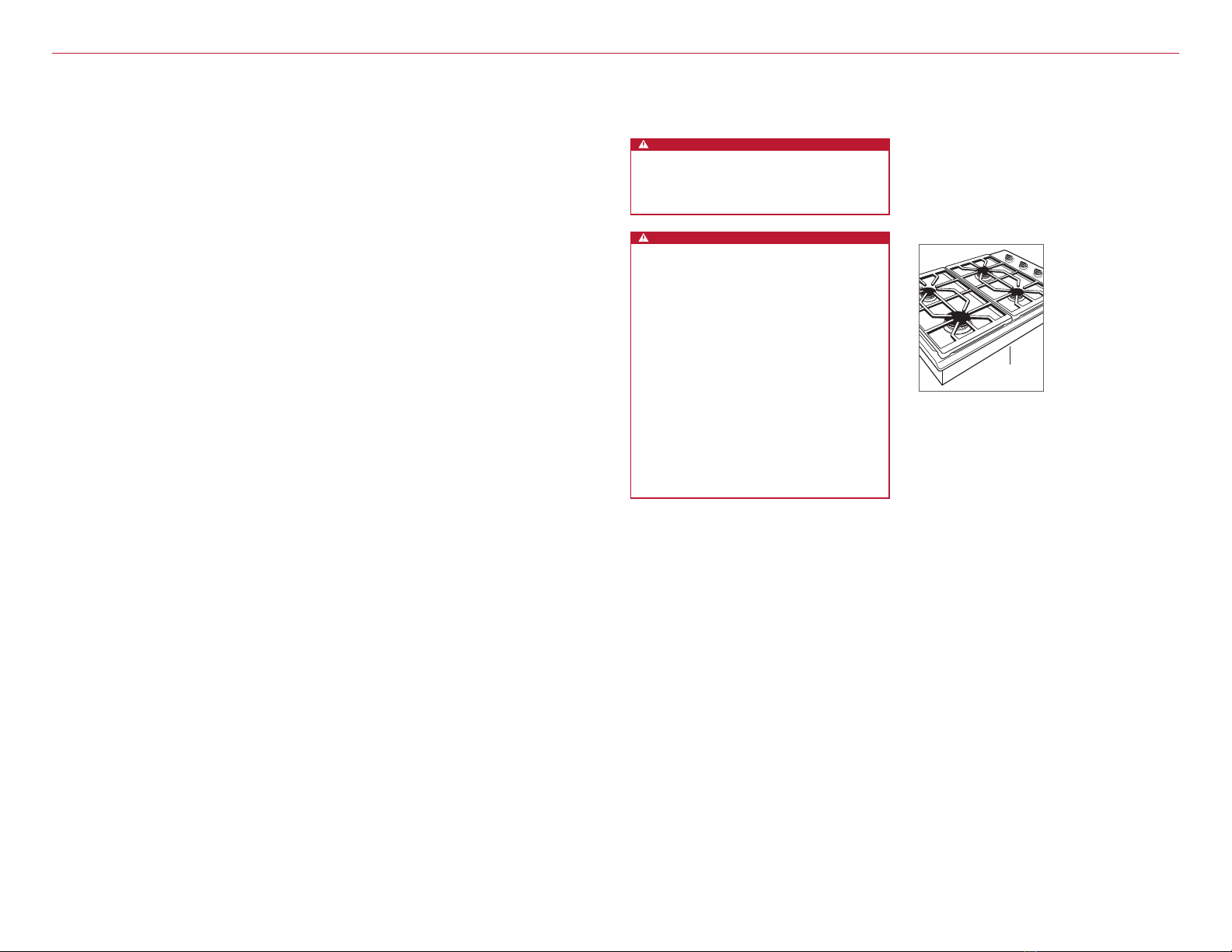

WARNING

This appliance shall be installed in accordance with

the regulations in force and only used in a well venti-

lated space. Read the instructions before installing or

using this appliance.

WARNING

FOR AUSTRALIA ONLY:

•Do not use or store ﬂammable materials in the

appliance storage drawer or near this appliance.

•Do not spray aerosols in the vicinity of this appli-

ance while in operation.

•Do not modify this appliance.

•This appliance is for indoor use only.

•A ventilation unit is suggested for use with this

appliance. Refer to the instructions shipped with

the ventilation unit for proper clearances.

•If the information in the guide is not followed,

a ﬁre or explosion may result, causing property

damage, personal injury or death.

•This appliance must be properly installed and

serviced by a qualiﬁed installer, service agency or

gas supplier and grounded (earthed) by a quali-

ﬁed technician.

wolfappliance.com | 3

Installation Requirements

WARNING

Prior to installation, ensure the local distribution

conditions (nature of the gas and gas pressure) and

the adjustment of the appliance are compatible.

The adjustment conditions for this appliance are

stated on the label or data plate. This appliance is

not connected to a combustion products evacuation

device. It shall be installed and connected in accor-

dance with current installation regulations. Particular

attention shall be given to the relevant requirements

regarding ventilation. Refer to the dimensions

provided in this guide, if ventilation installation

speciﬁcations dier.

If a cooktop is being installed above an oven, a minimum

of 6 mm is required between units. A minimum 140 mm is

required from the bottom of the cooktop to combustible

materials.

Specifications

Electrical Requirements

Installation must comply with all applicable electrical

codes and be properly grounded (earthed).

Locate the electrical supply within the shaded area shown

in the installation illustrations on page 6. A separate circuit

servicing only this appliance is required. A ground fault cir-

cuit interrupter (GFCI) is not recommended and may cause

interruption of operation.

ELECTRICAL REQUIREMENTS

Electrical Supply 220–240 V AC, 50 Hz

Service 0.2 A

Receptacle grounding-type (earthed)

Power Cord 1.8 m

WARNING

This appliance is supplied with a cord and can be

hard wired to a terminal box or plug. Do not remove

the ground (earthed) plug.

P (BROWN)

N (BLUE)

E (GREEN/YELLOW)

Safety Precautions

IMPORTANT INSTRUCTIONS

•These instructions are only valid if the country symbol

appears on the appliance. If the symbol does not appear on

the appliance, it is necessary to refer to the technical instruc-

tions which will provide the necessary instructions concern-

ing modiﬁcation of the appliance to the conditions of use of

the country.

•According to EN 30-1-1, this appliance is Class 3.

•The power supply cord must be obtained from an authorized

Wolf dealer and installed by Factory Certiﬁed Service.

4 | English

The cooktop must be connected to a regulated gas supply.

The supply line must be equipped with an approved

external gas shut-o valve located near the cooktop in an

accessible location. Do not block access to the shut-o

valve. Refer to the illustration below.

A gas supply line of 19 mm rigid pipe must be provided to

the cooktop. If local codes permit, a certiﬁed, .9 m long,

13 mm or 19 mm ID ﬂexible metal appliance connector is

recommended to connect the units ⁄" NPT (or ISO 7/1-14)

male inlet to the gas supply line. Pipe joint compounds,

suitable for use with natural or LP gas should be used.

The appliance and its shut-o valve must be disconnected

from the gas supply piping system during any pressure

testing of the system at test pressures in excess of 100

mbar. The appliance must be isolated from the gas supply

piping system by closing its individual manual shut-o

valve during any pressure testing of the system at test

pressures equal to or less than 100 mbar.

Wolf natural gas cooktops will function up to 3124 m

in altitude without adjustment and LP gas cooktops will

function up to 2621 m. If the installation exceeds these

elevations, contact your authorized Wolf dealer for a high

altitude conversion kit.

Gas Supply

Installation must conform with local codes and ordinances.

Locate the gas supply as shown in the illustrations on

page 6.

The cooktop is equipped for use with natural or liquid

propane (LP) gas. The product rating plate has information

on the type of gas that should be used. For rating plate

location, refer to the illustration below. If this information

does not agree with the type of gas available, check with

the local gas supplier. The gas pressure regulator is built

into the unit. The regulator is set to 10 mbar for natural gas

and 25 mbar for LP.

HEAT OUTPUT

Surface Burner 5.3 kW (376 g/h)

Surface Burner 3.5 kW (248 g/h)

Surface Burner 2.7 kW (191 g/h)

Rating plate location

RATING PLATE

SHUT-OFF VA LVE

OPEN POSITION

GAS SUPPLYTO APPLIANCE

Specifications

Electrical Requirements

IMPORTANT NOTE: Connection of this appliance should

be through a fused connection unit or a suitable isolator,

which complies with national and local safety regulations.

The on/o switch should be easily accessible after the

appliance has been installed. If the switch is not acces-

sible after installation (depending on country) an additional

means of disconnection must be provided for all poles of

the power supply. When switched o, there must be an all

pole contact gap of 3 mm in the isolator switch. This 3 mm

contact disconnect gap must apply to any isolator switch,

fuses, and/or relays according to EN60335.

Electrical

Shock

Hazard

Plug power cord directly into a properly

grounded (earthed) outlet.

Do not defeat the grounding (earthing)

nature of the plug.

Do not use adapter or extension cord.

Failure to follow these instructions could

cause serious injury or death.

See installation instructions

Gas shut-off valve

Note -

For local gas and electrical code

requirements, refer to AS/NZS 5601.1.

TO BE INSTALLED ONLY BY AN

AUTHORIZED PERSON IF CONNECTING TO

FIXED CONSUMER PIPING.

Note -

Apply duplicate Data label to kitchen cabinet

or cupboard door below the cook-top.

wolfappliance.com | 5

Specifications

Gas Supply

GAS RATING

ICB MODEL

HEAT

OUTPUT

GAS

UNITS AMPS

APPLIANCE

CATEGORY

TYPES AND

PRESSURES (mbar) COUNTRY OF DESIGNATION

ICBCG152TF/S 6.2 kW 0.2 I2H G20 at 20 GB, AT, BG, HR, CZ, DK, EE, FI, GR, HU, IS, IE, IT, LV, LT, NO, PT, RO, SK, SI, ES, SE, CH, TR, DE, FR, PO

I2E G20 at 20 DE, LU, PL, RO

I2E+ G20 at 20/25 BE, FR

ICBCG152TF/S/LP 440 g/h 0.2 I3P G31 at 37 GB, BE, HR, CZ, FR, GR, IE, IT, LT, NL, PT, SK, SI, ES, CH, DE, FI, RO, PL, LV, HU

ICBCG304T/S 14.2 kW 0.2 I2H G20 at 20 GB, AT, BG, HR, CZ, DK, EE, FI, GR, HU, IS, IE, IT, LV, LT, NO, PT, RO, SK, SI, ES, SE, CH, TR, DE, FR, PO

I2E G20 at 20 DE, LU, PL, RO

I2E+ G20 at 20/25 BE, FR

ICBCG304T/S/LP 1007 g/h 0.2 I3P G31 at 37 GB, BE, HR, CZ, FR, GR, IE, IT, LT, NL, PT, SK, SI, ES, CH, DE, FI, RO, PL, LV, HU

ICBCG304P/S 14.2 kW 0.2 I2H G20 at 20 GB, AT, BG, HR, CZ, DK, EE, FI, GR, HU, IS, IE, IT, LV, LT, NO, PT, RO, SK, SI, ES, SE, CH, TR, DE, FR, PO

I2E G20 at 20 DE, LU, PL, RO

I2E+ G20 at 20/25 BE, FR

ICBCG304P/S/LP 1007 g/h 0.2 I3P G31 at 37 GB, BE, HR, CZ, FR, GR, IE, IT, LT, NL, PT, SK, SI, ES, CH, DE, FI, RO, PL, LV, HU

ICBCG365T/S 16.9 kW 0.2 I2H G20 at 20 GB, AT, BG, HR, CZ, DK, EE, FI, GR, HU, IS, IE, IT, LV, LT, NO, PT, RO, SK, SI, ES, SE, CH, TR, DE, FR, PO

I2E G20 at 20 DE, LU, PL, RO

I2E+ G20 at 20/25 BE, FR

ICBCG365T/S/LP 1198 g/h 0.2 I3P G31 at 37 GB, BE, HR, CZ, FR, GR, IE, IT, LT, NL, PT, SK, SI, ES, CH, DE, FI, RO, PL, LV, HU

ICBCG365P/S 16.9 kW 0.2 I2H G20 at 20 GB, AT, BG, HR, CZ, DK, EE, FI, GR, HU, IS, IE, IT, LV, LT, NO, PT, RO, SK, SI, ES, SE, CH, TR, DE, FR, PO

I2E G20 at 20 DE, LU, PL, RO

I2E+ G20 at 20/25 BE, FR

ICBCG365P/S/LP 1198 g/h 0.2 I3P G31 at 37 GB, BE, HR, CZ, FR, GR, IE, IT, LT, NL, PT, SK, SI, ES, CH, DE, FI, RO, PL, LV, HU

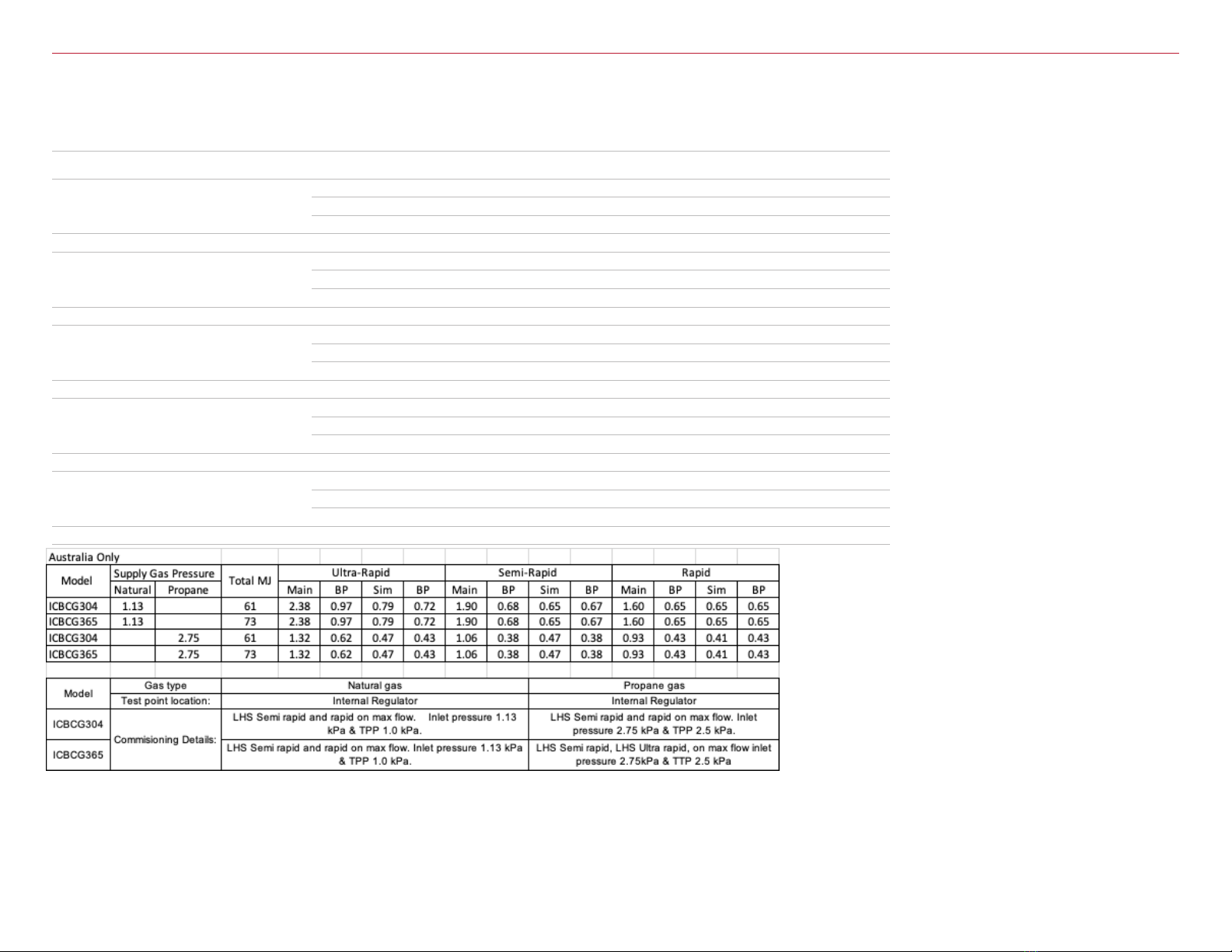

Note:

This appliance is fitted with an internal regulator the operating pressure is Natural - 1.0 kpa / Propane - 2.5kpa The regulator is preset at the

factory and should not require adjustment.

Gas Certification No AGA 8101 G

6 | English

762 mm and 914 mm Gas Cooktop

STANDARD INSTALLATION

254 mm

102 mm

89 mm

FRONT VIEW

SIDE

VIEW

COUNTERTOP CUT-OUT

TE: Shaded area above countertop indicates minimum clearance to combustible surfaces,

combus

tible materials cannot be located within this area.

ectrical and gas supply location only applies to installations with built-in oven.

650 mm

WIDTH

330 mm

457 mm

229

495 mm

64 mm

E G

CUT-OUT WIDTH W

762 mm Cooktop 737 mm

914 mm Cooktop 889 mm

FRONT VIEWSIDE VIEW

COUNTERTOP CUT-OUT

NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,

combustible materials cannot be located within this area.

330 mm

457 mm

178

E G

127

ELECTRICAL

AND GAS FLOOR

LOCATION

650 mm

356 mm 495 mm

64 mm

381 mm Gas Cooktop

STANDARD INSTALLATION

Specifications

Australia Only

The recommended minimum height from the pan support

to the underside of the Range-hood is 650mm unless the

range-hood manufacturer specifies a height greater than 650mm

wolfappliance.com | 7

Cooktop Installation

Remove cooktop and components from the shipping

package and recycle packing materials.

Lower the cooktop into the countertop cut-out. Center

cooktop in the opening with the front edge aligned parallel

to the front edge of the countertop. Using a pencil, outline

the rear edge of the cooktop on the countertop. Remove

cooktop.

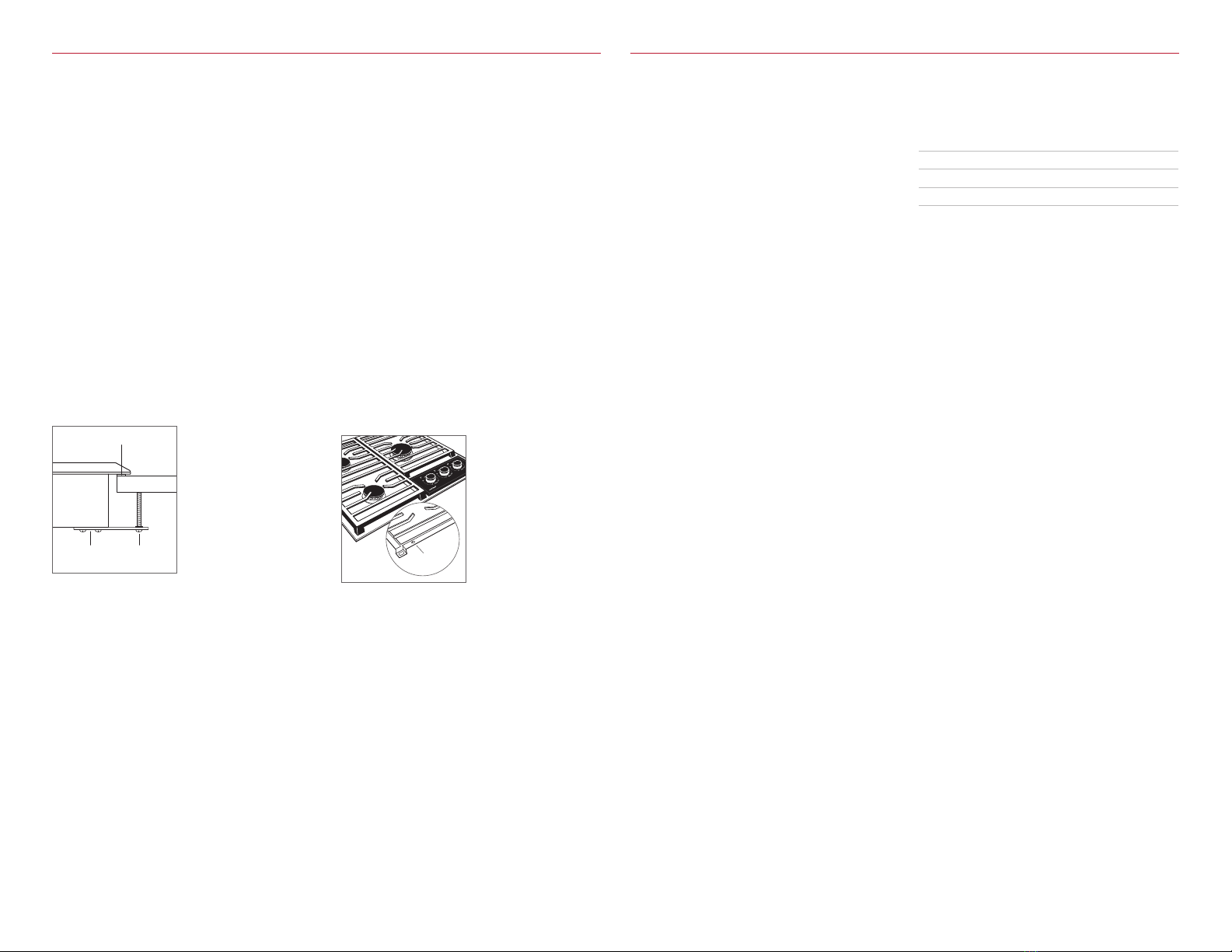

Apply the foam strip provided, to the perimeter of the

countertop opening. Refer to the illustration below. Do not

seal the cooktop to the countertop.

Insert the cooktop into the opening. Verify the cooktop is

aligned with the front edge of the countertop.

Attach the brackets provided, to the bottom of the unit.

Insert the 89 mm clamping screws into the brackets. Use a

screwdriver to tighten clamping screws against the bottom

of the countertop. Do not overtighten screws. Refer to the

illustration below.

Gas Supply Connection

All connections to the gas piping must be wrench-tight-

ened. Do not overtighten or allow pipes to turn when

tightening.

If a ﬂexible metal connector is being used, verify it is not

kinked, then attach the gas supply line to the regulator on

the cooktop. Open the valve and check for leaks by plac-

ing a liquid detergent solution onto all gas connections.

Bubbles around connections indicate a gas leak. If a leak

appears, close the shut-o valve and adjust connections.

Burner Grates

610 mm MODEL

For 610 mm models, the grates must be positioned cor-

rectly to ensure proper burner performance. The grates

have an indicator on the bottom of the front edge. Position

the grates with the indicator toward the front of the cook-

top. Refer to the illustration below.

FOAM STRIP

COUNTERTOP

BRACKET CLAMPING

SCREW

Cooktop installation

FRONT

Grate placement (610 mm model)

Installation

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowﬂake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries.
