MULTILANDER™TRAILER
OPERATOR’S MANUAL
MLTR-MY2020-EN: Rev A Publication Date: 22-Jan-2021
Multilander™is a trademark of Woodland Mills, Inc.

!
This page intentionally left blank.

Multilander™Operator’s Manual
TABLE OF CONTENTS
TABLE OF CONTENTS 1___________________________________
INTRODUCTION 3_________________________________________
GENERAL SAFETY RULES 4_______________________________
INSPECTION/MAINTENANCE 4______________________________
CONFIGURATIONS & ACCESSORIES 5_______________________
TECHNICAL SPECIFICATIONS 6____________________________
BOLT TORQUE SPECIFICATIONS 6____________________________
OVERALL DIMENSIONS—MIN 7_______________________________
OVERALL DIMENSIONS—MAX 8______________________________
TRAILER ASSEMBLY 9____________________________________
1. TOOLS REQUIRED 9_____________________________________
2. UNPACKING 10__________________________________________
3. CHASSIS & INDEX TUBES 11______________________________
48 INCH TRACK WIDTH 13__________________________________
56 INCH TRACK WIDTH 14__________________________________
58 INCH TRACK WIDTH 15__________________________________
60 INCH TRACK WIDTH 16__________________________________
4. WALKING BEAMS 17_____________________________________
5. WHEELS 20_____________________________________________
6. LOG RACKS 21__________________________________________
7. TONGUE 24____________________________________________
COUPLER MOUNTING 25___________________________________
JACK SUPPORT 26________________________________________
ACCESSORIES WITH TELESCOPING BOOM 27_______________
TONGUE EXTENSION CONFIGURATIONS 30_________________
TONGUE-TO-CHASSIS 31__________________________________
JACK STAND 32___________________________________________
MLTR-MY2020-EN: Rev B
Page of144
22-Jan-2021

Multilander™Operator’s Manual
OPERATION 33___________________________________________
LOGGING ARMS 33_________________________________________
JACK STAND 34____________________________________________
MAINTENANCE 35________________________________________
GREASE POINTS 35________________________________________
PARTS LIST 36___________________________________________
EXPLODED ASSEMBLY VIEWS 38___________________________
CHASSIS 38_______________________________________________
WALKING BEAMS 39________________________________________
LOG RACKS 40_____________________________________________
LOG RACKS—INSTALLED 41_________________________________
TONGUE & JACK STAND 42__________________________________
WHEELS 43________________________________________________
NOTES 44_______________________________________________
MLTR-MY2020-EN: Rev B
Page of244
22-Jan-2021

Multilander™Operator’s Manual
INTRODUCTION
Congratulations on your purchase and welcome to Woodland Mills! This manual gives you the
necessary information about your Multilander™trailer so you will be able to use it properly. The
entire manual must be read and understood prior to using the trailer. If any questions arise not
covered by this manual, please contact Woodland Mills, Inc.
The Multilander™is a utility trailer designed to be towed behind tractors, RTVs, and ATVs for off-
road use.
The Multilander™ trailer is designed for certain off-road applications only. We strongly
recommend the trailer not be modified and/or used for any application other than that for which
it was designed. If you have any questions relative to a particular application, DO NOT use the
trailer until you have first contacted Woodland Mills to determine if it can or should be performed
using the product.
For technical questions and replacement parts, please contact Woodland Mills, Inc.
OWNER'S RECORD
Please take a moment to record the following information about your
Multilander™ trailer. If you need to call for assistance, please be ready to
provide your model and serial numbers. You will find this information
located on the underside of the trailer chassis. This information will allow us
to help you more quickly when you call.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
MLTR-MY2020-EN: Rev B
Page of344
22-Jan-2021

Multilander™Operator’s Manual
**SAVE THESE INSTRUCTIONS**
GENERAL SAFETY RULES
INSPECTION/MAINTENANCE
•Check the tires before all trips. Make sure they are inflated to the pressure shown on the tire.
•Grease the axle bearings every 3 months or 1000 miles (1600 km), whichever comes first.
•Check the tow hitch ball coupler. Make sure it is not damaged.
•Check the wheel lug nuts before all trips. Make sure they are torqued properly.
•Inspect trailer before all trips for any damaged or loose parts.
MLTR-MY2020-EN: Rev B
Page of444
22-Jan-2021
Read and understand all instructions. Failure to follow all instructions
listed below may result serious injury.
WARNING!
The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could
occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product but must be
supplied by the operator.
WARNING!

Multilander™Operator’s Manual
CONFIGURATIONS & ACCESSORIES
The Multilander Logging Trailer is available in five (5) configurations shown below. Each
configuration can be further customized with additional accessories such as a cant hook mount,
a ball mount hitch kit, and a universal mounting kit. Contact Woodland Mills or visit our website
for information and pricing.
MLTR-MY2020-EN: Rev B
Page of544
22-Jan-2021
5. PRO LOGGING TRAILER
WITH UTILITY DUMP BOX
3. LOGGING TRAILER
WITH UTILITY DUMP BOX
4. PRO LOGGING TRAILER
2. LOGGING TRAILER
WITH UTILITY BOX
1. LOGGING TRAILER

Multilander™Operator’s Manual
TECHNICAL SPECIFICATIONS
BOLT TORQUE SPECIFICATIONS
Item
Specification
Construction/Finish
Powder-Coated/Galvanized Tube & Plate Steel
Axle
Walking Beam
Wheels & Tires
4 Bolts @ 4” [101.6 mm] & 23x10.5-12 Tires
Tire Pressure
Refer to Tire
Wheel Nut Torque
80 ft•lb [110 N•m]
Trailer Ball Coupler
2 in [50 mm]
Hauling Capacity
2000 lb [907 kg]
Overall Length
103-½in [2628 mm] MIN to 151-½in [3844 mm] MAX
Overall Width
48 in [1219 mm] MIN to 60 in [1524 mm] MAX
Overall Height
23 in [584 mm] MIN to 41-⅝in [1057 mm] MAX
Product Weight
452 lb [205 kg]
Shipping Weight
630 lb [286 kg]
Class 8.8 Bolt (Thread Size)
Torque
M5
54 in•lb [6 N•m]
M6
92 in•lb [11 N•m]
M8
225 in•lb [26 N•m]
M10
37 ft•lb [50 N•m]
M12
65 ft•lb [88 N•m]
M14
104 ft•lb [141 N•m]
M16
161 ft•lb [218 N•m]
MLTR-MY2020-EN: Rev B
Page of644
22-Jan-2021

Multilander™Operator’s Manual
OVERALL DIMENSIONS—MIN
!
MLTR-MY2020-EN: Rev B
Page of744
22-Jan-2021












Multilander trailer in its most
compact configuration:
•Narrowest track width: 48 in
•Shortest tongue extension:
103-½inch overall length
•Logging arms stowed

Multilander™Operator’s Manual

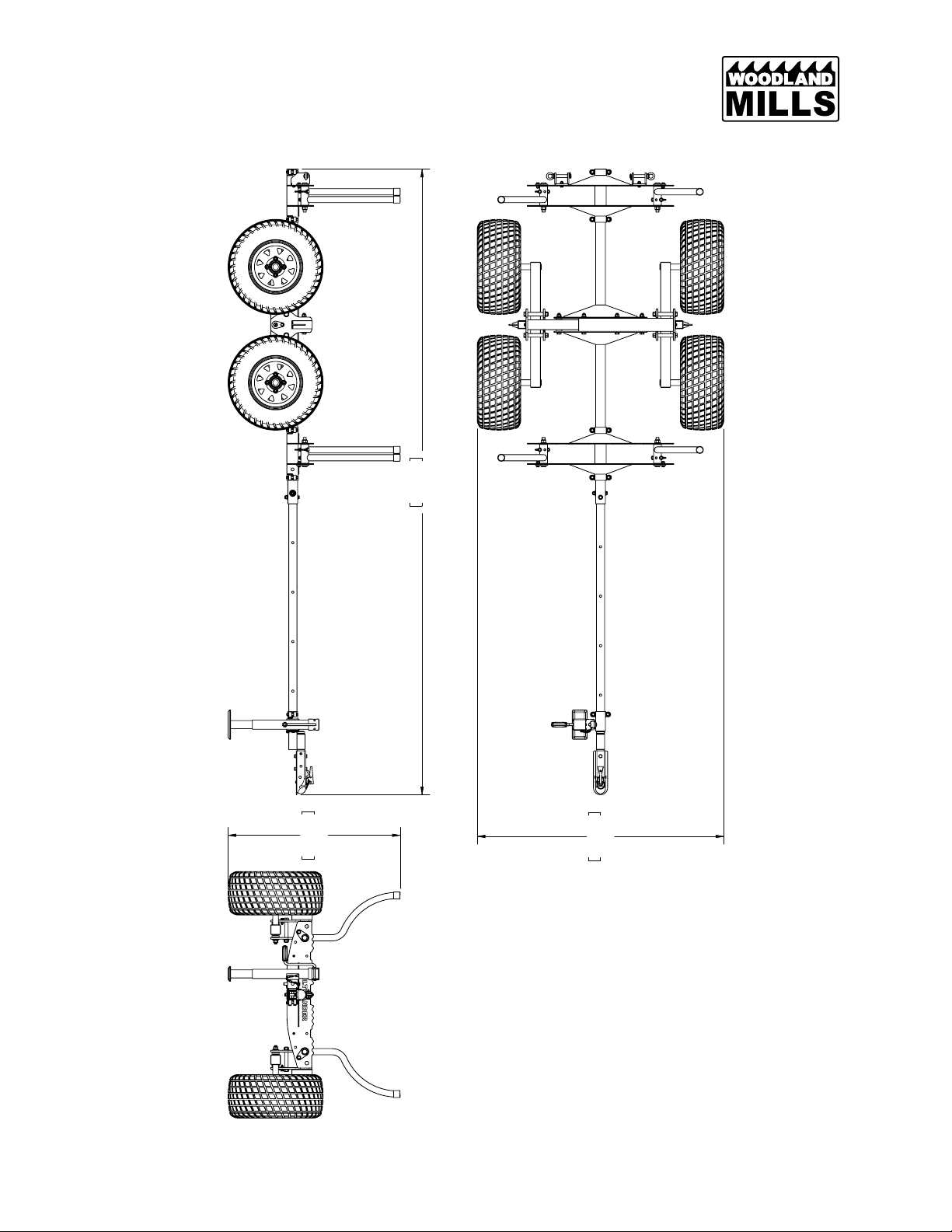

OVERALL DIMENSIONS—MAX
MLTR-MY2020-EN: Rev B
Page of844
22-Jan-2021












Multilander trailer in its most
expanded configuration:
•Widest track width: 60 in
•Longest tongue extension:
151-½inch overall length
•Logging arms up

Multilander™Operator’s Manual
TRAILER ASSEMBLY

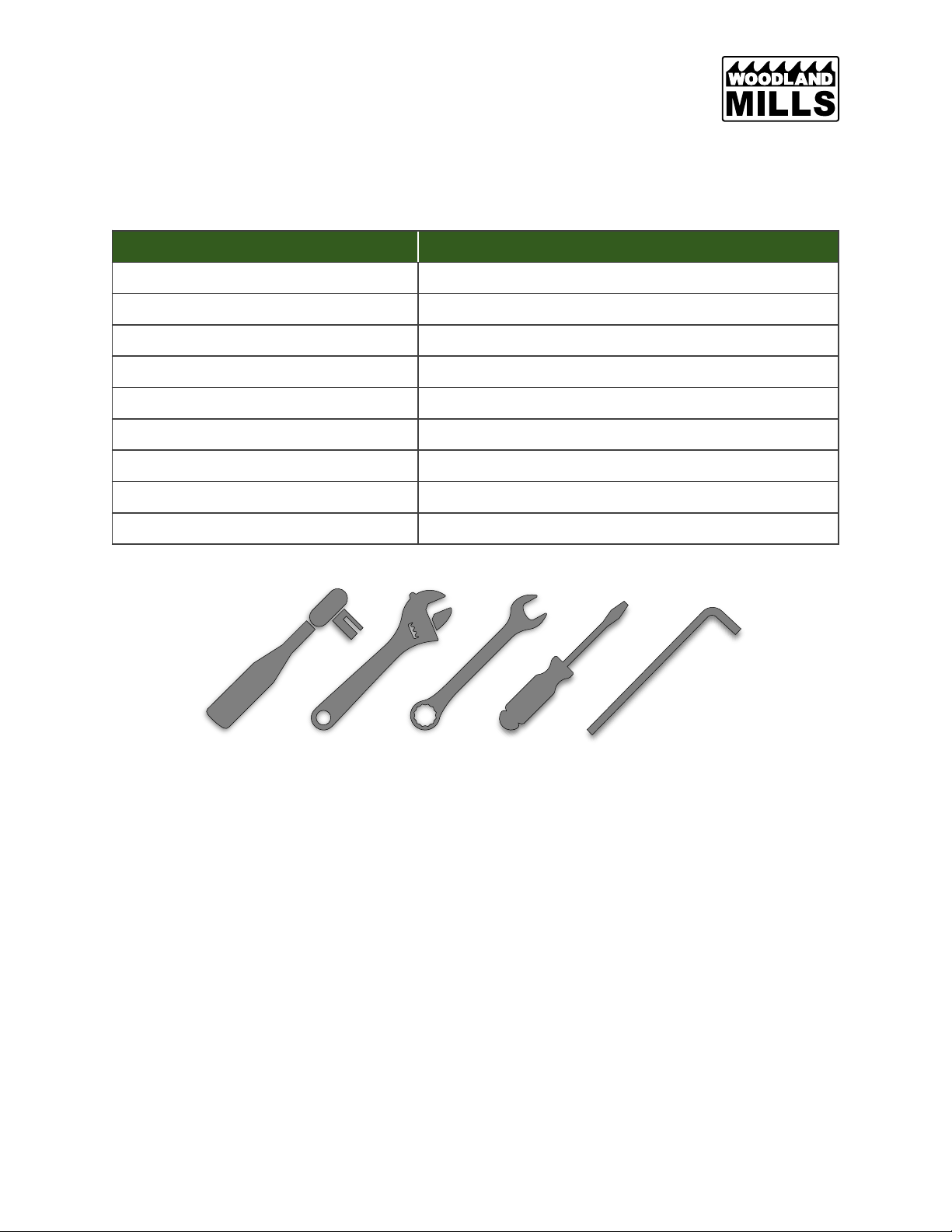

1. TOOLS REQUIRED
Tool
Specification
Wrench/Socket
8 mm
Wrench/Socket
9 mm
Wrench/Socket
10 mm
Wrench/Socket
13 mm
Wrench/Socket
14 mm
Wrench/Socket
15 mm
Wrench/Socket
18 mm
Adjustable Wrench
Variable
Torque Wrench
Capable of 161 ft•lb (218 N•m)
MLTR-MY2020-EN: Rev B
Page of944
22-Jan-2021

Multilander™Operator’s Manual
2. UNPACKING
The Multilander trailer ships in a metal frame crate with a cardboard cover. Lift off the cover and
remove all the fasteners along the bottom edge of the front/rear of the skid as indicated below.
Lift the top crate frame off the bottom skid and remove all the components and boxes. Set the
crate aside as it can be used as a support for several of the assembly steps.
MLTR-MY2020-EN: Rev B
Page of10 44
22-Jan-2021

Multilander™Operator’s Manual

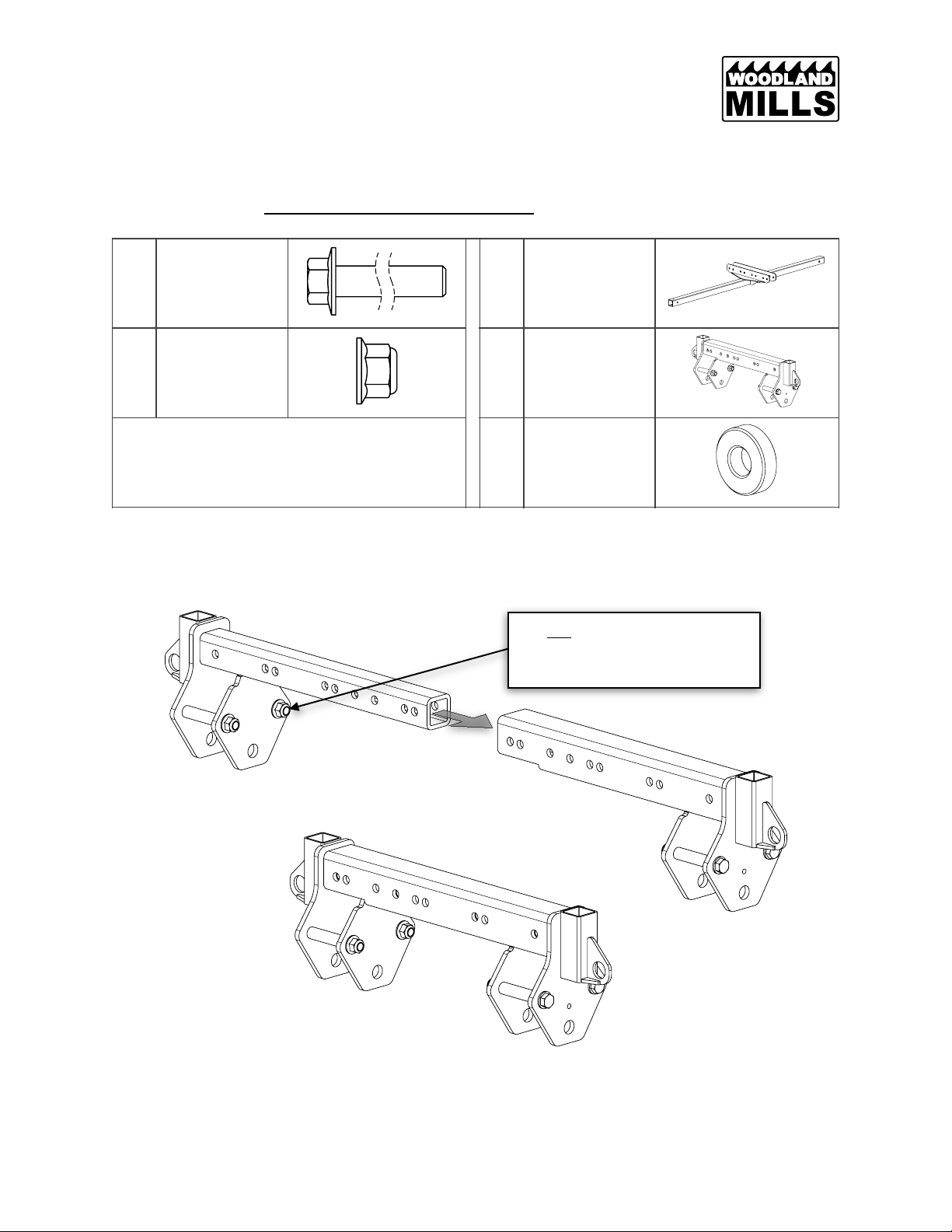

3. CHASSIS & INDEX TUBES
Using the hardware listed below, assemble the index tubes to the chassis. Torque all bolts per
the table in section, BOLT TORQUE SPECIFICATIONS.
The Index Tube Assembly is comprised of an outer and inner sleeve that telescope together,
each with a series of holes that allows the Multilander to be configured to one of four (4)
predetermined track widths: 48, 56, 58, and 60 inches.
4x
M14 X 120 mm
Flanged Hex
Bolt
1x
Chassis
4x
M14 Flanged
Lock Nut
1x
Index Tube
Assembly
2x
Chassis
Spacer
(56-60” widths)
MLTR-MY2020-EN: Rev B
Page of11 44
22-Jan-2021
Do not tighten these nuts until
instructed to do so later in the
assembly process (4 places).

Multilander™Operator’s Manual

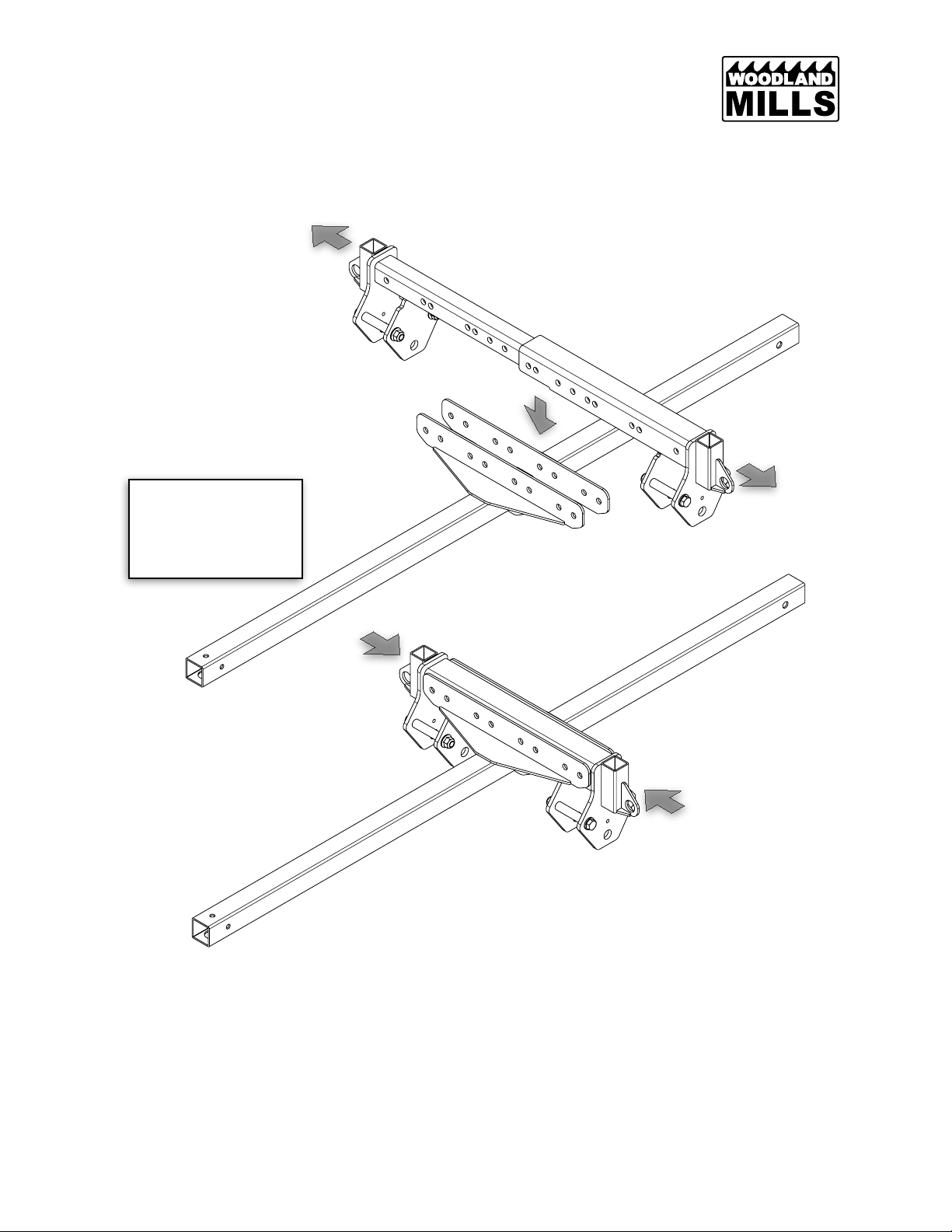

Pull the index tubes apart enough so they will clear the mounting brackets when nested down
into the chassis and then push them back together:
Next, select an appropriate track width from one of the next four (4) pages. Select a track width
comparable to the track width of the primary towing vehicle and fasten the index tubes to the
chassis.
MLTR-MY2020-EN: Rev B
Page of12 44
22-Jan-2021
FRONT
REAR
Front end of chassis
can be identified by
the two large tongue
clamping disk holes

Multilander™Operator’s Manual

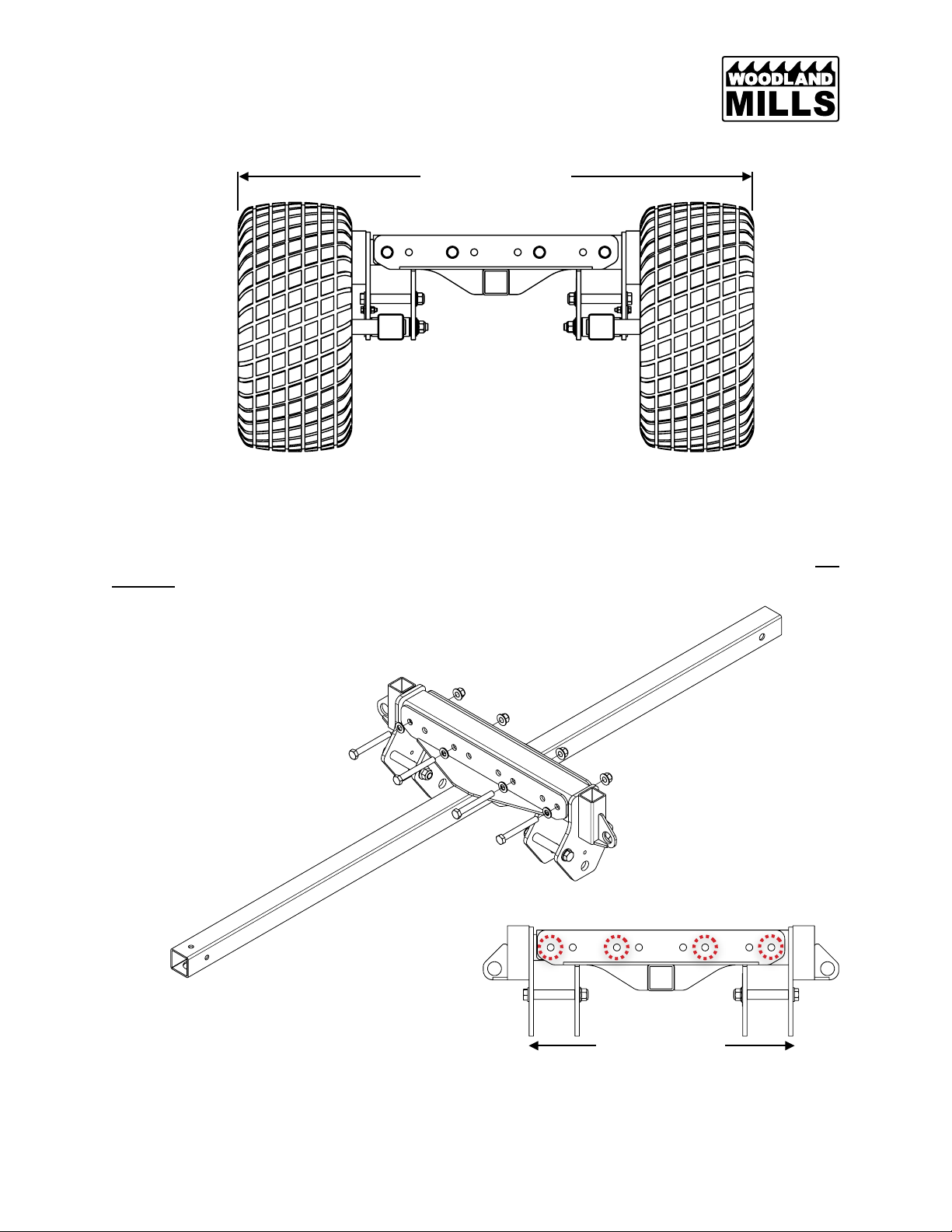

48 INCH TRACK WIDTH
Fasten the index tubes to the chassis using four (4) M14 X 120 mm flanged hex bolts and four
(4) M14 flanged hex nuts. Use the holes indicated below. The two (2) chassis spacers are not
required for the 48 Inch Track Width.
MLTR-MY2020-EN: Rev B
Page of13 44
22-Jan-2021
48 in [1219 mm]
Note: Wheels and walking beam suspension are shown for clarity. They are
installed in Sections 4 & 5.
24 in [610 mm]

Multilander™Operator’s Manual

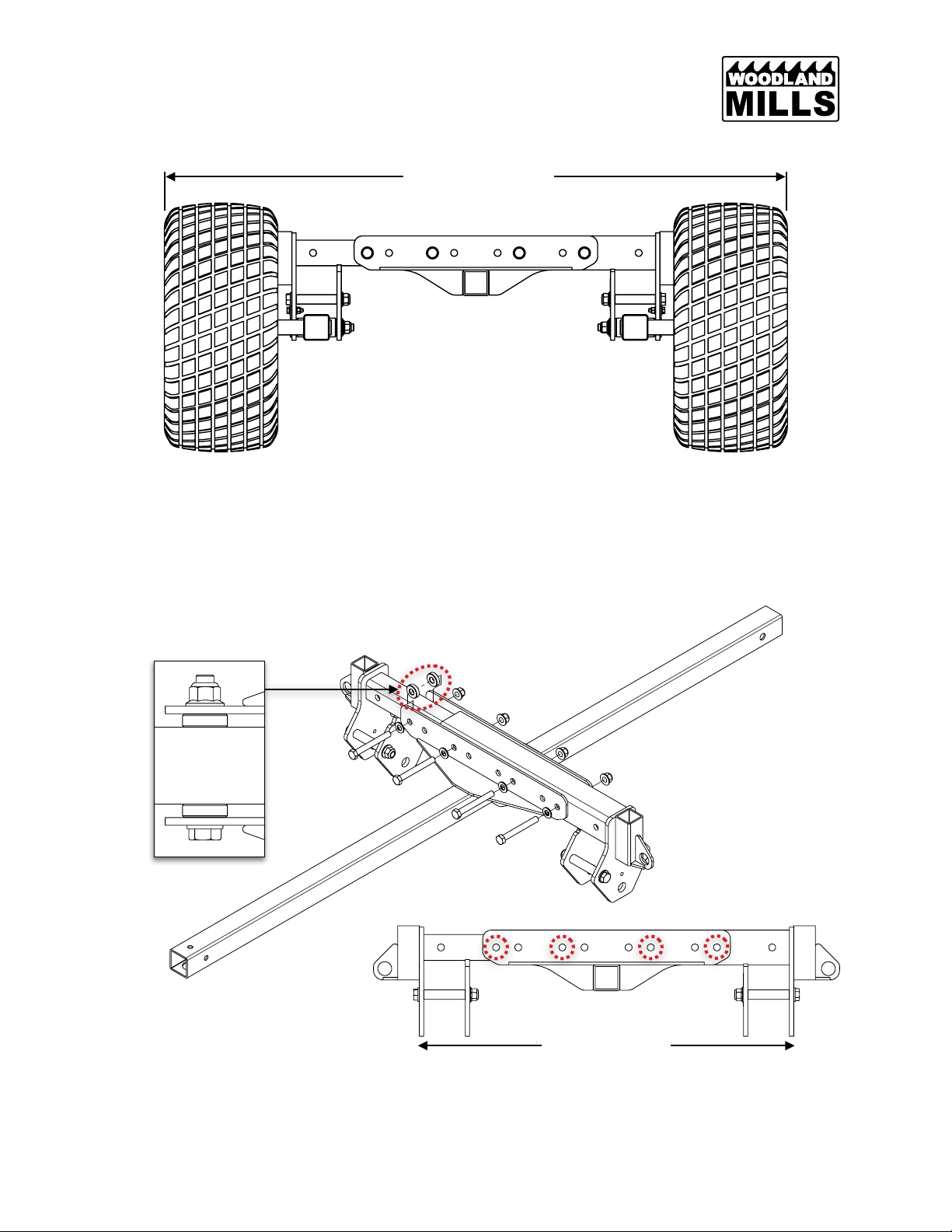

56 INCH TRACK WIDTH
Fasten the index tubes to the chassis using four (4) M14 X 120 mm flanged hex bolts and four
(4) M14 flanged hex nuts. Use the holes indicated below. The two (2) chassis spacers are
assembled between the inner index tube and chassis as shown.
MLTR-MY2020-EN: Rev B
Page of14 44
22-Jan-2021
56 in [1422 mm]
Note: Wheels and walking beam suspension are shown for clarity. They are
installed in Sections 4 & 5.
32 in [813 mm]

Multilander™Operator’s Manual

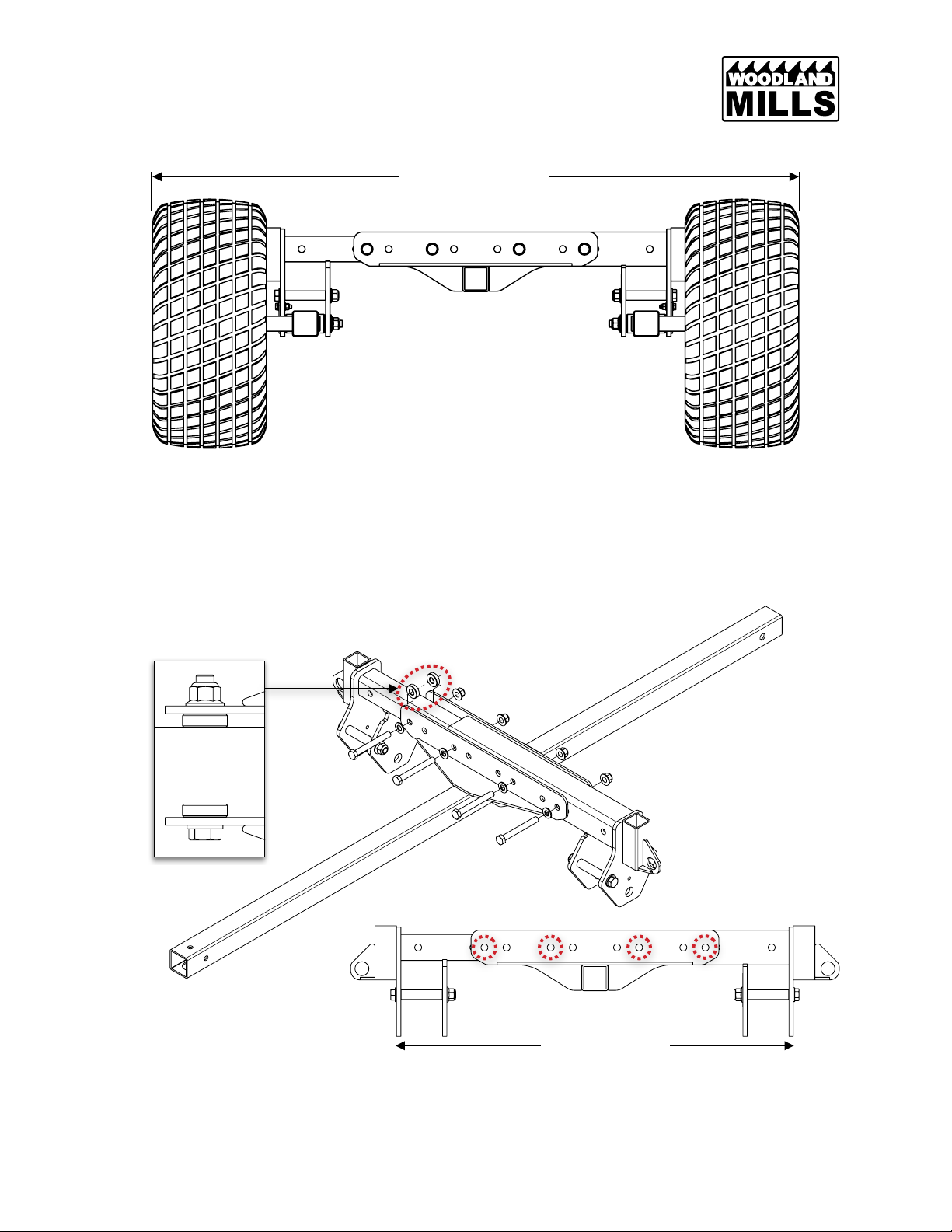

58 INCH TRACK WIDTH
Fasten the index tubes to the chassis using four (4) M14 X 120 mm flanged hex bolts and four
(4) M14 flanged hex nuts. Use the holes indicated below. The two (2) chassis spacers are
assembled between the inner index tube and chassis as shown.
MLTR-MY2020-EN: Rev B
Page of15 44
22-Jan-2021
58 in [1473 mm]
Note: Wheels and walking beam suspension are shown for clarity. They are
installed in Sections 4 & 5.
34 in [864 mm]

Multilander™Operator’s Manual
60 INCH TRACK WIDTH
Fasten the index tubes to the chassis using four (4) M14 X 120 mm flanged hex bolts and four
(4) M14 flanged hex nuts. Use the holes indicated below. The two (2) chassis spacers are
assembled between the inner index tube and chassis as shown.
MLTR-MY2020-EN: Rev B
Page of16 44
22-Jan-2021
60 in [1524 mm]
Note: Wheels and walking beam suspension are shown for clarity. They are
installed in Sections 4 & 5.
36 in [915 mm]

Multilander™Operator’s Manual
4. WALKING BEAMS
Using the hardware listed below, assemble the walking beams to the index tubes/chassis.
Torque all bolts per the table in section, BOLT TORQUE SPECIFICATIONS.
The walking beams are assembled between the two (2) mounting plates on each of the index
tubes with a spacer between the inside of each mounting plate and both sides of the walking
beam.
2x
M8 X 30 mm
Flanged Hex
Bolt
2x
Walking Beam
Assembly
2x
M8 Flanged
Lock Nut
2x
Walking Beam
Swivel Pin
2x
M16 Flanged
Lock Nut
6x
Walking Beam
Spacer
MLTR-MY2020-EN: Rev B
Page of17 44
22-Jan-2021

Multilander™Operator’s Manual
The walking beams are assembled between the two (2) mounting plates on each of the index
tubes. There are two (2) spacers per walking beam—one (1) per each side of each beam.
Slide the walking beams between the index tube mounting plates with the spacers.
MLTR-MY2020-EN: Rev B
Page of18 44
22-Jan-2021
Index Tube
Mounting Plates
Index Tube
Mounting Plates
Walking Beam Spacer
One spacer per side of each
walking beam
