INTRODUCTION
Congratulations on your purchase and welcome to Woodland Mills! This manual gives you the
necessary information about your Woodlander™sawmill trailer so you will be able to use it
properly. The entire manual must be read and understood before using the trailer. If any
questions should arise that are not covered by this manual, please contact Woodland Mills, Inc.
The Woodlander™sawmill trailer is compatible with either an HM126 or HM130 sawmill and
track system for milling logs while the trailer is stationary and firmly supported on the ground. It
is not intended to carry any additional weight or be used as a utility trailer.
The Woodlander™ sawmill trailer is designed for certain applications only. We strongly
recommend the trailer not be modified and/or used for any application other than that for which
it was designed. If you have any questions relative to a particular application, DO NOT use the
trailer until you have first contacted Woodland Mills to determine if it can or should be performed
using the product.
For technical questions and replacement parts, please contact Woodland Mills, Inc.
OWNER'S RECORD
Please take a moment to record the following information about your
Woodlander™ sawmill trailer. If you need to call for assistance, please be
ready to provide your model and serial numbers. This information will allow
us to help you more quickly when you call.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
HM126T-MY2019: Rev B
Page of 348
04-Dec-2018

Woodlander™Operator’s Manual

**SAVE THESE INSTRUCTIONS**
GENERAL SAFETY RULES
!
!
INSPECTION/MAINTENANCE
•Check the tires before all trips. Make sure they are inflated to the pressure shown on the tire.
•Grease the axle bearings every 3 months or 1000 miles (1600 km), whichever comes first.
•Check the tow hitch ball coupler. Make sure it is not damaged.
•Check the wheel lug nuts before all trips. Make sure they are torqued properly.
•Check the lights. Make sure all the lights work properly. Replace any lights that do not work.
•Inspect trailer before all trips for any damaged or loose parts.
WARNING!
Read and understand all instructions. Failure to follow all instructions
listed below may result serious injury.
WARNING!
The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could
occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product but must be
supplied by the operator.
HM126T-MY2019: Rev B
Page of 448
04-Dec-2018

Woodlander™Operator’s Manual

TECHNICAL SPECIFICATIONS
BOLT TORQUE SPECIFICATIONS
Item
Specification
Trailer Axle
Independent Torsion Axle Design
Trailer Wheels
5 Bolts @ 4.5” (114 mm) & 5.30-12 DOT Approved Tires
Tire Pressure
Refer to Tire
Wheel Nut Torque
80 ft•lb / 110 N•m
Trailer Ball Coupler
2” / 50 mm
Trailer Lights
LED Light Kit (stop, turn, tail, side markers, and license plate light)
Finish
Powder Coat Paint / Galvanized Steel
Fenders
Removable
Safety
Locking pins and safety straps to secure saw head while travelling
Bolt (Thread Size)
Torque
M5
78 in•lb / 9 N•m
M6
133 in•lb / 15 N•m
M8
333 in•lb / 38 N•m
M10
53 ft•lb / 72 N•m
M12
93 ft•lb / 126 N•m
HM126T-MY2019: Rev B
Page of 548
04-Dec-2018

Woodlander™Operator’s Manual

TRAILER ASSEMBLY
1. TOOLS REQUIRED
Tool
Specification
Use
Phillips Head Screwdriver
No. 3
Assembly
Wrench/Socket
8 mm
Assembly
Wrench/Socket
9 mm
Assembly
Wrench/Socket
10 mm
Assembly
Wrench/Socket
13 mm
Assembly
Wrench/Socket
14 mm
Assembly
Wrench/Socket
15 mm
Assembly
Wrench/Socket
18 mm
Assembly
Adjustable Wrench
Variable
Assembly
Torque Wrench
Capable of 93 ft•lb (126 N•m)
Assembly
Drill
Corded or cordless
Head Lock-Down
HM126T-MY2019: Rev B
Page of 648
04-Dec-2018

Woodlander™Operator’s Manual

2. UNPACKING
Remove all the parts from the steel crate. Set the crate aside as it will be used as a support for
several of the following steps.
HM126T-MY2019: Rev B
Page of 748
04-Dec-2018

Woodlander™Operator’s Manual


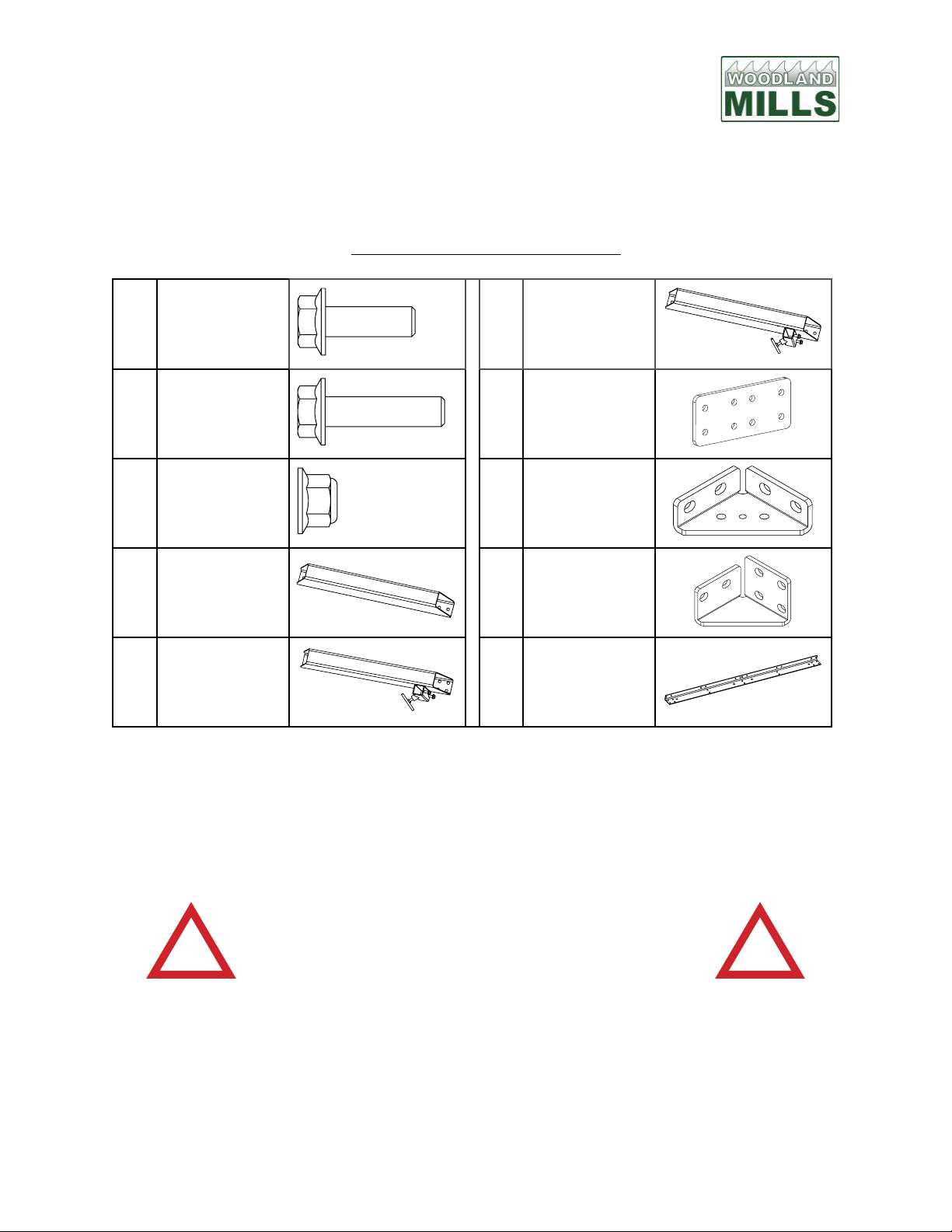

3. GUSSETS
Using the hardware listed below, assemble the gussets to the track as shown on the next page.
Ensure the track is 30.5” (775 mm) wide, measuring diagonally to check for squareness. Torque
all bolts per the table in section BOLT TORQUE SPECIFICATIONS.
Track components listed in these tables are not included with the trailer package, namely track
rails, joining plates, bunks, and carriage stops. These components are found in the sawmill
crate. If the trailer was purchased for an existing sawmill (i.e. the sawmill is currently
assembled), the track will need to be disassembled prior to building the trailer and the following
assembly instructions performed.
24x
M10 X 30 mm
Flanged Hex
Bolt
2x
Middle Bunk
8x
M10 X 40 mm
Flanged Hex
Bolt
2x
Joining Plate
32x
M10 Flanged
Lock Nut
4x
End Gusset
2x
End Bunk
6x
Joining Gusset
1x
Joining Bunk
4x
Track Rail










HM126T-MY2019: Rev B
Page of 848
04-Dec-2018
Use the fasteners included with the
sawmill trailer to assemble the
track. The fasteners included with
the sawmill track will not be used.
!
!

Woodlander™Operator’s Manual

The above steps need to be completed on both left and right sides of the track. Make sure the
gussets are flush with the outside face of the track rails as shown below.
HM126T-MY2019: Rev B
Page of 948
04-Dec-2018
Flush
Flush
1x End Bunk
4x M10 x 30 mm
4x M10 Lock Nut
2x End Gusset
1x Joining Bunk
8x M10 x 30 mm
8x M10 x 40 mm
16x M10 Lock Nut
2x Joining Gusset
2x Joining Plate
1x Middle Bunk
4x M10 x 30 mm
4x M10 Lock Nut
2x Joining Gusset
1x End Bunk
4x M10 x 30 mm
4x M10 Lock Nut
2x End Gusset
1x Middle Bunk
4x M10 x 30 mm
4x M10 Lock Nut
2x Joining Gusset

Woodlander™Operator’s Manual


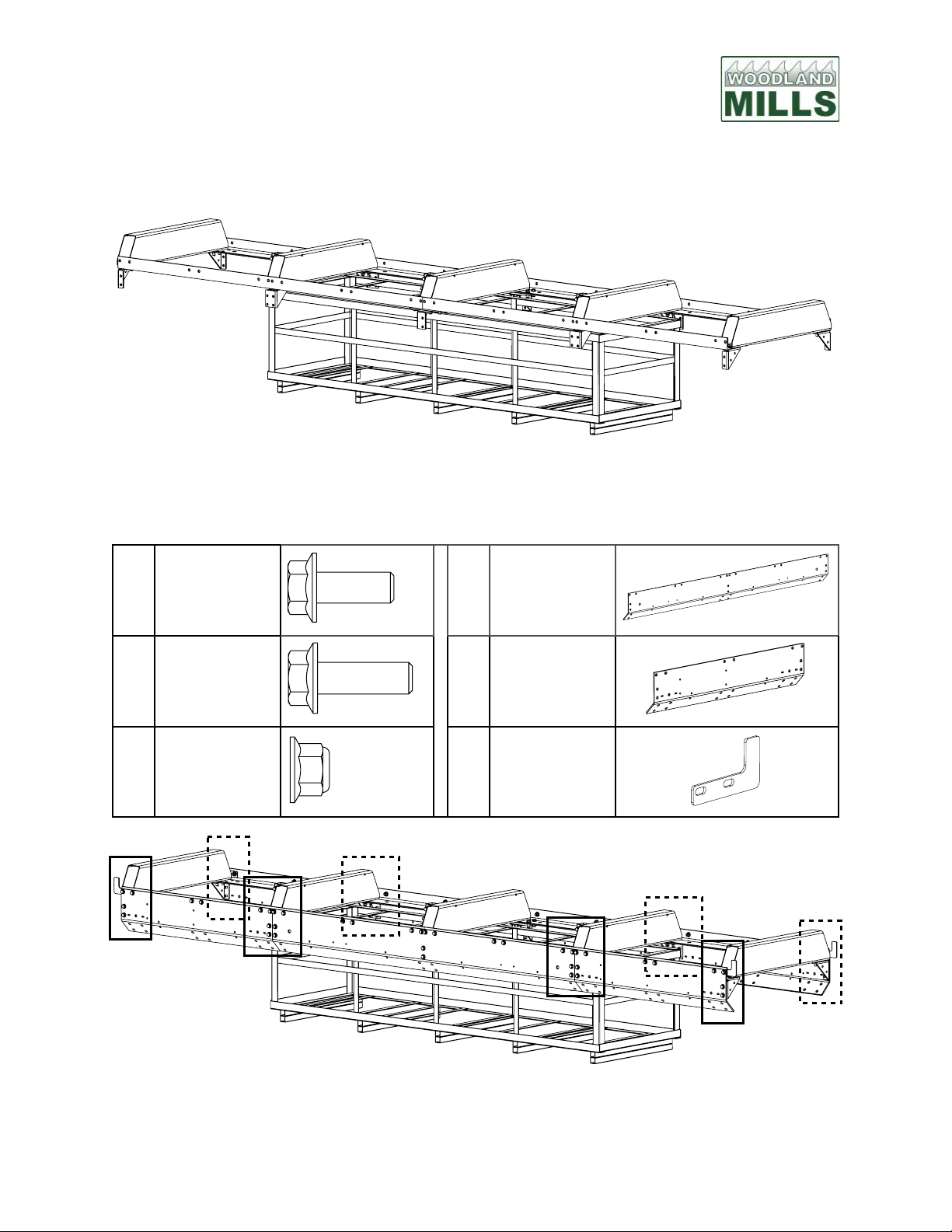

4. SIDE PLATES
Place the track/gusset assembly on top of the shipping crate, ensuring it is centred end-to-end.
Using the hardware listed below, hang the side plates using the M10 X 30 mm and M10 X 35
mm bolts. Do not tighten these bolts. The M10 X 35 mm bolts are used with the carriage stops.
The M10 X 30 mm bolts are used everywhere else.
HM126T-MY2019: Rev B
Page of 10 48
04-Dec-2018
68x
M10 X 30 mm
Flanged Hex
Bolt
2x
Long Side
Plate
8x
M10 X 35 mm
Flanged Hex
Bolt
4x
Short Side
Plate
76x
M10 Flanged
Lock Nut
4x
Carriage Stop







Woodlander™Operator’s Manual

HM126T-MY2019: Rev B
Page of 11 48
04-Dec-2018
M10 X 30 mm
at all other
locations
M10 X 35 mm
at Carriage
Stops
M10 X 30 mm
at all other
locations

Woodlander™Operator’s Manual

5. FRONT AND REAR CROSS BEAMS
Using the hardware listed below, install the front and rear cross beams (2 front, 1 rear). Ensure
the cross beam with the two holes is assembled at the front. Do not tighten these bolts.
24x
M10 X 30 mm
Flanged Hex
Bolt
2x
Cross Beam
24x
M10 Flanged
Lock Nut
1x
Front Cross
Beam




HM126T-MY2019: Rev B
Page of 12 48
04-Dec-2018

Woodlander™Operator’s Manual

!
HM126T-MY2019: Rev B
Page of 13 48
04-Dec-2018
Front Cross Beam
Cross Beam
Cross Beam

Woodlander™Operator’s Manual

6. BOLT TORQUING AND JACK STANDS
Torque all bolts per the table in section, BOLT TORQUE SPECIFICATIONS, starting from the
centre and working towards the outer ends. Ensure the track is straight, level, and square
during this procedure.
Position the 4 jack stands under the front and rear cross beams and wind the jack handles until
they are fully extended.
HM126T-MY2019: Rev B
Page of 14 48
04-Dec-2018

Woodlander™Operator’s Manual

7. INNER CROSS BEAMS AND JACK MOUNTS
Using the hardware listed below, install the 2 remaining cross beams and 4 jack mounts.
Torque all the bolts per the table in section BOLT TORQUE SPECIFICATIONS.
16x
M10 X 35 mm
Flanged Hex
Bolt
2x
Cross Beam
16x
M10 Flanged
Lock Nut
4x
Jack Mount




HM126T-MY2019: Rev B
Page of 15 48
04-Dec-2018

Woodlander™Operator’s Manual

!
HM126T-MY2019: Rev B
Page of 16 48
04-Dec-2018

Woodlander™Operator’s Manual

Next, lower the trailer onto the crate and remove the jacks.
Slide the jacks onto the jack mounts and secure them with the pin chained to the jack. Raise
the jacks up to slide the crate out from under the trailer assembly. Place blocks of wood
underneath each jack stand if necessary to achieve the required height.
HM126T-MY2019: Rev B
Page of 17 48
04-Dec-2018

Woodlander™Operator’s Manual

8. AXLE MOUNTS AND AXLE CROSS BEAM

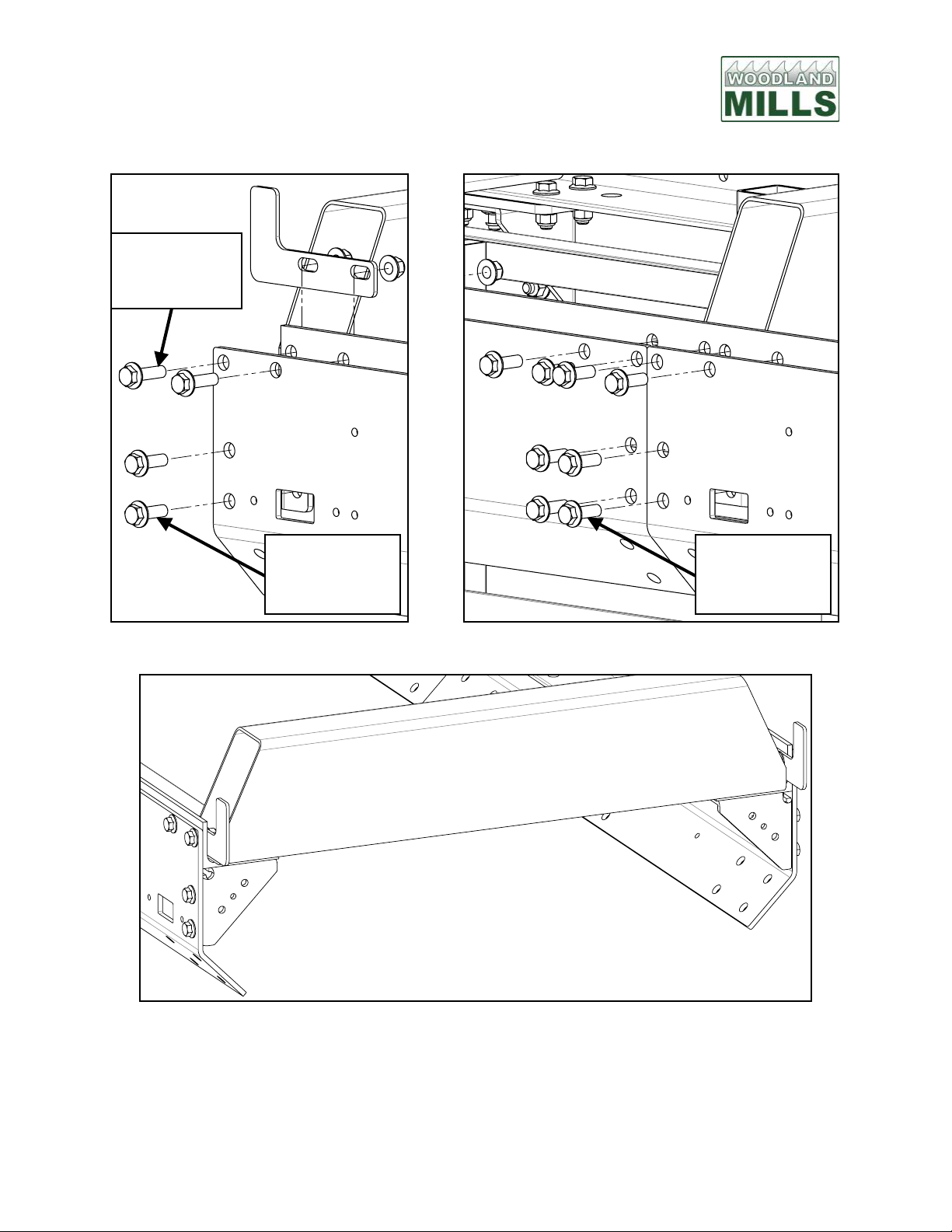

Using the hardware listed below, install the axle mount cross beam and left/right axle mounts
with fender adapter as shown. Tighten these bolts.
8x
M10 X 35 mm
Flanged Hex
Bolt
1x
Axle Mount w/
Fender Adapter
[Left]
8x
M10 Flanged
Lock Nut
1x
Axle Mount w/
Fender Adapter
[Right]
1x
Axle Mount
Cross Beam





HM126T-MY2019: Rev B
Page of 18 48
