4.6 Engine Assembly....................................................................................4-8
LT28 Rev. A4.02+
4.7 Engine Assembly..................................................................................4-10
LT28 Rev. A1.00 - A4.01
4.8 Throttle/Clutch Assembly ....................................................................4-12

About this Manual
1
1-1 WM doc 9/16/22 About this Manual
SECTION 1 ABOUT THIS MANUAL
This manual is provided as a supplement to the equipment manufacturer’s manuals. This manual provides information specific
to the use of this equipment on the Wood-Mizer® sawmill. Refer to the sawmill operator’s manual and manufacturer's manual
before attempting to operate this equipment.
IMPORTANT! Read the sawmill operator’s manual and engine manufacturer’s
manual for instructions and safety precautions before operating this equip-
ment.
The information and instructions given in this manual do not amend or extend the limited warranties for the equipment given at
the time of purchase.
Muffler
Air Filter
Fuel Filter
Serial Number/
Engine Type
150134-1
Choke
Key
Switch
Oil Drain

Operation
Starting The Engine 2
Operation WM doc 9/16/22 2-1
SECTION 2 OPERATION
2.1 Starting The Engine
DANGER! Always be sure the blade is disengaged and clear the path of the
blade before starting the engine. Failure to do so will result in serious injury or
death.
DANGER! Operate your engine/machine only in well ventilated areas.Exhaust
gases can cause nausea, delirium and potentially death unless adequate ven-
tilation is present.
DANGER! Never operate an engine with a fuel or oil leak. The leaking fuel or
oil could potentially come in contact with hot surfaces and ignite into flames.
WARNING! Do not operate engine without proper and operational spark
arrester/muffler. Sparks emitted from the engine exhaust could ignite sur-
rounding materials, causing serious injury or death.
CAUTION! EPA Compliant Gas Tanks Only: Always relieve all fuel pressure
inside the tank prior to filling or connecting fuel fittings. Failure to do so may
result in fuel spillage.
CAUTION! EPA Compliant Gas Tanks Only: Disconnect the fuel tank when
not in use, or engine flooding or fuel spillage may result.
1. Close the engine choke by moving the choke lever to the start position.
2. Turn the key switch to the START position and release. Release the key switch to the RUN position after the engine starts.
3. When the engine starts, slowly open the choke all the way by moving the choke lever to the off position.
ENGINE SHUTOFF
1. Disengage the clutch handle to stop the blade if necessary.
2. Run the engine for 15 seconds with no load, then turn the key switch to the OFF position.

Maintenance
Maintenance
3
3-1 WM doc 9/16/22 Maintenance
SECTION 3 MAINTENANCE
3.1 Maintenance
Refer to the manufacturer’s manual for maintenance intervals and procedures unless otherwise instructed in this manual. Fol-
low the manufacturer’s recommendations for dusty conditions.
IMPORTANT! This manual only provides information about additional proce-
dures or procedures to be performed at different time intervals than found in
the manufacturer's manuals. Refer to the manufacturer's manual for complete
maintenance instructions.
WARNING! Clean sawdust from all guards, vents, control boxes, or
any area where sawdust may gather after every shift. Failure to
do so may result in fire, causing death or serious injury.
3.2 Safety
Use caution when performing maintenance or service to the engine.
DANGER! Always be aware of and take proper protective measures against
rotating shafts, pulleys, fans, etc. Always stay a safe distance from rotating
members and make sure that loose clothing or long hair does not engage
rotating members resulting in possible injury.
DANGER! Engine components can become very hot during operation. Avoid
contact with any part of a hot engine. The exhaust components of your engine
are especially hot during and following operation. Contact with hot engine
components can cause serious burns. Therefore, never touch or perform ser-
vice functions on a hot engine. Allow the engine to cool sufficiently before
beginning any service function.
WARNING! Remove the blade before performing any engine service. Failure
to do so may result in serious injury.
WARNING! Always wear proper and necessary safety equipment when per-
forming service functions. Proper safety equipment includes eye protection,
breathing protection, hand protection and foot protection.
3.3 Cooling System
Wash the engine or brush off sawdust and debris every 50 hours of operation.
Clean any screens, cooling fins, and all external surfaces.
Remove any dust, dirt, or oil.
See engine manual for further instructions.
3.4 Air Filter & Pre-Cleaner
Service the pre-cleaner every four hours of operation by gently shaking excess sawdust and debris from the foam piece.

Maintenance
Fuel Filter 3
Maintenance WM doc 9/16/22 3-2
Clean the air filter (air cleaner element) and pre-cleaner (element wrapper) every eight hours of operation. Replace the air
filter (cleaner) every 200 hours of operation.
Replace the pre-cleaner (element wrapper) every 2000 hours of operation.
See the engine manual for further instructions.
3.5 Fuel Filter
Replace the fuel filter every 100 hours of operation or as required for engine performance.
3.6 Battery
Check the battery electrolyte level every 50 hours of operation. See manufacturer’s manual for instructions.
DANGER! Batteries expel explosive gases. Keep sparks, flames, burning
cigarettes, or other ignition sources away at all times. Always wear safety
goggles and a face shield when working near batteries. Failure to do so
will cause serious injury.
WARNING! Battery posts, terminals and related accessories contain lead
and lead compounds, chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after handling.
3.7 RPM Adjustments
WARNING! Remove the blade before performing any engine service. Fail-
ure to do so may result in serious injury.
Check the RPM with a tachometer every 200 hours of operation.
Before checking the RPM, make sure belt and brake strap tensions are correct. (See Sawmill Maintenance.)
Check oil, fuel, and coolant levels.
Check that the cable spring, cable guide, cable, and throttle brackets are aligned.
NOTE: It is important that the above components are aligned. Proper
alignment allows any slack in the cable (when engine is idling) to slide
down into the cable spring. This maintains free operation of the cable and
prevents the cable from kinking. Make sure the shoulder bolt does not rub
against the crankcase vent tube
1. Start the engine to measure the low-end RPM.
2. Refer to the engine manual to adjust the low-end RPM.
3. Engage the clutch handle to throttle the engine and measure the high-end RPM.
The high-end RPM is factory-set at 3600. Readjust the throttle cable if necessary to increase or reduce the high-end engine
speed.
The throttle cable should be tensioned just enough so that the engine revs as soon as the clutch/brake handle is engaged.
Engine High End RPM Low End RPM
G25 3600 1800

Maintenance
Miscellaneous Maintenance
3
3-3 WM doc 9/16/22 Maintenance
NOTE: A properly adjusted throttle will extend the cable spring 1/4” to 3/8”
(6.4 - 9.5 mm) when running and have a slight amount of slack in the cable
when idling.
3.8 Miscellaneous Maintenance
Clean and inspect the spark arresters every 50 hours of operation. Replace if damaged.
CAUTION! Do not remove the plug wire to check for electrical spark. Dam-
age to the ignition circuit will result.
Inspect the spark plugs every 100 hours of operation.
Remove any deposits and adjust gap if necessary.
Review the manufacturer's engine manual for maintenance intervals.
See engine manual for further information.

Replacement Parts WM doc 9/16/22 4-1
Replacement Parts
Fuel Tank 4
SECTION 4 REPLACEMENT PARTS

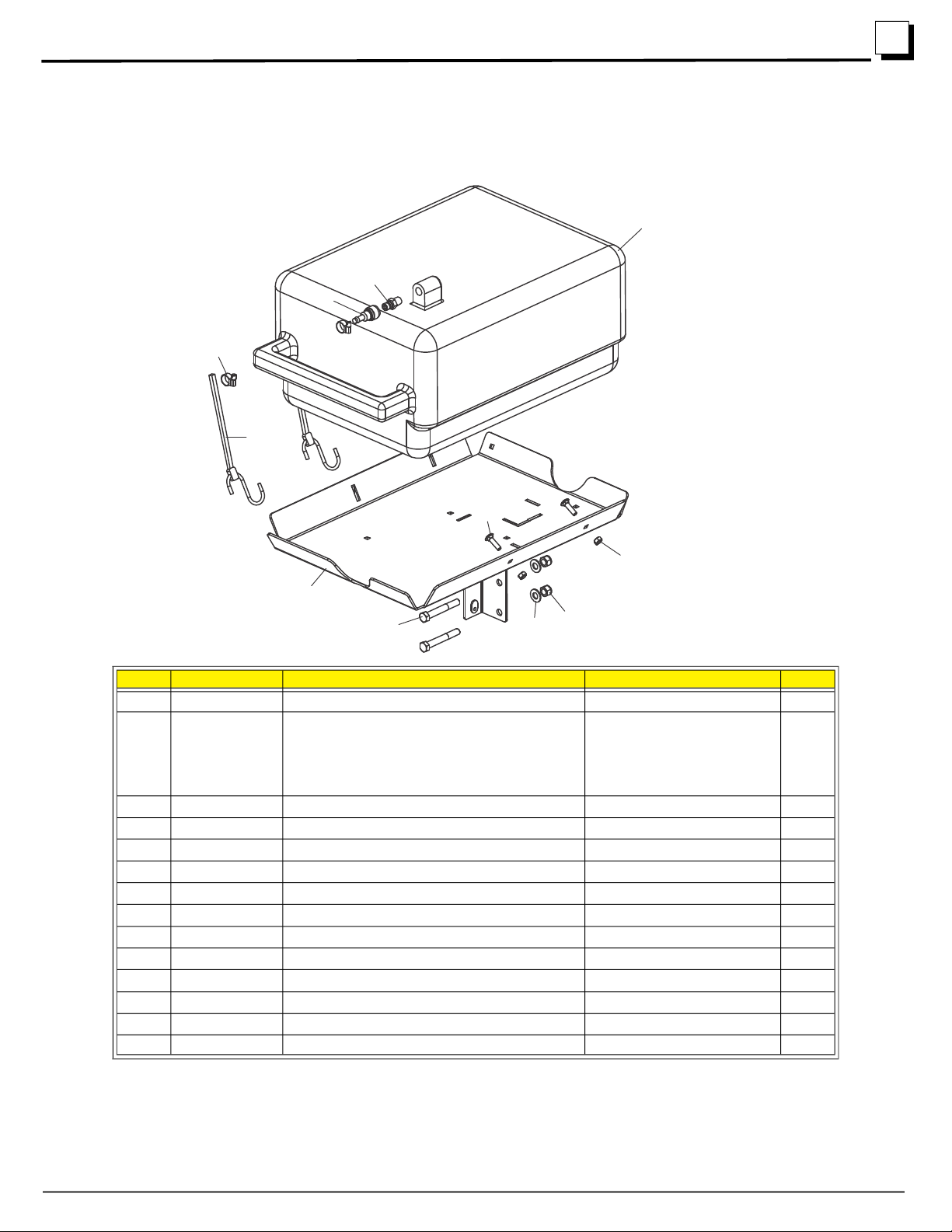

4.1 Fuel Tank
LT28Rev. A6.12+
REF PART # DESCRIPTION COMMENTS QTY.
103816 TRAY ASSEMBLY, LT28/35 FUEL TANK 1
1103810 Weldment, Fuel Tank Tray 1
2103867 Cover, Fuel Tank 1
3103878 Tank, 5 Gallon Low Pro EPA Fuel 1
4061250 Grommet, Shut Off 1
5061251 Gas Cap, LT15 1
6061252 Valve, Slosh 1
7061253 Grommet, Slosh Valve 1
8074943 Fitting, Fuel Pick-Up With Shut-Off 1
9F05006-15 Bolt, 5/16-18 x 1/2” Hex Head Grade 5 4
10 F05007-73 Bolt, 3/8-16 x 3” Hex Head Grade 5 3
11 F05010-10 Nut, 3/8-16 Hex Nyloc 3
12 F05011-3 Washer, 3/8” Flat SAE 6
13 F05011-13 Washer, 5/16” Split Lock 4
14 F05011-17 Washer, 5/16” SAE Flat 4
R02423-1 Hose, Fuel 3/16" EPA 15G CARB 6 Ft
R02423-2 Hose, Fuel 1/4" EPA 15G CARB 6 Ft
1
2
5
3
7
4
6
8
9
13
14
10
11
12
280061C

Replacement Parts
Fuel Tank
4
4-2 WM doc 9/16/22 Replacement Parts

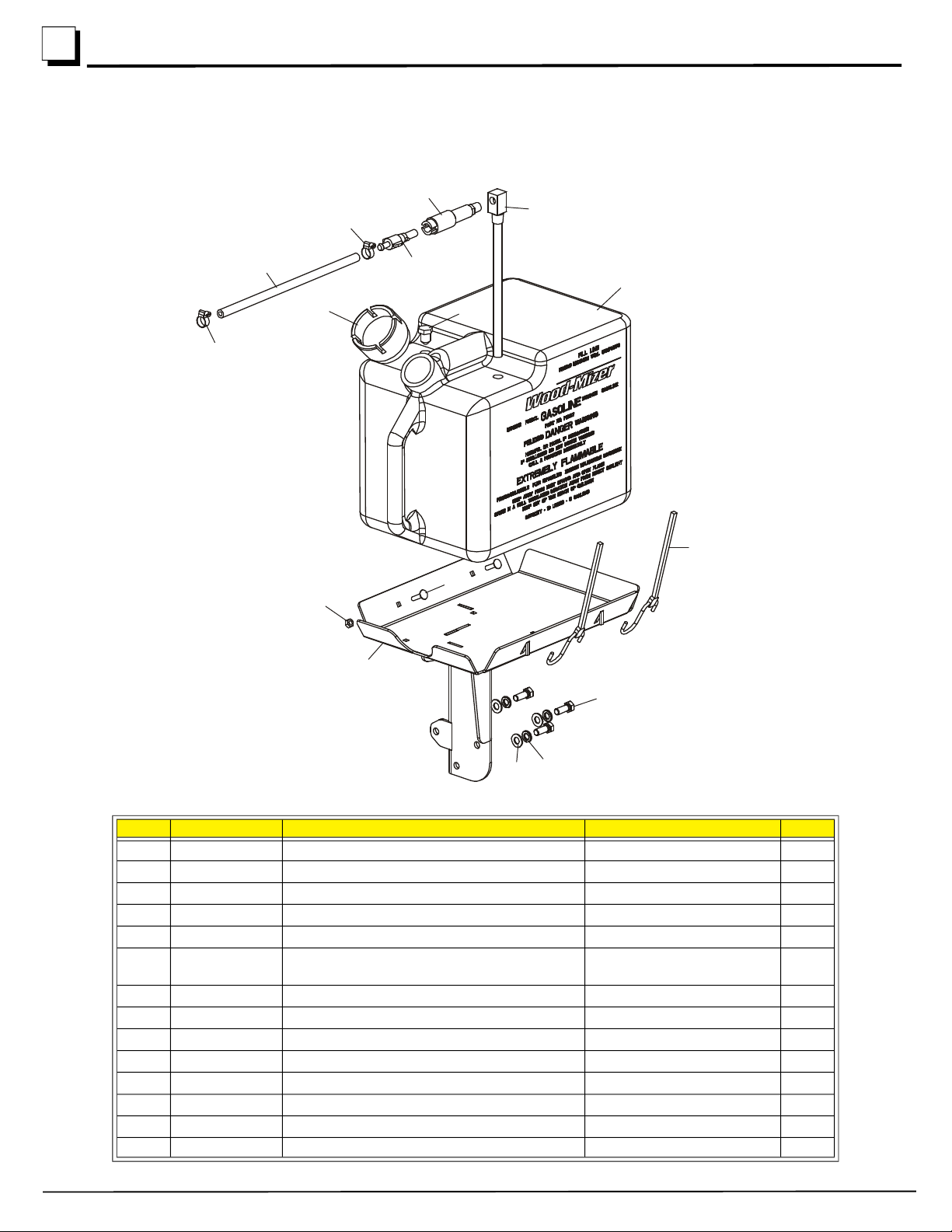

4.2 Fuel Tank
LT28Rev. A6.10 - A6.11
REF PART # DESCRIPTION COMMENTS QTY.
076479 TRAY ASSEMBLY, LT28 GAS CAN 1
074643 Tank Assembly, 6 Gallon Gas Service 1
1076478 Tank, Gasoline Available in assemblies only. 1
2015583 Fitting, 1/4” NPT Male Quick Disconnect 1
3015582 Fitting, Female Quick Disconnect Barb 1
4P649 Clamp, 7/32” - 1/2” Hose 2
5076480 Tray Weldment, LT28 Fuel 1
6F05005-34 Bolt, 1/4-20 X 1” Carriage 2
7F05010-21 Nut, 1/4-20 Swaged 2
8P11668 Strap, 20 Rubber W/Hooks 2
9F05007-29 Bolt, 3/8-16 x 2 3/4” Hex Head 2
10 F05011-3 Washer, 3/8” SAE Flat 2
11 F05010-10 Nut, 3/8-16 Hex Nylon Lock 2
R02423-2 Hose, Fuel 1/4" EPA 15G CARB 6.1 Ft
1
3
2
4
5
6
7
8
910 11
280060

Replacement Parts WM doc 9/16/22 4-3
Replacement Parts
Fuel Tank (2010+) 4
4.3 Fuel Tank (2010+)
LT28Rev. A3.00 - A6.09
REF PART # DESCRIPTION COMMENTS QTY.
076479 TRAY ASSEMBLY, LT28 GAS CAN 1
074643 Tank Assembly, 6 Gallon Gas Service 5 gallon gas can assemblies are
available only for customers
with sawmills and edgers manu-
factured prior to 2010 (See Sec-
tion 4.4).
1
1076478 Tank, Gasoline Available in assemblies only. 1
2015583 Fitting, 1/4” NPT Male Quick Disconnect 1
3015582 Fitting, Female Quick Disconnect Barb 1
4P649 Clamp, 7/32” - 1/2” Hose 2
5076480 Tray Weldment, LT28 Fuel 1
6F05005-34 Bolt, 1/4-20 X 1” Carriage 2
7F05010-21 Nut, 1/4-20 Swaged 2
8P11668 Strap, 20 Rubber W/Hooks 2
9F05007-29 Bolt, 3/8-16 x 2 3/4” Hex Head 2
10 F05011-3 Washer, 3/8” SAE Flat 2
11 F05010-10 Nut, 3/8-16 Hex Nylon Lock 2
R02423-2 Hose, Fuel 1/4" EPA 15G CARB 6.1 Ft
1
3
2
4
5
6
7
8
910 11
280060-2

Replacement Parts
Fuel Tank (Pre-2010)
4
4-4 WM doc 9/16/22 Replacement Parts
4.4 Fuel Tank (Pre-2010)
LT28Rev. A3.00 - A6.09
REF PART # DESCRIPTION COMMENTS QTY.
049138 TRAY ASSEMBLY, LT28 GAS CAN 1
A12285 Tank Assembly, 5-gallon Red Gasoline Customers with sawmills and
edgers manufactured in 2010
and later need to use new EPA
approved 3 or 6 gallon gas can
assemblies (See Section 4.2).
1
1P12167 Tank, 5-Gallon Red Fuel Available in assemblies only. 1
2P12172 Pickup, 9" Fuel 1
3P09683 Cap, 3 or 5-Gallon Fuel Tank 1
4P12175 Fitting, 1/4" NPT Plastic Female Discon-
nect
1
5P10367 Fitting, 3/8” NPT Hex Plug 1
6P642 Hose, 1/4” ID Fuel 4 Ft
7P649 Clamp, 7/32 - 1/2 Hose 2
8P12176 Fitting, 1/4" NPT Plastic Male Disconnect 1
9048600 Tray Weldment, LT28 Fuel 1
10 F05005-34 Bolt, 1/4-20 X 1” Carriage 2
11 F05010-21 Nut, 1/4-20 Swaged 2
12 P11258 Strap, 24 Rubber W/Hooks 2
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14 15
280048B

Replacement Parts WM doc 9/16/22 4-5
Replacement Parts
Fuel Tank (Pre-2010) 4
13 F05007-29 Bolt, 3/8-16 x 2 3/4” Hex Head 2
14 F05011-3 Washer, 3/8” SAE Flat 2
15 F05010-10 Nut, 3/8-16 Hex Nylon Lock 2
REF PART # DESCRIPTION COMMENTS QTY.

Replacement Parts
Fuel Tank
4
4-6 WM doc 9/16/22 Replacement Parts
4.5 Fuel Tank
LT28Rev. A1.00 - A2.01
REF PART # DESCRIPTION COMMENTS QTY.
049138 TRAY ASSEMBLY, LT28 GAS CAN 1
A12285 Tank Assembly, 5-gallon Red Gasoline 1
1P12167 Tank, 5-Gallon Red Fuel Available in assemblies only. 1
2P12172 Pickup, 9" Fuel 1
3P09683 Cap, 3 or 5-Gallon Fuel Tank 1
4P12175 Fitting, 1/4" NPT Plastic Female Discon-
nect
1
5P10367 Fitting, 3/8” NPT Hex Plug 1
6P642 Hose, 1/4” ID Fuel 4 Ft
7P649 Clamp, 7/32 - 1/2 Hose 2
8P12176 Fitting, 1/4" NPT Plastic Male Disconnect 1
9049137 Tray Weldment, LT28 Fuel . 1
10 F05005-34 Bolt, 1/4-20 X 1” Carriage 2
11 F05010-21 Nut, 1/4-20 Swaged 2
12 P11258 Strap, 24 Rubber W/Hooks 2
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
280034

Replacement Parts WM doc 9/16/22 4-7
Replacement Parts
Fuel Tank 4
13 F05007-87 Bolt, 3/8-16 x 1” Hex Head Grade 5 3
14 F05011-4 Washer, 3/8” Split Lock 3
15 F05011-3 Washer, 3/8” SAE Flat 3
REF PART # DESCRIPTION COMMENTS QTY.

Replacement Parts
Engine Assembly
4
4-8 WM doc 9/16/22 Replacement Parts
4.6 Engine Assembly
LT28Rev. A4.02+
REF PART # DESCRIPTION COMMENTS QTY.
015993 MANUAL, KOHLER CH25 OWNER’S 1
015994 MANUAL, KOHLER CH25 SERVICE 1
P12393 COVER, ENGINE 1
003295 ENGINE ASSEMBLY, LT28 G25 1
1074351 Engine, 25HP Kohler Gas CH740 w/Key 074351 replaces 012832 25Hp
Kohler CH25 Spec
PA-CH730-0010 Engine (4/14).
1
016290 Gasket Kit, Kohler CH25 Head
#24-757-31
1
P12734 Filter Kit, Kohler Air/Pre #24-883-03-S1 1
2P12736 Filter, Kohler Air #24-083-03 Available in assemblies only. 1
3P12737 Pre Cleaner, Kohler #24-083-05 Available in assemblies only. 1
061371 Starter, Kohler Engine KH# 25 098 21S 1
P12757 Plug, RC12YC Kohler Spark #12-132-02 2
016079 Module Kit, Kohler Ignition #25-584-14-S 2
4014717 Filter, Kohler Oil #52-050-02 1
5P12758 Filter, Kohler Fuel #24-050-13 Kohler #24-050-13 9-12 micron
filter replaces #240-050-10 8-10
micron filter originally supplied.
1
1
2
3
4
5
8
9
10
1113
14
15
16
17 18
280051
19
20
25
21
22
23
24
67
12

Replacement Parts WM doc 9/16/22 4-9
Replacement Parts
Engine Assembly 4
061150 Switch, Ignition G18/25 1
6003294 Muffler Assembly, Kohler #24-786-10S 1
7036684 Arrestor, Kohler Spark #24-18901-S 1
8016535 Bushing, 1 7/16” SH 1
9047742 Pulley, 3V5.6 x 2” SH 1
10 F05011-48 Washer, 7/16” Split Lock 2
11 F05007-145 Bolt, 7/16-14 x 1” Hex Head Grade 5 2
12 016493 Plate, Engine Guard 1
13 047750 Plate, Throttle Cable Mount 1
14 047749 Cable, LT15 G25 Throttle 1
15 016033 Spring, Throttle 1
16 015952 Spring, Throttle Extension 1
17 P10082 Hose, 3/8” NPT Oil Drain 1
18 P04332 Cap, Oil Drain Hose 1
061072 Switch, G18/G25 Ignition Plastic 1
016023 CARBURETOR KIT, 25HP KOHLER ANTI-ICING
#25-755-65-S
1
061303 SOLENOID, FUEL SHUT OFF 24-757-01-S 1
024718 HARNESS, BATTERY TO ENGINE 1
19 F05011-3 WASHER, 3/8” SAE FLAT 4
20 F05007-119 BOLT, 3/8-16 X 1 3/4” HEX HEAD GRADE 5 4
21 F05010-10 NUT, 3/8-16 HEX NYLON LOCK 4
22 048237 SUPPORT WELDMENT, DRIVE BELT 1
23 F05007-118 BOLT, 3/8-16 X 3/4” HEX HEAD GRADE 5 1
24 F05010-19 NUT, 3/8-16 SELF-LOCKING HEX 1
25 047751 BELT, 2/3VFL900 DRIVE 1
016023 CARB KIT, 25HP KOHLER DE-ICING 2475565S 1
REF PART # DESCRIPTION COMMENTS QTY.

Replacement Parts
Engine Assembly
4
4-10 WM doc 9/16/22 Replacement Parts
4.7 Engine Assembly
LT28Rev. A1.00 - A4.01
REF PART # DESCRIPTION COMMENTS QTY.
015993 MANUAL, KOHLER CH25 OWNER’S 1
015994 MANUAL, KOHLER CH25 SERVICE 1
047740 ENGINE ASSEMBLY, LT15/28 G25 1
1012832 Engine, 25Hp Kohler CH25 Spec PA 68600 012832 Engine changed to
Spec PA-CH730-0010 without
muffler (2/07).
1
016290 Gasket Kit, Kohler CH25 Head
#24-757-31
1
P12734 Filter Kit, Kohler Air/Pre #24-883-03-S1 1
2P12736 Filter, Kohler Air #24-083-03 Available in assemblies only. 1
3P12737 Pre Cleaner, Kohler #24-083-05 Available in assemblies only. 1
P12757 Plug, RC12YC Kohler Spark #12-132-02 2
016079 Module Kit, Kohler Ignition #KH24-584-11
(Qty. 2)
1
4014717 Filter, Kohler Oil #52-050-02 1
5P12758 Filter, Kohler Fuel #24-050-13 Kohler #24-050-13 9-12 micron
filter replaces #240-050-10 8-10
micron filter originally supplied.
1
6051569 Muffler Assembly, Kohler #24-786-19 Muffler, Deflector and Spark
Arrestor no longer supplied with
engine (2/07).
1
7016495 Deflector, Kohler Muffler #12-755-28 1
8016496 Arrestor, Kohler Spark #12-189-02 1
1
2
3
4
5
6
7
8
9
10
11
13
26
12
14
15
16
17
18 19
150134
20
21
22 23
24
25

Replacement Parts WM doc 9/16/22 4-11
Replacement Parts
Engine Assembly 4
016137 Carburetor Kit, Kohler High-Altitude Compen-
sation #24-755-01
Kit obsolete 9/01 due to EPA
requirements (entire carberator
should be replaced). For opera-
tion up to 5,000 ft. elevation.
Eliminates rough running
caused by lean fuel mixture at
high altitude. A loss of power
will result and the carburetor jets
must be replaced with the stan-
dard jets to operate at normal
elevations.
1
9016535 Bushing, 1 7/16” SH 1
10 047742 Pulley, 3V5.6 x 2” SH 1
11 F05011-48 Washer, 7/16” Split Lock 2
12 F05007-145 Bolt, 7/16-14 x 1” Hex Head Grade 5 2
13 016493 Plate, Engine Guard 1
14 047750 Plate, Throttle Cable Mount 1
15 047749 Cable, LT15 G25 Throttle 1
16 016033 Spring, Throttle 1
17 015952 Spring, Throttle Extension 1
18 P10082 Hose, 3/8” NPT Oil Drain 1
19 P04332 Cap, Oil Drain Hose 1
024718 HARNESS, BATTERY TO ENGINE 1
20 F05011-3 WASHER, 3/8” SAE FLAT 4
21 F05007-119 BOLT, 3/8-16 X 1 3/4” HEX HEAD GRADE 5 4
22 F05010-10 NUT, 3/8-16 HEX NYLON LOCK 4
23 048237 SUPPORT WELDMENT, DRIVE BELT 1
24 F05007-118 BOLT, 3/8-16 X 3/4” HEX HEAD GRADE 5 1
25 F05010-19 NUT, 3/8-16 SELF-LOCKING HEX 1
26 047751 BELT, 2/3VFL900 DRIVE 1
061324 CARB KIT, G25 DE-ICING 24 755 69S 1
REF PART # DESCRIPTION COMMENTS QTY.

Replacement Parts
Throttle/Clutch Assembly
4
4-12 WM doc 9/16/22 Replacement Parts
4.8 Throttle/Clutch Assembly
REF PART # DESCRIPTION COMMENTS QTY.
1065574 BLOCK WELDMENT, LINKAGE CLUTCH/BRAKE Replaces 049139 to make
clutch pivot stop adjustable
(Rev. A6.05). T
1
2F05012-16 PIN, 3/16” X 1 1/4” ROLL 1
3016486 BUSHING, 5/8” ID X 7/8” OD X 1 1/4” LONG FL
BRONZE
2
4049340 SHAFT, LT28 THROTTLE 1
5034815 ACTUATOR WELDMENT, THROTTLE LT15D&G 1
6F05007-68 SCREW, 3/8-16 X 3/8” SOCKET HEAD CUP PT
SET
2
7034818 LINKAGE, THROTTLE LT15D&G 1
8F05005-15 BOLT, 1/4-20 X 1/2” HEX HEAD 1
9F05010-21 NUT, 1/4-20 SWAGED 1
10 P737 BUSHING, 1” X 1 1/4” X 3/4” FLANGED BRONZE 2
11 034608 PIVOT WELDMENT, CLUTCH/BRAKE 1
034605 LINKAGE ASSEMBLY, W/BEARING 1
12 034604 Boss Weldment, Clutch/Brake Linkage 1
13 016486 Bushing, 5/8” ID x 7/8” OD x 1 1/4” Long
Flanged Bronze
1
038778 NUT ASSEMBLY, 1/2-13 SPRING LOCKING Spring Locking Nut Assembly
038778 added Rev. A3.00
(replaces F05010-35 1/2-13
Hex Nut and F05011-9 1/2" Split
Lock Washer).
1
1
2
3
13
4
3
5
9
8
7
6
10
10
11
12
14
17
18 19
20
21
22
20
23
21
24
25
33
32
26
27
28
31
30 29
280059-2D
15
16
