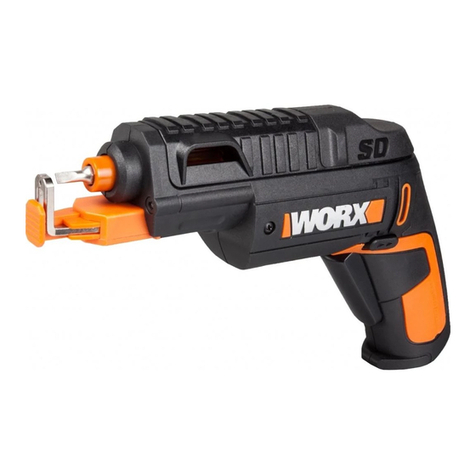

Worx WX255.1 Slide Driver User manual

WX255.1

EN
RU
ET
LV
LT
Original instructions




EN
RU
ET
LV
LT
P09
P18
P28
P37
P46

4
2
1
3
678
9
10
5

1
1
1
2
2
2
BA
C

D1
D2

E1
E3
E2
F1

F2 G
H1 H2

8
H3 I1
I2 J

9
1. SLIDE COVER
2. FORWARD/REVERSE ROTATION CONTROL
3. SOFT GRIP HANDLE
4. CHARGING INDICATOR
5. CHARGING SOCKET
6. ON/OFF SWITCH
7. LED LIGHT
8. SCREW HOLDER
9. CHUCK
10. BIT CARTRIDGE
Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WX255.1 (250~269-designation of machinery, representative of Battery-powered Screwdriver)
Charger input 100-240V~50/60Hz 190mA
Charger output 4.2V 500mA
Rated voltage 4V Max*
Charger input power 3W
Battery capacity 1.5Ah (li-Ion)
No load speed 230/min
Maximum torque 3N.m
Machine weight 0.5kg
Charger protection class /II
Charging time 5 hours (Approx.)

10
For the technical data of the types, the number of cells and the rated capacity of the batteries that can be charged,
please refer the nameplate of the tool supplied by WORX.
* Voltage measured without workload. Initial battery voltage reaches maximum of 4 volts. Nominal voltage is 3.6 volts.
NOISE DATA
A weighted sound pressure LpA=65dB(A)
A weighted sound power LwA=76dB(A)
KPA & KWA 3.0dB(A)
Wear ear protection
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined according to EN 60745:
Typical weighted vibration Vibration emission value ah= 0.70m/s²
Uncertainty K = 1.5m/s²
The declared vibration total value may be used for comparing one tool with another, and may also be used in a
preliminary assessment of exposure.
WARNING:The vibration emission value during actual use of the power tool can differ from the declared value
depending on the ways in which the tool is used dependant on the following examples and other variations on
how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.

11
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running
idle but not actually doing the job.This may significantly reduce the exposure level over the total working
period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 100C or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
Charger 1
25mm Pilot hole drill bit 1
25mm Screwdriver bit (PH0, PH1, PH2, PZ1, PZ2, SL4, SL5, H3, H4, H5, T10) 11
Cartridge 2
Holster 1
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality
accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer
to the accessory packaging for further details. Store personnel can assist you and offer advice.

12
SCREW DRIVER SAFETY WARNING
1. Hold power tool by insulated gripping
surfaces, when performing an operation
where the fastener may contact hidden wiring.
Fasteners contacting a “live” wire may make
exposed metal parts of the power tool “live” and
could give the operator an electric shock.
SAFETY WARNINGS FOR BATTERY CELLS INSIDE
THE TOOL
a) Do not dismantle, open or shred cells.
b) Do not short-circuit charging terminal. Do
not store power tool haphazardly in a box or
drawer where charging terminal may short-
circuit each other or be short-circuited by
conductive materials. When power tool is not
in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one
charging terminal to another.
c) Do not expose power tool to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject power tool to mechanical shock.
e) In the event of battery leaking, do not allow
the liquid to come into contact with the skin
or eyes. If contact has been made, wash the
affected area with copious amounts of water
and seek medical advice.
f) Seek medical advice immediately if a cell has
been swallowed.
g) Keep power tool clean and dry.
h) Wipe the charging terminals with a clean dry
cloth if they become dirty.
i) Power tool needs to be charged before use.
Always refer to this instruction and use the
correct charging procedure.
j) Do not maintain power tool on charge when
not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge the
power tool several times to obtain maximum
performance.
l) Battery gives its best performance when
it is operated at normal room temperature
(20°C±5°C).
m) When disposing of cells, keep cells of different
electrochemical systems separate from each
other.
n) Recharge only with the charger specified by
WORX. Do not use any charger other than
that specifically provided for use with the
equipment. A charger that is suitable for one type
of battery may create a risk of fire when used with
another battery.
o) Keep power tool out of the reach of children.
p) Retain the original product literature for future
reference.
q) Dispose of properly.
GENERAL SAFETY WARNINGS FOR YOUR BATTERY
CHARGER
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious
injury.

13
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR
BATTERY CHARGER
1. Before charging, read the instructions.
2. After charging, disconnect the battery charger
from the supply mains. Then remove the chassis
connection and then the battery connection.
3. Do not charge a leaking battery.
4. Do not use chargers for works other than those for
which they are designed.
5. Before charging, ensure your charger is matching
the local AC supply.
6. For indoor use, or do not expose to rain.
7.
The charging device must be protected from moisture.
8. Do not use the charging device in the open.
9. Do not short out the contacts of battery or charger.
10. Respect the polarity “+/-“ when charging.
11. Do not open the unit and keep out of the reach of
children.
12. Do not charge the batteries of other manufactures or
ill-suited models.
13. Ensure that the connection between the battery
charger and battery is correctly positioned and is not
obstructed by foreign bodies.
14. Keep battery charger’s slots are free of foreign
objects and protect against dirt and humidity. Store
in a dry and frost-free place.
15. When charging batteries, ensure that the battery
charger is in a well-ventilated area and away from
inflammable materials. Batteries can get hot during
charging. Do not overcharge any batteries. Ensure
that batteries and chargers are not left unsupervised
during charging.
16. Do not recharge non-rechargeable batteries, as they
can overheat and break.
17. Longer life and better performance can be
obtained if the battery pack is charged when the
air temperature is between 18ºC and 24ºC. Do not
charge the battery pack in air temperatures below
4.5ºC, or above 40.5ºC. This is important as it can
prevent serious damage to the battery pack.
18. Charge only battery pack of the same model
provided by WORX and of models recommended by
WORX.

14
Do not stare directly into the tool
holder. When changing the tool insert,
it can be thrown out toward the front.
To reduce the risk of injury, user
must read instruction manual
Warning
Double insulation
Wear eye protection
Wear ear protection
Wear dust mask
Do not burn
Do not expose to rain or water
Wear protective gloves
Do not dispose of batteries, Return
exhausted batteries to your local
collection or recycling point.
Waste electrical products must not
be disposed of with household
waste. Please recycle where
facilities exist. Check with your
local authorities or retailer for
recycling advice.
For indoor use only
Fuse
T 1A time lag fuse with rated current
of 1A
The output plug is with positive
center pole and negative outer pole
Don’t use double end bit
SYMBOL

15
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction
book carefully.
INTENDED USE
The power tool is intended for driving in and loosening
screws as well as for drilling in wood, metal and plastic.
Action Figure
Before operation
Charging the Battery
NOTE:
1. Maximize Battery Performance
Prior to initial use, the battery must
be charged 5 hours to fully utilize the
battery capacity.
2. When the battery is full charged, the
light turns green.
See Fig. A
Assembly and adjustment
Inserting and Removing the Bit
Cartridge See Fig. B, C
Assembling and Removing the Screw
Holder
See Fig. D1,
D2
Forward/reverse/lock
WARNING: Never change the
direction of rotation when the
chuck is rotating, wait until it is
stopped!
See Fig. E1,
E2, E2
Operation
Selecting a Bit See Fig. F1, F2
Drilling a Pilot Hole See Fig. G
Assembling screw See Fig. H1,
H2, H3
Tightening and Loosening Screw See Fig. I1, I2
Operating the On/Off Switch
WARNING: Do not operate for
long periods at low speed
because excess heat will be produced
internally.
See Fig. J
LED Light Indicator See Fig. J
Automatic Spindle Locking
NOTE: When the slide driver is out of
power, this function enables the cus-
tomer tightening or loosening screws
manually.
MAINTENANCE
Your power tool requires no additional lubrication or
maintenance.There is no user serviceable parts in your
power tool. Never use water or chemical cleaners to clean
your power tool. Wipe clean with a dry cloth. Always
store your power tool in a dry place. Keep the motor
ventilation slots clean. Keep all working controls free of
dust. If you see some sparks flashing in the ventilation
slots, this is normal and will not damage your power tool.

16
TROUBLE SHOOTING
Problem Possible cause Solution
Battery will not charge 1. Charger not plugged into a
working outlet.
2. Surrounding air temperature
is too hot or too cold.
1. Plug charger into a working outlet. Check cur-
rent by plugging in a lamp.
2. Move charger to an appropriate place which
temperature is suitable for the charger.
Switch cannot be pressed Forward/Reverse switch at
middle position
Make sure switch is on Forward or Reverse rota-
tion according to project need.
Driver stops during driving
screws
Driver battery is out of power Make sure the driver is fully charged before
using it.
Bit Cartridge will not rotate
when Cover slides.
The cover is not fully open Make sure the Cover is fully open and past the
red line on the tool.
ENVIRONMENTAL PROTECTION
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.

17
DECLARATION OF CONFORMITY
We,
POSITEC Germany GmbH
Konrad-Adenauer-Ufer 37 50668 Köln
Declare that the product,
Description Battery-powered Screwdriver
Type designation WX255.1 (250~269 - designation
of machinery, representative of Battery-powered
Screwdriver)
Function Tightening and loosening screws, nuts
Complies with the following Directives:
2006/42/EC, 2004/108/EC, 2011/65/EU
Standards conform to
EN 55014-1
EN 55014-2
EN 60745-1
EN 60745-2-2
The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe) Ltd, PO Box
152, Leeds, LS10 9DS, UK
Suzhou 2014/12/29
Allen Ding
Deputy Chief Engineer,Testing & Certification
DECLARATION OF CONFORMITY
We,
POSITEC Germany GmbH
Konrad-Adenauer-Ufer 37 50668 Köln
Declare that the product,
Description Battery Charger
Type HYCH0070420500G
Complies with the following Directives:
2006/95/EC, 2004/108/EC, 2011/65/EU
Standards conform to
EN 60335-1
EN 60335-2-29
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
EN 62233
Suzhou 2014/12/29
Allen Ding
Deputy Chief Engineer,Testing & Certification

18
 
 
 
 
 
 
 
 
 
 



 
  
  
 3W
 
 
 
 
 /II
 

19


 


 LpA
 LwA
KPAWA 



 h



 







20


 






0C



 
 
 
 
 




