Worx HYDROSHOT ULTRA User manual

WG649 WG649.9
P02
P18
P27
Cordless Portable Power Cleaner EN
Nettoyant Electrique Portable Sans Fil F
Lavador A Presión Portátil Inalámbrico ES

Cordless Portable Power Cleaner EN
2
PRODUCT SAFETY
WARNING: Read all safety warnings and
all instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
WARNING: This product can expose
you to chemicals including lead and
Di(2-ethylhexyl)phthalate (DEHP) which
are known to the State of California to cause
cancer and birth defects or other reproductive
harm. For more information go to www.
P65Warnings.ca.gov.
IMPORTANT SAFETY INSTRUCTIONS
WARNING – When using this product basic
precautions should always be followed,
including the following:
1. Read all the instructions before using the
product.
2. To reduce the risk of injury, close supervision
is necessary when a product is used near
children.
3. Know how to stop the product and bleed
pressures quickly. Be thoroughly familiar with
the controls.
4. Stay alert – watch what you are doing.
5. Do not operate the product when fatigued or
under the influence of alcohol or drugs.
6. Keep operating area clear of all persons
7. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
8. Follow the maintenance instructions specified
in the manual.
9. WARNING – Risk of injection or injury– do
not direct discharge stream at persons.
10. Do not spray electrical apparatus and wiring.
SAVETHESE INSTRUCTIONS
FOR ALL BATTERY –
OPERATED GARDENING
APPLIANCES:
1. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to battery pack, picking up or carrying the
appliance. Carrying the appliance with your
finger on the switch or energizing appliance
that have the switch on invites accidents.
2. Disconnect the battery pack from the appliance
before making any adjustments, changing
accessories, or storing appliance. Such
preventive safety measures reduce the risk of
starting the appliance accidentally.
3. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire
when used with another battery pack.
4. Use appliances only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
6. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
7. Do not use a battery pack or appliance that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
8. Do not expose a battery pack or appliance to
fire or excessive temperature. Exposure to
fire or temperature above 130°C may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or appliance outside
of the temperature range specified in the
instructions. Charging improperly or at
temperatures outside of the specified range
may damage the battery and increase the risk
of fire.
10. Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the
appliance or the battery pack (as applicable)
except as indicated in the instructions for use
and care.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery
pack.
b) Do not expose battery pack to heat or
fire. Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box
or drawer where they may short-circuit
each other or be short-circuited by other
metal objects. When battery pack is not in
use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other
small metal objects, that can make a connection
from one terminal to another. Shorting the
battery terminals together may cause burns or
fire.
d) Do not remove battery pack from its
original packaging until required for use.

Cordless Portable Power Cleaner EN
3

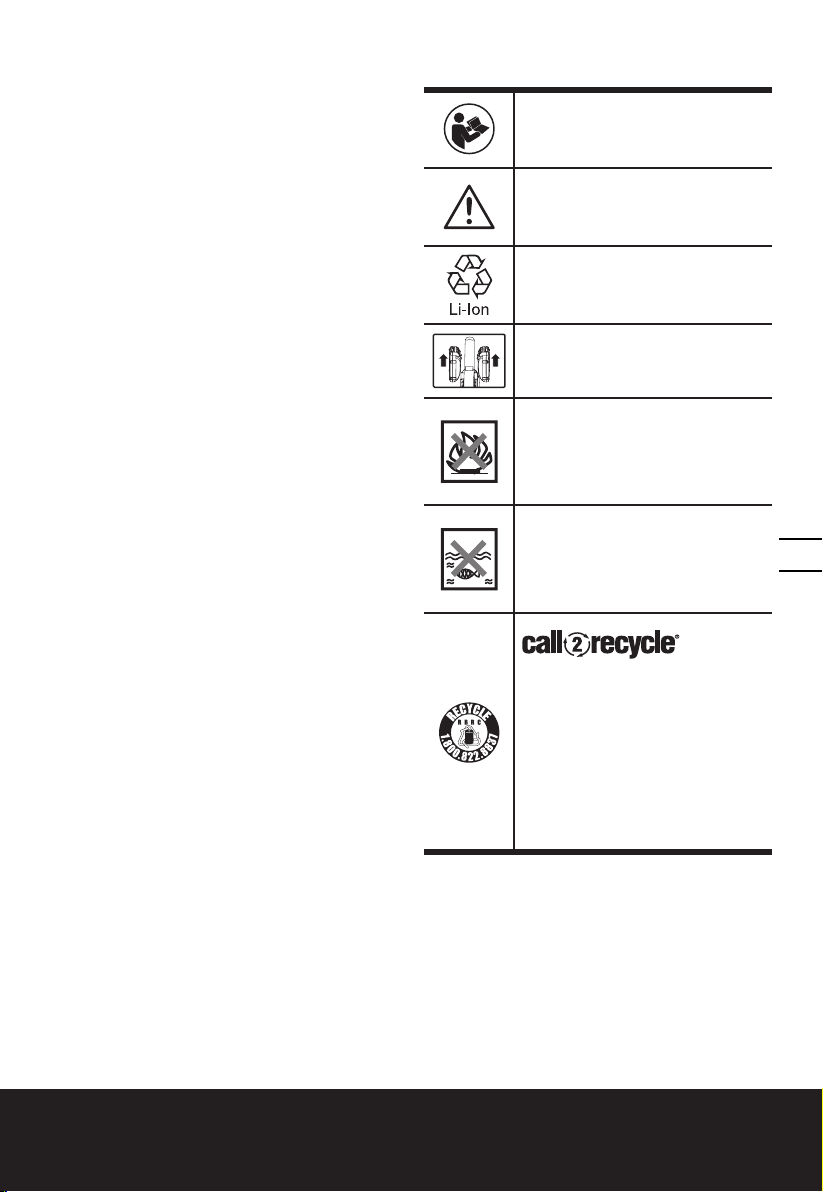

SYMBOLS
To reduce the risk of injury, user
must read instruction manual.
Warning
Li-Ion battery, battery must be
recycled.
Remove battery from the socket
before carrying out any adjustment,
servicing or maintenance.
Do not burn
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
POSITEC Inc. has established
a partnership with the RBRC
Corporation to recycle any Positec
batteries with the RBRC-call2recycle
seal. For environmental protection,
please do not discard batteries in
the trash. After the batteries’ life
cycle is ended, then please call
1-800-822-8837 for a free service
that will properly dispose of the
battery.
e) Do not subject battery pack to mechanical
shock.
f) In the event of battery leaking, do not
allow the liquid to come in contact with
the skin or eyes. If contact has been
made, wash the affected area with copious
amounts of water and seek medical
advice.
g) Observe the plus (+) and minus (–) marks
on the battery back and equipment and
ensure correct use.
h) Do not use any battery pack which is not
designed for use with the equipment.
i) Keep battery pack out of the reach of
children.
j) Seek medical advice immediately if a cell
or battery has been swallowed.
k) Always purchase the battery pack
recommended by the device manufacturer
for the equipment.
l) Keep battery pack clean and dry.
m) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.
n) Battery pack need to be charged before
use. Always use the correct charger and
refer to the manufacturer’s instructions
or equipment manual for proper charging
instructions.
o) Do not leave battery pack on prolonged
charge when not in use.
p) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
q) Battery pack gives its best performance
when it is operated at normal room
temperature (20 °C ± 5 °C).
r) When disposing of battery packs, keep
battery packs of different electrochemical
systems separate from each other.
s) Recharge only with the charger specified
by WORX Do not use any charger other
than that specifically provided for use with
the equipment. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
t) Retain the original product literature for
future reference.
u) Use only the battery pack in the
application for which it was intended.
v) Remove the battery pack from the
equipment when not in use.
w) Dispose of properly.

Cordless Portable Power Cleaner EN
4
*Not all the accessories illustrated or described are included in standard delivery. Refer to the
ACCESSORIES chart to review the options that are included with various product models. Visit
worx.com to learn more about these available accessory options.
1
2
3
10
11
12
13
16 17 1814 15
24
*
25
*
26
*
27
*
28
*
23*
21
*
20
22*
78
5
6
9
4

Cordless Portable Power Cleaner EN
5

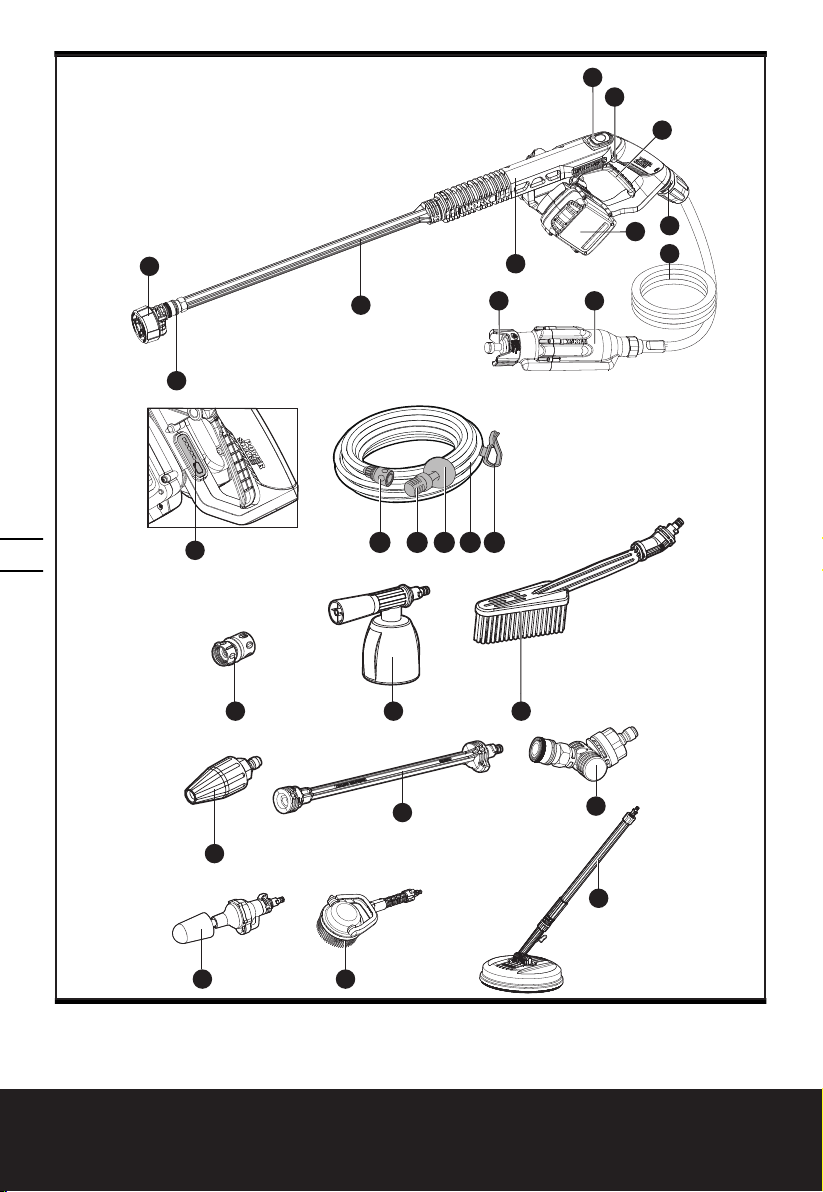

COMPONENT LIST
1. PRESSURE SETTING SWITCH
2. LOCK-OFF SWITCH
3. ON/OFF SWITCH LEVER
4. BATTERY PACK
5. CORD ADAPTER
6. CORD HOSE
7. PUMP MOTOR
8. HOSE ADAPTER
9. POWER NOZZLE
10. PRESSURE CLEANING LANCE
11. NOZZLE ADAPTER
12. MULTI-SPRAY NOZZLE
13. BATTER POWER INDICATOR
14. HOSE CONNECTOR
15. HOSE FILTER
16. FLOATER
17. DRAW HOSE
18. HOSE CLIP
19. PUMP FILTER SCREEN (SEE FIG. W2)
20. QUICK CONNECT ADAPTER
21. SOAP BOTTLE*
22. BRUSH*
23. TURBO NOZZLE*
24. EXTENSION LANCE*
25. PIVOTING QUICK CONNECT ADAPTER*
26. ROTARY CLEANING BRUSH*
27 AUTO/BOAT POWER SCRUBBER*/ HARD SURFACE POWER SCRUBBER*
28. PATIO BRUSH*

Cordless Portable Power Cleaner EN
6
TECHNICAL DATA
WG649 WG649.9
Charger voltage 120V~60Hz /
Voltage 40V Max. (2x20V Max.)**
High / Low (based on garden hose connected)
Rated pressure max. 725psi / 435psi
Max. water flow rate 1.2gpm
Max. inlet water pressure 87psi (0.6MPa)
Water suction height max. 5ft.
Water temperature max. 122oFahrenheit
Battery type Lithium-ion /
Battery model WA3578(4.0Ah) /
Charger model WA3884 /
Charger rating Input: 120V~60Hz, 100W
Output: 20V , 2.0A /
Charging time (approx.)
Battery pack 4.0Ah (1pc)
4.0Ah (2pcs)
1hrs
2hrs
/
Weight (handheld part) 2.5kg(5.5lbs) 1.1kg(2.4lbs)
Weight (whole unit) 5.2kg(11.5lbs) 3.8kg(8.4lbs)
** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
ACCESSORIES
WG649 WG649.9
Cord Hose 20ft. (6m) 1 1
Draw hose 20ft. (6m) 1 1
Battery pack*** (WA3578) 2 /
Charger (WA3884) 1 /
Multi-spray nozzle 1 1
Pressure cleaning lance 1 1
Brush (WA4048) / /
Soap bottle (WA4036) / /
Quick connect adapter (WA4017) 1 1
Turbo nozzle (WA4037) / /
Extension lance (WA4012) / /
Pivoting Quick Connect Adapter(WA4039) / /
Auto/Boat power scrubber (WA1820) / /
Hard surface power scrubber (WA1821) / /
Patio Brush(WA1800) 1 /
Rotary cleaning brush (WA4042) / /
*** Use only the following type and size batteries: WA3578.
Only use the appropriate accessories intended for this tool. Accessory information can be found on the product
packaging, at a WORX dealer or on our website at www.worx.com.

2
11
2
1
2
1
2
1
2
100%
0%
C
D
A3
A2
A1
B
D
D1

1
2
H/L
D2 E1
E2 F
G
I
K1
J
H1
H2

1
2
H/L
D2 E1
E2 F
G
I
K1
J
H1
H2
1
2
1
2
2
1
3
1
2
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
2
1
N1*
L
D
M1
D
M2
K2
N2*
D
01* 02*
D
P1*
P2*
P3*
D
P4*

1
2
1
2
2
1
3
1
2
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
2
1
N1*
L
D
M1
D
M2
K2
N2*
D
01* 02*
D
P1*
P2*
P3*
D
P4*

1
2
1
2
Extension lance sold separately.
Lance d’extension vendus séparément
Lanza de extensión se venden por separado
21
Clean regularly.
Nettoyez régulièrement.
Limpiar regularmente.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
19
2
1
3
2
1
1
2
1
2
D
P2*
P1*
W1
W2
X1 X2
Q1* Q2*
R*
S*
U*
T*
V2
V1

1
2
1
2
Extension lance sold separately.
Lance d’extension vendus séparément
Lanza de extensión se venden por separado
21
Clean regularly.
Nettoyez régulièrement.
Limpiar regularmente.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
19
2
1
3
2
1
1
2
1
2
D
P2*
P1*
W1
W2
X1 X2
Q1* Q2*
R*
S*
U*
T*
V2
V1

1
2
1
2
Extension lance sold separately.
Lance d’extension vendus séparément
Lanza de extensión se venden por separado
21
Clean regularly.
Nettoyez régulièrement.
Limpiar regularmente.
Refer to accessory chart if applicable.
Consultez le tableau des accessoires.
Consultar table de accesorios si aplica.
19
2
1
3
2
1
1
2
1
2
D
P2*
P1*
W1
W2
X1 X2
Q1* Q2*
R*
S*
U*
T*
V2
V1

Cordless Portable Power Cleaner EN
14
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
ASSEMBLY & OPERATION
ACTION FIGURE
BEFORE OPERATION

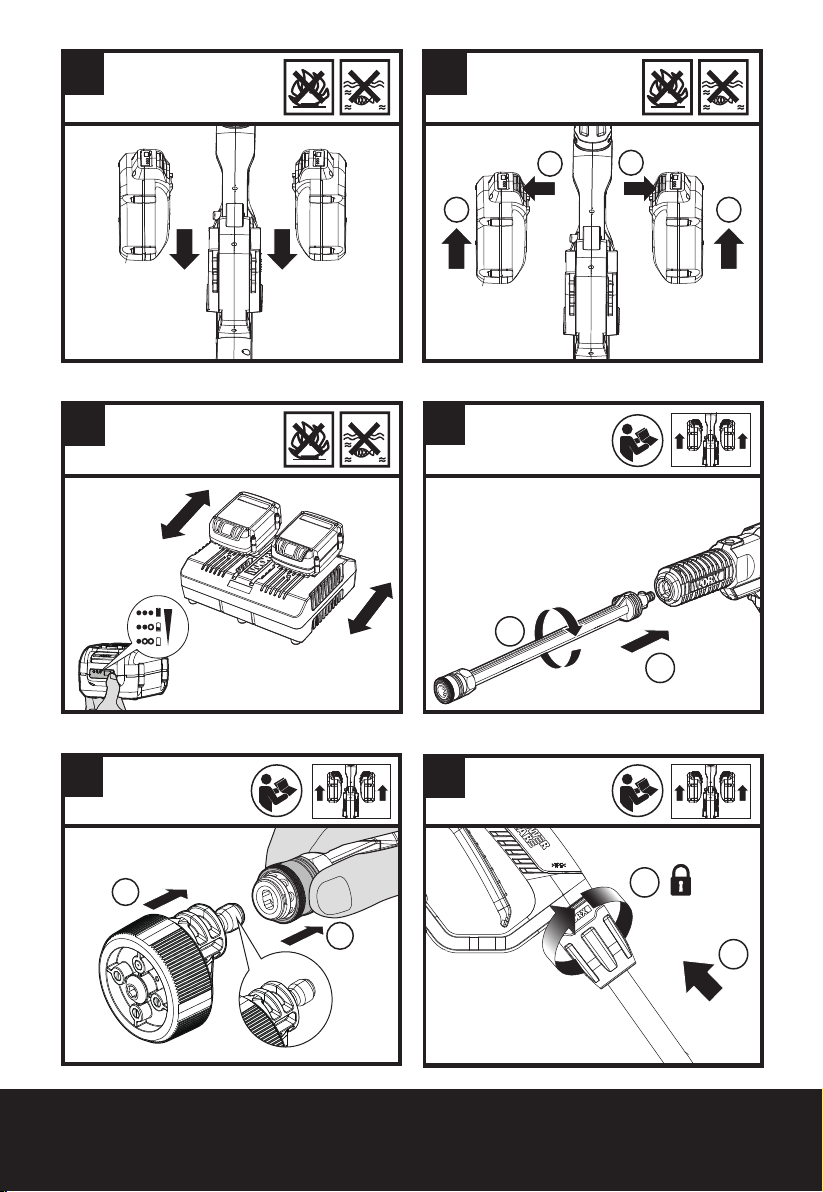

Installing the battery pack
NOTE:This machine will only run
when 2 batteries are installed. It
is recommended to use the same
two batteries and charge the two
batteries at the same time.
Using two batteries with different
power, the machine will
only run to the lower common
denominator.
See Fig. A1
Removing the battery pack See Fig. A2
Charging the battery pack
NOTE: The batteries are shipped
uncharged. Each battery must be fully
charged before the first use.
Always fully charge the two batteries
at same time. More details can be
found in WA3884’s manual.
See Fig. A3
ASSEMBLY
Attaching pressure cleaning lance to
the power nozzle
NOTE: When attaching, align the
two projections on the lance with
the grooves of the power nozzle as
shown in Fig. B.
See Fig. B
Attaching the multi-spray nozzle
NOTE: When attaching, try gently
pulling the nozzle to make sure it is
locked into position securely.
See Fig. C
Attaching the cord hose to the power
nozzle See Fig. D1

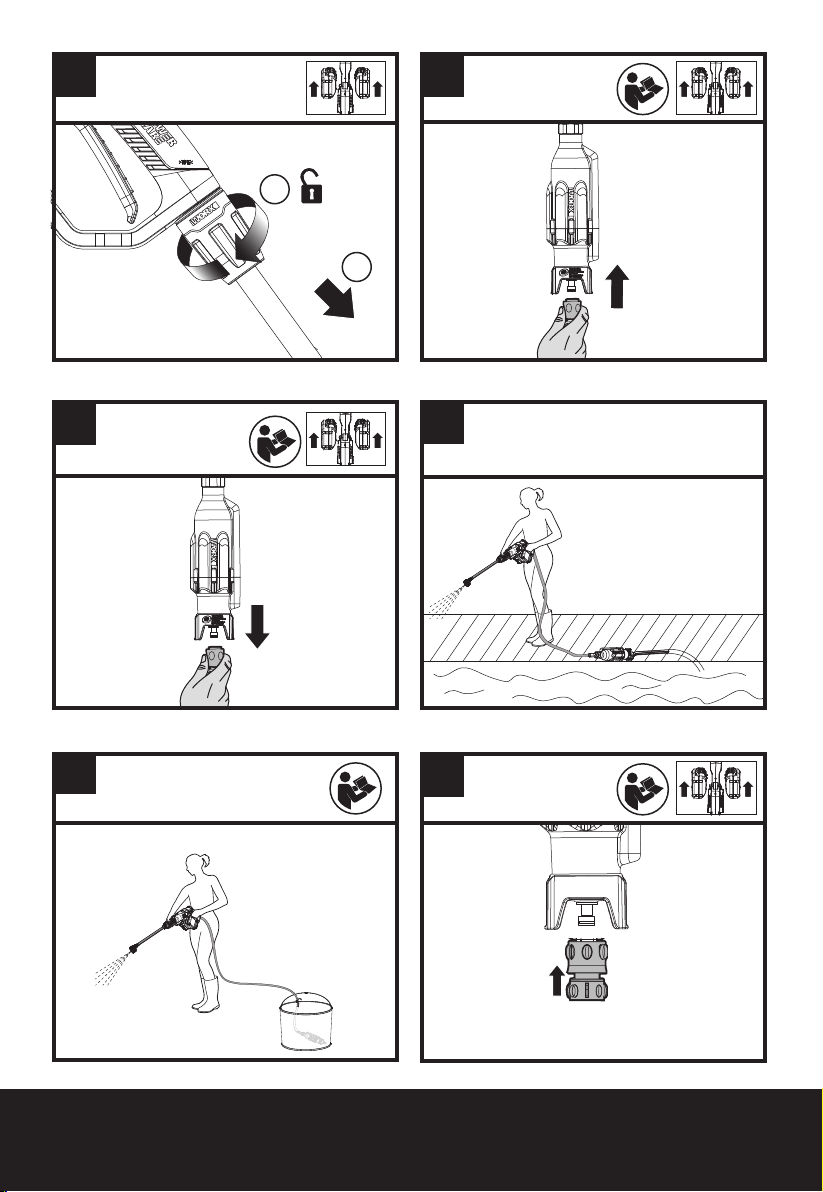

Detaching the cord hose See Fig. D2
Attaching the draw hose to the pump
motor
NOTE: After the draw hose is
attached, check the connection by
gently pulling upon the draw hose. It
should not be pulled off.
WARNING:It is not
recommended to connect the
draw hose to your garden hose or
your home tap.
See Fig. E1
Detaching the draw hose See Fig. E2
NOTE:There are three options to use
this washing machine:
Option 1
Connect the supplied draw hose to
the end of the pump motor to draw
from any fresh water source (river,
lake, pond, water bucket, etc.)
See Fig. F
Option 2
Place pump motor directly into a
bucket of water.
See Fig. G
Option 3
Connect a standard garden hose (not
supplied) with quick-connect adapter

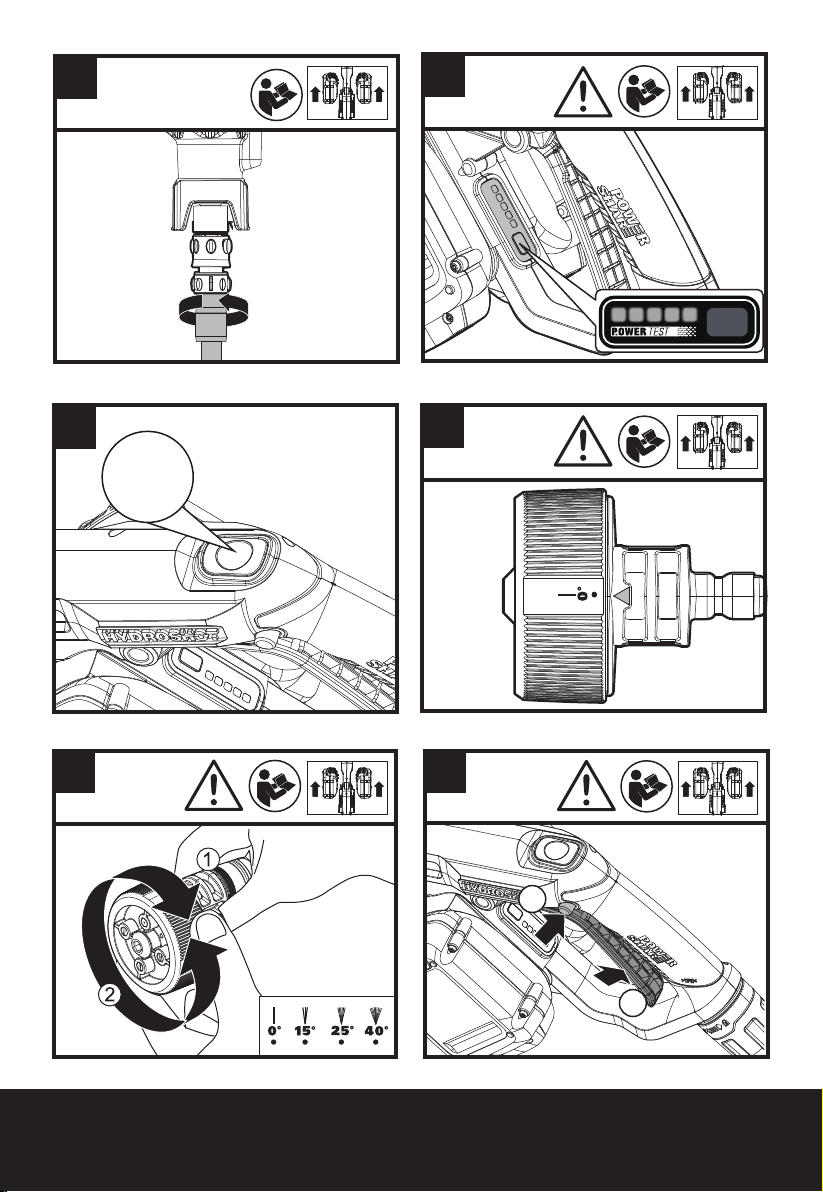

See Fig. H1,
H2
OPERATION
Battery power indicator on the machine
See details in BATTERY STATUS part
See Fig. I
Pressure setting
Your power nozzle has two pressure
modes, High and Low, delivering
different pressure settings per mode.
See Fig. J
Selecting the nozzle pattern
NOTE: Choose a suitable nozzle
pattern according to your work. Spray
patterns 0o, 15o, 25oand 40oare
applicable for cleaning.
WARNING: Do not shift the
nozzle pattern when the tool is
powered on due to potential
temporary water leakage.
Make sure the nozzle pattern symbol
aligns with the indicator mark
on tool, otherwise the nozzle will
leak and there will be no sufficient
working pressure.
See Fig. K1,
K2
Start
NOTE: At the first use, you need to
empty the air in hose, place the
power nozzle below waist level
(<5ft/1.5m), then attach the pressure
cleaning lance and set it at high
pressure. It does not start working
until the water goes up along the
hose and sprays out.This could take
up to 30 seconds or more depending
on the fresh water source.
NOTE: If air builds up within the
hose or pump, the water pressure
will drop. First, restart the machine,
then air will be released through the
multi-spray nozzle along with any
excess water.
See Fig. L

Cordless Portable Power Cleaner EN
15
Cleaning
WARNING: Do not connect the
machine to water supplies that are
dirty, rusty, muddy, or corrosive.
(Including window cleaning liquids,
plant foods, or fertilizers etc.)
NOTE: Not recommended for use with
salt water, immediately rinse with fresh
water for proper maintenance.

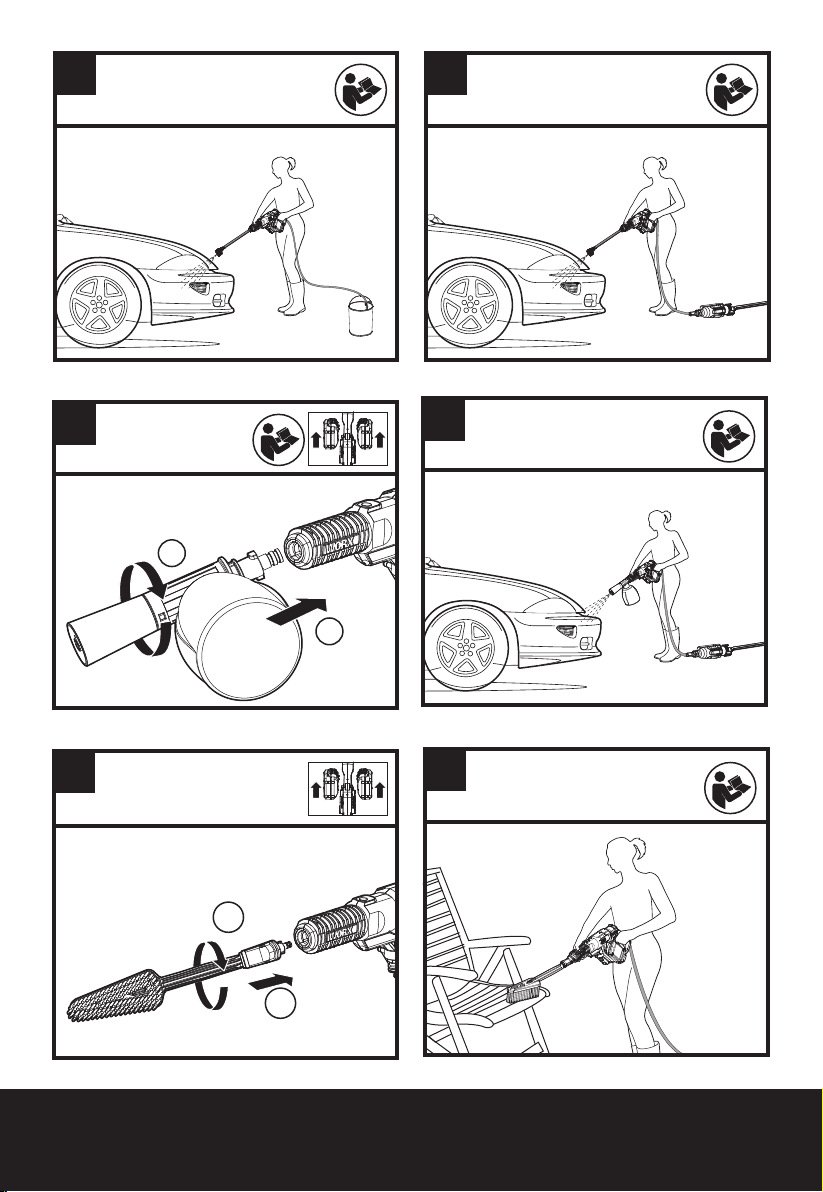

See Fig.
M1,M2
BATTERY STATUS (See Fig. I)
Before starting or after use, press the button beside
the power indicator light on the machine to check the
battery capacity. During operation, the battery capacity
will be indicated automatically by the battery power
indicator.
The indicator constantly senses and displays the
battery condition as follows.
For a machine with 2 battery packs with different
power levels, the power indicator light displays the
battery condition with the lower power level of the two
batteries.
Battery power
indicator status
Battery condition
Five green lights
() are
illuminated.
The two batteries are in a
highly charged condition.
Two, three or four
green lights are
illuminated.
The two batteries have a
remaining charge. The more
lights are illuminated, the
more battery capacity.
Only one green light
() is
illuminated.
The battery level of at
least one battery pack is
very low. Please check and
charge the battery pack.
No light is
illuminated.
At least one battery is not
fully installed or battery
may be defective.
Only one light is
flashing twice per
cycle.
At least one battery is
over discharged (please
refer to the battery charge
condition), please recharge
the two batteries at once
before use again or storage.
Only one light is
flashing three times
per cycle.
At least one battery is hot,
wait for them cool down
before start again.
Only one light is
flashing four times
per cycle.
The machine is over load.
ATTACHMENT OF
ACCESSORIES
A number of accessories have been supplied with
this product and are required for use in different
applications. Do not attempt to use the cleaner
with no lance or accessories attached.
1. Soap bottle (WA4036, sold separately)
Soap bottle provides detergent suds for deeper
cleaning of dirt. It is used in conjunction with power
nozzle or extension lance (WA4012). (See Fig. N1,
N2)
NOTE: Make sure the machine is connected to the
water source before using the soap bottle.
2. Brush (WA4048, sold separately)
Brush is for cleaning cars, boats, motorcycles
etc. It is used in conjunction with power nozzle or
extension lance (WA4012). (See Fig. O1, O2)
3. Turbo nozzle (WA4037, sold separately)
The turbo nozzle delivers 360° of rotating water,
which cleans a larger area than the 0° water
pattern during the same time period. Suitable
with the pressure cleaning lance installed on the
HYDROSHOTTM. Recommend to use it with high
pressure setting. (See Fig. P1, P2)
4. Pivoting Quick Connect Adapter (WA4039,
sold separately)
The Pivoting Quick Connect Adapter allows power
cleaning tips to be fully adjusted up to 180° in any
direction. Ideal for cleaning around hard-to-reach
areas. Suitable for the HYDROSHOTTM power cleaner
and multi-spray nozzle (See Fig. Q1, Q2)
5. Rotary Cleaning Brush (WA4042, sold
separately)
The rotary cleaning brush accessory easily snaps
into the tool for cleaning sensitive surfaces and
around tight spaces. Suitable for the HYDROSHOTTM
power cleaner with/without the extension lance
installed. (See Fig. R)
6. Auto/Boat Power Scrubber (WA1820, sold
separately)
The water-powered rotary scrubber easily snaps
into the tool for cleaning surfaces. Suitable for the
HYDROSHOT™ Portable Power Cleaner without
lance installed. (See Fig. S,T,U)The soft bristle
scrubber head is applicable for sensitive surfaces.
7. Hard Surface Power Scrubber (WA1821,
sold separately)
The water-powered rotary scrubber easily snaps
into the tool for cleaning surfaces. Suitable for the
HYDROSHOT™ Portable Power Cleaner without
lance installed. (See Fig. S,T, U)The hard bristle
scrubber is applicable for cleaning hard surfaces
(not recommended for cars).

Cordless Portable Power Cleaner EN
16
8.Patio Brush(WA1800,sold separately)
The Patio Brush easily snaps into the tool for
cleaning surfaces. Suitable for the Hydroshot™
Portable Power Cleaner without lance installed. (See
Fig. V1, V2) .This brush is applicable for a series of
cleaning work from porch to patio, driveways and
decks, boats, pavers, bricks, BBQs and more.
MAINTENANCE
Remove the battery pack from the tool before
carrying out any adjustment, servicing or
maintenance.
Inspect the product for damaged or worn parts
before each use. Do not operate it if you find
damaged or worn parts. Contact your supplier or the
manufacturer for replacement parts.
Hose filter maintenance
Unscrew the hose filter from the hose and remove
the strainer. Rinse the parts with clean water before
reassembling. (See Fig. W1, W2)
Pump filter screen maintenance
Remove the hose adapter to get the filter screen.
(See Fig. X1, X2) Rinse it with clean water before
reassembling.
NOTE: When retightening the hose adapter, please
tighten securely. Otherwise, it may not draw any
water for proper operation.
WARNING: Any other servicing should be
performed by an authorized service
representative.
CLEANING/STORAGE
Before storage, completely drain all the water from
the machine and hose.
Clean the moulded plastic housing of the machine
using a soft brush and clean cloth. Do not use water,
solvents or polishes. Store in a secure and dry place
out of the reach of children. Do not place other
objects on the product.
Store the machine and the accessories in a frost free
place.

Cordless Portable Power Cleaner EN
17
TROUBLESHOOTING
Symptom Possible causes Solution
Machine turns on but
it does not draw any
water or there is not
sufficient pressure.
Power nozzle is too high from the
water source surface. Lower the machine below 5ft/1.5m.
The users garden hose is not well
connected to the machine. Check and reattach the garden hose tightly. (See Fig. H2)
The pump filter screen is blocked.
(See Fig. X1, X2) Clean the filter screen regularly.
Pump, hose, or other parts are frozen
due to outside temperatures. Wait for the pump, hose or other parts to thaw.
Hose kinks. Straighten out the hose.
Additional air could be sucked into
the machine.
If air builds up within the hose or pump, the water
pressure will drop. First, restart the machine, then
air will be released through the multi-spray nozzle
along with water.
Multi-spray nozzle
leaks.
The nozzle pattern does not spray
correctly.
Make sure the nozzle pattern symbol aligns with the
indicator mark on tool.
Fixing nail of the multi-spray nozzle
loosens. Tighten it with a hex key.
Air built up within the hose or pump. Continue to operate the machine for a few moments
until leakage stops.
Outlet pressure
increases suddenly. Multi-spray nozzle is blocked. Replace with a new multi-spray nozzle.
Machine drains out water
after stopping.
There is water remaining in the lance
and pump after stopping. Drain all the water completely before storage.
Soap accessory
cannot spray out any
detergent.
Blockage in the soap bottle. Clean it with fresh water.
The machine is not connected to
the water source.
Connect to the water source before turning on the
machine.
Machine does not start.
The battery pack is not attached well. Reinstall the battery pack.
Battery pack is empty. Replace with a new battery pack or recharge the battery
pack.
Defective battery. Replace with a new battery pack.
Machine pressure is not
consistent.
Additional air could be sucked
into the machine.
Check connection between the hose adapter and
the draw hose.
It is at low pressure setting. No action need.
Machine stops
automatically.
Battery pack is empty. Replace with a new battery pack or recharge the
battery pack.
The multi-spray nozzle is blocked.
The current protection is activated.
Remove the multi-spray nozzle and turn on the
machine. If the machine works normally, replace with a
new multi-spray nozzle.
Machine does not draw
any water after long
time storage.
Additional air could be sucked into
the machine.
Connect the machine to the water source and then turns
it on.
