Worx WG606E Installation manual

SAFETY AND OPERATING MANUAL
High pressure cleaner WG606E WG607E

3
2
High pressure cleaner WG606E WG607E
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING: Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
- Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
ADDITIONAL POWER TOOL
SAFETY WARNINGS
WARNING: Do not use the
appliance without reading the
instruction sheet.
- Safety boots, safety gloves, safety helmets
with visors, hearing protection etc. shall be
worn while operating the machine.
- When opening the trigger gun, there is
a danger of the kickback force and the
sudden torque on the spray assembly.
Please hold the nozzles tightly.
- WARNING:This machine has been
designed for use with the cleaning
agent supplied or recommended by the
manufacturer.The use of other cleaning
agents or chemicals may adversely affect
the safety of the machine.
- WARNING: High pressure jets can be
dangerous if subject to misuse.The jet
must not be directed at persons, live
electrical equipment or the machine itself.
- WARNING: Do not use the machine
within range of persons unless they wear
protective clothing.
- WARNING: Do not direct the jet against
yourself or others in order to clean clothes
or foot-wear.
- Disconnect from the electrical power
supply before carrying out user
maintenance
- High pressure cleaner should not be taken
by children or untrained persons.
- WARNING: Risk of explosion – Do not
spray flammable liquids.
- WARNING:To ensure machine safety,
use only original spare parts from
the manufacturer or approved by the
manufacturer.
- WARNING: High pressure hoses, fittings
and couplings are important for the safety
of the appliance. Use only hoses, fittings
and couplings recommended by the
manufacturer
- WARNING: Water that has flown through
backflow preventers is considered to be
non-potable.
- WARNING:The machine shall be
disconnected from its power source by
removing the plug from the socket-outlet
during cleaning or maintenance and when
replacing parts or converting the machine
to another function.
- WARNING: Do not use machine if a supply
cord or important parts of the machine
are damaged, e.g. safety devices, high
pressure hoses, trigger gun.
- WARNING: If an extension cord is used,
the plug and socket must be of watertight
construction.
- WARNING: Inadequate extension cords
can be dangerous.
- The electric supply connection shall be
made by a qualified electrician and comply
with IEC 60364-1. It is recommended that
the electric supply to this machine should
include either a residual current device
that will interrupt the supply if the leakage
current to earth exceeds 30 mA for 30 ms
or a device that will prove the earth circuit.

3
2
High pressure cleaner WG606E WG607E

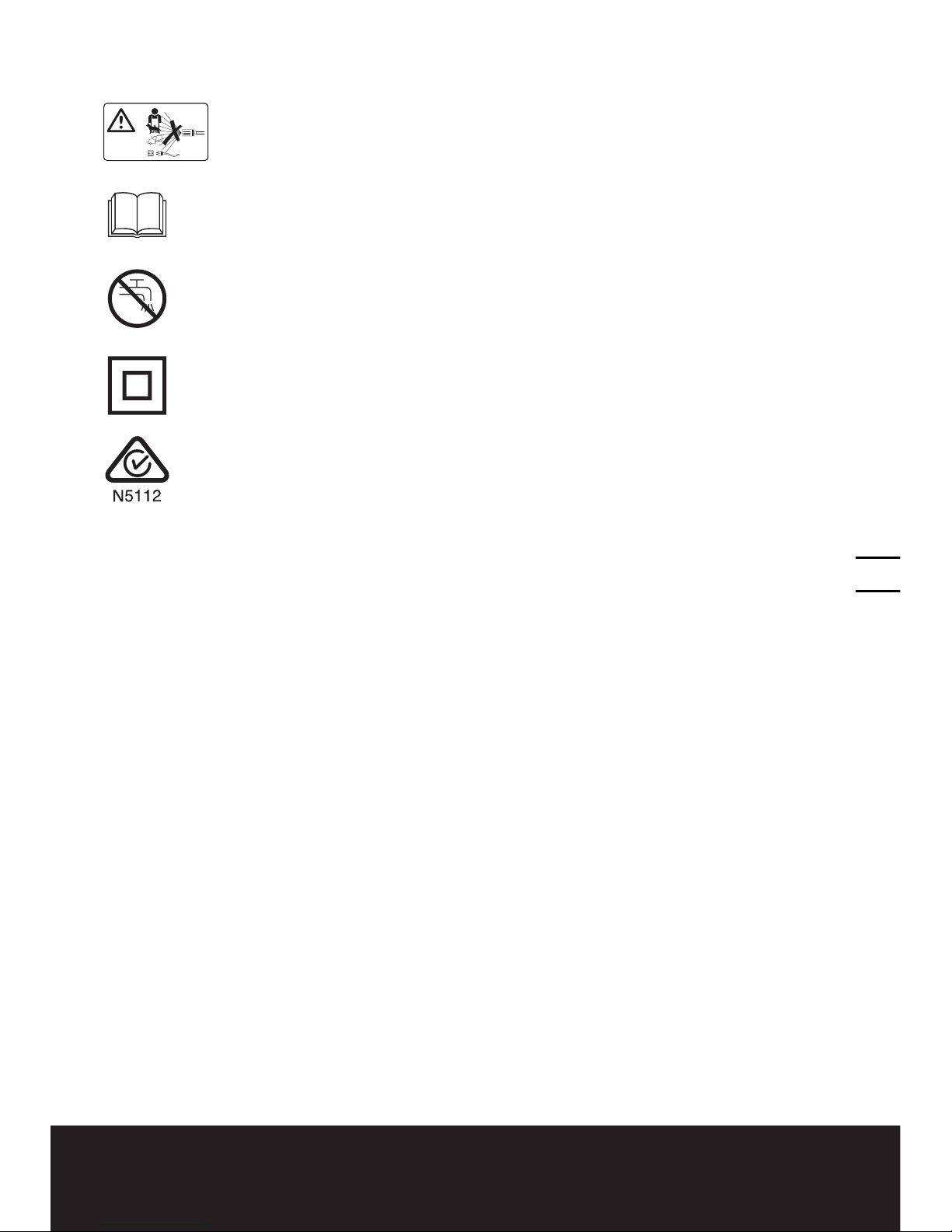

SYMBOLS
WARNING! Do not direct the
jet at persons, animals and
electrical equipment.
Read the manual
Machine not suitable for
connection to potable water
mains
Double insulation
RCM approval mark

5
4
High pressure cleaner WG606E WG607E
8
6
12
14
15
16
21
201917
23
13
11
9
10
3
2
4
5
1
7
18
22

5
4
High pressure cleaner WG606E WG607E
1. TRANSPORT HANDLE
2. STORAGE FOR TRGGER GUN AND LANCE
3. APPLIANCE SWICH “O/OFF”/ “I/ON”
4. PUMP INLET
5. WATER FILTER
6. HOSE REEL (FOR WG607E)
7. STORAGE FOR HIGH PRESSURE FOAM NOZZLE
8. WHEEL
9. SRORAGE FOR MAINS CONNECTION CABLE (FOR WG606E)
10. STORAGE FOR NOZZLES
11. HIGH PRESSURE HOSE CONNECTION (FOR WG606E)
12. TRIGGER GUN
13. TRIGGER SAFEFY LOCK
14. QUICK RELEASE HOSE PORT
15. LANCE
16. FIXED SPRAY NOZZLE
17. ROTOR (TURBO) NOZZLE
18. ADJUSTABLE NOZZLE (FOR WG607E)
19. HIGH PRESSURE FOAM NOZZLE (FOR WG606E)
20. HIGH PRESSURE FOAM NOZZLE WITH ADJUSTABLE KNOB (FOR WG607E)
21. HIGH PRESSURE HOSE
22. ROTARY BRUSH (FOR WG607E)
23. PATIO CLEANER
Not all the accessories illustrated or described are included in standard delivery.
8
6
12
14
15
16
21
201917
23
13
11
9
10
3
2
4
5
1
7
18
22

7
6
High pressure cleaner WG606E WG607E
TECHNICAL SPECIFICATIONS
WG606E WG607E
Voltage 220-240V~50Hz
Power 1700W 1900W
Rated Pressure 90Bar 90Bar
Max. Pressure 1885psi(130Bar) 2030psi(140Bar)
Hose Length 6m 8m
Cable Length 5m
Max. Water Flow Rate 7 l/min 7.5 l/min
Protection Class / II
Machine Weight 6.7kg 7.9kg
ACCESSORIES
WG606E WG607E
Hose (6m) 1 /
Hose (8m) / 1
Water filter 1 1
Trigger gun 1 1
Lance 1 1
Fixed spray nozzle 1 1
High pressure foam nozzle 1 /
High pressure foam nozzle with
adjustable knob / 1
Rotor (turbo) nozzle 1 1
Adjustable nozzle / 1
Rotary brush / 1
Patio cleaner 1 1
We recommend that you purchase only original WORX accessories from the same store that
sold you the tool. Choose the type of accessory according to the work you intend to undertake.
Refer to the accessory packaging for further details. Store personnel can assist you and offer
advice.

7
6
High pressure cleaner WG606E WG607E
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
ASSEMBLY
1. UNPACK
Unpack all of that supplied equipment on a clean flat
surface.
Compare and match the accessories and contents of
the box to the accessory list included in the manual.
If you find that parts are missing or damaged, do not
use the product and contact your dealer.The use of
incomplete or damaged products is a potential hazard
to people and property
2. ITEMS NEEDED FOR ASSEMBLY (NOT SUPPLIED)
Philips screwdriver/Crosshead screwdriver
Water hose with suitable connectors
3.MAIN ASSEMBLY (See Fig. A, B, C)
1) Attach the handle to the back of the cleaner by lining
up the holes in the handle with the shafts on the
machine. Slide it on and secure it using the two
supplied screws (See Fig. A).
2) Attach the storage for the trigger gun and lance (2)
to the right side of the cleaner. Slide it on and secure
it using the supplied screw (See Fig. B).
3) Align the ridge on the handle with the notch on
the left side. Insert the handle to socket of the right
transport handle (1) as Fig. C. Pull out the handle
before usage. (Only for WG607E)
4. PRESSURE HOSE AND TRIGGER GUN
ASSEMBLY (See Fig. D)
1) To attach the pressure hose to the cleaner locate the
connecting port on the back of the cleaner.
Press the latch towards the hole and insert the metal
connector of the high pressure hose (See Fig. D).
Release the latch to lock the hose in place.
An alternative method of hose insertion is to firmly
press the hose connector into the connecting port
without pressing the latch until it clicks into place
securing it.
After the hose is attached, check the connection by
gently pulling upon the hose. It should not pull out.
NOTE: The operation is not apply for WG607E as
the pressure hose has already been assembled on
the washer .
1
2
1
1
2
2
+
-
K
J
L
M
N
O
P
Q
H1
H2
I
E
F
G
B
C
D
A

9
8
High pressure cleaner WG606E WG607E
2) To attach the pressure hose to the trigger gun, locate
a latch and connecting port in front of the trigger.
Press the latch towards the trigger and insert the
hose connector (See Fig. E).
Confirm the connection by gently pulling on the
hose. It should not pull out
3) When not in use the trigger gun may be stored in
the snap on accessory latch or back of the machine
(See Fig. F).
ATTACHMENT OF ACCESSORIES
Illustration Description Application
Lance Extension to be
used with nozzles
Fixed spray
nozzle
Fan spray. Lower
pressure spray for
general cleaning
applications. used in
conjunction with lance
High
pressure
foam nozzle
(Only for
WG606E)
Provides detergent
suds for deeper
cleaning of dirt. Used
in conjunction with
fixed spray nozzle
High pressure
foam
nozzle with
adjustable
knob (Only
for WG607E)
By rotating the
adjustable knob to
control the amount
of the foam during
the operation
Rotor
(turbo)
nozzle
Turbo spray. High
pressure direct
spray for cleaning.
used in conjunction
with lance
Adjustable
Nozzle
(Only for
WG607E)
By rotating the
adjustable knob to
control the degree of
spray and pressure of
spray during operation
1
2
1
1
2
2
+
-
K
J
L
M
N
O
P
Q
H1
H2
I
E
F
G
B
C
D
A

9
8
High pressure cleaner WG606E WG607E
Rotary
brush
(Only for
WG607E)
For cleaning cars,
boats and motorcycles.
Used in conjunction
with adapter. For best
results use after the
High pressure foam
nozzle.
Patio
cleaner
Cleaning of floors,
patios, concrete.
Used in conjunction
with lance
A number of accessories have been supplied with
this product and are required for use in different
applications. All accessories require that the lance be
attached to the trigger gun.
DO NOT ATTEMPT TO USE CLEANER WITHOUT
THE LANCE OR ANY ACCESSORIES ATTACHED
Attaching
To attach the lance to the trigger gun align the ridges on
the lance with the grooves of the trigger gun and insert it.
Securely fit the lance by pressing lance and trigger gun
firmly together and rotating the lance towards you in
a clockwise direction.This may require some pressure
due to a spring inside of the trigger gun (See Fig.G).
Removing
Press the lance towards the trigger gun and rotate it
anti-clockwise to remove it .
When not in use, the trigger gun may be stored in the
snap on accessory latch.
LANCE ACCESSORIES

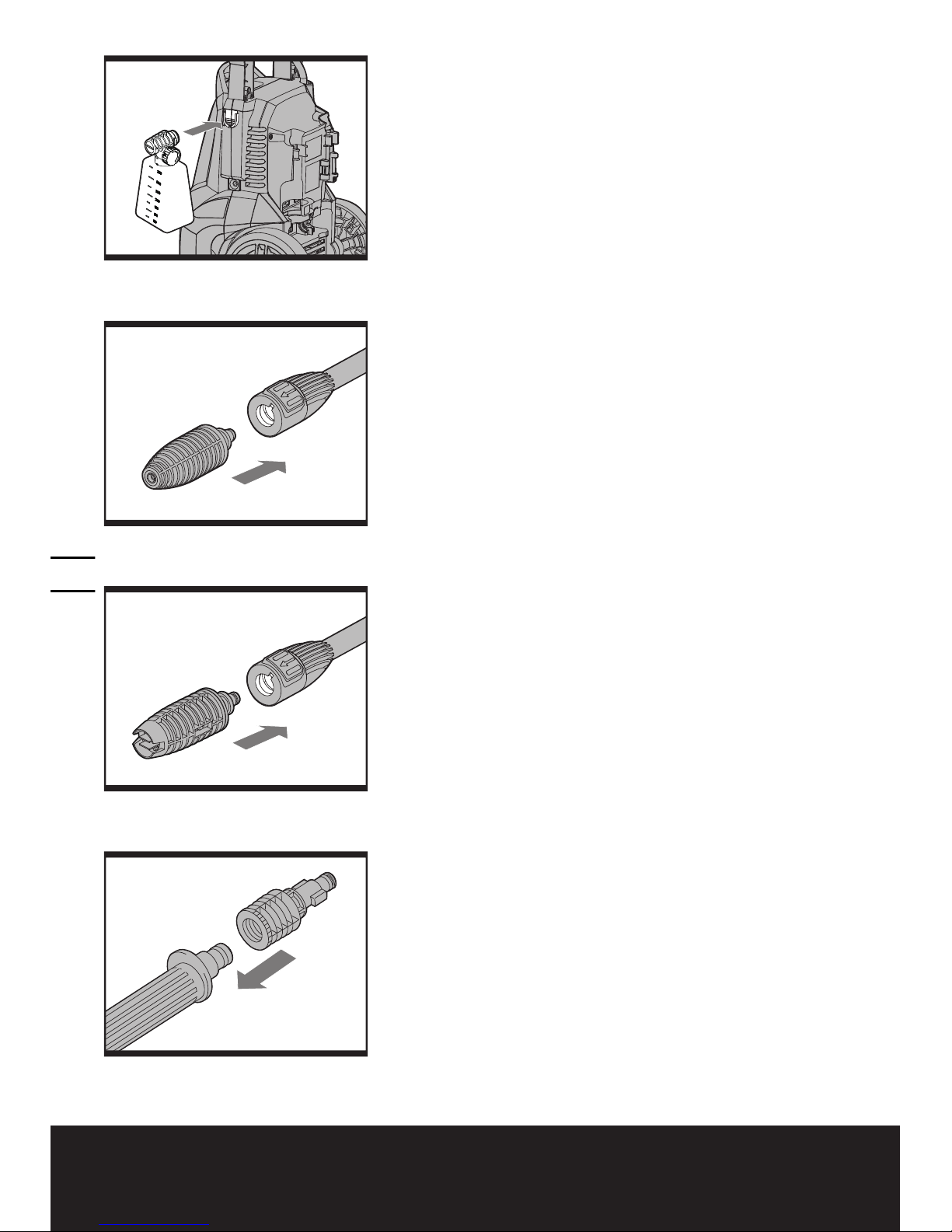

1. FIXED SPRAY NOZZLE
Insert the fixed spray nozzle into the lance (See Fig. H1).
Align the ridge on the nozzle with the notch on the lance.
Check that the nozzle is firmly attached by pulling on it. It
should not pull out.
Removing
Press the lock button on the lance and pull out the
nozzle. Release the lock button (See Fig. H2)
2. HIGH PRESSURE FOAM NOZZLE
Put the hose in the detergent bottle, and tighten the
nozzle clockwise.
1
2
1
1
2
2
+
-
K
J
L
M
N
O
P
Q
H1
H2
I
E
F
G
B
C
D
A

11
10
High pressure cleaner WG606E WG607E
The high pressure foam nozzle must be connected to the
fixed spray nozzle to operate.
Align the ridges on the foam nozzle with the two
grooves on the fixed spray nozzle.
Press together and turn the foam nozzle clockwise to
secure it (See Fig. I).
For best operation the detergent bottle of the foam
nozzle should be located on the underside of the fixed
spray nozzle.
Rotate the lance in the trigger gun anti-clockwise until it
is in the correct position.
Adjustment (Only for WG607E)
By rotating the adjustable knob to control the amount
of the foam during the operation.
Removing
Rotate the foam nozzle anti-clockwise on the fixed
spray nozzle to detach
Storage of foam nozzle
When foam nozzle is not in use it may be stored on the
product
Located on the left side of the machine is a notch that
the foam nozzle will slide into (See Fig. J).
3. ROTOR (TURBO) NOZZLE
Insert the rotor nozzle into the lance (See Fig. K).
Align the ridge on the nozzle with the notch on the lance.
Check that the nozzle is firmly attached by pulling on it. It
should not pull out.
Removing
Press the lock button on the lance and pull out the rotor
nozzle. Release the lock button (See Fig. H2).
4. ADJUSTABLE NOZZLE (ONLY FOR WG607E)
Insert the adjustable nozzle into the lance (See Fig. L).
Align the ridge on the nozzle with the notch on the lance.
Check that the nozzle is firmly attached by pulling on it.
It should not pull out.
5. ROTARY BRUSH (ONLY FOR WG607E)
To attach the rotary brush to the trigger gun an adapter
is needed.
Insert the rotary brush into the open end of the brush
adapter (See Fig. M).
Rotate the adapter clockwise to tighten and secure the
rotary brush.
Pull gently on the rotary brush to confirm it is secure. It
should not pull out.
Next, attach the adapter to the l trigger gun by aligning
the ridges on the adapter with the grooves in the
trigger gun.
1
2
1
1
2
2
+
-
K
J
L
M
N
O
P
Q
H1
H2
I
E
F
G
B
C
D
A

11
10
High pressure cleaner WG606E WG607E
Press together and rotate the adapter clockwise to
secure it.
Removing
Press the adapter towards the trigger gun and rotate it
anti-clockwise to remove it.
When not in use, the rotary brush may be stored on
back of the machine (See Fig. N).

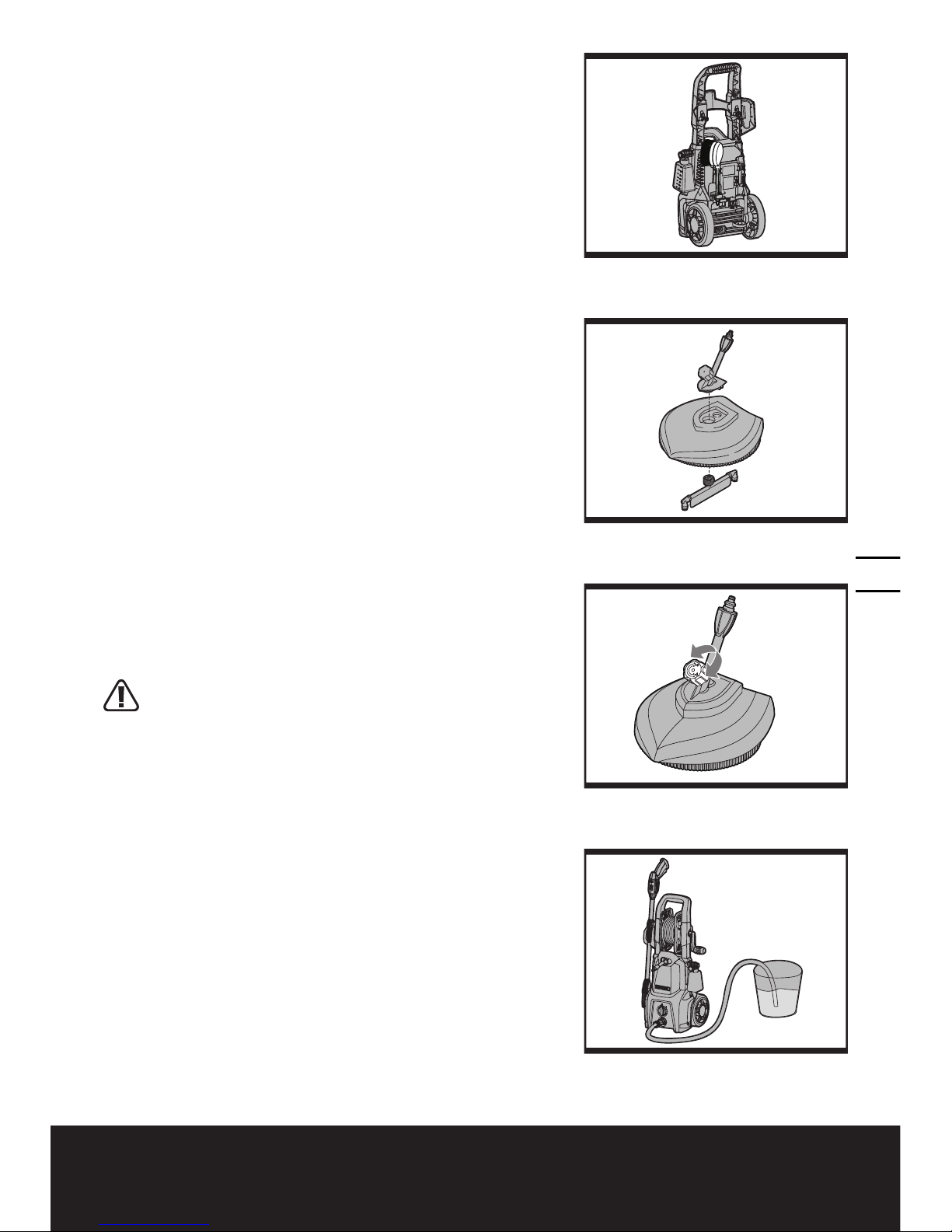

6. PATIO CLEANER (See Fig. O, P)
Always use the patio cleaner together with the lance
when cleaning patios or garden floors. Align the angle
connector on the top of the patio cleaner and the
rotating nozzle on the bottom.
Screw the rotating nozzle clockwise to tighten onto the
thread of the angle connector (See Fig. O).
To attach the patio cleaner to the lance Align the ridge
on the nozzle with the notch on the lance.
Check that the patio cleaner is firmly attached by pulling
on it. It should not pull out.
Removing
Press the lock button on the lance and pull out the patio
cleaner. Release the lock button.
Adjustment
Turning the regulator knob clockwise increases the
pressure, anti-clockwise decreases the pressure
(See Fig. P).
OPERATION
Connection to the water supply
WARNING: Do not connect machine to potable
water supply.
1. Attach a suitable water hose with the correct
connection to the water supply and then attach the
other end to the water filter on the cleaner.
2. Once, the hose connection is secure, turn on the
water supply.
Alternative water supply (See Fig. Q)
A self priming mechanism allows for the product
to optionally be connected to a bucket or water
tank instead of a water supply main. With the hose
inserted into the bucket or water tank, the self
priming mechanism will draw water directly from
the bucket or tank.
NOTE: Pay close attention to the amount of
water in the bucket or water tank to ensure
that there is an adequate supply of water to
avoid running the pump dry.
1
2
1
1
2
2
+
-
K
J
L
M
N
O
P
Q
H1
H2
I
E
F
G
B
C
D
A

13
12
High pressure cleaner WG606E WG607E
Connection to the power supply
1. Check the voltage.The voltage must
comply with the information on the rating
label at the beginning of this manual.
2. Make sure that the on/off switch on the
front of machine is in the OFF position.
3. Connect the plug with a suitable socket or
extension cord
Your product is now fully assembled and
ready for use.
The trigger gun is equipped with a trigger lock
to prevent accidental activation.
Use the trigger lock when the cleaner is not in
use, when it is being left unattended, or when
setting the product down to avoid accidental
operation.
1. Activate the trigger lock by pressing the
lock button located closest to the trigger on
the bottom of the grip
2. Deactivate the trigger lock by pressing the
unlock button located further back on the
bottom of the grip to start operation again
Testing the machine for the first time.
1. Fully assemble the product and attach
attachments to the lance
2. Connect water supply hose to product
3. Turn water supply ON
4. Make sure the on/off switch located at the
front of the machine is on “O” (off)
5. Insert the plug into a correct voltage power
outlet/socket
6. Turn the on/off switch to “I” ( on )
7. Deactivate the trigger lock by pressing the
unlock button
8. Direct the nozzle away from yourself and
others
9. Hold the trigger gun with both hands firmly
10. Press the trigger, a water jet sprays out of
the nozzle
11. Release the trigger to stop the spray
12.Activate the trigger lock by pressing the
lock button to lock the trigger into its off
position
13.Turn the on/off switch to “o” ( off )
14.Turn water supply off
General Operation
• Before each use check the product, its
power cord, plug and accessories for
damage. Do not use if the product if
damaged or shows signs of wear
• Double check that accessories are properly
attached
• Always hold the product by the trigger gun
and lance, never by the nozzle
• Check to make sure that the air vents
located on the back of the product are
unobstructed and clear. Clean them if
necessary with a soft brush and or remove
large blockages. Blocked air vents can
cause overheating and damage to the
product.
Operation
1. Assemble the machine as described in
manual and switch it on
2. Hold the trigger gun with both hands
3. Direct the nozzle of your chosen attachment
away from yourself and others towards the
surface to be cleaned.
4. Press the trigger and direct the water jet at
the selected object to be washed.
5. Hold the lance the appropriate distance
away from the surface being cleaned
to avoid damaging it. If working on a
delicate surface a further away distance is
advised (see below for suggested cleaning
methods)
6. Release the trigger to stop the water jet
Cleaning vertical walls
1. For best results first dissolve dirt by
applying a detergent mixed with water to
the surface while the surface is still dry.
2. Allow the detergent to soak into the surface
for 1-3 minutes but do not let the detergent
dry.
3. Start from the bottom of the wall using
the high pressure rotor (turbo) nozzle at a
minimum distance of 30cm and work in an
upward direction. Do not let the rinse water
flow into unwashed areas.
4. If working on a large section of wall divide
the wall into sections to be cleaned.
5. On some walls high pressure cleaning
using the rotor (turbo) nozzle might not be
the best solution for cleaning dirt especially
if the surface is painted or has delicate

13
12
High pressure cleaner WG606E WG607E
parts it may get damaged. In that case
a suitable brush may be use instead to
remove dirt.
Wood and Vinyl Decks (Fixed spray
nozzle/Adjustable nozzle/Turbo nozzle)
1. Divide your work area into sections and
clean each section individually for best
results
2. Rinse at high pressure using the fixed
spray nozzle keeping the tip of the nozzle at
least 15-25cm away from the surface.
3. If using the rotor (turbo) nozzle with direct
spray increase the distance from the
surface.
NOTE: If your deck is made of a softer
wood increase the minimum distance from
the nozzle tip
Cement patios, stone, and brick (Patio
Cleaner)
Rinse at high pressure in a sweeping motions
while keeping the nozzle tip approximately
7-15 cm away from the surface. Increase the
distance if using the direct spray from the
rotor (turbo) nozzle or if the patio slabs have
damaged grouting or use a sand filler.
Wood and Vinyl Decks, Cement Patios,
Stone, and Brick
1. Attach patio cleaner to extension lance.
2. Adjust water pressure on patio cleaner.
Higher pressure is suited for brick, stone,
and concrete and lower pressure is suited
for wood.
3. Divide your work area into sections and
clean each section for best results. Using
patio cleaner make sweeping strokes to
clean a section then move on.
Cars, boats and motorcycles (Foam
nozzle/Fixed spray nozzle/Adjustable
nozzle/Turbo nozzle)
1. To achieve best results clean one side at a
time.
2. Apply foam using the foam nozzle to
one side and then rinse it off using the
fixed spray nozzle in a sweeping motion.
Maintain a distance of at least 20cm
away from the cleaning surface. If using a
direct spray from the rotor (turbo) nozzle,
maintain a further distance.
3. Wipe the surface dry using an appropriate
cloth for a highly polished finish and shine
NOTICE! Never clean the engine or motor
using this product
After use
1. Release the trigger
2. Turn the on/off switch to “O” (off)
3. Turn off the water supply tap
4. Press the trigger to relieve the pressure still
present inside the product and hose
5. Lock the trigger by pressing the lock button
located on the grip
6. Disconnect the water hose from the water
filter inlet
7. Disconnect from the power supply/outlet
8. If you will not be using this product for
a long period of time, dismantle the
accessories.
9. Check, Clean and store the product
MAINTENANCE
Before performing any inspection,
maintenance and cleaning disconnect from
the power supply and let the product cool
down.
Inspect the product for damaged or worn parts
before each use. Do not operate it if you find
damaged or worn parts. Contact your supplier
or the manufacturer for replacement parts.
Filter maintenance
1. Unscrew the water filter/hose connector
from the back of the machine
2. Use a blunt tool to remove the rubber seal
from the water filter/hose connector
3. Use a blunt tool to remove the water filter
from within the hose connector
4. Rinse the parts with clear water before
reassembling
5. Insert the water filter into the hose
connecter in the same manner in which
you took it out in back into the hose
connector using your fingers
6. Insert the rubber seal back into the water
filter/hose connector

15
14
High pressure cleaner WG606E WG607E
7. Screw the water filter/hose connector back
onto the inlet on the back of the machine.
Nozzle Maintenance
Remove any dirt deposits from the nozzles
using a needle at the back of instruction
manual.
Decalcification
From time to time calcium deposits will form
in the products and accessories.The frequency
of the deposit formation depends on the
degree of hardness of your tap water. (you
can check with your local water company to
determine the hardness of your water)
1. To dissolve calcium deposits make a
mixture of one part vinegar or citric acid to
two parts hot water (400C).
2. Pour the mixture into a suitable container
e.g. in a bowl or tray
3. Lay the detachable accessories in the
mixture
4. Leave them for approximately 12 hours
depending on the severity of the deposits
5. Finally rinse the accessories with clear
water, dry them, and put them away
Power Cord Replacement
If the power cord appears damaged or worn, it
must be replaced by the manufacturer, a service
agent or a similarly qualified person in order to
avoid a safety hazard. Do not attempt to use the
product with a damaged power cord!
CLEANING/STORAGE
Clean the moulded plastic housing of the
machine using a soft brush and clean cloth. Do
not use water, solvents or polishes. Remove
all debris, especially from the motor cooling
vents.
Store in a secure, dry place out of the reach of
children.
Do not place other objects on the product.

15
14
High pressure cleaner WG606E WG607E
TROUBLE-SHOOTING
Disconnect from the electrical power supply before carrying out any user maintenance or
checking for correct product functions.
Please check the following before contacting the service organization:
Symptom Cause Recommended action
1. Product
does not
start.
1.1 Not connected to power supply.
1.2 Power cord or plug is defective.
1.3 Other electrical defect to the
product.
1.4Trigger lock has not been unlocked.
1.1 Connect to power supply.
1.2 Check by a specialist electrician/
manufacture/supplier.
1.3 Check by a specialist electrician /
manufacture/ supplier.
1.4 Unlock the trigger.
2. Product
does not
reach full
power.
2.1 Extension cord or socket not
suitable for operation with this
product.
2.2 Power source has too low voltage.
2.3 Air vents are blocked.
2.1 Use a proper extension cord or
socket.
2.2 Connect to another power source.
2.3 Clean the air vents.
3. No water
stream.
3.1Trigger is not pressed.
3.2Trigger lock is activated.
3.3 Water supply not turned on.
3.1 Press the trigger.
3.2 Deactivate the trigger lock.
3.3Turn on water supply.
4. Excessive
pressure
fluctuations.
4.1 Nozzle is blocked.
4.2 Water inlet volume is too low.
4.3 High-pressure hose is leaking.
4.4 Seals are worn/brittle/ broken.
4.1 Clean the nozzle.
4.2 Increase water inlet quantity by
turning up tap.
4.3 Replace High- pressure hose.
4.4 Replace the seals.
5. Water
leakage from
product.
5.1 Small leaks in the product are
normal and not a problem.
5.1 Have electrician/supplier or
manufacturer examine in case of
heavy leaks.
6. Excessive
vibration/
noise.
6.1 Screw and nuts loosened.
6.2 Motor problems.
6.1 Check screws and nuts for
tightness and re-tighten if loose.
6.2 Have the product
examined by qualified electrician/
supplier/manufacturer.
Please remember any process outside customer maintenance in which the product housing must
be disassembled, must be carried out by qualified persons. If undertaken by anyone other than a
qualified person the manufacturer has the right to void warranty.

Copyright © 2014, Positec. All Rights Reserved.
2SHW011PK11000A0
