Freedom HF Inverter/Chargers
Owner’s Guide
Product image shown may vary from actual product. See features for comparisons.
Model Product Numbers
806-1020
806-1054, 806-1054-01
806-1055, 806-1055-02
806-1544
806-1840
806-1840-01 G2 TDN8853
806-1840-01, 806-1840-02
806-1840-03, 806-1840-04
Freedom HF InvChg Owners Guide.book Page i Wednesday, September 13, 2017 6:20 PM

Freedom HF InvChg Owners Guide.book Page ii Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 i
Copyright © 2014-17 Schneider Electric. All Rights Reserved. All trademarks are
owned by Schneider Electric Industries SAS or its affiliated companies.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER
(A)MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY
TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION;
(B)ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES,
WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE
OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY
AT THE USER’SRISK; AND
(C)REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH,
ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE
ACCURACY CANNOT BE GUARANTEED. APPROVED CONTENT IS CONTAINED WITH THE ENGLISH
LANGUAGE VERSION WHICH IS POSTED AT WWW.XANTREX.COM.
Document Part Number
975-0390-01-01
Date and Revision
September 2017 Rev F
Product Numbers
1000-watt Models:
806-1020 (Freedom HF 1000)
806-1055, 806-1054, 806-1054-01 (Freedom HF 1055)
806-1055-02 (Freedom HF 1055 EMS)
1500-watt Model:
806-1544 (Freedom HF 1500)
1800-watt Models:
806-1840 (Freedom HF 1800)
806-1840-01 G2 TDN8853, 806-1840-01,
806-1840-03, 806-1840-04 (Freedom HF 1800 T)
806-1840-02 (Freedom HF 1800 EMS)
Contact Information
Information About Your System
As soon as you open your product, record the following information and be sure to
keep your proof of purchase.
To view, download, or print the latest revision, visit the website shown under Contact
Information.
Telephone: [phone]
[phone]
Web: www.xantrex.com
Serial Number _________________________________
Product Number _________________________________
Purchased From _________________________________
Purchase Date _________________________________
Freedom HF InvChg Owners Guide.book Page i Wednesday, September 13, 2017 6:20 PM

ii Freedom HF Owner’s Guide
About This Guide
Purpose
The purpose of this Owner’s Guide is to provide explanations and
procedures for operating, maintaining, and troubleshooting a Freedom HF
Inverter/Charger for Recreational, Fleet Vehicle, or Marine installations.
For complete information to help in installing a Freedom HF Inverter/
Charger see the installation guide, part number 975-0395-01-01.
Scope
The Guide provides safety guidelines, as well as information about
operating and troubleshooting the installation. It does not provide details
about particular brands of batteries. You need to consult individual battery
manufacturers for this information.
Audience
The Guide is intended for users and operators of the Freedom HF Inverter/
Charger.
Conventions Used
The following conventions are used in this guide.
DANGER indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation, which, if not
avoided, can result in death or serious injury.
CAUTION indicates a potentially hazardous situation, which, if not
avoided, can result in moderate or minor injury.
NOTICE indicates a potentially hazardous situation, which, if not
avoided, can result in equipment damage.
IMPORTANT: These notes describe things which are important for you
to know, however, they are not as serious as a caution or warning.
Freedom HF InvChg Owners Guide.book Page ii Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 iii
Related Information
You can find more information about Xantrex products and services at
www.xantrex.com.
NOTE: The Installation Guide (Document Part Number: 975-0395-01-01)
is intended for qualified personnel. Qualified personnel have training,
knowledge, and experience in:
• Installing electrical equipment and PV power systems (up to 1000
volts).
• Applying all applicable installation codes.
• Analyzing and reducing the hazards involved in performing electrical
work.
• Selecting and using Personal Protective Equipment (PPE).
Freedom HF InvChg Owners Guide.book Page iii Wednesday, September 13, 2017 6:20 PM

iv Freedom HF Owner’s Guide
Important Safety Instructions
IMPORTANT: READ AND SAVE THIS OWNER’SGUIDE
FOR FUTURE REFERENCE.
This chapter contains important safety instructions for the Freedom HF
Inverter/Charger (Freedom HF). Each time, before using the Freedom HF,
READ ALL instructions and cautionary markings on or provided with the
inverter/charger, the batteries, and all appropriate sections of this guide.
NOTE: The Freedom HF contains no user-serviceable parts. See Warranty
Card for guidance.
NOTE: Turning off the inverter/charger using the on/off switch on the front
panel will not reduce an electrical shock hazard.
ELECTRICAL SHOCK HAZARD
• Do not expose the Freedom HF to rain, snow, spray, or bilge water.
This inverter/charger is designed for marine applications only when
additional drip protection is installed in certain orientations. See the
installation guide for information.
• Do not operate the inverter/charger if it has received a sharp blow,
been dropped, has cracks or openings in the enclosure including if the
fuse cover has been lost, damaged, or will not close, or otherwise
damaged in any other way.
• Do not disassemble the inverter/charger. Internal capacitors remain
charged after all power is disconnected.
• Disconnect both AC and DC power from the inverter/charger before
attempting any maintenance or cleaning or working on any circuits
connected to the inverter/charger. See note below.
• Do not operate the inverter/charger with damaged or substandard
wiring. Make sure that all wiring is in good condition and is not
undersized.
Failure to follow these instructions will result in death or serious
injury.
Freedom HF InvChg Owners Guide.book Page iv Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 v
NOTES:
1. Follow these instructions and those published by the battery
manufacturer and the manufacturer of any equipment you intend to use
in the vicinity of the battery. Review cautionary markings on these
products and on the engine.
2. This inverter/charger contains components which tend to produce arcs
or sparks.
3. Locations include any space containing gasoline-powered machinery,
fuel tanks, as well as joints, fittings, or other connections between
components of the fuel system.
FIRE AND BURN HAZARD
• Do not cover or obstruct the air intake vent openings and/or install in
a zero-clearance compartment.
• Do not use transformerless battery chargers in conjunction with the
inverter/charger due to overheating.
Failure to follow these instructions will result in death or serious
injury.
EXPLOSION HAZARD
• Charge only properly rated (such as 12 V) lead-acid (GEL, AGM,
Flooded, or lead-calcium) rechargeable batteries because other
battery types may explode.
• Do not work in the vicinity of lead-acid batteries. Batteries generate
explosive gases during normal operation. See note #1.
• Do not install and/or operate in compartments containing flammable
materials or in locations that require ignition-protected equipment.
See notes #2 and #3.
Failure to follow these instructions will result in death or serious
injury.
Freedom HF InvChg Owners Guide.book Page v Wednesday, September 13, 2017 6:20 PM

vi Freedom HF Owner’s Guide
Precautions When Working With Batteries
NOTES:
1. Mount and place the Freedom HF Inverter/Charger unit away from
batteries in a well ventilated compartment.
2. Always have someone within range of your voice or close enough to
come to your aid when you work near a lead-acid battery.
3. Always have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
4. If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters your eye, immediately flood it with running
cold water for at least twenty minutes and get medical attention
immediately.
5. Use extra caution to reduce the risk or dropping a metal tool on the
battery. It could spark or short circuit the battery or other electrical
parts and could cause an explosion.
6. Batteries can produce a short circuit current high enough to weld a ring
or metal bracelet or the like to the battery terminal, causing a severe
burn.
7. When removing a battery, always remove the negative terminal from
the battery first for systems with grounded negative. If it is grounded
positive, remove the positive terminal first. Make sure all loads
connected to the battery and all accessories are off so you don’t cause
an arc.
BURN FROM HIGH SHORT-CIRCUIT CURRENT, FIRE
AND EXPLOSION FROM VENTED GASES HAZARDS
• Always wear proper, non-absorbent gloves, complete eye protection,
and clothing protection. Avoid touching your eyes and wiping your
forehead while working near batteries. See note #4.
• Remove all personal metal items, like rings, bracelets, and watches
when working with batteries. See notes #5 and #6 below.
• Never smoke or allow a spark or flame near the engine or batteries.
• Never charge a frozen battery.
Failure to follow these instructions can result in death or serious
injury.
Freedom HF InvChg Owners Guide.book Page vi Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 vii
Precautions When Preparing to Charge
NOTES:
• Study and follow all of the battery manufacturer's specific precautions,
such as removing or not removing cell caps while charging, whether
equalization is acceptable for your battery, and recommended rates of
charge.
• For flooded non-sealed batteries, add distilled water in each cell until
battery acid reaches the level specified by the battery manufacturer.
This helps to purge excessive gas from cells. Do not overfill. For a
battery without removable cell caps, carefully follow manufacturer's
instructions.
Precautions When Placing the Inverter/Charger
EXPOSURE TO CHEMICALS AND GASES HAZARD
• Make sure the area around the battery is well ventilated.
• Make sure the voltage of the batteries matches the output voltage of
the inverter/charger.
• Be careful to keep corrosion from coming into contact with your eyes
and skin when cleaning battery terminals.
Failure to follow these instructions can result in death or serious
injury.
FIRE HAZARD
Do not install the inverter/charger or any part of its supplied wiring in
engine compartments.
Failure to follow these instructions can result in death or serious
injury.
RISK OF DAMAGE TO THE INVERTER/CHARGER
• Never allow battery acid to drip on the inverter/charger when reading
gravity, or filling battery.
• Never place the Freedom HF Inverter/Charger unit directly above
batteries; gases from a battery will corrode and damage the inverter/
charger.
• Do not place a battery on top of the inverter/charger.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
Freedom HF InvChg Owners Guide.book Page vii Wednesday, September 13, 2017 6:20 PM

viii Freedom HF Owner’s Guide
Precautions for Using Rechargeable Appliances Regulatory
The Freedom HF Inverter/Charger is certified to appropriate US and
Canadian standards. For more information see “Regulatory Approvals” on
page 45.
The Freedom HF Inverter/Charger is intended to be used for mobile or
commercial applications. This inverter/charger is designed for marine
applications only when additional drip protection is installed in certain
orientations. See the installation guide for information.
It is not intended for other applications as it may not comply with the
additional safety code requirements needed for those other applications. See
“Limitations On Use” below.
NOTE: The Freedom HF Inverter/Charger is a modified sine wave inverter/
charger. Please ensure your equipment or devices are compatible with
modified sine wave prior to usage.
RISK OF DAMAGE TO RECHARGEABLE APPLIANCES
Most rechargeable battery-operated equipment uses a separate charger or
transformer that is plugged into an AC receptacle and produces a low
voltage charging output.
Some chargers for small rechargeable batteries can be damaged if
connected to the Freedom HF. Avoid using the following with the
Freedom HF:
• Small battery-operated appliances like flashlights, razors, and night
lights that can be plugged directly into an AC receptacle to recharge.
• Some chargers for battery packs used in power hand tools. These
affected chargers display a warning label stating that dangerous
voltages are present at the battery terminals.
If you are unsure about using your rechargeable appliance with the
Freedom HF, contact the equipment manufacturer to find out if the
appliance is acceptable for use with an inverter that has a modified sine
wave output voltage.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
LIMITATIONS ON USE
Do not use in connection with life support systems.
Failure to follow these instructions can result in death or serious
injury.
Freedom HF InvChg Owners Guide.book Page viii Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 ix
FCC Information to the User
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
KKK Information to the User
The Freedom HF 1055 EMS and 1800 EMS models are marked “KKK-A-
1822D Ready”. These models are marketed for use in ambulances and
emergency vehicle applications. For information of compliance of the
ambulance as a whole, please refer to specifications as laid out in Federal
Specification for the Star-of-Life Ambulance also known as KKK-A-1822.
Unauthorized changes or modifications to the equipment could void the
user’s authority to operate the equipment.
Freedom HF InvChg Owners Guide.book Page ix Wednesday, September 13, 2017 6:20 PM

Freedom HF InvChg Owners Guide.book Page x Wednesday, September 13, 2017 6:20 PM

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Freedom Inverter/Charger Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Freedom Inverter/Charger Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Operating in Shore Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Operating During Transition Between Shore Power and Inverter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Inverter Overload Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Invert Power Derating vs. Ambient Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Troubleshooting Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Inverter Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Contents
Freedom HF InvChg Owners Guide.book Page i Wednesday, September 13, 2017 6:20 PM

Freedom HF InvChg Owners Guide.book Page ii Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 1
Introduction
The Freedom HF Inverter/Charger (Freedom HF) is designed with
integrated inverting–charging functions and power management
features suitable for marine, recreational, and commercial vehicle
installations.
Please read this chapter to familiarize yourself with the main
performance and protection features of the Freedom HF.
Materials List
The Freedom HF (PNs: 806-1840, 806-1020) base package includes
the minimum following items:
• one Freedom HF unit
• one set of owner’s and installation guides and a mounting template
• one display panel with 7-inch (0.17 m) cable
• one communications cable (25 feet) (7.5 m)
• two DC terminal covers
• one strain-relief clamp
• one GFCI cover plate with knockout
• one display panel blanking plate (not shown)
• one display panel mounting bezel (not shown)
• one set of lock washers and nuts (not shown)
NOTE: If any of the items are missing, contact Xantrex or any
authorized Xantrex dealer for replacement. See “Contact
Information” on page i.
Other Freedom HF OEM models may include other DC and/or AC

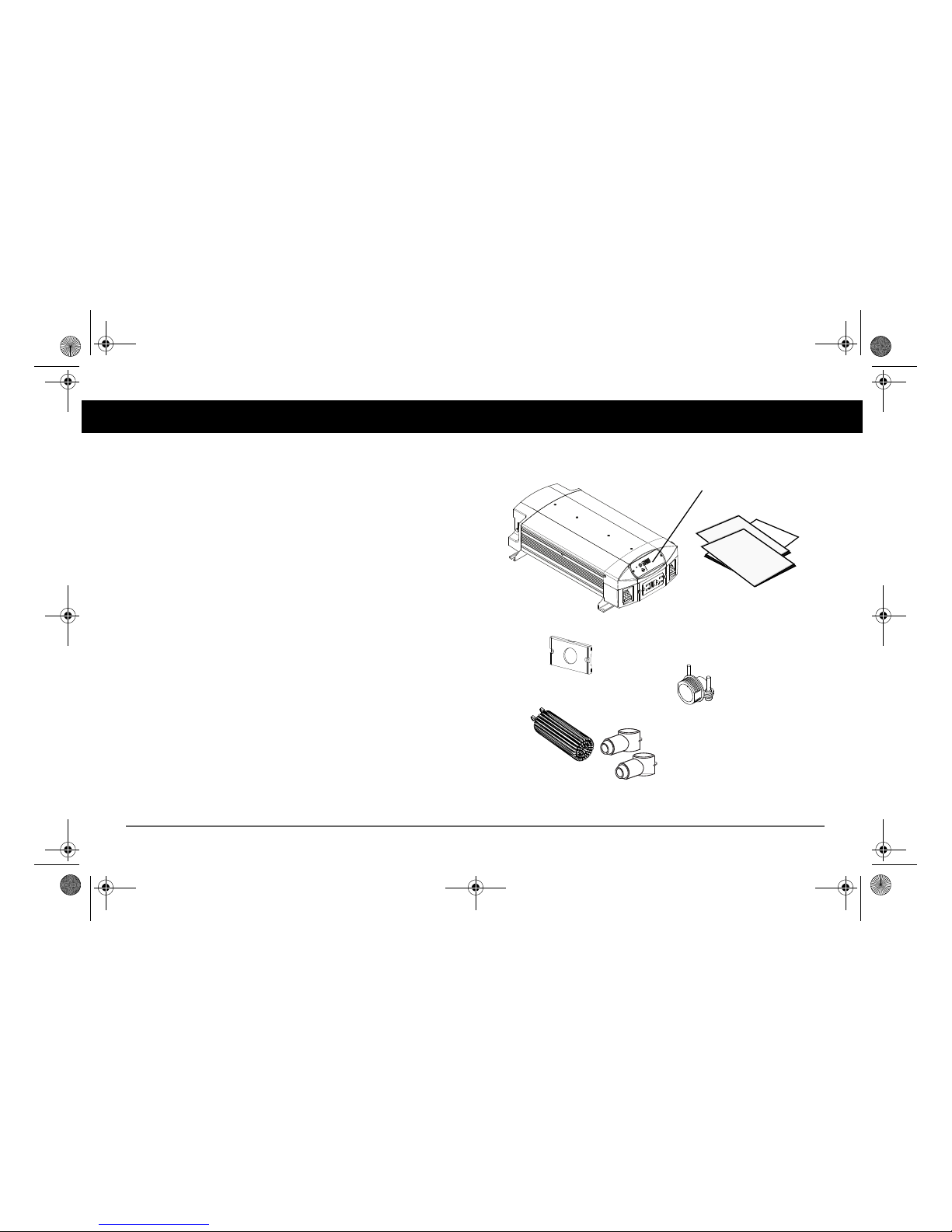

connectors. Figure 1 What’s In The Box
Display panel is
attached to the unit.
Freedom HF unit
communications cable
DC terminal covers
GFCI cover plate
strain-relief clamp
Owner’sGuide
mountingtemplate
InstallationGuide
Product image shown
may vary from actual
product. See “Features”
for comparisons.
Freedom HF 1800 shown.
Owner’s and Installation
Guides and mounting
template
Freedom HF InvChg Owners Guide.book Page 1 Wednesday, September 13, 2017 6:20 PM

2Freedom HF Owner’s Guide
Introduction
Key Features
Power for Most Appliances The Freedom HF inverter/charger
provides up to 1000 watts (ModelsaFreedom HF 1000, Freedom
HF 1055, and Freedom HF 1055 EMS), up to 1500 watts (Freedom
HF 1500b), or up to 1800 watts (ModelscFreedom HF 1800,
Freedom HF 1800 T, and Freedom HF 1800 EMS) of continuous
modified sine wave power derived from a battery bank. It is
designed to handle loads such as microwave ovens, TVs, VCRs, and
mid-sized power tools. In addition, the Freedom HF’s high-surge
capability lets you handle many hard-to-start loads, including large
TVs and small refrigerators.
The built-in transfer switch automatically transfers between inverter
power and shore power from recreational facilities such as boat
docks or campsites to ensure power is always available. The built-in
charger also automatically charges the battery bank when the
Freedom HF is connected to shore power.
Comprehensive Protection The Freedom HF’s built-in
protection features safeguard your batteries and equipment, such as:
• The low battery voltage alarm and shutdown prevents your
batteries from becoming completely discharged,
• the three-stage charging capability ensures that batteries
receive efficient charge, and
• automatic switching between inverter power to pass-
through shore power.
Back-up Capability If incoming shore power is interrupted by
external events like brownouts, the Freedom HF automatically
becomes an independent power sourcedthat supplies quality AC to
your loads.
Overload Alarm and Shutdown During inverter mode, the
Freedom HF automatically alerts you if the loads that are connected
and drawing power from the unit are close to approaching the
maximum operating limit. If so, the Freedom HF automatically
shuts down when the maximum operating limit is exceeded.
a.Freedom HF 1000 (PN: 806-1020), Freedom HF 1055 (PNs: 806-1055,
806-1054, 806-1054-01), and Freedom HF 1055 EMS (PN: 806-1055-02).
b.Freedom HF 1500 (PN: 806-1544).
c.Freedom HF 1800 (PN: 806-1840), Freedom HF 1800 T (PN: 806-1840-01,
806-1840-01 G2 TDN8853, 806-1840-03, 806-1840-04), and Freedom HF
1800 EMS (PN: 806-1840-02).
d.Assuming the inverter/charger is connected to a battery source with an adequate
charge at the time of the power interruption.
Freedom HF InvChg Owners Guide.book Page 2 Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 3
Introduction
Over-temp Alarm and Shutdown During inverter mode, the
Freedom HF automatically alerts you if it is overheating and
approaching the over-temperature shutdown limit.
The Freedom HF automatically shuts down when the limit is
exceeded.
Low Power Consumption When the Freedom HF is inverting
without a load, it draws less than 1 amp of current from the battery
(or battery bank).
This feature allows the unit to operate without draining too much
stored energy.
Battery-friendly Charging For the inverter to perform
effectively, the batteries must be charged correctly. The Freedom
HF has a built-in three-stage charging system that extends the life
and optimizes the performance of the batteries.
In addition to the numerous features which let you maximize your
battery’s life and performance, the Freedom HF—unlike many
chargers—also has the ability to recharge a near-zeroavoltage
battery and an ignition-switched 20-amp auxiliary 12-volt power
sourceb.
Selectable Low Battery Shutdown The low battery shutdown
for the inverter can be manually selected by the user by choosing a
low, middle, or high setting. The low setting default for low battery
shutdown is 10.5 volts except Freedom HF 1500 (PN: 806-1544).
Ignition Control The Freedom HF features the ability to inhibit
the inverter from operating in the absence of a voltage signal from a
vehicle's ignition circuit. This is particularly useful if the inverter is
required to operate only when a vehicle's engine is running.
a.Near-zero or dead batteries can be recharged. However, some batteries which have
been left uncharged for days can become severely damaged thus, recharging is futile.
b.Available on the Freedom HF 1055 EMS model and Freedom HF 1800 EMS model.
The inverter/charger features a 20-amp fused and switched output voltage supplied
from the inverter/charger's positive terminal. When connected to a vehicle's ignition
signal, a switched positive voltage is available to power auxiliary circuits that are re-
quired to operate only when the vehicle is operational.
Model PN Shutdown Settings (V)
Low Mid High
Freedom HF 1000 806-1020 10.5 n/a 11.8
Freedom HF 1055 806-1054 10.5 n/a 11.8
806-1054-01 10.5 n/a 11.8
806-1055 10.5 n/a 11.8
Freedom HF 1055 EMS 806-1055-02 10.5 n/a 11.8
Freedom HF 1500 806-1544 12.1 12.1 12.1
Freedom HF 1800 806-1840 10.5 n/a 11.8
Freedom HF 1800 T
806-1840-01,
806-1840-03,
806-1840-04
10.5 11.8 12.1
Freedom HF 1800 T 806-1840-01 G2
TDN8853 10.5 n/a 11.8
Freedom HF 1800 EMS 806-1840-02 10.5 n/a 11.8
Table 1 Shutdown Settings
Freedom HF InvChg Owners Guide.book Page 3 Wednesday, September 13, 2017 6:20 PM

4Freedom HF Owner’s Guide
Features
Table 2 lists the default settings for the Freedom HF system.
You may record your settings in the right-hand column after you
have configured the Freedom HF.

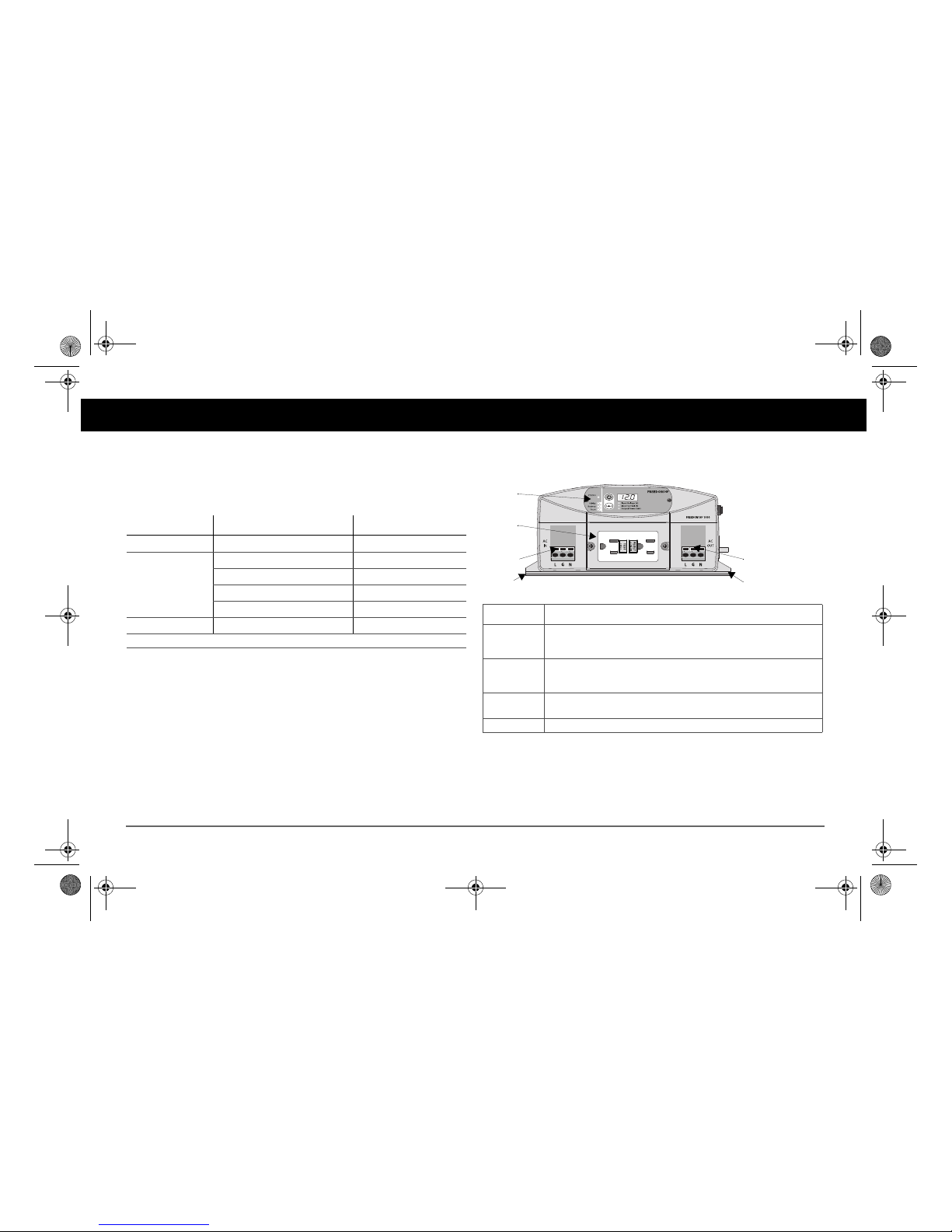

Front Panel (Freedom HF 1000, 1055, 1500, 1800)
Table 2 Freedom HF Default Values
Item Default Setting Your Setting
Alarm* ON
Charger Current* 20 A (Freedom HF 1000 model)
55 A (Freedom HF 1055 models)
40 A (Freedom HF 1500 models)
40 A (Freedom HF 1800 models)
Battery Type ** Flooded(14.4/13.5)
* adjustable from the display panel.
** adjustable from the main unit behind the display panel assembly.
Feature Description
1Display panel displays inverter status and battery status information on the
screen. The panel can be detached to expose the dip switches behind it and to
extend and mount the panel on a wall or other location.
2GFCI receptacles during inverter mode provide 1000 watts (Freedom HF
1000, 1055) or 1500 watts (Freedom HF 1500) or 1800 watts (Freedom HF
1800) of power to operate AC devices.
3 WA G O aAC terminals for connecting AC input (3a) and AC output (3b)
wiring.
a. WAGO® manufactures connection devices such as terminal blocks and related accessories.
Freedom HF models indicated above use WAGO terminal blocks as AC input and output con-
nections.
4Mounting flange allows you to mount the inverter permanently.
2
1
3a 3b
Freedom HF 1000 shown
4 4
Freedom HF InvChg Owners Guide.book Page 4 Wednesday, September 13, 2017 6:20 PM

975-0390-01-01 5
Features

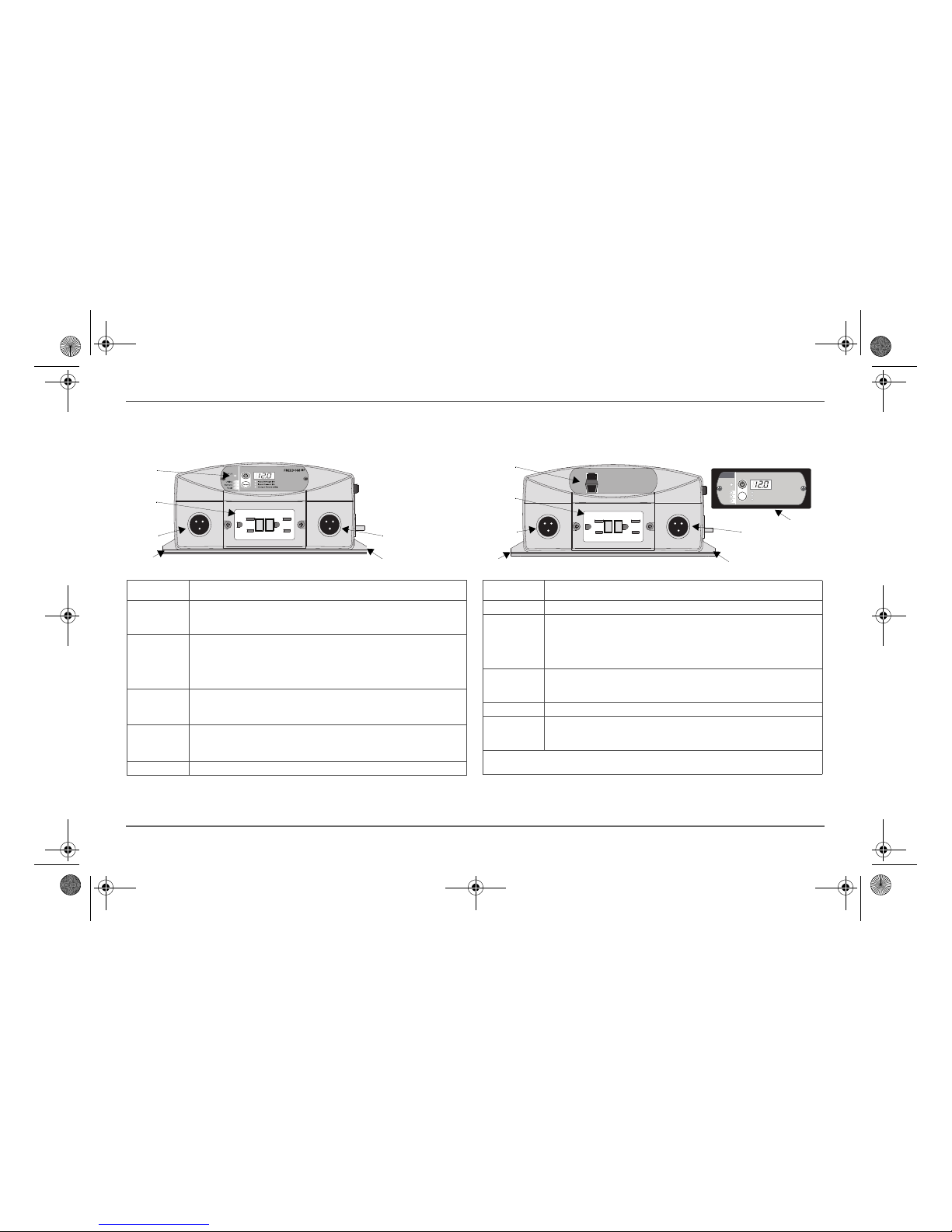

Front Panel (Freedom HF 1800 T) Front Panel (Freedom HF 1800 T)
Feature Description
1Display panel displays inverter status and battery status information on the
screen. The panel can be detached to expose the dip switches behind it and to
extend and mount the panel on a wall or other location.
2GFCI receptacles provide 1800 watts of power to operate AC devices. The
GFCI unit can be detached and reinstalled to a separate location. Replace the
GFCI unit with the GFCI blanking plate with knockout. The GFCI unit is also
removed to access the AC wiring compartment for hard wiring the inverter to
an existing AC power system.
3
(for 806-1840-01)
(3a) Male PTIaConnector for plugging in a compatible AC Input cordset
cable with a female PTI plug. (3b) Female PTI Connector for plugging in a
compatible AC Output cordset cable with a male PTI plug.
a. The electrical cables with PTI connectors (manufactured by Phillips & Temro Industries) referred to in this
manual are custom cables that are available for the trucking industry. For Freedom HF 1800 T (806-1840-
01), use a 15A PTI custom cable with connector. For Freedom HF 1800 T (806-1840-03), use a 20A PTI cus-
tom cable with connector.
3
(for 806-1840-03)
(3a) Female PTIaConnector for plugging in a compatible AC Output
cordset cable with a male PTI plug. (3b) Male PTI Connector for plugging
in a compatible AC Input cordset cable with a female PTI plug.
4Mounting flange allows you to mount the inverter permanently.
RESET
TEST
TEST
RESET
FREEDOM HF 1800 T
2
1
3a 3b
4 4
Feature Description
1RJ12 with cover plate contains the RJ12 port for the remote panel.
2GFCI receptacles provide 1800 watts of power to operate AC devices. The
GFCI unit can be detached and reinstalled to a separate location. Replace the
GFCI unit with the GFCI blanking plate with knockout. The GFCI unit is also
removed to access the AC wiring compartment for hard wiring the inverter to
an existing AC power system.
3
(for 806-1840-04)
(3a) Male PTIaConnector for plugging in a compatible AC Input cordset
cable with a female PTI plug. (3b) Female PTI Connector for plugging in a
compatible AC Output cordset cable with a male PTI plug.
4Mounting flange allows you to mount the inverter permanently.
5Remote panel with bezel contains the display panel which shows inverter
status and battery status information on the screen. Mount the remote panel
on a wall or other location.
NOTE: Freedom HF 1800 T (806-1840-04) comes with the remote panel with bezel and no
other spare parts in the package.
RESET
TEST
TEST
RESET
FREEDOM HF 1800 T
FREEDOM HF
InputVoltage (V)
Select
STATUS
Battery
Fault
Utility InputCurrent (A)
OutputPower (kW)
2
1
3a 3b
44
5
Freedom HF InvChg Owners Guide.book Page 5 Wednesday, September 13, 2017 6:20 PM

6Freedom HF Owner’s Guide
Features

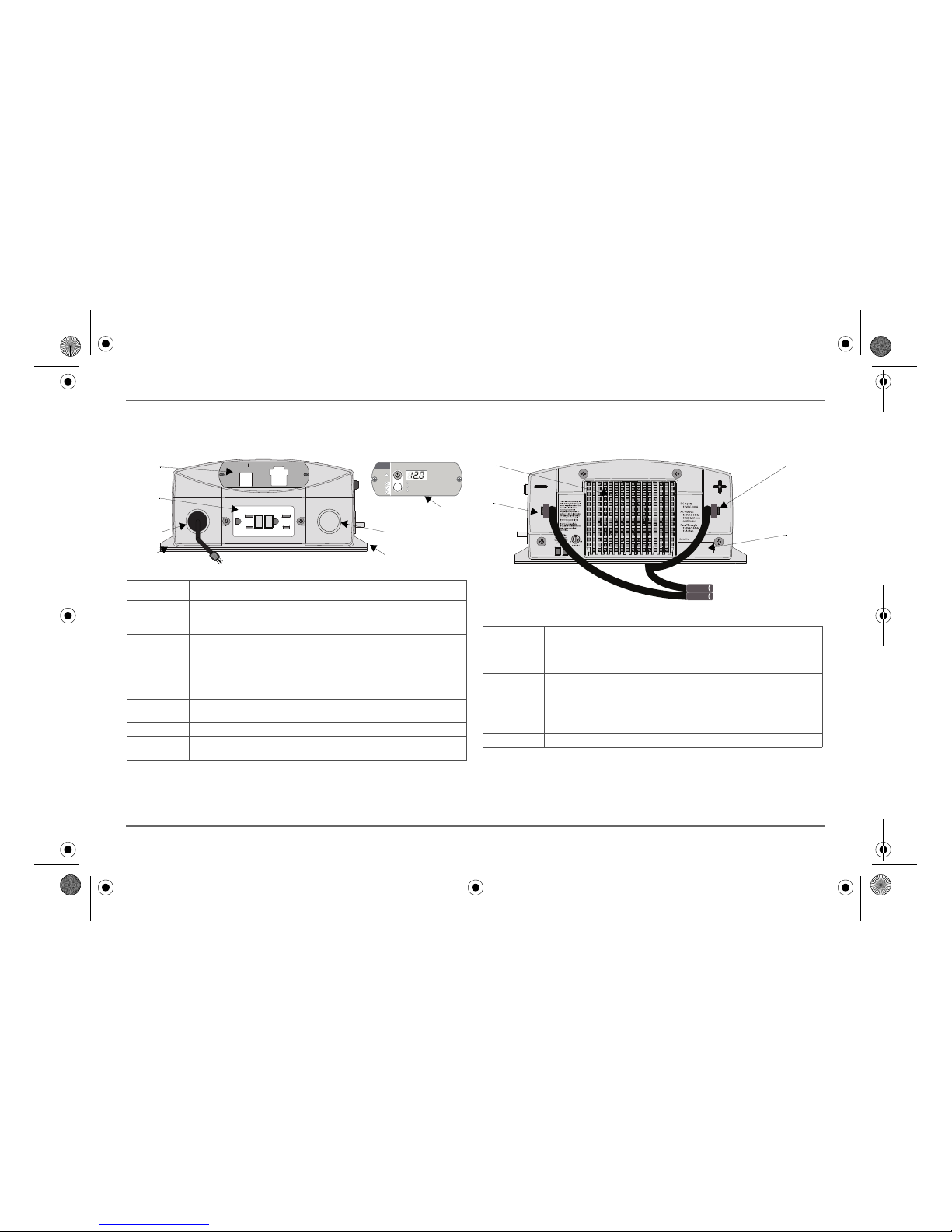

Front Panel ( Freedom HF 1055 EMS,1800 EMS ) Rear Panel ( Freedom HF 1055 EMS,1800 EMS )
Feature Description
1Power module contains 12-volt DC terminals for ignition controls, an
auxiliary power source, and a remote port for attaching the display panel
using a communications cable.
2GFCI unit receptacles provide 1000 watts (1055 EMS) and 1800 watts
(1800 EMS) of power to operate AC devices. The GFCI unit can be detached
and reinstalled to a separate location. Replace the GFCI unit with the GFCI
blanking plate with knockout. The GFCI unit is also removed to access the
AC wiring compartment for hard wiring the inverter to an existing AC power
system.
3 (3a) 18-inch (0.45m) AC Input electrical cord with 3-prong plug. (3b)
Knockout for routing AC output wiring.
4Mounting flange allows you to mount the inverter permanently.
5Display panel displays inverter status and battery status information on the
screen. Mount the panel on a wall or other location.
RESET
TEST
TEST
RESET
FREEDOM HF 1800 EMS
12V
Power
12V
Enable
Ignition
Control
Remote
FREEDOM HF 1800 EMS
FREEDOM HF
InputVoltage (V)
Select
STATUS
Battery
Fault
Utility InputCurrent (A)
OutputPower (kW)
2
1
3a 3b
4 4
5
Feature Description
1Negative DC cabling terminal that is pre-connected to an 18-inch (0.45m)
battery cableawith an Andersonbconnector.
a. Freedom HF 1055 EMS has a cable size of 2 AWG with SB175 Anderson connector and
1800 EMS has a cable size of 2/0 AWG with SB350 Anderson connector.
b. Anderson Power Products® manufactures power interconnects and accessories. An Ander-
son connector is a term used in this manual to mean a connector manufactured by Anderson
Power Products and refers to either SB175 or SB350.
2Ventilation grille (openings) must not be obstructed for the proper operation
of the cooling fan and inverter. When the inverter is mounted, the ventilation
grille must not point up or down.
3Positive DC cabling terminal that is pre-connected to an 18-inch (0.45m)
battery cableawith an Anderson connector.
4Serial number of your unit.
4
1
23
Freedom HF InvChg Owners Guide.book Page 6 Wednesday, September 13, 2017 6:20 PM
