Introduction
Your Xantrex Truecharge 10 is an advanced battery charger designed
specifically for today’s high performance deep-cycle lead-acid batteries.
It provides charging performance that simple marine and automotive
chargers are unable to provide.
The Truecharge 10 is designed to recharge 12 volt lead-acid batteries
with capacities from 25 amp hours to 200 amp hours. If you wish to
charge batteries with capacities greater than 200 amp hours, Xantrex’s
Truecharge 20 or Truecharge 40 chargers will be better choices.
To get the full benefit of the Truecharge 10’s capabilities, please read
and follow the instructions in this manual. This manual covers both the
TC10 115 VAC model and the international TC10i 230 VAC model.
TC10i input specifications are shown in parentheses. Pay special
attention to the Important Safety Instructions in this manual and to the
CAUTION and WARNING statements in this manual and on the
Truecharge 10.
Truecharge 10 Features
The Truecharge 10 is a true “smart charger” that automatically provides
the correct charge cycle for modern sealed (“gel”) or flooded (“wet”)
lead-acid batteries.
Microprocessor Controlled Three-Step Charging
Experts and battery manufacturers recommend that lead-acid batteries be
charged with a three-step charge cycle to provide a fast, complete charge.
The microprocessor in the Truecharge 10 precisely regulates the voltage
and current delivered to the battery, accurately charging without risk of
overcharging and battery damage.
Proprietary software algorithms compensate for a variety of conditions
which “fool” less sophisticated chargers into delivering an improper
charge.
Truecharge 10 10-Amp Continuous Rating
The Truecharge 10 will deliver its rated 10 ampere charging current for
most of the charging cycle. The charger only reduces the charging
current below this continuous rating level when the battery is
approaching full charge. Many other chargers only deliver their rated

6
charging current for a short initial part of the charge cycle. Charging
current decreases rapidly (“tapers off”) as the battery charges.
Because it delivers rated current over most of the charge cycle, your
Truecharge 10 will charge your batteries faster than many other chargers
rated at 20 amperes or more.
Wide Voltage Range Operation
Now you can give your battery a top-quality charge even when your AC
power isn’t top quality. The Truecharge 10 precisely maintains the
correct charging voltage for your battery when the AC line voltage drops
as low as 90 VAC, or rises as high as 135 VAC (200 to 260 VAC for the
international 230 VAC model). A surge protector in the Truecharge 10
protects it, and your 12-volt circuits, from surges and spikes on the AC
power line.
Selector Switch for Battery Type
The Truecharge 10 has a selector switch that allows you to set the
charger for the charging characteristics of the new sealed lead-acid “gel”
batteries, or for the charging characteristics of conventional flooded
batteries. By setting the switch correctly before you begin charging your
battery, you will be ensuring that it receives the best possible charge.
Extensive Protection Features
The Truecharge 10 will not begin delivering current until it detects that it
has been properly connected to a battery. You will have fewer worries
about accidental sparks as you make your connections to the battery. The
Truecharge 10 will not deliver current if it detects a reverse polarity
connection, a short circuit, or connection to a battery with incorrect
voltage. The Truecharge 10 will also shut down if it becomes overheated
because of inadequate ventilation.
Isolated Design
The DC battery charging circuits of the Truecharge 10 are electrically
isolated by a transformer from the AC power source circuits. This
improves your personal safety and ensures that there will be no
electrolysis problems when charging batteries on a boat.

7
Theory of Operation
High Frequency Power Converter
The Truecharge 10 uses modern high frequency switching power circuits
to convert the alternating current from the utility line to the low voltage
direct current required to charge the battery. The circuits are similar to
those used in power supplies for computers and other modern electronic
equipment.
The alternating current from the utility line is first rectified by diodes to
produce a high voltage direct current.
This direct current is switched at a very high frequency (approximately
75 kHz) to produce pulses of current which are stepped down to a lower
voltage by a small high frequency transformer. The low voltage pulses of
current from the secondary side of the transformer are rectified and
smoothed to create a continuous direct current which is sent to the
battery.
The power switching is performed by power MOSFET transistors. These
transistors also control the charging current and voltage through a
process called pulse width modulation (PWM). The average value of the
voltage or current is controlled by varying the lengths of the pulses of
current. Shorter duration pulses result in lower voltage and current while
longer duration pulses result in higher voltage or current.
The advanced power conversion technology in the Truecharge 10 gives
you several benefits:
•A charger that is smaller and lighter than most other chargers
with similar capabilities. The Truecharge 10 is easy to carry with
you and can be stored or installed in small compartments.
•A totally silent charger. There is none of the “hum” or “buzz”
commonly associated with chargers based on older technology.
•Non-pulsing charging current. While the Truecharge 10 uses
current pulses internally, the output current is filtered so that it is
very smooth. This is the ideal current for charging lead-acid
batteries. Many other chargers produce a pulsating charging
current that does not recharge the battery to its maximum
potential.

8
Three-Step Charging Process
Modern lead-acid batteries will last longer and charge faster if they are
charged in a particular sequence known as a three-step charge. The
Truecharge 10 implements the three-step charging process.
In the first step, known as the bulk charge, the Truecharge 10 delivers its
rated current (10 A) until the battery voltage approaches its gassing
voltage—typically around 14.4 volts. The bulk charge step restores about
75% of the battery's charge.
The gassing voltage is the voltage at which the electrolyte in the battery
begins to break down into hydrogen and oxygen gases. Under normal
circumstances, a battery should not be charged at a voltage above its
gassing voltage since this will cause the battery to lose electrolyte and
dry out over time. Therefore the Truecharge 10 transfers to the next step,
known as the absorption charge.
During the absorption charge, the charging voltage is held constant near
the gassing voltage and the charging current is steadily decreased. When
the charging current has decreased to approximately one ampere, the
battery is fully charged. At this point, the Truecharge 10 transfers to its
final step, known as the float charge.
The float charge is a maintenance mode in which the Truecharge 10
output voltage is reduced to a lower level, typically about 13.5 volts, to
maintain the battery's charge without losing electrolyte through gassing.
Unlike many other chargers, the Truecharge 10 can be left connected to
your battery indefinitely without risk of overcharging.
The voltage levels mentioned in the paragraphs above are dependent on
the type of battery (sealed vs. flooded) and on the temperature of the
battery. The Truecharge 10 is equipped with selector switches to allow
you to set it for your battery type and temperature.
Charger Operating Sequence
The microprocessor in the Truecharge 10 is constantly checking to
ensure that the charger is working properly.
Once AC power is connected to the Truecharge 10, the microprocessor
begins by checking whether a battery is connected properly to the
charger. The Truecharge 10 will only start charging if the following

9
conditions are met:
•A battery is connected
•The battery is connected with proper polarity
•The battery voltage is between 5 volts and 13 volts
The Truecharge 10 will not act as a battery eliminator or power supply. It
must be connected to a battery to operate.
Once the Truecharge 10 detects proper connection to a battery, it begins
the three-step charging cycle. The Truecharge 10 will stop charging if it
detects the following conditions:
•Battery voltage less than 10 volts or greater than the gassing voltage
•Internal charger temperature greater than 70 °C
The Truecharge 10 will automatically start charging again if it detects
that the battery voltage or charger temperature have returned to safe levels.
The Truecharge 10 completes the absorption charge and goes to float
mode when one of the following two conditions are met:
•Charger output current has dropped below one ampere (flooded
type batteries remain at absorption voltage for an additional hour
after current has dropped to one ampere)
•The charger has been in absorption charge mode for more than
5 hours.
This “time out” feature protects against situations where a load
connected to the battery prevents the charger current from dropping
below one ampere.
The Truecharge 10 will leave float mode and start another three-step
charging cycle under any one of the following conditions:
•Battery voltage drops below 12.5 volts for more than 15 minutes
•21 days have passed since the last charging cycle occurred
•The battery has been disconnected for more than 30 seconds and is
then reconnected
•AC power has been disconnected for more than 30 seconds.

10
The first two conditions ensure that the Truecharge 10 keeps your battery
“topped up” if it is left permanently connected. The last two conditions
ensure that the Truecharge 10 starts in a predictable fashion after you
disconnect the battery or the AC power.
WARNING! To reduce the risk of sparking and damage to your
Truecharge 10, always disconnect AC power from your Truecharge 10
before connecting or disconnecting the battery or batteries.
Important Safety Instructions
SAVE THESE INSTRUCTIONS. This manual contains important safety
and operating instructions for the Truecharge 10 battery charger.
•Do not expose charger to rain, snow, or spray.
•Use of attachments not recommended or sold by the battery charger
manufacturer may result in a risk of fire, electric shock, or injury to
persons.
•To reduce risk of damage to electric plug and cord, pull by plug
rather than cord when disconnecting charger.
•An extension cord should not be used unless absolutely necessary.
Use of improper extension cord could result in a risk of fire and
electric shock. If an extension cord must be used, make sure:
a) That pins on plug of extension cord are the same number, size
and shape as those of plug on charger.
b) That extension cord is properly wired and in good electrical
condition, and
c) That wire size is 18 AWG (0.8 mm2) or larger and cord is less
than 100 feet (30 m) long.
•Do not operate charger with damaged cord or plug. Replace the cord
or plug immediately.
•Do not operate the charger if it has received a sharp blow, been
dropped, or otherwise damaged in any way. If the charger is dam-
aged, take it to a qualified service person.
•Do not disassemble the charger. Take it to a qualified service person
when service or repair is required. Incorrect reassembly may result in
a risk of electrical shock or fire.
•To reduce risk of electrical shock, disconnect power from the charger

11
before attempting any maintenance or cleaning.
WARNING! RISK OF EXPLOSIVE GASES.
WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS
DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES
DURING NORMAL BATTERY OPERATION. FOR THIS REA-
SON IT IS OF UTMOST IMPORTANCE THAT YOU READ THIS
MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
•To reduce the risk of battery explosion, follow these instructions and
those published by the battery manufacturer and the manufacturer of
the equipment in which the battery is installed.
•Do not use this charger in a compartment in which ignition-protected
equipment is required.
Personal Precautions
•Someone should be within range of your voice and close enough to
come to your aid when you work near a lead-acid battery.
•Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
•Wear complete eye protection and clothing protection. Avoid touch-
ing eyes while working near the battery.
•If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters eye, immediately flood eye with running
cold water for at least 20 minutes and get medical attention immedi-
ately.
•NEVER smoke or allow a spark or flame in the vicinity of the
battery or engine.
•Be extra cautious to reduce the risk of dropping a metal tool on the
battery. It might spark or short-circuit the battery or other electrical
part that may cause an explosion.
•Before working with a lead-acid battery, remove personal metal
items such as rings, bracelets, necklaces, and watches. A lead-acid
battery produces a short-circuit current high enough to weld a ring or
the like to metal, causing a severe burn.
•Use the charger for charging a LEAD-ACID battery only. Do not use

12
this battery charger to charge nickel-cadmium (Ni-Cd), nickel-metal
hydride (Ni-MH), lithium (Li) and dry cell batteries commonly used
with home appliances and electronic equipment. These batteries may
burst and cause injury to persons and damage to property. The
charger is not intended to supply power to an extra-low voltage
electrical system without a battery.
•NEVER charge a frozen battery. Charging a battery when its tem-
perature is below 32 °F (0 °C) is inefficient and ineffective. If
possible, warm the battery above 32 °F (0 °C) before charging.
Preparing to Charge
1) If it is necessary to remove the battery from its installed position to
charge, always remove the grounded terminal from the battery first.
Make sure all loads connected to the battery are off, so as not to
cause an arc.
2) Be sure the area around the battery is well ventilated while the
battery is being charged. Gas can be forcefully blown away by using
a piece of cardboard or other non-metallic material as a fan.
3) Clean the battery terminals and ensure that connections are secure.
Be careful to keep corrosion from coming in contact with eyes.
4) If you are charging a flooded battery, add distilled water to each cell
until battery acid reaches level specified by battery manufacturer.
This helps purge excessive gas from cells. Do not overfill. Never
allow battery acid to drip on charger when reading specific gravity or
filling battery. For a battery without cell caps, carefully follow the
manufacturer's recharging instructions.
5) Study and follow all battery manufacturer's specific precautions such
as removing or not removing cell caps while charging, and recom-
mended rates of charge.
6) Ensure that battery voltage is 12 volts (nominal) by referring to
battery manufacturer's information, or manual for equipment in
which battery is installed. Do not attempt to charge a battery which
is not rated at 12 volts.

13
DC Connection Precautions
•Connect DC output clips only after the AC cord is connected to the
electrical outlet and the charger indicator lights turn on. The charger
has an anti-sparking feature that only functions properly if the
charger is on.
•Attach clips to battery posts and twist or rock back and forth several
times to make a good connection. This tends to keep the clips from
slipping off the terminals and helps to reduce risk of sparking.
•Disconnect DC output clips only after the AC cord is disconnected
from the AC outlet.
Permanent Installation
Location
The Truecharge 10 should be installed in a location that meets the
following requirements:
1) Dry—Do not allow water or other fluids to drip or splash onto the
Truecharge 10. Do not mount the charger in an area subject to
splashing bilge water.
2) Cool—Ambient air temperature should be between 32 °F (0 °C) and
104 °F (40 °C)—the cooler the better.
3) Ventilated—Do not operate the charger in a closed-in area or restrict
ventilation in any way. Allow at least 4 inches (10 cm) of clearance
around the Truecharge 10 for air flow. If mounting in a compartment,
ventilate the compartment with louvers or cut-outs.
4) Safe—Do not install the Truecharge 10 in the same compartment as
batteries or in any compartment capable of storing flammable liquids
such as gasoline. Do not use the Truecharge 10 in an engine compart-
ment or other location where ignition protected equipment is required.
5) Locate the charger as far away from the battery as the DC cables
permit.
6) Never place the charger on or directly above the battery being
charged. Gases from the battery will corrode and damage the charger.
7) Never allow battery acid to drip on the charger when reading specific
gravity or filling the battery.
8) Do not set a battery on top of the charger.

14
CAUTION! To reduce risk of fire, do not cover or obstruct the
ventilation openings. Do not install the Truecharge 10 in a zero-
clearance compartment. Overheating may result.
WARNING: This equipment contains components that may produce
arcs or sparks. To prevent fire or explosion, do not install in
compartments containing batteries or flammable materials or in
locations that require ignition-protected equipment.
Temporary Mounting
The Truecharge 10 may be temporarily mounted during charging, using
the keyholes and holes provided. Mounting hardware should be
corrosion resistant #8 (4mm) screws.
The Truecharge 10 may be mounted on a flat, horizontal or vertical
surface. If mounting on a vertical surface such as a wall, the orientation
should be horizontal, with the keyholes at the top.

15
Battery Charging Safety
Charging a battery when it is installed in an engine compartment
To reduce the risk of a spark near the battery:
1) Position AC and DC cords to reduce risk of damage by access doors,
hood, or moving engine parts.
2) Stay clear of fan blades, belts, pulleys, and other parts that can cause
injury to persons.
3) Ensure that the compartment has been ventilated to remove flam-
mable or explosive gasses such as battery gasses and fuel vapor. Fuel
vapor is heavier than air, so forced ventilation is required.
4) Check the polarity of the battery posts. The POSITIVE (POS, P, +)
battery post usually has a larger diameter than the NEGATIVE
(NEG, N, –) post.
5) Determine which post of the battery is grounded (connected) to
chassis or engine block. If negative post is grounded (as in most
systems) see the next item. If the positive post is grounded, see item 7.
6) For a negative grounded system, connect POSITIVE (RED) clip
from the battery charger to the POSITIVE (POS, P, +) ungrounded
post of the battery. Connect the NEGATIVE (BLACK) clip to the
engine block away from the battery. Do not connect the clip to the
carburetor, fuel lines, or sheet metal body parts. Connect to an
unpainted, clean, heavy-gauge metal part of the frame or engine
block.
7) For a positive grounded system, connect the NEGATIVE (BLACK)
clip from the battery charger to the ungrounded NEGATIVE (NEG,
N, –) post of the battery. Connect the POSITIVE (RED) clip to the
engine block away from the battery. Do not connect the clip to the
carburetor, fuel lines, or sheet metal body parts. Connect to an
unpainted, clean, heavy-gauge metal part of the frame or engine
block.
8) See the operating instructions for the length of charge information.

16
Charging a battery when it is installed outside the engine
compartment
To reduce the risk of a spark near the battery:
1) Check the polarity of the battery posts. The POSITIVE (POS, P, +)
battery post usually has a larger diameter than the NEGATIVE
(NEG, N, –) post.
2) Connect the charger to AC power. When the lights on the charger
begin to blink, connect the POSITIVE (RED) charger clip to the
positive (POS, P, +) post of the battery.
3) Connect the negative (BLACK) charger clip to the negative (NEG,
N, -) post of the battery.
4) As a precaution, do not face the battery when making the final connection.
5) When disconnecting, disconnect the AC power to the charger first,
then disconnect the negative (BLACK) charger clip while you are as
far away from the battery as possible. Disconnect the positive (RED)
charger clip last.
6) See the operating instructions for the length of charge information.
Grounding and AC Power Cord Connection Instructions
The charger should be grounded to reduce the risk of electrical shock.
The charger is supplied with an electric cord having an equipment
grounding conductor and a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
Danger: Never alter the supplied AC cord or plug if it will not fit the
outlet. Have a proper outlet installed by a qualified electrician. Improper
connection can result in risk of an electric shock.

17
Operating Instructions
Charge Cycle
The Truecharge 10 can charge all 12 volt lead-acid batteries including
sealed, maintenance-free, and gel types. It is best suited for batteries with
capacities between 25 ampere hours and 200 ampere hours. (battery sizes
from U1 to 4D).
Charging is automatic. The READY status indicator on the Truecharge
10 will light when charging is complete. You can leave the Truecharge
10 connected to the batteries and to AC power even after charging is
complete—there is no danger of overcharging.
Operating Procedure
To charge your battery follow these steps:
1) If possible, disconnect all loads from the battery, by removing
battery cables, by opening a battery disconnect switch, or by switch-
ing loads off.
2) Set the BATTERY TYPE selector switch to the type of battery you
are charging. If your battery has removable caps that allow you to
add water, it is a flooded type, and the switch should be set to
FLOODED. If your battery is sealed and has no caps, set the switch
to GEL. The Truecharge 10 should be set for GEL for all sealed
batteries, even if they use starved-electrolyte technology rather than
gelled electrolyte technology.

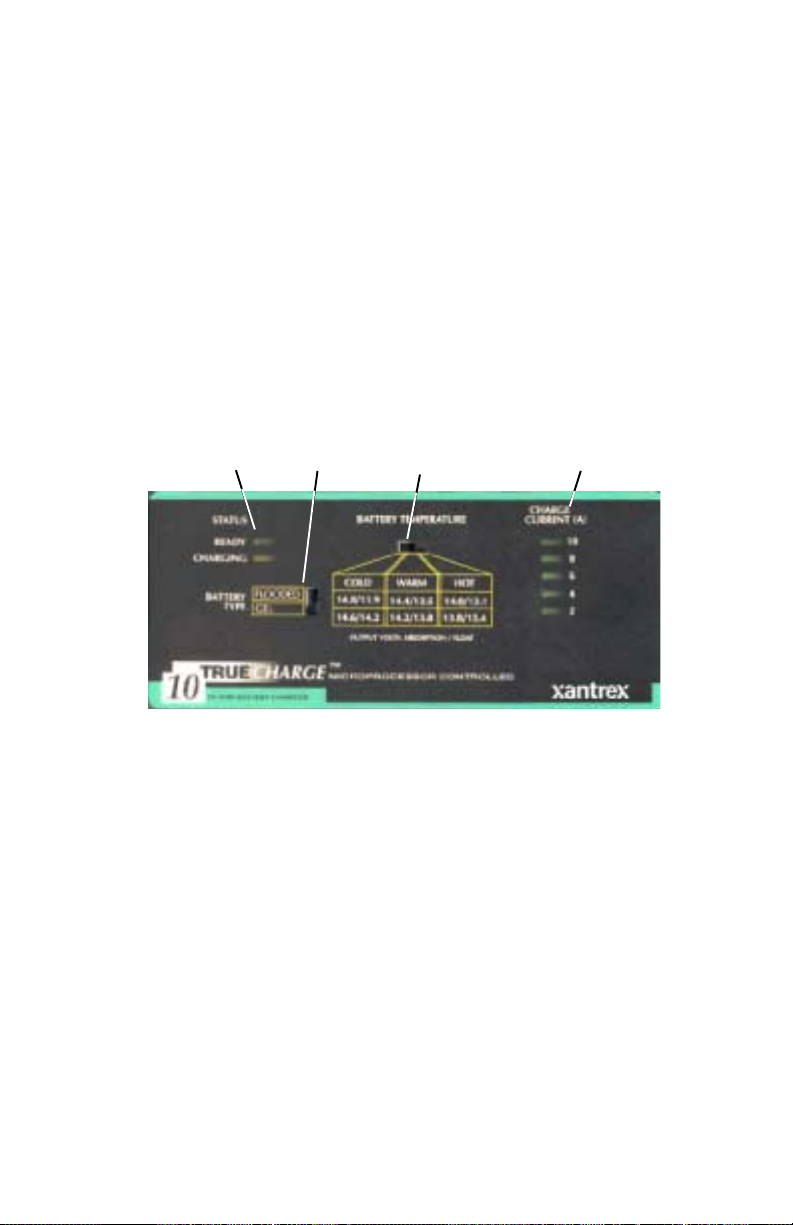

Battery Ready/
Charging Indicators
Battery Type
Switch
Battery Temperature
Selector Switch Output Ammeter
Truecharge 10 Top Label—Switch and LED Descriptions

18
3) Set the BATTERY TEMPERATURE selector switch for the tem-
perature of your battery. If your battery temperature is below 50 °F,
(10 °C), set the switch to COLD. If your battery temperature is
between 50 °F (10 °C) and 80 °F (27 °C), set the switch to HOT.
4) Attach the supplied AC power cord and connect the Truecharge 10 to
AC power (90 VAC to 130 VAC 50/60 Hz. The indicator lights on
the Truecharge 10 will begin blinking in sequence. The Truecharge
10 may take up to one minute to begin charging.
IMPORTANT: Connect the Truecharge 10 to AC power before connect-
ing the battery. This will prevent arcing when connecting the battery.
5) Ventilate the area around the battery thoroughly. Connect the
Truecharge 10 to the battery. Ensure proper polarity: RED clip to the
positive (+) terminal and the BLACK clip to the negative (–) termi-
nal. The Truecharge 10 is protected against reverse connection. It
will not begin charging if the battery is incorrectly connected.
6) The Truecharge 10 will now start charging the battery, as indicated
by the yellow CHARGING indicator lighting.
7) During charging, the charging current will be indicated by the
CHARGE CURRENT lights. When charging a discharged battery,
the 10 A indicator will be on for most of the charging cycle. Near the
end of the cycle, the charging current will decrease and the 8 A, 6 A,
and 2 A indicators will come on in sequence.
8) When the green READY indicator lights, the battery is fully charged
and ready for use. While the READY indicator is on, the Truecharge
10 is in its float charge mode, and will maintain the battery’s charge
if it is not disconnected.
9) IMPORTANT: To disconnect the Truecharge 10 from the battery,
first disconnect the AC power, then disconnect the battery clips. This
will prevent arcing. Also be sure to ventilate the area around the
battery thoroughly before disconnecting.

19
Charging Times
Charging time will depend on the capacity of your battery and on how
deeply it is discharged. The following equation gives an approximate
charging time:
Charging time = CAP ×DOD
850
where:
Charging Time = Battery recharge time in hours
CAP = Battery capacity in ampere hours
DOD = Battery depth of discharge in % (A fully discharged battery
has 100% DOD)
Example:
The battery is a Group 27 size with a rated capacity of 80 ampere-hours.
It is 80% discharged (i.e. DOD = 80). Charging time with a Truecharge
10 will be:
80 × 80 = 7.5 hours
850
Care and Maintenance
Your Truecharge 10 contains solid-state electronic components that
require no maintenance. The best care you can give your Truecharge 10
is to protect it from contact with liquids, spray, or fumes that may cause
corrosion. Clean the case and cords with a damp cloth if you suspect
contact with battery fluid, salt water, gasoline or oil, or other corrosive
material. Corrosion on the clips may be removed with a solution of water
and baking soda.
CAUTION! RISK OF ELECTRICAL SHOCK. The Truecharge 10
contains no user-serviceable components. Do not open the unit or
attempt to service the unit. Contact your dealer or the manufacturer for
service information.

20
Troubleshooting
melborPesuaCelbissoPnoituloS
llaerasthgilrotacidnI
siregrahcnehwffo
CAnaotdetcennoc
.elcatpecer
CAtarewopoN
.elcatpecer
.drocevitcefeD
.regrahcniesufnepO
taelbaliavasirewoptahterusnE
.elcatpecer
.gniriwecalpeR
deifilauqybdecivresregrahcevaH
.nosrep
sthgilrotacidnI
llorcsoteunitnoc
siregrahcehtnehw
yrettabaotdetcennoc
CAdna
”gnigrahC“ro
nruttonseodrotacidni
ylsuounitnocno
rotacidni”ydaeR“ro
.ylsuounitnocsknilb
tcetedtonseodregrahC
gniwolloffoenorofyrettab
:snosaer
noitcennoconroroop-
noitcennocytiralopesrever-
sdaeldegamad-
.regrahcniesufnepo-
.wolootegatlovyrettaB
yrettabfoytilauqdnaytiralopkcehC
.noitcennoc
esuflanretnirodegamaderasdaelfI
deifilauqybdecivresregrahcevah,nepo
.nosrep
tonoD.gnitaregatlovyrettabkcehC
.stlov6detaryrettabaegrahcottpmetta
evael,stlov21rofdetarsiyrettabfI
lliwtifieesotsruoh8rofdetcennoc
gnigrahctratst’nseodyrettabfI.revocer
dnadegamadylbaborpsiti,sruoh8retfa
.egrahcatpeccatonlliw
sknilbthgil”gnigrahC“
noemoctonseodtub
rehtO.ylidaets
.ffoerasthgilrotacidni
.hgihootsiegatlovyrettaB
otdetcennocsiyrettaB
.ecruosgnigrahcrehtona
yrettabaegrahctonoD.yrettabkcehC
.lanimonstlov21nahteromtadetar
gnigrahcrehtoffonrutrotcennocsiD
.)rotanretlana.g.e(ecruos
thgilrotacidni”A01“
rotacidnirehtO.sknilb
.ffoerasthgil
eudnwodtuhssahregrahC
.gnitaehrevolanretniot
evorpmI.loocotregrahcwollA
.noitacolreloocnillatsnironoitalitnev
ebotsraepparegrahC
otgnolootgnikat
ydaeR.yrettabegrahc
thgiltonseodrotacidni
fosruoh42retfa
.gnigrahc
retaergsiyticapacyrettaB
.sruohpma002naht
siyrettabotdetcennocdaoL
ostnerrucegrahcgniniard
tonseodyrettabtaht
.egrahcer
.llecdegamadasahyrettaB
.regrahcyticapacrehgihaesU
.ffodaolhctiwsrodaoltcennocsiD
.yrettabecalpeR
