About This Guide
Purpose
The purpose of this Owner’s Guide is to provide explanations and
procedures for installing, troubleshooting, operating and maintaining the
Truecharge2 Series Battery Charger.
Scope
The Guide provides safety and operating guidelines, procedures for
installing the battery charger, as well as information on configuring the
battery charger. It also provides information about troubleshooting the unit.
It does not provide details about particular brands of batteries. You need to
consult individual battery manufacturers for this information.
Audience
The Guide is intended for users and operators of the Truecharge2 Series
Battery Charger. The Installation section is primarily intended for qualified
installers who need to install and configure any unit model of the
Truecharge2 Series Battery Charger. The installer should have knowledge
and experience in installing electrical equipment, knowledge of the
applicable installation codes, and awareness of the hazards involved in
performing electrical work and how to reduce those hazards. A qualified
technician or electrician has this knowledge and experience.
Conventions Used
The following conventions are used in this guide.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions will result in death or serious
injury.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can result in death or serious
injury.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can result in minor or moderate
injury.
TC2 204060 Series BattChg Owners Guide.book Page ii Friday, July 8, 2011 11:44 AM

975-0526-01-02 iii
Related Information
You can find more information about Xantrex Technology USA Inc. as well
as its products and services at www.xantrex.com.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
IMPORTANT: These notes describe things which are important for you to
know, however, they are not as serious as a danger, warning, or caution.
The product marking on the left when found imprinted on
electrical and electronic units and appliances means that you
are to refer to this guide for cautions and warnings.
TC2 204060 Series BattChg Owners Guide.book Page iii Friday, July 8, 2011 11:44 AM

iv Truecharge2 Series Battery Charger Owner’s Guide
Important Safety Instructions
IMPORTANT: READ AND SAVE THIS OWNER’SGUIDE FOR FUTURE
REFERENCE.
This chapter contains important safety and installation instructions for the
Truecharge2 Series Battery Chargers. Each time, before using the
Truecharge2 Series Battery Charger, READ ALL instructions and
cautionary markings on or provided with the battery charger, the batteries,
and all appropriate sections of this guide.
NOTE: The Truecharge2 Series Battery Charger contains no user-
serviceable parts with the exception of the DC output fuse(s) which are
user-replaceable. See “Replacing the DC Output Fuse” on page 48 for
instructions. For obtaining service other than replacing the fuse, see
“Warranty and Return Information” on page 58 for guidance.
NOTE: The Truecharge2 Series Battery Charger must be provided with
equipment-grounding conductors connected to the AC input ground and to
the DC chassis ground. See “Step 2: Connecting the DC Chassis Ground
(Earth)” on page 17 for instructions.
NOTE: Turning off the battery charger using the on/standby button on the
optional remote panel will not reduce an electrical shock hazard.
ELECTRICAL SHOCK HAZARD
• Do not expose the Truecharge2 Battery Charger to rain, snow, spray,
or bilge water.
• Do not operate the battery charger if it has received a sharp blow,
been dropped, has cracks or openings in the enclosure including if the
fuse cover has been lost, damaged, or will not close, or otherwise
damaged in any other way.
• Do not disassemble the battery charger. Internal capacitors remain
charged after all power is disconnected.
• Disconnect both AC and DC power from the battery charger before
attempting any maintenance or cleaning or working on any circuits
connected to the battery charger. See note below.
• Do not operate the battery charger with damaged or substandard
wiring. Make sure that all wiring is in good condition and is not
undersized. See “Wiring Requirements” on page 12 for guidance.
Failure to follow these instructions will result in death or serious
injury.
TC2 204060 Series BattChg Owners Guide.book Page iv Friday, July 8, 2011 11:44 AM

975-0526-01-02 v
NOTE: Follow these instructions and those published by the battery
manufacturer and the manufacturer of any equipment you intend to use in
the vicinity of the battery. Review cautionary markings on these products
and on the engine.
FIRE AND BURN HAZARD
Do not cover or obstruct the air intake vent openings and/or install in a
zero-clearance compartment. See “Location” on page 10 for proper
location requirements.
Failure to follow these instructions will result in death or serious
injury.
EXPLOSION HAZARD
• Charge only properly rated (such as 12 V and 24 V) lead-acid (GEL,
AGM, Flooded, or lead-calcium) rechargeable batteries because other
battery types may explode and burst.
• Do not work in the vicinity of lead-acid batteries. Batteries generate
explosive gases during normal operation. See note below.
Failure to follow these instructions will result in death or serious
injury.
PERSONAL INJURY HAZARD
This battery charger is not intended for use by persons (including
children) with reduced physical, sensory, or mental capabilities or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play
with the battery charger.
Failure to follow these instructions can result in death or serious
injury.
TC2 204060 Series BattChg Owners Guide.book Page v Friday, July 8, 2011 11:44 AM

vi Truecharge2 Series Battery Charger Owner’s Guide
Precautions When Working With Batteries
NOTES:
1. Locate the Truecharge2 Series Battery Charger unit away from
batteries in a well ventilated compartment.
2. Always have someone within range of your voice or close enough to
come to your aid when you work near a lead-acid battery.
3. Always have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
4. If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters your eye, immediately flood it with running
cold water for at least twenty minutes and get medical attention
immediately.
5. Use extra caution to reduce the risk or dropping a metal tool on the
battery. It could spark or short circuit the battery or other electrical
parts and could cause an explosion.
6. Batteries can produce a short circuit current high enough to weld a ring
or metal bracelet or the like to the battery terminal, causing a severe
burn.
7. When removing a battery, always remove the negative terminal from
the battery first for systems with grounded negative. If it is grounded
positive, remove the positive terminal first. Make sure all loads
connected to the battery and all accessories are off so you don’t cause
an arc.
BURN FROM HIGH SHORT-CIRCUIT CURRENT, FIRE AND EXPLO-
SION FROM VENTED GASES HAZARDS
• Always wear proper, non-absorbent gloves, complete eye protection,
and clothing protection. Avoid touching your eyes and wiping your
forehead while working near batteries. See note #4.
• Remove all personal metal items, like rings, bracelets, and watches
when working with batteries. See notes #5 and #6.
• Never smoke or allow a spark or flame near the engine or batteries.
• Never charge a frozen battery.
Failure to follow these instructions can result in death or serious
injury.
TC2 204060 Series BattChg Owners Guide.book Page vi Friday, July 8, 2011 11:44 AM

975-0526-01-02 vii
Precautions When Preparing to Charge
NOTES:
1. Study and follow all of the battery manufacturer's specific precautions,
such as removing or not removing cell caps while charging, whether
equalization is acceptable for your battery, and recommended rates of
charge.
2. For flooded non-sealed batteries, add distilled water in each cell until
battery acid reaches the level specified by the battery manufacturer.
This helps to purge excessive gas from cells. Do not overfill. For a
battery without removable cell caps, carefully follow manufacturer's
instructions.
Precautions When Placing the Battery Charger
NOTE: For North American marine installations, external connections to the
charger shall comply with the United States Coast Guard Electrical
Regulations (33CFR183, Sub Part I).
EXPOSURE TO CHEMICALS AND GASES HAZARD
• Make sure the area around the battery is well ventilated.
• Make sure the voltage of the batteries matches the output voltage of
the battery charger.
• Be careful to keep corrosion from coming into contact with your eyes
and skin when cleaning battery terminals.
Failure to follow these instructions can result in death or serious
injury.
RISK OF DAMAGE TO THE BATTERY CHARGER
• Never allow battery acid to drip on the battery charger when reading
gravity, or filling battery.
• Never place the Truecharge2 Series Battery Charger unit directly
above batteries; gases from a battery will corrode and damage the
charger.
• Do not place a battery on top of the battery charger.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
TC2 204060 Series BattChg Owners Guide.book Page vii Friday, July 8, 2011 11:44 AM

viii Truecharge2 Series Battery Charger Owner’s Guide
FCC Information to the User
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Unauthorized changes or modifications to the equipment could void the
user’s authority to operate the equipment.
TC2 204060 Series BattChg Owners Guide.book Page viii Friday, July 8, 2011 11:44 AM

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Truecharge 2 Battery Charger Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preparing For Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Truecharge 2 Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing a Parallel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Configuring the Truecharge2 Battery Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Equalizing Flooded Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Transitioning the Charger to ON, Standby, or Disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Accessing Charger Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using A Generator As Source Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Maintaining the Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Replacing the DC Output Fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Warranty and Return Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Contents
TC2 204060 Series BattChg Owners Guide.book Page i Friday, July 8, 2011 11:44 AM

TC2 204060 Series BattChg Owners Guide.book Page ii Friday, July 8, 2011 11:44 AM

975-0526-01-02 1
Introduction
This chapter describes the standard features of a Truecharge2 Battery
Charger, as well as its protection features. It also provides information on
the different parts of the Truecharge2 Battery Charger.
Truecharge2 Battery Charger
The Truecharge2 Battery Charger ships with the following items:
• one Truecharge2 Battery Charger unit,
• owner’s guide,
• rubber boots for DC terminals,
• nuts and washers (M6) for DC terminals and ground stud,
• strain relief clamp for AC input cables1,
• three crimp connectors for AC wiring1.
Standard and Protection Features
The Truecharge2 Battery Charger provides the following standard features:
• up to three2full current rated outputs,
• battery monitoring functions,
• correct charging voltage for batteries when connected to almost any
single phase AC power outlet in the world,
• low electromagnetic interference (EMI),
• automatic charge resumption, if required, after AC power interruption,
• programmable custom charge settings3,
• fully discharged battery charging4,
• ability to operate two Truecharge2 Battery Chargers in parallel mode
with the use of the optional remote panel.
The Truecharge2 Battery Charger provides the following protection
features:
• battery reverse polarity protection via user-replaceable output fuse(s),
• AC input out-of-range derating and shutdown,
• ambient over-temperature derating and shutdown,
• battery over-charging protection,
1.Not included with IEC models of Truecharge2 Battery Chargers.
NOTE: Keep the carton and packing material in case you need to return
the Truecharge2 Battery Charger for servicing.
2.Each output can charge different batteries that either have the same chemistry or can
tolerate the same charge sequence and voltage/current ratings.
3.The charger can be programmed with custom charge setpoints using PC interface.
This programming can only be done using a special configuration tool operated by
Xantrex or a designated OEM.
4.The charger can initiate charging a non-damaged but zero voltage battery.
TC2 204060 Series BattChg Owners Guide.book Page 1 Friday, July 8, 2011 11:44 AM

2 Truecharge2 Series Battery Charger Owner’s Guide
Introduction
• electronic current limiting provides protection against short circuit
conditions on the charger’s output,
• ignition-protected rating, enabling installation in engine spaces,
• isolated design,
• short circuit protection for the BTS and communication connector
ports including protection from incorrectly inserting the remote panel
communication cable plug into the BTS port and vice versa,
• drip-proof rubber boots for DC terminals for added moisture
protection,
• IP-32 drip protection rating1,
The following optional accessories are available for the Truecharge2
Battery Charger:
• an optional battery temperature sensor2(BTS) and
• an optional remote panel3.
The optional Battery Temperature Sensor (BTS) provides these protection
features:
• battery under-temperature charging protection preventing battery
charging at -25 °C (-13 °F) or below,
• battery over-temperature charging protection preventing battery
charging at 70 °C (158 °F) or higher, and
• charging voltage compensation based on the temperature of the battery
the optional BTS is connected to.
The optional Remote Panel provides the following features:
• Can be mounted up to 15 meters (50 feet)4away for remote control
and monitoring,
• maximum output current limiting for charging smaller capacity
batteries or to lower the current drawn from the generator or AC
source,
• ability to enable or disable the charger while AC power is connected,
• ability to display individual battery bank levels, and
• ability to operate two Truecharge2 Battery Chargers in parallel for
increased output current capacity.
1.In two specific installation orientations–see “Mounting Orientations (Deck and
Horizontal)” on page 11.
2.Part number: 808-0232-01
3.Part number: 808-8040-01
4.Remote panel comes standard with a 7.5-m (25-ft) cable. For longer [15-m (50-ft)]
cable, order part number 31-6262-00
TC2 204060 Series BattChg Owners Guide.book Page 2 Friday, July 8, 2011 11:44 AM

975-0526-01-02 3
Truecharge 2 Battery Charger Features
This section describes the different parts of the Truecharge2 Battery
Charger.
Front Panel
Figure 1 Truecharge2 Battery Charger Front Panel
1
2
6
4
3
5
Item Description
1Onboard control and status display panel or simply
onboard display (see “Onboard Control and Status Display
Panel” on page 5 for more information) for controlling the
Truecharge2 Battery Charger settings and for monitoring
charger status and charging current.
2Mounting flanges are used to permanently install the product.
3DC wiring compartment cover protects the DC terminals, as
well as the communication and BTS ports. Remove and
replace when installing cables.
ELECTRICAL SHOCK HAZARD
Disconnect the batteries and AC power before opening the fuse access
panel.
Failure to follow these instructions will result in death or serious
injury.
4Fuse access panel cover provides access to the DC fuse in the
event of an accidental reverse battery polarity installation.
Remove and replace the cover when replacing a fuse or fuses.
TC2 204060 Series BattChg Owners Guide.book Page 3 Friday, July 8, 2011 11:44 AM

4 Truecharge2 Series Battery Charger Owner’s Guide
Truecharge 2 Battery Charger Features
Rear Panel
This section describes the parts of the rear panel of the Truecharge2 Battery
Charger.
Item Description
5AC wiring compartment cover provides the installer with
easy access to the AC wiring compartment, to allow for a
trouble free installation. Remove and replace when installing
the product.
6DC ground stud for connecting the charger’s chassis to
ground.
Figure 2 Truecharge2 Battery Charger Rear Panel
2
1
5
7
9
6
3
4
40 A model (TC4012)
shown. Other models
may vary.
8
Item Description
1BTS port- battery temperature sensor port
2Communication port - remote panel port
3Battery positive (+) for bank 3 (6 mm stud)
4Battery positive (+) for bank 2 (6 mm stud)
5Battery positive (+) for bank 1 (6 mm stud)
6Battery negative (–), common for all three banks (6 mm
stud)
7Air vents - located inside is the fan assembly
8AC wiring compartment
9AC pigtail wiring - line, neutral, and ground input wires
TC2 204060 Series BattChg Owners Guide.book Page 4 Friday, July 8, 2011 11:44 AM

975-0526-01-02 5
Truecharge 2 Battery Charger Features
Onboard Control and Status Display Panel
This section describes the parts of the onboard control and status display
panel of the Truecharge2 Battery Charger. See “Reading Onboard Display
LEDs” on page 41 for more information.
To reduce current draw from the connected battery when AC power is not
present, the panel’s LED control and status lights are automatically turned
off and the buttons are disabled.
However, to temporarily check the status of the connected battery when AC
power is not present, press the Status button on the optional remote panel.
IMPORTANT: To prevent any unintentional changes in the setting, Select
panel buttons must be pressed and held down for three seconds to advance
to the next selection.
To set and cancel an equalization program, press and hold for five seconds
both the Charger Mode and Battery Temp. Select panel buttons.

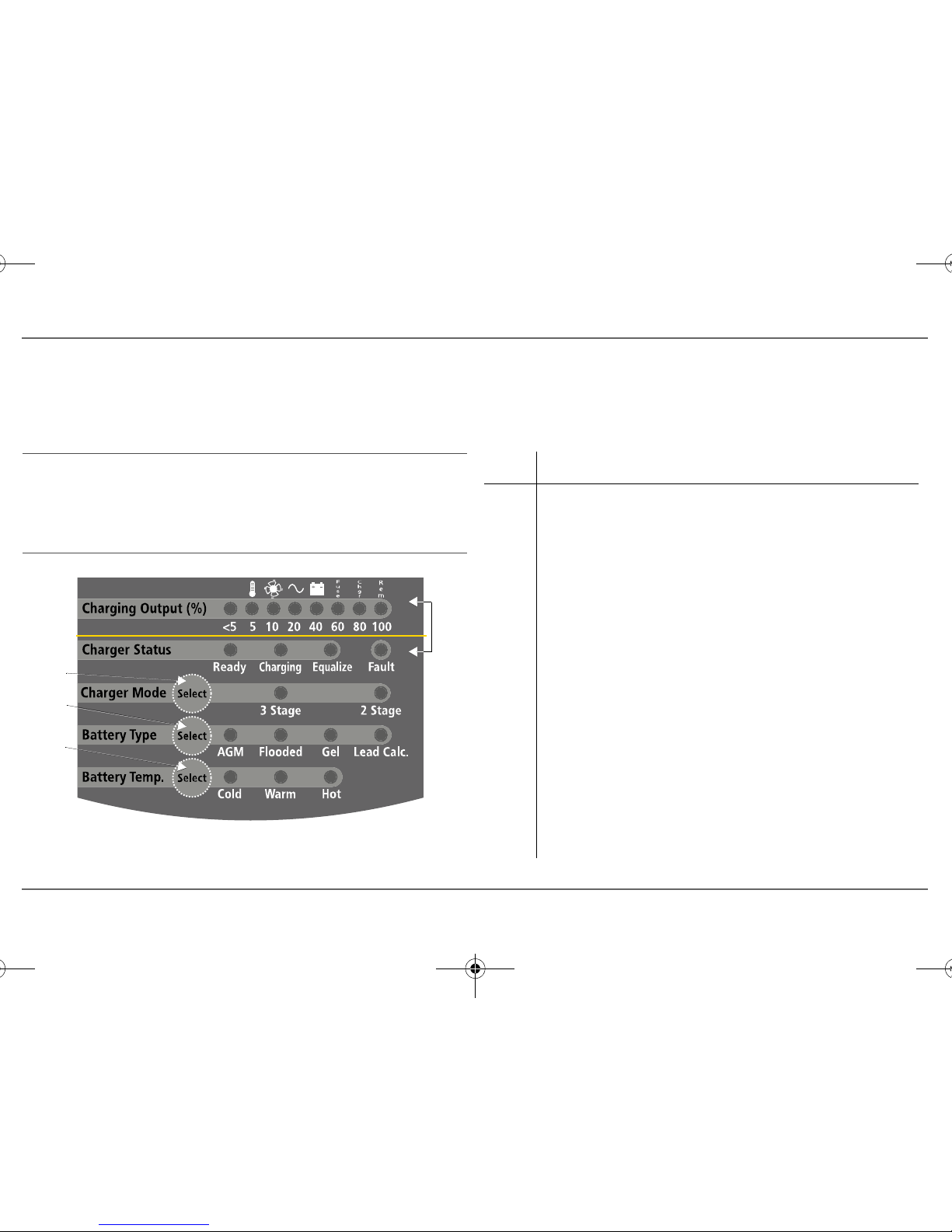

Figure 3 Onboard Control and Status Display Panel
2
4
5
6
1
3
Item Description
1 Charging Output (%) LEDs
• The LEDs illuminate like a bar graph displaying the present
total output charge current as a percentage of the maximum
rated charge current. For example, unit model TC4012 has a
maximum rated charge current of 40 A so at 60% the
charger’s current output is 24 A. The numbers below the
LEDs represent the percentage values. See “Reading
Onboard Display LEDs” on page 41.
NOTE: When the maximum Charge Output current is
limited via the optional remote panel, the LEDs will still
display the total charge output current as a percentage of the
maximum rated charge current and NOT as a percentage of
the limited charge current.
• One or two LEDs may flash intermittently in combination
with a solid Fault LED (indicating a fault) or with a
flashing Fault LED (indicating a warning). The icons
above the LEDs represent the various types of fault and
warning conditions. See “Reading Onboard Display LEDs”
on page 41.
TC2 204060 Series BattChg Owners Guide.book Page 5 Friday, July 8, 2011 11:44 AM

6 Truecharge2 Series Battery Charger Owner’s Guide
Truecharge 2 Battery Charger Features
2FaultLED
The LED may illuminate a solid light (indicating a fault) or
flash intermittently (indicating a warning) in combination with
flashing Charging Output (%) LEDs. See “Interpreting Fault
and Warning Indicators” on page 43 for details.
3 Charger Status LEDs
Displays the current status of the charger.
•Ready - a solid light indicates batteries are fully charged
and the charger is in rest stage.
•Ready and Charging - solid lights indicate batteries are
fully charged and the charger is in float stage.
•Charging - a solid light indicates charger is performing a
normal charge cycle.
•Equalize - a solid light indicates that the charger is
performing an equalization cycle.
- a flashing light indicates that the equalization
cycle will begin after the absorption stage is
done.
Item Description
4 Charger Mode Select button
• Press and hold the button for three seconds to select one of
two settings. An indicator LED corresponds to each setting.
Each setting optimizes the charging sequence differently in
charging the batteries by stages.
•Three-stage - Bulk, Absorption, and Float;
default setting
•Two-stage - Bulk and Absorption only
• When setting or cancelling an Equalization program: Press
and hold for five seconds both the Charger Mode and
Battery Temp. Select buttons.
5 Battery Type Select button
Press and hold the button for three seconds to select one of five
settings. An indicator LED corresponds to each setting.
NOTE: The fifth setting is a custom battery type setting and is
indicated when all four LEDs illuminate. See “Custom” below.
Each setting maximizes charger performance for its
corresponding battery type.
•AGM - Absorbent Glass Mat lead-acid battery
•Flooded - Lead-acid battery; default setting
•GEL - Gel-type lead-acid battery
•Lead Calc. - Lead-calcium battery
•Custom - Only available if a custom algorithm has been
programmed by Xantrex or a designated OEM.
Item Description
TC2 204060 Series BattChg Owners Guide.book Page 6 Friday, July 8, 2011 11:44 AM

975-0526-01-02 7
Truecharge 2 Battery Charger Features
6 Battery Temp. Select button
• Press and hold the button for three seconds to select one of
three settings. An indicator LED corresponds to each
setting.
If an optional BTS is connected, the indicator LEDs
represent real-time battery temperature.
• When the optional BTS is not used, this selection changes
the charger's output voltage settings to compensate for the
battery temperature selected. The Cold setting raises the
voltages, and the Hot setting lowers the voltages. See
“Battery Temperature Compensation Levels” on page 32.
RISK OF BATTERY DAMAGE
Be sure the appropriate setting is selected before charging. For varying
conditions, use the Warm setting.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
Item Description Item Description
6
continued
•Cold - for battery temperature below 5 °C (41 °F); raises
the charging voltage to compensate
•Warm - for battery temperature between
5 and 30 °C (41 and 86 °F); default setting
•Hot - for battery temperature above 30 °C (86 °F);
lowers charging voltage to compensate
• When setting or cancelling an Equalization program: Press
and hold for five seconds both the Charger Mode and
Battery Temp. Select buttons.
TC2 204060 Series BattChg Owners Guide.book Page 7 Friday, July 8, 2011 11:44 AM

8 Truecharge2 Series Battery Charger Owner’s Guide
Preparing For Installation
NOTE: The Truecharge2 Battery Charger is designed to be permanently
mounted. Figure 4 shows a typical installation with three batteries, a battery
temperature sensor (BTS) and a remote panel (both optional). It also shows
the AC and DC wiring and protection devices required for a typical
installation. Means of over-current protection and disconnection must be
incorporated into the fixed wiring, in accordance with the electrical code
that governs each installation.
IMPROPER INSTALLATION BY AN UNQUALIFIED INSTALLER
The battery charger must be installed by a qualified installer in
accordance with all applicable local or national installation codes.
Examples of such codes are the US National Electrical Code (NFPA 70),
the American Boat & Yacht Council standards E-11 and A-31, and the
US Coast Guard Electrical Regulations (33CFR183).
Failure to follow these instructions can damage the unit and/or
damage other equipment.
Figure 4 Configuration for Normal Loads
1 AC input wiring compartment
2 AC mains source protected by correct size and type of branch
rated circuit breaker
3 DC negative cable
L
N
G
L
N
G
NOTE: Not to scale. For illustration purposes only.
NOTE: In some jurisdictions a
double-pole breaker may be
required.
1
2
3
4
5
6
6
6
7
8
9
10
11
TC2 204060 Series BattChg Owners Guide.book Page 8 Friday, July 8, 2011 11:44 AM
