Xantrex FREEDOM HF 1000 User manual

TM
TM
Freedom HF
Inverter/Charger
Owner’s Guide
Freedom HF 1000
Freedom HF 1800

iii
Trademarks
Xantrex and Smart choice for power are trademarks of Schneider Electric
Services International sprl, registered in the U.S. and other countries. Other
trademarks, registered trademarks, and product names are the property of their
respective owners and are used herein for identification purposes only.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, XANTREX TECHNOLOGY USAINC.
(“XANTREX”)
(A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY
TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER
DOCUMENTATION;
(B) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR
EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL,
WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH
INFORMATION WILL BE ENTIRELY AT THE USER’SRISK; AND
(C) REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH,
ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION,
THE ACCURACY CANNOT BE GUARANTEED.
Date and Revision
August 2010 Rev B
Document Part Number
975-0390-01-01
Product Number
806-1020, 806-1840

About This Guide
iv 975-0390-01-01
About This Guide
Purpose
The purpose of this Owner’s Guide is to provide explanations and
procedures for operating, maintaining, and troubleshooting a Freedom HF
Installation*.
For complete information to help in setting up a Freedom HF Installation
see the Freedom HF Inverter/Charger Installation Guide (Doc. Part
Number: 975-0395-01-01).
*Recreational, Fleet Vehicle, or Marine installation.
Scope
The Guide provides safety guidelines, as well as information about
operating and troubleshooting the installation. It does not provide details
about particular brands of batteries. You need to consult individual
battery manufacturers for this information.
Audience
The Guide is intended for anyone who needs to operate a Freedom HF
Inverter/Charger unit.
Organization
This Guide is organized into five chapters and one appendix.
Chapter 1 introduces you to the Freedom HF, explains the inverting,
charging, and power system management functions.

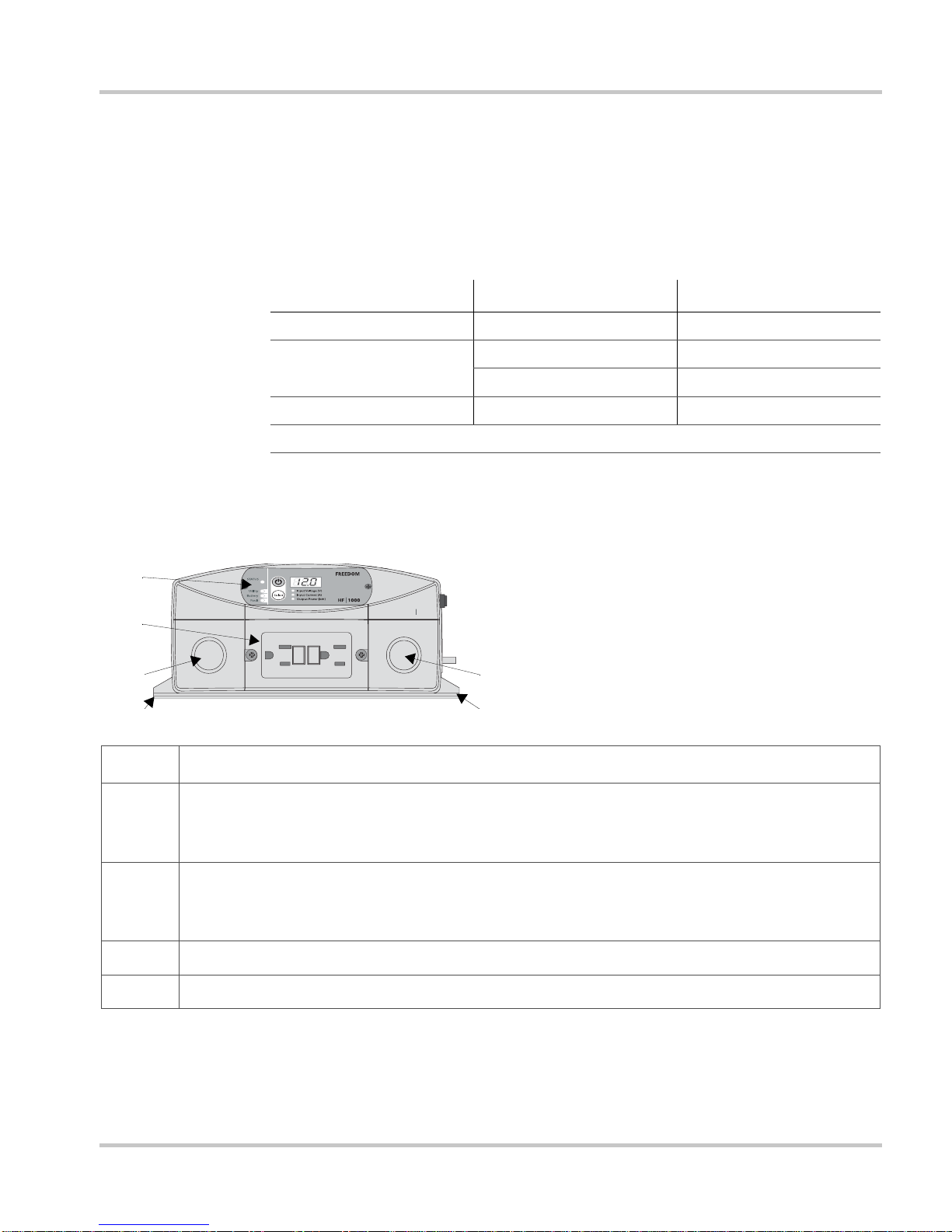

Chapter 2 contains information and labeled illustrations to help identify
the various features of the Freedom HF.
Chapter 3 explains how to configure the Freedom HF to best meet your
electrical system requirements.
Chapter 4 explains how to operate the Freedom HF efficiently and
effectively.

About This Guide
975-0390-01-01 v
Chapter 5 describes how to troubleshoot the Freedom HF Inverter/
Charger during operation.
Appendix A contains electrical performance information and product
specifications.
Conventions Used
The following conventions are used in this guide.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions will result in death or serious
injury.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can result in death or serious
injury.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can result in minor or moderate
injury.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
IMPORTANT: These notes describe things which are important for you to
know, however, they are not as serious as a caution or warning.

vii
Important Safety Instructions
IMPORTANT: Read and save this Owner’s Guide for
future reference.
This chapter contains important safety and operating instructions for the
Freedom HF Inverter/Charger units–Freedom HF 1000 and Freedom HF
1800.
1. BEFORE INSTALLING AND USING THE FREEDOM HF, READ ALL
INSTRUCTIONS AND CAUTIONARY MARKINGS ON THE FREEDOM HF,
THE BATTERIES, AND ALL APPROPRIATE SECTIONS OF THIS GUIDE.
2. Do not expose the Freedom HF to rain, snow, spray, or bilge water. To
reduce risk of fire hazard, do not cover or obstruct the ventilation
openings. Do not install the Freedom HF in a zero-clearance
compartment. Overheating may result.
3. To avoid a risk of fire and electric shock, make sure that existing
wiring is in good condition and that wire is not undersized. Do not
operate the Freedom HF with damaged or substandard wiring.
4. The use of any attachments not recommended or sold by Xantrex,
may result in risk of fire, electric shock, or injury to persons.
LIMITATIONS ON USE
The Freedom HF is not intended for use in connection with life
support systems or other medical equipment or devices.
Failure to follow these instructions can result in death or serious
injury.
RISK OF INJURY
To reduce the risk of injury, charge only 12 Vdc lead-acid (GEL,
AGM, or Flooded) rechargeable batteries. Other battery types
may burst, causing personal injury and damage.
Failure to follow these instructions can result in minor or moderate
injury.

Safety
viii 975-0390-01-01
5. Do not operate the Freedom HF if it has received a sharp blow, been
dropped, or otherwise damaged in any way.
6. Do not disassemble the Freedom HF. It contains no user-serviceable
parts. Attempting to service the Freedom HF yourself may result in a
risk of electrical shock or fire and will void your warranty. Internal
capacitors remain charged after all power is disconnected.
7. To reduce the risk of electrical shock, disconnect both AC and DC
power from the Freedom HF before attempting any maintenance or
cleaning or working on any circuits connected to the Freedom HF.
Turning off controls will not reduce this risk.
8. The Freedom HF must be provided with an equipment-grounding
conductor connected to the AC input ground.
NOTES:
1. This equipment contains components which tend to produce arcs or
sparks. To prevent fire or explosion, do not install the Freedom HF in
compartments containing batteries or flammable materials, or in
locations that require ignition-protected equipment. This includes any
space containing gasoline-powered machinery, fuel tanks, as well as
joints, fittings, or other connections between components of the fuel
system.
2. To reduce the risk of battery explosion, follow these instructions and
those published by the battery manufacturer and the manufacturer of
any unit you intend to use in the vicinity of the battery.
EXPLOSION HAZARD
Working in the vicinity of batteries is dangerous. Batteries
generate explosive gases during normal operation. Before
servicing the unit in the vicinity of the battery, read this
manual and follow the notes belowexactly.
Failure to follow these instructions can result in death or serious
injury.

Safety
975-0390-01-01 ix
Personal Precautions When Working With Batteries
NOTES:
1. Remove (or do not remove) cell caps while charging and follow
recommended rates of charge.
2. Add distilled water in each cell until battery acid reaches the level
specified by the battery manufacturer. This helps to purge excessive
gas from cells. Do not overfill. For a battery without cell caps,
carefully follow manufacturer's recharging instructions.
3. Make sure the area around the battery is well ventilated.
4. Never smoke or allow a spark or flame near the engine or batteries.
5. Use extra caution to reduce the risk or dropping a metal tool on the
battery. It could spark or short circuit the battery or other electrical
parts and could cause an explosion.
6. Remove all metal items, like rings, bracelets, and watches when
working with batteries. Batteries can produce a short circuit current
high enough to weld metal to skin, causing a severe burn.
WARNING: B ATTERIES PRESENT R ISK OF E LECTRICAL S HOCK ,
B
URN FROM H IGH S HORT -C IRCUIT C URRENT , F IRE OR
E
XPLOSION FROM V ENTED G ASES . O BSERVE P ROPER
P
RECAUTIONS .
ELECTRICAL SHOCK, BURN, FIRE, AND EXPLOSION HAZARDS
Study and follow all of the battery manufacturer's specific
precautions. See notes below.
Failure to follow these instructions can result in death or serious
injury.

Safety
x975-0390-01-01
7. Have someone within range of your voice or close enough to come to
your aid when you work near a lead-acid battery.
8. Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
9. Wear complete eye protection and clothing protection. Avoid
touching your eyes while working near batteries.
10. If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters your eye, immediately flood it with running
cold water for at least twenty minutes and get medical attention
immediately.
11. If you need to remove a battery, always remove the ground terminal
from the battery first. Make sure all accessories are off so you don’t
cause an arc.
12. Never charge a frozen battery.
13. Clean battery terminals. Be careful to keep corrosion from coming
into contact with your eyes.
MARINE UNIT LOCATION
14. Locate the Freedom HF unit away from batteries in a separate, well
ventilated compartment.
15. Never place the Freedom HF unit directly above batteries; gases from
a battery will corrode and damage the unit
16. Never allow battery acid to drip on the unit when reading gravity, or
filling battery.
17. Do not operate the unit in a closed in area, or restrict the ventilation in
any way.
DC CONNECTION PRECAUTION
18. Connect and disconnect DC output connections only after setting any
marine unit switches to off position and opening AC disconnect
19. FOR MARINE INSTALLATIONS, EXTERNAL CONNECTIONS
TO THE UNIT SHALL COMPLY WITH THE UNITED STATES
COAST GUARD ELECTRICAL REGULATIONS(33CFR183, SUB
PART I)
20. PROPER DISPOSAL OF BATTERIES IS REQUIRED. REFER TO
YOUR LOCAL CODES FOR DISPOSAL REQUIREMENTS.

Safety
975-0390-01-01 xi
Precautions for Using Rechargeable Appliances
Some chargers for small rechargeable batteries can be damaged if
connected to the Freedom HF. Do not use the following with the Freedom
HF:
• Small battery-operated appliances like flashlights, razors, and night
lights that can be plugged directly into an AC receptacle to recharge.
• Some chargers for battery packs used in power hand tools. These
affected chargers display a warning label stating that dangerous
voltages are present at the battery terminals.
EQUIPMENT DAMAGE
Most rechargeable battery-operated equipment uses a separate
charger or transformer that is plugged into an AC receptacle and
produces a low voltage charging output.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
Important: if you are unsure about using your rechargeable appliance with the
Freedom HF, contact the equipment manufacturer to find out if the appliance is
acceptable for use with modified sine wave input voltage. See the detailed
description of the Freedom HF waveform in Appendix A, “Specifications” under
“Electrical Specifications: Inverter Mode” on page A–2.

975-0390-01-01 xiii
Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -vii
1 Introduction
Freedom HF Inverter/Charger- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–2
Independent Power System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–3
2 Features

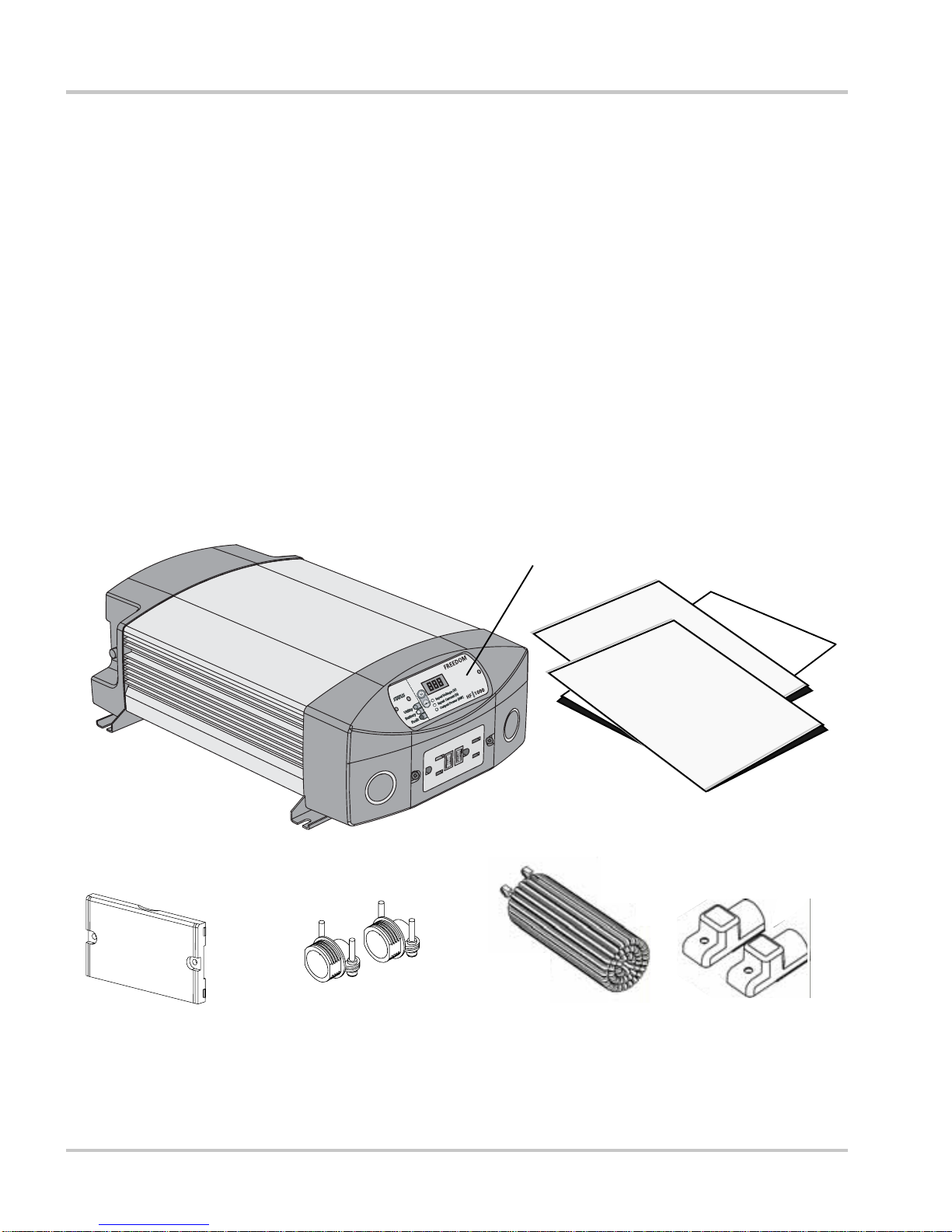

Materials List- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–2
Default Settings for the Freedom HF System- - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–3
Front Panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–3
Side Panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
Rear Panel- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
Display Panel- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–5
3 Configuration
Setting Battery Types on the Main Unit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–2
Adjusting Feature Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–3
4 Operation
Display Panel Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–2
Operating in Shore Power Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–3
Operating in Inverter Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–4
Turning the Inverter Function On and Off - - - - - - - - - - - - - - - - - - - - - - - - - - 4–4
Status LED During Inverter Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–5
Checking Battery Status - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–5
Checking Output Power - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–6
Operating Several Loads at Once - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–6
Turning the Audible Alarm ON or OFF - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–6
Operating During Transition Between Shore Power and Inverter Mode- - - - - - - - - - 4–7
Transitioning from Shore Power to Inverter Mode - - - - - - - - - - - - - - - - - - - - - 4–7
Transitioning from Inverter Mode to Shore Power - - - - - - - - - - - - - - - - - - - - - 4–7
Contents

Contents
xiv 975-0390-01-01
Operating Limits - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–8
Power Output - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–8
Input Voltage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–8
Inverter Loads - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–9
Overload Conditions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–9
High Surge Loads - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–9
Over-temperature Conditions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–10
Battery Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–11
Routine Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–13
Freedom HF Unit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–13
Batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–13
5 Troubleshooting
General Troubleshooting Guidelines - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–2
Common Problems- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–4
Buzz in Audio Equipment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–4
Television Reception - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–4
Warning Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–5
Troubleshooting Reference - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–8
Inverter Applications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–10
Resistive Loads - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–10
Motor Loads - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–11
Long Transfer Times - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–11
A Specifications
Electrical Specifications: Inverter Mode- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–2
Electrical Specifications: Charge Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–3
Environmental Specifications- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–4
System Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–4
Physical Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–4
Regulatory Approvals - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–4
Inverter Overload Operation- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -A–5
Invert Power Derating vs. Ambient Temperature- - - - - - - - - - - - - - - - - - - - - - - - -A–6
Charger Output Current vs. AC Input Voltage- - - - - - - - - - - - - - - - - - - - - - - - - - -A–7

1–1
1Introduction
Chapter 1 introduces you to the Freedom HF, explains
the inverting, charging, and power system management
functions.
It covers the following:
•Freedom HF’s major features, and
•Freedom HF’s function as an independent power
system.

1–2 975-0390-01-01
Freedom HF Inverter/Charger
Congratulations on your purchase of the Freedom HF Inverter/Charger
(Freedom HF). As part of the Freedom Inverter/Charger family, the
Freedom HF 1000 and Freedom HF 1800 give you quality power, worry-
free operation, and outstanding reliability. The Freedom HF’s integrated
inverting–charging functions and numerous power management features
make it ideal for marine installations, recreational and commercial
vehicles.
Quality Power The Freedom HF provides up to 1000 watts (Freedom HF 1000) or up to
1800 watts (Freedom HF 1800) of continuous modified sine wave power
from a battery bank. It is designed to handle loads such as a 600-watt
microwave (Freedom HF 1000) or 1000-watt microwave (Freedom HF
1800), TVs, VCRs, and midsized power tools.
The Freedom HF’s high surge capability lets you handle many hard-to-
start loads, including large TVs and small refrigerators.
The built-in transfer switch automatically transfers between inverter
power and incoming AC power (shore power) to ensure power is always
available.
The built-in charger automatically charges the battery bank when the
Freedom HF is connected to incoming AC power (shore power).
Comprehensive
Protection The Freedom HF’s built-in protection features safeguard your batteries
and equipment to give you worry-free operation:
•Thelow battery voltage alarm and shutdown prevents your
batteries from becoming completely discharged.
•Thethree-stage charging capability ensures that batteries receive
the “best” charge with minimal wear and tear.
• If the Freedom HF detects “bad” AC voltage, it switches
automatically to Inverter mode and supplies your equipment with
modified sine wave power derived from the batteries. When “good”
AC becomes available again, the Freedom HF allows the AC to pass
through to your loads and automatically begins to recharge the
batteries.
Reliable
Back-up If incoming shore power fails, the Freedom HF automatically detects the failure and instantly becomes an independent power source that supplies
quality AC to your loads.

Independent Power System
975-0390-01-01 1–3
Overload
Alarm and
Shutdown
During Inverter mode, the Freedom HF automatically alerts you if the
loads that are connected and drawing power from the unit are close to the
maximum operating limit.
The Freedom HF automatically shuts down when the maximum operating
limit is exceeded.
Over-temp
Alarm and
Shutdown
During Inverter mode, the Freedom HF automatically alerts you if it is
overheating and approaching the over-temperature shutdown limit.
The Freedom HF automatically shuts down when the limit is exceeded.
Independent Power System
Your Freedom HF has been designed to be the heart of a sophisticated,
independent power system. While the Freedom HF is an extremely
“friendly” product to operate, Xantrex wants to ensure that you get the
best performance from your system.
Inverting Freedom HF produces 120 Vac from your 12V batteries and is capable of
starting heavy loads like refrigerators and pumps.
When the Freedom HF is inverting (producing 120 Vac output) without a
load, it draws less than 1A of current from the battery (or battery bank).
This feature allows the unit to operate without draining too much stored
energy.
Charging For the inverter to perform effectively, the batteries must be charged
correctly. The unit has a built-in three-stage charging system that extends
the life and optimizes the performance of the batteries.
In addition to the numerous features which let you maximize your
battery’s life and performance, the Freedom HF—unlike many
chargers—also has the ability to recharge batteries even if the voltage is
near zero (sometimes called dead battery charging).

2–1
2Features
Chapter 2 contains information and labeled illustrations
to help identify the various features of the Freedom HF.
It covers the following:
• Materials list,
• Default settings list,
• Front panel features,
• Side panel features,
• Rear panel features, and
• Display panel features

2–2 975-0390-01-01
Materials List
Your Freedom HF Inverter/Charger package includes the items listed
below.
•1Freedom HF Inverter/Charger unit
• 1 Display panel with 7-inch (0.17 m) cable
• 1 Communications cable (25 feet) (7.5 m)
• 2 DC terminal covers
• 2 Strain-relief clamps (for AC input and output wiring)
• 1 Blanking plate
• 2 Reference materials–an Owner’s Guide and an Installation Guide
• 1 Set of mounting templates
• 1 Set of lock washers and nuts (not shown)
Figure 2-1 What’s In The Box
Owner’sGuide
Display panel is
attached to the unit.
mountingtemplate
Freedom HF unit
communications cable
DC terminal covers
InstallationGuide
blanking plate strain-relief clamps

Default Settings for the Freedom HF System
975-0390-01-01 2–3
Default Settings for the Freedom HF System
Table 2-1 lists the default settings for the Freedom HF system.
You may record your settings in the right-hand column after you have
configured the Freedom HF.
Front Panel
Table 2-1 Freedom HF Default Values
Item Default Setting Your Setting
Alarm* ON
Charger Current* 20A (Freedom HF 1000)
40A (Freedom HF 1800)
Battery Type ** Flooded(14.4/13.5)
* adjustable from the display panel.
** adjustable from the main unit behind the display panel assembly.
Feature Description
1Display panel displays inverter status and battery status information on the screen. The
panel can be detached to expose the dip switches behind it and to extend and mount the
panel on a wall or other location.
2GFCI receptacles provide 1000 W (Freedom HF 1000) or 1800 W (Freedom HF 1800) of
power to operate AC devices. The GFCI receptacles can be removed to access the AC
wiring compartment for hard wiring the inverter to an existing AC power system.
3 Knockouts for routing AC input and output wiring in hard wired installations.
4Mounting flange allows you to mount the inverter permanently.
RESET
TEST
TEST
RESET
FREEDOM HF 1000
2
4
1
3 3
Freedom HF 1000 shown
4 4

2–4 975-0390-01-01
Side Panel
Rear Panel
Feature Description
115 A supplementary protector provides overload protection for the GFCI receptacles. In
a hard wired installation, the supplementary protector does not protect output wiring.
2Grounding stud provides a ground path for the Freedom HF chassis to the DC system
ground.
3Main cooling fan turns on when powering loads above 500 W or when the internal
temperature reaches a set point temperature.
4Auxiliary cooling fan (Freedom HF 1800 only) performs the same function as the main
cooling fan.
Feature Description
1Negative DC cabling terminal connects to the negative terminal of the battery using a
battery cable.
2Ventilation grille (openings) must not be obstructed for the proper operation of the
cooling fan and inverter. When the inverter is mounted, the ventilation grille must not
point up or down.
3Positive DC cabling terminal connects to the positive terminal of the battery using a
battery cable.
4Serial number of your unit.
12
43
4
1
23Freedom HF 1000 shown

Display Panel
975-0390-01-01 2–5
Display Panel
Feature Description
1Inverter button is the main unit switch that turns the Freedom HF’s inverter function
ON or OFF. See page 4–2 for additional information.
2Three-digit LED display screen shows status information and fault codes. See page 4–2
for additional information.
3Status LED indicates the mode of operation with a three-color LED. See page 4–2
for additional information.
4Select button changes status information displayed on the display screen. See page 4–2
for additional information.
IMPORTANT: See Chapter 4, “Display Panel Operation” startingon page 4–2 for detailed
information on operating the panel’s buttons.
FREEDOM
HF 1000
Input Voltage (V)
Select
STATUS
Battery
Fault
Utility Input Current (A)
Output Power (kW)
4
12
3
Freedom HF 1000 shown

3–1
3Configuration
Chapter 3 explains how to configure the Freedom HF to
best meet your electrical system requirements.
It covers the following:
• Setting battery types on the main unit on page 3–2.
• Adjusting display, alarm, and charging current
settings on page 3–3.
