This guide for use by qualified installers only.
Freedom SW 3000
Sine Wave Inverter/Charger
Installation Guide
FREEDOM SW 3000
Inverter
Reset Enable Inverter AC/
On Charge Fault
Xanbus Interface
FREEDOM SW 3000
Inverter
Reset Enable Inverter AC/
On Charge Fault
Xanbus Interface
Dateof Manufacture
SerialNumber
CAUTION:
Toreduce the risk of fire, do not
coveror obstruct ventilation openings. Donot mount
ina zero-clearance compartment. Overheatingmay
result. Do not expose to rain or spray.
INSTALLATION REQUIREMENTS:
Mountthis inverter/charger only in the orientations
specifiedin the installation guide provided.
WARNING:
Shockhazard. Donot open. No
userserviceable parts. Energizedfrom both AC and
DCsources. Disconnectall sources before servicing.
Useonly ground-fault circuit interrupters (GFCI)
specifiedin the installation guide supplied. Other
typesmay fail to operate properly when connected to
thisequipment. Referto manual. Charge only
lead-acidbatteries. Otherbattery types may burst
causingpersonal injury and damage.
NominalDC Operating Voltage: 12 Vdc
NominalAC Output Voltage: 120 Vac ,1Ø
NominalAC Output Frequency: 60 Hz
Max.Continuous AC Output Current: 25 A
Max.Operating DC Input Current: 320 A
Max.Continuous AC Output at Nominal DC
Input:3000 VA at 25°C
Max.Output Surge Power (5 s duration): 6000 VA
Max.DC Input Voltage: 16 Vdc
Max.Ambient Temperature: 50°C
Inverter Mode:
NominalAC Input Voltage: 120 Vac ,60 Hz, 1Ø
PowerFactor: > 0.95
ChargingDC Output Voltage Range: 5.0 - 16.0 Vdc
Max.Continuous Battery Charger DC Current at
NominalAC Input: 150 A
Max.AC Input Current: 30 A per line Split Phase,
30 A per line Dual
Charger Mode:
3000WSINEWAVE INVERTER/CHARGER
FSW3000
815-3000
Model
Number
FGA
Number
FREEDOMSW 3000
Designedin Canada
Assembledin China
DANGER:
Toreduce the risk of explosion, do not
installin an area in which ignition-protected
euipmentis required.
UL458
CSA107.1-01
3033614
FREEDOM SW 3000
FREEDOM SW 3000

975-0546-01-01 i
This guide for use by qualified installers only.
About Xantrex
Xantrex Technology Inc. (www.xantrex.com), a subsidiary of Schneider Electric, is a
world leader in the development, manufacturing and marketing of advanced power
electronic products and systems for the renewable and mobile power markets. The
company's products convert and control raw electrical power from any central,
distributed, renewable, or backup power source into high-quality power required by
electronic equipment and the electricity grid. Xantrex is headquartered in Vancouver,
Canada, with facilities in the United States, Germany, Spain, and a joint venture in
China.
Trademarks
Xantrex and Smart Choice for Power are trademarks of Schneider Electric
International Services sprl, registered in the U.S. and other countries. Other
trademarks, registered trademarks, and product names are the property of their
respective owners and are used herein for identification purposes only.
Notice of Copyright
Freedom SW 3000 Sine Wave Inverter/Charger Installation Guide © January 2010
Xantrex Technology Inc. All rights reserved. No part of this document may be
reproduced in any form or disclosed to third parties without the express written
consent of: Xantrex Technology Inc., 161-G South Vasco Road, Livermore,
California, USA 94551. Xantrex Technology Inc. reserves the right to revise this
document and to periodically make changes to the content hereof without obligation
or organization of such revisions or changes unless required to do so by prior
arrangement.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, XANTREX TECHNOLOGY INC. (“XANTREX”)
(A)MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY
TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION;
(B)ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES,
WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE
OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY
AT THE USER’SRISK; AND
(C)REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH,
ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE
ACCURACY CANNOT BE GUARANTEED. APPROVED XANTREX CONTENT IS CONTAINED WITH THE
ENGLISH LANGUAGE VERSION WHICH IS POSTED AT WWW.XANTREX.COM.
Date and Revision
January 2010 Rev A
Document Part Number
975-0546-01-01
Product Number
815-3000
Contact Information
Telephone: [phone] (toll free North America)
1 408 987 6030 (direct)
Fax: [phone] (toll free North America)
Email: [e-mail]
Web: www.xantrex.com

ii Freedom SW 3000 Installation Guide
About This Guide
Purpose
The purpose of this Owner’s Guide is to provide procedures for installing
the Freedom SW 3000 Inverter/Charger.
Scope
The Guide provides safety guidelines as well as information on installing
the inverter/charger. It does not provide details about particular brands of
batteries. You need to consult individual battery manufacturers for this
information.
Audience
The Guide is intended for qualified installers who need to install and
configure the Freedom SW 3000 Inverter/Charger.
The installer should have knowledge and experience in installing electrical
equipment, knowledge of the applicable installation codes, and awareness
of the hazards involved in performing electrical work and how to reduce
those hazards. A qualified technician or electrician has this knowledge and
experience.
Conventions Used
The following conventions are used in this guide.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions will result in death or serious
injury.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can result in death or serious
injury.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can result in minor or moderate
injury.

975-0546-01-01 iii
This guide for use by qualified installers only.
Related Information
You can find more information about Xantrex Technology Inc. as well as
its products and services at www.xantrex.com.
NOTE: The Installation Guide (Document Part Number: 975-0545-01-01) is
primarily intended for qualified installers who need to install and configure
the Freedom SW 3000 Inverter/Charger. The installer should have
knowledge and experience in installing electrical equipment, knowledge of
the applicable installation codes, and awareness of the hazards involved in
performing electrical work and how to reduce those hazards. A qualified
technician or electrician has this knowledge and experience.
STATEMENT OF HAZARD
Contains statements of avoidance or strict compliance.
Failure to follow these instructions can damage the unit and/or
damage other equipment.
IMPORTANT: These notes describe things which are important for you to
know, however, they are not as serious as a caution or warning.

iv Freedom SW 3000 Installation Guide
Important Safety Instructions
IMPORTANT: READ AND SAVE THIS INSTALLATION GUIDE FOR
FUTURE REFERENCE.
This chapter contains important safety and installation instructions for the
Freedom SW 3000 Inverter/Charger (Freedom SW 3000). Each time,
before using the Freedom SW 3000, READ ALL instructions and
cautionary markings on or provided with the inverter/charger, the batteries,
and all appropriate sections of this guide.
NOTE: The Freedom SW 3000 contains no user-serviceable parts. See
“Warranty and Return Information” on page 65 of the Owner’s Guide for
guidance.
NOTE: Turning off the inverter/charger using the on/off switch on the front
panel will not reduce an electrical shock hazard.
ELECTRICAL SHOCK HAZARD
• Do not expose the Freedom SW 3000 to rain, snow, spray, or bilge
water. This inverter/charger is designed for indoor use only.
• Do not operate the inverter/charger if it has received a sharp blow,
been dropped, has cracks or openings in the enclosure including if the
fuse cover has been lost, damaged, or will not close, or otherwise
damaged in any other way.
• Do not disassemble the inverter/charger. Internal capacitors remain
charged after all power is disconnected.
• Disconnect both AC and DC power from the inverter/charger before
attempting any maintenance or cleaning or working on any circuits
connected to the inverter/charger. See note below.
• Do not operate the inverter/charger with damaged or substandard
wiring. Make sure that all wiring is in good condition and is not
undersized.
Failure to follow these instructions will result in death or serious
injury.

975-0546-01-01 v
This guide for use by qualified installers only.
NOTES:
1. Follow these instructions and those published by the battery
manufacturer and the manufacturer of any equipment you intend to use
in the vicinity of the battery. Review cautionary markings on these
products and on the engine.
2. This inverter/charger contains components which tend to produce arcs
or sparks.
3. Locations include any space containing gasoline-powered machinery,
fuel tanks, as well as joints, fittings, or other connections between
components of the fuel system.
FIRE AND BURN HAZARD
• Do not cover or obstruct the air intake vent openings and/or install in
a zero-clearance compartment.
• Do not use transformerless battery chargers in conjunction with the
inverter/charger due to overheating.
Failure to follow these instructions will result in death or serious
injury.
EXPLOSION HAZARD
• Charge only properly rated (such as 12 V) lead-acid (GEL, AGM,
Flooded, or lead-calcium) rechargeable batteries because other
battery types may explode and burst.
• Do not work in the vicinity of lead-acid batteries. Batteries generate
explosive gases during normal operation. See note #1.
• Do not install and/or operate in compartments containing flammable
materials or in locations that require ignition-protected equipment.
See notes #2 and #3.
Failure to follow these instructions will result in death or serious
injury.

vi Freedom SW 3000 Installation Guide
Precautions When Working With Batteries
NOTES:
1. Mount and place the Freedom SW 3000 Inverter/Charger unit away
from batteries in a well ventilated compartment.
2. Always have someone within range of your voice or close enough to
come to your aid when you work near a lead-acid battery.
3. Always have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
4. If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters your eye, immediately flood it with running
cold water for at least twenty minutes and get medical attention
immediately.
5. Use extra caution to reduce the risk or dropping a metal tool on the
battery. It could spark or short circuit the battery or other electrical
parts and could cause an explosion.
6. Batteries can produce a short circuit current high enough to weld a ring
or metal bracelet or the like to the battery terminal, causing a severe
burn.
7. When removing a battery, always remove the negative terminal from
the battery first for systems with grounded negative. If it is grounded
positive, remove the positive terminal first. Make sure all loads
connected to the battery and all accessories are off so you don’t cause
an arc.
BURN FROM HIGH SHORT-CIRCUIT CURRENT, FIRE AND EXPLO-
SION FROM VENTED GASES HAZARDS
• Always wear proper, non-absorbent gloves, complete eye protection,
and clothing protection. Avoid touching your eyes and wiping your
forehead while working near batteries. See note #4.
• Remove all personal metal items, like rings, bracelets, and watches
when working with batteries. See notes #5 and #6 below.
• Never smoke or allow a spark or flame near the engine or batteries.
• Never charge a frozen battery.
Failure to follow these instructions can result in death or serious
injury.

975-0546-01-01 vii
This guide for use by qualified installers only.
Precautions When Preparing to Charge
NOTES:
• Study and follow all of the battery manufacturer's specific precautions,
such as removing or not removing cell caps while charging, whether
equalization is acceptable for your battery, and recommended rates of
charge.
• For flooded non-sealed batteries, add distilled water in each cell until
battery acid reaches the level specified by the battery manufacturer.
This helps to purge excessive gas from cells. Do not overfill. For a
battery without removable cell caps, carefully follow manufacturer's
instructions.
Precautions When Placing the Inverter/Charger
EXPOSURE TO CHEMICALS AND GASES HAZARD
• Make sure the area around the battery is well ventilated.
• Make sure the voltage of the batteries matches the output voltage of
the inverter/charger.
• Be careful to keep corrosion from coming into contact with your eyes
and skin when cleaning battery terminals.
Failure to follow these instructions can result in death or serious
injury.
RISK OF DAMAGE TO THE INVERTER/CHARGER
• Never allow battery acid to drip on the inverter/charger when reading
gravity, or filling battery.
• Never place the Freedom SW 3000 Inverter/Charger unit directly
above batteries; gases from a battery will corrode and damage the
inverter/charger.
• Do not place a battery on top of the inverter/charger.
Failure to follow these instructions can damage the unit and/or
damage other equipment.

viii Freedom SW 3000 Installation Guide
Regulatory
The Freedom SW 3000 Inverter/Charger is certified to appropriate US and
Canadian standards. For more information see “Regulatory Approvals” on
page 68 of the Owner’s Guide.
The Freedom SW 3000 Inverter/Charger is intended to be used for
residential or commercial applications. It is not intended for other
applications as it may not comply with the additional safety code
requirements needed for those other applications. See “Limitations On Use”
below.
LIMITATIONS ON USE
• Do not use in connection with life support systems or other medical
equipment or devices.
• Do not use in ambulances or other life-saving emergency vehicles.
Failure to follow these instructions can result in death or serious
injury.

This guide for use by qualified installers only.
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Materials List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
About the Xanbus System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Xanbus Enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
System Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Planning the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Two Key Performance Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Size and Length of DC Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mounting Location of the Freedom SW 3000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
AC, DC, and Network Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
AC Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC Disconnect and Over-Current Protection Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Distribution Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
AC Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
AC Output Neutral Bonding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Contents

DC Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DC Disconnects and Over-Current Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DC Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DC Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Unpacking and Inspecting the Freedom SW 3000 Inverter/Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the Inverter/Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Step 1: Choosing a Location for the Inverter/Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Step 2: Mounting the Inverter/Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Step 3: Connecting the AC Input and AC Output Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
General AC Wiring Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting AC Input Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting the AC Output Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Step 4: Connecting the DC Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DC Connection Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Recommended Cable Sizes and Lengths and Fuse Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Preparing the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Guidelines for Routing the DC Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Connecting the DC Cables to the Inverter/Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
DC Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

This guide for use by qualified installers only.
Step 5: Connecting the Battery Temperature Sensor (BTS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Mounting to the Negative Battery Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Mounting to the Side of the Battery Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Step 6: Connecting to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Step 7: Performing Checks Prior to Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Step 8: Testing Your Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Testing in Invert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Testing in Charge Mode and AC Bypass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Inverter/Charger Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Battery Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Battery Bank Sizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Estimating Battery Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Calculating Battery Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Battery Banks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Battery Bank Sizing Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Restrictions on Motor Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Cabling and Hook-up Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Parallel Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Series Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Series-Parallel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

975-0546-01-01 1
This guide for use by qualified installers only.
Introduction
The Installation Guide provides detailed information for installing the
Freedom SW 3000 Inverter/Charger and the battery temperature sensor,
wiring the inverter/charger to the AC and DC circuits, and connecting the
inverter/charger to the Xanbus® system.
The Freedom SW 3000 is a Xanbus-enabled device that typically powers
the Xanbus system. For information on installing the Xanbus system, see
the Xanbus System Installation Guide which is available for download at
www.xantrex.com
This Installation Guide provides:
• safety instructions that must be observed during installation,
• a typical Xanbus system diagram,
• information on additional required AC and DC components,
• a list of installation tools and materials, and
• detailed procedures for a typical installation.

2Freedom SW 3000 Installation Guide
Introduction

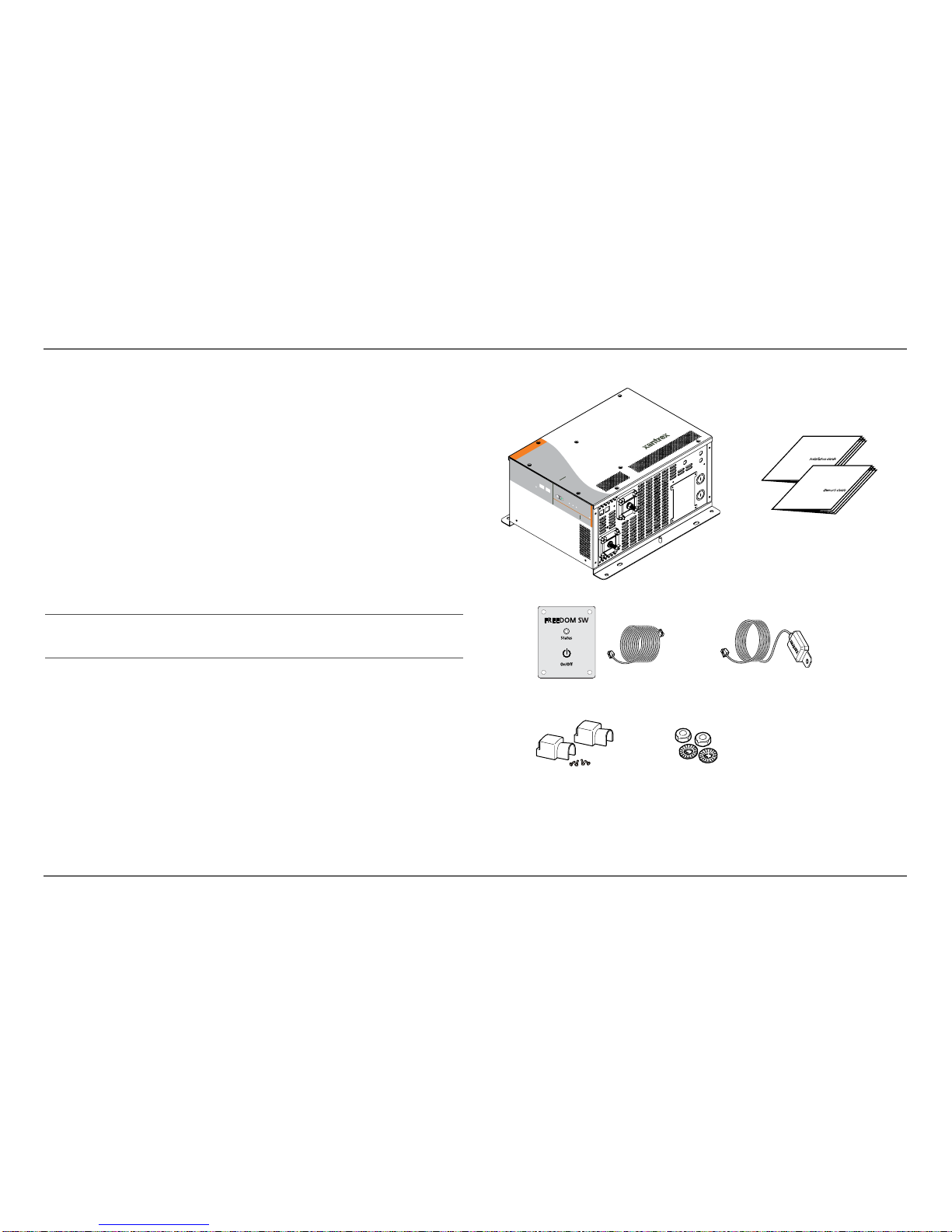

Materials List
The Freedom SW 3000 ships with the following items:
• one Freedom SW 3000 unit,
• owner’s and installation guides,
• Battery Temperature Sensor (BTS),
• Freedom SW remote panel with 25-foot communications cable,
• DC terminal covers (one red, one black) with two sets of screws, and
• two sets of nuts and washers for the DC terminals.
NOTE: If any of the items are missing, contact Xantrex or any authorized
Xantrex dealer for replacement. See “Contact Information” on page i.
IMPORTANT: Keep the carton and packing material in case you need to
return the Freedom SW 3000 for servicing.
Figure 1 Materials List
REMBTS
FREEDOMSW3000
Inverter
ResetEnableInverterAC/
OnChargeFault
XanbusInterface
FREEDOMSW3000
Remote Panel with
communications cable
BTS
DCterminalcovers
with screws nuts and washers
Freedom SW 3000
Installation and
Owner’s Guides

975-0546-01-01 3
This guide for use by qualified installers only.
Installation Information
Before You Begin the Installation
Before beginning your installation:
• Read the entire Installation Guide so you can plan the installation from
beginning to end.
• Read the Xanbus System Installation Guide to plan your network
requirements.
• Assemble all the tools and materials you require for the installation.
• Review the Important Safety Instructions on page iv.
• Be aware of all safety and electrical codes which must be met.
Installation Codes
Applicable installation codes vary depending on the specific location and
application of the installation. Some examples are:
• The U.S. National Electrical Code (NEC)
• The Canadian Electrical Code (CEC)
• Canadian Standards Association (CSA) and RV Industry Association
(RVIA) for installation in RVs.
ELECTRICAL SHOCK AND FIRE HAZARDS
• All wiring should be done by qualified personnel to ensure
compliance with all applicable installation codes and regulations.
• Disconnect all AC and DC power sources.
• Disable and secure all AC and DC disconnect devices and automatic
generator starting devices.
Failure to follow these instructions will result in death or serious
injury.

4Freedom SW 3000 Installation Guide

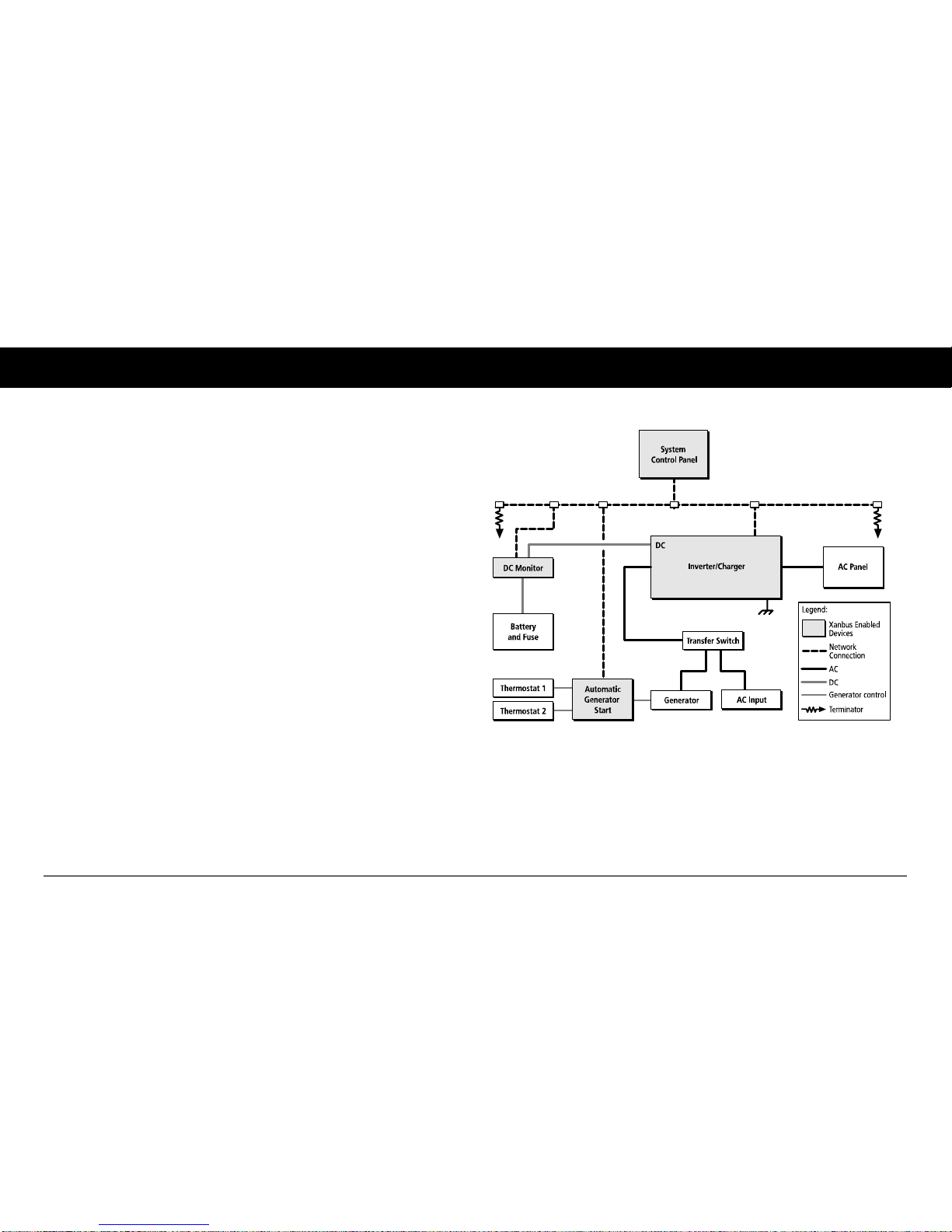

About the Xanbus System
The Xanbus system includes the Freedom SW 3000 Inverter/Charger and
other Xanbus-enabled devices, as shown in Figure 1, “Typical Xanbus
System Diagram”. Each Xanbus-enabled device interacts and
communicates with the other devices on the network, creating a power
system that can be precisely configured to your needs.
The Freedom SW 3000 is the device that typically provides power in a
Xanbus system. The System Control Panel (SCP) provides configuration
and monitoring capability for each device connected to the Xanbus system,
such as the Automatic Generator Start (AGS) and the Freedom SW 3000.
In Figure 1, network connections are represented by dotted lines and
conventional electrical connections are represented by solid lines. Your
system requirements may be more complex than the basic installation
shown in Figure 1. Xantrex recommends that you consult a qualified
installer or electrican to customize your installation to meet your
requirements.
Figure 1 Typical Xanbus System Diagram
AC In AC Out

975-0546-01-01 5
About the Xanbus System
This guide for use by qualified installers only.
Xanbus Enabled
The Xanbus-enabled designation means that this product will work on a
Xanbus network. Xanbus-enabled products are:
• Easy to use. The Xanbus network simplifies operation and automates
routine tasks.
• Reliable. Software control eliminates analog signalling errors.
• Accurate. Digital information is less susceptible to interference and
line loss.
• Upgradeable. Firmware upgrades mean your purchase will remain up
to date.
For detailed instructions and a complete list of Xanbus-enabled devices,
visit the website at www.xantrex.com.
System Accessories
System accessories currently available which are Xanbus-enabled include
the System Control Panel and Automatic Generator Start. These system
accessories are available from any authorized Xantrex dealer or at
www.xantrex.com. Please provide the part number of the accessory to the
dealer.
Other Xanbus-enabled devices will become available in the future.

6Freedom SW 3000 Installation Guide
Planning the Installation
This section provides information to help you plan for a basic installation of
the Freedom SW 3000.
As your system configuration is determined, record the details in
Information About Your System of the Freedom SW 3000 Sine Wave
Inverter/Charger Owner’s Guide.
Two Key Performance Factors
Two key factors in particular will have a major impact on system
performance.
Size and Length of DC Cables
To select the appropriate size and length of DC cables, see “DC Cabling” on
page 13.
The DC cables should be as short as possible and large enough to handle the
required current, in accordance with the electrical codes or regulations
applicable to your installation. If there are long battery cables which are in
excess of 10 feet each and not of sufficient size, the voltage drop across the
cables will have a negative impact on overall system performance.
Mounting Location of the Freedom SW 3000
To choose an appropriate location for mounting the inverter/charger, see
“Step 1: Choosing a Location for the Inverter/Charger” on page 18.
