XO Vision XO1915BT User manual

XO1915BT
MADE IN CHINA
In-Dash Mobile Video System

1
Band
Band tuner
APS/ST
Warnings and Precautions...........................................2
Electric Connection .... 4........................................... .....
Installation.................................................................5
General Features........................................................6
System setting............................................................12
Radio Operation ........................................ ..............16
Remote Control..........................................................7
Accessories............................................................17
Specifications ................................................. ........23
Video
Audio
System
Contents
Reception collection
Speaker collection
Install the unit
Remove the unit
Loading and Replacing the battery
Basic operation
USB/SD operation.......................................................11
USB/SD PLAYER
Bluetooth........................................................14
TV tuner...................................................................13
Play Operation............................................................9
Troubleshooting......................................................18
Familiar characters and their meanings
General problems
TFT Monitor
Radio Tuner
Mp3 playback
DVD player

2
Warnings and Precautions
1  Only connect the unit to a 12V power supply with negative grounding.
Never install the unit where the operation for safety driving is restrained.
Never use the video display function in the front when driving to prevent the violation of laws
regulations and also to reduce the risk of traffic accident except using for rear view video camera.
Never expose the unit, amplifier, speakers to moisture or water to prevent electronic sparks or fires.
Please don't change the fuse in the power cord without professional guidance, improper fuse may
cause damage to this using unit or even cause fire.
Please power off the unit at once and send it back to the after-sales service center or the dealer/
distributor yo purchased from if one of the following symptoms is found:
(a)NO audio output; (b)NO image output;(c)Water or other obstacle enters the unit; (d)Smoking;
(e)Peculiar smell.
To ensure safe driving, please adjust the volume to a safe and comfort level in case of emergency
situations.
2
3
4
5
6
7






Warnings

3
1
2
3
4
5
6
7
8
9
10
11











Never disassemble or adjust the unit without any professional guide. For details, please consult any professional car shop/
dealer for inquiry.
If the front panel or the TFT monitor is squalid, please use a clean silicone cloth and neutral detergent to wipe off the spot.
Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the
applicant.
If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this manual. If no relevant information is
found , please press the [RESET] key on the front panel to resume factory default.
If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal
before operating the unit.
Using in-car heater in low temperature environment may result in beads coagulate inside the unit. DO NOT use the unit in this
situation, eject the disc and wipe off the bead on the disc. If the unit still doesn
No fierce impact to the LCD monitor when it is in open position for preventing the damage to any mechanisms inside.
To prevent the damage to the screen, avoid touching it with sharp objects.
The monitor employs auto motorizing mechanism, please do
To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations
are used. However, these illustrations are some different from the actual images displayed in the unit.
During operation the unit," "is displayed if the particular operation is not available or illegal.
Operate the unit correctly according to this manual to prevent. Unnecessary problem. The guarantee won
't work after a few hours, please contact with
after-sales service center.
n't push, pull, or swivel the monitor manually to prevent damage
to any mechanisms inside.
't be valid if the
problem is caused by inappropriate operation.
Precautions
Warnings and Precautions

Electric Connection
White/Black
Gray
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
Green
Ignition wire(Red)
Battery wire(Yellow)
Ground wire(Black) (To car chassis)
Fuse(10A)
Battery
Car fuse box
(Main fuse)
Ignition key
sw tchi
White
Gray/Black
Green/Black
Purple
Purple/Black
10
(RED)
(WHITE)
Light wire
Gray
Gray
BROWN
SUBWOOFER
AUX LEFT IN
AUX RIGHT IN
VIDEO IN
(YELLOW)
BACK A CAR VIDEO IN
()YELLOW
Connect control for antenna
Back car detecting wire
Brake detecting wire
Remote control for amplifier.
FRONT RIGHT RCA OUT
FRONT LEFT RCA OUT (WHITE)
(RED)
VIDEO OUT (YELLOW) Gray
Gray
Brown
Pink
Blue
Orange
Front.L
Front.R
Rear.L
Rear.R
FM/AM antenna input

Warning
Before installation, pls make
conference to the chart.
Breaking wire: The unit will
without displayif not connect
with the breaking wire.
TV ANTENNA PLUG
(Without TV tuner,
without this wire.)
4

5
Before installing the receiver, fit it in the suitable place of
your car. Then connect the corresponding speakers and
electrical connections. When your system is operated properly,
follow the instructions installation
1) Adapter
(not supplied)
2)Bend over the slices
(supplied)
Slices
(supplied)
3) Two keys for releasing
the unit (supplied)
INSTALL THE UNIT
1)Install the bracket
2)Bend over some slices to secure the
installation of bracket inside of dash.
3)To avoid shake of the receiver, make
sure to install the fixation strap behind
the receiver.
Insert the keys into the small gaps in
the right and left sides of the unit at
the same time. Link the keys to the
slices and then pull out the unit lightly
to remove it from your car, and then
pull out the connection plugs.
REMOVE THE UNIT
Installation

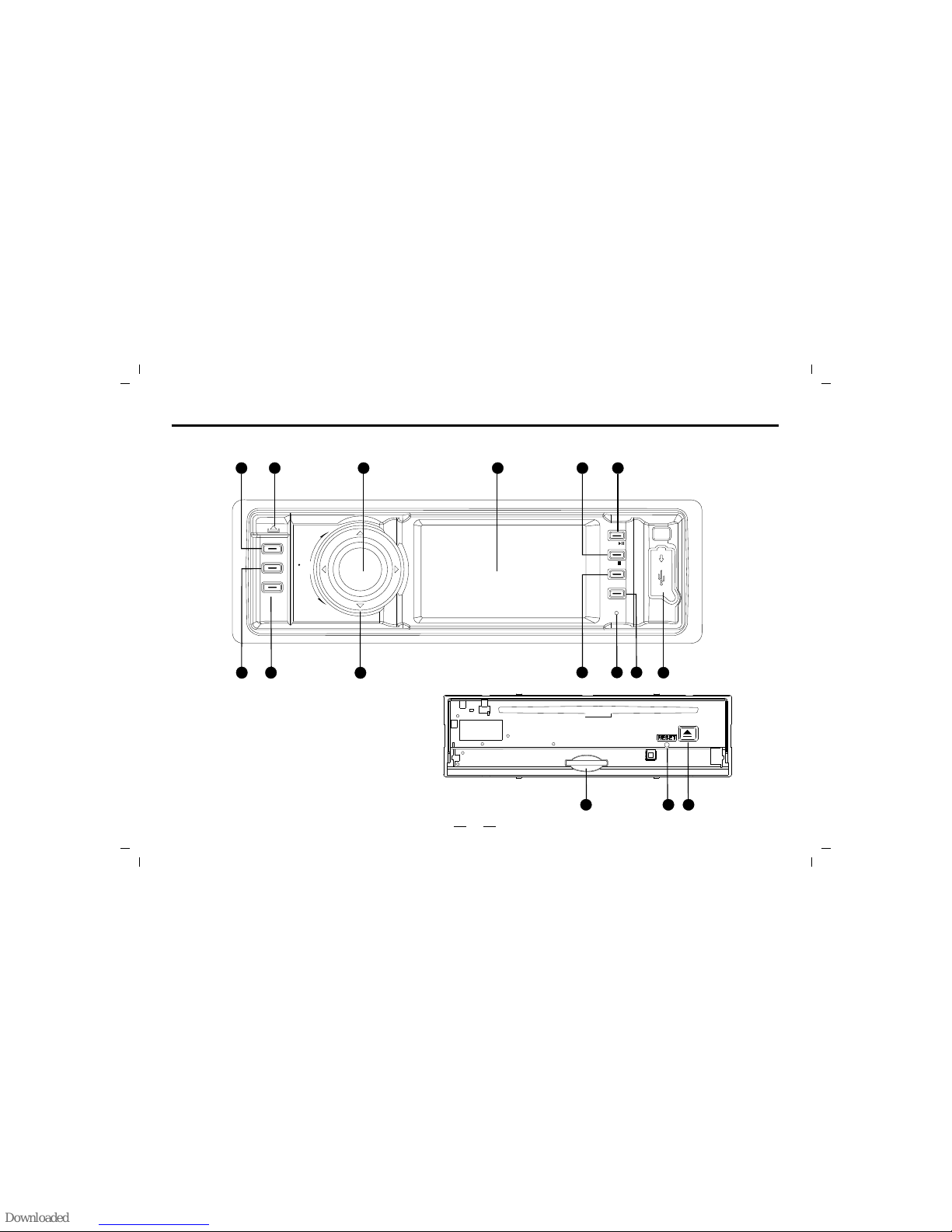

General Features
MUTE/PTY
PUSH
ENTER
VOL
MIC
MENU
BAND
SOURCE
ST/RPT/TA
CLK/ /AF
APS/
10
1
2
11
13 12
6
9
6
4
3
8
57
15 1614
Note: This unit doesn't have RDS function,
AF/TA/PTY neither. 

9
6
8
7
4
35
7
General Features
MUTE/PTY
PUSH
ENTER
VOL
MIC
MENU
BAND
SOURCE
ST/RPT/TA
CLK/ /AF
APS/
10
12
11
13 12
Remove Panel: Press[ ]to remove the panel.
MENU Button: System setting.
BAND Button: Band switch.
SOURCE Button : Play source switch.
Four Directions Button: Select the menu through up/down/
left/right direction.
ST/RPT/TA Button: Sound track switch/Repeat/
Traffic Broadcast.
MIC.
MUTE/PTY Button: Mute/Program style.
USB Port.
APS/ Button: Play/Pause/Reception Scan.
CLK/ /AF Button: Clock/Stop/Reception Scan.
TFT-LCD screen.
VOL Button.
SD Slot.
Reset Button.
[ ]Button: To eject the DISC.

Pull out
Loading and replacing the battery
Remote Control
Notes of remote control using:
Aim the remote controller at the remote sensor on the unit.
Remove the battery from the remote control or insert a
battery insulator if the battery has not been used for a
month or longer.
DO NOT store the remote control under direct sunlight
or in high temperature environment, or it may not function
properly.
The battery can work for 6 months under normal condition.
If the remote control can't work, please change the battery.
Use(button shaped) lithium battery(CR-2025)only.
DO NOT recharge, disassemble, heat or expose the battery
in fire.
Insert the battery in proper direction according to the
1)
2)
3)
4)
5)
6)
7) (+)
and ( - ) poles.
Store the battery in a place where children cannot reach to
avoid risk of accident.
8)
10
1
2
3
4
5
6
7
8
9
12
15
13
11
16
14
10

Remote Control
8
Button and Function
5
1
3
4
2
MuteMute
Sub-TSub-T
BandBand
APSAPSAPSAPSAPSAPS
EQEQEQEQ S TST
R/LR/L N/PN/P
SRCSRC
PWRPWR
1123
456
78 9
0
EnterEnter
SELSEL
CLKCLK
TitleTitleTitleTitle
SetupSetup
AFAF
TATA
PTYPTY
RDMRDM
PRGPRG
RPTRPT
PBCPBC
OSDOSD
I D3ID3
##
ABCABC DEFDEF
GHIGHI JKLJKL MNOMNO
PQRSPQRS TUVTUV WXYZWXYZ
GotoGotoRO/SNRO/SN
10+10+
**
LanguageLanguage AngleAngle
7
6
[BAND/RDM] Button: Band switch/Play randomly
[APS/PRG] Button: Scan/Program
[ST/RPT] Button: Stereo switch/Repeat
[ ]Button: Play/Pause
[ ]Button: Stop
[Setup] Button: Menu setting
[Title] Button: Title Menu
[ENTER] Button: Play/Confirm
[ ][ ][ ][ ]Button: Up/down/left/right button
[0~9]Button:0~9
[GOTO] Button: GOTO search
[RO/SN] Button: Radio scan
[AF] Button: Search stations automatically
[TA] Button: Traffic broadcast
[PTY] Button: Program style
[ ]Button: Forward/Next chapter
[ ]Button: Rewind/Last chapter
[+/-]Button: Increase/recluce volume
[SEL] Button: System setting
[CLK] Button: Clock display
[EQ] Button: Sound effect
[N.P/ANGLE] Button: Video switch/Angel Adjustment
[R.L/LANGUAGE] Button: Left/right sound track switch
dialogue language.
[PWR] Button: Power
[REC/Sub-T]Button: Transfer recording/Language switch
[MUTE] Button: Mute
[SRC] Button: Play source switch
Note: Remote picture just for confernce.

Note: This unit doesn't have RDS function, AF/TA/PTY neither.
This unit doesn't have bluetooth function, [ ]/[ ] neither.

1
2
3
4
5
6
7
[ ] Button: Ring on
[OSD/ Id3] Button: Screen Display/ Id3 information
[ ] Button: Ring off
RECREC

SRC/PWR
Press[ ] to eject the disc.
Eject
EJECT:
About 10 seconds after the disc ejected ,if not
taken out, the disc will be absorbed in again.
NOTE:
Press [SRC] button shortly will turn the unit on. Hold [SRC]
button down will turn the unit off.
Volume
Increasing Volume:
Decreasing Volume:
Rotate the VOL button in .counterclockwise direction
NOTE: When the power is on, press [SRC] button will show the
following picture, touch the certain icon to select the exact function
needed.
Rotate the VOL button in anticlockwise direction.
Press [APS/ ] button to play or pause.
Play/pause:
PLAY/PAUSE
NOTE:
Press [VOLUME] button can play too.
Gray icon can not use.
NOTE:
:
CLK/
VOLSRC/PWR
/APS
MENU
MUTE/PTY
PUSH
ENTER
VOL
MIC
MENU
BAND
SOURCE
APS/
MUTE/PTY
ST/RPT/TA
CLK/ /AF
CLK: In reception state, press this button will display the time,
but can not adjust the time.(Time adjust, turn to P12,
system setting.)
Note: If the unit does not have this function, please skip it.
MUTE
Press this button to turn off volume and again to resume.
Note: If the unit does not have this function, please skip it.
9
Play operation
In the play mode, press[ ]button once to pause, press it
again to stop. Press [SRC] button to switch the following if the unit is without
touch function.
RADIO DVD
SD
AUX
USB
TV

REP ONE REP DIR REP ALL REP OFF
10
Play operation
Hold [ / ] button down;
Select chapter or section: In the DVD mode, press [ / ] to
choose the last chapter; press [ / ] to choose the next chapter.
Forward:
Rewind: Hold [ / ] button down.
In the play mode, press[ RPT ] on the screen or on the
remote control to transit among the following status.
Repeat
Repeat:
TIT
Title:
In play mode, press [TIT] on the screen or remote control to
back to the title menu, and re-select the items needed.
R/L
R/L:
In VCD/CD/DVD mode, press [R/L]on the screen or remote
to switch among mono L mono R or stereo.  control
ESC
Esc:
In play mode, press this button to exit the playing.
Insert MP3 disc, and TFT will show the menu as follows:
In this menu, the menu on the right side is the sub-menu.
You can press tu button to select the file and items
you like.
[ ][ ]
1-001_______MP31-001_______MP3
2-002_______MP32-002_______MP3
3-004_______MP33-004_______MP3
010 1
XXXXX_______XXXXXXXX_______XXX
XXXXX_______XXXXXXXX_______XXX
XXXXX_______XXXXXXXX_______XXX
 
Insert DVD/VCD/CD disc, touchscreen will show menu as follows:
Note:Because the different situation of Disc REC, some of the CD-R,
CD-RW,DVD-R,DVD-RW,DVD+R,DVD+RW Disc may can not be readed.
And the Disc without final treatment can not be readed too. Regarding the
final treatment, please make conference to the guide of REC set or
REC manual.
Note: Without touch function, with this display.

USB/SD operation
11
USB
PUSH
ENTER
VOL
MIC
MENU
BAND
SOURCE
APS/
CLK/ /AF
ST/RPT/TA
MUTE/PTY
Under USB or SD play mode, press[ ] button to select
tracks.
Press [ST/RPT] button to repeat the playing.
Play operation
Press [ ] button to play or pause.
,
REP ONE REP DIR REP ALL
Press button to play the disc randomly.[BAND]
RDM OFF RDM ON
PLAY/PAUSE:
Select:
REPEAT:
BAND:
REP OFF
Inserting the USB device
Press the OPEN button on the panel.
Remove the panel.
Insert the SD/MMC card into SD/MMC compartment on the
inner side. Then the playing mode will be changed into SD
mode automatically. The first card track playback will start.
Insert the USB device into the USB slot on the front panel.
Then the playing mode will be changed into USB mode
automatically. The first USB device track playback will start.
3
Inserting the SD/ MMC card
1
2
4
Disc slot
Eject button
SD card slot
RESET button
1.
2.
3.
4.
Inner panel:
Press the open button on the front panel to flip it down.

12
Press[ MENU ]button 
MENU
V d o mode:i e Menu operation
Audio mode:
System mode:
V d o setupi e
Bright Color Contrast Tint   
Vmode
STAN USER
BRIG SOFT
Audio setup
Audio setup Bass Treble Balance Fader
setup between 0~14.
   
EQ setting 
NORM ROCK
CLAS POP
System setup
Loud ON and OFF 
Beep ON and OFF 
TOPIC: can set the receive topic as RED /YELLOW
BLUE /GREEN .
Time Display ON and OFF 
Time Adjust press [ ] or[ ] button to select hour/minute
then press [ ]or [ ]button to setup.

System setting
ENTER MENU:
Menu operation
Menu operation
15
VIDEO AUDIO SYSTEM
BRIGHT
COLOR
CONTRAST
TINT
VMODE
13
14
14
15
STAN
ESC
Vd oi e Audio System
0
0
0
0
NORM
ESC
Vd oi e Audio System
ESC
Press[ ] to adjust.
Press to confirm and exit.[ ]
Clicks on the menu option
ESC
Press[ ] to adjust.
Press to confirm and exit.[ ]
Clicks on the menu option
ESC
Press[ ] to adjust.
Press to confirm and exit.[ ]
Clicks on the menu option
ESC
BASS
TREBLE
BALANCE
FADER
EQ
LOUD
BEEP
TOPIC
TIME DISP
TIME ADJ
OFF
ON
GREEN
OFF
00:00

13
[ ](CHANNEL):up
[ ](CHANNEL):down
TV tuner
Preparation:
TV tuner
To receive TV broadcasts, install the TV antenna.
For receiving TV broadcasts, stop your car where there is no
obstacle to broadcast reception around.
Press [SRC] button or touch [AMS] can scan and store TV
program automatically.
TV Scanning:
Channel Selection
Direct Channel Selection
(Only for remote control)
Enter a channel number by pressing [0]to[9].
Channel Search
Press the [ APS ] button can search and store TV station
automatically.
ESC
TV
AMS
Note: If the unit does not have this function, pls skip this page.
PUSH
ENTER
VOL
MIC
MENU
BAND
SOURCE
APS/
SOURCE
CLK/ /AF
ST/RPT/TA
MUTE/PTY
Without touch function, without these icons.

Bluetooth
The Bluetooth is wireless mode of transmission in short distance.
Through Bluetooth function, the DVD unit establishes connection
with Bluetooth handset. And then, these units can realize mutually
contrdling and file transfering.
Method :
A: Press the [SOURCE] button, to
return to main menu..
B:Exhales the main menu, choose
the Bluetooth to enter the
Bluetooth mode.
Choose the Bluetooth Mode
Paring
14
BLUETOOTH-ON
PASSWORD-0000
CONNECTTING...
Phone set pairing step as follows:
A: Turn on Bluetooth, then
touch On/Off icon to turn
on this function.
B: Turn on Bluetooth
function .
C: When the mobile phone
set finds the signal, input
pairing number. Initial Pairing Code No. 0000
D: After pairing, TFT screen shows pairing succeed and
quit the pairing.
 
handsets
'
Working mode of Bluetooth
Bluetooth has the following functions:
A: Paring
Make DVD Bluetooth function as handsets
facility through pairing.
B: Connecting
After connecting with the handset,
you can operate the mobile phone through DVD unit
(such as H,F, call, call record etc.)
'
  NO.2
  NO.1
  NO.1
  NO.2

Bluetooth
Making phone call
1357846****
1357846****
15
After connecting, you can make phone call through remote
control, touch screen or phone numbers record.
A: Making mobile phone call
After making phone call, the screen will display
making phone call.
B: Making touch screen call
Input the numbers on the screen, press [ ] icon can correct
the numbers;
Press [ ] icon to make phone call;
Press[ ] icon to cancel or hang up.
Answering
1357846****
Answering function operate as follows:
A: After connecting, the unit
can use the telephone function.
B: When there is a phone call,
the Bluetooth will switch to
phone function and display the
calling number.
C: Touch Transfer icon can
switch to phone answer mode.
Touch it again can return to
Bluetooth function of the unit.
Note: If the unit does not have this function, pls skip it.

16
FM 01 FM 02
AM 01AM 02
FM 03
BAND
Short press[ ]/[ ]button can search higher frequency and
stop when get one ,long Press[ ]/[ ]button can store the
station.
Press BAND button to select among three FM or two AM bands.
(FM1-FM2-FM3-AM1-AM2)
Radio Operation
Long press[ ]button can adust to higher frequency.
Long press[ ]button can adjust to lower frequency.
Manual tune:
Automatically tune:
Band tuner
AS/PS
Short press[ ]/[ ]button can search lower frequency and
stop when get one , long press[ ]/[ ]button can store the
station.
Select Stations
Press[ ]or[ ] button can select 1-6 stations.
APS
BAND
PUSH
ENTER
VOL
MIC
MENU
BAND
SOURCE
APS/
MUTE/PTYAF
ST/RPT/TA
CLK/ /AF
ST/RPT/TA
MUTE/PTY
Long press [ ] button for more than 3 seconds can
search stations and store them in 1-6,FM1,FM2,FM3 and
Am1,Am2 automatically.
Search Stations
Scan Stations
Press [ ] button can scan and play every stored
station for about three seconds, if you want to listen to the
recently station, pls press the button to stop scanning.
6 stations can be stored in each FM1,FM2,FM3 and Am1,
Am2 at most.
/APS
/APS
Press [ST] switch between [ MO] and [ST].While
receiving the signal,[ST] back light turns blue.
button,
Long press [ST], switch between LOC and DX.
ST
Stereo
Loc/DX
Note: If the unit does not have this function, please skip it.

17
13
............1............1
............2
2

Accessories
External view
........ Number of items
External view
........ Number of items
The use of any accessories except of those provided might result
in damage to the unit .Make sure only to use the accessories
shipped with the unit ,as shown above.
Radio Operation
AF(Alternative Frequency)
TA(Traffic announcement)
Press TA, the unit will prior to seek the traffic information. If the
machine receives the traffic information, it will choose this
signal and quit other radio signal or CD program. If press TA
again, other program will recover and the traffic information
program will quit.
PTY(Program type)
Turn on PTY , then press PTY and 1-6 buttons to
choose one certain program style . After this, the unit will scan
the same style programs automatically. Such as select News
programs. The unit will only scan News programs.
   
Among AF, TA and PTY, TA has the absolute priority to be chosen.
Turn "AF",the unit will switch to the stronger signal of the
same station automatically.
Note: If the unit is without RDS function, pls skip this page.

What appears to be trouble is not always serious. Please check the following points before calling a service center.
Characters
Troubleshooting
Familiar characters and their meanings
Causes Remedies
NO Disc
Bad Disc
Unkown Disc
Region Error
Disc is too dirty.
Disc is inserted upside down.
No disc in the unit.
Disc is extreme dirty.
Disc is inserted upside down.
The disc is not compatible with
the unit.
The disc's region code is not the
same as the unit's.
Clean the disc or change the disc.
Insert the disc correctly.
Insert a disc.
Clean the disc or change the disc.
Insert the disc correctly.
Clean the disc.
Clean the disc.
18

Troubleshooting
General problems
The fuse of the unit has been broken.
Remedies
Symptoms
The unit cannot be
powered on.
Remote controller does
not work.
No sound comes out or
it's hard to hear.
Poor sound quality or
sound distortion.
User preset information is
lost when ACC is off.
False operations and etc.
The fuse of car battery has been broken.
Battery has been exhausted.
Battery is not installed correctly.
Causes
Audio output connection is not correct.
The volume level is set to the minimum level.
The audio channel outputs are not balanced.
The speaker cord is contacted with the
bodywork.
Piratic disc is used.
The speakers power rating does not fit into
the unit output power.
The speakers are connected incorrectly.,
The speaker cord is contacted with the
bodywork.
ACC and BATT are connected incorrectly.
The speakers have been damagedl.
Install a new fuse with correct rating.
Install a new fuse with correct rating.
Reset the unit.
Change the battery.
Install the battery correctly.
Correct the connection according to(Electrical
Connections Overall Diagram).
Adjust the volume to the optimum level.
Use insulating cord for connection.
Use original copy disc.
Change the speakers.
Correct the connection according to(Electrical
Connections Overall Diagram).
Use insulating cord for connection.
Check the speakers.
Adjust the balance of audio channel outputs. Please
refer to (Audio control).
Correct the connection according to(Electrical
Connections Overall Diagram).
19
