1
• This product is not suitable for children except under the direct
supervision of an adult.
• Carefully read all manufacturers warnings and cautions for any parts
used in the construction and use of your model.
• Assemble this kit only in places away from the reach of very small
children.
• First-time builders should seek advice from people who have building
experience in order to assemble the model correctly and to allow the
model to reach its performance potential.
• Exercise care when using tools and sharp instruments.
• Take care when building, as some parts may have sharp edges.
• Keep small parts out of reach of small children.
• Immediately after using your model, do NOT touch equipment on the
model such as the engine and muffler, because they generate high
temperatures. You may burn yourself seriously touching them.
• Follow the operating instructions for the radio equipment at all times.
• Do not put fingers or any objects inside rotating and moving parts, as
this may cause damage or serious injury.
• Be sure that your operating frequency is clear before turning on or
running your model, and never share the same frequency with
somebody else at the same time. Ensure that others are aware of the
operating frequency you are using and when you are using it.
• Always turn on your transmitter before you turn on the receiver in the
car. Always turn off the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the
operation of the radio equipment.
• Disconnect the battery pack before storing your model.
• When learning to operate your model, go to an area that has no
obstacles that can damage your model if your model suffers a
collision.
• Remove any sand, mud, dirt, grass or water before putting your
model away.
• If the model behaves strangely, immediately stop the model, check
and clear the problem.
• To prevent any serious personal injury and/or damage to property,
please be responsible when operating all remote controlled models.
• Do not use your model:
- Near real cars, animals, or people that are unaware that an R/C car
is being driven.
- In places where children and people gather
- In residential districts and parks
- In limited indoor spaces
- In wet conditions
- In the street
- In areas where where loud noises can disturb others, such as
hospitals and residential areas.
CUSTOMER SUPPORT
IMPORTANT NOTES – GENERAL
IMPORTANT NOTES – ELECTRICAL
R/C TIPS
• Read and fully understand the instruction manual before building.
• Always keep this instruction manual ready at hand for quick
reference, even after completing the assembly.
• Clear a work area for assembling the kit.
• Work on a light-colored towel so any dropped parts are easy to find.
• Only open bags of parts for the assembly section you are building;
do not open parts bags before required.
• Make sure all screws are tight, and check them periodically. Make
sure the chassis screws do not protrude below the chassis.
• For best performance, it is very important to ensure the free
movement of all parts.
• Tap or pre-thread composite parts when threading screws.
• Self-tapping screws cut threads into the parts when tightened. Do
not use excessive force when tightening self-tapping screws, or you
may strip out the thread in the plastic. We recommend you stop
tightening a screw when you feel some resistance.
Please support your local hobby shop, and ask them for advice. We at
XRAY Model Racing Cars support all local hobby dealers. We ask
you to purchase XRAY products at your hobby dealer whenever
possible, and give them your support as we do. If you have difficulty
finding XRAY products, please visit us at www.teamxray.com for
advice, or contact us via e-mail at [e-mail], or
contact the XRAY distributor in your country.
In line with our policy of continuous product development, the exact specifications of the kit may vary. In the unlikely event of any problems
with your new kit, you should contact the model shop were you purchased it, quoting the part number. We reserve all rights to change any
specification without prior notice. All rights reserved.
XRAY EUROPE
Pred Polom 762
91101 Trenčín
Slovakia, EUROPE
Phone: [phone]
Fax: [phone]
Email: [e-mail]
XRAY USA
167 Turtle Creek Boulevard Suite C
Dallas, Texas 75207
USA
Phone: [phone] * [phone]
Fax: [phone]
Email: [email protected]
We have made every effort to make these instructions as easy to understand as possible. However, if you have any difficulties, problems, or
questions, please do not hesitate to contact the XRAY support team at [e-mail]. Also, please visit our web site at
www.teamxray.com to find the latest updates, set-up information, option parts, and many other goodies. We pride ourselves on taking
excellent care of our customers.
• Insulate any exposed electrical wiring (using heat shrink tubing or electrical
tape) to prevent dangerous short circuits.
• Use a recommended charger for the receiver and transmitter batteries and
follow the instructions correctly. Over-charging, incorrect charging, or using
inferior chargers can cause the batteries to become dangerously hot.
• Regularly check the charger for potential hazards such as damage to the cable,
plug, casing or other defects. Ensure that any damage is rectified before using
the charger again.
• Do not allow the transmitter batteries to become low on charge, otherwise you
risk losing control of the model.
• Do not allow any metal part to short circuit the receiver batteries or other
electrical/electronic device on the model.

2

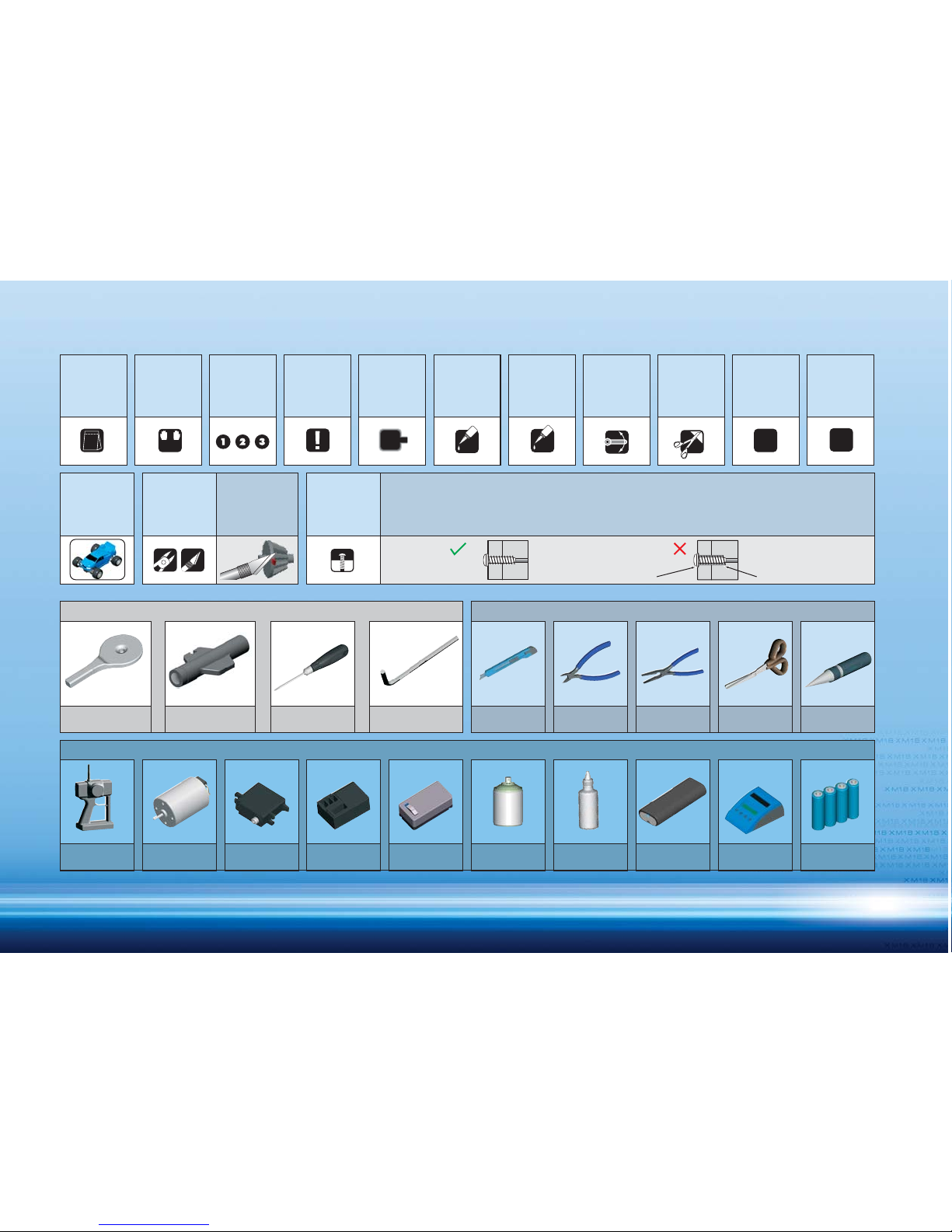

SYMBOLS USED
TOOLS REQUIRED
TOOLS INCLUDED
EQUIPMENT REQUIRED
Hobby Knife Side Cutters Needlenose Pliers Curved Scissors Hole Reamer
1:1
L=R
1
CA
2x
C
Self-tapping screws cut threads into the parts when being tightened. Excessive force may permanently damage
parts when tightening screws. It is recommended to stop tightening when the part is attached or when some
resistance is felt after the threaded portion enters the plastic.
Overtightened
CORRECT WRONG
The threads are stripped.
GR
Micro Servo Receiver
Transmitter Micro Motor 6-Cell Micro
Battery Pack
Battery Charger Transmitter
Batteries
Micro Speed
Controller
CA GlueLexan Paint
(Typically AA type)(Ni-MH recommended)
Pin Assembly Tool Universal Tool Phillips Screwdriver 1.5mm Allen Wrench
Assemble as
many times
as specified
(here twice)
Cut off
remaining
material
Cut off
remaining
material from all
plastic parts.
Cut off
shadded
portion
Ensure smooth
non-binding
movement
Apply instant
glue Apply instant grease
Pivot ball
type used
Pay attention
here
Assemble in
the specified
order
Assemble left
and right
sides the
same way
Part bags
used True-to-scale diagram
Truck
orientation Tighten screw gently

3
385062
385531
385531
970040
930610
385062
930020
385035
385095
930407
385002
960025
930812
385002
907270
385002
930025
385002
385002 COMPOSITE ADJUSTABLE BALL DIFFERENTIAL
385035 BEVELED DIFF. GEAR FOR BALL DIFF.
385062 GEARBOX CASE M18T
385095 BALL DIFF D - WASHER (2)
385531 MAIN DRIVESHAFT PINION GEAR & HUB M18T
907270 SCREW PHILLIPS 2.5x20 (10)
930020 BALL STEEL 2.4MM (24)
930025 BALL-BEARING AXIAL 2.5x5.4x0.8
930407 BALL-BEARING MR74ZZ 4x7x2.5 (2)
930610 BALL-BEARING MR106ZZ 6x10x3 (2)
930812 BALL-BEARING MR128ZZ 8x12x3.5 (2)
970040 O-RING 4x1 (10)
960025 NUT M2.5 (10)
1
BAG

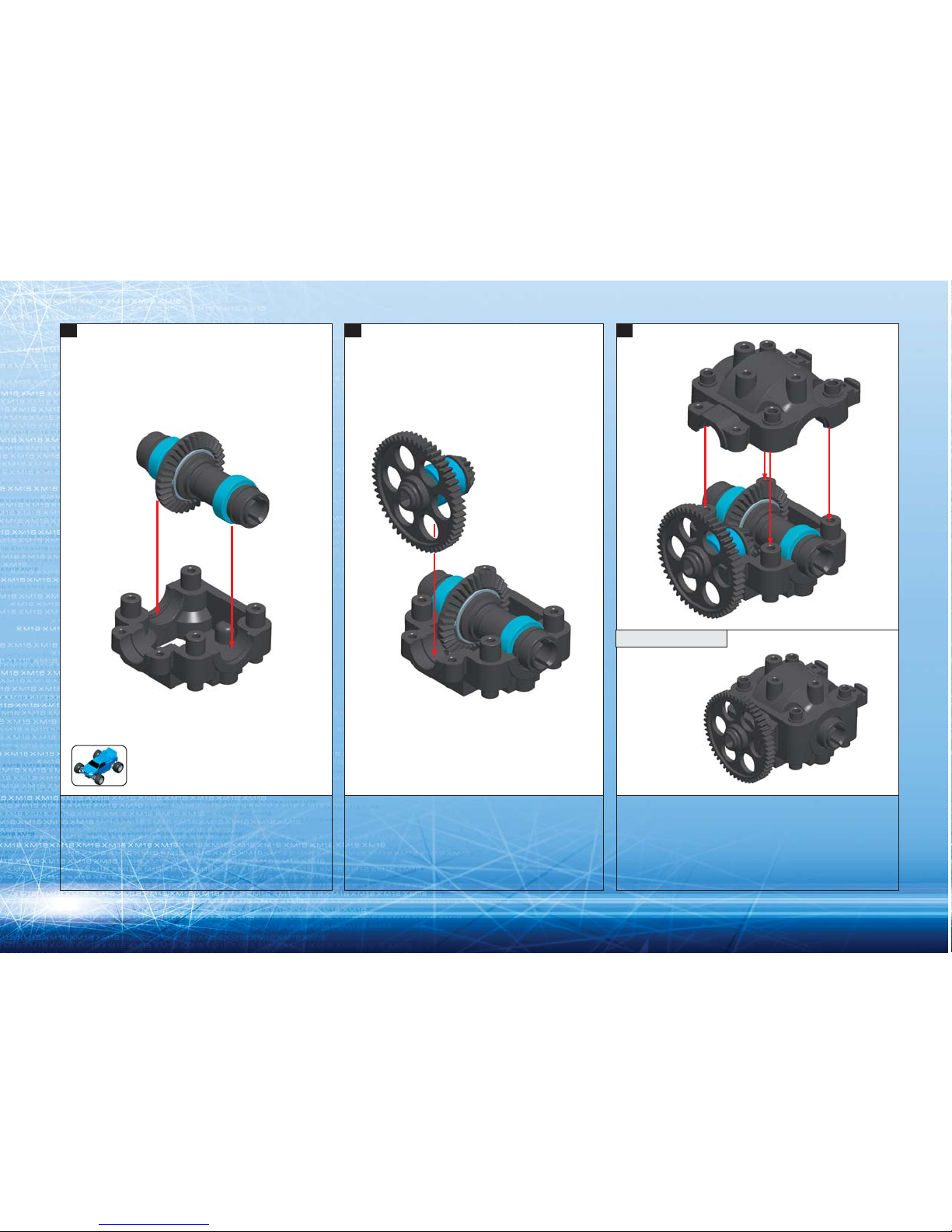

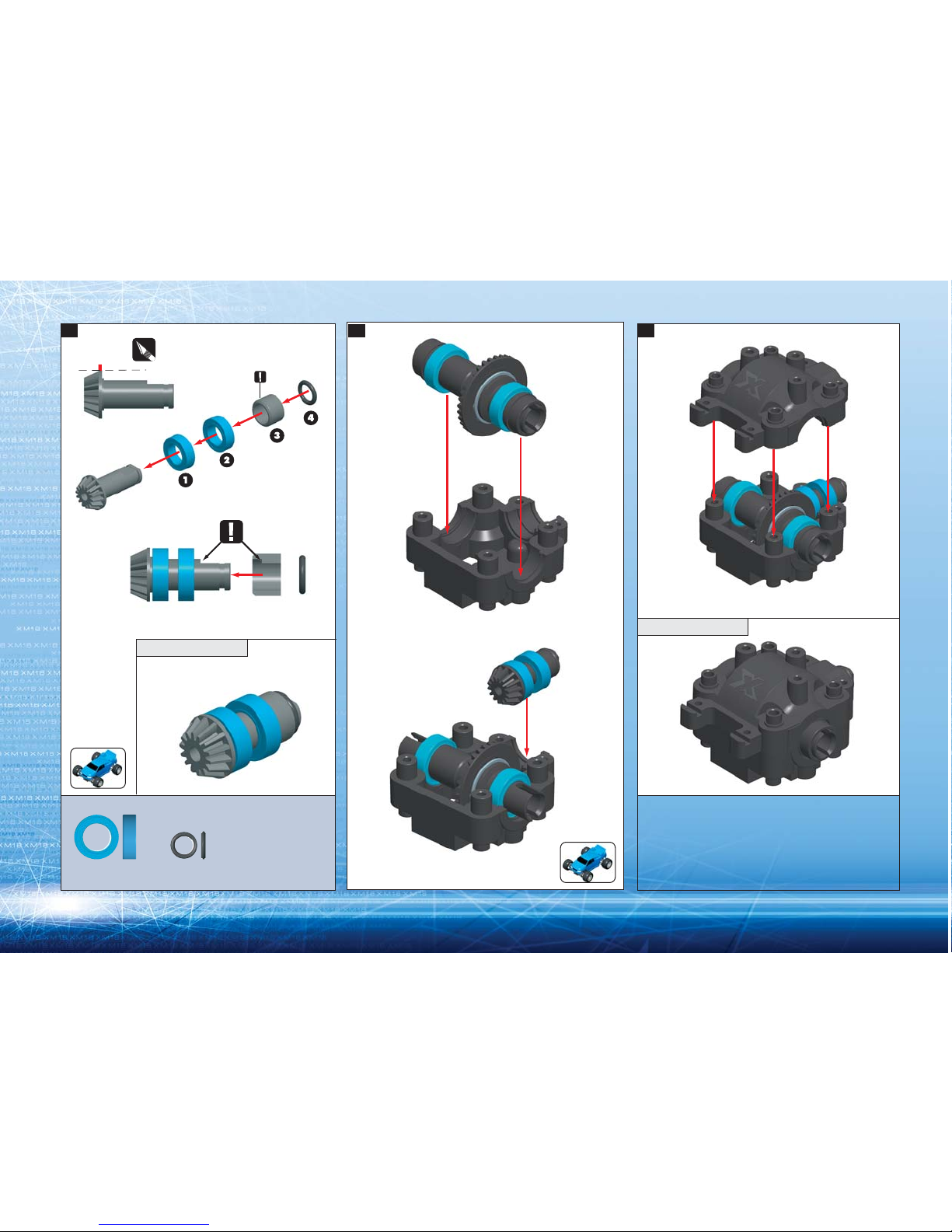

1. FRONT DIFFERENTIAL

4
3.
CUT OFF
ALIGN FLAT SPOTS
ALIGN FLAT
SPOTS
2x
GR
GR
1. 2.
ASSEMBLED VIEW
FACTORY PRE-ASSEMBLED
930812
BB 8x12x3.5
930020
B 2.4
960025
N M2.5
930025
BA 2.5x0.8
907270
2.5x20
907270
2.5x20
930407
BB 4x7x2.5

5
CUT OFF
4. 5. 6.
ASSEMBLED VIEW
930610
BB 6x10x3
970040
O 4x1
ORIENTATION
ASSEMBLED VIEW
NOTE
ORIENTATION

6
385035
930020
385095
930407
385002
960025
930812
970040
385062
385002
385754
930610
385531
907270
385002
930025
385002
385062

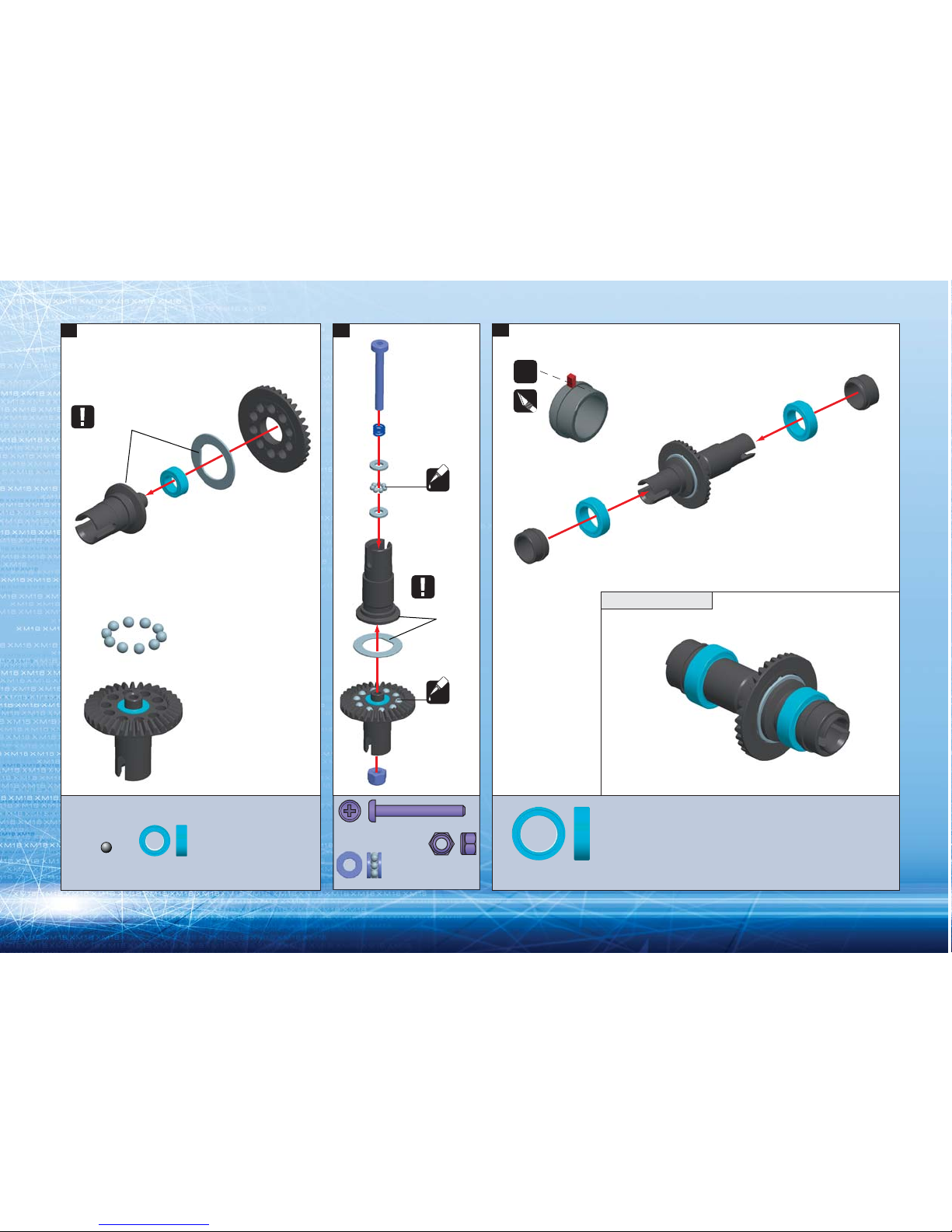

2. REAR DIFFERENTIAL
BAG
2
385002 COMPOSITE ADJUSTABLE BALL DIFFERENTIAL
385035 BEVELED DIFF. GEAR FOR BALL DIFF.
385062 GEARBOX CASE M18T
385095 BALL DIFF D - WASHER (2)
385531 MAIN DRIVESHAFT PINION GEAR & HUB M18T
385754 SPUR GEAR 54T / 48
907270 SCREW PHILLIPS 2.5x20 (10)
930020 BALL STEEL 2.4MM (24)
930025 BALL-BEARING AXIAL 2.5x5.4x0.8
930407 BALL-BEARING MR74ZZ 4x7x2.5 (2)
930610 BALL-BEARING MR106ZZ 6x10x3 (2)
930812 BALL-BEARING MR128ZZ 8x12x3.5 (2)
970040 O-RING 4x1 (10)
960025 NUT M2.5 (10)

7
960025
N M2.5
930025
BA 2.5x0.8
907270
2.5x20
907270
2.5x20
930020
B 2.4
930407
BB 4x7x2.5 930812
BB 8x12x3.5
3.
CUT OFF
2x
FACTORY PRE-ASSEMBLED
ALIGN FLAT SPOTS
ALIGN FLAT
SPOTS
GR
GR
1. 2.
ASSEMBLED VIEW

8
4. 5.
ASSEMBLED VIEW
930610
BB 6x10x3
970040
O 4x1
CUT OFF

9
6. 7. 8.
ASSEMBLED VIEW

10
906258
905260
381210
381160
387410
USE REMAINING PIVOT BALLS
IN OTHER SECTIONS !!!
905208
981208
387410
382200
930610
387410
383120
905208
383150
905264
385300
385300
901325
383240
387410
905212
905210
382650

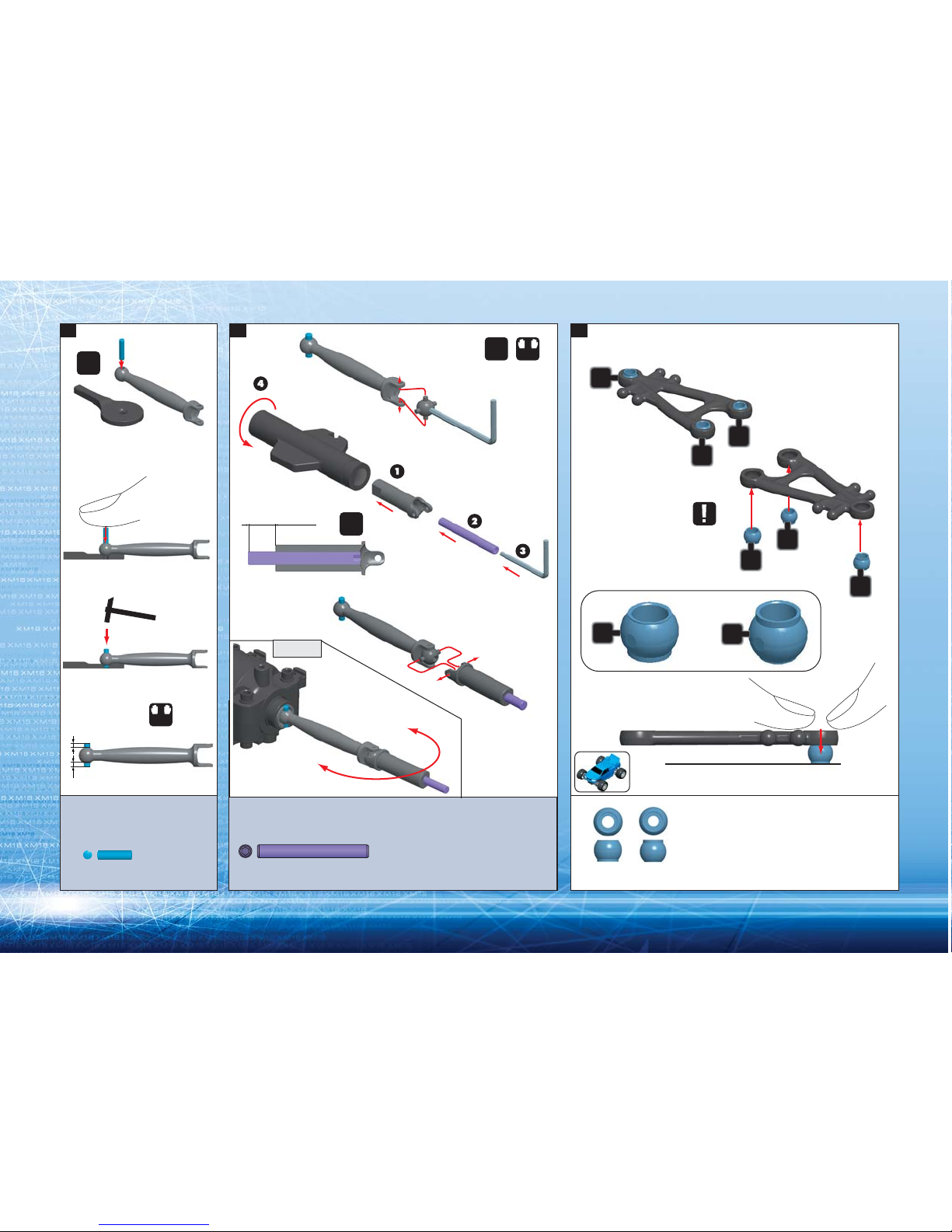

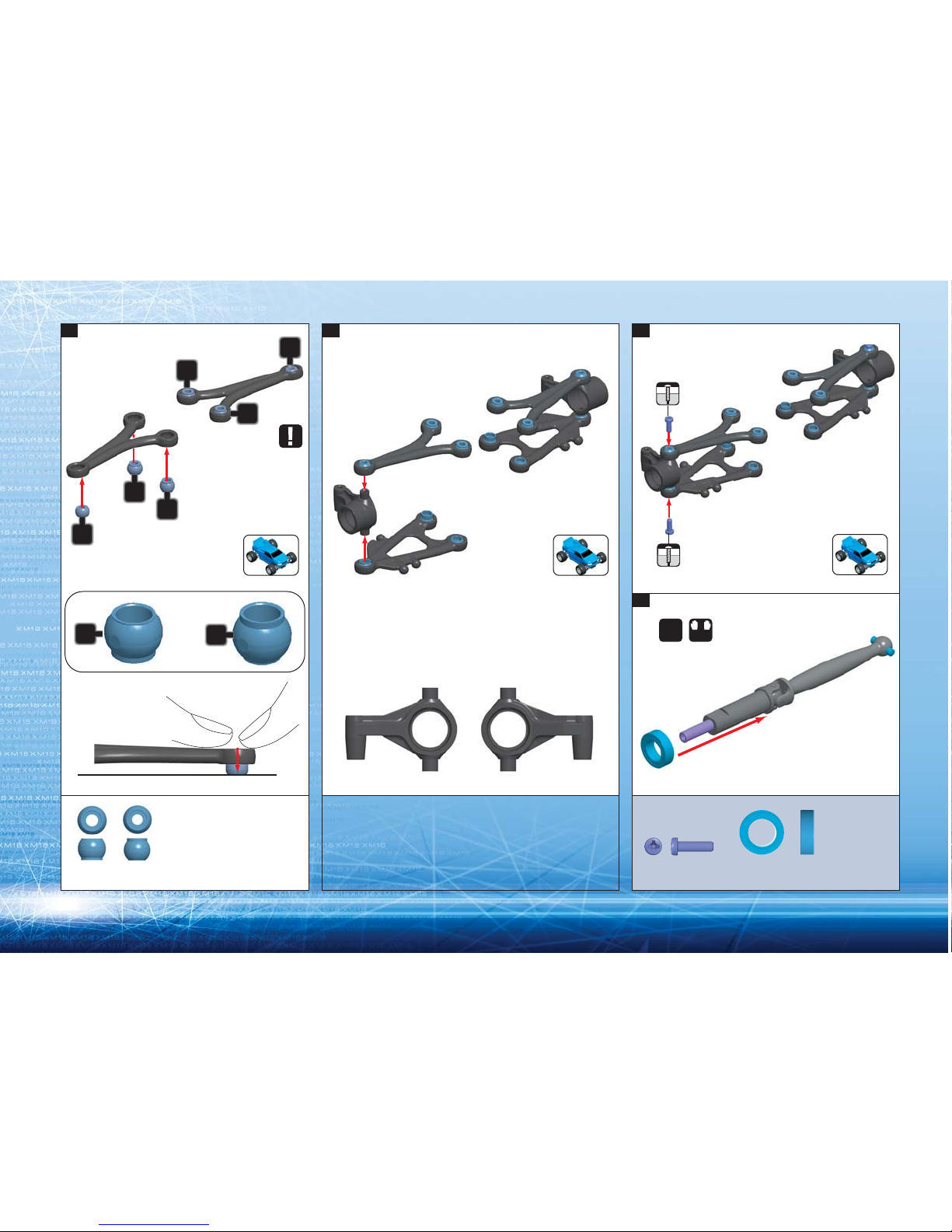

3. REAR SUSPENSION
BAG
3
BAG
3.1
381160 COMPOSITE MICRO CHASSIS M18T
381210 LOWER FRONT & REAR BUMPER M18T
382200 COMPOSITE SUSPENSION BLOCK, L+R (2)
382650 SET OF STEERING PARTS
383120 SET OF REAR LOWER SUSPENSION ARMS M18T
383150 SET OF REAR UPPER SUSPENSION ARMS M18T
383240 LINKAGE REAR M18T (2)
385300 COMPOSITE DRIVE SHAFT SET M18T (2)
387410 SET OF COMPOSITE PIVOT BALLS M18T
901325 HEX SCREW SB M3x25 (10)
905208 SCREW PHILLIPS 2.2x8 (10)
905210 SCREW PHILLIPS 2.2x10 (10)
905212 SCREW PHILLIPS 2.2x12 (10)
905260 SCREW PHILLIPS 2.5x10 (10)
905264 SCREW PHILLIPS 2.5x14 (10)
906258 SCREW PHILLIPS FH 2.5x8 (10)
930610 BALL-BEARING MR106ZZ 6x10x3 (2)
981208 PIN 2x8 (10)

11
901325
SB 3x25
2.
CHECK
L=R
2x
NOTE ORIENTATION
OF ALL PIVOT BALLS
DETAIL
6 mm 1:1
981208
P 2x8
1. 3.
SAME
LENGTH
LEFT LOWER ARM
RIGHT LOWER ARM
L
L=R
R
2x
A
A
A
A
B
AB
B
B
A

12
A
A
A
A
NOTE ORIENTATION
OF ALL PIVOT BALLS
B
B
905208
2.2x8
930610
BB 6x10x3
TIGHTEN
GENTLY
DETAIL
B
A
4. 5.
RIGHT
LEFT
RIGHT LEFT
6.
7.
RIGHT UPPER ARM
LEFT UPPER ARM
AB

13
905264
2.5x14
905264
2.5x14
905260
2.5x10
905210
2.2x10
905210
2.2x10
905212
2.2x12
1mm
3mm
905260
2.5x10
905212
2.2x12
C
C
930610
BB 6x10x3
8. 9. 10.
11.
C
TIGHTEN
GENTLY
2x
L=R
1:1

14

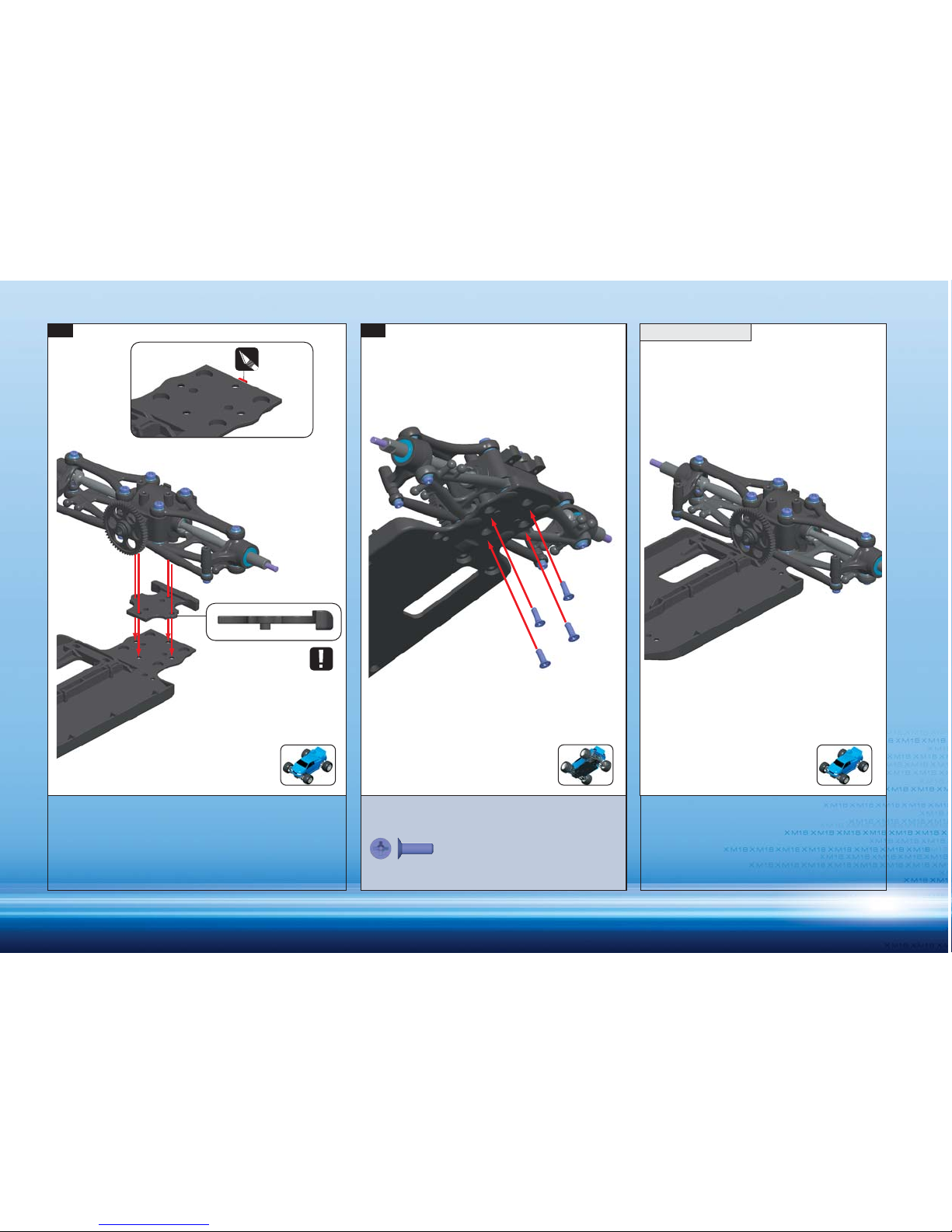

906258
2.5x8
12. 13. ASSEMBLED VIEW
NOTE ORIENTATION
CUT OFF
DETAIL
DETAIL

15
387410
BAG
3.1
981208
381210
905260
387410
385300
905208
387410
382120
382200
930610
382150
387410
905208
905264
906258
905262
901325
385522
381210 LOWER FRONT & REAR BUMPER M18T
382120 SET OF FRONT LOWER SUSPENSION ARMS M18T
382150 SET OF FRONT UPPER SUSPENSION ARMS M18T
382200 COMPOSITE SUSPENSION BLOCK, L+R (2)
385300 COMPOSITE DRIVE SHAFT SET M18T (2)
385522 ALU MAIN DRIVESHAFT M18T
387410 SET OF COMPOSITE PIVOT BALLS M18T
901325 HEX SCREW SB M3x25 (10)
905208 SCREW PHILLIPS 2.2x8 (10)
905260 SCREW PHILLIPS 2.5x10 (10)
905262 SCREW PHILLIPS 2.5x12 (10)
905264 SCREW PHILLIPS 2.5x14 (10)
906258 SCREW PHILLIPS FH 2.5x8 (10)
930610 BALL-BEARING MR106ZZ 6x10x3 (2)
981208 PIN 2x8 (10)
BAG
4
4. FRONT SUSPENSION
USE REMAINING PIVOT BALLS.

16
981208
P 2x8
1.
SAME
LENGTH
L
L=R
R
2x
2.
L=R
2x
CHECK
6 mm 1:1
3.
D
NOTE ORIENTATION
OF ALL PIVOT BALLS
LEFT LOWER ARM
RIGHT LOWER ARM
A
B
A
AB
DETAIL
D
B
AB
B
D
B
D
901325
SB 3x25

17
905208
2.2x8
930610
BB 6x10x3
4. 5. 6.
7.
A
A
A
B
B
A
RIGHT UPPER ARM
LEFT
RIGHT
RIGHT LEFT
LEFT UPPER ARM
NOTE ORIENTATION
OF ALL PIVOT BALLS
TIGHTEN
GENTLY
L=R
2x
DETAIL
B
A
AB

18

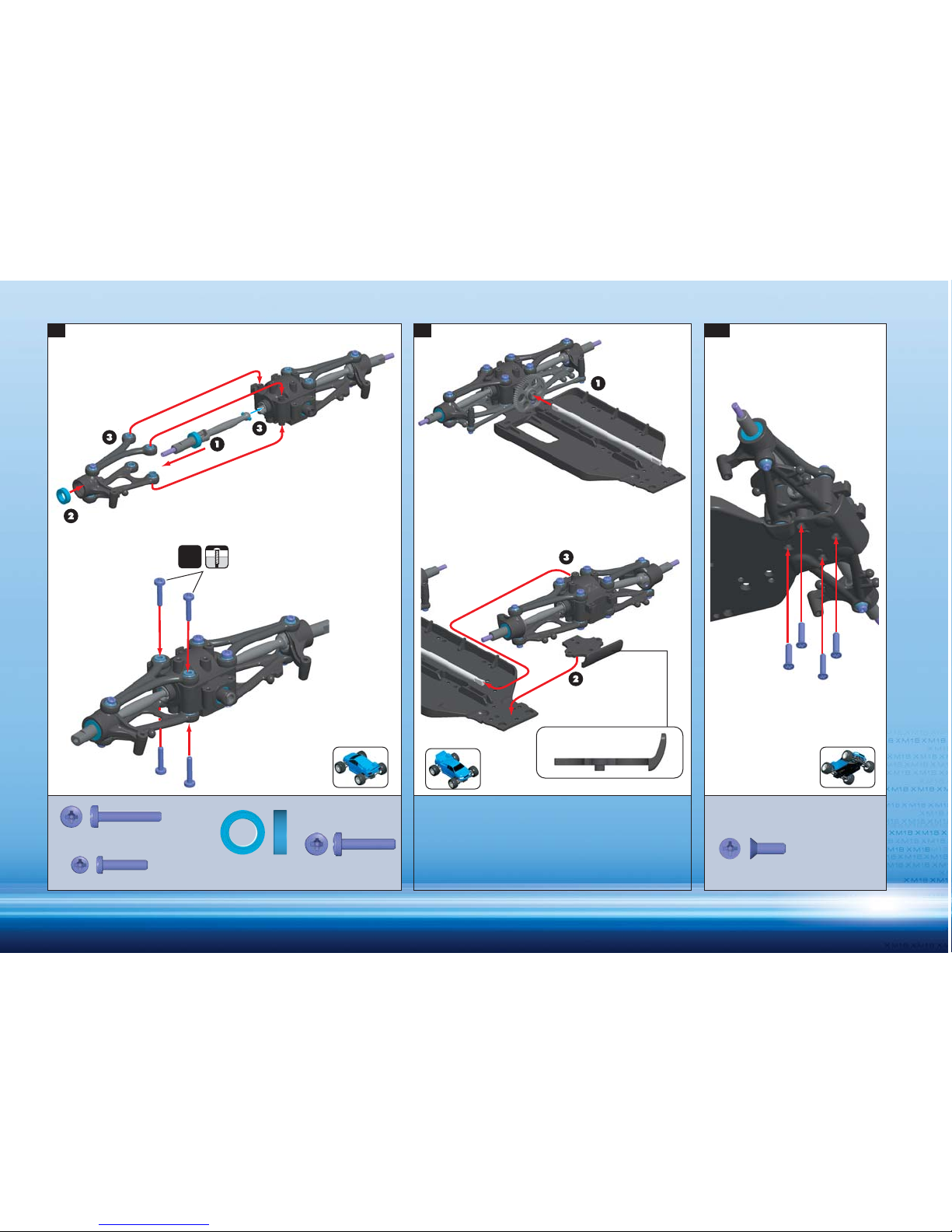

930610
BB 6x10x3
8. 9. 10.
LEFT
RIGHT REAR
906258
2.5x8
905264
2.5x14
905264
2.5x14
905260
2.5x10
905260
2.5x10 905262
2.5x12
4x TIGHTEN
GENTLY
DETAIL
905262
2.5x12

19
382650
905208
901262
387410
905214
382650
907310
387410
930508
387410
382650
905212
906258
906258
382090
382650
905208
905212
387410
905214
906258
382090
381180
389182
from XRAY Power Pack
906258
906210
from XRAY
Power Pack
387410
382620
381180 COMPOSITE TOP DECK M18T
382090 SHOCK TOWER FRONT & REAR M18T
382620 ADJUSTABLE TURNBUCKLE 40MM
382650 SET OF STEERING PARTS
387410 SET OF COMPOSITE PIVOT BALLS M18T
389182 XRAY MICRO SPEED CONTROLLER 300R WITH REVERSE
901262 HEX SCREW SB M2.5x12 (10)
905208 SCREW PHILLIPS 2.2x8 (10)
905212 SCREW PHILLIPS 2.2x12 (10)
905214 SCREW PHILLIPS 2.2x14 (10)
906210 SCREW PHILLIPS FH 2.2x10 (10)
906258 SCREW PHILLIPS FH 2.5x8 (10)
907310 SCREW PHILLIPS M3x10 (10)
930508 BALL-BEARING MR85ZZ 5x8x2.5 (2)
BAG
5
5. STEERING SYSTEM
387410
BAG
3.1
USE REMAINING PIVOT BALLS.
