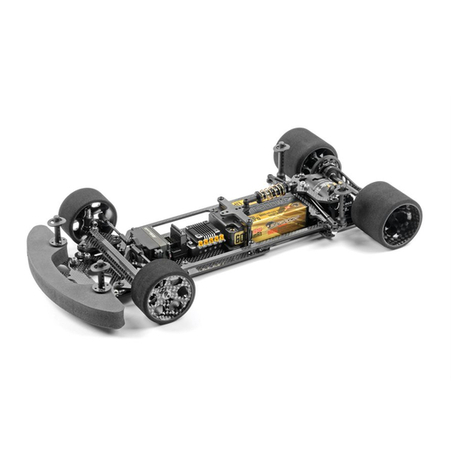

Xray X10 Link User manual

2
BEFORE YOU START
This is a high-competition, high-quality RC car intended for persons aged 16
years and older with previous experience building and operating RC model
racing cars. This is not a toy; it is a precision racing model. This model racing
car is not intended for use by beginners, inexperienced customers, or by
children without direct supervision of a responsible, knowledgeable adult. If
you do not fulfill these requirements, please return the kit in unused and
unassembled form back to the shop where you have purchased it.
Before building and operating your XRAY, YOU MUST read through all of the
operating instructions and instruction manual and fully understand them to
get the maximum enjoyment and prevent unnecessary damage.
Carefully read and fully understand the instructions before beginning assembly.
Make sure you review this entire manual, download and use set-up book from
the Web, and examine all details carefully. If for some reason you decide this is
not what you wanted or expected, do not continue any further. Your hobby dealer
can not accept your kit for return or exchange after it has been partially or fully
assembled.
Contents of the box may differ from pictures. In line with our policy of continuous
product development, the exact specifications of the kit may vary without prior
notice.
SAFETY PRECAUTIONS
Contains:
LEAD (CAS 7439-92-1) ANTIMONY (CAS 7440-36-0)
WARNING: This product contains a chemical known to the state of California
to cause cancer and birth defects or other reproductive harm.
CAUTION: CANCER HAZARD
Contains lead, a listed carcinogen. Lead is harmful if ingested. Wash
thoroughly after using. DO NOT use product while eating, drinking or using
tobacco products. May cause chronic effects to gastrointestinal tract, CNS,
kidneys, and blood. MAY CAUSE BIRTH DEFECTS.
When building, using and/or operating this model always wear protective
glasses and gloves.
Take appropriate safety precautions prior to operating this model. You are
responsible for this model‘s assembly and safe operation! Please read the
instruction manual before building and operating this model and follow all
safety precautions. Always keep the instruction manual at hand for quick
reference, even after completing the assembly. Use only genuine and original
authentic XRAY parts for maximum performance. Using any third party parts
on this model will void guaranty immediately.
Improper operation may cause personal and/or property damage. XRAY
and its distributors have no control over damage resulting from shipping,
improper construction, or improper usage. XRAY assumes and accepts no
responsibility for personal and/or property damages resulting from the use
of improper building materials, equipment and operations. By purchasing
any item produced by XRAY, the buyer expressly warrants that he/she is in
compliance with all applicable federal, state and local laws and regulation
regarding the purchase, ownership and use of the item. The buyer expressly
agrees to indemnify and hold harmless XRAY for all claims resulting directly
or indirectly from the purchase, ownership or use of the product. By the act
of assembling or operating this product, the user accepts all resulting liability.
If the buyer is not prepared to accept this liability, then he/she should return
this kit in new, unassembled, and unused condition to the place of purchase.
IMPORTANT NOTES – GENERAL
• This product is not suitable for children under 16 years of age without the
direct supervision of a responsible and knowledgeable adult.
• Carefully read all manufacturers warnings and cautions for any parts used
in the construction and use of your model.
• Assemble this kit only in places away from the reach of very small children.
• First-time builders and users should seek advice from people who have
building experience in order to assemble the model correctly and to allow
the model to reach its performance potential.
• Exercise care when using tools and sharp instruments.
• Take care when building, as some parts may have sharp edges.
• Keep small parts out of reach of small children. Children must not be
allowed to put any parts in their mouth, or pull vinyl bag over their head.
• Read and follow instructions supplied with paints and/or cement, if used
(not included in kit).
• Immediately after using your model, do NOT touch equipment on the
model such as the motor and speed controller, because they generate high
temperatures. You may seriously burn yourself seriously touching them.
• Follow the operating instructions for the radio equipment at all times.
• Do not put fingers or any objects inside rotating and moving parts, as this
may cause damage or serious injury as your finger, hair, clothes, etc. may
get caught.
• Be sure that your operating frequency is clear before turning on or running
your model, and never share the same frequency with somebody else at the
same time. Ensure that others are aware of the operating frequency you
are using and when you are using it.
• Use a transmitter designed for ground use with RC cars. Make sure that no
one else is using the same frequency as yours in your operating area. Using
the same frequency at the same time, whether it is driving, flying or sailing,
can cause loss of control of the RC model, resulting in a serious accident.
• Always turn on your transmitter before you turn on the receiver in the car.
Always turn off the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation
of the radio equipment.
• Disconnect the battery pack before storing your model.
• When learning to operate your model, go to an area that has no obstacles
that can damage your model if your model suffers a collision.
• Remove any sand, mud, dirt, grass or water before putting your model
away.
• If the model behaves strangely, immediately stop the model, check and
clear the problem.
• To prevent any serious personal injury and/or damage to property, be
responsible when operating all remote controlled models.
• The model car is not intended for use on public places and roads or areas
where its operation can conflict with or disrupt pedestrian or vehicular traffic.
• Because the model car is controlled by radio, it is subject to radio
interference from many sources that are beyond your control. Since radio
interference can cause momentary loss of control, always allow a safety
margin in all directions around the model in order to prevent collisions.
• Do not use your model:
- Near real cars, animals, or people that are unaware that an RC car is being
driven.
- In places where children and people gather
- In residential districts and parks
- In limited indoor spaces
- In wet conditions
- In the street
- In areas where loud noises can disturb others, such as hospitals and
residential areas.
- At night or anytime your line of sight to the model may be obstructed or
impaired in any way.
To prevent any serious personal injury and/or damage to property, please be
responsible when operating all remote controlled models.
CUSTOMER SUPPORT
XRAY Europe
K Vystavisku 6992
91101 Trenčín
Slovakia, EUROPE
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
We have made every effort to make these instructions as easy to understand as
possible. However, if you have any difficulties, problems, or questions, please do not
hesitate to contact the XRAY support team at [e-mail]. Also, please visit
our Web site at www.teamxray.com to find the latest updates, set-up information,
option parts, and many other goodies. We pride ourselves on taking excellent care
of our customers.
You can join thousands of XRAY fans and enthusiasts in our online community at:
www.teamxray.com
XRAY USA
RC America, 2030 Century Center Blvd #15
Irving, TX 75062
USA
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL BE CONSIDERED AS ABUSE AND/OR NEGLECT.

3
IMPORTANT NOTES – ELECTRICAL
• Insulate any exposed electrical wiring (using heat shrink tubing or electrical
tape) to prevent dangerous short circuits. Take maximum care in wiring,
connecting and insulating cables. Make sure cables are always connected
securely. Check connectors for if they become loose. And if so, reconnect
them securely. Never use RC models with damaged wires. A damaged wire
is extremely dangerous, and can cause short-circuits resulting in fire. Please
have wires repaired at your local hobby shop.
• Low battery power will result in loss of control. Loss of control can occur due
to a weak battery in either the transmitter or the receiver. Weak running
battery may also result in an out of control car if your car‘s receiver power is
supplied by the running battery. Stop operation immediately if the car starts
to slow down.
• When not using RC model, always disconnect and remove battery.
• Do not disassemble battery or cut battery cables. If the running battery
short-circuits, approximately 300W of electricity can be discharged, leading
to fire or burns. Never disassemble battery or cut battery cables.
• Use a recommended charger for the receiver and transmitter batteries
and follow the instructions correctly. Over-charging, incorrect charging,
or using inferior chargers can cause the batteries to become dangerously
hot. Recharge battery when necessary. Continual recharging may damage
battery and, in the worst case, could build up heat leading to fire. If battery
becomes extremely hot during recharging, please ask your local hobby
shop for check and/or repair and/or replacement.
• Regularly check the charger for potential hazards such as damage to the
cable, plug, casing or other defects. Ensure that any damage is rectified
before using the charger again. Modifying the charger may cause short-
circuit or overcharging leading to a serious accident. Therefore do not
modify the charger.
• Always unplug charger when recharging is finished.
• Do not recharge battery while battery is still warm. After use, battery retains
heat. Wait until it cools down before charging.
• Do not allow any metal part to short circuit the receiver batteries or other
electrical/electronic device on the model.
• Immediately stop running if your RC model gets wet as may cause short
circuit.
• Please dispose of batteries responsibly. Never put batteries into fire.
WARRANTY
XRAY guarantees this model kit to be free from defects in both material and
workmanship within 30 days of purchase. The total monetary value under
warranty will in no case exceed the cost of the original kit purchased. This
warranty does not cover any components damaged by use or modification
or as a result of wear. Part or parts missing from this kit must be reported
within 30 days of purchase. No part or parts will be sent under warranty
without proof of purchase. Should you find a defective or missing part, contact
the local distributor. Service and customer support will be provided through
local hobby store where you have purchased the kit, therefore make sure to
purchase any XRAY products at your local hobby store. This model racing car
is considered to be a high-performance racing vehicle. As such this vehicle
will be used in an extreme range of conditions and situations, all which may
cause premature wear or failure of any component. XRAY has no control over
usage of vehicles once they leave the dealer, therefore XRAY can only offer
warranty against all manufacturer‘s defects in materials, workmanship, and
assembly at point of sale and before use. No warranties are expressed or
implied that cover damage caused by what is considered normal use, or cover
or imply how long any model cars‘ components or electronic components will
last before requiring replacement.
Due to the high performance level of this model car you will need to
periodically maintain and replace consumable components. Any and all
warranty coverage will not cover replacement of any part or component
damaged by neglect, abuse, or improper or unreasonable use. This includes
but is not limited to damage from crashing, chemical and/or water damage,
excessive moisture, improper or no maintenance, or user modifications which
compromise the integrity of components. Warranty will not cover components
that are considered consumable on RC vehicles. XRAY does not pay nor refund
shipping on any component sent to XRAY or its distributors for warranty. XRAY
reserves the right to make the final determination of the warranty status of
any component or part.
Limitations of Liability
XRAY makes no other warranties expressed or implied. XRAY shall not be liable
for any loss, injury or damages, whether direct, indirect, special, incidental,
or consequential, arising from the use, misuse, or abuse of this product and/
or any product or accessory required to operate this product. In no case shall
XRAY‘s liability excess the monetary value of this product.
Take adequate safety precautions prior to operating this model. You
are responsible for this model’s assembly and safe operation.
Disregard of the any of the above cautions may lead to accidents,
personal injury, or property damage. XRAY MODEL RACING CARS
assumes no responsibility for any injury, damage, or misuse of this
product during assembly or operation, nor any addictions that may
arise from the use of this product.
All rights reserved.
QUALITY CERTIFICATE
XRAY MODEL RACING CARS uses only the highest quality materials, the
best compounds for molded parts and the most sophisticated manufacturing
processes of TQM (Total Quality Management). We guarantee that all parts
of a newly-purchased kit are manufactured with the highest regard to quality.
However, due to the many factors inherent in model racecar competition, we
cannot guarantee any parts once you start racing the car. Products which have
been worn out, abused, neglected or improperly operated will not be covered
under warranty.
We wish you enjoyment of this high-quality and high-performance RC car and
wish you best success on the track!
In line with our policy of continuous product development, the exact specifications of the kit may
vary. In the unlikely event of any problems with your new kit, you should contact the model shop
where you purchased it, quoting the part number.
We do reserve all rights to change any specification without prior notice. All rights reserved.
R/C & BUILDING TIPS
• Make sure all fasteners are properly tightened. Check them periodically.
• Make sure that chassis screws do not protrude from the chassis.
• For the best performance, it is very important that great care is taken to
ensure the free movement of all parts.
• Clean all ball-bearings so they move very easily and freely.
• Tap or pre-thread the plastic parts when threading screws.
• Self-tapping screws cut threads into the parts when being tightened. Do
not use excessive force when tightening the self-tapping screws because
you may strip out the thread in the plastic. We recommended you stop
tightening a screw when you feel some resistance.
• Ask your local hobby shop for any advice.
Please support your local hobby shop. We at XRAY Model Racing Cars support
all local hobby dealers. Therefore we ask you, if at all possible, to purchase
XRAY products at your hobby dealer and give them your support like we do.
If you have difficulty finding XRAY products, please check out www.teamxray.
com to get advice, or contact us via email at [e-mail], or contact
the XRAY distributor in your country.

4
ALSO REQUIRED
INCLUDED
(HUDY #106211)
Differential Grease
Transmitter Steering ServoReceiver
Lexan™ Paint
Battery Charger
Speed Controller
LiPo BatteryElectric Motor & Pinion Gear
with Setscrew
Double-sided Tape
(HUDY #107875)
OILOIL
Bearing Oil
(HUDY #106230)
OIL
700cSt (#106370)
HUDY Premium Silicone Oils
* Kit includes smaller but sufficient amount
of oil and grease to build the car.
10.000cSt (#106510)
HUDY Premium Silicone Oils
TOOLS REQUIRED
Allen 1.5mm (#111545 - HUDY EXCLUSIVE Limited Edition)
Allen 2.0mm (#112045 - HUDY EXCLUSIVE Limited Edition)
Allen 2.5mm (#112545 - HUDY EXCLUSIVE Limited Edition)
Socket 5.5mm (#175535 - HUDY EXCLUSIVE Limited Edition)
Arm Reamer 4.0mm (#107644 - HUDY EXCLUSIVE Limited Edition)
Reamer (#107602 - HUDY EXCLUSIVE Limited Edition)
Special Tool for Turnbuckles, Nuts (HUDY #181090)
Pocket Hobby Knife
(HUDY #188981)
Scissors (HUDY #188990)
Side Cutters
(HUDY #189010)
Combination Pliers
(HUDY #189020)
Professional Multi-Tool
(HUDY #183011)
Allen 3.0mm (#113045- HUDY EXCLUSIVE Limited Edition)
Turnbuckle Wrench 3mm (HUDY #181030)
Tires 1/10 GT Bodyshell
VIDEO TECH TIP
▶
When a QR CODE is found in the instruction manual, scan the code to be directed to an online video that explains that feature or
adjustment in more detail. Make sure to watch all of the instructional videos to get the most performance out of your car.
The Tech Tips videos that you can scan in this instruction manual and watch are for X12. Therefore, it is important to use these
videos for X10 as information and as an extra aid to understand the correct settings, but you must not take it completely into detail.
Alexander Hagberg
(Factory Driver)

5
GRAPHITE PARTS PREPARATION
To protect and seal edges of graphite parts, sand edges smooth and then apply CA glue.
PREPARE ALL GRAPHITE PARTS
Fine sandpaper
Use fine sandpaper to sand smooth the
edges of all graphite parts.
CA
Apply CA glue to all adges
of the graphite parts.
At the beginning of each section is an exploded view of the parts to be assembled.
There is also a list of all the parts and part numbers that are related to the assembly
of that section.
The part descriptions are color-coded to make it easier for you to identify the source of
a part. Here are what the different colors mean:
STYLE A - indicates parts that are included in the bag marked for the section.
STYLE B - indicates parts that are included in the box.
STYLE C - indicates parts that are already assembled from previous steps.
COLOR INDICATIONS
371024
378003
371068

6
1. FRONT SUSPENSION
372293
371050 902310
903312
303120
303122
373244
372320
902306
372109
376366-K
962042
962043
372187
372297
372298
372224
960030
372288
372119
303120
371068 960030
902308
902308
9 0 2 3 0 5
372653
303123
375220
960032
372091 960030
372214
902305
371024
970050
372294
372292
ALU NUTS M3
#296530-B BLUE OPTION
#296530-K BLACK OPTION
#296530-O ORANGE OPTION
#960031 SILVER OPTION
BAG
303120 SET OF ALU SHIM (0.5MM, 1.5MM, 2.5MM)
303122 ALU SHIM 3x6x1.0MM (10)
303123 ALU SHIM 3x6x2.0MM (10)
371050 GRAPHITE MOUNTING PLATE RISERS 2.5MM (2)
371068 GRAPHITE ARM MOUNT PLATE 2.5MM
372091 GRAPHITE FRONT BRACE 2.0MM
372109 STEEL LOWER SUSPENSION ARM BRACE (2)
372119 GRAPHITE LOWER SUSPENSION ARM PLATE 2.5MM
372187 FRONT COIL SPRING FOR 4MM PIN C=1.8-2.0 - SILVER (2)
372214 COMPOSITE STEERING BLOCK FOR 4MM KING PIN - RIGHT - GRAPHITE
372224 COMPOSITE STEERING BLOCK FOR 4MM KING PIN - LEFT - GRAPHITE
372288 X10 KING PIN 4MM - 1.5° (2)
372292 STEEL SHIM 0.2MM - SILVER (2)
372293 STEEL SHIM 0.4MM - BLACK (2)
372294 STEEL SHIM 0.6MM - GOLD (2)
372297 ALU SHIM 4x6x1.0MM (10)
372298 ALU SHIM 4x6x0.5MM (10)
372320 COMPOSITE ARM BUSHING (4)
372653 BALL END 4.2MM WITH 8MM THREAD (2)
373244 BALL END 6.0MM WITH HEX - HUDY SPRING STEEL™ (2)
375220 FRONT WHEEL AXLE (2)
376366-K ALU MOUNT 6.0MM - BLACK (2)
902305 HEX SCREW SH M3x5 (10)
902306 HEX SCREW SH M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
903312 HEX SCREW SFH M3x12 (10)
960030 NUT M3 (10)
960032 NUT M3 (10)
962042 WASHER S 4x6x0.1 (10)
962043 WASHER S 4x6x0.2 (10)
970050 O-RING 5x1 (10)
371024 X10’22 GRAPHITE CHASSIS 2.5MM
CAMBER - KING PIN AXLE
#372287 1º 3 DOTS OPTION
#372288 1.5º 1 DOT INCLUDED
#372289 2º 2 DOTS OPTION
FRONT COIL SPRINGS
#372186 C=1.5-1.7 GOLD OPTION
#372187 C=1.8-2.0 SILVER INCLUDED
#372188 C=2.1-2.3 BLACK OPTION

7
1. FRONT SUSPENSION
CASTER ADJUSTMENT
VIDEO TECH TIP
▶
970050
O 5x1
1mm
3x10
3x10
3x8
3x8
1mm
Install the balls with Professional Multi-Tool
(HUDY #183011)
0.5mm
0.5mm
1. FRONT SUSPENSION
2x
CUTAWAY VIEW
DETAIL
NOTE
ORIENTATION
NOTE
ORIENTATION
1mm
1mm
0.5mm
303120
SHIM 3x6x0.5
303122
SHIM 3x6x1
0.5mm
NOTE
ORIENTATION
ALTERNATIVE FRONT
POSITION
LONG WHEELBASE
ALTERNATIVE REAR
POSITION
SHORT WHEELBASE
FRONT WHEELBASE ADJUSTMENT
Longer wheelbase is recommended
for bigger tracks with longer
sweepers. Makes the car more stable
and easier to drive.
Shorter wheelbase allows the car to
rotate better in corners to maintain
cornering speed. Recommended for tight,
technical tracks or tracks with numerous
180° hairpin corners.
EXTRA SHIM UNDER FRONT BALL
SHIM DIFFERENCE CASTER
1mm 1.5º
2mm 3º
3mm 4.5º
4mm 6º
5mm 7.5º
CASTER ADJUSTMENT SETTING
Caster is adjusted by the shims placed under front ball.
Please see the table beneath the to understand how to set
caster.
2.5mm
2.5 - 0.5= 2.0mm (Shim Difference and Caster 3º )
0.5mm
CASTER
INITIAL
SETTING
INITIAL
SETTING
RIDE HEIGHT & CASTER ADJUSTMENT
The number of washers and shims used affects the ride height
and caster of the car, so determine the proper amount of
shimming based on tire diameter and desired caster angle.
INITIAL SETTING
INITIAL SETTING
0.2mm - SILVER
0.4mm - BLACK
0.6mm - GOLD
903312
SFH M3x12
960030
N M3
902310
SH M3x10
(INITIAL SETTING)
902308
SH M3x8
4x

8
3x6mm
3x6mm
1. FRONT SUSPENSION
960030
ALU N M3
902305
SH M3x5
902308
SH M3x8
SOFT - (NO BRACE)
Makes the car initially less responsive, but will provide
more mechanical grip. Recommended for low-grip carpet
conditions, and asphalt.
SOFT MEDIUM STIFF
MEDIUM
Brace mounted to the graphite arm with posts provides
a balance between initial response and mechanical grip.
Recommended for most conditions.
STIFF
Brace directly mounted to the graphite arm gives
maximum responsiveness but decreases mechanical grip.
Recommended for high-traction conditions (such as US
black carpet).
2x
Marked “R“
Marked “L“
2mm
NOTE
ORIENTATION
960030
N M3
303123
SHIM 3x6x2
FRONT SUSPENSION FLEX SETTING
(INITIAL SETTING)
FORWARD POSITION (INITIAL SETTING)
Initial setting for most tracks provides a neutral steering
feel similar to that of the old X10. Provides a good
balance between initial response and cornering speed.
REARWARD POSITION
Makes the car freer because of increased Ackermann
(less steering lock on the outer wheel in relation to the
inner). Recommended for medium- to high-traction
tracks.
STEERING BLOCK
BUMPSTEER SETTING
The thickness of shims changes the
steering linkage angle. Thicker shims
gives decreased in-corner steering, but car
becomes easier to drive.
Use 2mm bump steer as INITIAL SETTING
The steering link mounting position on the steering block has a direct effect
on the Ackermann. Please see the ACKERMANN SETTING page: 23
Arm Reamer 4.0mm (HUDY #107644)
4.0mm
4.0mm
If the suspension arm does not move
freely, use a HUDY Arm Reamer to size
the holes of the arms.
DETAIL
When using rearward hole, you can reinforce the steering
block by installing an M3x3 setscrew in the forward hole.
M3x3 #901303
(NOT INCLUDED)
3x5mm
3x5mm
3x6mm
3x6mm
3x8mm
3x8mm
902306
SH M3x6

9
1. FRONT SUSPENSION
2x
The DOT must be oriented
towards OUTSIDE.
The DOT must be oriented
towards OUTSIDE.
(INITIAL SETTING)
(INITIAL SETTING)
INCLUDED
INCLUDED OPTION OPTION OPTION OPTION
NOTE ORIENTATION
NOTE ORIENTATION
CAMBER ADJUSTMENT
The car features 1.5° angled king pin axles which are the recommended starting camber for most
tracks and traction conditions. There are 1° and 2° camber king pin axles optionally available.
DECREASING THE CAMBER ANGLE
will decrease the steering which will make the car easier
to drive and also helps to prevent traction rolling.
1 DOT1 DOT 3 DOTS3 DOTS 2 DOTS2 DOTS
1.5º
1.5º 1º1º 2º
2º
INCREASING THE CAMBER ANGLE
will increase the car steering, however, will make the
car more difficult to drive.
C
A
M
B
E
R
C
A
M
B
E
R
VIEW
CAMBER - KING PIN AXLE
#372287 1º 3 DOTS OPTION
#372288 1.5º 1 DOT INCLUDED
#372289 2º 2 DOTS OPTION
960032
N M3

10
VIDEO TECH TIP
▶
FRONT KINGPIN OIL
VIDEO TECH TIP
▶
FRONT DROOP & RIDE
HEIGHT
372297
SHIM 4x6x1
372298
SHIM 4x6x0.5
962042
S 4x6x0.1
962043
S 4x6x0.2
Arm Reamer 4.0mm
(HUDY #107644)
4.0 mm
The front suspension parts were updated
to eliminate play to ensure better steering
performance. The updated holes in the
steering blocks may cause a tighter fit
on the king pin; it is important that the
steering block moves freely but without
excessive play. If the king pin does not
insert into the steering block easily, use
a 4mm Arm Reamer to enlarge the hole.
Be very careful to remove only enough
material so you can insert the kingpin
without a lot of force.
Moves freely
0.2mm
0.1mm
0.1mm
ALU SHIMS
STEEL SHIMS
ALU SHIMS
1.0mm
1.0mm
0.5mm
0.5mm
1.0mm
OIL
use HUDY Silicone Oil
10K cSt (INCLUDED)
902305
SH M3x5
FRONT COIL SPRINGS
#372186 C=1.5-1.7 GOLD OPTION
#372187 C=1.8-2.0 SILVER INCLUDED
#372188 C=2.1-2.3 BLACK OPTION
SOFTER SPRINGS
Makes the car easier to drive over bumps and
increases steering as it makes the car roll more,
especially in the middle of a corner.
HARDER SPRINGS
Makes the car more responsive and increases initial
steering. Recommended for high-traction and flat
tracks.
MORE DROOP will make the car initially less responsive, but it will give the car more front grip,
especially in the middle of the corner. The car will be less precise and more difficult to drive, because of
increased roll. More droop is best suited for low- to medium-traction carpet, or asphalt.
LESS DROOP will decrease roll but the car will change direction quicker. Less droop is best suited
for high-traction surfaces such as US black carpet, especially when traction rolling is an issue (and
particularly when a rear solid axle is used).
FRONT DROOP
Front droop is adjusted by the preload of the front spring.
More shims between the steering block and the spring will
increase preload - and decrease droop. Fewer shims will
decrease preload and increase droop.
RIDE HEIGHT ADJUSTMENT
INITIAL SETTING
above upper arm (1.9mm)
below steering block (2.5mm)
FRONT DAMPING with different oils.
TRACK CONDITIONS
Thinner oil is recommended for low-traction
tracks, while thicker oil is recommended for
high-traction tracks.
DAMPING
Using thicker oil on the king pin axle makes
the car less responsive but easier to drive.
Thicker oil oil also increases stability but
decreases cornering speed.
LOW traction & bumpy track
7K ~ 10K cSt
HIGH traction & smooth track
15K ~ 30K cSt
The thickness of the shims used
affects the ride height and
droop of the front suspension, so
determine the proper amount
of shims based on tire diameter
and desired droop.
RIDE HEIGHT AND DROOP ADJUSTMENT SHIMS:
Ride height is adjusted with the supplied long shims (silver, black,
gold) that can be placed under the arms. I recommend using
the lowest possible ride height, unless the track surface is very
bumpy or rough. In that case, the car can benefit from having a
slightly higher ride height which will help to increase stability and
improve handling over bumps.
The front axle height can be adjusted with shims under the
steering block. You cannot change the roll center at the front
of the X10’22 because there is no upper arm. Adding shims
under the steering block – which raises the steering block – will
raise the front axle height, and at the same time will decrease
bump steer. Removing shims will lower the steering block and
increase bump steer. For more information about Ackermann &
Bumpsteer, see PAGE 23 (servo mounting).
I recommend using the kit shimming for the front steering block
as a good basic setting for most conditions.
Alexander Hagberg
(Factory driver)
1. FRONT SUSPENSION

11
2. REAR SUSPENSION
303122 ALU SHIM 3x6x1.0MM (10)
303123 ALU SHIM 3x6x2.0MM (10)
303129 COMPOSITE SET OF SHIMS 3x 3x6x1MM; 1x 3x6x2MM (2)
303241 BALL UNIVERSAL 5.8 MM HEX (4)
306219 COMPOSITE SET OF SERVO SHIMS (4)
371098 GRAPHITE PLATE FOR MOUNTS 2.5MM
371190 COMPOSITE POD LINK (2)
372650 BALL END 4.2MM WITH 6MM THREAD (2)
372653 BALL END 4.2MM WITH 8MM THREAD (2)
372662 COMPOSITE BALL-JOINT 4.2 MM (4)
372910 ALU REAR BULKHEAD - MOTOR - RIGHT
372920 ALU REAR BULKHEAD - LEFT
373039 GRAPHITE REAR BULKHEAD BRACE 2.0MM
373073-K ALU REAR BRACE MOUNT 16MM - BLACK (2)
373088 GRAPHITE REAR BRACE 2.5MM
373095 ALU CHASSIS PIVOT HOLDER - SWISS 7075 T6
373096 ALU POD PLATE PIVOT HOLDER - SWISS 7075 T6
373097 COMPOSITE PIVOT BRACE BUSHING
373553 RAPHITE REAR POD UPPER PLATE 2.5MM
373586 SIDE SPRING C=1.2 - BLACK (2)
373590 COMPOSITE SPRING HOLDER & NUT (2+1)
373591 COMPOSITE SIDE SPRING HOLDER (2)
376363-K ALU MOUNT 28.5MM - BLACK (2)
378141 ALU SIDE TUBE (2)
378153 COMPOSITE SIDE TUBE SHAFT (2)
901308 HEX SCREW SB M3x8 (10)
902256 HEX SCREW SH M2.5x6 (10)
902258 HEX SCREW SH M2.5x8 (10)
902305 HEX SCREW SH M3x5 (10)
902306 HEX SCREW SH M3x6 (10)
903305 HEX SCREW SFH M3x5 (10)
903306 HEX SCREW SFH M3x6 (10)
960030 NUT M3 (10)
960032 NUT M3 (10)
371161 X10’22 GRAPHITE REAR POD LOWER PLATE 2.5MM
SIDE SPRINGS
#373584 C=0.6 SILVER OPTION
#373585 C=0.9 GOLD OPTION
#373586 C=1.2 BLACK INCLUDED
#373587 C=1.5 SILVER OPTION
#373588 C=1.8 GOLD OPTION
BAG
373590
373097
902256
372910
372920
903306
903306
902258
902258
303241
303241
903306
373586
373591
903306
373073-K
960030
960030
960032
372650
372650
372650
372662
372662
378141
378141
372650
378153
378153
902306 901308
373088
372653
373095
303122
303129
372650
303123
960030
306219
902306
373553
371190
373096
903305
903306
902305
373039
371098
902306
376363-K
903306
371161
903306
371190

12
VIDEO TECH TIP
▶
CENTER POD PIVOT BUILD
903306
SFH M3x6
903306
SFH M3x6
(INITIAL SETTING)
VIDEO TECH TIP
▶
REAR POD BUILD
NOTE ORIENTATION
2. REAR SUSPENSION
903305
SFH M3x5
902305
SH M3x5
NOTE
ORIENTATION
The amount of shims has a direct
effect on the pivot mounting position.
Please see: PAGE 13
INITIAL SETTING - rear pivot position
1mm shim
NOTE ORIENTATION
1mm
303122
SHIM 3x6x1
8mm THREAD
NOTE ORIENTATION

13
ROLL CENTER ADJUSTMENT
The roll center can be adjusted by adding or
removing shims from beneath the aluminum pivot
mounts.
LOWER ROLL CENTER
(INITIAL SETTING - NO SHIMS) will give more
traction and increase chassis roll.
HIGHER ROLL CENTER
(adding shims) will increase steering by making
the car rotate more on-and off-power
IMPORTANT! Always use same shim thickness on
both sides of BOTH aluminum holders
Do not use shims for
initial setting.
#303122 & 303123 shims are
NOT INCLUDED in the kit.
Do not use shims for
initial setting.
NOTE ORIENTATION
1mm 1mm
2mm
2x
2. REAR SUSPENSION
Do not tighten fully,
pivotballs must move freely.
Do not tighten fully,
pivotballs must move freely.
902258
SH M2.5x8
902256
SH M2.5x6
THREAD LOCK
PIVOT MOUNTING ALTERNATIVE
REARWARD: (INITIAL SETTING)
Pivot mounted in rearward chassis holes, and 1mm shim used under the pivot ball.
The rearward pivot mounting position gives the most steering and most free rear end.
Recommended for high-traction conditions such as US black carpet.
FORWARD:
Pivot mounted in forward chassis holes, with 3mm shims under the pivot ball. The
forward pivot mounting position gives a good balance between front and rear traction.
Ensure free,
smooth movement
Tighten the screw enough
to remove excess play, while
ensuring that the pod plate can
turn freely.
303122
SHIM 3x6x1
303122
SHIM 3x6x1
303123
SHIM 3x6x2
303123
SHIM 3x6x2

14
TWEAK & SIDE
SPRINGS SETTING
VIDEO TECH TIP
▶
NOTE ORIENTATION
Top edge of hole is
beveled
DETAIL STEP
2. REAR SUSPENSION
DETAIL
POD LINKAGE POSITION
OUTER POSITION - (INITIAL SETTING)
LESS ANGLED side links make the car
easier to drive.
INNER POSITION
MORE ANGLED side links give increased
in-corner steering.
"CLICK"
0.5mm
901308
SB M3x8
960030
N M3
2.0mm
903306
SFH M3x6
Tighten the screws enough
to remove excess play, while
ensuring that the pod plate
can move freely.
DETAIL
Ensure free, smooth movement
6mm THREAD
6mm THREAD
SIDE SPRINGS
#373584 C=0.6 SILVER OPTION
#373585 C=0.9 GOLD OPTION
#373586 C=1.2 BLACK INCLUDED
#373587 C=1.5 SILVER OPTION
#373588 C=1.8 GOLD OPTION

15
306219
SHIM 3x6x2
903306
SFH M3x6
902306
SH M3x6
960030
N M3
2mm
902306
SH M3x6
6mm THREAD
6mm THREAD
The shim thickness under the ball stud
have a direct effect on shock angle.
See PAGE 21
SHOCK ANGLE
SHORT
LONG
NOTE ORIENTATION
2. REAR SUSPENSION

16
2x 2x
Add oil in each slot of the COMPOSITE
side tubes.
NOTE:
Add oil only in the slots, not on the whole tube.
After assembling the side tubes, check for smooth operation.
It is very important to re-oil the side tubes at least once per race day.
You may use different oil thicknesses depending on track conditions.
OIL
For HIGH grip use SOFTER oils
For LOW grip or ASPHALT use HARDER oils
2. REAR SUSPENSION
SIDE TUBE ANGLE
The angle of the side tubes has a fine effect on car performance.
HIGHER ANGLE:
Stiffer feeling, less roll
LOWER ANGLE (FLATTER):
Softer feeling, more roll
HUDY OILS 50ml
#106450 5.000cSt
#106460 6.000cSt
#106470 7.000cSt
#106480 8.000cSt
#106490 9.000cSt
INCLUDED
#106510 10.000cSt
#106492 11.000cSt
#106512 12.000cSt
#106515 15.000cSt
#106520 20.000cSt
#106530 30.000cSt
SHIM
SHIM
903306
SFH M3x6
902306
SH M3x6
303129
SHIM 3x6x1
960032
N M3
1mm
6mm THREAD
The shim thickness under the ball
stud has a direct effect on shock
angle. See page 21.
1mm

17
03
BAG
GEAR DIFF - SPUR GEARS
#375776 76T / 64P OPTION
#375780 80T / 64P OPTION
#375784 84T / 64P OPTION
#375788 88T / 64P OPTION
#375792 92T / 64P OPTION
#374902
XRAY GEAR DIFFERENTIAL
1/10 PAN CAR - SET
#374902
Included in set
941438
375012
930138
3. BALL DIFFERENTIAL
372070 COMPOSITE RIDE HEIGHT ADJUSTER SET - V2 (2)
375012 STEEL REAR AXLE SHAFT - HUDY SPRING STEEL™
375035 ALU REAR WHEEL HUB - RIGHT
375045 ALU REAR WHEEL HUB - LEFT
375050 ALU DIFF HUB
375080 D-LOCK DIFF PLATE (2)
375090 SET OF ALU SHIMS (0.5MM, 1.0MM, 2.0MM)
375093 ALU SHIM 6.37x8.4x6.0MM (2)
375896 COMPOSITE SPUR GEAR - 96T / 64P
908258 HEX SCREW SOCKET HEAD CAP M2.5x8 (10)
930130 CARBIDE BALL 3.175MM (12)
930138 CARBIDE BALL-BEARING AXIAL F3-8 3x8x3.5
941438 HIGH-SPEED BALL-BEARING 1/4“x3/8“x1/8“ RUBBER-SEALED (2)
951438 BALL-BEARING 1/4“ x 3/8“ x 1/8“ FLANGED (2)
960030 NUT M3 (10)
963030 CONE WASHER ST 3x8x0.5 (10)
963030
375050
375035
375080
930130
941438
375896
375080
960030
941438
908258
372070
951438
375090
372070
951438
375093
375090
375045
BALL DIFF - SPUR GEARS
#375872 72T / 64P OPTION
#375875 75T / 64P OPTION
#375876 76T / 64P OPTION
#375878 78T / 64P OPTION
#375880 80T / 64P OPTION
#375884 84T / 64P OPTION
#375888 88T / 64P OPTION
#375892 92T / 64P OPTION
#375896 96T / 64P INCLUDED
9g lighter for great weight savings and improved
acceleration, but more fragile.
#375010
GRAPHITE REAR AXLE SHAFT
#930238
CERAMIC AXIAL THRUSTBEARING
F3-8 3x8x3.5mm
#930230
CERAMIC BALL 3.175mm (12)
#375002
XRAY SOLID AXLE 1/10 PAN CAR-SET

18
HOW TO BUILD THE
BALL DIFF
VIDEO TECH TIP
▶
951438
BB 1/4“x3/8“x1/8“
These eccentric bushings adjust the RIDE HEIGHT of the rear pod.
Make sure to use the SAME eccentric bushings on BOTH sides.
0 2.0 2.51.0 1.50.5
INITIAL SETTING
ORIENTATION LOWER
This nut affects the tightness and
stiffness of the rear differential.
Tighten the nut gently so the diff
does not slip under power, but do
not overtighten or the diff balls
and/or plates may be damaged.
IMPORTANT
3. BALL DIFFERENTIAL
930138
BA 3x8
941438
BB 1/4“x3/8“x1/8“
930130
B 3.1
963030
ST 3x8
960030
N M3
375090-O
SHIM 6.4x8.4x1
375093
SHIM 6.4x8.4x6
908258
SCH M2.5x8
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
Diff Grease
(HUDY #106211)
Bearing Oil
(HUDY #106230)
Diff Grease
(HUDY #106211)
OIL
Bearing Oil
(HUDY #106230)
OIL
Diff Grease
(HUDY #106211)
Diff Grease
(HUDY #106211)
8.0mm
3.2mm
7.8mm
3.0mm
IMPORTANT!
The base pair of shims that must always be used is:
1mm spacer (right), 6mm spacer (left).
To widen the rear track-width, use more shims in
additional to the base pair of shims. Make sure to
always use the same thickness of additional shims on
both left & right sides.
DETAIL
The axle must have a VERY small amount
of side play. If there is no side play, the axle
may bind in the ball-bearings and damage
the bearings.
DETAIL
1.5
BEARING OIL
(HUDY #106230)
FLANGED
FLANGED
0.5 - ORIENTATION
0.5 - ORIENTATION
1mm
6mm
OIL
OIL
BALL DIFF - SPUR GEARS
#375872 72T / 64P OPTION
#375875 75T / 64P OPTION
#375876 76T / 64P OPTION
#375878 78T / 64P OPTION
#375880 80T / 64P OPTION
#375884 84T / 64P OPTION
#375888 88T / 64P OPTION
#375892 92T / 64P OPTION
#375896 96T / 64P INCLUDED
To set track-width, use the hole in the pod lower plate as the centre point; this hole should
always be centred between the two rear wheels once overall track-width is set. To set the
track-width more easily, set the car on a ruler or use a digital vernier caliper.
Rear track-width is directly affected by wheel offsets, which can vary depending on tire brand.
LEFT = RIGHT
DETAIL

19
378011
378011
378060
971022
378030-K
378093
901303
378011
378071-K
378050-K
378080
378020
378011
378040-K
378070-K
965015
965015
4. SHOCK ABSORBER
378003 SHOCK ABSORBER SET
378011 COMPOSITE SHOCK PARTS - FRAME
378020 ALU THREADED SHOCK BODY
378030-K ALU SHOCK BODY CAP - LOWER - BLACK
378040-K ALU SHOCK ADJUSTABLE COLLAR - BLACK
378050-K ALU SHOCK BODY CAP - UPPER - BLACK
378060 SHOCK SHAFT
378070-K ALU SHOCK SPRING COLLAR - BLACK
378071-K ALU SHOCK ADAPTER - BLACK
378080 SHOCK RUBBER MEMBRANE (2)
378093 SHOCK SPRING - GOLD
901303 HEX SCREW SB M3x3 (10)
965015 E-CLIP 1.5 (10)
971022 SILICONE O-RING 2x2 (10)
965015
C 1.5
Carefully remove the shock piston from the
frame, and remove all excess plastic flash.
SHOCK SPRINGS
#378092 C=1.5 SILVER OPTION
#378093 C=1.8 GOLD INCLUDED
#378094 C=2.1 BLACK OPTION
#378095 C=1.4-1.9 BLACK OPTION
#378096 C=2.0-2.5 BLACK 2 DOTS OPTION
#378097 C=2.8 BLACK 3 DOTS OPTION
#378098 C=3.1 BLACK 4 DOTS OPTION
BAG
#106310 100cSt OPTION
#106315 150cSt OPTION
#106320 200cSt OPTION
#106325 250cSt OPTION
#106330 300cSt OPTION
#106335 350cSt OPTION
#106337 375cSt OPTION
#106340 400cSt OPTION
#106342 425cSt OPTION
#106345 450cSt OPTION
#106347 475cSt OPTION
#106350 500cSt OPTION
HUDY SILICONE OILS - 50ml
#106355 550cSt OPTION
#106357 575cSt OPTION
#106360 600cSt OPTION
#106362 625cSt OPTION
#106365 650cSt OPTION
#106367 675cSt OPTION
#106370 700cSt INCLUDED
#106375 750cSt OPTION
#106380 800cSt OPTION
#106390 900cSt OPTION
#106410 1000cSt OPTION
#106420 2000cSt OPTION

20
VIDEO TECH TIP
▶
HOW TO BUILD CENTER
SHOCK
4. SHOCK ABSORBER
971022
O 2x2
➊ ➋ ➌ ➍ ➎ ➏
➐
Gently push the shock shaft
completely into the shock
body. Excess oil will flow
through the hole in the
shock cap.
Keep the shock shaft
pushed in the shock body
and tighten the shock cap
completely.
Tighten the cap fully but
do not overtighten or the
rubber membrane may be
damaged. Make sure that
there is no oil leakage
after the cap is tightened.
HALF TIGHTEN TIGHTEN FULLY
100%
Extend the shock shaft
completely. Fill the shock
body with the shock oil.
Move the shock shaft up and
down a few times to release
the air bubbles trapped
beneath the piston.
Orient the filled shock
vertically for several
minutes with the shock
shaft fully extended. The
remaining air bubbles will
release.
Install the shock
membrane into the groove
in the upper shock cap.
Gently place the shock cap
assembly onto the filled
shock body. Excess oil will
spill from the shock. Screw
the shock cap onto the body
by only a few turns, approx.
50%. Excess oil will flow
through the hole in the
shock cap.
3~5x
UP & DOWN
50%
Follow the steps below to set the shock.
Oil 700cSt
DEFAULT SHOCK SETTING FOR CENTER SHOCK ABSORBER
Shock Oil
OIL
Shock Oil
OIL
