Xray XLL Link User manual

2
BEFORE YOU START
The XII is a high-quality, 1/12-pan car intended for persons aged 16 years and older with previous experience building and operating RC model racing cars.
This is not a toy; it is a precision car model. This model racing car is not intended for use by beginners, inexperienced customers, or by children without direct
supervision of a responsible, knowledgeable adult. If you do not fulfill these requirements, please return the kit in unused and unassembled form back to the
shop where you have purchased it. Before building and operating your XII, YOU MUST read through all of the operating instructions and instruction manual
and fully understand them to get the maximum enjoyment and prevent unnecessary damage. Read carefully and fully understand the instructions before
beginning assembly. Make sure you review this entire manual and examine all details carefully. If for some reason you decide the XII is not what you wanted
or expected, do not continue any further. Your hobby dealer cannot accept your XII kit for return or exchange after it has been partially or fully assembled.
Contents of the box may differ from pictures. In line with our policy of continuous product development, the exact specications of the kit may vary without
prior notice.
Failure to follow these instructions will be considered as abuse and/or neglect.
In line with our policy of continuous product development, the exact specifications of the kit may vary. In the unlikely event of any problems with your new
kit, you should contact the model shop where you purchased it, quoting the part number. We do reserve all rights to change any specification without prior
notice. All rights reserved.
CUSTOMER SUPPORT
We have made every effort to make these instructions as easy to understand as possible. However, if you have any difculties, problems, or questions, please
do not hesitate to contact the XRAY support team at [e-mail]. Also, please visit our Web site at www.teamxray.com to nd the latest updates, set-up
information, option parts, and many other goodies. We pride ourselves on taking excellent care of our customers.
You can join thousands of XRAY fans and enthusiasts in our online community at: www.teamxray.com
XRAY USA
RCAmerica, 167 Turtle Creek Boulevard
Suite C
Dallas, Texas 75207, USA
Phone: [phone] * [phone]
Fax: [phone]
E-mail: [email protected]
XRAY Europe
K Výstavisku 6992 , 91101 Trenčín
Slovakia
EUROPE
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

3
XRAY Premium
Silicone Oil 350cSt
(#359235)
Diff. Grease
(HUDY #106211)
SYMBOLS USED
TOOLS REQUIRED
TOOLS REQUIREDEQUIPMENT INCLUDED
EQUIPMENT REQUIRED
L=R
2x
CA
OIL
Part bags
used
Assemble left and
right sides the
same way
Assemble in the
specified order
Pay attention
here
Assemble as many
times as specified
(here twice)
Apply CA glue Apply oil
05
Apply grease Ensure smooth
non-binding
movement
Follow Set-up
Book
Side Cutters
(HUDY #189010)
Hobby Knife File Turnbuckle 4mm
(HUDY #181040)
Turnbuckle 3mm
(HUDY #181030)
Reamer
(HUDY #107600)
Pliers
(HUDY #189020)
Allen Wrench 1.5mm
(HUDY #111540)
Allen Wrench 2.0mm
(HUDY #112040)
Allen Wrench 2.5mm
(HUDY #112540)
Socket Driver 5.5mm
(HUDY #170055)
1.5 mm
2.0 mm
2.5 mm
5.5 mm
Scissors
(HUDY #188990)
Transmitter Steering ServoReceiver
Lexan PaintBattery Charger Front & Rear Tires Bearing Oil
(HUDY #106230)
Speed Controller
Tire Truer
(HUDY #102003)
LiPo Battery or
4-cell Battery Pack
Pinion Gear and Setscrew BodyshellElectric Motor
Fibre Tape
(HUDY #107870)

4
GRAPHITE PARTS PREPARATION
CORRECT INCORRECT
Lightly file edges of battery slots to remove sharp edges.
Do not file battery slots too much, or batteries
may protrude below the chassis bottom.
To protect and seal edges of graphite parts, sand edges smooth and then apply CA glue.
Fine sandpaper
Use fine sandpaper to sand smooth
the edges of all graphite parts.
CA

Apply CA glue to all adges of the graphite parts.

5
1. fRONT SUSPENSION

#372180 C=3.5 - GOLD (standard)
#372181 C=4.0 - SILVER (option)
#372182 C=5.0 - BLACK (option)
#372183 C=6.0 - GREY (option)
372180
372020
372620
371102
372315
902312
901304
960031
372290
960031
377220
372315
372120
372291 373240
BAG
903312
902308
965019
372085
372290
372280
372130 373240
965019
372130
372650
964032
372220
375220
371102 XII LINK CHASSIS - 2.5MM GRAPHITE
372010 COMPOSITE FRONT UPPER ARM MOUNT - RIGHT
372020 COMPOSITE FRONT UPPER ARM MOUNT - LEFT
372085 FRONT BRACE - GRAPHITE 2.0MM
372110 COMPOSITE SUSPENSION ARM - FRONT LOWER - RIGHT
372120 COMPOSITE SUSPENSION ARM - FRONT LOWER - LEFT
372130 COMPOSITE FRONT UPPER SUSPENSION ARM & BALL JOINT
372180 FRONT COIL SPRING 3.6x6x0.5MM; C=3.5 - GOLD (2)
372210 COMPOSITE STEERING BLOCK - RIGHT
372220 COMPOSITE STEERING BLOCK - LEFT
372280 KING PIN (2)
372290 ALU SHIM 3.2x4.8x0.5 (4)
372291 ALU SHIM 3.1x8x0.5 (4)
372315 COMPOSITE ECCENTRIC BUSHINGS + CASTER CLIPS (2)
372620 ADJ. TURNBUCKLE M3x17 MM - HUDY SPRING STEEL™ (2)
372650 BALL-END 4.2MM - THREADED - HUDY SPRING STEEL™ (2)
373240 PIVOTBALL UNIVERSAL 6.0 MM - HUDY SPRING STEEL (2)
375220 FRONT WHEEL AXLE - HUDY SPRING STEEL (2)
372210
372110
372010
377220 FRONT UPPER PIVOT PIN 2x31MM (2)
901304 HEX SCREW SB M3x4 (10)
902308 HEX SCREW SH M3x8 (10)
902312 HEX SCREW SH M3x12 (10)
903312 HEX SCREW SFH M3x12 (10)
960031 ALU NUT M3 (10)
964032 WASHER S 3.2 x 4.8 x 0.2 (10)
965019 E-CLIP 1.9 (10)

6
1. 2. 3.
3x12
3x8
5.2mm 5.2mm
ASSEMBLED VIEW
ASSEMBLED VIEW
ASSEMBLED VIEW
Marked “L“
NOTE ORIENTATION
Lightly tighten setscrews
NOTE
ORIENTATION
2x
2x
2x

= 2.5°
= 5° INITIAL SETTING
= 7.5°
Use same bushings in left and right sides.
CASTER CAMBER
902308
SH M3x8
901304
SB M3x4
902312
SH M3x12

7
4. 5. 6.
The at of the nut must be  to the lower arm.
VERY IMPORTANT
1. Mount the assembled left and right suspension
to chassis by installing the bottom mounting screws
in the order shown. Tighten the mounting screws
VERY GENTLY, and do not overtighten the screws.
2. Fully tighten the screws in exactly the same
order as you installed them.
The front suspension is
manufactured from composite
material which may slightly
move or bend when the
mounting screws are tightened.
As such it is extremely important
to follow these steps to ensure
tweak-free mounting.
Marked “R“
Marked “L“
ASSEMBLED VIEW
NOTE
ORIENTATION
NOTE
ORIENTATION
The number of shims used
affects the ride height of the
car, so determine the proper
amount of shimming based
on your tire diameter.
Moves freely
The number of shims used affects the ride
height of the car, so determine the proper
amount of shimming based on your tire
diameter.
For initial setting use 3.1x8x0.5 shims (3x)
2x 2x 2x


above upper arm (0.5mm)
above steering block (1.3mm)
beneath steering block (0.2mm)
ASSEMBLED VIEW

#372180 C=3.5 - GOLD
#372181 C=4.0 - SILVER
#372182 C=5.0 - BLACK
#372183 C=6.0 - GREY
0.5mm
0.5mm
0.2mm
0.2mm (4x)
RIDE HEIGHT RIDE HEIGHT
960031
ALU N M3
372290
S 3.2x4.8x0.5
964032
S 3.2x4.8x0.2
372291
S 3.1x8x0.5
965019
C 1.9
903312
SFH M3x12
960031
ALU N M3

8
7. 8.

#372080 ALU ACTIVE BRACE (option)
#372085 GRAPHITE BRACE (standard) 2mm
Loosen all M3x4 setscrews so you
can easily remove the pins.
Make sure that arm moves freely.
INITIAL SETTING
After inserting clips, carefully tighten all M3x4
setscrews so the pins will not move. Do not
overtighten or you may strip the plastic.
If the arm does not have
enough play, remove the
clips and thin the clips
slightly with sandpaper.
The arms must have free
movement and not bind.
1mm
0.5mm
2x
FRONT BRACE CASTER

9
3. REAR SUSPENSION
902258
371190
903314
902306
371190
373010
960031
373090
373065
903310
901308
373590
373581 960031
303241
903306
372650
303123
373030
903310
373541 902306
902308
372650
901308903306
302654
373081
303120
373590
373581
903310
371142
373020
373072
903306
960031
902306
373090
903310
902258
303241
903306
303120
372651
903306
376350
373590
376360
376300
903308
903306
BAG
302654 BALL END 4.9MM WITH THREAD 8MM (2)
303120 SET OF ALU SHIM (0.5MM, 1.5MM, 2.5MM)
303123 ALU SHIM 3x6x2.0MM (10)
371142 LINK GRAPHITE 2.5MM REAR POD LOWER PLATE
371190 COMPOSITE POD LINK (2)
303241 BALL UNIVERSAL 5.8 MM HEX (4)
372650 BALL-END 4.2MM THREADED HUDY SPRING STEEL™(2)
372651 BALL UNIVERSAL 4.9 MM - HUDY SPRING STEEL (2)
373010 ALU REAR BULKHEAD - MOTOR (RIGHT)
373020 ALU REAR BULKHEAD - LEFT
373030 ALU REAR BULKHEAD BRACE
373065 PIVOTBALL - HUDY SPRING STEEL (2)
373072 ALU REAR BRACE MOUNT 16MM (2)
373081 LINK REAR BRACE - GRAPHITE 2.5MM
373090 COMPOSITE LOWER & UPPER PIVOT BRACE
373541 LINK REAR POD UPPER PLATE - GRAPHITE
373581 TAPERED SPRING - SILVER (2)
373590 COMPOSITE SPRING HOLDER (2)
376300 COMPOSITE ANTENNA MOUNT
376350 GR. PLATE FOR ANTENNA HOLDER
376360 ALU ANTENNA HOLDER MOUNT (2)
901308 HEX SCREW SB M3x8 (10)
902258 HEX SCREW SH M2.5x8 (10)
902306 HEX SCREW SH M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
903306 HEX SCREW SFH M3x6 (10)
903308 HEX SCREW SFH M3x8 (10)
903310 HEX SCREW SFH M3x10 (10)
903314 HEX SCREW SFH M3x14 (10)
960031 ALU NUT M3 (10)

10
1. 2. 3.
3x10
3x10
3x6
3x6
DO NOT TIGHTEN FULLY
Ensure free, smooth movement without excessive freeplay.
Lightly tighten the screws so there is no free play,
but do not overtighten otherwise the ball will not
move freely.
903306
SFH M3x6
903310
SFH M3x10
902306
SH M3x6
960031
ALU N M3
903310
SFH M3x10

11
4. 5. 6.
2x 2x
ASSEMBLED VIEW
DO NOT TIGHTEN FULLY,
BALLS MUST TURN FREELY.
TIGHTEN FULLY
902258
SH M2.5x8
960031
ALU N M3
903306
SFH M3x6
903314
SFH M3x14

12
7. 8.
"CLICK"
2.0mm
2.5mm
NOTE
ORIENTATION
903306
SFH M3x6
303120
SHIM 3x6x2.5
901308
SB M3x8

13
9. 10. 11.
2.5mm
3x8
3x6
3x6
2.0mm
902306
SH M3x6
902306
SH M3x6
902308
SH M3x8
303120
SHIM 3x6x2.5
303123
SHIM 3x6x2
903306
SFH M3x6
903308
SFH M3x8
960031
ALU N M3
960031
ALU N M3

14
375030
375050
960031
930130
941438
375010
375090
951438
372070
375090
908258
375040
375080
930138
963030
941438
375896
375080
951438

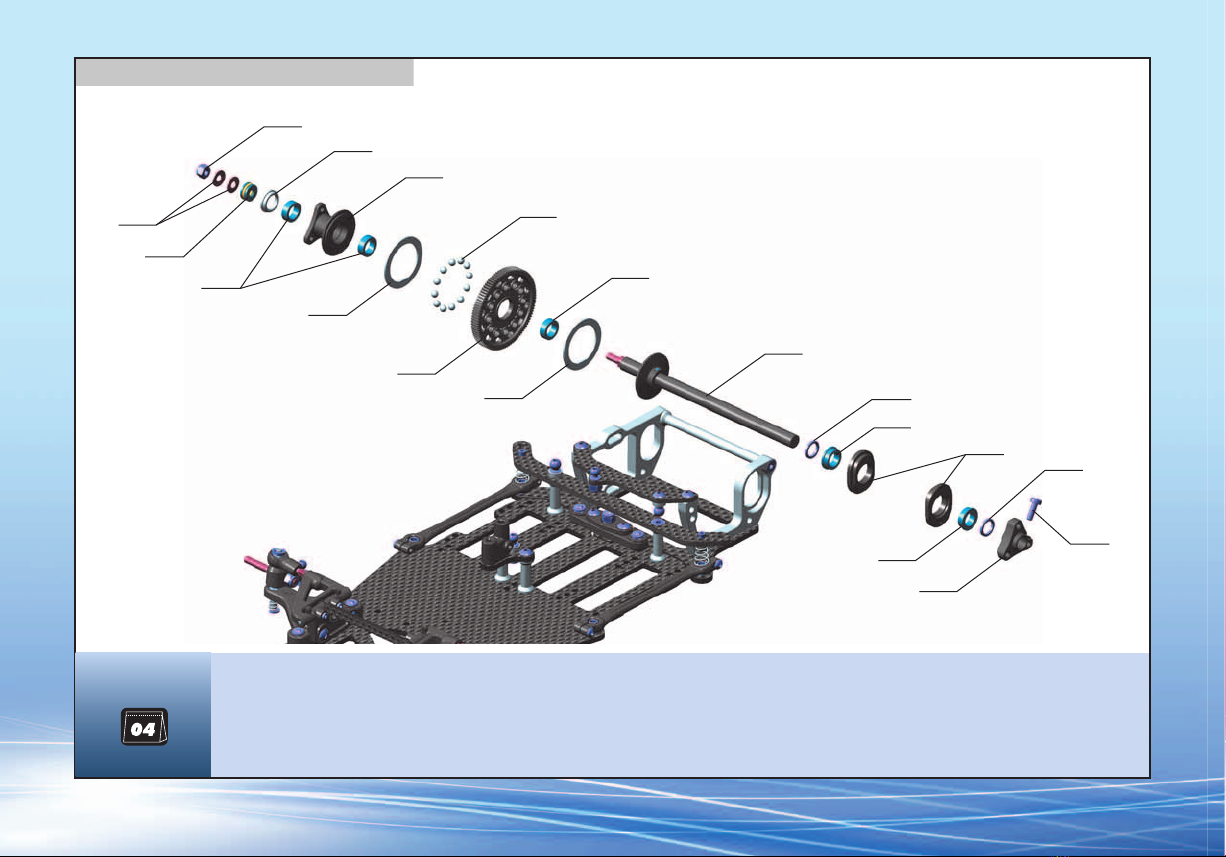

4. BALL DIffERENTIAL
BAG
372070 COMPOSITE RIDE HEIGHT ADJUSTER SET (2)
375010 REAR AXLE SHAFT - GRAPHITE
375030 ALU REAR WHEEL HUB - RIGHT
375040 ALU REAR WHEEL HUB - LEFT
375050 ALU DIFF HUB
375080 D-LOCK DIFF PLATE (2)
375090 SET OF ALU SHIMS (0.5MM, 1.0MM, 2.0MM)
375896 COMPOSITE SPUR GEAR - 96T / 64P
908258 HEX SCREW SOCKET HEAD CAP M2.5x8 (10)
930130 CARBIDE BALL 3.175MM (12)
930138 CARBIDE BALL-BEARING AXIAL F3-8 3x8x3.5
941438 HIGH-SPEED BALL-BEARING 1/4“x3/8“x1/8“ RUBBER SEALED (2)
951438 BALL-BEARING 1/4“ x 3/8“ x 1/8“ FLANGED (2)
960031 ALU NUT M3 (10)
963030 CONE WASHER ST 3x8x0.5 (10)

15
1. 2.
0 2.0 1.5 1.0 0.5
The axle must have a VERY small amount of
sideplay. If there is no side play, the axle may bind
in the ball-bearings and damage the bearings.
Use these Ride Height
Adjusters for initial assembly.
Use additional shims to widen the rear
track-width. Use the same shims on both sides.
For initial assembly use 6.4x8.4x1mm shims.
Bearing Oil
(HUDY #106230)
Bearing Oil
(HUDY #106230)
OIL
OIL
Flanged
Flanged
RIDE HEIGHT TRACK WIDTH
951438
BB 1/4“x3/8“x1/8“
375090
6.4x8.4x1.0
908258
SCH M2.5x8

16
3.
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
Diff Grease
(HUDY #106211)
Bearing Oil
(HUDY #106230)
Diff Grease
(HUDY #106211)
This nut affects the tightness and stiffness of the
rear differential.
Tighten the nut gently so the diff does not slip
under power, but do not overtighten or damage
to the diff balls and plates may occur.
OIL
Bearing Oil
(HUDY #106230)
OIL
Diff Grease
(HUDY #106211)
Diff Grease
(HUDY #106211)
8.0mm 7.8mm
3.0mm
3.2mm
DIFERENTIAL
930138
BA 3x8
941438
BB 1/4“x3/8“x1/8“
930130
B 3.1
963030
ST 3x8
960031
ALU N M3

17
378010
378010
378060
971022
378030
378092
901303
378010
378170
901303
378010
378120
378160
970050
378110
378050
378080
378020
378010
378040
378070
378110
378030
971022
971022
378110
965015
965015

#359210 100cSt (option)
#359215 150cSt (option)
#359220 200cSt (option)
#359225 250cSt (option)
#359230 300cSt (option)
#359235 350cSt (standard)
#359240 400cSt (option)
#359245 450cSt (option)
.1
BAG 05
CENTER SHOCK ABSORBER
BAG 05.1
SIDE SHOCK ABSORBER
5. SHOCk ABSORBERS
BAG
378000 SHOCK ABSORBER SET
378010 COMPOSITE SHOCK PARTS - FRAME
378020 ALU THREADED SHOCK BODY - HARDCOATED
378030 ALU SHOCK BODY CAP - LOWER
378040 ALU SHOCK ADJUSTABLE NUT
378050 ALU SHOCK BODY CAP - UPPER
378060 SHOCK SHAFT
378070 ALU SHOCK SPRING COLLAR
378080 SHOCK RUBBER MEMBRANE (2)
378092 SHOCK SPRING - SILVER
378100 SIDE SHOCK ABSORBER SET
378110 COMPOSITE SIDE SHOCK PARTS - FRAME
378120 ALU SIDE SHOCK BODY - HARDCOATED
378160 SIDE SHOCK SHAFT
378170 ALU SIDE SHOCK COLLAR
901303 HEX SCREW SB M3x3 (10)
965015 E-CLIP 1.5 (10)
970050 O-RING 5x1 (10)
971022 SILICONE O-RING 2x2 (10)

18
1. 2. 3.
Shock Oil
Shock Oil
OIL
OIL
Carefully remove the shock piston from the
frame, and remove all excess plastic ash
ASSEMBLED VIEW
BAG 05
CENTER SHOCK ABSORBER
965015
C 1.5
971022
O 2x2

19
4.
➊ ➋ ➌ ➍ ➎ ➏
➐
Gently push the shock shaft
completely into the shock
body. Excess oil will flow
through the hole in the
shock cap.
Keep the shock shaft
pushed in the shock body
and tighten the shock cap
completely.
Tighten the cap fully but
do not overtighten or the
rubber membrane may be
damaged. Make sure that
there is no oil leakage
after the cap is tightened.
HALF TIGHTEN TIGHTEN FULLY

Extend the shock shaft
completely. Fill the shock
body with the shock oil.
Move the shock shaft up and
down a few times to release
the air bubbles trapped
beneath the piston.
Orient the filled shock
vertically for several
minutes with the shock
shaft fully extended. The
remaining air bubbles will
release.
Install the shock membrane
into the groove in the
upper shock cap.
Gently place the shock cap
assembly onto the filled
shock body. Excess oil will
spill from the shock. Screw
the shock cap onto the body
by only a few turns, approx.
50%. Excess oil will flow
through the hole in the
shock cap.
3~5x
UP & DOWN

Follow the steps below to set the shock.
Oil 350cSt


20
5.
5mm
ASSEMBLED VIEW
INITIAL SETTING Press the collar FULLY onto the end of
the shock shaft and tighten the M3x3
setscrew.
For initial setting,
thread fully.
SHOCK
901303
SB M3x3
