Xterra EU100 User manual

EU100 HYBRID ELLIPTICAL
UPRIGHT BIKE OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW Hybrid Elliptical
Upright Bike
FITNESS

Table Of Contents
1
2
4
12
15
ATTENTION
THIS Fitness Hybrid Elliptical Upright Bike IS INTENDED FOR RESIDENTIAL USE ONLY AND IS
WARRANTED FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS
THIS WARRANTY IN ITS ENTIRETY.
Product Registration
Important Safety Instructions
EU100 Assembly Instructions
Operation of Your Console
Manufacturer’s Limited Warranty
Thank you for your purchase of this quality Hybrid Elliptical Upright Bike from XTERRA
Fitness. Your new Hybrid Elliptical Upright Bike has been manufactured by one of the
leading tness manufacturers in the world. XTERRA Fitness will do all we can to make your
ownership experience as pleasant as possible for many years to come. If you have questions,
or if parts are missing or damaged, or you require customer service, call [phone].
Please have your model number and serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new Hybrid Elliptical Upright Bike.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Hybrid Elliptical Upright Bike and Welcome to the
XTERRA Fitness Family!
EU100_VER1_20160913

EU100 Elliptical
1
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warrantyreg.html
to register online.
Product Registration
Purchase Location
Purchase Date

2
EU100 Elliptical
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and
equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for
persons over the age of 35 or persons with pre-existing health conditions.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the
accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart
rate trends in general.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
WARNING - To reduce the risk of burns, re electric shock, or injury to persons:
1. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury
to persons.
2. Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled
persons.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
4. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being use or where oxygen is being administered.
8. The appliance is intended for household use.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
CAUTION!! Please be careful when unpacking the carton.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.

EU100 Elliptical
3
Before you begin
Thank you for selecting our revolutionary XTERRA EU100 Hybrid Elliptical Upright Bike. Walking is an effective
exercise for increasing cardiovascular tness, building endurance, and toning the body. Our tness Hybrid
Elliptical Upright Bike provides an impressive selection of features designed to make your workouts at home
more effective and enjoyable.
For your benet, read this manual carefully before you use you tness Hybrid Elliptical Upright Bike. To help
us assist you, note the product model number and serial number before contacting us. Before reading further,

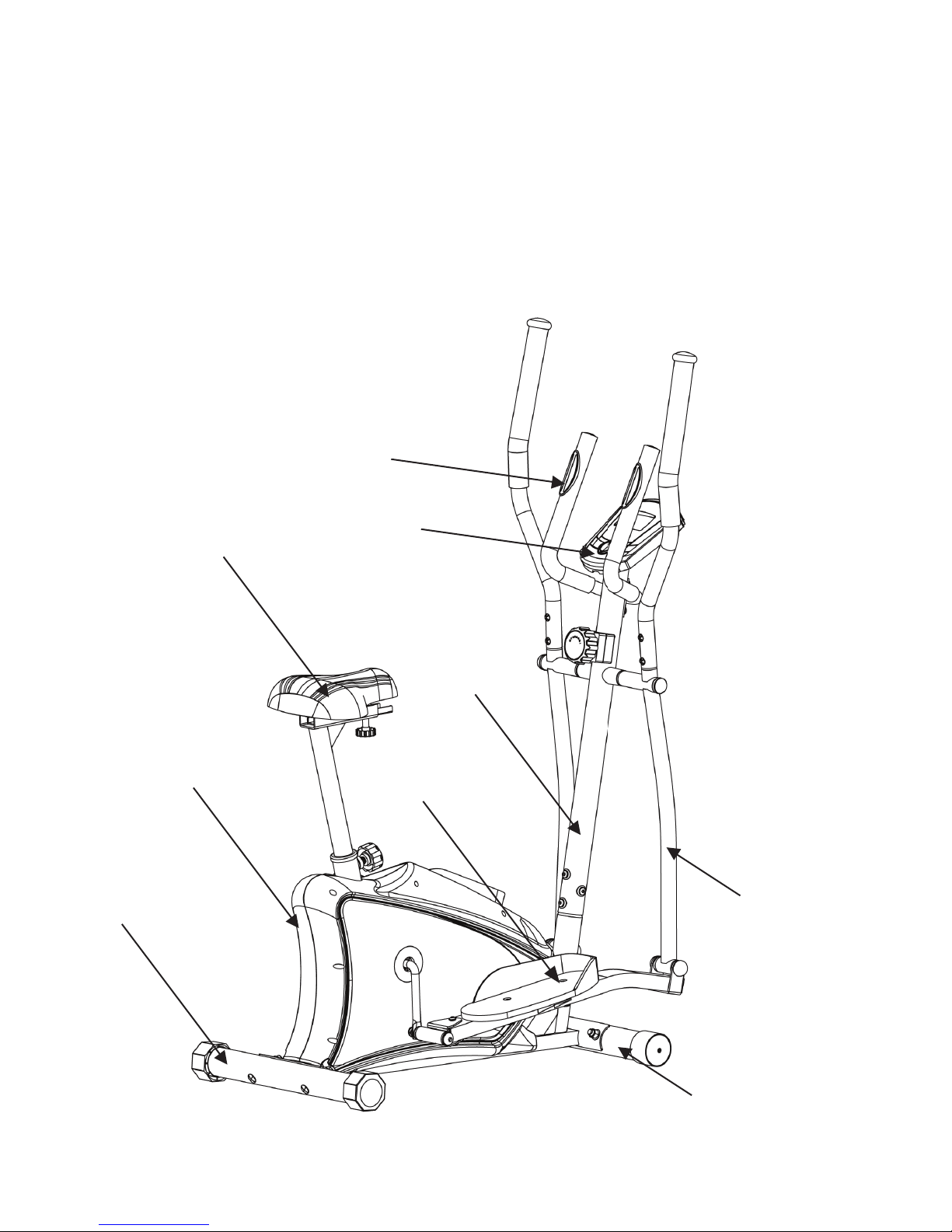

please familiarize yourself with the parts that are labeled in the drawing below.
Shroud
Seat
Pedals
Upright
Console
Hand Pulse Grip
Front Stabilizer
Swing Arms
Rear Stabilizer

4
EU100 Elliptical
EU100 Pre-Assembly Check List
PART NO.
1
11/12
18
22
4
2
9/10
19
13/17
20
16/64
14/15
DESCRIPTION
Main Frame
Pedal Tube (L/R)
Stationary Handlebar
Seat
Rear Stabilizer
Front Stabilizer
Pedal (L/R)
Computer
Front Post / 8-Level Tension Control Knob
Seat Post
Upper Handlebar (L/R)
Bottom Handlebar (L/R)
Hardware Bag
Manual
Q’TY
1
1/1
1
1
1
1
1/1
1
1/1
1
1/1
1/1
1
1

EU100 Elliptical
5
EU100 Assembly Pack Checklist
Part No. Description Q’ty
6Curved Washer Ф22*Ф10 4
7 Dome Nut M10 4
8Carriage Bolt M10*75 4
30 Allen Screw M8*16 6
31 Curved Washer Ф22*Ф8 6
32 PVC CAP 6
37 Carriage Bolt 4
38 Allen Screw M6*12 4
39 Hex Head Bolt M10*78 2
40 Sleeve 2
41 Washer Φ10*Φ22 6
42 Nylon Nut M10 6
44 Carriage Bolt M10*45 4
45 L/R Hinge Bolt (L/R) 1/1
46 Wave Washer Ф16 2
47 Washer Ф27*Ф13 2
48 L/R Lock Nut (L/R) 1/1
Allen Key 4mm 1
Allen Key 6mm 1
Allen Key 8mm 1
Allen Wrench 2
Note: Above parts are all the parts needed to assemble this machine. Before you start to assemble,
please check the hardware packing to make sure they are included.

6
EU100 Elliptical
1. Attach the Front Stabilizer (2) to the front of the Main Frame
(1), fasten with two Carriage Bolts (8), two Curved Washers
(6) and two Domed Nuts (7).
2. Repeat for the Rear Stabilizer (4) to the rear of the Main
Frame (1).
EU100 Assembly Instructions
Hardware Step 1
Front Stabilizer and Rear Stabilizer
4 Carriage Bolts (#8)
4 Curved Washers
(#7)
4 Domed Nuts (#7)
1

EU100 Elliptical
7
Support Tube
2Hardware Step 2
4 Allen Screws (#30)
4 Curved Washers
(#31)
Pre-assembled on
tension control knob:
1 Washer (#65)
1 Bolt (#66)
1. Turn the Tension Control Knob (17) to level 8. Connect
Tension Control Knob (17) with Lower Tension Cable (59),
connect Lower Sensor Wire (58) with Upper Sensor Wire (60).
2. Tighten Tension Control Knob with one Washer (65) and Bolt
(66).
3. Insert the Front Post (13) into the Main Frame (1), tighten with
four Allen Screws (30) and four Curved Washers (31).

8
EU100 Elliptical
1. Attach the Left Bottom Handlebar (14) to the left side axle of
the Front Post (13). Secure using one D Type Washer (36),
one Washer (35), one Spring Washer (34) and one Hex Head
Screw(33). Attach the PVC Cap (32) onto the Hex Head
Screw(33).
2. Repeat for the Right Bottom Handlebar (15) to the right side
axle of the Front Post (13).
EU100 Assembly Instructions
Hardware Step 3
Bottom Handlebars
2 D Type Washers (#36)
2 Washers (#35)
2 Spring Washers (#34)
2 Hex Head Screws (#33)
2 PVC Caps (#32)
3

EU100 Elliptical
9
Pedal Tubes
4Hardware Step 4
4 PVC Caps (#32)
2 Hex Head Bolts (#39)
2 Sleeves (#40)
6 Washers (#41)
6 Nylon Nuts (#42)
4 Carriage Bolts (#44)
1/1 Hinge Bolt (#45L/R)
2 Wave Washers (#46)
2 Washers (#47)
1/1 Lock Nut (#48L/R)
1. Attach the Left Pedal Tube (11) to the Left Side of Crank (49). Secure using one Left
Lock Nut (48L), one Washer (47), one Wave Washer (46) and one Left Hinge Bolt
(45L).
2. Attach the Left Pedal Tube (11) to the Left Bottom Handlebar (14). Line up the holes
and insert the Sleeve (40) then secure using one Nylon Nut (42), one Washer (41)
and one Hex Head Bolt (39). Attach the PVC Cap (32) onto the both side of Pedal
Tube (11).
3. Attach the Left Pedal (9) onto the Left Pedal Tube (11), secure using two Carriage
Bolts (44),two Washers (41) and two Nylon Nuts (42).
4. Repeat the procedure for the Right Pedal Tube (12) & Right Pedal (10).

10
EU100 Elliptical

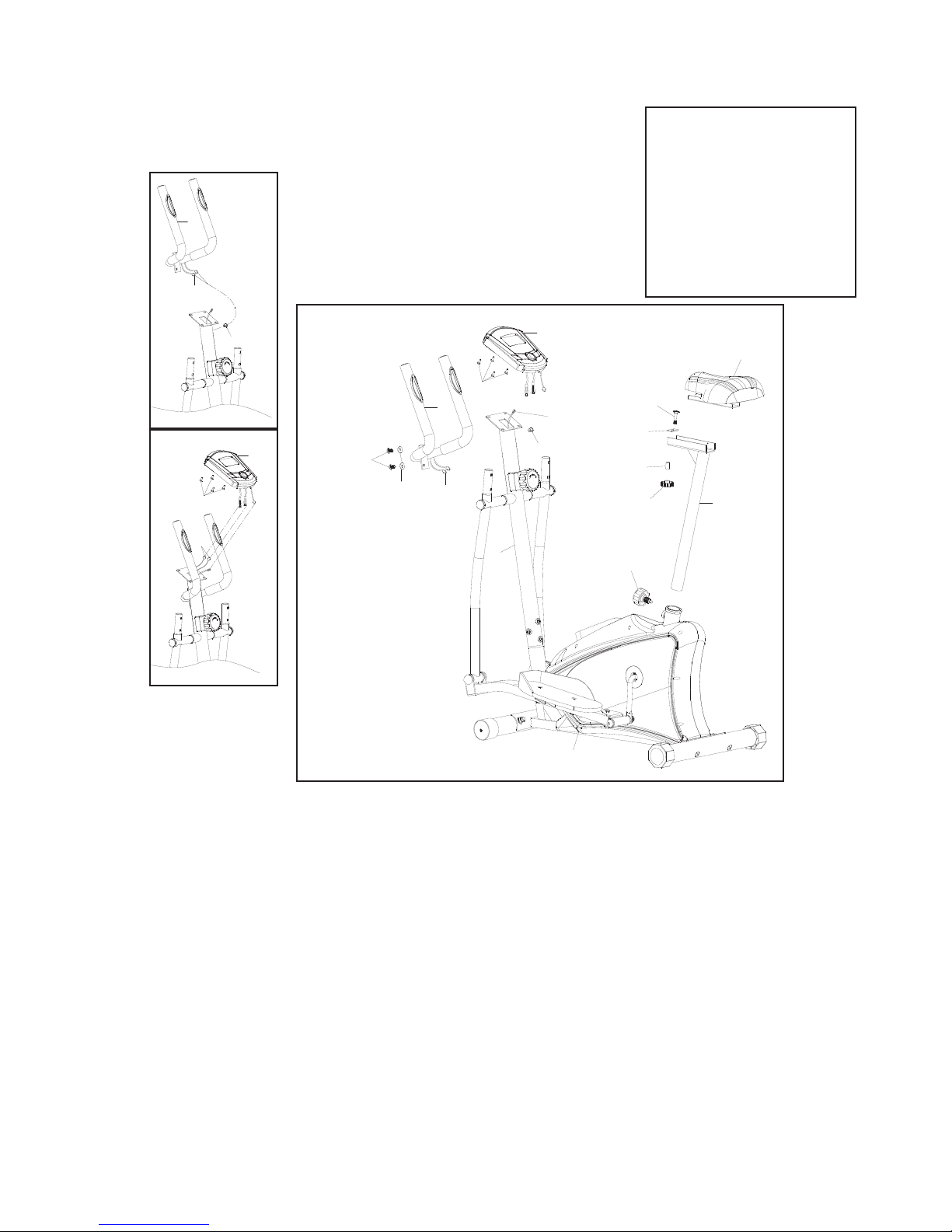

61
63
18
63
19
62
61
19
62
30
31 63
18
13
11
20
26
27
28
29
22
57
60

EU100 Assembly Instructions
61
63
18
63
19
62
61
19
62
30
31 63
18
13
11
20
26
27
28
29
22
57
60

61
63
18
63
19
62
61
19
62
30
31 63
18
13
11
20
26
27
28
29
22
57
60

Handlebars and Console
5
Hardware Step 5
2 Allen Screws (#30)
2 Curved Washers (#31)
Pre-assembled on Console:
4 Screws (#62)
Pre-assembled on Seat Post:
1 Carriage Bolt (#26)
1 Quadrate Plate (#27)
1 Sleeve (#28)
1 Lock Knob (#29)
1. Attach the Stationary Handlebar (18) to the Front Post (13). Secure using two Allen Screws (30)
and two Curved Washers (31).
2. Insert the Hand Pulse Wires (63) through the Grommet (61) on the Front Post (13), and then
pull it out from the top of the Front Post (13). Connect Sensor Wire & Hand Pulse Wire (63) with
Computer (19) accordingly.
3. Attach the Computer (19) to the Front Post (13) and fasten with Four Screws (62).
4. Attach the Seat (22) onto the Seat Post (20), line up the holes then tighten with one Carriage Bolt
(26), one Quadrate Plate (27),one Sleeve (28) and one Lock Knob (29).
5. Screw off the Quick Release Knob (57) from the Main Frame (1), insert the Seat Post (20) to the
Main Frame (1). Line up the holes and secure seat in position with Quick Release Knob (57). The
correct height for seat can be adjusted after the upright elliptical is fully assembled.

EU100 Elliptical
11
4 Allen Screws (#38)
4 Carriage Bolts (#37)
Handlebars
6Hardware Step 6
1. Connect the Left Top Handlebar (16) to the Left Bottom Handlebar (14). Secure
using two Allen Screws (38) and two Carriage Bolts (37).
2. Repeat for the Right Top Handlebar (64) to the Right Bottom Handlebar (15).
EU100 Assembly Instructions

12
EU100 Elliptical
Operation of Your Console
EU100 Console
BUTTONS:
MODE: Press to select the desired function between: Scan, Time, Count, Calories and Total
Count.
SET: Press to set the values of time, count and calories
RESET: Press to reset your function value to zero.
Press and hold for 2 seconds to reset except for Odometer.
(All the values will reset to ZERO automatically when change the batteries.)
Key Functions

EU100 Elliptical
13
Functions
Computer Operation
Remarks
Scan: Displays each function in sequence every 6 seconds. The display loop is Time -
Speed - Distance - Calories - Odometer - Pulse.
Time: Shows your elapsed workout time up to 99:00
Counts down from your preset target time to 00:00 during your workout
Speed: Displays the current speed up to 999 MILE.
Distance: Displays the cumulative distance traveled during your workout up to 999 mil
Counts down from your preset target time to 0.0 during your workout.
Calories: Displays the cumulative calories burned at any given time during your workout
up to 999 cal. Counts down from your preset target calorie to 0.0 cal.
Odometer Displays the total distance accumulated up to 9999 mile.
Pulse: The monitor will display the user’s current heart rate in beats per minute during
the workout. Both hands must hold the gripped pulse for a heart rate reading during your
workout.
Note: This is a rough guide used for comparison of different exercise sessions, which cannot be used for
medical purposes.
How to preset Time, Speed, Distance, Calories and Odometer.
1. Press the mode button until desired function is displayed.
2. Press the set button until your desired number is displayed.
3. Press the mode button to accept value.
4. Press mode button for few seconds until all numbers back to zero except ODO.
The computer will count down from your pre-set value once you start exercising.
The computer will beep to indicate the completion of your pre-set value. Press any button to
stop the beep and the computer will now start to count up.
If more than one value is preset, the rst to reach the value will sound the alarm. Once you
have stopped the alarm the next preset value will sound the alarm until you have reached all
preset values.
1. Computer requires two “AA” batteries
2. The computer will turn on automatically by pressing any key or when you start
pedaling.
3. The computer will turn off automatically if no signal is detected for around four
minutes.
4. If computer is illegible or partial segments appear, remove batteries and wait 15
seconds to re-install.
Removing the batteries will reset all values to zero.

14
EU100 Elliptical
Maintenance
The safety of this produce can be maintained only if regular periodic checks are made. Most
checks can be performed once a week. However some checks should be made before each
workout, and are indicated as such below.
Checks
• Check that pedals are tight, pedals can work loose over time.
• Check that stabilizer bolts are tight, check before each workout this.
• Check that handlebar is secure, if not, tighten, check before each workout this.
• Should a part become defective, replace it immediately. Do not allow use of the equipment
until it has been repaired.
Cleaning
A damp cloth is sufcient to clean most surfaces of this unit. Be careful not to drip water on
the monitor. A mild liquid soap may be added if needed.
HOW TO ADJUST THE SEAT
The seat can be adjusted forward or backward to the position that is the most
comfortable. To adjust the seat, loosen the quick release knob, slide the seat to the
desired position and retighten the knob.
HOW TO MOVE THE EU100
To move the Hybrid Bike, grasp the stationary handlebar and pull back on the handle
until the Hybrid Bike can be moved on the front wheels. Carefully move the Hybrid Bike
to the desired location and then lower it. Before moving the machine, please make sure
that the top handlebars are on same position.
HOW TO LEVEL THE EU100
The bike is equipped with adjustable end caps. If the unit is wobbly, please turn the
leveling caps on the rear stabilizer to level the unit.
User Direction

EU100 Elliptical
15
Manufacturer’s Limited Warranty
Effective August 4, 2016 - Hybrid Elliptical Upright Bike LIMITED WARRANTY
XTERRA Fitness Inc. warrants all its home use Hybrid Elliptical Upright Bike parts for a period of time listed below, from the date of retail
sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date.
XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our
independent dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by
XTERRA Fitness directly to a consumer. The warranty period applies to the following components:
Home Use Limited Warranty
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at http://www.xterratness.com/warrantyreg.html.
2. Proper use of the Hybrid Elliptical Upright Bike in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sufcient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the Hybrid Elliptical Upright Bike accessible for servicing, including any item that was not part of the Hybrid Ellipti-
cal Upright Bike at the time it was shipped from the factory.
5. Damages to the Hybrid Elliptical Upright Bike nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion
or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
3. Products with original serial numbers that have been removed or altered.
4. Products that have been; sold, transferred, bartered, or given to a third party.
5. Products that are used as store display models.
6. Products that do not have a warranty registration on le at XTERRA Fitness, Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
7. Product use in any environment other than a residential setting.
8. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at [phone].
4. XTERRA Fitness’s obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’s option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. The owner is responsible for adequate
packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
5. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Frame
1 Years
Parts Labor
1 Year None

16
EU100 Elliptical

EU100 Elliptical
17
www.xterrafitness.com ©2016 All RIghts Reserved. EU100 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 - Phone:[phone] - Fax:[phone]
