Xterra FB360 User manual

FB360 Folding Bike
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW FOLDING BIKE
FITNESS

Table Of Contents
1
2
6
13
16
19
20
Product Registration
Important Safety Instructions
FB360 Assembly Instructions
Operation of Your Console
Parts List
Exploded View
Manufacturer’s Limited Warranty
Thank you for your purchase of this quality Folding Bike from XTERRA Fitness. Your new
Folding Bike has been manufactured by one of the leading tness manufacturers in the world.
XTERRA Fitness will do all we can to make your ownership experience as pleasant as
possible for many years to come. If you have questions, or if parts are missing or damaged,
or you require customer service, call [phone]. Please have your model number and
serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new Folding Bike.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Folding Bike and Welcome to the XTERRA Fitness Family!
FB360_VER2_20191007

FB360 Folding Bike
1
Manufacturer’s 90 Day Limited Warranty
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warrantyreg.html
to register online.
Product Registration
Purchase Location
Purchase Date
Your XTERRA Folding Bike is warranted for 90 days from the date of purchase against
defects in material when used for the purpose intended, under normal conditions and
provided it receives proper care. Any part found defective or missing will be sent at no cost
when returned in accordance with the terms of this warranty.
This warranty is not transferable and is extended only to the original owner.
The warranty shall not apply to exercise units which are (1) used for commercial or other
income producing purposes, or (2) subject to misuse, neglect, accident or unauthorized
repair and alterations.
This warranty provided herein is lieu of all other express warranties, any implied warran-
ties, including any implied warranties of merchantability of tness for particular purpose,
are limited in duration to the rst 90 days from date of purchase. All other obligations or
liabilities, including liability for consequential damages are hereby excluded.
ATTENTION
THIS FOLDING BIKE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR
THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.

2
FB360 Folding Bike
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and
equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for
persons over the age of 35 or persons with pre-existing health conditions.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the
accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart
rate trends in general.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
• Weight Limit: 250 LBS.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
WARNING - To reduce the risk of burns, re electric shock, or injury to persons:
1. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury
to persons.
2. This exercise equipment is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
4. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being use or where oxygen is being administered.
8. The appliance is intended for household use.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
CAUTION!! Please be careful when unpacking the carton.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

FB360 Folding Bike
3
Before you begin
Thank you for selecting our revolutionary XTERRA Fitness FB360 Folding Bike. A folding bike is an effective
exercise for increasing cardiovascular tness, building endurance, and toning the body. Our tness folding
bike provides an impressive selection of features designed to make your workouts at home more effective and
enjoyable.
For your benet, read this manual carefully before you use the XTERRA Fitness FB360 Folding Bike. To help
us assist you, note the product model number and serial number before contacting us. Before reading further,
please familiarize yourself with the parts that are labeled in the drawing below.
Console
Hand Pulse Sensor
Rear Support Tube
Pedals
Shroud
Seat
Rear Stabilizer
Front Stabilizer

4
FB360 Folding Bike

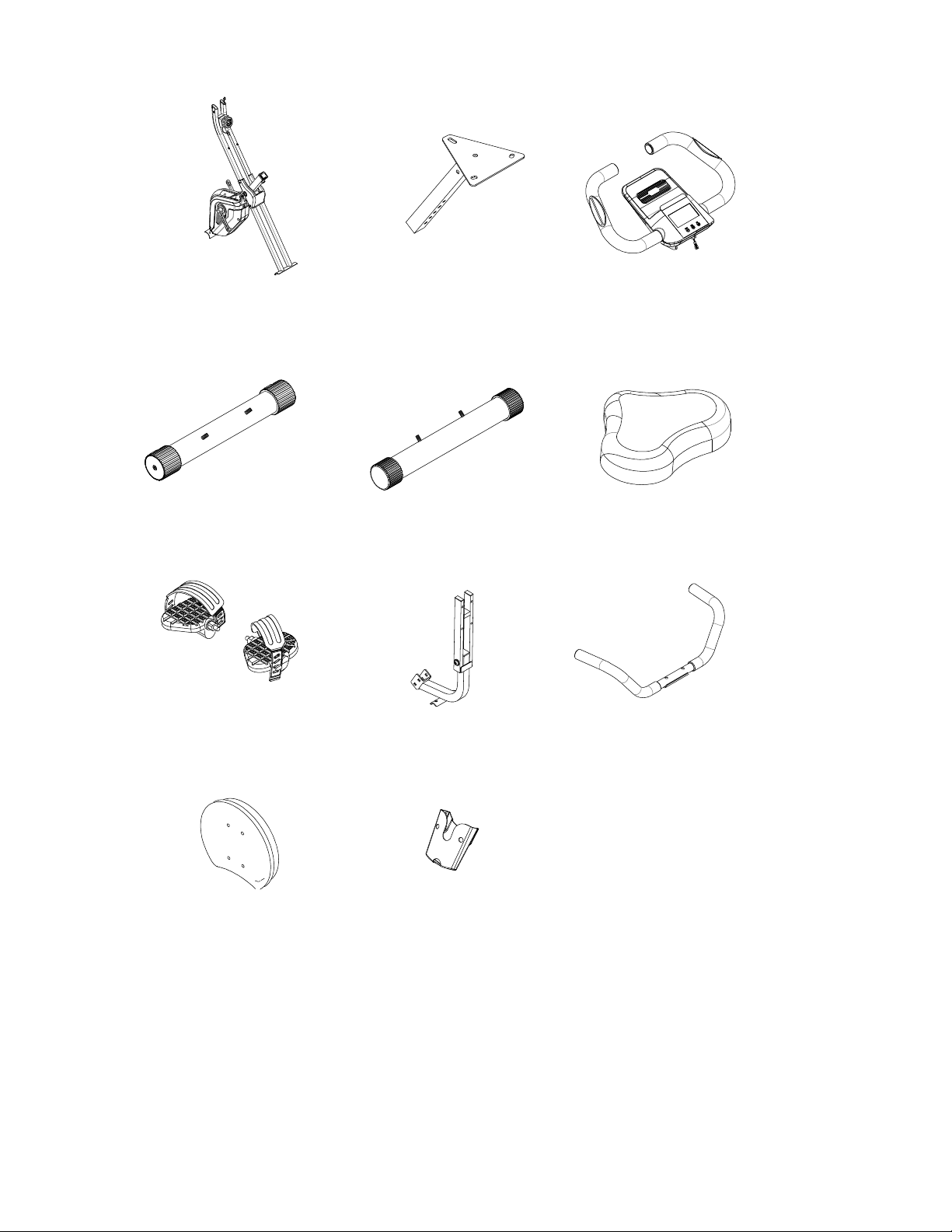

FB360 Assembly Pack Checklist
No. 01/02
Main Frame
(1pc)
No. 03
Seat Support Tube
(1pc)
No. 04/08
Handlebar Tube/Console
(1pc)
No. 05
Front Stabilizer
(1pc)
No. 06
Rear Stabilizer
(1pc)
No. 07
Seat
(1pc)
No. 09L/R
Pedal
(1pc)
No. 74/75
Back Cushion Support Tube Set
(1pc)
No. 77
Back Cushion
(1pc)
No. 89
Remote Control Holder
(1pc)
No. 76
Rear Handlebar
(1pc)

FB360 Folding Bike
5

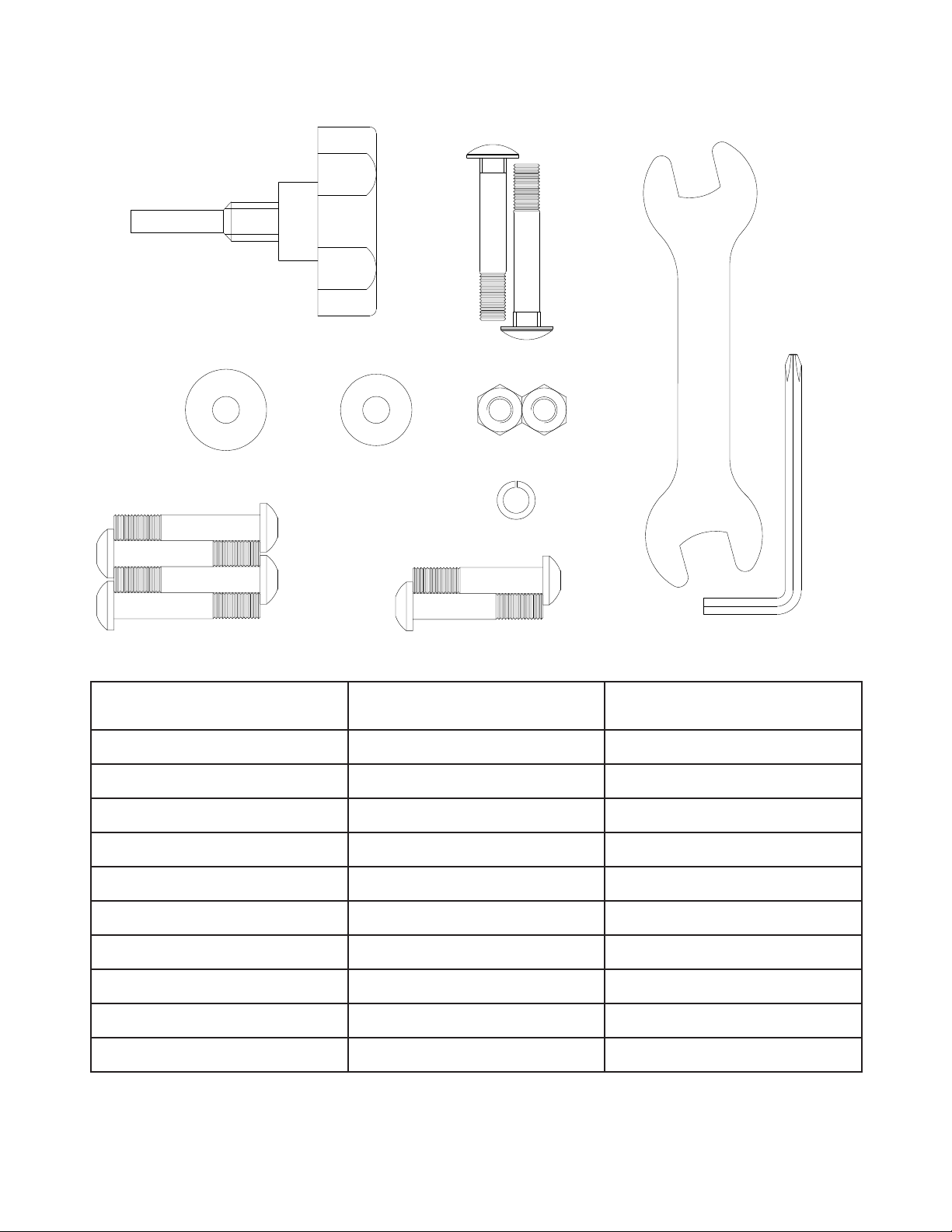

FB360 Assembly Part Checklist
Part No Description Q’ty
10 Club Knob 1
17 Nylon Nut M8 2
13 Curved Washer φ8.3xφ22 2
78 Carriage Bolt M8x50L 2
81 Allen Screw M8x40L 2
55 Flat Washer φ8.3xφ25 2
84 Spring Washer 4
80 Allen Screw M8x45L 4
72 Allen Key 1
73 Hex Head Wrench 1
Note: Above parts are all needed to assemble this machine. Before you start to assemble, please check
your unit to make sure they are included. The parts for this machine are preassembled on the unit.
#10.
(1 pc)
#78.
M8 x 50L
(2 pcs)
#17.
M8
(2 pcs)
#84.
M8
(4 pcs)
#13.
8.3 x 22 x 1.5t
(2 pcs)
#80.
M8 x 45L
(4 pcs)
#55.
8.3 x 25 x 2t
(2 pcs)
#81.
M8 x 40L
(2 pcs)
#73.
Wrench
13
15
#72.
5mm
Allen Key

6
FB360 Folding Bike
FB360 Assembly Instructions
Front Stabilizer and Rear Stabilizer
1
1. Pull out the Lock Pin (No. 11) from the Front Support Tube (No. 01) and
adjust the Front Support Tube (No. 01) to the open position then re-insert the
Lock Pin (No. 11) to secure the frame position.
2. Attach the Front Stabilizer (has wheels) (No. 05) to the Front Support Tube
(No. 01), tighten with the pre-installed 2 Curved Washers (No.13) and 2
Domed Nuts (No. 14).
3. Repeat the procedure for the Rear Stabilizer (No. 06).
02
11 14
13
05
14
13
06
01
11
11
73 Wrench

FB360 Folding Bike
7
Pedals
2
1. Connect the Left Pedal Strap (L) to the Left Pedal (No. 09L). Adjust the pedal
strap to the length you need. Assemble the Right Pedal Strap (R) to the Right
Pedal (No. 09R) in the same way.
2. Connect the Left and Right Pedal (No. 09L & 09R) to their appropriate Crank
(No. 15L & 15R). The right pedal is on the right hand side of the bike as you sit on
it. The Right Pedal (No. 09R) should be tightened clockwise and the Left Pedal
(No. 09L) counter-clockwise.
73
15R
09R
01
15L
09L
Wrench
L R
09R
09R09L
09L

8
FB360 Folding Bike
Seat
3
1. Remove the pre-intalled 3 Flat Washers (No. 16) and 3 Nylon Nuts (No.
17) from the back of Seat (No. 07) (see g. 3.1). Attach the Seat (No. 07)
to the Seat Support Tube (No. 03), using the pre-installed 3 Flat Washers
(No.16) and 3 Nylon Nuts (No. 17).
2. Insert the Seat Support Tube (No. 03) to the Front Support Tube (No.
01); fasten with the Club Knob (No. 10).
07
10 Club knob Fig. 3.1
73 Wrench
17
16 03
07
03
16
17
01
10

FB360 Folding Bike
9
Back Cushion & Rear Handlebar
4
1. Attach the Back Cushion Adjustment Set (No. 74) to the Seat Support Tube
(No. 03), secure with 2 Carriage Bolts (No. 78), 2 Nylon Nuts (No. 17) and 2
Flat Washers (No. 55).
2. Attach the Back Cushion (No. 77) onto the Back Cushion Support Tube (No.
75), secure with 4 Spring Washers (No. 84) and 4 Allen Screws (No. 80).
17
77
84
80
75
74
17
55
78
03
(2 pcs) M8 55 (2 pcs) 8.3 x 25 x 2t
80 (4 pcs) M8 x 45L
72 Allen Key
73 Wrench
78 (2 pcs) M8 x 50L
84 (4 pcs) M8

10
FB360 Folding Bike

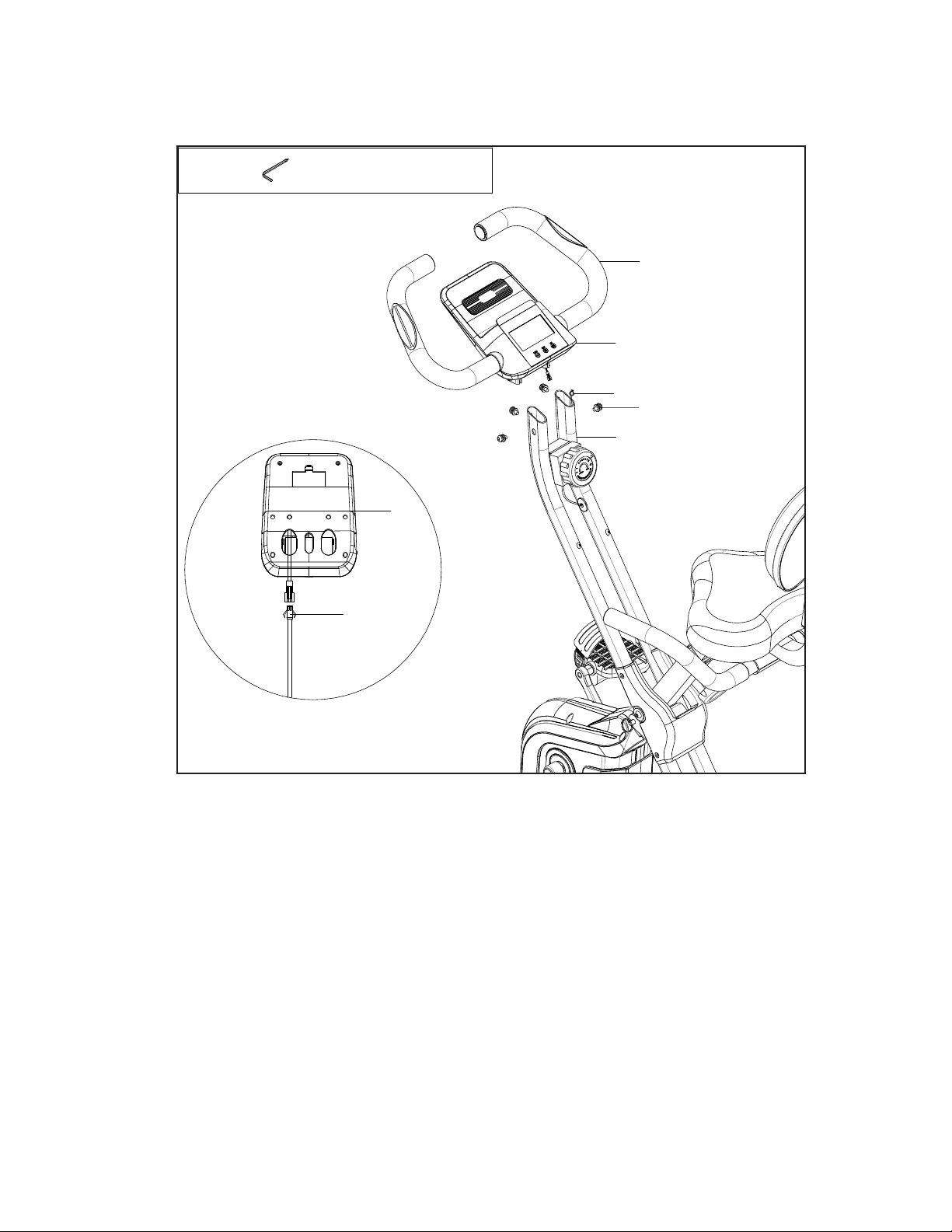

Handlebar and Console
5
1. Remove the pre-installed 4 Screw Sets (No. 12) from the Handlebar
Tube (No. 04).
2. Connect the Middle Sensor Wire (No.19) to the Console (No.08).
3. Insert the Handlebar Tube (No. 04) to the Rear Support Tube (No. 02),
secure with the 4 Screw Sets (No. 12).
72
04
08
1912
02
08
19
Allen Key

FB360 Folding Bike
11

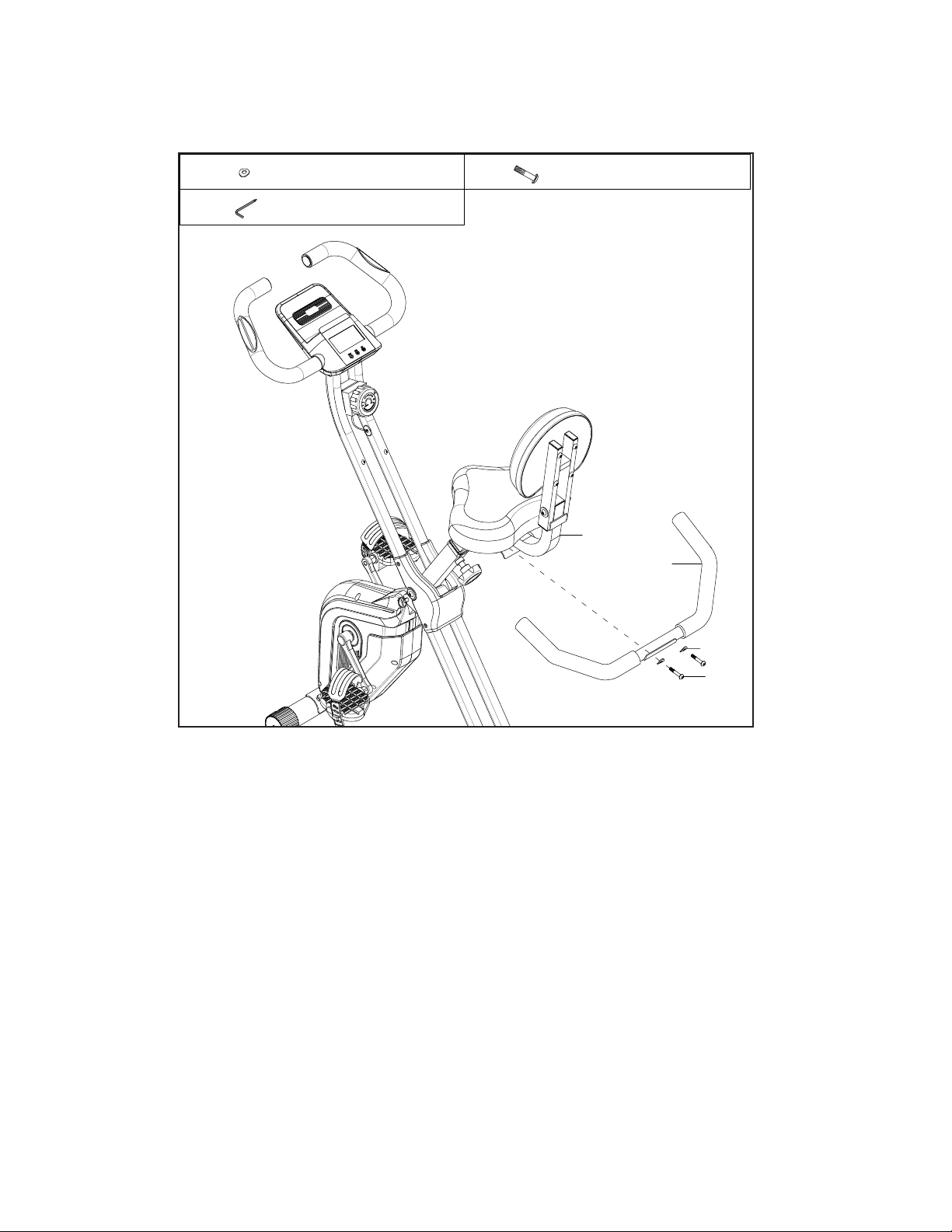

Rear Handles
6
1. Attach the Rear Handlebar (No. 76) onto Back Cushion
Adjustment Set (No. 74), secure with the 2 Allen Screws (No.
81) and 2 Curved Washers (No. 13).
74
13 (2 pcs) 8.3 x 22 x 1.5t
72 Allen Key
81 (2 pcs) M8 x 40L
76
13
81

12
FB360 Folding Bike
Remote-Control Holder
7
1. Remove the pre-installed 2 Screws (No. 82) from the Rear
Support Tube (No. 02), attach the Remote Control Holder
(No. 89) onto the Rear Support Tube (No. 02), and secure with
the 2 Screws (No. 82).
72
02
89
82
Wrench

FB360 Folding Bike
13
Operation of Your Console
FB360 Console
Functions AUTO SCAN Every 6 seconds
TIME 0:00 ~ 99:59
SPEED 0.0 ~ 999.9 KM/H (MILE/H)
DISTANCE 0.00 ~ 999.9 KM (MILE)
CALORIES 0.0 ~ 999.9 CAL
ODOMETER 0.0 ~ 9999 KM (MILE)
PULSE 40 ~ 240 BPM
BATTERY TYPE 2 AAA or UM 4
OPERATING TEMPERATURE 0°C ~ +40°C, 32˚F ~ 104˚F
STORAGE TEMPERATURE -10°C ~ +60°C, 14˚F ~ 140˚F

14
FB360 Folding Bike
Key Functions
BUTTONS
MODE - Push down for selecting functions.
SET - To Set the consumer movement of time, distance, calories and hand pulse.
RESET -For resetting consumer movement of time, distance, calories and hand pulse.
FUNCTIONS AND OPERATIONS
SCAN: Press the MODE button until SCAN appears, the monitor will rotate through the 6
functions: time, speed, distance, calorie, odometer, and pulse. Each display will be held 6
seconds.
TIME: Shows your elapsed workout time. Press the MODE button until “TIME” appears, press
SET button to set target time.
SPEED: Display current speed.
DISTANCE: Count the distance from exercise start to end. The maximum value is 999.99
miles. Press the MODE button until “DISTANCE” appears, press SET button to set target
distance.
CALORIE: Count the total calories from exercise start to end. Press the MODE button until
“CALORIE” appears, press SET button to set target calories.
ODOMETER: Monitor will display the total accumulated distance.
PULSE RATE: Press the MODE button until “PULSE” appears. Press SET button to set
target heart rate. The heart rate range can be set anywhere from 40 - 240 BPM.
Before measuring your pulse rate, please place your palms of the hands on both of the
contact pads. The monitor will show your current heart rate in beats per minute(BPM) on the
LCD after 6~7 seconds.
During the process of pulse measurement, the measurement value may be higher than
the actual pulse rate during the rst 2~3 seconds of reading, after which it will stabilize and
display a more accurate reading. The heart rate measurement value is not intended to be and
should not be used as the basis for medical treatment.
NOTE
• If the display is faint or shows no gures, please replace the batteries.
• The monitor will automatically shut off if there is no signal received after 4 minutes.

FB360 Folding Bike
15
STORAGE AND MAINTENANCE
HOW TO MOVE THE FOLDING BIKE
To move the folding bike, grasp the rear stabilizer and carefully lift it until the exercise folding
bike can be rolled on the front wheels. Carefully move the folding bike to the desired location
and then lower it.
Maintenance
Depending on your workout regimen, checks should be made weekly or before each workout.
This will help ensure your safety, as well as help maintain the integrity and performance of the
machine. Please see below for more detail:
• Check that the pedals are tightened securely as they can loosen over time.
• Check that seat nuts are secure.
• Check that stabilizer bolts are tight.
• Check that handlebar is secure.
• Tighten any parts that may have loosened over time before proceeding with your workout.
NOTE: Should any part become defective, contact XTERRA Customer Service immediately to
order replacement parts or seek advice on proper service. Discontinue use until the defective
part has been repaired.
Cleaning
A damp cloth is sufcient to clean most surfaces of this unit. Be careful not to drip water on
the monitor. A mild liquid soap may be added if needed.

16
FB360 Folding Bike
Part No. Serial No. Description Qty
01 FB360-665H-PART01 Front support tube 1
02 FB360-665H-PART02 Rear support tube 1
03 FB360-665H-PART03 Seat support tube 1
04 FB360-665H-PART04 Handlebar tube 1
05 FB360-665H-PART05 Front stabilizer 1
06 FB360-665H-PART06 Rear stabilizer 1
07 FB360-665H-PART07 Seat DD-306 1
08 FB360-665H-PART08 Console X3529 1
09L/R FB360-665H-PART09 Pedal ( L/R ) JG-16B 1/1
10 FB360-665H-PART10 Club knob M12 1
11 FB360-665H-PART11 Lock pin φ8x70L 1
12 FB360-665H-PART12 Screw Set 4
13 FB360-665H-PART13 Curved washer φ8.3xφ22 6
14 FB360-665H-PART14 Domed nut M8 5
15L/R FB360-665H-PART15 Crank ( L/R ) 1/1
16 FB360-665H-PART16 Flat washer φ8.3xφ17.5 3
17 FB360-665H-PART17 Nylon nut M8 5
18 FB360-665H-PART18 Hand pulse wire 1
19 FB360-665H-PART19 Middle sensor wire 1
20 FB360-665H-PART20 Flat washer φ4.3xφ12 2
21 FB360-665H-PART21 Sensor bracket 1
22 FB360-665H-PART22 Allen bolt M8x15L & Flat washer 25x2.0t 2
23 FB360-665H-PART23 End cap for handlebar 4
24 FB360-665H-PART24 EVA pad 1
25 FB360-665H-PART25 Hand pulse sensor 2
26 FB360-665H-PART26 Foam grip for handlebar 2
27 FB360-665H-PART27 Lower sensor wire 1
28 FB360-665H-PART28 Screw M5x20L 1
29 FB360-665H-PART29 Flat washer φ10.3xφ25 1
30 FB360-665H-PART30 Self-tapping screw M4x10L 1
31 FB360-665H-PART31 Self-tapping screw ST4.2x12L 6
32 FB360-665H-PART32 Self-tapping screw ST4.2x20L 11
33 FB360-665H-PART33 Magnet assembly 1
PARTS LIST

FB360 Folding Bike
17
34 FB360-665H-PART34 Axle for Main frame 1
35 FB360-665H-PART35 Flat washer φ5.2xφ18 1
36 FB360-665H-PART36 Pulley 1
37 FB360-665H-PART37 Plastic washer φ6.5 xφ13 1
38 FB360-665H-PART38 Nylon nut M10 1
39 FB360-665H-PART39 Flywheel 1
40 FB360-665H-PART40 Axle for pulley 1
41 FB360-665H-PART41 Idler wheel 1
42 FB360-665H-PART42 Fixed plate 2
43 FB360-665H-PART43 Hex head nut M10 2
44 FB360-665H-PART44 Hex head nut M6 1
45 FB360-665H-PART45 Nut M10 1
46 FB360-665H-PART46 Screw M6x10L 6
47 FB360-665H-PART47 Tension knob 1
48 FB360-665H-PART48 Grommet 1
49 FB360-665H-PART49 Flange nut M10 2
50 FB360-665H-PART50 Hex head blot M6x30L 1
51 FB360-665H-PART51 C-Clip 6
52 FB360-665H-PART52 Wave washer 1
53 FB360-665H-PART53 Flywheel adjustor 2
54 FB360-665H-PART54 Spring 1
55 FB360-665H-PART55 Flat washer φ8.3xφ25 4
56 FB360-665H-PART56 Bearing 2
57 FB360-665H-PART57 End cap for crank 2
58 FB360-665H-PART58 Bushing for seat post 1
59 FB360-665H-PART59 Screw M5x10L 1
60 FB360-665H-PART60 Pulley 1
61 FB360-665H-PART61 Bearing bracket 2
62 FB360-665H-PART62 Cushion rubber 1
63 FB360-665H-PART63 Bushing 6
64 FB360-665H-PART64 Plastic washer φ14 xφ10.3 1
65 FB360-665H-PART65 Belt 2
66 FB360-665H-PART66 Grommet 3
PARTS LIST
