XTRONIC 3060-PRO User manual

- 1 -
PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR
NEW X-TRONIC MODEL #3060-PRO SOLDERING STATION
TABLE OF CONTENTS
Product Specifications......................................................2
Package Contents .............................................................2
Safety Precautions ............................................................3
Unit Diagram ......................................................................3
Set-up & Operation............................................................4
Features..............................................................................4
Temperature Conversion .................................................4
Sleep Function ................................................................4
Calibration Function ........................................................4
Maintenance.......................................................................7
Soldering Tip Care...........................................................7
Unit ..................................................................................7

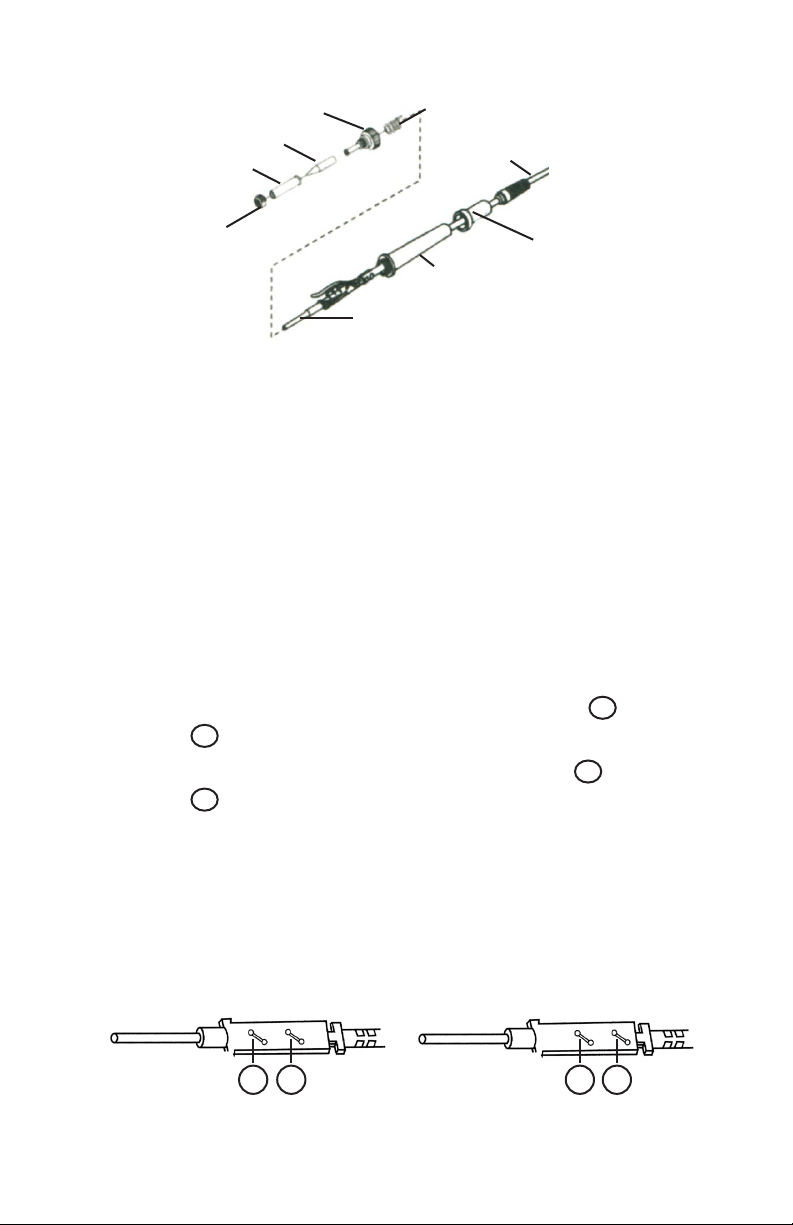

Soldering Tip Replacement .............................................8
Black Bakelite Screw Cap Tips........................................8
Heating Element Replacement........................................9
Troubleshooting ..............................................................10
Warranty ...........................................................................12
Contact Information ........................................................14

- 2 -
SPECIFICATIONS
Model XTR-3060-XTS
Input voltage 110/120V 60Hz
Dimensions 9.0 x 4.5 x 6.0 in
Weight 1.5 lbs / .65 kg
Working Environment 32°F ~ 104°F / 0°C ~ 40°C
Storing Environment -4°F ~ 176°F / -20°C ~ 80°C
Storage Humidity 35%-45%
Temperature Range 194°F ~ 896°F / 90°C ~ 480°C
Temperature Stability ± 2°C (static)
Tip to Ground Resistance <2Ω
PACKAGE CONTENTS
• Main Power Unit with LED Display
• 75 Watt Soldering Iron with Ergonomic Grip
• Mini-Mag Lamp
• Attachable Helping Hands (set of two)
• Small Wrench (to Tighten Helping Hands)
• Anti-static Ground Wire Alligator Clip
• Solder Roll Holder (attaches to side of main unit)
• Brass Sponge Soldering Tip Cleaner with Cleaning Flux
• Wet Sponge Soldering Tip Cleaner

- 3 -
SAFETY PRECAUTIONS
1. When not in use always turn the power off and unplug the unit from
the electrical outlet.
2. Never use the soldering iron near any flammable substance,
material, or gas.
3. Never touch the metallic components of the soldering iron while
they are in use. The items are extremely hot and will cause serious
burns instantly. Allow the unit to properly cool to room temperature
before attempting to touch them.
4. Do not use the unit for any application other than soldering.
5. Do not tap the soldering tip against the work surface to remove
residual solder - this can damage the soldering tip and/or heating
element.
6. Do NOT modify the unit in any way.
7. When replacing consumable parts, only use approved
manufacturer parts.
8. Do not get the unit wet or use when your hands are wet.
9. The soldering process can produce smoke - ensure the area is
well ventilated.

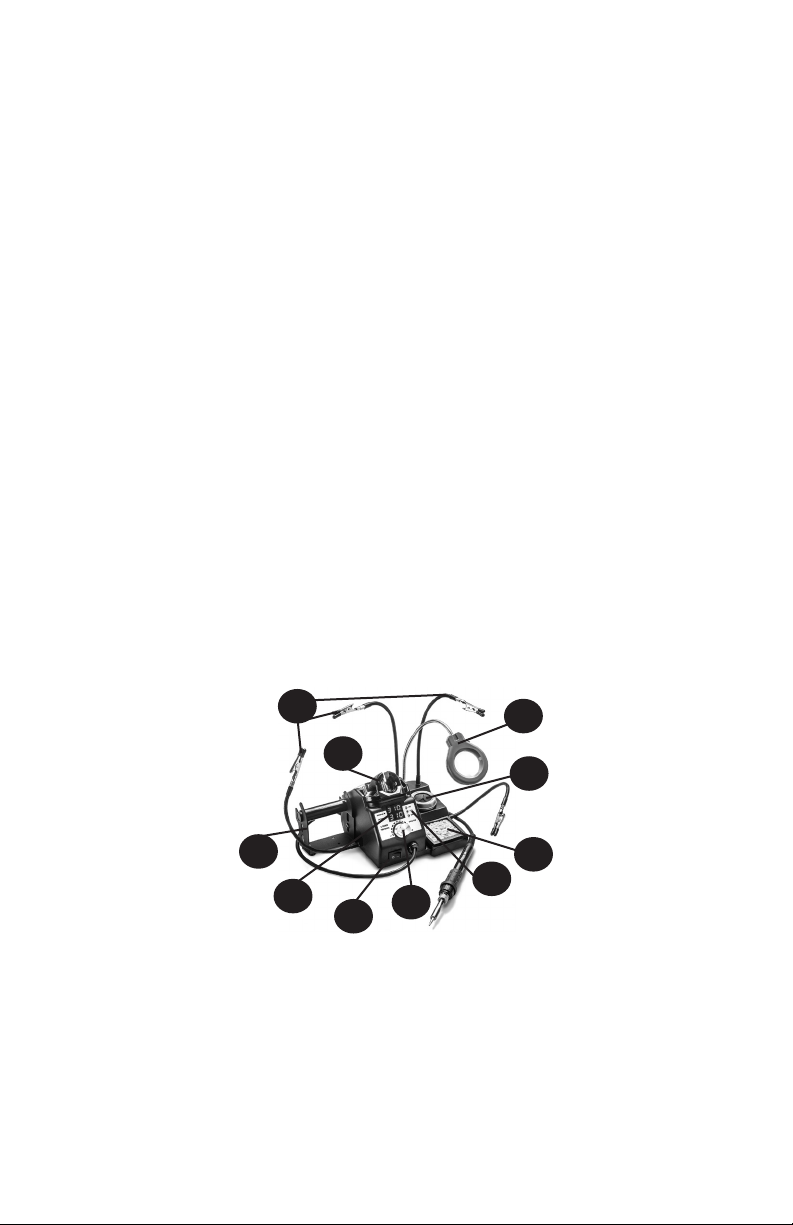

UNIT PARTS
1
3
456
7
8
29
10
1. Helping Hands
2. Soldering Iron Holder
3. Solder Roll Holder
4. Digital LED Temperature
Readouts
5. Power Switch
6. Temperature Adjustment
Knob
7. Memory Preset Indicators
8. Wet Sponge Tip Cleaner
9. Brass Sponge with Rosin
Flux Tip Cleaner
10. Mini Mag Lamp
