XYZ Printing PartPro200 xTCS User manual

Safety Precautions 2
Product Descriptions 3
Unpacking and Installation 5
Touch Screen Menu, Functions and Messages 7
Function Operation and Instructions 8
Printing 21
Scanning 22
Support detail 25
User manual ENG
The manual is mainly intended for users to understand how to use the
PartPro200 xTCS 3D printer (“200 xTCS”) correctly. In this manual,
users can learn more about the operating tips, application skills and
maintenance of the 200 xTCS 3D printer.
New member is required to register account on http://support.
xyzprinting.com before able to download latest manual &
software for better user experience.
For more information on the 200 xTCS, please contact your local
dealer or visit the ofcial website of XYZprinting: http://www.
xyzprinting.com.
HD23FC1S166
PartPro200 xTCS

P2P2
Safety Precautions
Safety and Compliance
Important Safety Precautions
Trademarks
Maintenance and Service
CAUTION
Heavy object.
2 person lift
required
Watch Your Hands.
●Do not move the machine by yourself as it is heavy.
●Do not place the printer in a dusty, humid or outdoor environment.
●Do not place the printer on a soft or tilted surface. Otherwise, the machine will fall / ip over and become damaged or
cause personal injury.
● Do not leave the product or power cord to unattended children. Otherwise, personal injury or electric shock might occur.
●Use the provided power cord. Otherwise, incorrect grounding might lead to damage.
●Do not place any liquid container on top of the product. Otherwise, overow or spill might go into the machine and pose
the risks of danger or safety concern.
●Do not wipe the printer with alcohol or ammable chemicals. Otherwise, danger might occur.
●Do not move the machine when it’s powered on.
●Do not reach into the machine with your hands during operation. Otherwise, risks of impact from moving printing parts or
burn from high temperature might occur.
●The machine becomes hot during operation and thus run in high temperature. Do not touch or replace parts when they
are not cooled down.
●After startup, the parts in the machine will heat up or move depending on the user’s instructions. During product
operation, do not touch or block the operation of the parts.
●Weak odors may be generated during the printing process. We recommend working in a well-ventilated and open area to
ensure operational comfort.
●Defect reparation must be carried out according to the contents of this instruction manual. Where the defect cannot be
repaired, please contact your printer dealer or the customer service center.
When the printer needs to be serviced during the term of the warranty, it is recommended that the machine is packed with
original packaging materials prior to shipment. For this purpose, the packaging materials are better to be kept. If other
packaging materials are used instead, the printer might be damaged during transportation. We reserve the right to assess
relevant service fees.
Please read through this manual and all safety precautions carefully before using, operating, unpacking, replacing, remov-
ing any part or maintaining this product. Please also comply with the instructions of relevant safety precautions.
All trademarks and registered trademarks are the properties of their respective owners.

P3P3

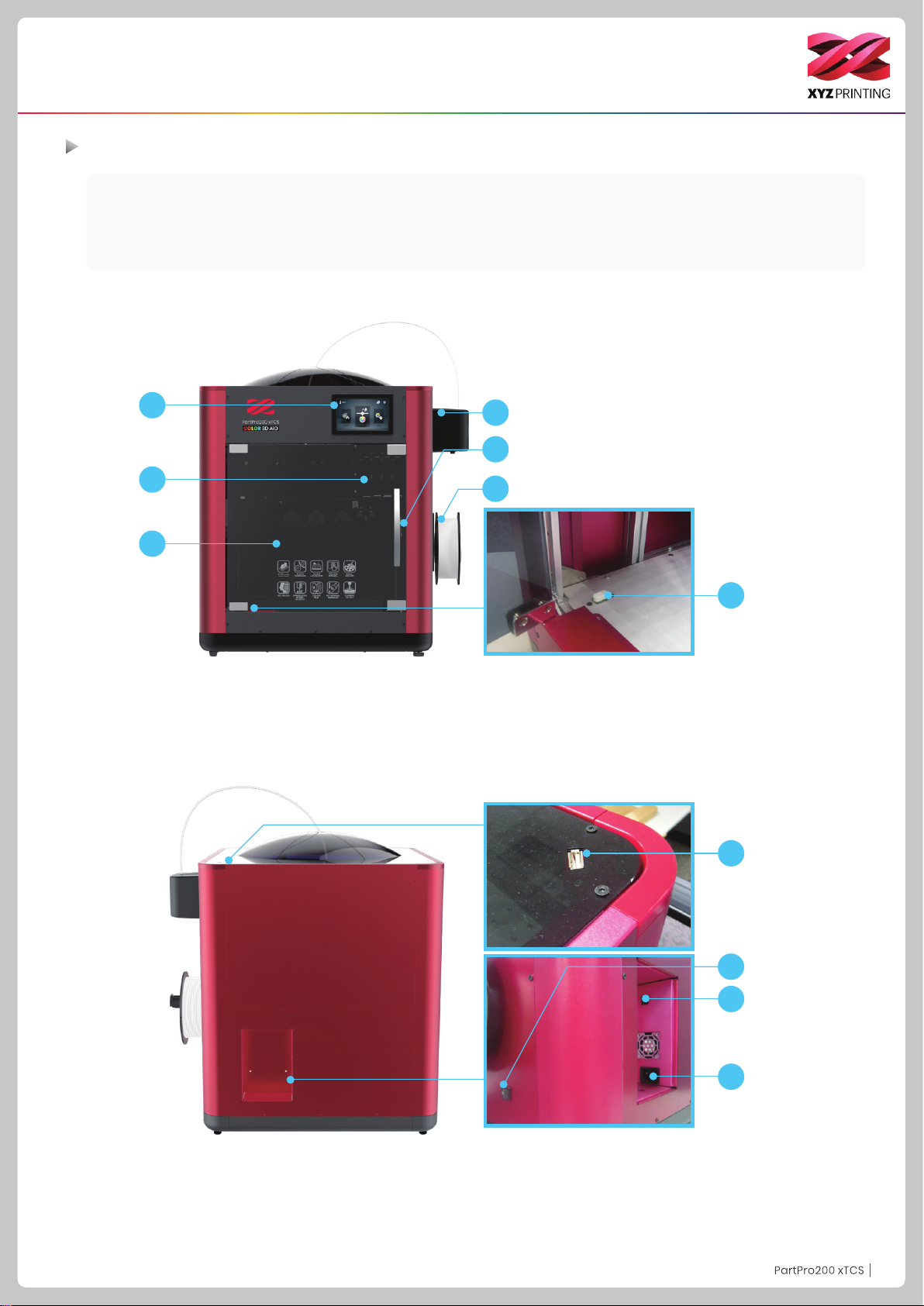

Product Descriptions
Product exterior
1
3
2
4
7
8
9
11
10
6
5
1. 5 inch color touch panel 2. Auto-feeding module 3. Print head 4. Print bed+EZ removable rubber magnet
5. Scan module 6. Filament spool holder 7. USB Port 8. USB Port (WiFi dongle)
9. Power switch 10. USB Port (To PC) 11. Power jack

P4P4
Product Descriptions
Specications
The following tools are intended for use under the guidance or guardianship of an adult only. Do not allow children unfamiliar with the
tools to have access to them in case of danger.
●Make sure the maintenance work of the printer is carried out when the print bed has cooled down.
●When printing is completed and the print bed is cooled down to room temperature, the printed object can be removed from the print bed
with the scraper.
●Filament residues generated during the course of printing may be stuck on the print head and gears of the printing module. The printing
quality and printer operation as well as the measurement of the print bed may be affected. When this happens, clean the printing
module with the wire brush.

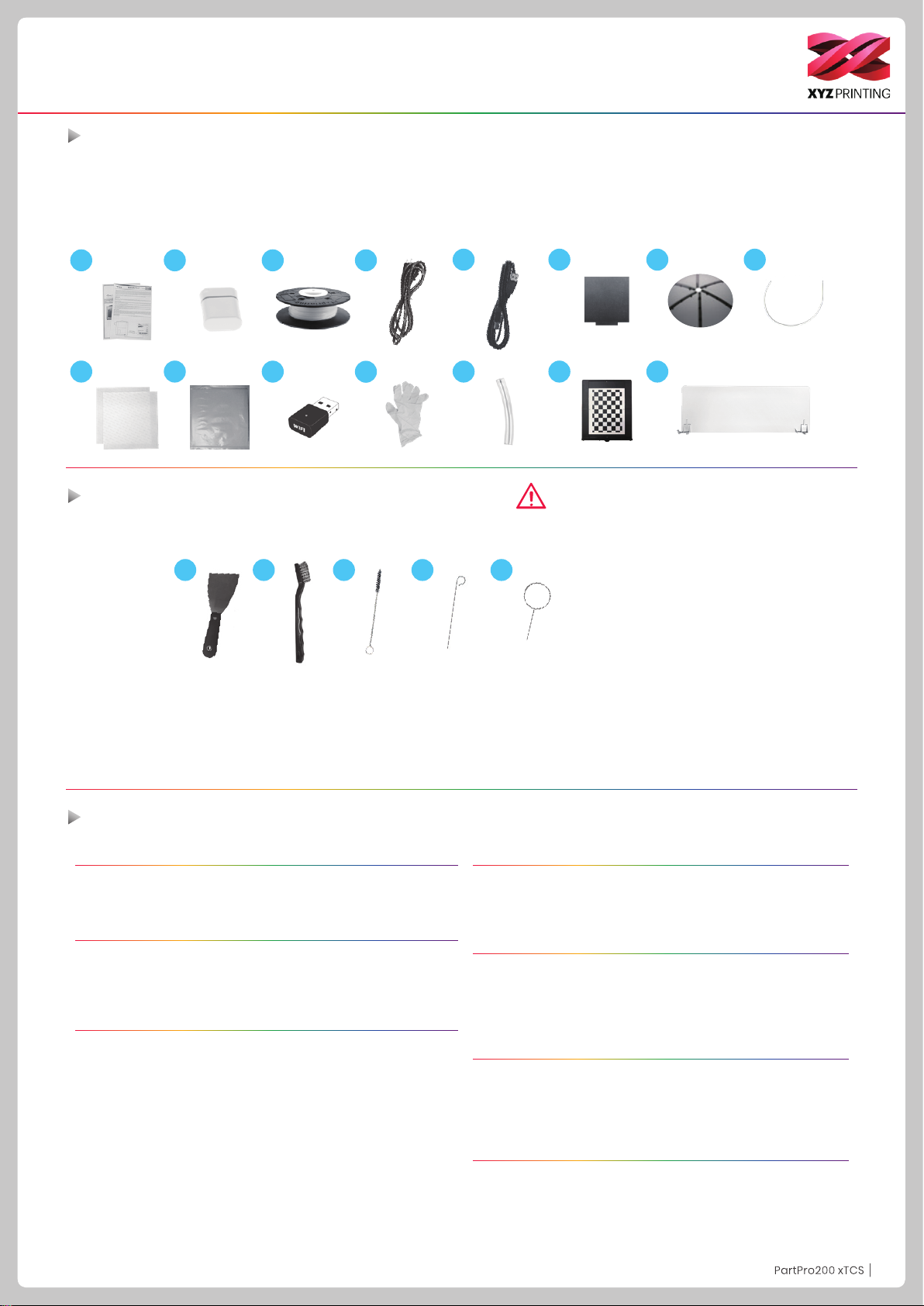

31 2 4 5 1. Scraper
2. Wire brush
3. Gear cleaning brush
4. Feed hole cleaning wire
5. Print head cleaning wire
Precautions and Instructions of Maintenance Tools
Accessory Checklist
1 2 3 4
11
5 6
12 13 1514
7 8
9 10
1. User Manual 5. USB Cable 9. PC Mylar x 2pcs 13. Clear Tube
2. USB Drive 6. EZ Removable Rubber Magnet 10. Mask Tape x 3pcs 14. Calibrating Plate
3. 3D Color-inkjet PLA 7. Top Cover 11. WiFi Dongle 15. Scan Backboard
4. Power Cord 8. Guide Tube 12. Pair Of Gloves
Printing
Printing technology 2D pattern: Inkjet printing
3D structure: Fused lament fabrication (FFF)
Dimensions and Weight
Dimensions (W*D*H) 600* 581* 640 mm
Net weight 32 Kg
Gross weight 43 Kg
Performance
Printing dimensions (W*D*H) Mono color printing (without inkjet printing)
200 x 200 x 150 mm
Full color printing
185 x 185 x 150 mm
Thickness of printed layer 0.1 mm ~0.4 mm
Alignment precision X/Y : 0.0125 mm
Auto calibration Yes
Auto feeding Yes
Ofine standalone printing Yes
Materials
3D printing materials 3D Color-inkjet PLA, PLA, Tough PLA, PETG
Filament diameter 1.75 mm
Ink type CMYK cartridge with separate colors
Hardware
Print head diameter 0.4mm
User interface 5” color touch screen
Print bed Non-heated, removable
Transmission USB 2.0 drive / USB cable / wireless transmission
Software
User software XYZmaker
Supported le format AMF, OBJ, STL, XYZ Format (.3w), .3CP, .3MF
Operating system Mac OS X 10.10 / 10.11 / 10.12
Windows 7 /8/10 (64-bit)
Temperature
Machine operating temperature 15-30°C
Cartridge storage temperature 15-35°C
Filament storage temperature 0-38°C

P5P5
Unpacking and Installation
Remove the packaging materials, top cover box, assessory box and plastic cover.
3
Move the printer to a table or plat-
form. (Do not move the printer by
yourself as it is heavy.)
1
Remove the plastic wrap and PP.
2
8
Remove the foam next to the guide screws on both sides, and then remove the foam under
the print bed.
Remove the tape on the
body (4 in total).
4
Open the front door. Remove
the tape from the supporting
materials and print bed.
6
Remove the foam on the
cartridge holder.
7
Open front door, remove the tape at mark printer door
post.
5
Remove the cable tie and foam in front and back of the front
door.
9

P6P6
Unpacking and Installation
There is a sheet of PC lm to
rubber magnet with a double
sided adhesive, this PC lm is
replaceable, please replace it
when it's dirty or broken.
Note
1. Check if the print bed calibration screws
was stuck.
2. Used to 2 thumb to push up the printbed
to release the calibration screw.
Precautions
Conrm the rubber magnet is well placed on the print bed.
14
Please follow the order as image instruction, attach the PC
mylar (accessory 9) and mask tape(accessory 10) on the EZ
removable rubber magnet(accessory 6).
13
Ensure that the one end of guide tube(Accessory 8) has been tightly. inserted into the printing module
port, then insert the other end into the clear tube (Accessory 13) to the end.
10
Mask Tape
PC Mylar
EZ Removable
Rubber Magnet
11 12
Insert the other end of the guide tube into the feed module
and secure it tightly.
Feed the guide tube through the top cover then attach the
top cover to the machine.

P7P7
Touch Screen Menu, Functions and Messages
This includes Filament, Ink Load
and Unload.
Filament/Ink loading
and unloading
This menu can be used to import
les (.3cp) from a USB drive to the
machine for printing without a com-
puter.
This includes the functions in Home
Page 1:
Settings of the Print-Bed, Print-
Head, Filament, Ink and Scan
Module.
Next page includes
WiFi, Sound, Statistics, Language
and Display.
The last page includes
Model, Version, Reset and Legal
Info.
Settings
USB Printing Menu
Main screen

P8P8
Function Operation and Instructions
2. Place the lament on the
spool holder.
1. Please cut the lament at 45
angle before auto loading the
lament into the printer. During
loading lament process, the
lament should be straighten at
least 4” of the Filament end as
shown in pictures.
A. Load/unload laments
Make sure the lament rotates
clockwise when pulled.
Note
3. Tap Filament Load and
Unload in the main screen and
select Filament.
4. Tap Filament.
5. Tap Load. 6. Conrm the operation. 7. Insert the lament into the feed module, it will be automatically loaded.
8. Check if the temperature of the print head goes up to its operating temperature (Color PLA from
XYZprinting) after the lament is loaded. Once the set temperature is reached, the feeding motor will
feed the lament along the guide tube into the print head.
9. Once lament has extruded
from the print head, the lament
will be successfully loaded.
Tap the screen to conrm and
continue.
Load laments
A1 Filament
Unloading laments
A2 Filament
1. Tap Filament Load and
Unload on the main screen.
2. Tap “Unload” and conrm the
operation.
3. Conrm the unloading
operation.
4. When the print head has
been warmed up to 220 °C,
the feeding motor will eject the
lament.
5. When the unloading
operation completes, tap to
conrm.

P9P9
Function Operation and Instructions
200 xTCS will prompt you to rell material.
Rell Material
A3 Filament
Unload the prints
1. Check if the USB drive is
plugged to the machine.
2. Tap the USB Printing Menu in
the main screen.
3. Select the file you want to
print.
5. The screen will show the
print percentage when printing.
The Pause, Stop, and Rell
are shown below the print
percentage.
4. Check file information and
tap “Print”.
B. USB printing
By default, the front door will be
locked when printing. If you want to
change this setting, go to Setting >
Door Lock to change it.
Note
Please removed the EZ Removable Rubber Magnet with printed object together from the printer.And
peel off the printed object from the rubber magnet.
B1
Please avoid touch-
ing the led strip of the
printer because the
LED strip will be slight
hot due to long hours
of been light on.
1. Tap the icon when printing.
7. The lament will be
automatically loaded.
5. Replace the empty spool with a new one. (please refer to the
LOADING section in this manual) and then tap "PROCEED" .
2. The screen will show lament
status, please tap "Rell" .
8. Check if lament is extruded from the nozzle, after conrmation,
the printer will resume printing.
3. Conrm the operation.
6. The nozzle will be preheat and notify you when to insert lament
into the feed module.
4. The nozzle will be preheated
and the lament will be
unloaded automatically.

P10P10

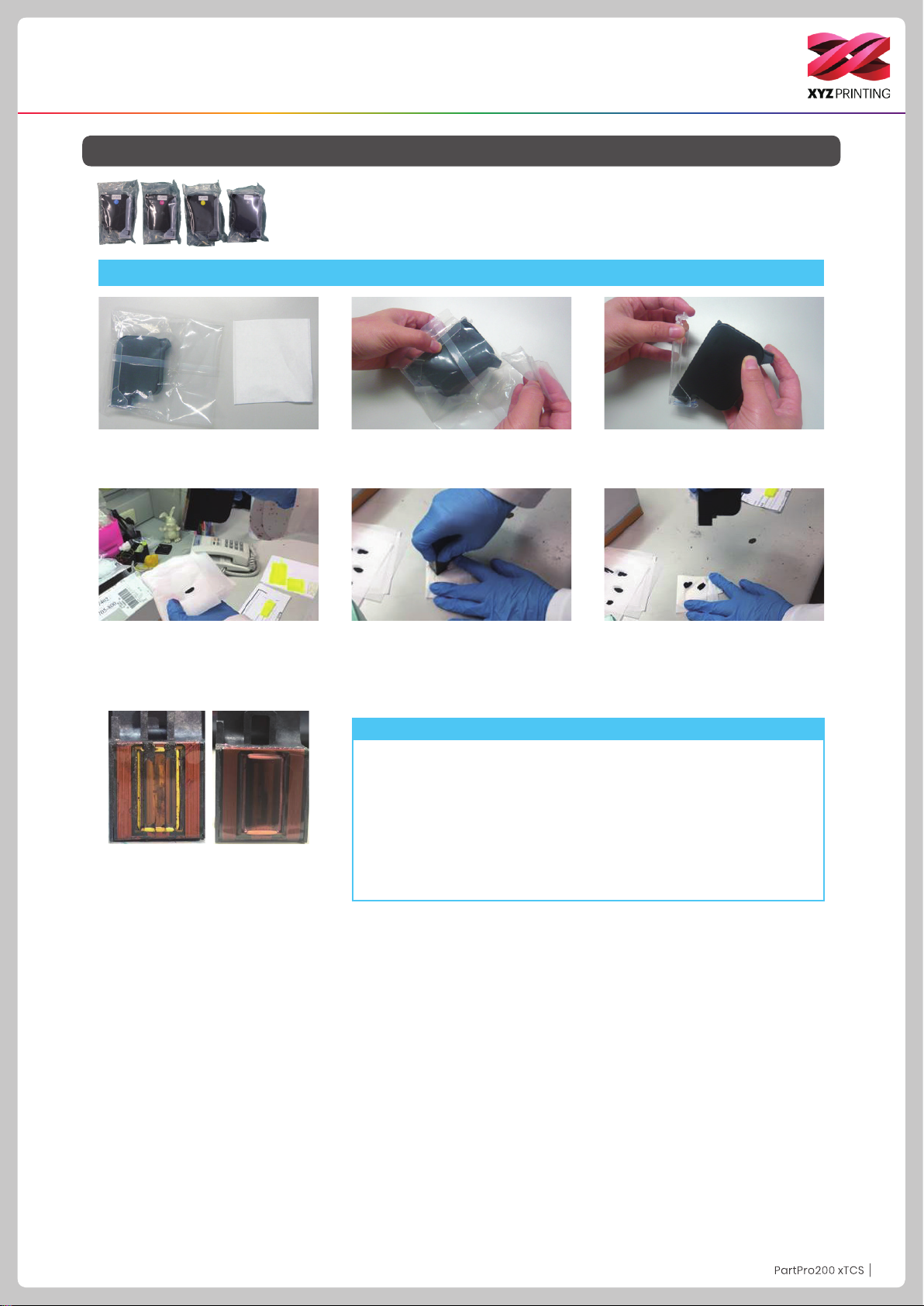

The 200 xTCS uses four color inks which can be replaced separately.
C. Ink Cartridge Installation
Function Operation and Instructions
1. Prepare several paper towels and the
ink cartridge.
2. Unpack the ink cartridge. 3. Remove the cartridge cover.
Ink Guidance
6. Check if the ink transferred to the
paper towel displays two straight lines.
If so, ink guidance is successfully
completed. Once ink guidance is done,
install the ink cartridge.
4. Press the cartridge head against the
paper towel to transfer some ink onto it.
5. If the ink did not transfer well, try
putting the paper towel on the table and
hold the ink pressed on the paper towel.
7. If the ink did not transfer well, please
wet the paper towel with 75% Alcohol to
wipe the ink. After you clean the inkjet,
check to see if the ink transferred.
To prevent the opened ink cartridge from drying out when a print is
nished or the printer will be idle for days, follow the procedure to store
the cartridge:
1. Clean the nozzle of the ink cartridge with alcohol.
2. Seal the ink cartridge with the protective cover, and store the cartridge
in room temperature at 15 ~ 35 degree.
For the best print quality, clean the nozzle of the cartridge with alcohol
after removing the protective cover from the cartridge, and then install the
cartridge back to the printer before the next print.
Note

P11P11
Function Operation and Instructions
3.Wait until the cartridge moves
to the center of the print bed,
and then change the ink.
1. Tap Change Ink and tap to
conrm.
4. Tap the PROCEED after you
change.
2. Conrm the operation.
1. Lift up the plate upwards.
2. Take out the cartridge.
3. Put in a new cartridge.
4. Check if the cartridge is placed properly.
5. Press down the plate on top.
6. Check if the order of the ink color is K(Black),
C(Cyan), M(Magenta) and Y(Yellow) from left
to right.
Note : Replacement of any ink cartridge, please
conduct inkjet calibration test.
Cartridge Installation
1
4
2
5
3
6
Change InkC1 Ink
Tap the ink, the screen will
show the status of the ink,
including "Ink Low", "No Ink",
"Invalid Ink", and "Invalid Color"

P12P12
2. Tap “PLA Test Page" to print. 3. Wait for the extruder to heat
up to operating temperature.
1. You can also choose to print
the "PLA Test Page" to conrm
the ink status.
6. Taken off the printing object
and check the coloring status.
4. Printing "PLA Test Page".
5. Conrm if the print job is
completed.
Function Operation and Instructions
We suggest you print a test page after you install the ink cartridge. Please prepare a sheet of paper.
2. Tap Test Page. 3. Test Page.1. Tap Calibration.
9. Remove the test page and
tap PROCEED.
Calibration Test Page
Ink Paper Test Page C2-1
8. Fix the paper onto the print
bed and then tap PROCEED,
the printer will do a test print.
6. Fold tightly the excess A4 paper to the back of the rubber
magnet.
5. Tighten/pull the A4 paper so
it is at(no gap) on the rubber
magnet.
4. Take out the EZ Removable
Rubber Magnet. Use tape to
secure the A4 in the portrait
direction on the front side of the
rubber magnet.
7. Put the rubber magnet back
to print bed accordingly.
Calibration Test PageInk PLA Test PageC2-1

P13P13

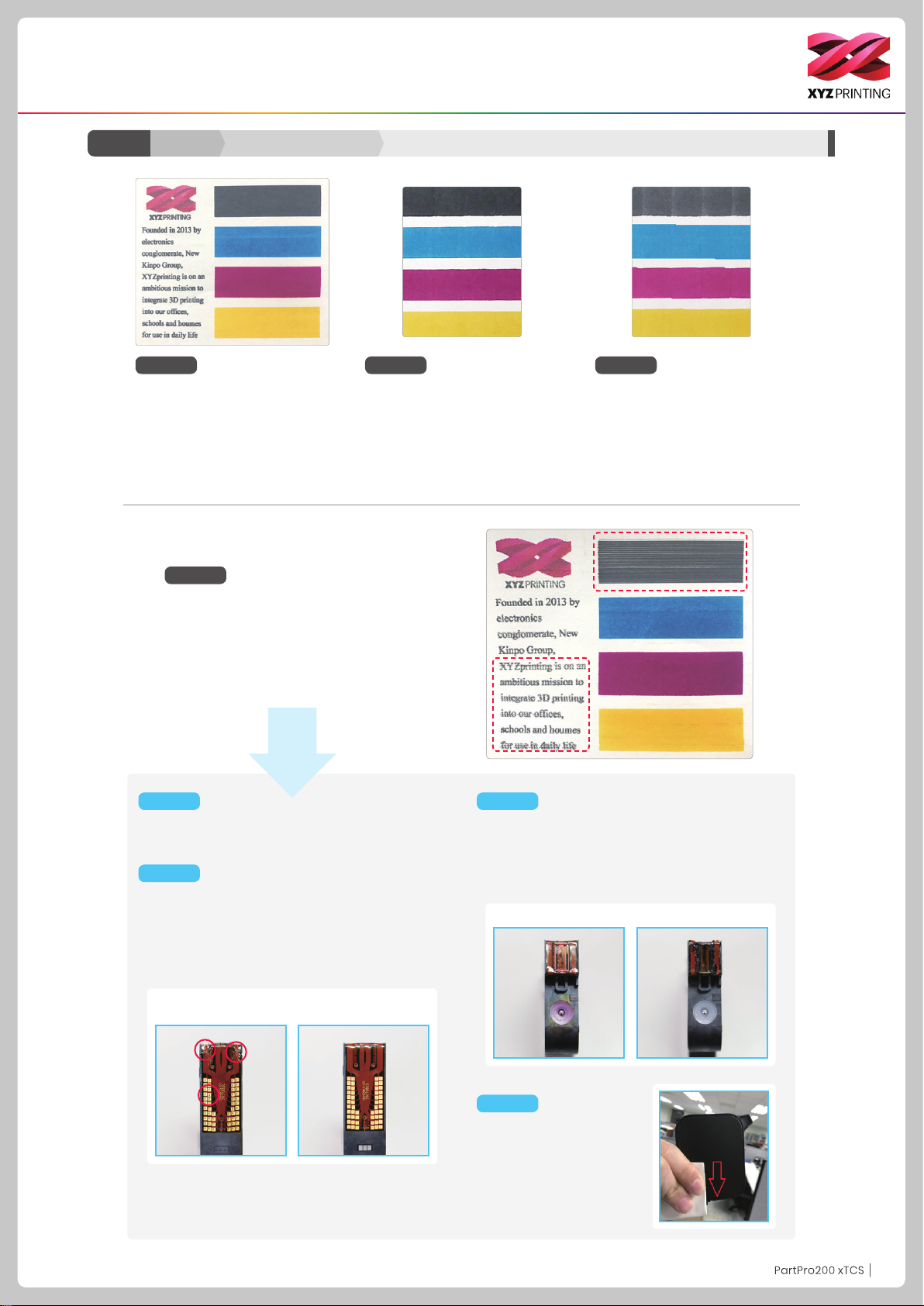

Please reinstall the cartridge and print the test page.
If problem not solved, please proceed with step 2.
Stept 1
Pic 3
Ink Calibration Ink Cartridge TroubleshootC2-2 Ink
Check for any torn cable or damaged contacting pad
in shown example.
If found torn cable, please change new cartridge
If found damaged contacting pad and also the pin in
cartridge station was also damaged, contact support
for replacement.
Check for possible clog ink head cartridge as exam-
ple shown.
Please conduct cartridge cleaning process in Pg 10
ink guidance paragraph.
If problem not solved, please proceed with step 4.
Note : Please refer to our support website for
latest ink cartridge cleaning procedure.
Please refer C2-1 for preparing the A4 test page.
Stept 2
Stept 3
Using paper towel to cover
the ink cartdrigde as shown in
the picture 4 and downward.
If the ink comes out, please
print the test page.
If not solved, please change
the new ink cartridge.
Stept 4
Clean Ink Head Clog/dirty Ink Head
Normal Cartridge
NG Cartridge
(Torn cable & pad)
Function Operation and Instructions
Picture 3 show example of no good test page.
While line was shown horizontal and vertical
color of bars.
Please conduct the below steps accordingly.
Pic 1 Pic 2 Pic 2-1
Picture 1 shows an example of
normal test page.
Picture 2 show some slight color
offset on horizontal part of test
page.
It is under acceptance range. If the
rprint of the test page gets worst,
please proceed with the cleaning
procedure.
Picture 2-1 shown some slighly
black ink smudge on the horizon-
tal & vertical part, it may happen
to other color.
This is within accaptable range

P14P14
4. Take out the printed paper and tap
PROCEED.
7. For vertical alignment, enter each
color’s corresponding number. After
entering the number, tap PROCEED.
5. Check the printed calibration chart using the on-
screen instructions. For each color select the line that
is the best aligned with black (K).
8. Confirm the numbers entered in the
boxes and tap PROCEED.
6. For horizontal alignment, enter each
color’s corresponding number. After
entering the number, tap PROCEED.
3. Please x the printing paper onto the print bed.1. Tap Calibration. 2. Tap Color.
Calibration Inkjet CalibrationC2-4 Ink
Calibration Color CalibrationC2-3 Ink
Function Operation and Instructions
3. Check that the print bed is
clear, then close the door.
1. Tap Inkjet Calibration. 2. Inkjet Calibration.
7. Horizontally and vertically,
nd the box where the ink is
the most aligned, and then tap
PROCEED.
9. Horizontal direction: Enter
the number of the box you think
the lament and ink align the
most, and then tap PROCEED.
4. The printing operation will
start once the print nozzle is
warmed up.
8. Vertical direction: Enter the
number of the box you think the
lament and ink align the most,
and then tap PROCEED.
10. After the calibration is
completed, tap PROCEED to
nish the ink calibration.
5. The printer will print the
calibration card automatically.
This takes approximately 15
minutes. (Make sure you have
loaded the lament.)
6. After the printing is completed,
take out the calibration card.
Caution: Please ensure the EZ Removable Rubber Magnet had
placed in the printbed.

P15P15
2. The adjustment position
of X-Axis and Y-Axis was the
sample position, when facing
the printer.
1. After the color object is printed, if you nd color shift, you can
adjust the print position manually.
Manually adjust the
movement of X-Axis
Select “X-AXIS” to move right-
wards and leftwards.Press the
“Left” or “Right” button to select
the direction and distance to
be adjusted, each adjust has a
step of 0.05 mm.
Y-Axis
X-Axis
Manually adjust the
movement of Y-Axis
Select “Y-AXIS” to move up-
wards and downwards.Press
the “Up” or “Down” button to
select the direction and distance
to be adjusted, each adjust has
a step of 0.05 mm.
Once parameter settings are
completed, tap "PROCEED" to
save and apply the settings that
you have specied.
If you want to reset, select “Re-
Type” to return to the X-Axis
moving position setting.
Function Operation and Instructions
Calibration Inkjet Calibration
C2-4 Ink

P16P16
Jog mode lets manually move the print head via the touch screen.
How to move the print head:
1. Return to the Home point. Always return to the Home point prior to any move-
ment in any direction.
2. Move along the X-axis.
3. Move along the Y-axis.
4. Move along the Z-axis. (Do not increase/shift upwards when print head at home
position avoid hitting the print bed.)
1. Tap Z-offset. 3. Users can tap the icon to
higher or lower the print bed,
the higher value the bigger
distance and vice versa.
2. Move the print head to the
center of the print bed. It is
recommended that the space
between the print head and
the print bed just touch and the
nozzle can move smoothly on
the print bed.
D1
D2
D3 D10
D6
D4
D8
D5
D7
D9
D. Setting
Function Operation and Instructions
32 4
1
1. Select Calibration. 2. Conrm the operation.
4. After the calibration is
successfully completed, tap to
conrm.
Calibration (leveling)
D1-1 Print-Bed
Z-offset
D1-2 Print-Bed
Jog ModeD1-3 Print-Bed
3. Wait while the sensor measures the height of the print bed at three different locations. Once the
measurement is complete, the printer will automatically level the print bed.
Caution: Please ensure the EZ Removable Rubber Magnet had placed in the printbed

P17P17

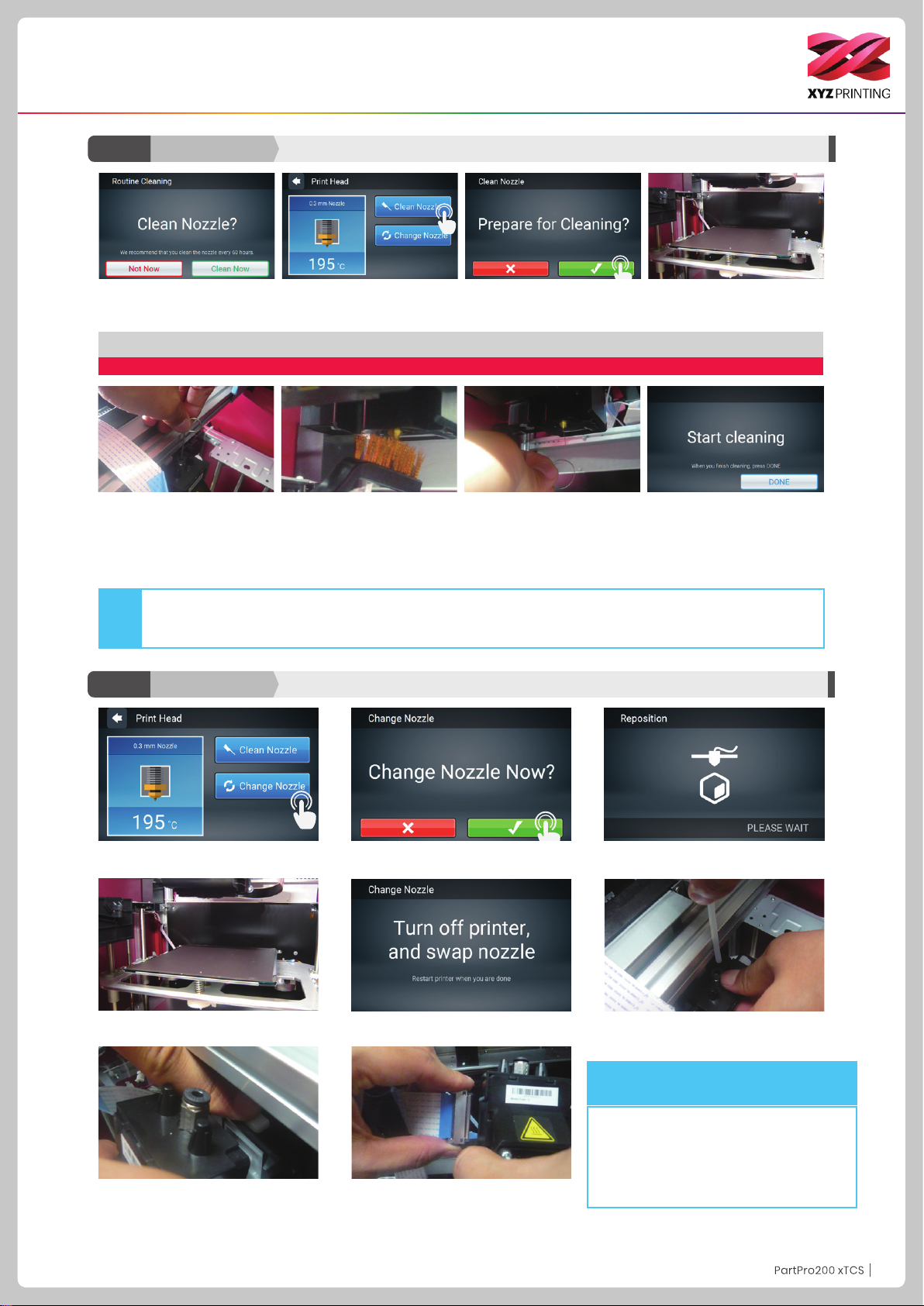

2. Tap to conrm that you want to change the
nozzle.
6. Change the print head from above the
machine.
1. Tap Change Nozzle. 3. Wait until the print head moves to a proper
position for change.
7. Press the white release button to separate
the print head.
4. The position of the print head change is
shown above.
5. Turn off the power before changing the
print head.
8. Hold the print head with one hand and
remove the bus with the other. The removal
of the print head is completed.
Function Operation and Instructions
Clean Nozzle
D2-1 Print-Head
Change Nozzle
D2-2 Print-Head
Installation sequence of new print head:
1. Connect the bus.
2. Press the white release button on the print head
and assemble the print head and the mechanism.
After attaching the print head, check to see that it
is secure and does not shake.
3. Turn on and use the printer.
2. Tap Clean Nozzle in the print
head section.
1. Please clean the nozzle after
printing 60 hours.
3. Check if cleaning is necessary. Tap Check to clean it.
Note: do not touch the metal part of the print head as it becomes hot during the operation.
4. Inset the feed hole cleaning wire
into the feed hole and push it down-
wards to drive out the lament from
the print head. (It is recommended
that the operation is performed from
the top of the machine.)
6. Insert the print head cleaning wire
into the nozzle from the bottom to
clean it.
5. Remove the lament residue from
the print head with a wire brush.
7. After the cleaning operation is
completed, tap DONE.
When the temperature of the print head reaches the operating temperature, the cleaning operation will start.
In order to prevent print quality from impact due to residual and accumulated lament, which results in poor discharge, after
long-term use of print nozzle, it is recommended to enable the "CLEAN NOZZLE" (nozzle cleaning) function of the printer every
60 hours of print to clear residuals with nozzle cleaning wire or feeding path cleaning wire. (Filament should be unloaded
from the extruder before cleaning the feeding path.)
Note

P18P18

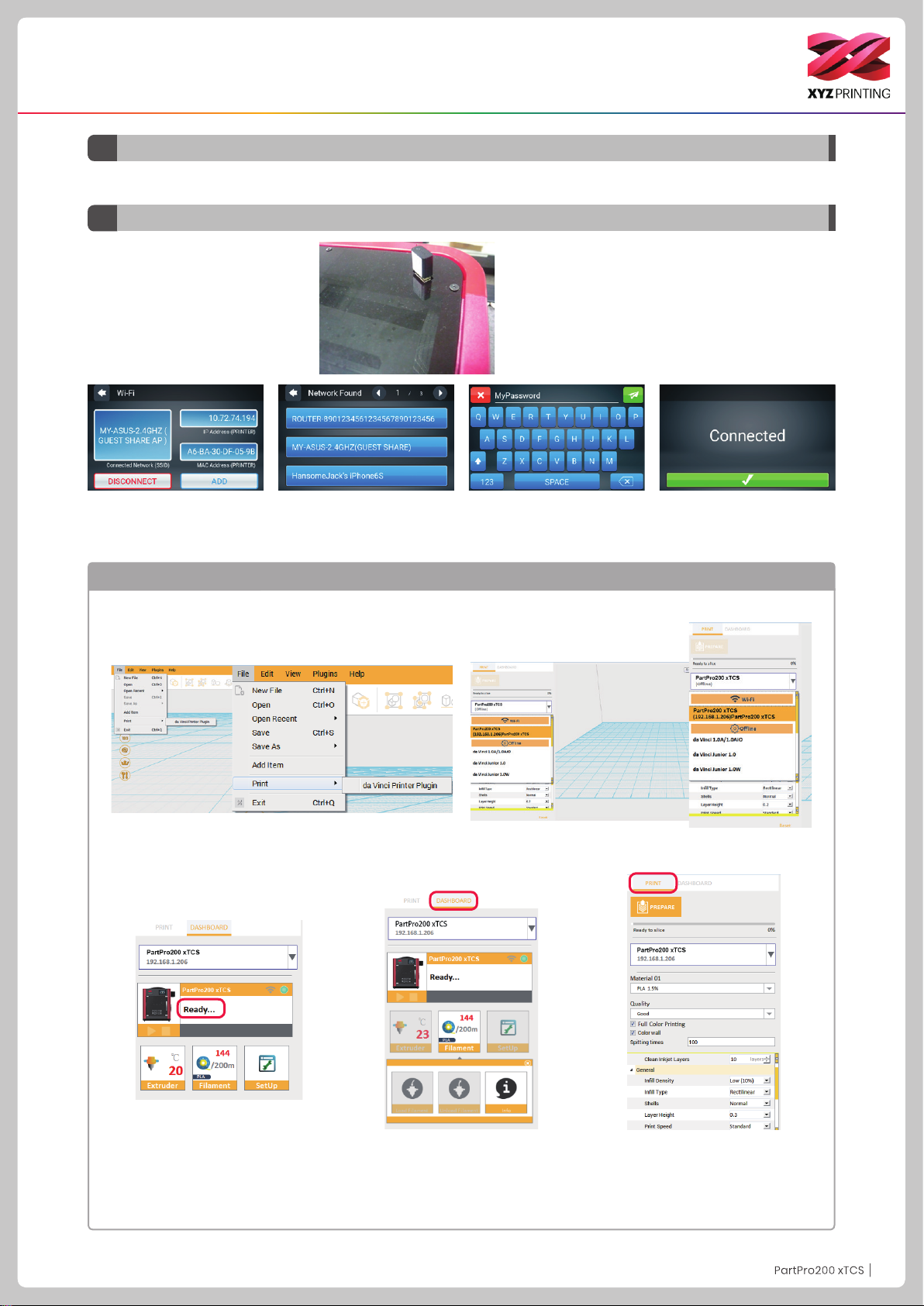

Refer to the Change Filament function in the main screen. Unused lament for one day of longer should be stored in zip-lock bag.
Before turning on the printer and setting
up the WiFi network, please insert the
WiFi dongle into the USB port on the
top of printer.
D3 Filament
D4 WiFi
1. Tap ADD and the printer will
start to search for available
access points.
4. Conrm the connection is
completed.
2. Tap the access point to be
used.
3. Enter the password for the
access point.
Function Operation and Instructions
●Use a USB cable to connect the printer to the computer and run the XYZmaker.
●Check if the WiFi function is activated on the computer and connect to the access point.
PRINT: Set printing parameters and quality.
If only a le conversion is needed, tap “PRE-
PARE”.
DASHBOARD: Monitor print head tempera-
ture, filament used and filament loading /
unloading.
3. When the software displays ”READY”, the
connection is established successfully.
Now, you can click on “DASHBOARD” to
monitor the printer or “PRINT” to print a
le.
1. Run the XYZmaker. Click on File > Print > da Vinci Printer Plugin. 2. Select the printer to be used.
Use the XYZmaker to verify if the WiFi connection is established successfully

P19P19
D6 Sound
The Sound option can be set to ON or OFF to control
the sound emitted when the touch screen is tapped
Ink Cartridge
Last Calibration
Print Job
Nozzle
Filament
Temperature
Uptime
D8 Statistics
The Statistics function can record the history data since the printer was turned on, including:
Function Operation and Instructions
D5 Language
The 200 xTCS provides eight display languages,
including traditional and simplied Chinese, English,
Japanese, German, Italian, Spanish and French.
The language setting can be changed by tapping
Settings > Languages in the main screen.
Change Language Setting
The Display setting can set the touch
screen to turn off when it remains in-
active after a set time. There are five
settings, including one minute, two min-
utes, three minutes, five minutes and
always on.
D7 Display

P20P20
Printer information will be deleted,
and returned to factory settings.
D10 Reset
D9 Door Lock
1. Door lock on (ON) : when printing,
the door will be locked; 60 sec after
the print ends, the door will unlock. The
door will be unlocked when users tap
Pause or Stop during printing. The door
will lock again, when the door is closed
and printing is resumed.
2. Door lock off (OFF) : the door won't
be locked during printing, pause, or stop
status.
Function Operation and Instructions
