XYZ Printing da Vinci Jr. 1.0 User manual

Ver.1 April 2016
P 1
da Vinci
da Vinci
Jr. 1.0 3in1
User Manual
da Vinci Junior 1.0 3-in-1 3D Printer

Ver.1 April 2016
P 2
da Vinci
The purpose of this user manual is to help users understand and use the da Vinci Junior 1.0w 3D printer correctly. It
contains the operating instructions, maintenance information and application skills of the da Vinci Junior 1.0w 3D print-
er. To learn more about the latest news of the da Vinci Junior 1.0w 3D printer, please contact local dealers or visit the
ofcial website of XYZprinting: http://www.xyzprinting.com
Trademarks
All trademarks and registered trademarks are the property of their respective owners.
Print History
New editions of this manual incorporate new and changed material different from previous editions. Minor corrections
and updates may be incorporated into reprints of the current edition without releasing additional announcements or
documentation regarding the updated version. The User Manual is for user reference only. If you need to obtain the
latest information, you are welcomed to visit the XYZprinting website: www.xyzprinting.com

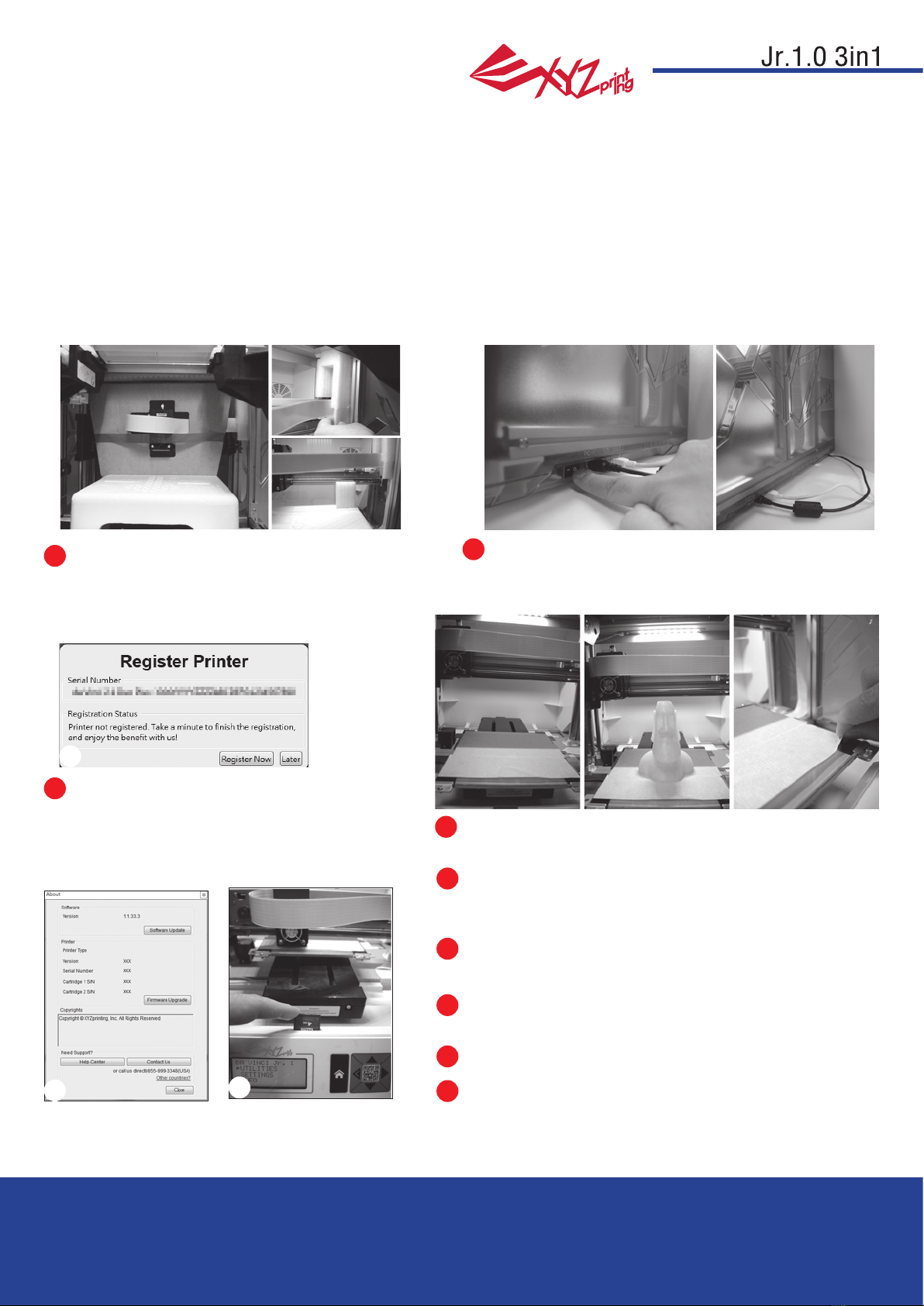

Before using this printer, please first remove the
xed materials from the printing module and printing
bed. Switching on the printer's power without
removing these fixed materials may damage the
machine.
Registration via XYZware before your rst print
is strongly recommended. When registered with
XYZprinting, you will receive latest technical
supports and updates. To register, simply click
"Register Now" to begin.
You may use XYZware to initiate manual updates to the printer
rmware and software. When using the printer for the rst time,
we recommend connecting to the Internet and performing manual
update once to obtain the latest resources.
The optimal room temperature for printing is 15-32 ◦C (60-90 ◦F).
Printing quality may be affected if room temperature is higher or
lower.
If you need more detailed technical support and program
resources, visit the website:
http://support.xyzprinting.com/global_en/Support
Before operating the printer, insert the SD card in the SD card port
to make sure that the printing program is able to run properly.
For da Vinci 1.0 3in1 3D printer, when placing the printer, avoid
exposing the scan modules inside the printer to direct sunlight or
lighting apparatus for better scanning performance.
Before you start printing, please afx the bed tape on the print
bed. The bed tape may be removed after printing is complete. (Bed
tape can be reused.)
Before launching XYZware, connect the PC to with printer
using the USB cable. For a better user
experience, it is strongly advised to follow the proper
procedure for using the product.
Important Notice
Please carefully read the contents of the product
instruction manual before using this product.
2
3
4
5
5
1
6
7
8
9
8
3

Ver.1 April 2016
P 3
da Vinci
• Do not place the printer in humid or dusty environment such as bathrooms and high trafc areas.
• Do not place the printer on a rickety surface and/or inclined position. Printer may fall down/or
tumble and it may cause serious injury.
• Please keep the front door closed during printing to avoid injury.
• Do not touch the interior of the printer while printing. As it may be hot and include moving parts.
Product Overview
Accessory Checklist
Important Safety Instruction for Use of Maintenance Tools
Important Safety Instruction
• The maintenance tools provided should be only handled by an adult. Please keep the tools away
from children.
• The scraper is used to remove the object from the print bed when printing has nished. The bed tape
is reusable and it can be replaced when it has worn out.
• Store the gear cleaning brush properly. This tool shall only be used to clean the specied parts of the
machine and should not be used for the cleaning of other parts to prevent damaging the machine.
A: Filament movement area
B: Feed module
C: Detector
D: Extruder
E: Filament
F: Print bed
G: SD card port
(Storage format: FAT32)
H: Control and display panel
I: Front cover
USB Port
Power Switch
Power Connector
G
．Cleaning Brush ．Scraper
．USB Wire
．Power Cord ．Bundled lament ．Calibrating Plate
．Scan Bed
．Bed Tape X 3pcs ．Filament spool axle ring
．Power Adapter
．Guide tube ．Cleaning Wire x 5 ．Feeding Path
Cleaning Wire
．SD Card ．Feeding Tube Grip X1
(Please watch the tutorial video
on XYZprinting website for replacing and
installing the Feeding Tube Grip.)
Product Overview

Ver.1 April 2016
P 4
da Vinci
Remove the securing styrofoam next to the print bed.
Insert the SD card that came with the printer into your
computer or download the latest XYZware from the ofcial
Website and install it on the computer.
Use the USB cable to connect the printer to PC. Connect
the power cord to the printer then turn on the power
switch.
Unpacking the Product
7
8
6
9
Note: please use the original power adapter and power cord along with the printer in order to
prevent product damage or safety hazards caused by differences in voltage specications.
Open the box and remove the
accessories and cushions.
Remove 2 foams at the back of
the cardboard.
Remove the plastic bag and
the tapes.
Raise the paper cardboard
slightly upwards so that the paper
cardboard is detached from the
styrofoam slot at the bottom.
Raise the paper cardboard slightly
upwards so that the paper cardboard
is detached from the styrofoam slot
at the bottom.
For better scanning result,when placing the
printer, avoid exposing the scanning modules
to direct sunlight or lighting apparatus.
12
3
5
4
Unpacking the Product

Ver.1 April 2016
P 5
da Vinci
Note: Please follow these steps and ensure that the guide tube is properly installed before
starting the "LOAD FILAMENT" function. Failure to install the guide tube may disrupt lament feed.
Reminder: If you are not too sure where the feed module tube port is,
you may open the casing of the machine to see the indication label.
Installing the Accessories
Install the filament guide tube
Run the guide tube through
the gap over the printing
chamber to the lament feed
hole.
Ensure that the guide tube has been tightly
inserted into the feeding hole.
21 Remove the extruder
Press the white button at the
back of the extruder to release it.
Install the lament guide tube to the extruder
Insert the guide tube into the feed hole all the way down and install the extruder
back to the printer.
3
4Install the extruder
Align the extruder with the bracket and
press the extruder to x it to the holder.
5

Ver.1 April 2016
P 6
da Vinci
First retrieve lament spool to install the lament
spool axle ring.
Place the assembled lament spool (with the spool axle
rings) on the lament holder on the left side of the printer. Pull out a section of the lament and insert it into the
feed port.
Caution: Pay attention to the direction the
lament is being pulled out and ensure that the
lament spool axle is being rotated in the correct
manner.
Open the release arm and push the lament all the way
to the bottom so that the front end of the lament is
completely inserted into the feed module.
Take out and separate the lament spool
axle ring into its two components.
Install the sensor chip. Please pay special attention to
the position of the installation holes on the chip.
Insert the lament spool axle ring components
to either side of the lament spool, and use a
cruciform screwdriver to tighten and secure the
rings to the axle to complete the installation of
the lament spool axle rings.
12
34
56
7
Load Filament
CHANGE SPOOL

Ver.1 April 2016
P 7
da Vinci
LOAD FILAMENT
Then load lament using the control panel on the printer…
UNLOAD FILAMENT
First unload lament using the control panel on the printer…
1
1
Select "UTILITIES" > "CHANGE SPOOL" > "LOAD FILAMENT".
Select "UTILITIES" > "CHANGE SPOOL" > "UNLOAD FILAMENT".
First open the release arm and then pull out the lament
with spool axle rings. Arrange it properly for later use.
2
2
Wait for the extruder to heat up and load
lament.
Wait for the extruder to heat up and unload lament. Press "OK" to pull out lament.
3Check if the nozzle outputs lament and
press "OK" to go back to main menu.
LOAD FILAMENT
EXTRUDER HEATING
TEMPERATURE 210 ∘C
PLEASE WAIT
LOAD FILAMENT
EXTRUDER HEATING
TEMPERATURE 210 ∘C
PLEASE WAIT
LOADING
PLEASE WAIT
UNLOADING
PLEASE WAIT
[ OK ] TO RETURN
UTILITIES
CHANGE SPOOL
HOME AXES
JOG MODE
UTILITIES
CHANGE SPOOL
HOME AXES
JOG MODE
CHANGE SPOOL
LOAD FILAMENT
UNLOAD FILAMENT
CHANGE SPOOL
LOAD FILAMENT
UNLOAD FILAMENT
CHECK FILAMENT
OUT FROM NOZZLE
[ ＜ ] TO RETRY
[ OK ] TO RETURN
DA VINCI Jr. 1w
UTILITIES
SETTINGS
INFO
DA VINCI Jr. 1w
BUILD FROM CARD
UTILITIES
SETTINGS
When nishing "UNLOAD FILAMENT"
Unload Filament
Note: Always implement the "UNLOAD FILAMENT" function when replacing
the cartridge in order to ensure proper removal of the lament. Cutting
lament too closely to the print head may result in residual lament
blocking and causing damage to your print head.

Ver.1 April 2016
P 8
da Vinci
Introduction
About the da Vinci junior series 3D printer
Product features
Present creativity
The da Vinci junior series 3D printer (da Vinci Jr.) is a brand new product from XYZprinting that is dedicated to the 3D
printer market. Its intricate and colorful exterior as well as its high resolution printing specications are set to make it
the new favorite for families and home hobbyists. Whether you're creating an enjoyable learning playground to inspire
your children's creativity or unleashing your innovative ideas and quickly generate prototypes for your products.
To learn more about presenting your
creativity, please visit the Gallery section
of XYZprinting's ofcial website.
• Environmentally friendly 3D printer that satises the WEEE recycling requirements, and utilizes the environmentally friendly PLA
laments for printing.
• Satises electrical appliance safety specications of the EU and many other countries, making it the best home-based 3D printer
for the entire family.
• Detachable SD card that allows you to store 3D model les that you have created and edited for easy printing.
(Please export .stl les into .3w format via XYZware before printing.)
• A gallery of 3D objects is available for download after free registration.
• Amazing power saving design with a maximum power consumption of 75W, offering low power usage even for extended use.
• Weighs only 12 kg, and can be easily integrated in any household and family settings.
• Smart temperature control designs. Cooling fans within the machine is able to adjust and optimize printing temperature to
improve product quality.

Ver.1 April 2016
P 9
da Vinci
After switching on the printer's power, the user may use the display panel at the front of the printer to understand its
status and usage data. The functional buttons on the right allow the user to perform the relevant operations.
Functions
Function Description
UTILITIES Printer adjustment / Change lament / Sample printing
SETTINGS The parameters of printer
INFO The rmware and printer statistical information
MONITOR MODE Monitor of extruder and print bed working temperature and printing progress
Button Functions
Up Direction Up
Down Direction Down
Left Back to previous menu / Reduce the adjustment value
Right Forward to submenu / Increase the adjustment value
OK OK; conrm selection/settings
HOME Home Button, return to main menu
Button instructions
DA VINCI Jr. 3in1
BUILD FROM CARD
UTILITIES
SETTINGS

Ver.1 April 2016
P 10
da Vinci
Page
P6
P7
P7
P11
P11
P11
P12
P13
P13
P15
P15
P15
P15
P15
UTILITIES
LOAD FILAMENT
UNLOAD FILAMENT
CHANGE SPOOL
SETTINGS
HOME AXES
STATISTICS
INFO
MONITOR MODE
JOG MODE
SYSTEM VERSION
BUILD FROM CARD
SPOOL STATS
CLEAN NOZZLE
CALIBRATE
Z OFFSET
HELP
P14
P14
P14
P14
P14
BUZZER
LANGUAGE
ENERGY SAVE
AUTO LEVEL
RESTORE DEFAULT
Home Menu Top Menu Sub Menu
The map above shows the functions your may access with the control panel on the printer.
For detailed descriptions of each function, please refer to their respective pages in this user manual.
Maps of Functions
