Yaesu ADMS-13 User manual

ADMS-13
Instruction Manual
The ADMS-13 software provides convenient editing of the FTM-6000R/E memory channel
frequencies, channel information and alpha tags, using a personal computer. Also the
transceiver parameters and the setup menu items may be edited and congured easily from
the computer keyboard.
YAESU MUSEN CO., LTD.

Introduction........................................... 3
About this manual ....................................... 3
Important Notes ........................................... 3
System Requirements ................................. 4
Supported Operating Systems ................... 4
CPU ........................................................... 4
RAM (System Memory) .............................. 4
HDD (Hard Disk) ........................................ 4
Cables ........................................................ 4
Necessary PC peripheral interfaces .......... 4
The ow of a setup of ADMS-13 ................. 4
Trademarks ................................................... 4
Setup of the ADMS-13 .......................... 5
Preparation ................................................ 5
ADMS-13 Programming Software
Installation ... 5
Unistalling the ADMS-13 ............................ 6
SCU-20 USB Driver Software Installation ... 7
Connect the FTM-6000R/E and the PC ..... 7
Execute the ADMS-13........................... 8
Display examples ......................................... 8
First Screen ................................................ 8
Menu Bar ................................................... 9
TAB Menu Bar ............................................ 9
Set mode screen ...................................... 10
Communications (Data communication
with the FTM-6000R/E) ... 11
Communication port setting ...................... 11
Get Data from FTM-6000 .......................... 11
Send Data to FTM-6000 .......................... 12
Names and Functions of Menu Bar ... 13
File ............................................................... 13
• New ............................................................... 13
• Open .............................................................. 13
• Close ............................................................. 13
• Save .............................................................. 13
• Save as ......................................................... 13
• Import ............................................................ 13
• Export ............................................................ 14
• Print ............................................................... 14
• Exit ................................................................ 14
Edit .............................................................. 15
• Undo .............................................................. 15
• Cut ................................................................. 15
• Copy .............................................................. 15
• Paste ............................................................. 15
• Find ............................................................... 15
• Find Next ....................................................... 15

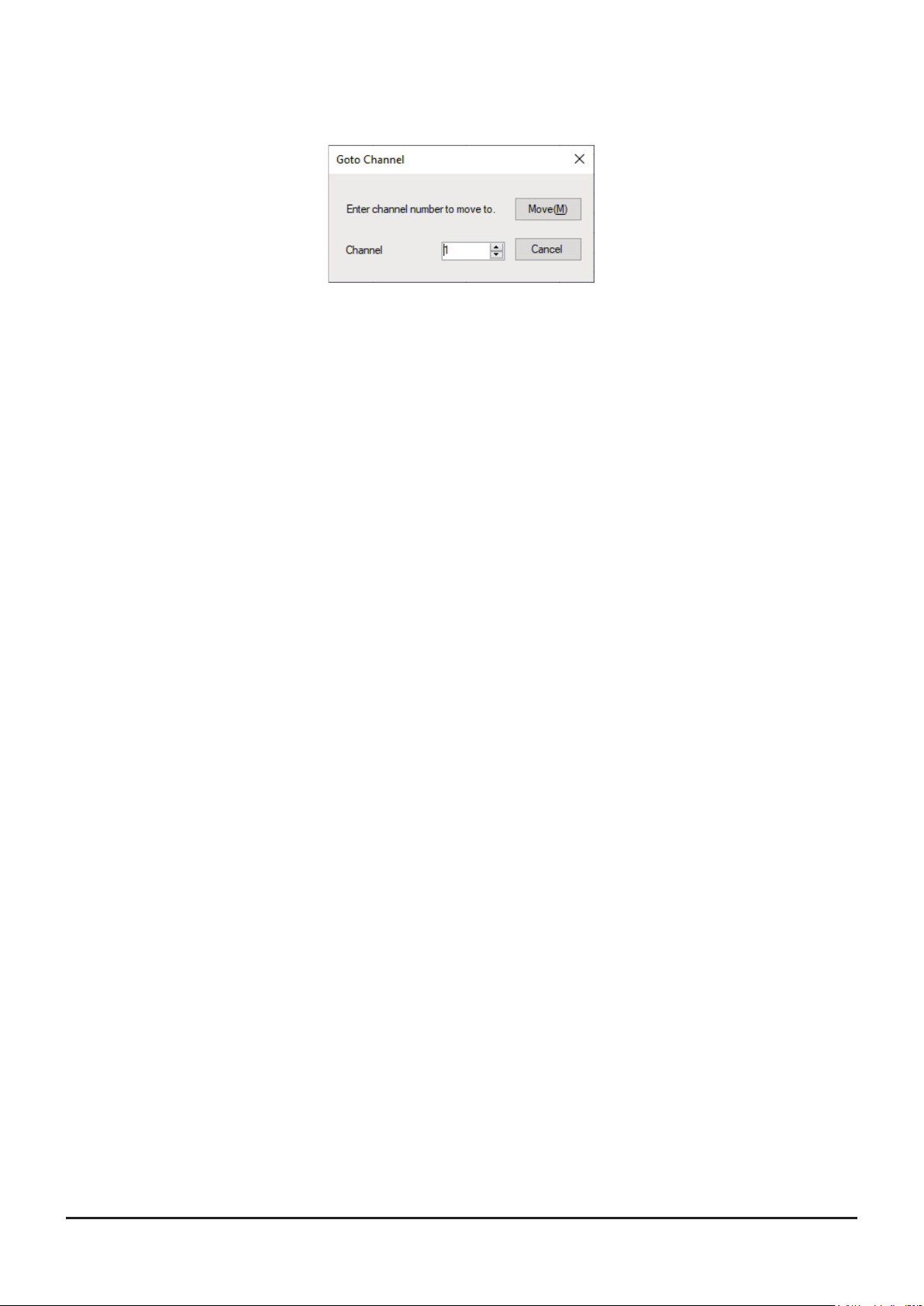

• Goto Channel ................................................ 16
• Insert Channel ............................................... 16
• Delete Channel .............................................. 16
• Clear Channel ............................................... 16
• Move Up ........................................................ 16
• Move Down ................................................... 16
• Add Frequency Range .................................. 17
• Sort ............................................................... 17
Communications (Data communication
with the FTM-6000R/E) ... 18
Settings ....................................................... 18
• Set Mode ....................................................... 18
• Tool Bar ......................................................... 19
• Status Bar ...................................................... 19
Window ....................................................... 19
Setting the Template Items ................ 20
Memory ....................................................... 20
Memories ................................................. 20
PMS ......................................................... 20
About the setting items of
each memory channels ..... 20
• Receive Frequency/ Transmit Frequency ...... 20
• O󰀨set Frequency ........................................... 20
• O󰀨set Direction .............................................. 20
• Operating Mode ............................................. 20
• TAG ............................................................... 21
• Name ............................................................. 21
• Tone Mode ..................................................... 21
• CTCSS Frequency ........................................ 21
• DCS Code ..................................................... 21
• User CTCSS .................................................. 21
• Tx Power ....................................................... 21
• Step ............................................................... 21
• Narrow ........................................................... 21
• Clock Shift ..................................................... 21
• Comment ....................................................... 21
VFO ............................................................. 22
About the setting items of
VFO frequencies .............. 22
• Receive Frequency ....................................... 22
• Transmit Frequency ...................................... 22
• O󰀨set Frequency ........................................... 22
• O󰀨set Direction .............................................. 22
• Operating Mode ............................................. 22
• Tone Mode ..................................................... 22
• CTCSS Frequency ........................................ 22
• DCS Code ..................................................... 22
• User CTCSS .................................................. 23
• Tx Power ....................................................... 23
• Auto Step ....................................................... 23
• Step ............................................................... 23
• Narrow ........................................................... 23
• Clock Shift ..................................................... 23
• Comment ....................................................... 23
HOME .......................................................... 24
About the setting items of
HOME Bchannel frequency ... 24
• Receive Frequency / Transmit Frequency ..... 24
• O󰀨set Frequency ........................................... 24
• O󰀨set Direction .............................................. 24
Table of contents
1

• Operating Mode ............................................. 24
• TAG ............................................................... 24
• Name ............................................................. 24
• Tone Mode ..................................................... 24
• CTCSS Frequency ........................................ 24
• DCS Code ..................................................... 25
• User CTCSS .................................................. 25
• Tx Power ....................................................... 25
• Step ............................................................... 25
• Narrow ........................................................... 25
• Clock Shift ..................................................... 25
• Comment ....................................................... 25
Troubleshooting ................................. 26
2

Introduction
The ADMS-13 programming software uses a Personal Computer to quickly enter and save the FTM-
6000R/E memory channel frequencies and data. Also the many menu settings may be adapted for
individual operating preferences. All of the information is saved. The setting data can be imported from the
FTM-6000R/E and edited setting data can be transferred to the FTM-6000R/E.
Edit the frequencies, memory names, squelch settings, repeater settings, transmit power, etc. that is
related to the VFO, memory channels, and the HOME channel, etc.
 Congure the various set mode menu options on the computer monitor screen
Use the handy editing functions, such as search, copy, move and paste
About this manual
This manual contains symbols and conventions to call attention to important information.
Symbols Description
This icon indicates cautions and alerts the user should be aware of.
This icon indicates helpful notes, tips and information.
Important Notes
Before downloading this software, please read the “Important Notes” carefully.
• Copyrights and all other intellectual property rights for the software, as well as the soft-
ware manual, are the property of YAESU MUSEN CO., LTD.
• The revision, modication, reverse engineering, and decompiling of this software is
prohibited. Redistribution, transfer, and resale of downloaded les are also prohibited.
• Do not resell the software or manuals.
• All responsibility for the use of this software lies with the customer. Yaesu cannot be
held responsible in any way for any damages or losses, which may be incurred by the
customer as a result of using this software.
To use the ADMS-13 programmer, the software application must rst be installed onto the computer. Read
this manual thoroughly and install the software.
3

System Requirements
Supported Operating Systems
Microsoft®Windows®10 (32 bit/64 bit)
Microsoft®Windows®8.1 (32 bit/64 bit)
CPU
The performance of the CPU must satisfy the operating system requirements.
RAM (System Memory)
The capacity of the RAM (system memory) must be more than su󰀩cient to satisfy the operating system
requirements.
HDD (Hard Disk)
The capacity of the HDD must be more than su󰀩cient to satisfy the operating system requirements.
In addition to the memory space required to run the operating system, about 50 MB or more of additional
memory space is required to run the program.
Cables
• When using a USB port on the computer: the optional SCU-20 PC connection cable for USB
(The SCU-20 is included in the optional SCU-40 WIRES X Connection Cable Kit.)
• When using a COM port connection: the optional CT-163 cables
* When using the SCU-20 cable, be sure to install the designated driver before connecting the cable to
the computer.
Necessary PC peripheral interfaces
USB port (USB 1.1 / USB 2.0) or RS-232C interface (COM port)
The ow of a setup of ADMS-13
The procedure when using ADMS-13 for the rst time is as follows:
ADMS-13 Programming Software Installation (5 page)
↓
SCU-20 USB Driver Software Installation (7 page)
↓

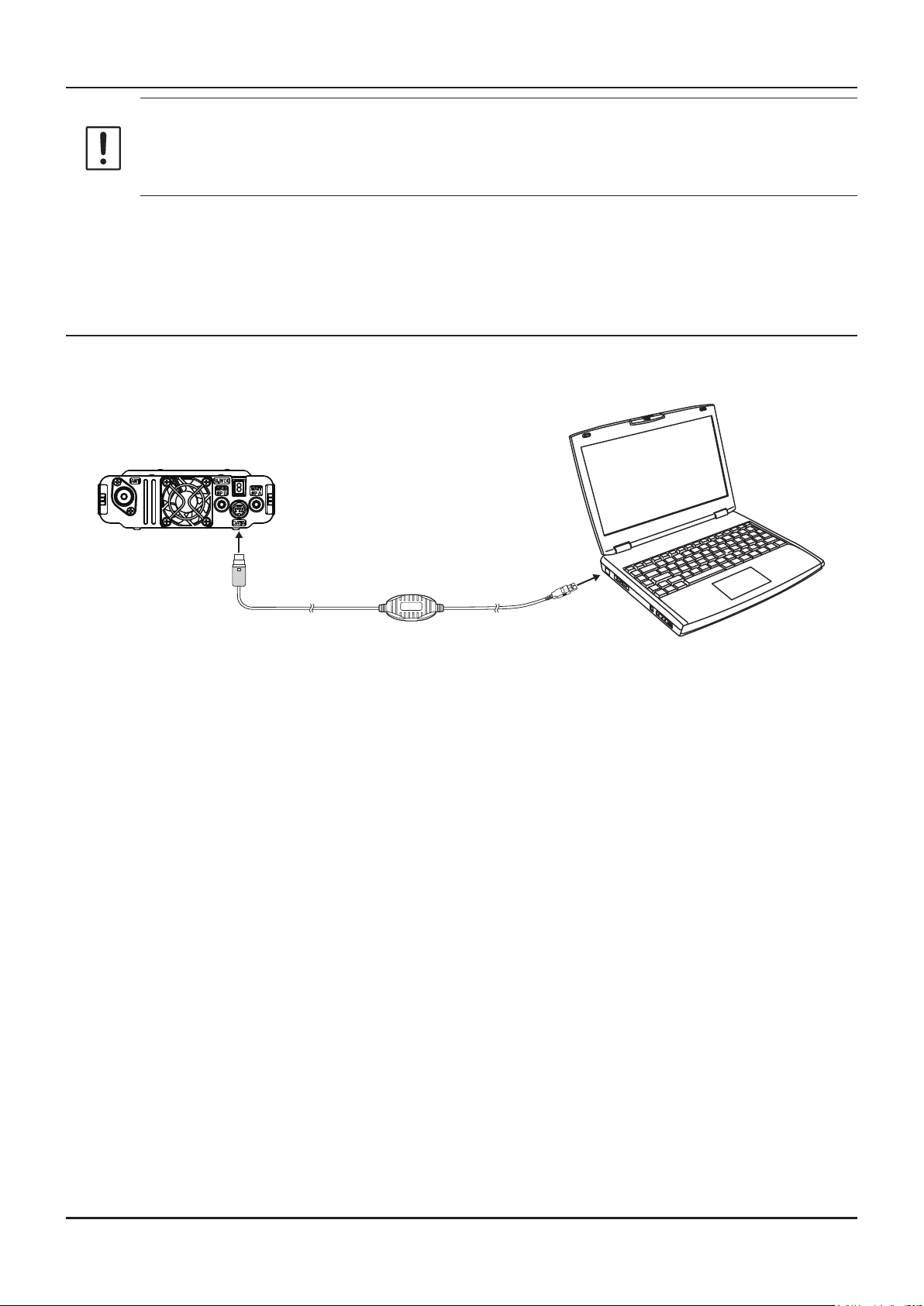

Connect the FTM-6000R/E and the PC (7 page)
↓
Execute the ADMS-13 (8 page)
↓
To a explanation of operation of the ADMS-13 (8 page)
Trademarks
Microsoft®, Windows®, Windows®8.1 and Windows®10 are registered trademarks in the United States and other
countries.
4

Setup of the ADMS-13
The procedure to install the ADMS-13 on a Windows 10®(64 bit) computer is shown below for the purpose
of explanation.
Preparation
Please download the ADMS-13 software from the Yaesu Website for details (http://www.yaesu.com/).

Download the ADMS-13 Programming Software to the same folder, and extract the downloaded zip le.
Start up the computer as an “Administrator” user.
ADMS-13 Programming Software Installation
1. Start up the computer as an “Administrator” user.
2. Double-click the “setup.exe” in the same folder that
you have unzip the les.
• When the “.NET Framework install” dialog box
opens, follow the on-screen instructions to install.
3. The dialog box, which is shown right, will open. Click
the [Next] button.
4. Select the folder to install, then click the [Next] button.
5

5. Click the [Install] button.
• When the [User Account Control] dialog box opens,
click the [Yes] button.
6. When the installation is nished, the dialog box shown
right will open. Click the [Finish] button, to complete
the installation of the software.
Unistalling the ADMS-13
The procedure to uninstall the ADMS-13 on a Windows 10®(64 bit) computer is shown below for the pur-
pose of explanation.
1. Disconnect the USB Cable from the computer.
2. Click the [Start] button and then click “Settings”.
3. Click “Apps”.
4. Select “FTM-6000 ADMS-13 EXP” and then click “Uninstall”.
• When the “User Account Control” dialog box opens, click the left mouse button on [Yes].
• The uninstall of the software will start. The unistall procedure ends with this.
6

SCU-20 USB Driver Software Installation
Do not connect the transceiver to the computer via the SCU-20 PC Connection Cable until the
driver installation process has been completed. Connecting the SCU-20 to the computer before
installation has been completed may result in the wrong driver being installed, preventing
proper operation.
Before using the SCU-20 PC connection cable, installation of the driver software for the SCU-20 is required.
Download the driver software for the SCU-20 in advance.
Download the designated driver software from the Yaesu website (http://www.yaesu.com/). Read the
installation manual thoroughly and install the driver.
Connect the FTM-6000R/E and the PC
1. Refer to the gure and connect the SCU-20 PC connection cable.
When using the CT-163 cable, connect the D-SUB connector to the COM port of the PC.
USB
DATA
SCU-20
(Included in the optional SCU-40)
7

Execute the ADMS-13
Double-click the “FTM-6000 ADMS-13 EXP” icon on the desktop of a computer.
Click “Exit” in the “File” menu to close the ADMS-13.
First, use the “Get Data from FTM-6000” command (Page 9) to
upload the setting data of the FTM-6000 to theADMS-13 programmer.
Display examples
First Screen
This is the rst screen to be displayed when starting the ADMS-13 software.
8

Menu Bar
Click the left mouse button on each Menu in the Menu bar to settings the import/export of the data le, get
data form FTM-6000R/E and send data to FTM-6000R/E.
For more details, see “Names and Functions of Menu Bar”.
TAB Menu Bar
Click the left mouse button on each TAB in the title bar (Memories, PMS, VFO, HOME) to display the
frequency list of the desired memory channels, VFO and other preset transceiver settings.
For more details, see “Setting the Template Items”.
9

Set mode screen
Basic setting items which are not related to memory channels can be congured from “Set Mode”.
Click the left mouse button on “Settings” in the “Settings” menu to open the item “Set Mode” window.
For more details, see “Set Mode”.
10

11
Communications (Data communication with the FTM-6000R/E)
Communication port setting
1. Connect the FTM-6000R/E to a computer (Refer to the
“Connect the FTM-6000R/E and the PC”).
2. Execute the ADMS-13 (Refer to the “Execute the
ADMS-13”).
3. From the menu bar, select “Communications” menu,
and then click on the “COM port Settings”.
4. Click [▼] in the “Serial Port Selection” column and
click the COM port connected to the FTM-6000R/E.
5. Click [Determine].
Get Data from FTM-6000
This command transfers the settings data of the FTM-6000R/E to the ADMS-13 programmer. To
communicate with the FTM-6000R/E and create a new data le.
1. Connect the PC connection cable SCU-20 between the FTM-6000R/E and the computer.
2. Click the “ ” icon or the “Get Data from FTM-6000” parameter in the “Communications” menu.
The “Get Data From FTM-6000” window will open.
3. Follow the on-screen instructions to acquire data from the FTM-6000R/E.
When the data transfer is completed, the template screen received from the FTM-6000R/E appears
on the computer display.
The memory channels and conguration menu data may be edited using the ADMS-13 software
tools.

This template and conguration data may be saved to the computer hard drive, using the
“Save” or “Save as” commands in the “File” menu.
Send Data to FTM-6000
This command downloads the ADMS-13 data from the computer to the FTM-6000R/E.
Click the “Save Data to FTM-6000R/E” parameter in the “Communications” menu. The transmission
procedure screen will open.
To load a previously created data le to the FTM-6000R/E, click the “Open” parameter in the
“File” menu, and open the desired le before performing the send data operation above.
1. Connect the PC connection cable SCU-20 between the FTM-6000R/E and the computer.
2. Follow the on-screen instructions to transmit data to the FTM-6000R/E.
3. After the data transmission completes, “Completed” will appear on the computer display, and click
the [Close] button.
4. The FTM-6000R/E will automatically re-start in accordance with the set data.
• Never disconnect the programming cable while data transmission is in progress.
• Pay careful attention to the power cable and the connections to the FTM-6000R/E and the
computer, so as not to lose the power during data reception/transmission.
12

Names and Functions of Menu Bar
File
• New
Click the “New” parameter in the “File” menu to open a new conguration le.
Multiple conguration les may be created and opened at the same time.
Standard values are preset for each memory channel, VFO and set mode.
• Open
Click the “Open” parameter in the “File” menu to display the “Open” window.
Select the existing saved template le, and click the “Open” button.
• Close
Close the displayed conguration le by clicking the left mouse button on the “Close” parameter in the
“File” menu.
• Save
Click the “Save” conguration in the “File” menu.
To save the present conguration, and overwrite the selected conguration le without changing the le
name.
• Save as
Click the “Save As” parameter in the “File” menu.
Specify the le name and destination folder for the selected conguration le and then click the “Save”
button to save the le.
• Import
ADMS-13 data les may be created using a spreadsheet such as Microsoft Excel.
To create a data le for the import of data, save the spreadsheet in the “CSV” comma separated le format.
A spreadsheet may be easily created by exporting the template data in the “CSV” format using the ADMS-
13 “Export” command. After the “CSV” data has been edited the spreadsheet may be imported back into
the ADMS-13 Programmer.
A separate import le is needed for each template.
For example, to import the VFO and memory templates; rst, click the “VFO” tab to display the VFO
template, then import the VFO (CSV) le; next, click the “Memories” tab to display the “Memory” template;
then import the Memory (CSV) le.
Do not edit the “Check” line at the right side end of the completed CSV le.
13

• Export
To export the data le in the “CSV” (Comma Separated Values) format.
Click the “Export” parameter in the “File” menu, On the “Save as” screen displayed, specify the directory
and le name and save the le.
Type a le name in the bottom box, then click the [OK] button.
• Print
To print the current template le data to hard copy, click the “Print” parameter in the “File” menu, the “Print”
window will open to enable printing. Set the start line and the end line of the data you want to print, and
then click the “Printing” button to start printing.
To change the specic printer settings, go to the Printer properties by clicking the the “Printer setup” button.
• Exit
To exit the ADMS-13 programmer, click the “Exit” parameter in the “File” menu to close the ADMS-13
software.
If the following pop-up screen appears to conrm saving, follow the on-screen instruction to select the
desired button and close the ADMS-13 software.
14

Edit
Click the row to edit, then perform the following each operations.
Part of setting items of each row cannot be cut, copy, and paste is not possible.
• Undo
To undo the edited data, click the “Undo” parameter in the “Edit” menu.
• Cut
To cut the data of the selected area, click the “Cut” parameter in the “Edit” menu.
• Copy
To copy the data of the selected area to the clipboard, click the “Copy” parameter in the “Edit” menu.
• Paste
To paste the clipboard data to the selected area, click the “Paste” parameter in the “Edit” menu.
• Find
To nd a specied text, click the “Find” parameter in the “Edit” menu. The “Find” window will open.
Select the column from the drop down list. Enter the text to search for, and then click the [Find] button.
The candidate character string found will be highlighted.
• Find Next
Click the “Find Next” parameter in the “Edit” menu to move to the next candidate character string.
15

• Goto Channel
Move the cursor to the desired channel, click the “Goto Channel” parameter in the “Edit” menu to open the
screen where you can specify the channel you want to move to.
Enter the channel number you wish to nd, and then click the [Move] button.
• Insert Channel
To insert channel data, click the “Insert Channel” parameter in the “Edit” menu to create a blank new
channel data row under a current cursor. If there are any higher channel numbers with channel data, the
higher channel numbers will be displayed after the newly inserted channel number so that the channels
are displayed in the ascending order.
Attempting to insert a new channel when highest channel contains data causes the data registered to highest
channel to be deleted. “Continue?” will appear. If you agree, click the [OK] button.
• Delete Channel
To delete the specied range of channel data, click the “Delete Channel” parameter in the “Edit” menu. The
channels that were displayed after the deleted channels will shift up accordingly.
• Clear Channel
To clear the current channel data, click the “Clear Channel” parameter in the “Edit” menu. The channels
that were displayed after the deleted channels will not shift up and the blank channels will remain.
• Move Up
To move the current channel data up one row, click the “Move Up” parameter in the “Edit” menu.
If other channel data already exists where the channel data moves, the existing channel will be overwritten.
• Move Down
To move the current channel data down one row, click the “Move Down” parameter in the “Edit” menu, the
currently selected channel data moves downward one row.
If other channel data already exists where the channel data moves, the existing channel will be overwritten.
16

• Add Frequency Range
New channels may be created in designated frequency steps from the starting frequency by clicking the
left mouse button on the “Add Frequency Range” parameter in the “Edit” menu. The “Add Frequency
Range” window will open.
A specied number of memory channels may be created, beginning from the starting frequency in the
specied frequency steps.
Starting Frequency: Enter the lower frequency
Number of Channel: Enter the number of channels
Frequency Step: Enter the desire frequency step
Click the [Add] button to create the additional specied memory channels.
* The 8.33 kHz step is available only when receiving on the Air band (108-136.995 MHz).
• Sort
Click the “Sort” parameter in the “Edit” menu, the “Sort” window will open.
Sort by: Select the rst parameter for sorting items such as the order of frequencies.
Then sort by: Select the second parameter for sorting.
Sort Mode: Set to sort in ascending or descending order.
Channels Sort Selection: Set whether to sort the selected channel column(s) or to sort all channel
columns.
Click the [Sort] button to initiate the sorting according to the above instructions.
The data may be restored to the previous order by using the “Undo” command.
17

Communications (Data communication with the FTM-6000R/E)
For details on the Communications Menu, refer to “Communications (Data communication with the FTM-
6000R/E)” (Page 11).
Settings
• Set Mode
From the set mode menu, you can customize the various functions of the FTM-6000R/E according to your
preferences.
The ADMS-13 software displays the set mode menu in an easy-to-understand manner where you can
change and save the setting values.
Click the “Settings” parameter in the “Settings” menu to open the “SetMode” window.
To change the setting of each item in the window, click the “▼” icon to show the dropdown settings list, and
then click the desired selection in the list.
18

Example:
Refer to the “FTM-6000R/E Operating Manual” for the details of each function.
When you have completed editing the settings of the Menu Setting window.
• Tool Bar
Click the “Toolbar” parameter in the “Setting” menu to display or hide the Toolbar.
A check mark appears next to the “Toolbar” parameter when the Toolbar is displayed.
• Status Bar
The “Status Bar” describes the action to be executed by the selected menu item, or the depressed toolbar
button, and keyboard latch state.
A check mark appears next to the “Status Bar” parameter when the Status Bar is displayed.
Window
This menu sets the operating window parameters of the ADMS-13 programmer.
• Click the “Tile (up and down)” parameter in the “Window” menu to display multiple template les by
dividing the window into two lists (upper and lower parts).
• Click the “Tile (up and down)” parameter in the “Window” menu to display multiple template les by
dividing the window into two lists (right and left parts).
• Click the “Cascade” parameter in the “Window” menu to display multiple templates in cascade format.
19
