Yamaha PJP-EC200 Manual

PJP-EC200 Setup Procedure
Yamaha Corporation

PJP-EC200 Setup Procedure
2
Contents
Components ..................................................................................................................... 3
When Not Using the Public -Address System ......................................................... 4
Installations and Connections .............................................................................. 4
Setup.............................................................................................................................. 4
Adjustment .................................................................................................................. 7
When Using the Public -Address System ................................................................. 9
Installations and Connections .............................................................................. 9
Setup.............................................................................................................................. 9
Adjustment ................................................................................................................ 12

PJP-EC200 Setup Procedure
3
Components
This document explains how to create a webconference environment consisting of the
following components.
Microphone
Microphone x 2
Connect to the PJP-EC200 directly.
Speaker
Speakers with built-in amplifier
Public-address system
Enable / Disable
PC
A webconference application should be
ready for use.
Use microphone input and headphone
output jacks for audio input/output.
* Microphone and speaker setup for the
web conference system on the other
end must be done and ready for use.

PJP-EC200 Setup Procedure
4
When Not Using the Public -Address System
Follow the procedure below to output the talker’s voice (on your side) only from the
speakers in the other end (no output from your side).
* Italic texts indicate a procedure which you need to perform using the web menu.
Installations and Connections
Setup

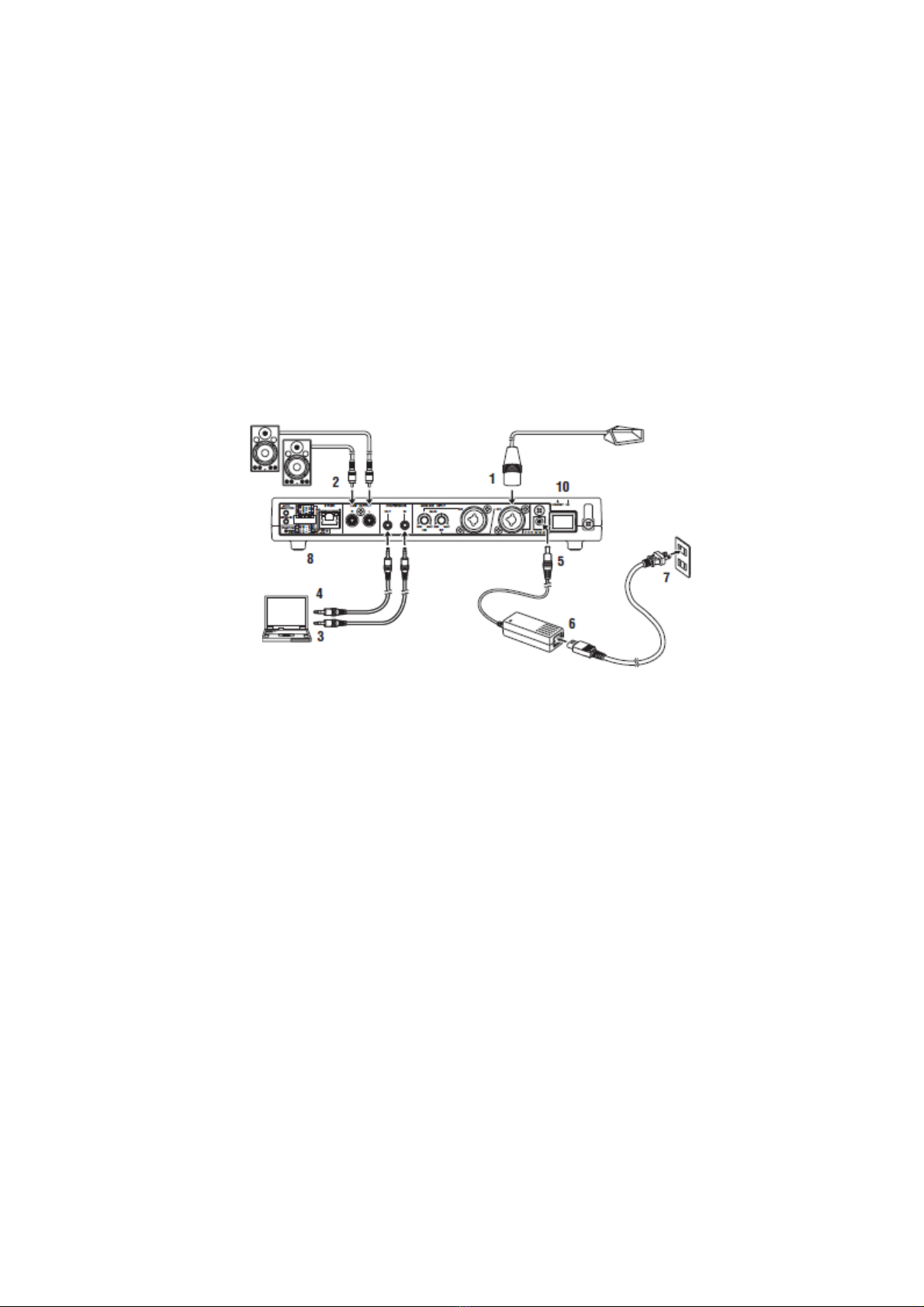

1. Connect a microphone to MIC/LINE INPUT.
1) Make sure the GAIN level is set to the minimum.
2. Connect speakers with built-in amplifier to LINE OUTPUT.
1) Make sure the speaker volume is set to the minimum.
3. Connect CONFERENCE IN to the headphone output jack of your PC.
4. Connect CONFERENCE OUT to the microphone input jack of your PC.
5. Connect the AC adapter to DC IN.
6. Connect the power cable to the AC adapter.
12
13
14
11

PJP-EC200 Setup Procedure
5
7. Connect the power cable to an AC outlet.

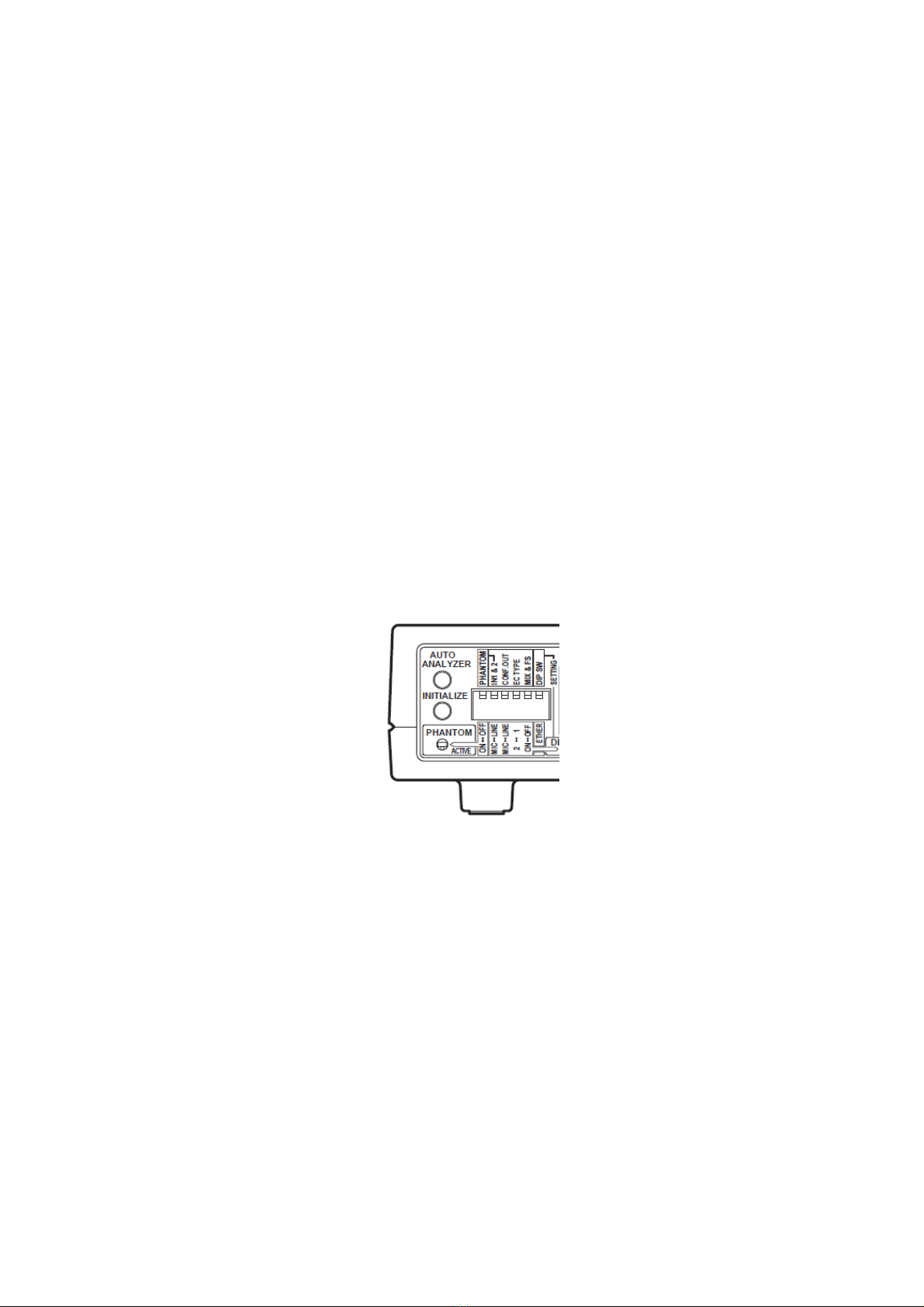

8. Configure the DIP switch settings.
1) Set the DIP switch ⑥(SETTING) to “DIP SW” to enable the DIP switch
settings.
2) When using a condenser microphone, set the DIP switch ①(PHANTOM) to
“ON” to supply 48V power to the microphone.
3) Set the DIP switch ②(IN1 & 2) to “MIC” to select the MIC level for
MIC/LINE INPUT.
4) Set the DIP switch ③(CONF.OUT) to “MIC” to select the MIC level for
CONFERENCE OUT.
5) When using a fixed microphone such as a gooseneck microphone and a
boundary microphone, set the DIP switch ④(EC TYPE) to “1” (Echo
canceller settings: “Level: 3, Mic Type: Fixed Mic”).
When using a tie-pin microphone or a handheld microphone, set the DIP
switch ④(EC TYPE) to “2” (Echo canceller settings: “Level: 5, Mic Type:
Hand Mic”).
6) Set the DIP switch ⑤(MIX&FS) to “OFF” to disable the public-address
system.
9. Turn on the external devices.
10. Turn on this unit.
11. Adjust the speaker level of your PC or webconference system.
1) Make sure the external device connected to CONFERENCE IN/OUT is
DIP switch

PJP-EC200 Setup Procedure
6
selected as “Default device” in the audio property settings of your PC.
2) Make sure the external device connected to CONFERENCE IN/OUT is
used in the audio settings of your webconference system.
3) Disable the echo canceller and noise reduction functions of your
webconference system.
4) Turn up the speaker volume.
5) While the other end is talking, adjust the speaker output level of your PC
or webconference system so that the INPUT LEVEL LED (green) of
CONFERENCE IN turns on and the CLIP LED (red) does not turn on.
12. Adjust the speaker volume.
1) While the other end is talking, adjust the speaker volume.
13. Adjust the microphone gain of this unit.
1) Adjust MIC/LINE IN1.
i. While talking into the microphone, use GAIN IN1 to increase the
microphone gain gradually.
ii. Adjust the microphone gain so that the INPUT LEVEL LED (green)
turns on and the CLIP LED (red) does not turn on.
2) Adjust MIC/LINE IN2.
i. In the same way, adjust the microphone gain for MIC/LINE IN2.
3) If the CLIP LED (red) of MIC/LINE IN turns on when the other end’s voice
is reproduced from the speakers, use GAIN to decrease the microphone
gain or turn down the speaker output level of your PC or webconference
system so that the LED does not turn on.
14. Adjust the microphone level of your PC or webconference system.
1) Check the current microphone level by using a sound recorder.

PJP-EC200 Setup Procedure
7
i. Talk into the microphone and then record your voice using a sound
recorder on your PC.
ii. Play back the recording to check its sound quality and volume. If the
sound is distorted (by clip), turn down the microphone volume of your
PC. If the volume is extremely low, turn up the microphone volume of
your PC.
2) Adjust the microphone level of your PC or webconference system.
i. Adjust the microphone volume of your PC or webconference system to
keep the volume of the audio delivered to the other end at a moderate
level.
Adjustment
1. Execute the auto analyzer.
1) Press AUTO ANALYZER to start the auto analyzer.
2) Wait until the auto analyzer ends. The shortest distance between the
speakers and microphone is measured and automatically reflected in the
echo canceller settings.
* During the measurement, the microphone picks up test tones output from
the speakers. To achieve the best result, keep the room as quiet as possible
during the measurement.
3) If you hear the audio guidance “Normally Completed”, the auto analyzer
process (measurement and automatic setup) is properly completed. If you
hear any other guidance, adjust the input gain or other settings by
following the guidance and then perform the procedures 1) and 2) again.

PJP-EC200 Setup Procedure
8
2. Adjust the echo canceller settings.
1) Ask the other end to check that echoes are not generated after he/she talks.
When using a tie-pin microphone or a handheld microphone on your side,
keep the microphone moving in the actual conference room and then ask
the other end to check that echoes are not generated after he/she talks.
2) If echoes are generated, set the DIP switch ④(EC TYPE) to “2” (see step 8
in “Setup”) and then ask the other end to recheck.
3) If echoes are still generated, turn down the speaker level of your PC or
webconference system or decrease the microphone gain of this unit.
3. Configure the noise reduction settings.
1) To transmit any sounds (voice, environmental sounds, etc.) to the other end,
set “MIC/LINE IN1” or “MIC/LINE IN2” of “Noise Reduction” to “Disable”.
2) To receive any sounds (voice, environmental sounds, etc.) from the other
end, set “CONFERENCE IN” of “Noise Reduction” to “Disable”.

PJP-EC200 Setup Procedure
9
When Using the Public -Address System
Follow the procedure below to output the talker’s voice (on your side) from the
speakers in your side and other end.
!We suggest that you use a handheld microphone or a gooseneck microphone. If
you use a boundary microphone, acoustic feedback may be frequently
generated.
* Italic texts indicate a procedure which you need to perform using the web menu.
Installations and Connections
Setup

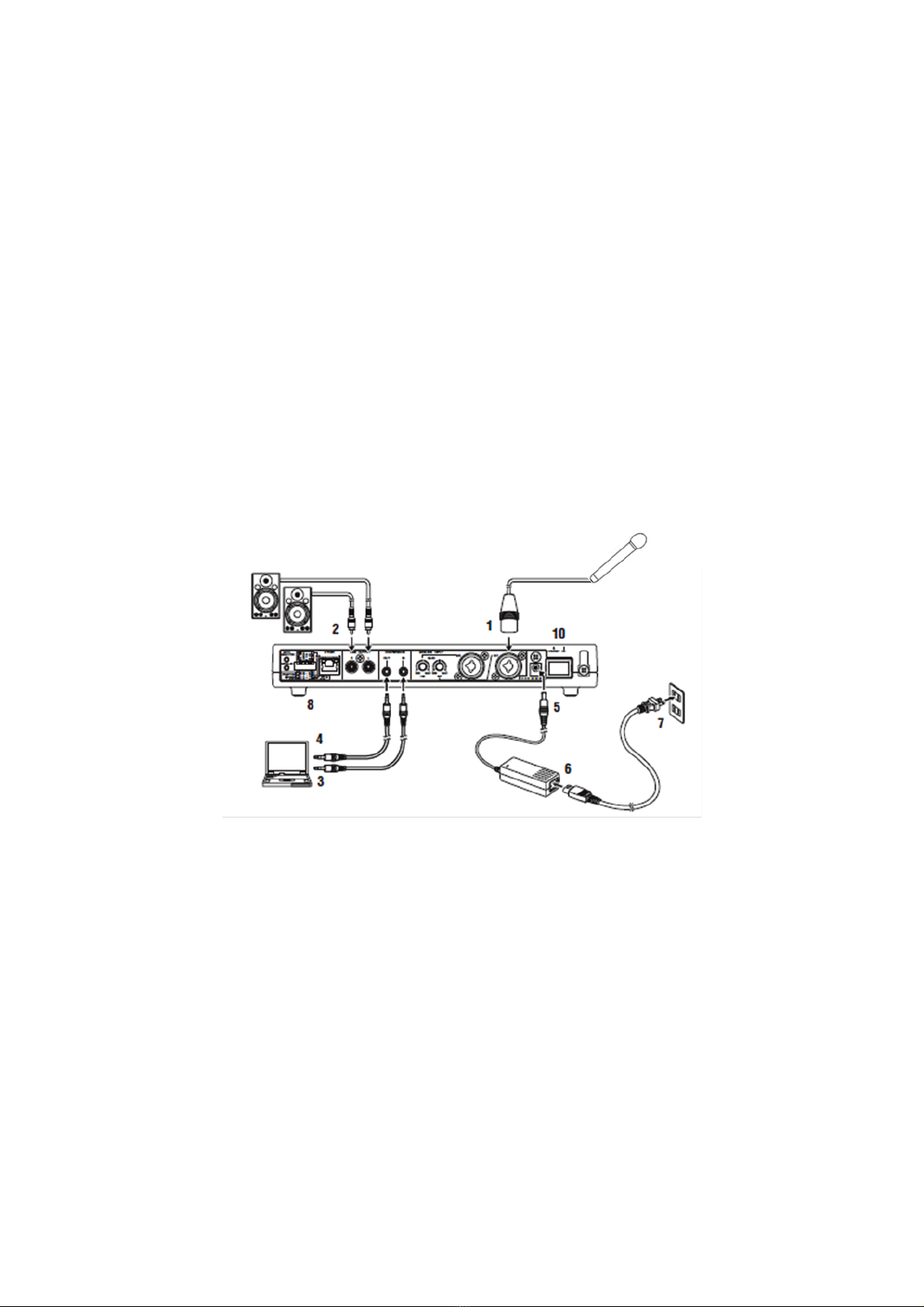

1. Connect a microphone to MIC/LINE INPUT.
1) Make sure the GAIN level is set to the minimum.
2. Connect speakers with built-in amplifier to LINE OUTPUT.
2) Make sure the speaker volume is set to the minimum.
3. Connect CONFERENCE IN to the headphone output jack of your PC.
12
11
14
13

PJP-EC200 Setup Procedure
10
4. Connect CONFERENCE OUT to the microphone input jack of your PC.
5. Connect the AC adapter to DC IN.
6. Connect the power cable to the AC adapter.
7. Connect the power cable to an AC outlet.
8. Configure the DIP switch settings.
1) Set the DIP switch ⑥(SETTING) to “DIP SW” to enable the DIP switch
settings.
2) When using a condenser microphone, set the DIP switch ①(PHANTOM)
to “ON” to supply 48V power to the microphone.
3) Set the DIP switch ②(IN1 & 2) to “MIC” to select the MIC level for
MIC/LINE INPUT.
4) Set the DIP switch ③(CONF.OUT) to “MIC” to select the MIC level for
CONFERENCE OUT.
5) When using a fixed microphone such as a gooseneck microphone and a
boundary microphone, set the DIP switch ④(EC TYPE) to “1” (Echo
canceller settings: “Level: 3, Mic Type: Fixed Mic”).
When using a tie-pin microphone or a handheld microphone, set the DIP
switch ④(EC TYPE) to “2” (Echo canceller settings: “Level: 5, Mic Type:
Hand Mic”).
6) Set the DIP switch ⑤(MIX&FS) to “OFF” to enable the public-address
system.
9. Turn on the external devices.
DIP switch

PJP-EC200 Setup Procedure
11
10. Turn on this unit.
11. Adjust the microphone gain of this unit.
1) Adjust MIC/LINE IN1.
i. While talking into the microphone, use GAIN IN1 to increase the
microphone gain gradually.
ii. Adjust the microphone gain so that the INPUT LEVEL LED (green)
turns on and the CLIP LED (red) does not turn on.
2) Adjust MIC/LINE IN2.
i. In the same way, adjust the microphone gain for MIC/LINE IN2.
12. Adjust the speaker volume.
1) While talking into the microphone, adjust the speaker volume to a
comfortable level so that no acoustic feedback is generated.
13. Adjust the speaker level of your PC or webconference system.
1) Make sure the external device connected to CONFERENCE IN/OUT is
selected as “Default device” in the audio property settings of your PC.
2) Make sure the external device connected to CONFERENCE IN/OUT is used
in the audio settings of your webconference system.
3) Disable the echo canceller and noise reduction functions of your
webconference system.
4) While the other end is talking, adjust the speaker output level of your PC or
webconference system so that the INPUT LEVEL LED (green) of
CONFERENCE IN turns on and the CLIP LED (red) does not turn on.
5) Adjust the speaker output level and microphone gain of your PC or
webconference system to balance the volumes of other end’s voice with your

PJP-EC200 Setup Procedure
12
voice.
6) While sounds are reproduced from the speakers, check that the CLIP LED
(red) of MIC/LINE INPUT does not turn on. If the LED turns on, turn down
GAIN or speaker output level of your PC or webconference system so that it
does not turn on.
14. Adjust the microphone level of your PC or webconference system.
1) Check the current microphone level by using a sound recorder.
i. Talk into the microphone and then record your voice using a sound
recorder on your PC.
ii. Play back the recording to check its sound quality and volume. If the
sound is distorted (by clip), turn down the microphone volume of your
PC. If the volume is extremely low, turn up the microphone volume of
your PC.
2) Adjust the microphone volume of your PC or webconference system to keep
the volume of the audio delivered to the other end at a moderate level.
Adjustment
1. Execute the auto analyzer.
1) Press AUTO ANALYZER to start the auto analyzer.
2) Wait until the auto analyzer ends. The shortest distance between the
speakers and microphone is measured and automatically reflected in the
echo canceller settings. Also, the feedback suppressor settings are
automatically adjusted to the room environment (automatic environment

PJP-EC200 Setup Procedure
13
learning).
* During the measurement, the microphone picks up test tones output from
the speakers. To achieve the best result, keep the room as quiet as possible
during the measurement.
3) If you hear the audio guidance “Normally Completed”, the auto analyzer
process (measurement and automatic setup) is properly completed. If you
hear any other guidance, adjust the input gain or other settings by
following the guidance and then perform the procedures 1) and 2) again.
2. Adjust the echo canceller settings.
1) Ask the other end to check that echoes are not generated after he/she talks.
When using a tie-pin microphone or a handheld microphone on your side,
keep the microphone moving in the actual conference room and then ask
the other end to check that echoes are not generated after he/she talks.
2) If echoes are generated, set the DIP switch ④(EC TYPE) to “2” (see step 8
in “Setup”) and then ask the other end to recheck.
3) If echoes are still generated, turn down the speaker level of your PC or
webconference system or decrease the microphone gain of this unit.
3. Configure the feedback suppressor settings.
1) Perform the environment learning of the feedback suppressor.
i. Set the microphone gain slightly higher than the threshold level (start
of acoustic feedback generation).
ii. Acoustic feedback will be repeatedly generated and stopped. If the CLIP
LED (red) turns on continuously in the process, decrease the
microphone gain to reduce the acoustic feedback generation.
iii. If acoustic feedback generation is completely stopped, set the
microphone gain to the original level.
2) If acoustic feedback is still generated, set “Level” of “Feedback Suppressor”
to “-18dB” and then perform the procedure 1) again. However, this setting
may affect the quality of sounds output through the public-address system.
3) In addition, to control acoustic feedback immediately, set “Band width” of
“Feedback Suppressor” to “1/60oct”. For more effectiveness, set it to
“1/10oct”. However, this setting may affect the quality of sounds output
through the public-address system.

PJP-EC200 Setup Procedure
14
4. Configure the noise reduction settings.
1) To transmit any sounds (voice, environmental sounds, etc.) to the other end,
set “MIC/LINE IN1” or “MIC/LINE IN2” of “Noise Reduction” to “Disable”.
2) To receive any sounds (voice, environmental sounds, etc.) from the other
end, set “CONFERENCE IN” of “Noise Reduction” to “Disable”.
