Yamato SK102C User manual

Sterilizer
Model
SK102C SK112C
SK201C SK211C
SK301C SK311C
Instruction Manual
- First Edition -
Yamato Scientific Chongqing Co., Ltd
Thank you for purchasing "Sterilizer, SK Series"
of Yamato Scientific Chongqing Co., Ltd.
To use this unit properly, read this "Instruction
Manual" thoroughly before using this unit.
Keep this instruction manual around this unit for
referring at anytime.
WARNING!
Carefully read and thoroughly understand the
important warning items described in this manual
before using this unit.

Contents
3TUCautions in Using with SafetyU3T ..............................................................1
•3TUExplanationU3T ................................................................................................................1
•3TUTable of Illustrated SymbolsU3T ........................................................................................2
•3TUFundamental Matters of "WARNING!" and "CAUTION!"U3T .............................................3
3TUBefore Using This UnitU3T ..........................................................................5
•3TURequirements for InstallationU3T ......................................................................................5
•3TUInstallation ProcedureU3T .................................................................................................8
3TUDescription and Function of Each PartU3T ..............................................10
•3TUMain UnitU3T ..................................................................................................................10
•3TUControl Panel (Keys)U3T ................................................................................................11
3TUOperation MethodU3T ................................................................................12
•3TUApparatus/Liquid Sterilization CourseU3T .......................................................................12
•3TUSterilizing ParametersU3T ...............................................................................................16
3TUHandling PrecautionsU3T ..........................................................................17
•3TUWARNINGU3T ................................................................................................................17
•3TUCAUTIONU3T .................................................................................................................18
3TUMaintenance MethodU3T ...........................................................................19
•3TUDaily Inspection and MaintenanceU3T ............................................................................19
3TULong storage and disposalU3T .................................................................20
•3TUWhen not using this unit for long term / When disposingU3T...........................................20
3TUIn the Event of Failure…U3T ......................................................................21
•3TUSafety Device and Error CodeU3T ..................................................................................21
3TU After Service and WarrantyU3T .................................................................22
3TUSpecificationU3T ........................................................................................23
3TUWiring DiagramU3T ....................................................................................24
3TUReplacement Parts TableU3T ....................................................................26
3TUReferenceU3T .............................................................................................27
•3TUList of Dangerous SubstancesU3T ..................................................................................27

1
Cautions in Using with Safety
Explanation
MEANING OF ILLUSTRATED SYMBOLS
Various symbols are used in this safety manual in order to use the unit without
danger of injury and damage of the unit. A list of problems caused by ignoring
the warnings and improper handling is divided as shown below.Be sure that you
understand the warnings and cautions in this manual before operating the unit.
WARNING! If the warning is ignored, there is the danger of a problem that
may cause a serious accident or even fatality.
CAUTION! If the caution is ignored, there is the danger of a problem that may
cause injury/damage to property or the unit itself.
Meaning of Symbols
This symbol indicates items that urge the warning (including the caution).
A detailed warning message is shown adjacent to the symbol.
This symbol indicates items that are strictly prohibited.
A detailed message is shown adjacent to the symbol with specific actions not to
perform.
This symbol indicates items that should be always performed.
A detailed message with instructions is shown adjacent to the symbol.
Illustrated Symbols

2
Cautions in Using with Safety
Table of Illustrated Symbols
Warning
Warning
generally
Warning
high voltage
Warning
high temperature
Warning
drive train
Warning
explosive
Caution
Caution
generally
Caution
electrical shock
Caution
scald
Caution
no road heating
Caution
not to drench
Caution
water only
Caution
deadly poison
Prohibit
Prohibit
generally
Prohibit
inflammable
Prohibit
to disassemble
Prohibit
to touch
Compulsion
Compulsion
generally
Compulsion
connect to the
grounding terminal
Compulsion
install on a flat
surface
Compulsion
disconnect the power
plug
Compulsion
periodical
inspection

3
Cautions in Using with Safety
Fundamental Matters of "WARNING!" and "CAUTION!"
UWARNING!

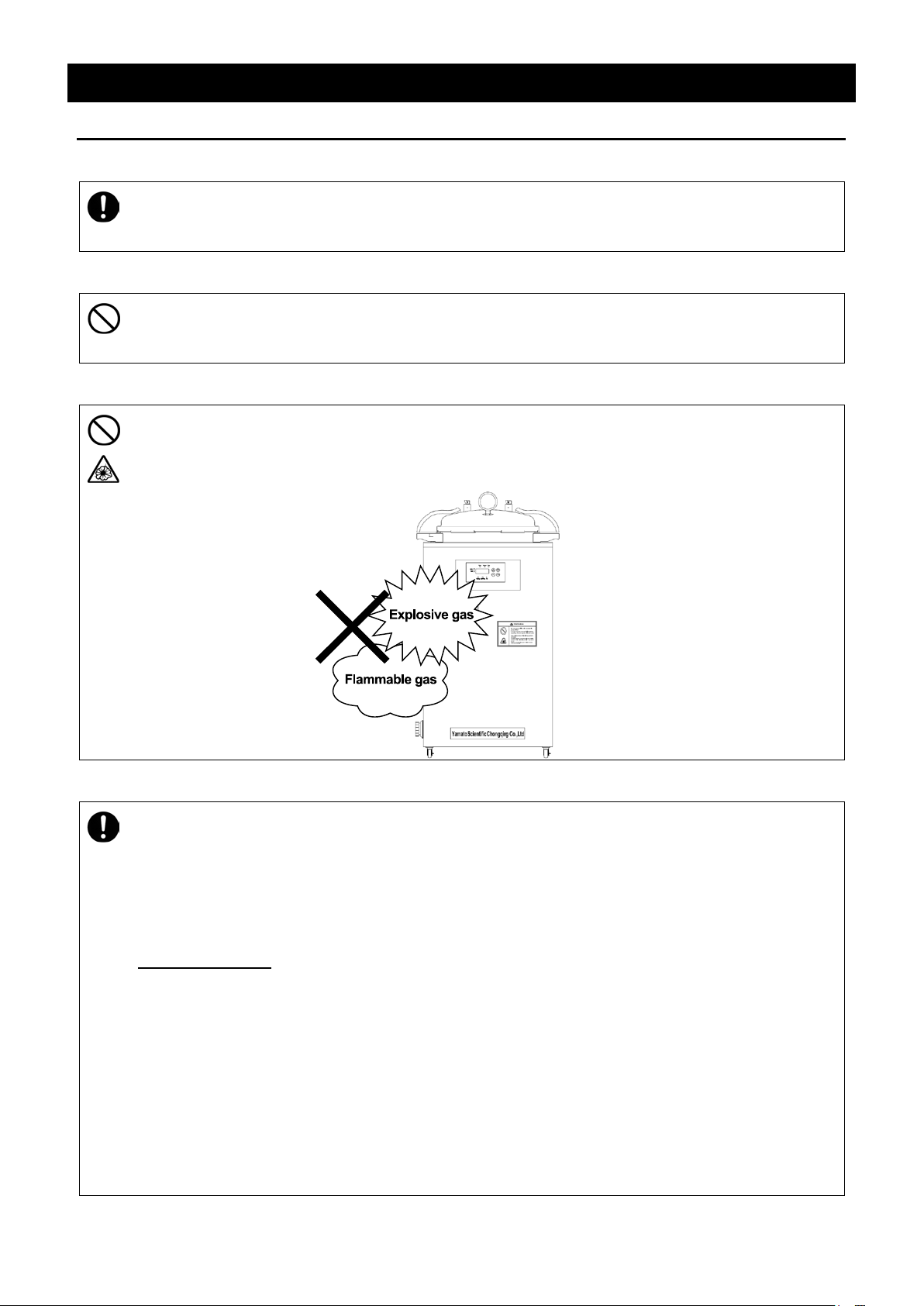

Do not use this unit in an area where there is flammable or explosive gas
Never use this unit in an area where there is flammable or explosive gas.
This unit is not
explosion-proof. An arc may be generated when the
power switch is turned on or off, and fire/explosion
may result. (Refer to page 27 "List of Dangerous Substances".)

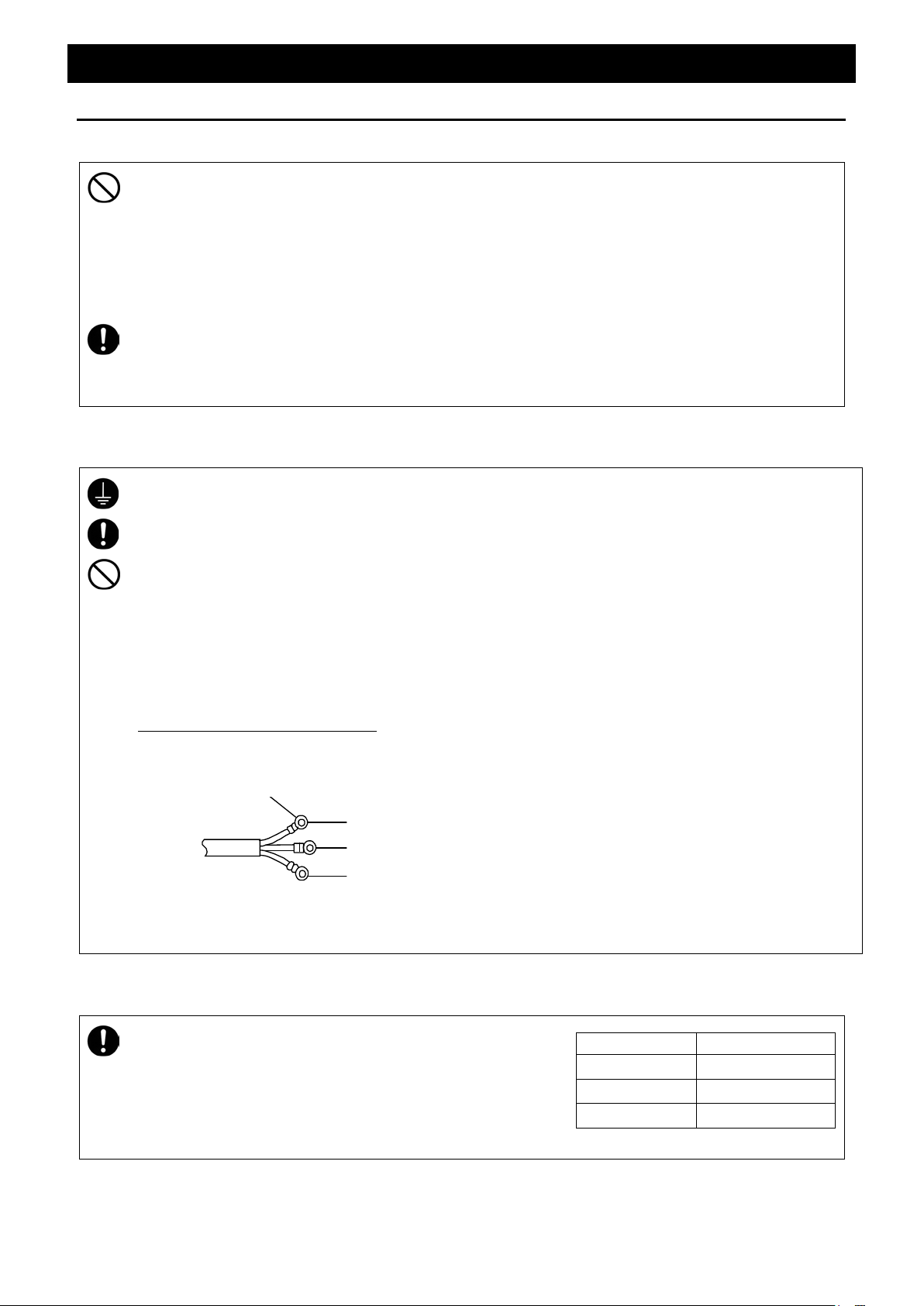

Always ground this unit
Always ground this unit on the power equipment side in order to avoid electrical shock due to a power
surge.
If a problem occurs
If smoke or strange odor should come out of this unit for some reason, turn off the circuit breaker right
away, and then disconnect the power plug or power terminal. Immediately contact a service technician
for inspection. If this procedure is not followed, fire or electrical shock may result. Never perform repair
work yourself, since it is dangerous and not recommended.
Do not use the power cord if it is bundled or tangled
Do not use the power cord if it is bundled or tangled. If it is used in this manner, it could overheat and
fire may be caused.
Do not process, bend, wring, or stretch the power cord forcibly
Do not process, bend, wring, or stretch the power cord forcibly. Fire or electrical shock may result.
Substances that can not be used
Never use explosive substances, flammable substances and substances that include explosive or
flammable ingredients in this unit. Explosion or fire may occur. (Refer to page 27 "List of Dangerous
Substances".)
Do not disassemble or modify this unit
Do not disassemble or modify this unit. Fire or electrical shock or failure may be caused.
Do not get close to the vapor outlet / Do not block the outlet
The vapor outlet is provided on the left face of equipment. Do not put your hands or face close to the
outlet. Do not block the outlet. A burn injury or equipment failure may result in.

4
Cautions in Using with Safety
Fundamental Matters of "WARNING!" and "CAUTION!"
UCAUTION!

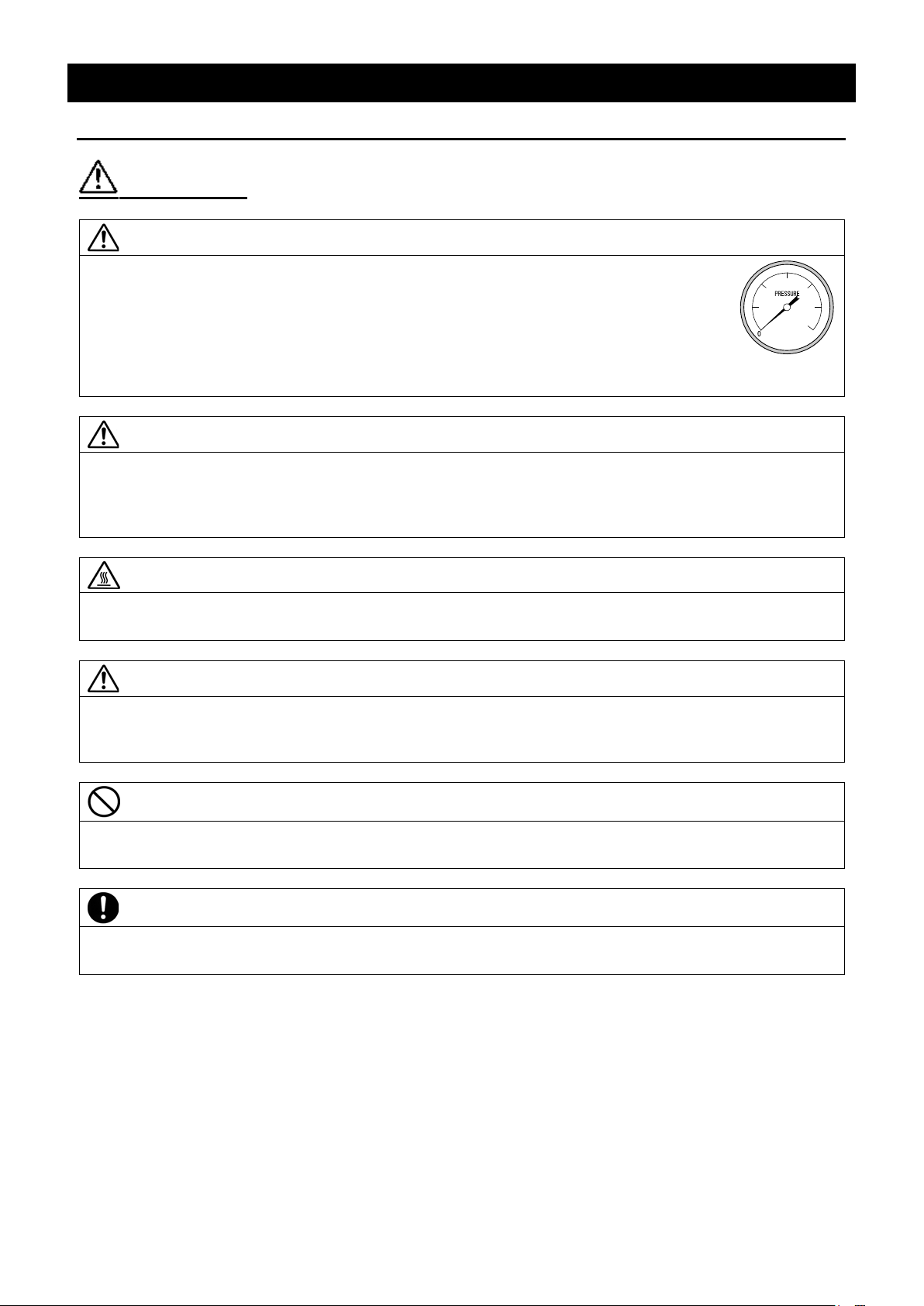

When opening the cover...
Make sure that the pressure of equipment has decreased to 0(zero)
MPa before
opening the cover. Generally the cover does not open due to the safety lock mechanism
under the high pressure condition. The high-
temperature and pressure vapor blows out
if the cover is forced open under high pressure, which may cause a burn injury. A large
amount of vapor blows out from inside of the chamber when opening the cover just after
the sterilizing operation has completed (when the temperatur
e inside the chamber is
high). Do not put your hands and face close to the cover.
When draining water...
Make sure that the pressure of equipment has decreased to 0(zero) MPa before draining the sterilizing
water. The hot water blows out if the valve is opened under high pressure. The sterilizing water remains
very hot just after the sterilizing operation has completed even the pressure reading is 0(zero) MPa.
Drain the water after it is sufficiently cooled down.
Do not touch the hot section
Some sections on the equipment such as the circumference of cover or drain bottle are very hot during
or just after the operation of equipment. Do not touch these sections to avoid burn injury.
When taking the sterile samples from the chamber...
Sufficiently remove the vapor inside the chamber before taking the sterile samples from the chamber.
Wear heat-resistant leather gloves to take them from the chamber to
protect your hands from
high-temperature samples.
Do not touch the heat releasing outlet
Do not directly touch the heat releasing outlet located around the outer covering. The vapor may blow
out from the safety valve by an accident during sterilizing operation. Do not block the outlet.
During a thunder storm
During a thunderstorm, turn off the power key immediately, then turn off the circuit breaker and the main
power. If this procedure is not followed, fire or electrical shock may be caused.

5
Before Using This Unit
Requirements for Installation
1. Choose a proper place for installation
•Do not install this unit in a place where:
♦Rough or dirty surface.
♦Flammable gas or corrosive gas is generated.
♦Ambient temperature 35°C and above or 5°C and below.
♦Ambient temperature fluctuates violently.
♦There is direct sunlight.
♦There is excessive humidity and dust.
♦There is a constant vibration.
♦Not horizontal surface.
♦The power source is instable.
•Install this unit on a stable place with the space as shown below.
2. Installation on horizontal surface
•Use the equipment on the horizontal and firm
place to keep the water inside the chamber
horizontal. If the equipment tilts and the
heater appears from the water surface, the
temperature on the area above the water
rises and a heater failure or operation stop
due to water level detector function may
occur.
•The weight of main unit is approximately
14kg. Carry and install the equipment
carefully by two or more persons.
Over 50cm
Over 50cm
Over 50cm
Over 50cm

6
Before Using This Unit
Requirements for Installation
3. Before/after installing
•It may cause injure to a person if this unit falls down or moves by the earthquake and the
impact. etc..To prevent, take safety measures that the unit cannot fall down, and do not install
it to a busy place.

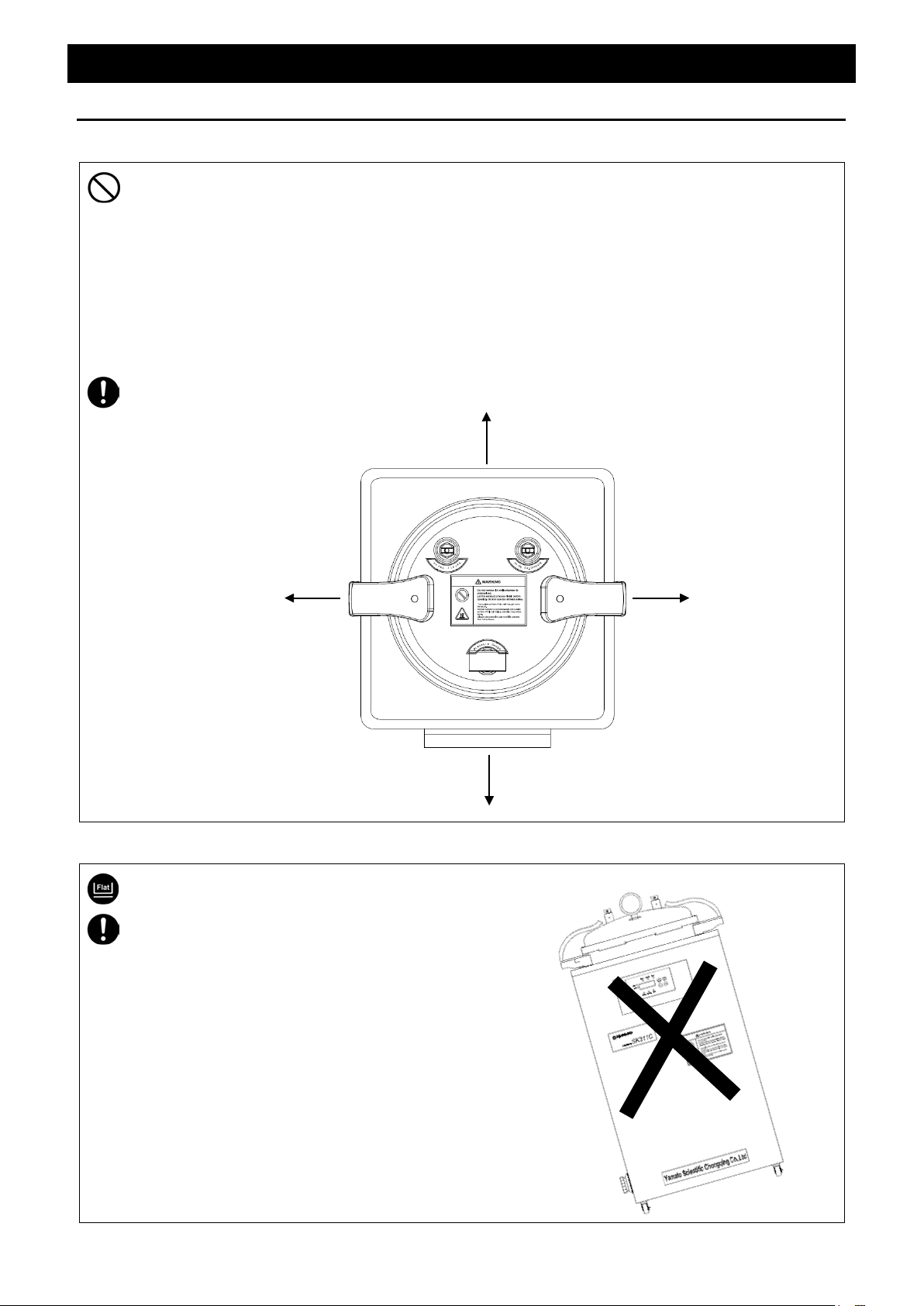

4. Ventilate the equipment sufficiently
•Do not block the heat releasing outlets on the side face and back face of equipment during
operation. The temperature inside the equipment rises, which may cause the deterioration or
failure of equipment, accident, or fire disaster.
5. Do not use this unit in an area where there is flammable or explosive gas
•Never use this unit in an area where there is flammable or explosive gas. This unit is not
explosion-proof.An arc may be generated when the power switch is turned ON or OFF, and
fire/explosion may result.
•To know about flammable or explosive gas, refer to page 27 “List of Dangerous Substances”.
6. Choose a correct power distribution board or receptacle
•Choose a correct power distribution board or receptacle that meets the unit’s rated electric
capacity.
•Operating voltage range for respective equipment models are as follows.
SK102C models: AC115VSK112C models: AC220~ 230V
SK201C models: AC115VSK211C models: AC220~ 230V
SK301C models: AC115VSK311C models: AC220~ 230V
UElectric capacity:
SK102C: AC115V /17A, SK112C:AC220~ 230V / 9.5~10A
SK201C: AC115V /17A, SK211C: AC220~ 230V / 9.5~10A
SK301C: AC115V /17A, SK311C: AC220~ 230V / 9.5~10A
NOTE)
There could be a case that the unit won’t run even after turning ON the power. Inspect whether
the voltage of the main power is lower than the specified value, or whether the other device(s)
uses the same power line of this unit. If these phenomena should be found, change the power
line of this unit to the other power line.
•Starburst connection with a branching receptacle or extended wiring with a cord reel lowers
electrical power voltage, which may cause the degradation of refrigeration capability.
•Connect the unit only to the recommended power supply. If this is connected to a gas pipe,
water pipe or telephone line, it may result to an accident or malfunction, could cause injuries or
fatality.

7
Before Using This Unit
Requirements for Installation
7. Handling of power code
•Do not entangle the power cord. This will cause overheating and possibly a fire.
•Do not bend or twist the power cord, or apply excessive tension to it. This may cause a fire
and electrical shock.
•Do not lay the power cord under a desk or chair, and do not allow it to be pinched in order to
prevent it from being damaged and to avoid a fire or electrical shock.
•Keep the power cord away from any heating equipment such as a room heater. The cord's
insulation may melt and cause a fire or electrical shock.
•If the power cord becomes damaged (wiring exposed, breakage, etc.), immediately turn off the
power at the rear of this unit and shut off the main supply power. Then contact your nearest
dealer for replacement of the power cord. Leaving it may cause a fire or electrical shock.
•Connect the power plug to the receptacle which is supplied appropriate power and voltage.
8. Always ground this unit
•Be sure to connect the earth wire (the green cable of power cord) to the grounding conductor or
ground terminal to prevent accidents caused by electric leakage.
•Do not connect the earth wire to gas or water pipes. If not, fire disaster may be caused.
•Do not connect the earth wire to the ground for telephone wire or lightning conductor. If not, fire
disaster or electric shock may be caused.
•Please consult your local electrical contractor for power connecting work.
•Do not use a branching receptacle, which may cause the heat generation.
•The D class earth connecting works is required if no ground terminal is provided. In this case,
consult with the selling office where you purchased or our sales office.
•Securely connect it to the switchboard or outlet.
USK102C/112C/201/C/211C/301C/311C
These models do not include the power plug. Correctly connect the ground to fit with the power
supply facility to be connected.
9. Connect the power cord paying attention to the color of each core wire
•When connecting the power cord, do check the breaker
on the electric power equipment be "OFF".
Core Wire Color
Interior Wiring
Blue
Power Supply Side
Brown
Power Supply Side
Yellow
Ground Wire Side
Rounded terminal
for M4
Yellow (to ground)
Blue (to power supply)
Brown (to power supply)

8
Before Using This Unit
Installation Procedure
1 Close the drain valve
•
Close the drain valve at the bottom
on the
left side face of main unit.
Water leak
occurs
if not fully closed, which may cause
the burn
injury no-load (water) operation.
The d
rain valve and lead it to the
draining site.
2 Pour water into the chamber
•
Before setting the sterile samples, pour water into the chamber to the water level gauge (notch)
position.
•Insufficient water may cause the no-
load (water) operation. Check the water level every time
before operation. Refill it befor
e the level becomes too low. Water is required to be poured at
dissolution operation, as well as sterilizing operation.
•When the water level lowers, the equipment
cuts off the heater. Depending on the conditions of
equipment, however, the detection require
s too much time, which may cause the heater
deterioration. Refill water before the water level becomes too low.
Refer to the right table for the quantity of water to be refilled.
3 Use distillated or purified water for sterilizing water
•Fill distillated o
r purified water inside the chamber. Tap water may be used. Calculus generate
inside the chamber when tap water is used. Frequent cleaning is therefore required.
•
Do not use well water. It may cause the corrosion or dirt inside the chamber.
4 Set the sterile samples
•Set the samples to the chamber, putting them into the attached rack or cast (sold separately).
•
Put the sample or sterilization bag into the chamber so they should not block or cover the
sensor inside the chamber, exhaust outlet and end connectio
n to pressure gauge. If they are
blocked or covered, the vapor cannot be discharged and the equipment cannot be operated
correctly. Do not spill the samples when taking them out or
putting them into the chamber. The
failure in piping system, bad smell or dirt may result in.
•
In case liquid such as medicinal solution or medium is sterilized, the amount of liquid should be
60% or less of the capacity of container.
They may be boiled over if too much quantity is
supplied.
•Widely open the opening of sterilization bag when used.
If it is closed, the samples are
insufficiently sterilized.

9
Before Using This Unit
Installation Procedure
6 Close the door before operation
•Place the sterilizing drum with properly-piled items into the pot with the positioning mark on the
pot lid to be aligned to the center of the lower handle. Press the lid gently by hand and turn it
clockwise for the upper and lower handles to close completely and the safety lock to remain in
open position, and the safety lock will lock the
upper and lower handles automatically when the
pressure in pot rises.
•The lock lever on the cover is held by the hook and does not move when the
cover remains
open.
•Fully close the cover and slide the lock lever on the cover to the left si
de. If it is closed
inappropriately, the vapor blows out from the inside, which may cause a burns or injury to the
people around it.
•Do not press the hook and operate the lock lever for purposes other than mai
ntenance of
equipment.

10

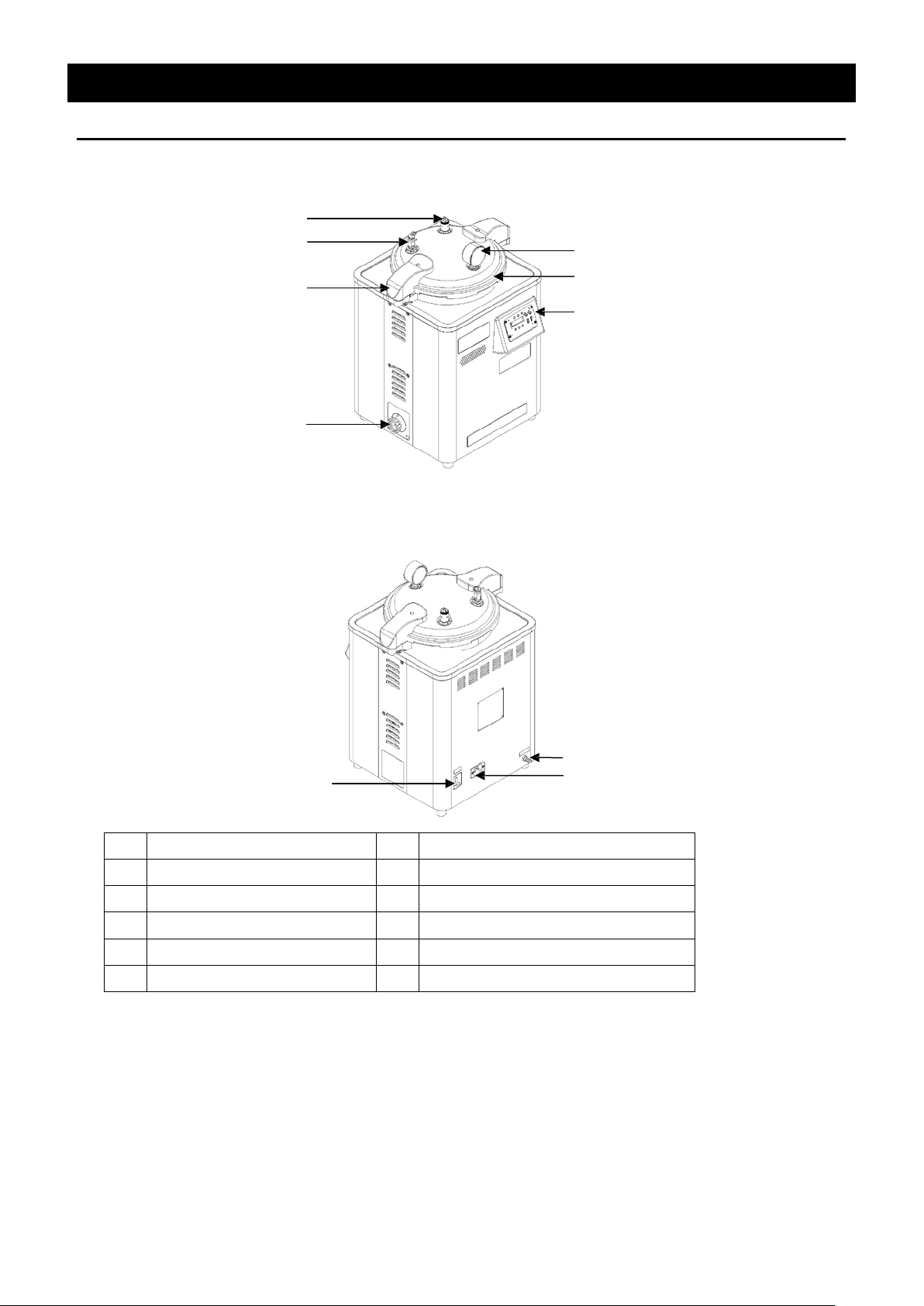

Description and Function of Each Part
Main Unit
No.
Name
No.
Name
1 Safety valve 6 Upper cover
2 Vent valve 7 Operation panel
3 Handle (up/down) 8 Power switch
4 Exhaust (drain) valve 9 Exhaust (drain) port
5
Pressure gauge
10
Power interface
1
3
2
4
7
6
5
9
10
8

11

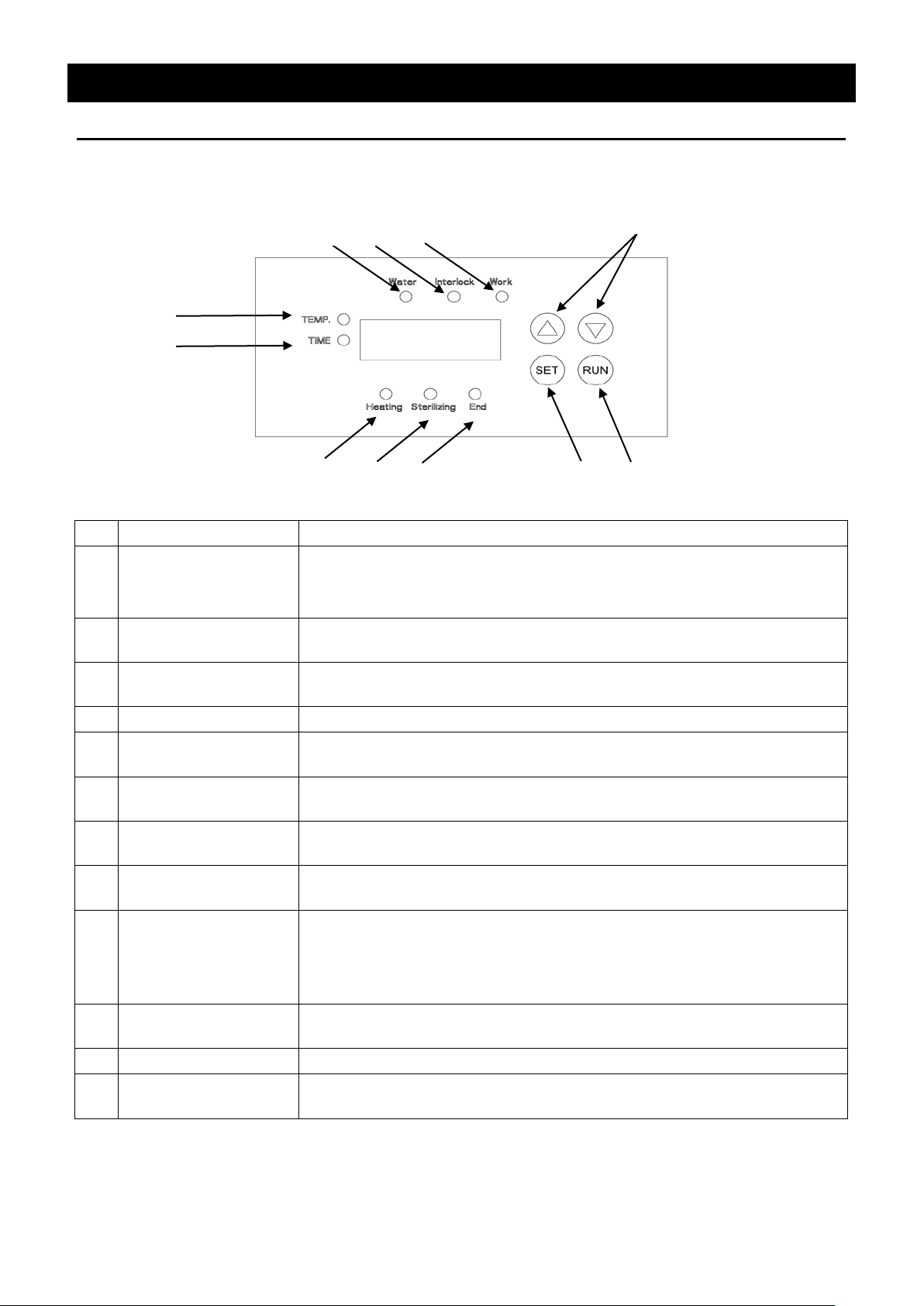

Description and Function of Each Part
Control Panel (Keys)
No.
Name
Function
1 Water level lamp When there is water shortage/cut off in the sterilizer, the lamp normally
blinks, with a buzzer alarm sound. When the water is added to the
"standard" water level, the water level lamp will be normally ON.
2
Sterilize temp. setting
lamp The indicator lamp is ON when the sterilization temperature is displayed.
3
Sterilize time setting
lamp
The indicator lamp is ON when the sterilization time is displayed or
entering the countdown.
4
Digital display area
Display the parameters or temperature time.
5 Heating lamp The indicator lamp is ON when the heater is i
n the working state, and
blinks during the heat preservation process.
6 Interlock lamp
Close the upper cover and rotate until the upper and lower handles are
closed, and then the indicator lamp lights up.
7 Working lamp
The indicator lamp is ON when the RUN key is pressed and the product
starts to work.
8 Increase/Decrease
keys Press "Up" to increase the parameters to be modified, and press "Down"
to decrease the parameters to be modified.
9 Function setting key
Press the "function setting" key once to switch the running state in the
display screen to the temperature setting state, press twice to switch to
the time state, and then press again to return to the running state. Long
press the key for more than 5 secs to open the hidden setting data.
10 RUN key
After setting the required sterilization temperature and time, close the
cover, press the RUN key, and the sterilizer starts to heat up and run.
11 END lamp The indicator lamp is ON (with buzzer sound) at the end of sterilization. *1
12 Sterilizing lamp
The indicator lamp is ON when the sterilizer reaches the set temperature
(heat preservation).
*1 Long press the "up" or "down" key for more than 5 secs to check the real-time temperature in the
sterilization process.
2
3
4
1
5
6
7
8
9
10
11
12

12
Operation Method
Apparatus/Liquid Sterilization Course
Follow the procedures below for the setting of apparatus sterilization and liquid sterilization courses.
Turn the cover CCW and separate the upper
and lower handles completely (Figure 1).
Remove the cover and place it on a flat
surface (Figure 2). When placing the cover,
the pressure gauge should be placed upward
to avoid collision and deformation with the
case, resulting in the error of the pressure
gauge pointer.
Connect to the external power supply of AC
220V±10%, 50Hz±1Hz and power ≥2KW,
plug into the sterilizer special power socket,
turn on the power switch to the ON position
(Figure 3), the required setting can be made
on the control panel (an electromagnetic
switch is set in the handle, and the heater will
not work when the cover is not closed or
there is water shortage in cylinder). The
blinking water level lamp indicates that there
is water shortage in the cylinder (Figure 4),
and the display screen (Figure 4) indicates
the current temperature in the cylinder.
3. Take out the inner barrel, inject the tap water
directly into the cylinder and add water until
the water level indicator lamp on the control
panel is normally ON (Figure 5). If there is too
much water in the cylinder, turn on the drain
valve (Figure 7)
to drain the excess water (the
standard water level should reach the lower
edge of the three brack
ets in the cylinder
(Figure 6).
Turn the drainage knob to the OFF
position after the water level is confirmed
(Figure 8).
Figure 1
Figure 2
Figure 3
Figure 5
Figure 6
Figure 7
Figure 8
Temp. in cylinder
Inner barrel
Bracket*3
Heating
pipe
Standard
water level
Liquid level
sensor
Temp. sensor
Figure 4
NO
OFF

13
Operation Method
Apparatus/Liquid Sterilization Course
4. The control system in the control platform
has the function of data memory, which can
store the sterilization temperature and time of
the last use for the next continuous use. For the
first use, may need to adjust the sterilization
temperature and time, it can be adjusted
according to the following steps:

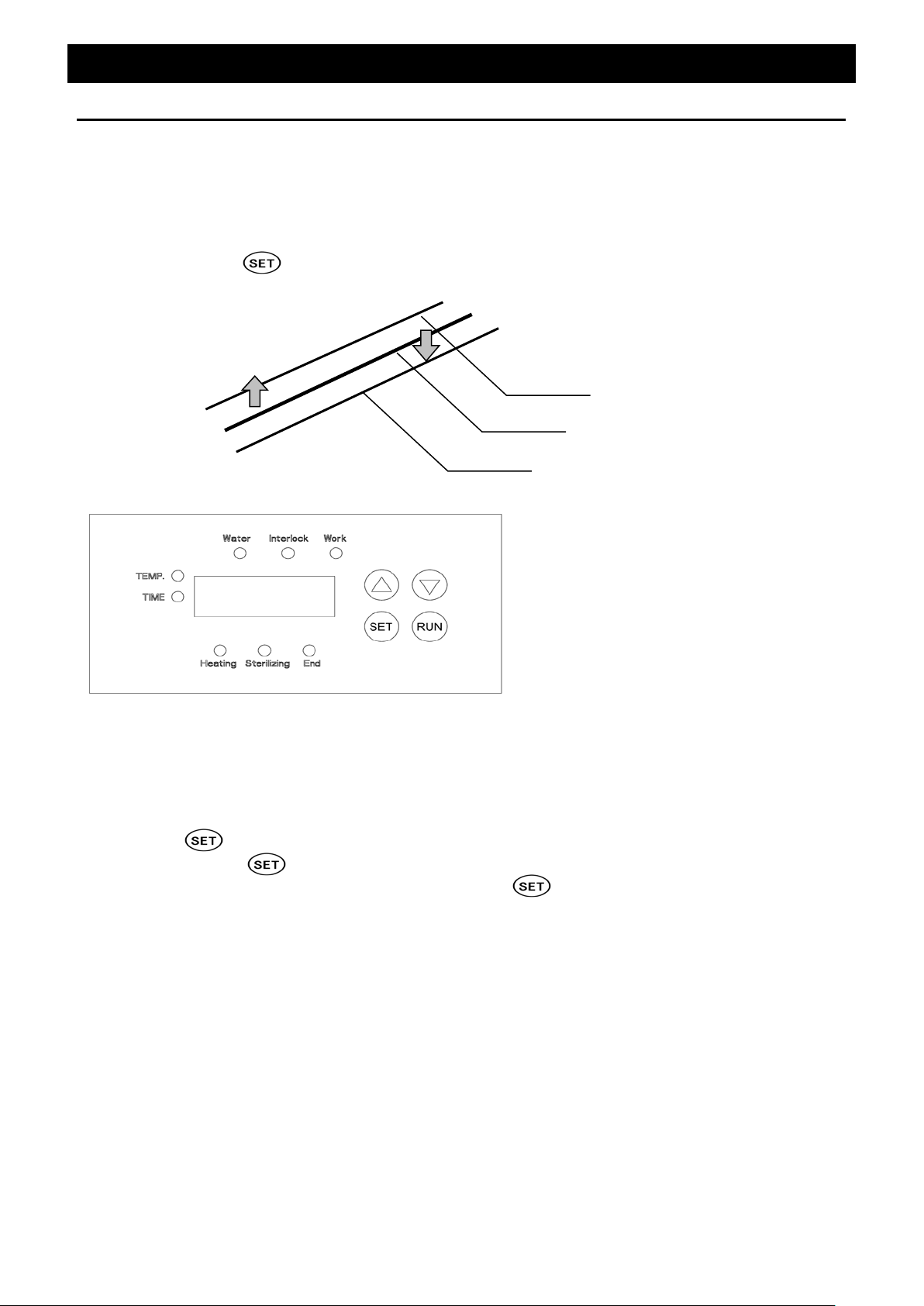

①Set the sterilization temperature: press the
set key on the control panel (Figure 9), the
sterilization temperature indicator lamp on the
panel lights up, and SP appears in the display
screen (Figure 10). Press the up and down keys
(Figure 11) to adjust the required
sterilization temperature value. After the
adjustment, press the set key twice to store and
confirm the new sterilization temperature data
(Figure 12).
②Set the sterilization time: press the set key on
the control panel (Figure 13), the sterilization
time indicator lamp on the panel lights up, and
ST appears in the display screen (Figure 14).
Press the up and down keys (Figure
15) to adjust the required sterilization time
value. After the adjustment, press the set key
twice to store and confirm the new sterilization
time data (Figure 16).
The articles need to be sterilized should be
properly wrapped and stacked in the inner
barrel successively (Figure 17-1). Do not put
the easily expanded or unwrapped grain or strip
articles into the barrel to sterilize. When
stacking the sterilization articles, it is necessary
to keep off the vent holes such as of the safety
valve and the vent valve (Figure 17-2) to avoid
the unsafe accidents caused by blocking the
vent holes.
When the sterilization temperature and time are
confirmed, close the cover, turn the cover CW
until the upper and lower handles are all closed
(Figure 18), and the interlock indicator lamp
blinks; then press the RUN key on the control
panel, the working lamp lights up, and the
heater in the sterilizer starts to work.
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17-1
Figure 17-2
Figure 18
Neatly
stacked
Do not
block the
holes

14
Operation Method
Apparatus/Liquid Sterilization Course
0B★In order to ensure the sterilization effect, the lower
exhaust valve knob should be turned to the micro
exhaust state (Figure 21) during the heating, pressure
rising and sterilization process to keep a small amount
of steam constantly discharged from the
cylinder, so
that the temperature in the cylinder can become
uniform.
When the heater starts to work, both the
sterilization temperature lamp and the heating
lamp on the control panel light up, indicating
that the sterilizer has entered into the operation
state of heating, temperature and pressure
rising (Figure 19). When the temperature in the
cylinder rises to be about 102℃, the interlock
indicator lamp will turn to be normally ON
(Figure 20).
When the temperature of sterilizer rising to the
set temperature, the sterilizing lamp and the
sterilization time lamp on the control panel light
up, the working lamp turns to blink, and the
sterilization countdown appears in the display
window (Figure 22), indicating that the
sterilization articles are being sterilized inside
the cylinder of sterilizer.
The sterilization countdown is over, the word
"END" appears in the display window, the END
lamp on the control panel lights up and the
working lamp goes out, indicating that the
sterilization operation is completed (Figure 23).
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23

15
Operation Method
Apparatus/Liquid Sterilization Course
After the sterilization operation, turn the lower
exhaust valve knob to the ON position (Figure
24) to discharge the steam in the cylinder for
pressure relief. When the temperature in the
cylinder is lower than about 102℃, the interlock
lamp turns to blink (Figure 25), indicating that
the pressure in the cylinder is basically
eliminated.
After the pointer of the pressure gauge returns
to zero (Figure 26), turn the cover CCW and
separate the upper and lower handles
completely (Figure 27). At this point, the
interlock lamp goes out (Figure 28), indicating
that the cover can be removed and the
sterilization articles can be taken out. (This
figure is for reference only, the pressure gauge
is subject to the real object)
Note: The outside surface of this unit may get hot to the touch contact between unprotected skin and
outside surface of this unit during operation may cause burns. Always use protective gear to shield
operator from hot surfaces
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Exhaust
Drain

16
Operation Method
Sterilizing Parameters
Use calibration offset function
Calibration offset is a function which corrects the difference between the temperature in furnace and
that of controller (sensor temperature) if arises. The function parallel corrects the difference either to
the plus or minus side within the whole temperature range of unit. The function can be set or
cancelled by the key.
①Start operation with the target setting temperature. Check the temperature in furnace (temperature of
sample) with a thermograph after it is stabilized.
②Check the difference between the setting temperature and that in furnace (temperature of sample).
③Press the key. Select the character "SC", which indicates the calibration offset, using the "▲▼",
and then press the key.
④Input the difference using the "▲▼" and then press the key. This completes the setting.
The setting range of offset correction temperature is +20℃to plus side and -20℃to minus side
respectively.
Current temperature
Corrected temp. to plus side
Corrected temp. to minus side

17
Handling Precautions
WARNING
UWARNING!
If a problem occurs
If smoke or strange odor should come out of
this unit for some reason, turn off the power key
right away, and then turn off the circuit breaker and the main power. Immediately contact a
service technician for inspection. If this procedure is not followed, fire or electrical shock may
result. Never perform repair work yourself, since it is dangerous and not recommended.
Measure for flammability and handling of flammable solvent
This unit is not designed as the explosion-
proof construction. Pay special attention to the
handling of the sample to be
handled with this unit on the consumption with the explosive
material, flammable material, and similar ones. The flammable material may be vaporized by
leaving it at the temperature higher than room temperature, and could cause the fire or
explosion. When handling such material, provide enough ventilation before the operation. (Refer
to page 27 “List of Dangerous Substances”.)
Do not modify
Do not modify this unit.An accident, malfunction, electric shock or fire may result.

18
Handling Precautions
CAUTION
UCAUTION!
During a thunder storm
During a thunderstorm, turn off the power key immediately, then turn off the circuit breaker and
the main power. If this procedure is not followed, fire or electrical shock may be caused.
Do not touch the hot section
The temperature on the cover and top board on the chamber are very hot during operation or just
after operation is completed. Do not touch these sections to avoid a burn injury.
When opening the cover…
Make sure that the pressure gauge reading has decreased to 0(zero) MPa before opening the
cover. Open the cover slow carefully. The high-
temperature and pressure vapor blows out if the
cover is opened during high pressure.
When draining water…
The water in the chamber is very hot just after the operation is completed. Be careful not to get a
burn injury. Drain the water after the water is sufficiently cooled down.
Do not drain water during operation. The hot water blows out if the drain valve is opened while
the pressure is increasing.
Do not damage the packing on the cover or flange on the chamber
Damage or dirt on these areas may cause the vapor leakage, which may be the cause of burn
injury. Keep these sections always clean. Do not damage them with the rack when taking out and
putting in the sterile samples. The packing degrades with time. It must be replaced if vapor leak
occurs frequently. In this case consult with the selling office where you purchased or our sales
office.
Replace the packing early
The packing is a consumable. If it shows the sign of damage or hardening, replace it early.
Please consult with the selling office where you purchased or our sales office for the replacement
of packing.
Do not perform procedures other than described in this document
Do not perform procedures other than described in this document. Otherwise an unexpected
accident may occur.
