YASKAWA Drive-V1000 User manual

MANUAL NO. TOBP C730600 29A
To properly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance. Ensure the end user
receives this manual.
Installation Manual
LCD Operator
YASKAWA AC Drive-V1000 Option
Type JVOP-180

2YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
Copyright © 2007 YASKAWA ELECTRIC CORPORATION
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any
form or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written
permission of Yaskawa. No patent liability is assumed with respect to the use of the information contained herein.
Moreover, because Yaskawa is constantly striving to improve its high-quality products, the information contained in
this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual.
Yaskawa assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained in this publication.

YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 3
Table of Contents
1 PREFACE AND SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 RECEIVING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 LCD OPERATOR OPTION COMPONENTS. . . . . . . . . . . . . 12
5 INSTALLATION PROCEDURE . . . . . . . . . . . . . . . . . . . . . . .20
6 BASIC OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 RELATED PARAMETERS . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8 LCD OPERATOR OPTION FAULT DIAGNOSTICS. . . . . . . 35
9 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4 YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
1 Preface and Safety
1 Preface and Safety
Yaskawa manufactures products used as components in a wide variety of industrial systems
and equipment. The selection and application of Yaskawa products remain the responsibility
of the equipment manufacturer or end user. Yaskawa accepts no responsibility for the way its
products are incorporated into the final system design. Under no circumstances should any
Yaskawa product be incorporated into any product or design as the exclusive or sole safety
control. Without exception, all controls should be designed to detect faults dynamically and
fail safely under all circumstances. All systems or equipment designed to incorporate a
product manufactured by Yaskawa must be supplied to the end user with appropriate
warnings and instructions as to the safe use and operation of that part. Any warnings
provided by Yaskawa must be promptly provided to the end user. Yaskawa offers an express
warranty only as to the quality of its products in conforming to standards and specifications
published in the Yaskawa manual. NO OTHER WARRANTY, EXPRESSED OR IMPLIED,
IS OFFERED. Yaskawa assumes no liability for any personal injury, property damage,
losses, or claims arising from misapplication of its products.

1 Preface and Safety
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 5

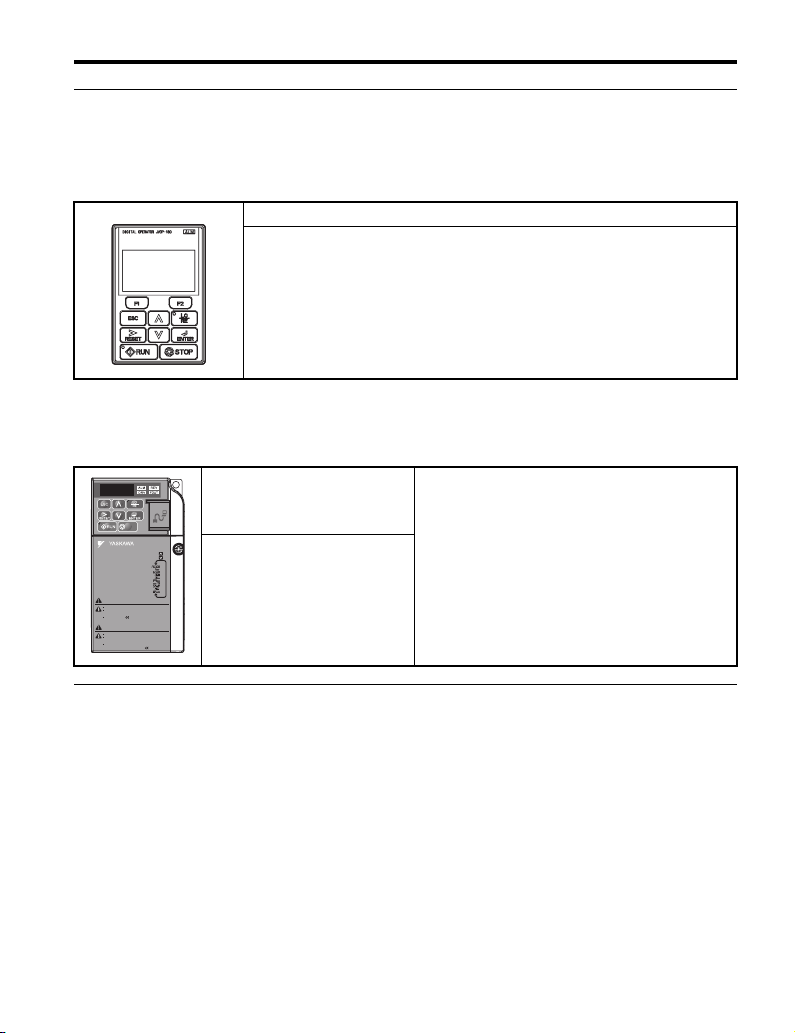

◆Applicable Documentation
The following manuals are available for the JVOP-180 LCD Operator Option:
For the drive setup, refer to the drive Quick-Start Guide or Technical Manual.
◆Terms
LCD Operator
V1000 Option LCD Operator Installation Manual
Read this manual first.
The installation manual is packaged with the LCD Operator Option and
contains a basic overview of wiring, settings, functions, and fault
diagnoses.
Yaskawa Drive
Yaskawa AC Drive-V1000
Technical Manual
To obtain instruction manuals for Yaskawa
products access these sites:
U.S.: http://www.yaskawa.com
Europe: http://www.yaskawa.eu.com
Japan: https://www.e-mechatronics.com
Other areas: contact a Yaskawa representative.
For questions, contact the local Yaskawa sales
office or the nearest Yaskawa representative.
Yaskawa AC Drive-V1000
Quick Start Guide
Drive: Yaskawa AC Drive -V1000 Series.
LCD Operator Option: JVOP-180 LCD Operator unit for the Yaskawa V1000 drive.
Note: Indicates a supplement or precaution that does not cause drive damage.
≥1012: Indicates a drive feature or function that is only available in drive software
version 1012 or greater.
LED: Light emitting diode.
LCD: Liquid crystal display.
STOP
(Hz)
(Hz)
(A)
(V)
:
:
:
:
:
:
:
:
:
:
V1000
周波数指令
正転逆転選択
出力周波数
出力電流
出力電圧
モニタ
ベリファイ
セットアップ
パラメータ設定
オートチューニング
据え付け、運転の前には必ず取扱説明書を読むこと。
通電中および電源遮断後
5
分以内はフロントカバーを
外さないこと。
400V
級インバータの場合は、電源の中性点が接地
されていることを確認すること。（ 対応）
けが、感電のおそれがあります。
危 険
Read manual before installing.
Wait 5 minutes for capacitor discharge after
disconnecting power supply.
To conform to requirements, make sure
to ground the supply neutral for 400V class.
Risk of electric shock.
WARNING

1 Preface and Safety
6YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
◆Registered Trademarks
Company names and product names listed in this manual are the registered trademarks of
those companies.
◆Supplemental Safety Information
Read and understand this manual before installing, operating or servicing this option unit.
The option unit must be installed according to this manual and local codes.
The following conventions are used to indicate safety messages in this manual. Failure to
heed these messages could result in serious or possibly even fatal injury or damage to the
products or to related equipment and systems.
DANGER
Indicates a hazardous situation, which, if not avoided, will result in death or serious
injury.
WARNING
Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a hazardous situation, which, if not avoided, could result in minor or
moderate injury.
NOTICE
Indicates an equipment damage message.

1 Preface and Safety
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 7
■General Safety
General Precautions
• The diagrams in this section may include option units and drives without covers or safety shields to
illustrate details. Be sure to reinstall covers or shields before operating any devices. The option board
should be used according to the instructions described in this manual.
• Any illustrations, photographs, or examples used in this manual are provided as examples only and
may not apply to all products to which this manual is applicable.
• The products and specifications described in this manual or the content and presentation of the
manual may be changed without notice to improve the product and/or the manual.
• When ordering a new copy of the manual due to damage or loss, contact your Yaskawa
representative or the nearest Yaskawa sales office and provide the manual number shown on the
front cover.
DANGER
Heed the safety messages in this manual.
Failure to comply will result in death or serious injury.
The operating company is responsible for any injuries or equipment damage resulting
from failure to heed the warnings in this manual.
NOTICE
Do not expose the drive to halogen group disinfectants.
Failure to comply may cause damage to the electrical components in the option unit.
Do not pack the drive in wooden materials that have been fumigated or sterilized.
Do not sterilize the entire package after the product is packed.

8 YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
2 Product Overview
2 Product Overview
◆About This Product
The LCD Operator Option provides an enhanced drive user interface that can operate the
Yaskawa drive at a short distance up to 3 meters. The LCD Operator Option can display
information in eight languages, including English, Japanese, and Spanish.The LCD Operator
Option is an LCD display that simplifies the task of interfacing with the drive to perform
these tasks:
• Read or modify drive parameters.
• Read and copy drive parameter settings to another Yaskawa drive.
• Operate the drive.
• Monitor drive operation status.

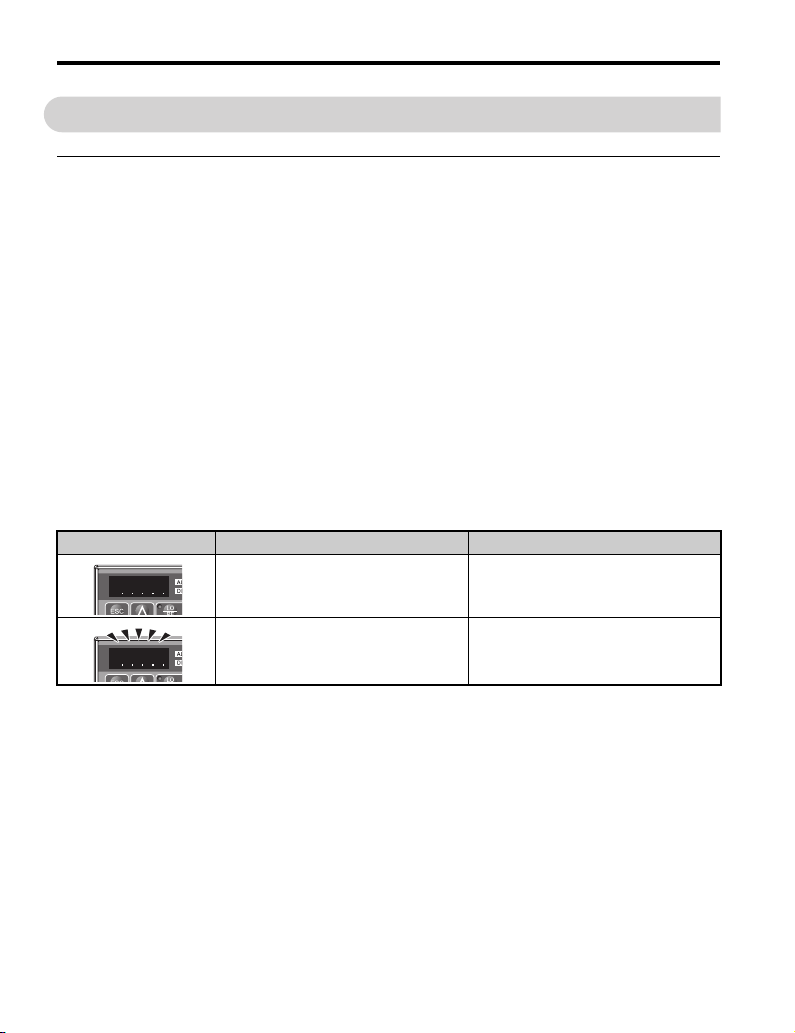

Note: When the LCD Operator Option is installed and connected to the V1000 it will cause the drives
built-in LED operator to display a series of dots as shown in Table 1. This is normal operation.
Additionally, all keys except for the STOP key on the drives built-in LED operator will not
function when the LCD Operator Option is connected. If desired, to also disable the STOP key
on the drives built-in LED operator, set parameter o2-02 (STOP Key Function Selection) to 0
(Disabled).
Table 1 Built-in LED Display Behavior with a Connected LCD Operator Option
Display LED Display Drive Status
Illuminated During Stop
Flashing During Run

2 Product Overview
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 9
◆Applicable Models
The LCD Operator Option can be used with the drive models in Tab le 2.
Table 2 Applicable Drive Models
Drive Drive Software Version <1>
<1> See “PRG” on the drive nameplate for software version number.
CIMR-VABA≥1012
CIMR-VAFA≥1012
CIMR-VAJA≥1012

10 YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
3 Receiving
3 Receiving
Perform the following tasks after receiving the LCD Operator Option:
• Inspect the LCD Operator Option for damage.
If the LCD Operator Option appears damaged upon receipt, contact the shipper
immediately.
• Verify receipt of the correct model by checking the model number printed on the Name
plate of the LCD Operator Option.
• If you have received the wrong model or the LCD Operator Option does not function
properly, contact your supplier.
◆Contents and Packaging
Table 3 Contents of Package
■Additional Part Required (Sold Separately)
Proper installation of the LCD Operator Option requires a communication cable. A
communication cable is not provided. A connection cable can be purchased from Yaskawa
or recommended LAN cables may be used. Refer to Table 4 for more information regarding
the cable required for your application.
Depending on the LCD Operator Option installation method, an installation support listed in
Table 4 may also be required. Refer to Installing the LCD Operator Option on page 21 for
more information regarding installation methods.
To order a cable or an installation support, contact Yaskawa directly or your nearest Yaskawa
distributor.
Description: LCD Operator Option Installation Manual
–
Quantity: 11
MANUAL

3 Receiving
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 11
Table 4 Item Names and Part Numbers (Sold Separately)
◆Tool Requirements
To install the LCD operator on the door of the enclosure panel, the following tools are
required:
Table 5 Required Tools
Item Yaskawa Part Number Notes Page
Communication Cable (1 m)
72606-WV001 <2>
<2> Alternate cables (customer supplied), RJ45 8 pin Straight Connector UTP Cat 5e cable.
Sold Separately 24
Communication Cable (3 m)
72606-WV003 <2> Sold Separately 24
Installation Support Set A
100-039-992
Sold Separately;
For use with holes
through the panel
22
Installation Support Set B <1>
<1> If weld studs are on the back of the panel, use the Installation Support Set B.
100-039-993
Sold Separately;
For use with panel
mounted threaded studs
23
Installation Location Installation Support Required Tools
External/Face Mount – Phillips screwdriver, M3
Internal/Flush Mount
Installation Set A Phillips screwdriver, M3, M4
Installation Set B Phillips screwdriver, M3
Box end or adjustable wrench, M4

12 YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
4 LCD Operator Option Components
4 LCD Operator Option Components
◆LCD Operator Option
Figure 1
Figure 1 LCD Operator Option Components
A – LCD Display D – Installation Mounting Holes
B – ALARM (ALM) LED E – Nameplate
C – Keys F – Communication Cable Connector
MODEL:JVOP-180ޓޓޓ REV:A
PASSED
L/N :BY1-00004 PRG:0100
S / N : J007XE273710001
YASKAWA ELECTRIC CORPORATION MADE IN JAPAN
B
A
C
E
F
D
D

4 LCD Operator Option Components
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 13
◆Keys
Refer to Figure 2 and Table 6 for details on key names and functions.
Figure 2
Figure 2 Keys

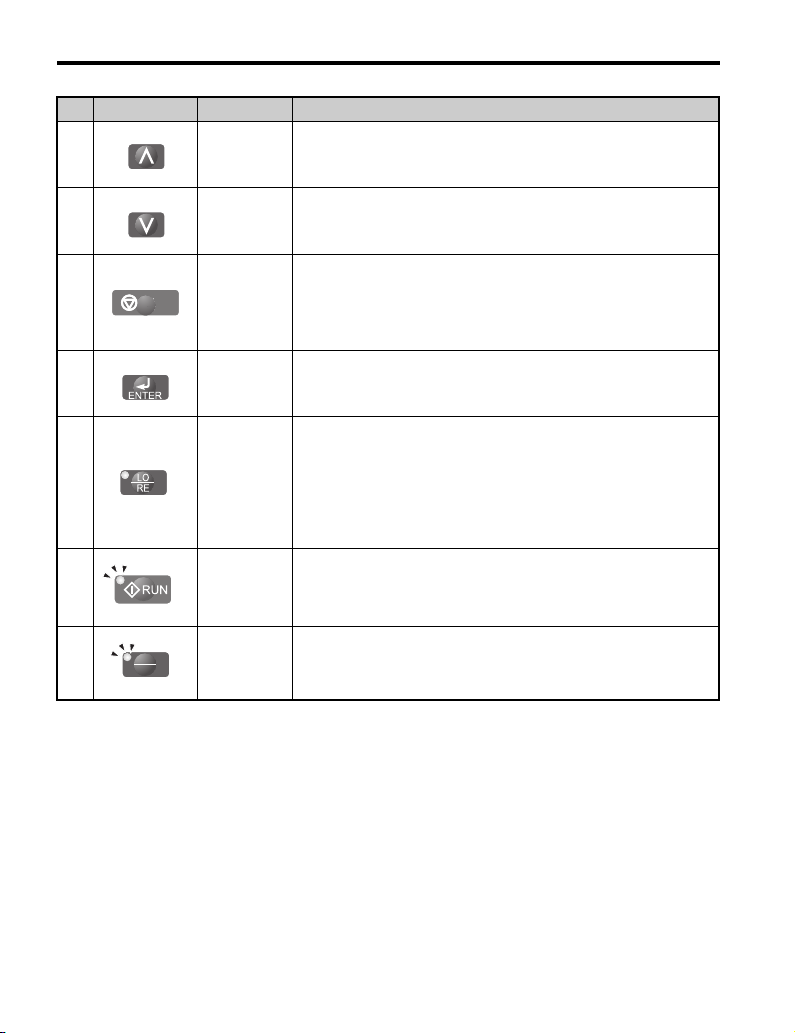

Table 6 Key Names and Functions
No. Key Name Function
1
Function
Key
(F1, F2)
The functions assigned to F1 and F2 vary depending on the menu
that is currently displayed. The name of each function appears in
the lower half of the display window.
For a description of functions assigned to the F1 and F2 keys,
Refer to LCD Display on page 17.
2ESCKey
• Returns to the previous display.
• Moves the cursor one space to the left.
• Pressing and holding this button will return to the Frequency
Reference display.
3RESETKey
• Moves the cursor to the right.
• Resets the drive to clear a fault situation.
4 RUN Key Starts the drive and motor.
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
ALM
DIGITAL OPERATOR JVOP-180
1
2
3
456 7
8
9
10
11
F1
F2
R
R
U
U
N

4 LCD Operator Option Components
14 YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
5Up Arrow
Key
Scrolls up to display the next item, selects parameter numbers
and increments setting values.
6Down Arrow
Key
Scrolls down to display the next item, selects parameter numbers
and increments setting values.
7STOPKey
Stops drive operation.
Note: The STOP key can be enabled or disabled when operating
from the external terminal or network communications by setting
parameter o2-02.
8ENTERKey
• Enters parameter values and settings.
• Selects a menu item to move between displays.
9
LO/RE
Selection
Key
Switches the drive between operator (LOCAL) control and
control circuit terminals (REMOTE).
Note: The LOCAL/REMOTE key is only effective at a stop in
drive mode. As a safety precaution, it is possible to disable the
LO/RE Selection Key by setting parameter o2-01 (LOCAL/
REMOTE Key Function Selection) to “0” (disabled).
10 RUN Light
Illuminated while the drive is operating the motor.
Refer to LCD Operator LED Status Indicators on page 15 for
detail.
11 LO/RE Light Illuminated while the drive is under LCD Operator control when
(LOCAL) is selected to run the drive.
No. Key Name Function
S
T
T
O
O
TO
TO
P
RE
LO

4 LCD Operator Option Components
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 15
◆LCD Operator LED Status Indicators
Table 7 LED Status and Meaning
Figure 3
Figure 3 RUN LED Status
LED Illuminated Flashing <1>
<1> For the difference between “Flashing” and “Flashing Quickly” of the RUN LED, refer to Figure 3, RUN LED
Status.
Flashing
Quickly <1> Off
LO/RE
LED
When the run
command is selected
from the LCD
operator (LOCAL).
––
Run command is
selected from a
device other than the
LCD operator
(REMOTE).
RUN LED
During run.
•During
deceleration to
stop.
• When a run
command is input
and the frequency
reference is 0 Hz.
• During
deceleration at a
fast-stop.
• During stop by
External Fault
digital input.
During stop.
As shown
RE
LO
RUN
Flashing
quickly
Flashing
ONON
ON
ONON
ON
1 s

4 LCD Operator Option Components
16 YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
Figure 4
Figure 4 RUN LED and Drive Operation
Drive output frequency
During stop
Frequency setting
OFF ON
Flashing
OFFOFF
RUN LED
STOP STOP
RUN
0 Hz 6 Hz
RUN
/
RUN STOP

4 LCD Operator Option Components
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 17
◆LCD Display
Figure 5
Figure 5 LCD Display
Table 8 Display and Contents
No. Name Display Content
1Operation Mode
Menus
MODE Displayed when in Mode Selection.
MONITR Displayed when in Monitor Mode.
VERIFY Indicates the Verify Menu.
PRMSET Displayed when in Parameter Setting Mode.
A.TUNE Displayed during Auto-Tuning.
SETUP Displayed when in Setup Mode.
2
DriveWorksEZ
Function
Selection
DWEZ Displayed when the DriveWorksEZ is set to enable.
(A1-07=1 or 2)
3Mode Display
Area
DRV Displayed when in Drive Mode.
PRG Displayed when in Programming Mode.
4 Ready Rdy Indicates the drive is ready to run.
5 Data Display – Displays specific data and operation data.
㪴
7
6
5
1234
8910

4 LCD Operator Option Components
18 YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
6
Frequency
Reference
Assignment <1>
OPR Displayed when the frequency reference is assigned to the LCD
Operator Option.
AI Displayed when the frequency reference is assigned to the drives
Analog Input.
COM Displayed when the frequency reference is assigned to the drives
MEMOBUS/Modbus Communication Inputs.
OP Displayed when the frequency reference is assigned to a drive
Option Unit.
RP Displayed when the frequency reference is assigned to the drives
Pulse Train Input.
7LO/RE
Display <2>
RSEQ Displayed when the run command is supplied from a remote
source.
LSEQ Displayed when the run command is supplied from the operator
keypad.
RREF Displayed when the frequency reference is supplied from a remote
source.
LREF Displayed when the frequency reference is supplied from the
operator keypad.
8Function Key 1
(F1)
JOG Pressing executes the Jog function.
HELP Pressing displays the Help menu.
←Pressing scrolls the cursor to the left.
HOME Pressing returns to the top menu (Frequency Reference).
ESC Pressing returns to the previous display.
9FWD/REVFWD Indicates forward motor operation.
REV Indicates reverse motor operation.
No. Name Display Content
F1
F1
F1
F1
F1

4 LCD Operator Option Components
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 19
◆ALARM (ALM) LED Displays
Table 9 ALARM (ALM) LED Status and Contents
10 Function Key 2
(F2)
FWD/
REV Pressing switches between forward and reverse.
DATA Pressing scrolls to the next display.
→Pressing scrolls the cursor to the right.
RESET Pressing resets the existing drive fault or error.
<1> Displayed when in Frequency Reference Mode.
<2> Displayed when in Frequency Reference Mode and Monitor Mode.
State Content Display
Illuminated When the drive detects an alarm or error.
Flashing
• When an alarm occurs.
• When oPE is detected.
• When a fault or error occurs during Auto-Tuning.
Off Normal operation (no fault or alarm).
No. Name Display Content
F2
F2
F2
F2

20 YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual
5 Installation Procedure
5 Installation Procedure
◆Section Safety
NOTICE
Damage to Equipment
Use only Yaskawa connection cables or recommended cables.
Failure to comply may cause the drive or LCD Operator Option to function incorrectly.
Properly connect the connectors.
Failure to comply may prevent proper operation and possibly damage equipment.
Do not exceed communication cable bend radius specifications.
Failure to comply may result in broken wires or loose connections.
