YOKOGAWA YFGW410 User manual

User’s
Manual
YFGW410
PROFINET Interface
IM 01W02D01-21EN
IM 01W02D01-21EN
1st Edition

Toc-1
IM 01W02D01-21EN
YFGW410 PROFINET Interface
CONTENTS
IM 01W02D01-21EN 1st Edition
Introduction ..............................................................................................................i
Safety Precautions..................................................................................................ii
Document Conventions ........................................................................................iii
Information of Revision.........................................................................................iv
Part A Overview of PROFINET Interface
A1. Introduction.............................................................................................A1-1
A2. SystemConguration............................................................................A2-1
A2.1 MinimumSystemConguration .................................................................. A2-1
A2.2 YFGW410inRedundantConguration
withSinglePROFINETIOController ........................................................... A2-1
Part B Product Description
B1. FunctionOutlineofPROFINETInterface.............................................B1-1
PartCInstallation

Toc-2
IM 01W02D01-21EN
PartDEngineering

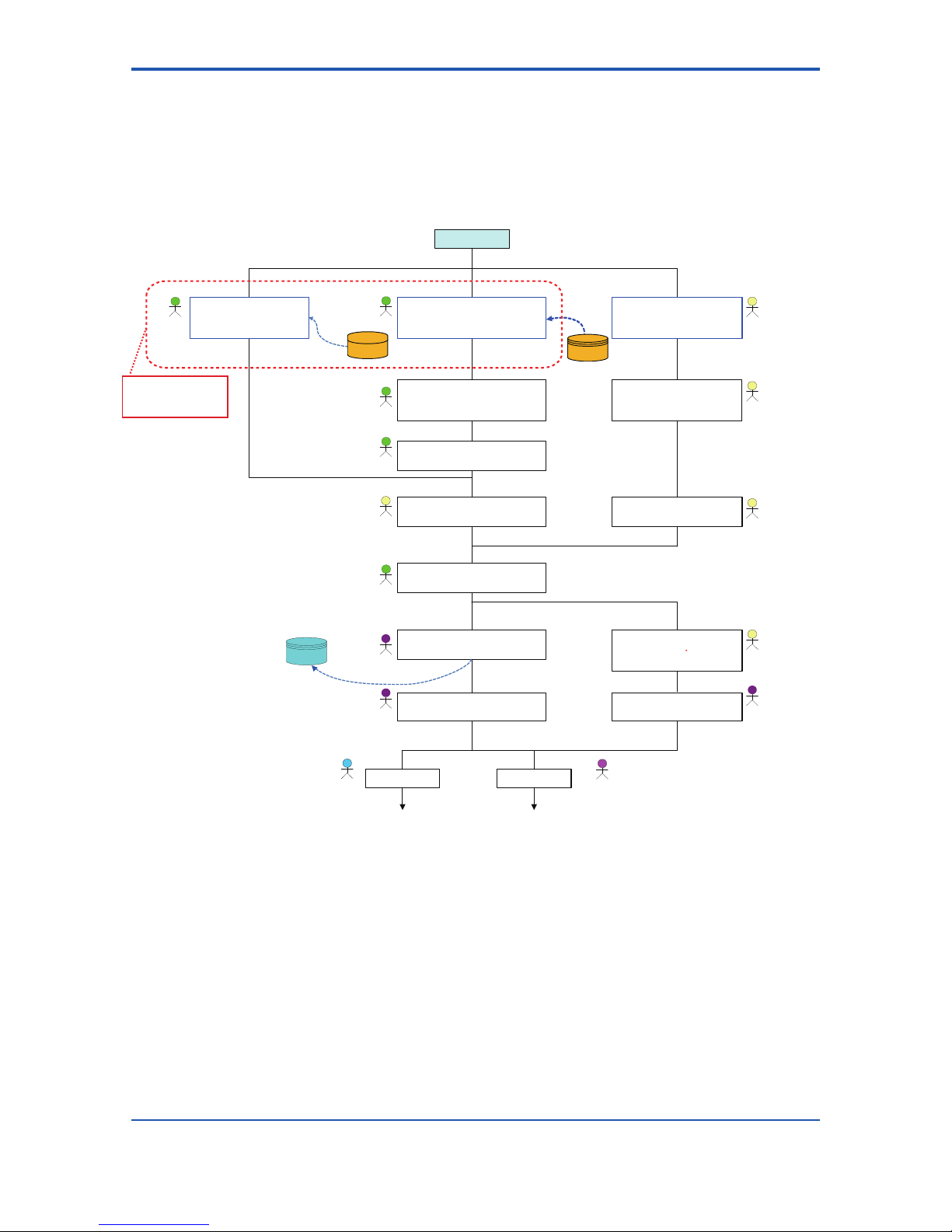

D1. EngineeringProcedure..........................................................................D1-1
D2. ToolsUsedforEngineering...................................................................D2-1
D3. EngineeringofPROFINETSystem.......................................................D3-1
D3.1 CongurationofPROFINETIOController .................................................. D3-1
D3.2 CongurationofYFGW410PROFINETIODevice...................................... D3-1
D3.3 AssignningSlotsofYFGW410PROFINETIODevice ................................ D3-3
D3.4 ProgrammingPROFINETIOController....................................................... D3-9
D4. EngineeringofISA100SystemforPROFINETInterface ...................D4-1
D4.1 SettingPROFINETIODeviceName............................................................. D4-1
D4.2 SettingFieldNetworkInterfaceUsedforPROFINET................................. D4-3
D4.3 SettingAccessControlListforPROFINET................................................. D4-4
D4.4 SettingPublicationDatafrom/toISA100Device........................................ D4-5
D4.5 EnablingPROFINETInterface ...................................................................... D4-9
D4.6 MappingPROFINETSlotsandISA100Attributes .................................... D4-10
D4.7 DownloadingPROFINETInterfaceSettings ............................................. D4-12
Part E Operation and Maintenance
PartFTroubleshooting
F1. Status Information of PROFINET.......................................................... F1-1
F2. RelationbetweenISA100PVDataStatusandPROFINETIOxS ....... F2-1
PartGSpecications
G1. PROFINETInterfaceSpecication ...................................................... G1-1
G2. ModelandSufxCodes........................................................................ G2-1
G3. ConnectivityVeriedModelofPROFINETIOController.................. G3-1
G4. Restrictions............................................................................................ G4-1
G4.1 Redundancy ................................................................................................... G4-1
G4.2 PROFINET-ISA100Translation ..................................................................... G4-2
G4.3 PROFIsafe Transfer........................................................................................ G4-2
G4.4 ISA100EngineeringfromPROFINETHostSystem ................................... G4-2

i
<Read Me First>
IM 01W02D01-21EN
Introduction
This manual (IM 01W02D01-21EN) describes the PROFINET interface of YFGW410 (hereafter
referred to as “YFGW410 PROFINET interface” or “PROFINET interface”).
Before you read this document further, read “Read Me First” (IM 01W02D01-11EN) thoroughly
rst. Then, read the User’s Manual of YFGW410 Field Wireless Management Station (IM
01W02D01-01EN).
This document describes the differences from the User’s Manual of YFGW410. The description
in this document supersedes the description in the User’s Manual of YFGW410. Here you can
nd information on how to setup and operate YFGW410 PROFINET interface.
The table below lists the related YFGW410 documents including this document.
Title Document No.
Read Me First
User’s Manual
IM 01W02D01-11EN
YFGW410 Field Wireless Management Station
User’s Manual
IM 01W02D01-01EN
YFGW410 PROFINET Interface IM 01W02D01-21EN
YFGW410 Field Wireless Management Station
General Specications
GS 01W02D01-01EN
This document refers to GasSecure’s GS01 Wireless Infrared Hydrocarbon Gas Detector as a
wireless safety device connectable to YFGW410. The table below lists the manuals of GS01.
Refer to those document for details how to set up and use GS01.
Title Document No.
GasSecure GS01 and GS01-EA Wireless Infrared
Hydrocarbon Gas Detector, User Manual
document ID 112464
GasSecure GS01 Wireless Infrared Hydrocarbon
Gas Detector, Safety Manual
document ID 21440
GSD-1429-3-Memo-Setting up a wireless gas detection system document ID 143597
n TrademarkAcknowledgments
PROFINET and PROFIsafe are registered trademarks of PROFIBUS and PROFINET Interna-
tional.
GS01 is registered trademark of GasSecure AS.
S7 and STEP 7 are registered trademarks of Siemens AG.
Also refer to “Copyright and Trademark Notices” part of “Read Me First” (IM 01W02D01-11EN).

ii
<Read Me First>
IM 01W02D01-21EN
Safety Precautions
Safety precautions of YFGW410 PROFINET interface follow “Safety Precautions” part of “Read
Me First” (IM 01W02D01-11EN) and the User’s Manual of YFGW410 (IM 01W02D01-01EN).
Refer to those documents.

iii
<Read Me First>
IM 01W02D01-21EN
Document Conventions
l TypographicalConventionsusedtoshowkeyorbuttonoperations
Characters enclosed in square brackets ([ ]) show either a key on the operation keyboard, a but-
ton name on a window, or an item displayed on a window.
Example:
To perform the function, press the [OK] key.
l DrawingConventions
Some drawings may be partially emphasized, simplied or omitted for the convenience of de-
scription.
Some screen image depicted in this document may have different display positions or character
types (e.g., upper/lower case). Also note that some of the images contained in this document are
display examples.

iv
<Read Me First>
IM 01W02D01-21EN
Information of Revision
MaterialName : YFGW410PROFINETInterface
MaterialNumber : IM01W02D01-21EN
Edition Date Page Revised Item
1st June 2017 -New Issue

<A1. Introduction>
A1-1
IM 01W02D01-21EN
Part A Overview of PROFINET Interface
A1. Introduction
YFGW410 PROFINET interface is a function of YFGW410. It has the following roles:
l RoleofPROFINETinterfaceintheFieldWirelessSystem
YFGW410 PROFINET interface operates as one of a gateway interface accessible from upper
host system/controller, and transfers the communication from/to eld wireless devices.
l RoleofPROFINETinterfaceinthePROFINETIOSystem
YFGW410 PROFINET interface operates as a PROFINET IO Device accessible from the
PROFINET IO Controller.
YFGW410 PROFINET interface can transfer PROFIsafe messages between Safety Instrument-
ed Systems (SIS) and wireless safety devices. The SIS must support PROFIsafe over PROFI-
NET. The wireless safety device must support PROFIsafe over ISA100 Wireless. A specic
example of such a device is GasSecure GS01.

  <A2.SystemConguration>
A2-1
IM 01W02D01-21EN
A2. SystemConguration
A2.1 MinimumSystemConguration

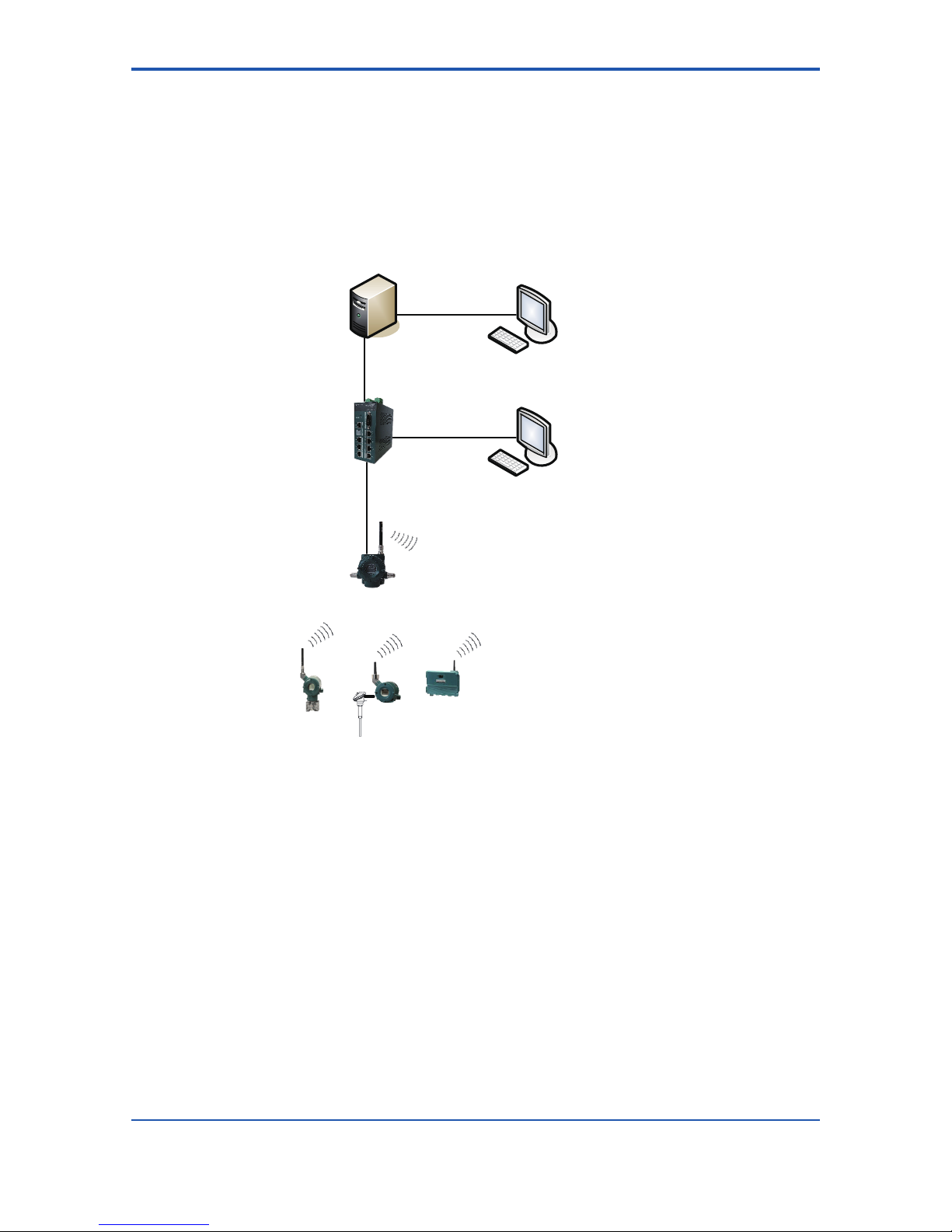

Figure A2-1 shows a minimum conguration with a single YFGW410, which has PROFI-
NET interface. This gure corresponds to Figure A1-1 of the User’s Manual of YFGW410 (IM
01W02D01-01EN). In PROFINET system, host system consists of PROFINET IO Controller and
PROFINET Engineering Tool and Host application.
FA0201.ai
Field Wireless
Management Console
PROFINET Engineering
Tool / Host Application
Field Wireless
Access Point
(YFGW510)
Field wireless network
(ISA100.11a)
Field wireless device
PROFINET
IO-Controller
PROFINET IO-Device
(YFGW410)
FigureA2-1Minimumsystemcongurationexample
A2.2 YFGW410inRedundantCongurationwith
SinglePROFINETIOController
Figure A2-2 shows a typical conguration with a redundant YFGW410 which has PROFI-
NET interface. This gure corresponds to Figure A3-1 of the User’s Manual of YFGW410 (IM
01W02D01-01EN). Note that host system is not a redundant conguration but a single congura-
tion.
In this example, the both of YFGW410 and YFGW510 are made redundant system. By using
Duocast, the paths between the eld wireless device and YFGW510 are made redundant.
Two YFGW410 virtually operate as a single PROFINET IO Device, and the backbone devices
and host system access to this virtual device.
In case one of YFGW410 is out of service by failure, another YFGW410 continues operation.
One failure does not affect a eld wireless system.

  <A2.SystemConguration>
A2-2
IM 01W02D01-21EN
IMPORTANT
YFGW410 PROFINET interface does not support PROFINET standard redundancy features
such as System Redundancy and Media Redundancy. Therefore, the combination of the
YFGW410 (redundant or single conguration) and the PROFINET IO controller redundant con-
guration which assumes PROFINET standard redundancy does not work.
"Field wireless management PC
- Field Wireless Management Console"
PROFINET
Engineering Tool /
Host Application
NTP server
PROFINET IO-
Controller
L3SW
L2SW
Cable for Redundancy PROFINET IO-
Device
(YFGW410)
Subnet A
Field Wireless
Access Point
(YFGW510)
Field Wireless
Access Point
(YFGW510)
Field wireless
network
(ISA100.11a)
Field wireless device FA0202.ai
Ethernet
FigureA2-2RedundantsystemcongurationofYFGW410(withsinglePROFINETIOController)
