York YCAS0218 User manual

WIRING DIAGRAM
AIR-COOLED SCREW LIQUID CHILLERS
New Release Form 201.19-W6 (1104)
YCAS AIR-COOLED LIQUID CHILLERS
YCAS0218 THROUGH YCAS0328 (3 COMPRESSOR)
YCAS0358 THROUGH YCAS0418 (4 COMPRESSOR)
STYLE G (407C)
(60 Hz)
00258VIP
200-3-60
230-3-60
380-3-60
460-3-60
575-3-60
MODELS ONLY

YORK INTERNATIONAL
2
FORM 201.19-W6 (1104)
TABLE OF CONTENTS
NOMENCLATURE..........................................................................................................................4
ELECTRICAL NOTES ....................................................................................................................6
ELECTRICAL DATA .......................................................................................................................8
ELEMENTARY WIRING DIAGRAM YCAS0218 - YCAS0328 (3 COMPRESSOR) DXST
DIRECT DRIVE.............................................................................................................................12
ELEMENTARY WIRING DIAGRAM YCAS0218 - YCAS0328 (3 COMPRESSOR)
ACROSS-THE-LINE START.........................................................................................................13
ELEMENTARY WIRING DIAGRAM YCAS0218 - YCAS0328 (3 COMPRESSOR)
WYE DELTA START .....................................................................................................................14
ELEMENTARY WIRING DIAGRAM (YCAS0218 - YCAS0328) ACROSS-THE-LINE START
AND WYE-DELTA START ............................................................................................................15
ELEMENTARY WIRING DIAGRAM YCAS0218 - YCAS0328 (3 COMPRESSOR).....................16
CONNECTION DIAGRAM ELEC. BOX (YCAS0218 - YCAS0328)...........................................18
ELEMENTARY DIAGRAM DXST DRIVE CONTROL CIRCUIT...................................................25
CONNECTION DIAGRAM SYSTEM WIRING (YCAS0218 - YCAS0328) ...................................27
ELEMENTARY WIRING DIAGRAM YCAS0358 - YCAS0418 (4 COMPRESSOR).....................29
ELEMENTARY WIRING DIAGRAM YCAS0358 - YCAS0418 (4 COMPRESSOR).....................30
ELEMENTARY WIRING DIAGRAM (YCAS0358 - YCAS0418) ACROSS-THE-LINE START
AND WYE-DELTA START ............................................................................................................32
ELEMENTARY WIRING DIAGRAM YCAS0358 - YCAS0418 (4 COMPRESSOR).....................34
CONNECTION DIAGRAM ELEC. BOX (YCAS0358 - YCAS0418)...........................................36
ELEMENTARY DIAGRAM DXST STARTER CONTROL CIRCUIT .............................................44
ELEMENTARY DIAGRAM DXST FAN CONTROL CIRCUIT.......................................................45
CONNECTION DIAGRAM SYSTEM WIRING STANDARD AND REMOTE EVAP UNITS..........46
CONNECTION DIAGRAM SYSTEM WIRING..............................................................................47
STANDARD AND REMOTE EVAP UNITS ...................................................................................47
COMPRESSOR TERMINAL BOX ................................................................................................48
SYSTEM 1 THROUGH 4...............................................................................................................48

YORK INTERNATIONAL 3
FORM 201.19-W6 (1104)
LIST OF FIGURES
FIG. 1 – WIRING DIAGRAM – DXST DIRECT DRIVE .................................................................12

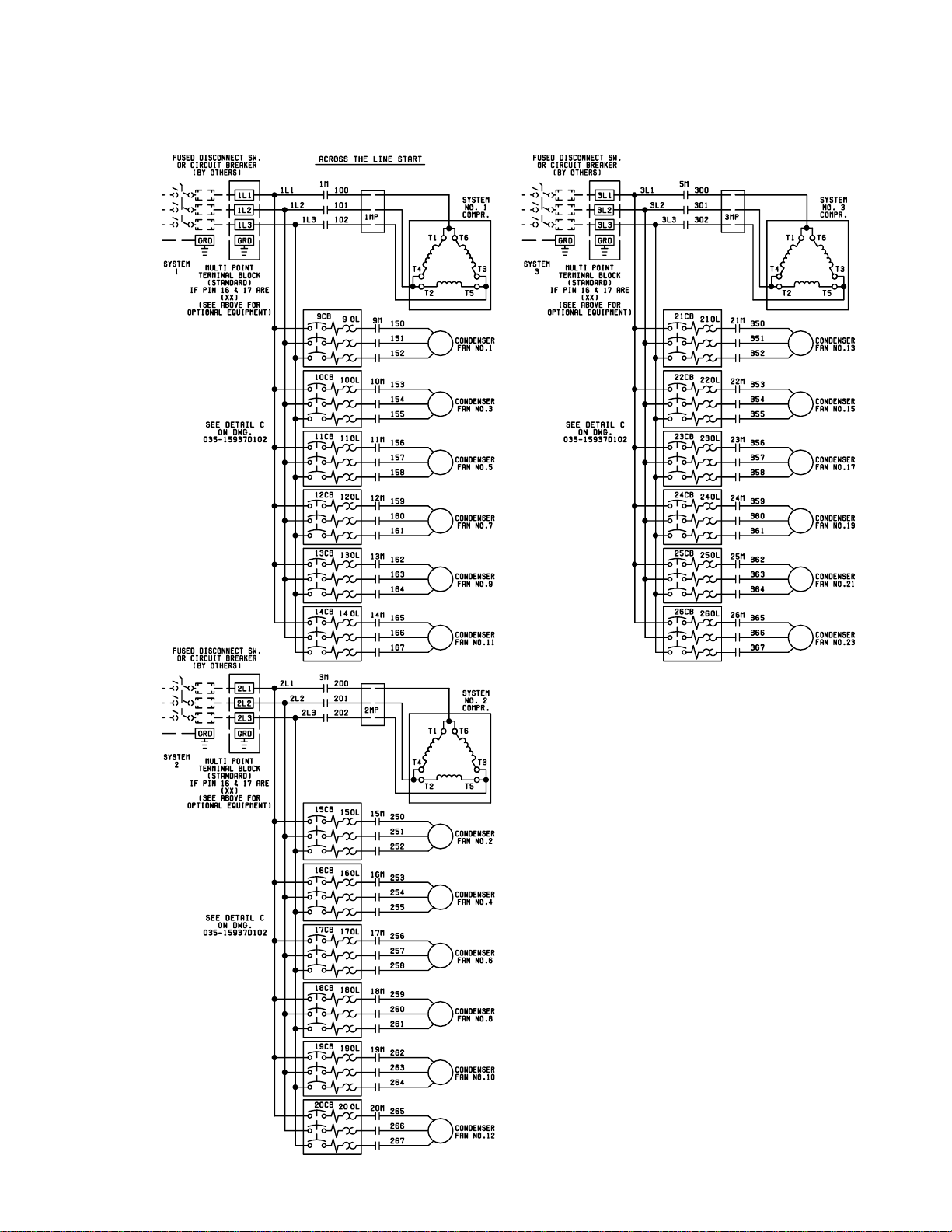

FIG. 2 – WIRING DIAGRAM – ACROSS-THE-LINE START........................................................13
FIG. 3 – WIRING DIAGRAM – WYE DELTA START.....................................................................14
FIG. 4 – CONTROL POWER TRANSFORMER KIT.....................................................................15
FIG. 5 – ELEMENTARY WIRING DIAGRAM ................................................................................16
FIG. 6 – CONNECTION DIAGRAM 3 COMPRESSOR.................................................................18
FIG. 7 – CONNECTION DIAGRAM 3 COMPRESSOR.................................................................19
FIG. 8 – CONNECTION DIAGRAM 3 COMPRESSOR.................................................................20
FIG. 9 – CONNECTION DIAGRAM 3 COMPRESSOR.................................................................22
FIG. 10 – CONNECTION DIAGRAM 3 COMPRESSOR...............................................................23
FIG. 11 – CONNECTION DIAGRAM 3 COMPRESSOR...............................................................24
FIG. 12 – ELEMENTARY DIAGRAM 3 COMPRESSOR...............................................................25
FIG. 13 – ELEMENTARY DIAGRAM DXST DIRECT DRIVE - 3 COMPRESSOR........................26
FIG. 14 – CONNECTION DIAGRAM SYSTEM WIRING 3 COMPRESSOR ................................27
FIG. 15 – CONNECTION DIAGRAM STSTEM WIRING - 3 COMPRESSOR .............................28
FIG. 16 – ELEMENTARY WIRING DIAGRAM - 4 COMPRESSOR..............................................29
FIG. 17 – ELEMENTARY WIRING DIAGRAM - ACROSS-THE-LINE START .............................30
FIG. 18 – ELEMENTARY WIRING DIAGRAM - WYE DELTA.......................................................31
FIG. 19 – CONTROL POWER TRANSFORMER KIT...................................................................32
FIG. 20 – ELEMENTARY WIRING DIAGRAM ..............................................................................34
FIG. 21 – CONNECTION DIAGRAM 4 COMPRESSOR...............................................................36
FIG. 22 – CONNECTION DIAGRAM 4 COMPRESSOR...............................................................37
FIG. 23 – CONNECTION WIRING DIAGRAM..............................................................................38
FIG. 24 – CONNECTION WIRING DIAGRAM..............................................................................39
FIG. 25 – CONNECTION DIAGRAM 4 COMPRESSOR...............................................................40
FIG. 26 – CONNECTION DIAGRAM 4 COMPRESSOR...............................................................41
FIG. 27 – CONNECTION DIAGRAM 4 COMPRESSOR...............................................................42
FIG. 28 – CONNECTION DIAGRAM 4 COMPRESSOR...............................................................43
FIG. 29 – ELEMENTARY DIAGRAM - DXST STARTER CONTROL CIRCUIT.............................44
FIG. 30 – ELEMENTARY DIAGRAM - DXST FAN CONTROL CIRCUIT.....................................45
FIG. 31 – CONNECTION DIAGRAM SYSTEM WIRING ..............................................................46
FIG. 32 – CONNECTION DIAGRAM SYSTEM WIRING ..............................................................47
FIG. 33 – COMPRESSOR TERMINAL BOX, SYSTEM 1-4.........................................................48
PAGE

YORK INTERNATIONAL
4
FORM 201.19-W6 (1104)
WARNING
HIGH VOLTAGE
is used in the operation of this equipment.
DEATH OR SERIOUS INJURY
may result if personnel fail to observe safety precautions.
Work on electronic equipment should not be undertaken unless the individual(s) have been trained
in the proper maintenance of equipment and is (are) familiar with its potential hazards.
Shut off power supply to equipment before beginning work and follow lockout procedures. When
working inside equipment with power off, take care to discharge every capacitor likely to hold dan-
gerous potential.
Be careful not to contact high voltage connections when installing or operating this equipment.
LOW VOLTAGE
DO NOT be misled by the term “low voltage”.
Voltages as low as 50 volts may cause death.
NOMENCLATURE
The Model Number denotes the following characteristics of the unit:
YORK Chiller
YC = YORK Chiller
Air-Cooled
Compressor Type
S = Screw
Nominal Capacity (tons)
Unit Designator
S = Standard Unit
E = High Efficiency
H = High Static Fans
Design Series
Type Start
Y = Star (WYE)-Delta
X = Across-the-Line
Voltage Code
17 = 200-3-60
28 = 230-3-60
40 = 380-3-60
46 = 460-3-60
58 = 575-3-60
Refrigerant
B = 407c
YC A S 0330 E B 17 Y G

YORK INTERNATIONAL 5
FORM 201.19-W6 (1104)
This page intentionally left blank.

YORK INTERNATIONAL
6
FORM 201.19-W6 (1104)
ELECTRICAL NOTES
ELECTRICAL NOTES
NOTES & LEGEND
LEGEND
ACR-LINE ACROSS THE LINE START
C.B. CIRCUIT BREAKER
D.E. DUAL ELEMENT FUSE
DISC SW DISCONNECT SWITCH
FACT CB FACTORY-MOUNTED CIRCUIT BREAKER
FLA FULL LOAD AMPS
HZ HERTZ
MAX MAXIMUM
MCA MINIMUM CIRCUIT AMPACITY
MIN MINIMUM
MIN NF MINIMUM NON-FUSED
RLA RUNNING LOAD AMPS
S.P. WIRE SINGLE-POINT WIRING
Y-∆WYE-DELTA START
X-LRA ACROSS-THE-LINE INRUSH LOCKED ROTORAMPS
Y-LRA WYE-DELTA INRUSH LOCKED ROTOR AMPS
VOLTAGE CODE
-17 = 200-3-60
-28 = 230-3-60
-40 = 380-3-60
-46 = 460-3-60
-58 = 575-3-60
NOTES:
1. Minimum circuit ampacity (MCA) is based on 125% of the rated load amps for the largest motor plus 100% of the rated load
amps for all other loads included in the circuit, per N.E.C. Article 430-24. If a Factory Mounted Control Transformer
is provided, add the following to the system #1 MCAvalues in the YCAS Tables: -17, add 15 amps; -28, add 12 amps; -40,
add 7 amps; -46, add 6 amps; -58, add 5 amps.
2. The recommended disconnect switch is based on a minimum of 115% of the summation rated load amps of all the loads
included in the circuit, per N.E.C. 440 - 12A1.
3. Minimum recommended fuse size is based on 150% of the largest motor RLAplus 100% of the remaining RLAs. Minimum
fuse rating = (1.5 x largest compressor RLA) + other compressor RLAs + (# fans x each fan motor FLA).
4. Maximum dual element fuse size is based on 225% maximum plus 100% of the rated load amps for all other loads included
in the circuit, per N.E.C. 440-22. Maximum fuse rating = (2.25 x largest compressor RLA) + other compressor RLAs +
(# fans x each fan motor FLA).
5. Minimum recommended circuit breaker is 150% maximum plus 100% of rated load amps included in the circuit. Minimum
circuit breaker rating = (1.5 x largest compressor RLA) + other compressor RLAs + (# fans x each fan motor FLA).
6. Maximum circuit breaker is based on 225% maximum plus 100% of the rated load amps for all loads included in the circuit,
per circuit, per U.L. 1995 Fig. 36.2. Maximum circuit breaker rating = (2.25 x largest compressor RLA) + other compressor
RLAs + ( # fans x each fan motor FLA).
7. The Incoming Wire Range is the minimum and maximum wire size that can be accommodated by unit wiring lugs. The (1),
(2), or (3) indicate the number of termination points or lugs which are available per phase. Actual wire size and number of
wires per phase must be determined based on ampacity and job requirements using N.E.C. wire sizing information. The
above recommendations are based on the National Electric Code and using copper conductors only. Field wiring must
also comply with local codes.
8. Aground lug is provided for each compressor system to accommodate field grounding conductor per N.E.C.Article 250-54.
A control circuit grounding lug is also supplied. Incoming ground wire range is #6 - 350 MCM.
9. The field supplied disconnect is a “Disconnecting Means” as defined in N.E.C. 100.B, and is intended for isolating the unit
from the available power supply to perform maintenance and troubleshooting. This disconnect is not intended to be a Load
Break Device.
10. Two-Compressor machineswith single-point power connection, andequipped with Star (Wye)-Delta Compressor motor start
must also include factory-provided individual system circuit breakers in each motor control center. All 3 & 4 Compressor
machines equipped with Star-Delta compressor motor start must also include factory-provided individual system circuit
breakers in each motor control center.
11. Consult factory for Electrical Data on units equipped with “High Static Fan” option. High Static Fans are 3.8 kW each.
12. FLA for “Low Noise Fan” motors: 200V = 8.0A, 230V = 7.8A, 380V = 4.4A, 460V = 3.6A, 575V = 2.9A.
13. Group Rated breaker must be HACR type for cU.L. Machines.

YORK INTERNATIONAL 7
FORM 201.19-W6 (1104)
ELECTRICAL DATA
TABLE 2 – COMPRESSOR DATA
MAXIMUM kWAND AMPERAGE VALUES FOR DXST COMPRESSORS
COMPRESSOR MODELAND VOLTAGE CODE
DXS45LA– MOTOR CODE A DXS36LA– MOTOR CODE A DXS24LA– MOTOR CODE (TBD)
(B5N, B5E, B6N, B6E) (A5N,A5E, A6N,A6E) (C5N, C5E, C6N, C6E)
VOLTAGE CODE- -17 -28 -40 -46 -50 -58 -17 -28 -40 -46 -50 -58 -17 -28 -40 -46 -50 -56
MAX kW 150 150 150 150 113 150 150 150 150 150 113 150 105 105 105 105 80 105
MAXAMPS 492 428 259 214 193 171 492 428 259 214 193 171 338 294 178 147 135 118
CONTROL POWER SUPPLY (UNITS WITHOUT STANDARD CONTROL CIRCUIT TRANSFORMER)
NO. OF COMPRESSORS CONTROL POWER
SUPPLY MCA (MAX LOAD CURRENT) MAX DUAL ELEMENT FUSE SIZE
NON-FUSED
DISCONNECT
SWITCH SIZE
3 or 4 (Non-CE 50/60Hz) 115V-1Ø 30A 30A 30A
CONTROL POWER SUPPLY (UNITS WITH STANDARD CONTROL CIRCUIT TRANSFORMER)
NO. OF COMPRESSORS CONTROL POWER
SUPPLY MCA (MAX LOAD CURRENT)
RECOMMENDED
DUAL ELEMENT FUSE
SIZE
NON-FUSED
DISCONNECT
SWITCH SIZE
3 or 4 380V - 60 HZ 460V -
60 HZ 575V - 60 HZ 9.9A 8.2A 6.5A 30A 15A 15A — — —

YORK INTERNATIONAL
8
FORM 201.19-W6 (1104)
ELECTRICAL DATA
MULTIPLE POINT POWER SUPPLY CONNECTION
Two field provided power supply circuits to the unit.
Field Power Wiring connections to factory provided,
Non-Fused Disconnect Switches (Opt), or Terminal
Blocks (Opt) in the Option Box.
Suitable for:
Across-The-Line-Start
See page 6 for notes.
MULTIPLE POINT POWER SUPPLY CONNECTION - 3 & 4 Compressor Units
(Two Field Provided Power Supply Circuits to the Chiller. Field Connections to Factory provided Terminal Block (Std)
or Disconnects (Opt) in the Options Panel.
LD05555
TB
or
DS
TB
or
DS
TB
1
TB
2
TB
3
TB
4
Field Supply #2
Field Supply #1
Suitable for:
Across the Line Start
See Note 3
Control Power Wiring As Shown On
The Two Compressor Diagrams
SYSTEM #1 FIELD-SUPPLIED WIRING
FACTORYPROVIDED (LUGS)
MODEL VOLTS MIN NF WIRE RANGE7COMPRESSOR #3 FANS11, 12
YCAS MCA1DISCSW2, 9 STD. TERMINAL OPT. NF. RLA Y-D-LRA XL-LRA RLA Y-D-LRA XL-LRA QTY FLA LRA
MIN.3, 5 MAX.4, 6 BLOCK DISC SW. (EA.) (EA.)
380 326 400 350 400 2/0 - 500 (2) 3/0 - 250 121 285 900 121 285 900 8 5.1 21.0
0218EB 460 278 400 300 350 2/0 - 500 (2) 3/0 - 250 100 228 719 100 228 719 8 5.2 29.0
575 220 250 250 250 2/0 - 500 #6 - 350 80 182 574 80 182 574 8 3.9 25.9
380 441 600 500 600 (2) 1/0 - 300 (2) 250-500 121 285 900 213 343 1093 8 5.1 21.0
0248EB 460 373 400 450 500 2/0 - 500 (2) 3/0 - 250 100 228 719 176 280 893 8 5.2 29.0
575 296 400 350 400 2/0 - 500 (2) 3/0 - 250 80 182 574 141 224 714 8 3.9 25.9
380 426 600 500 500 (2) 1/0 - 300 (2) 250-500 165 343 1093 165 343 1093 8 5.1 21.0
0268EB 460 361 400 400 450 2/0 - 500 (2) 3/0 - 250 137 280 893 137 280 893 8 5.2 29.0
575 285 400 350 350 2/0 - 500 (2) 3/0 - 250 109 224 714 109 224 714 8 3.9 25.9
380 485 600 600 600 (2) 1/0 - 300 (2) 250-500 212 343 1093 166 343 1093 8 5.1 21.0
0288EB 460 410 600 450 500 2/0 - 500 (2) 250-500 176 280 893 137 280 893 8 5.2 29.0
575 325 400 400 400 2/0 - 500 (2) 3/0 - 250 141 224 714 109 224 714 8 3.9 25.9
380 473 600 600 600 (2) 1/0 - 300 (2) 250-500 195 343 1093 166 343 1093 9 5.1 21.0
0308EB 460 402 600 450 500 2/0 - 500 (2) 3/0 - 250 161 280 893 137 280 893 9 5.2 29.0
575 318 400 350 400 2/0 - 500 (2) 3/0 - 250 129 224 714 109 224 714 9 3.9 25.9
380 492 600 600 600 (2) 1/0 - 300 (2) 250-500 195 343 1093 184 343 1093 11 5.1 21.0
0328EB 460 417 600 450 500 (2) 1/0 - 300 (2) 250-500 161 280 893 152 280 893 11 5.2 29.0
575 330 400 400 450 2/0 - 500 (2) 3/0 - 250 129 224 714 122 224 714 11 3.9 25.9
380 427 600 500 500 (2) 1/0 - 300 (2) 250-500 166 343 1093 166 343 1093 8 5.1 21.0
0358EB 460 363 400 400 450 2/0 - 500 (2) 3/0 - 250 138 280 893 138 280 893 8 5.2 29.0
575 285 400 350 350 2/0 - 500 (2) 3/0 - 250 109 224 714 109 224 714 8 3.9 25.9
380 473 600 600 600 (2) 1/0 - 300 (2) 250-500 194 343 1093 166 343 1093 9 5.1 21.0
0398EB 460 403 600 450 500 2/0 - 500 (2) 3/0 - 250 162 280 893 138 280 893 9 5.2 29.0
575 318 400 350 400 2/0 - 500 (2) 3/0 - 250 129 224 714 109 224 714 9 3.9 25.9
380 526 600 600 700 (2) 2/0 - 500 (2) 250-500 196 343 1093 213 343 1093 9 5.1 21.0
0418EB 460 444 600 500 600 (2) 1/0 - 300 (2) 250-500 162 280 893 176 280 893 9 5.2 29.0
575 353 400 400 450 2/0 - 500 (2) 3/0 - 250 129 224 714 141 224 714 9 3.9 25.9
OVER-CURRENT
PROTECTION
FIELD PROVIDED POWER SUPPLY
COMPRESSOR #1

YORK INTERNATIONAL 9
FORM 201.19-W6 (1104)
ELECTRICAL DATA (CONT'D)
Field Supply #1
CB1CB2
CB3CB4
TB
or
DS
TB
or
DS
Field Supply #2
Suitable for:
Y - D Start and
Across the Line Start
See Note 3
MULTIPLE POINT POWER SUPPLY CONNECTION
WITH OPTIONAL INDIVIDUAL SYSTEM CIRCUIT
BREAKERS
Two field provided power supply circuits to the unit with
individual branch circuit protection. Field Power Wiring
connectionsto factoryprovided,Non-Fused Disconnect
Switches (Opt), or Terminal Blocks (Opt) in the Option
Box. Factory connections to each of the Circuit Break-
ers in each of the two power panels.
See page 6 for notes.
SYSTEM #2 FIELD-SUPPLIED WIRING
FACTORYPROVIDED (LUGS)
MODEL VOLTS MIN NF WIRE RANGE7COMPRESSOR #4 FANS11, 12
YCAS MCA1DISCSW2, 9 STD. TERMINAL OPT. NF. RLA Y-D-LRA XL-LRA RLA Y-D-LRA XL-LRA QTY FLA LRA
MIN.3, 5 MAX.4, 6 BLOCK DISC SW. (EA.) (EA.)
380 171 200 225 250 # 2 - 4/0 #4 - 300 121 285 900 — — — 4 5.1 21.0
0218EB 460 146 150 175 225 # 2 - 4/0 # 2 - 4/0 100 228 719 — — — 4 5.2 29.0
575 115 150 150 175 # 2 - 4/0 # 2 - 4/0 80 182 574 — — — 4 3.9 25.9
380 171 200 225 250 1/0 - 300 #6 - 350 121 285 900 — — — 4 5.1 21.0
0248EB 460 146 150 175 225 # 2 - 4/0 # 2 - 4/0 100 228 719 — — — 4 5.2 29.0
575 115 150 150 175 # 2 - 4/0 # 2 - 4/0 80 182 574 — — — 4 3.9 25.9
380 227 250 300 350 1/0 - 300 #6 - 350 165 343 1093 — — — 4 5.1 21.0
0268EB 460 192 200 250 300 # 2 - 4/0 #4 - 300 137 280 893 — — — 4 5.2 29.0
575 152 150 200 250 # 2 - 4/0 # 2 - 4/0 109 224 714 — — — 4 3.9 25.9
380 227 250 300 350 1/0 - 300 #6 - 350 166 343 1093 — — — 4 5.1 21.0
0288EB 460 193 200 250 300 # 2 - 4/0 #4 - 300 137 280 893 — — — 4 5.2 29.0
575 152 150 200 250 # 2 - 4/0 # 2 - 4/0 109 224 714 — — — 4 3.9 25.9
380 264 400 350 450 2/0 - 500 (2) 3/0 - 250 195 343 1093 — — — 5 5.1 21.0
0308EB 460 222 250 300 350 1/0 - 300 #4 - 300 161 280 893 — — — 5 5.2 29.0
575 177 200 225 300 # 2 - 4/0 #6 - 350 129 224 714 — — — 5 3.9 25.9
380 264 400 350 450 2/0 - 500 (2) 3/0 - 250 195 343 1093 — — — 5 5.1 21.0
0328EB 460 222 250 300 350 1/0 - 300 #4 - 300 161 280 893 — — — 5 5.2 29.0
575 177 200 225 300 # 2 - 4/0 #6 - 350 129 224 714 — — — 5 3.9 25.9
380 414 600 500 500 (2) 1/0 - 300 (2) 250-500 166 343 1093 166 343 1,093 8 5.1 21.0
0358EB 460 352 400 400 450 2/0 - 500 (2) 3/0 - 250 138 280 893 138 280 893 8 5.2 29.0
575 277 400 350 350 2/0 - 500 (2) 3/0 - 250 109 224 714 109 224 714 8 3.9 25.9
380 460 600 600 600 (2) 1/0 - 300 (2) 250-500 194 343 1093 166 343 1,093 9 5.1 21.0
0398EB 460 392 600 450 500 2/0 - 500 (2) 3/0 - 250 162 280 893 138 280 893 9 5.2 29.0
575 309 400 350 400 2/0 - 500 (2) 3/0 - 250 129 224 714 109 224 714 9 3.9 25.9
380 513 600 600 700 (2) 2/0 - 500 (2) 250-500 196 343 1093 213 343 1,093 9 5.1 21.0
0418EB 460 434 600 500 600 (2) 1/0 - 300 (2) 250-500 162 280 893 176 280 893 9 5.2 29.0
575 344 400 400 450 2/0 - 500 (2) 3/0 - 250 129 224 714 141 224 714 9 3.9 25.9
OVER-CURRENT
PROTECTION
FIELD PROVIDED POWER SUPPLY
COMPRESSOR #2

YORK INTERNATIONAL
10
FORM 201.19-W6 (1104)
ELECTRICAL DATA (CONT'D)
OPTIONAL SINGLE POINT POWER SUPPLY CONNECTION
AND INDIVIDUAL SYSTEM CIRCUIT BREAKERS
One field provided power supply circuits to the unit with
individual branch circuit protection. Field Power Wiring
connectionsto factoryprovided,Non-Fused Disconnect
Switches (Opt), or Terminal Blocks (Opt) in the Option
Box.
Suitable for:
Y - ∆ Start and
Across-The-Line-Start
LD05557
See page 6 for notes.
OPTIONAL SINGLE-POINT POWER SUPPLY CONNECTION WITH INDIVIDUAL UNIT CIRCUIT BREAKERS
3 & 4 Compressor Units
(One Field Provided Power Supply Circuit to the chiller. Field connections to Power Terminal Block (standard) or Non-Fused Disconnect (option)
in ‘Option Panel’. Circuit Breakers in each Motor Control Center
CB
3
CB
4
CB
1
CB
2
TB
or
DS
F
ield Supply
Suitable for:
Y - D Start and
Across the Line Start
See Note 3
SYSTEM #1 FIELD-SUPPLIED WIRING
FACTORYPROVIDED (LUGS)
MODEL VOLTS MIN NF WIRE RANGE7COMPRESSOR #3 FANS11, 12
YCAS MCA1DISCSW2, 9 STD. TERMINAL OPT. NF. RLA Y-D-LRA XL-LRA RLA Y-D-LRA XL-LRA QTY FLA LRA
MIN.3, 5 MAX.4, 6 BLOCK DISC SW. (EA.) (EA.)
380 467 600 500 600 (2) 1/0 - 300 (2) 250-500 121 285 900 121 285 900 8 5.1 21.0
0218EB 460 399 600 450 500 (2) 1/0 - 300 (2) 250-500 100 228 719 100 228 719 8 5.2 29.0
575 315 400 350 400 (2) # 2 - 4/0 (2) 3/0 - 250 80 182 574 80 182 574 8 3.9 25.9
380 582 600 700 800 (2) 2/0 - 500 (2) 250-500 121 285 900 213 343 1093 8 5.1 21.0
0248EB 460 493 600 600 700 (2) 1/0 - 300 (2) 250-500 100 228 719 176 280 893 8 5.2 29.0
575 391 600 450 600 (2) # 2 - 4/0 (2) 3/0 - 250 80 182 574 141 224 714 8 3.9 25.9
380 612 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 165 343 1093 165 343 1093 8 5.1 21.0
0268EB 460 519 600 600 700 (2) 2/0 - 500 (2) 250-500 137 280 893 137 280 893 8 5.2 29.0
575 410 600 450 500 (2) 1/0 - 300 (2) 250-500 109 224 714 109 224 714 8 3.9 25.9
380 671 800 800 1000 (2) 2/0 - 500 (3) 2/0 - 400 212 343 1093 166 343 1093 8 5.1 21.0
0288EB 460 568 600 700 800 (2) 2/0 - 500 (2) 250-500 176 280 893 137 280 893 8 5.2 29.0
575 450 600 500 600 (2) 1/0 - 300 (2) 250-500 141 224 714 109 224 714 8 3.9 25.9
380 689 800 800 1000 (3) 1/0 - 300 (3) 2/0 - 400 195 343 1093 166 343 1093 9 5.1 21.0
0308EB 460 584 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 161 280 893 137 280 893 9 5.2 29.0
575 462 600 500 600 (2) 1/0 - 300 (2) 250-500 129 224 714 109 224 714 9 3.9 25.9
380 707 800 800 1000 (3) 1/0 - 300 (3) 2/0 - 400 195 343 1093 184 343 1093 11 5.1 21.0
0328EB 460 599 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 161 280 893 152 280 893 11 5.2 29.0
575 475 600 500 600 (2) 1/0 - 300 (2) 250-500 129 224 714 122 224 714 11 3.9 25.9
380 799 1000 1000 1000 (3) 2/0 - 500 (4) 250-500 166 343 1093 166 343 1093 8 5.1 21.0
0358EB 460 680 800 800 1000 (2) 2/0 - 500 (3) 2/0 - 400 138 280 893 138 280 893 8 5.2 29.0
575 535 600 600 700 (2) 2/0 - 500 (3) 2/0 - 400 109 224 714 109 224 714 8 3.9 25.9
380 884 1000 1000 1200 (3) 2/0 - 500 (4) 250-500 194 343 1093 166 343 1093 9 5.1 21.0
0398EB 460 754 1000 800 1000 (3) 1/0 - 300 (3) 2/0 - 400 162 280 893 138 280 893 9 5.2 29.0
575 594 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 129 224 714 109 224 714 9 3.9 25.9
380 985 1000 1200 1200 (3) 2/0 - 500 (4) 250-500 196 343 1093 213 343 1093 9 5.1 21.0
0418EB 460 834 1000 1000 1000 (3) 2/0 - 500 (4) 250-500 162 280 893 176 280 893 9 5.2 29.0
575 661 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 129 224 714 141 224 714 9 3.9 25.9
OVER-CURRENT
PROTECTION
FIELD PROVIDED POWER SUPPLY
COMPRESSOR #1

YORK INTERNATIONAL 11
FORM 201.19-W6 (1104)
ELECTRICAL DATA (CONT'D)
FACTORYPROVIDED (LUGS)
MODEL VOLTS MIN NF WIRE RANGE7COMPRESSOR #4 FANS11, 12
YCAS MCA1DISCSW2, 9 STD. TERMINAL OPT. NF. RLA Y-D-LRA XL-LRA RLA Y-D-LRA XL-LRA QTY FLA LRA
MIN.3, 5 MAX.4, 6 BLOCK DISC SW. (EA.) (EA.)
380 467 600 500 600 (2) 1/0 - 300 (2) 250-500 121 285 900 - - - 4 5.1 21.0
0218EB 460 399 600 450 500 (2) 1/0 - 300 (2) 250-500 100 228 719 - - - 4 5.2 29.0
575 315 400 350 400 (2) # 2 - 4/0 (2) 3/0 - 250 80 182 574 - - - 4 3.9 25.9
380 582 600 700 800 (2) 2/0 - 500 (2) 250-500 121 285 900 - - - 4 5.1 21.0
0248EB 460 493 600 600 700 (2) 1/0 - 300 (2) 250-500 100 228 719 - - - 4 5.2 29.0
575 391 600 450 600 (2) # 2 - 4/0 (2) 3/0 - 250 80 182 574 - - - 4 3.9 25.9
380 612 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 165 343 1093 - - - 4 5.1 21.0
0268EB 460 519 600 600 700 (2) 2/0 - 500 (2) 250-500 137 280 893 - - - 4 5.2 29.0
575 410 600 450 500 (2) 1/0 - 300 (2) 250-500 109 224 714 - - - 4 3.9 25.9
380 671 800 800 1000 (2) 2/0 - 500 (3) 2/0 - 400 212 343 1093 - - - 4 5.1 21.0
0288EB 460 568 600 700 800 (2) 2/0 - 500 (2) 250-500 176 280 893 - - - 4 5.2 29.0
575 450 600 500 600 (2) 1/0 - 300 (2) 250-500 141 224 714 - - - 4 3.9 25.9
380 689 800 800 1000 (3) 1/0 - 300 (3) 2/0 - 400 195 343 1093 - - - 5 5.1 21.0
0308EB 460 584 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 161 280 893 - - - 5 5.2 29.0
575 462 600 500 600 (2) 1/0 - 300 (2) 250-500 129 224 714 - - - 5 3.9 25.9
380 707 800 800 1000 (3) 1/0 - 300 (3) 2/0 - 400 195 343 1093 - - - 5 5.1 21.0
0328EB 460 599 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 161 280 893 - - - 5 5.2 29.0
575 475 600 500 600 (2) 1/0 - 300 (2) 250-500 129 224 714 - - - 5 3.9 25.9
380 799 1000 1000 1000 (3) 2/0 - 500 (4) 250-500 166 343 1093 166 343 1093 8 5.1 21.0
0358EB 460 680 800 800 1000 (2) 2/0 - 500 (3) 2/0 - 400 138 280 893 138 280 893 8 5.2 29.0
575 535 600 600 700 (2) 2/0 - 500 (3) 2/0 - 400 109 224 714 109 224 714 8 3.9 25.9
380 884 1000 1000 1200 (3) 2/0 - 500 (4) 250-500 194 343 1093 166 343 1093 9 5.1 21.0
0398EB 460 754 1000 800 1000 (3) 1/0 - 300 (3) 2/0 - 400 162 280 893 138 280 893 9 5.2 29.0
575 594 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 129 224 714 109 224 714 9 3.9 25.9
380 985 1000 1200 1200 (3) 2/0 - 500 (4) 250-500 196 343 1093 213 343 1093 9 5.1 21.0
0418EB 460 834 1000 1000 1000 (3) 2/0 - 500 (4) 250-500 162 280 893 176 280 893 9 5.2 29.0
575 661 800 700 800 (2) 2/0 - 500 (3) 2/0 - 400 129 224 714 141 224 714 9 3.9 25.9
SYSTEM #2 FIELD-SUPPLIED WIRING
OVER-CURRENT
PROTECTION
FIELD PROVIDED POWER SUPPLY
COMPRESSOR #2

YORK INTERNATIONAL
12
FORM 201.19-W6 (1104)
FIG. 1 –WIRING DIAGRAM – DXST DIRECT DRIVE
LD09350
035-15937-103
Rev - A
ELEMENTARY WIRING DIAGRAM
YCAS0218 - YCAS0328 (3 COMPRESSOR)
DXST DIRECT DRIVE

YORK INTERNATIONAL 13
FORM 201.19-W6 (1104)
FIG. 2 –WIRING DIAGRAM – ACROSS-THE-LINE START
LD09352
ELEMENTARY WIRING DIAGRAM
YCAS0218 - YCAS0328 (3 COMPRESSOR)
ACROSS-THE-LINE START
LD09352
035-15937-103
Rev - A

YORK INTERNATIONAL
14
FORM 201.19-W6 (1104)
FIG. 3 –WIRING DIAGRAM – WYE DELTA START
ELEMENTARY WIRING DIAGRAM
YCAS0218 - YCAS0328 (3 COMPRESSOR)
WYE DELTA START
035-15937-10
3
Rev - A
LD09353

YORK INTERNATIONAL 15
FORM 201.19-W6 (1104)
NOTES:
1. Field wiring to be in accordance with the current edition of
the National Electrical Code as well as all other applicable
codes and specifications.
2. Contacts must be suitable for switching 24VDC, (Gold
contacts recommend). Wiring shall not be run in the same
conduit with any line voltage wiring.
3. To cycle the unit on and off automatically with contact
shown, install a cycling device in series with the flow
switch (FLSW). See note 2 for contact rating and wiring
specifications.
4. To stop unit (Emergency Stop) with contacts other than
those shown, install the stop contact between terminals 5
and 1. If a stop device is not installed, a jumper must be
connected between terminals 5 and 1. Device must have
a minimum contact rating of 100A at 115 volts A.C.
5. Alarm contacts are for annunciating alarm/unit malfunc-
tion. Contacts are rated at 115V, 100VA, load only, and
must be suppressed at load by user.
6. See Installation, Operation andMaintenance Manual when
optional equipment is used.
7. Jumper must be installed for three compressor operation.
LEGEND
Transient Voltage Suppression
Terminal Block for Customer Connections
Terminal Block for Customer Low Voltage
(Class 2) Connections. See Note 2
Terminal Block for YORK Connections Only
Wiring and Components by YORK
Optional Equipment
Wiring and/or Components by Others
T S
ELEMENTARY WIRING DIAGRAM (YCAS0218 - YCAS0328)
ACROSS-THE-LINE START
AND
WYE-DELTA START
LD09351
FIG. 4 –CONTROL POWER TRANSFORMER KIT
035-15937-103
Rev - A
035-15937-103
REV A

YORK INTERNATIONAL
16
FORM 201.19-W6 (1104)
FIG. 5 –ELEMENTARY WIRING DIAGRAM LD010031
ELEMENTARY WIRING DIAGRAM
YCAS0218 - YCAS0328 (3 COMPRESSOR)

YORK INTERNATIONAL 17
FORM 201.19-W6 (1104)
LD010032
CAUTION:
No Controls (relays, etc.) should be mounted in the Smart Panel
enclosure or connected to power supplies in the control panel. Ad-
ditionally, controlwiring not connected to theSmart Panel should not
be run through the cabinet. This could result in nuisance faults.
CAUTION:
Any inductive devices (relays) wired in series with the flow switch
for start/stop, into the Alarm circuitry, or pilot relays for pump
starters wired through motor contactor auxiliary contacts must be
UNIT CONTROL MIN MAX DUAL NON-FUSED
VOLTAGE POWER CIRCUIT ELEMENT DISC.
SUPPLY AMP. FUSE SIZE SWITCH SIZE
ALL MODELS 115-1-50/60 20A 20A250V 30A240V
W/O TRANS.
MODELS -17 200-1-60 15A 15A250V 30A240V
WITH -28 230-1-60 15A 15A250V 30A240V
TRANS. -46 400-1-60 8A 8A600V 30A480V
* -58 575-1-60 8A 8A600V 30A600V
* All primary and secondary wiring between transformer and control panel included.
CONTROL POWER SUPPLY
suppressed with YORK P/N 031-00808-000 suppressor across the
relay/contactor coil.
Any contacts connected to flow switch inputs or BAS inputs on
terminals 13 - 19 or TB3, or any other terminals, must be sup-
pressed with a YORK P/N 031-00808-000 suppressor across the
relay/contactor coil.
CAUTION:
Control wiring connected to the control panel should never be run in
the same conduit with power wiring.

YORK INTERNATIONAL
18
FORM 201.19-W6 (1104)
FIG. 6 –CONNECTION DIAGRAM 3 COMPRESSOR
LD010033
CONNECTION DIAGRAM ELEC. BOX
(YCAS0218 - YCAS0328)

YORK INTERNATIONAL 19
FORM 201.19-W6 (1104)
FIG. 7 –CONNECTION DIAGRAM 3 COMPRESSOR
LD010034
Power Panel 035-15937-104
REV E

YORK INTERNATIONAL
20
FORM 201.19-W6 (1104)
FIG. 8 –CONNECTION DIAGRAM 3 COMPRESSOR LD010035
CONNECTION WIRING DIAGRAM (CONT'D)
Power Panel
035-15937-104
REV E
