2 • Pegasus Plus | OWNER’S MANUAL
TABLE OF CONTENTS
Thank you for
purchasing a
YORK FITNESS
equipment.
You have chosen a high quality, safe and innovative piece
of equipment as your training partner and we are certain
it will keep you motivated on the way to achieving your
personal tness goal.
Please take the time to read this owner’s manual as it will
help you to get the most out of your new tness equipment.
For more information visit: www.yorktness.com
Table of contents
Safety Information ............................................................. 03
Customer Support ............................................................. 04
Introduction .......................................................................... 05
Assembly Instructions ............................................. 06 - 08
Operation Instructions ........................................... 09 - 10
Computer Instruction ............................................. 11 - 12
Workout Programs .................................................... 13 - 14
Fitness Guide ......................................................................... 15
Part List ............................................................................ 17 - 18
Warranty .................................................................................. 24
PegasusPlus_InstructionManual.in2 2 11/27/08 11:24:41 PM

Pegasus Plus | OWNER’S MANUAL • 3
SAFETY INFORMATION
Safety information
THIS LIST IS NOT EXHAUSTIVE - You are responsible for
your own safety.
Assemble and operate the equipment on a solid and
level surface.
Always ensure that the equipment has adequate space
on each side. (Please see product information)
Examine this equipment regularly for wear and tear.
Always check that any pins / xings are tight and
secure before use and / or after adjustment. Replace
defective components immediately, and’or keep the
equipment out of use until it is repaired.
Use only the adjustment settings as described in the
instructions. Always use the correct adjustment pin/
xings.
Never use the equipment in any other manner other
than the ways explained in these instructions and/or
any wall chart supplied.
Do not use any accessories that aren’t specically
recommended by the manufacturer. These might
cause injuries or cause the unit to fail.
Keep hands away from moving parts.
Wear proper workout clothing: Do not wear loose
clothing.
Do not wear shoes with leather soles or high heels. Tie
all long hair back.
Remove all personal jewelry before exercising.
Care should be taken when mounting and
dismounting the unit.
Injuries to health may result from incorrect or excessive
training.
If you feel any pain or abnormal symptoms, STOP
YOUR WORKOUT IMMEDIATELY. Consult your physician
immediately.
After eating, allow 1-2 hours before exercising as this
will help to prevent muscle strain.
This is not a toy! Children should not be allowed on, or
around the equipment when it is not in use.
If Children are allowed to use the equipment, their
mental and physical development and above all their
temperament should be taken into account. They
should be controlled and instructed by an adult in the
correct use of the equipment.
Additional Information:
This appliacnce has electical components.
This appliance must be earthed.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Keep all electical companents away from water.
Do not use water bottle in areas where high humidity
may cause condensation to drip onto the treadmill.
Unplug the power cable before maintenance.
Stop treadmill before folding.
TAKE CARE TO PROTECT CARPETS AND FLOOR in case
of leakages.
This product contains moving parts which have been
greased / lubricated and could leak.
The treadmill running mat will not stop immediately
if any object becomes caught in the mat or rollers - IN
AN EMERGENCY: Pull the safety key cord to remove the
safety key.
This product is provided with a safety key. The treadmill
will not operate without the safety key inserted. The
safety key should be attached to the user via the cord
and clip. If for any reason the user falls, the cord will
pull the safety key from the treadmill and the treadmill
will begin to decelerate.
In an emergency, take hold of the handrails and place
your feet on the side platforms provided. Once you are
stable pull out the safety key. The treadmill will begin
to decelerate until it stops.
Never overload the equipment - the maximum user
load of this equipment is 275lb (125kg).
Safety Standards
This product meets the requirements of the EU’s EMC
and Low Voltage directives and ISO 20957 parts 1 and 6.
Therefore the product carries the following marks:
This product is not suitable for therapeutic purposes.
Protect the environment. Do not dispose this product with
household waste. Check your local authority for recycling
advice and facilities.
•
•
•
•
•
•
•
•
•
PegasusPlus_InstructionManual.in3 3 11/27/08 11:24:42 PM

4 • Pegasus Plus | OWNER’S MANUAL
CUSTOMER SUPPORT
ENGLAND
York Fitness U.K. Ltd.
York Way, Daventry, Northants, NN11 4YB,
England
Tel: [phone]
Help desk Tel: [phone]
Fax: [phone]
Email: helpdesk@yorktness.co.uk
AUSTRALIA
York barbell (aust) pty. ltd.
Unit 1, Lot 2, Swaham Road, Minto, N.S.W.
2566, Australia
Tel: [phone]
YORK® Assist: 1800 730 149
Fax: [phone]
Email: service@yorktness.com.au
OTHER LOCATIONS
Please see website - www.yorktness.com
Customer Support
Should you require any assistance regarding this product
please gather the following information, and then contact
us using the details below.
Serial no. - this can be found on the sticker located as
indicated. For future reference, please write down your
serial number in the space below.
Original purchase date.
Place of purchase.
Information about the place and conditions of use.
Precise description of the issue / defect.
Serial No:
•
•
•
•
•
PegasusPlus_InstructionManual.in4 4 11/27/08 11:24:42 PM

Pegasus Plus | OWNER’S MANUAL • 5
INTRODUCTION
Features
Top speed of 18km/h
0-12% power incline
Hand pulse sensors
Wireless heart rate receiver
10 workout programs
MP3 player input & speakers
Cushioned running deck
142cm x 51cm running area
L 192cm x W 86cm x H 139cm
Specications
Power supply: AC 230V, 50Hz
Speed Control: Push button
Elevation: Power incline 0 ~ 12 level
Speed range: 0.8 ~ 18KPH
•
•
•
•
•
•
•
•
•
•
•
•
•
MAT ADJUSTING BOLTS
MAIN FRAME
FOLDABLE FOR STORAGE
AND TRANSPORTATION
RUNNING MAT
FOUR NON-MARKING
TRANSPORTATION WHEELS
HAND PULSE SENSORS
SAFETY KEY
SPEED ADJUSTMENT
SWITCH
HANDLE BAR POST
INCLINE ADJUSTMENT
SWITCH
COMPUTER PANEL
SPEAKERS
MP3/AUDIO INPUT
PegasusPlus_InstructionManual.in5 5 11/27/08 11:24:47 PM

6 • Pegasus Plus | OWNER’S MANUAL
ASSEMBLY INSTRUCTION
Step 1
Ask someone to help you remove all the parts and
packaging materials on the top of your YORK® Pegasus
Plus from the carton and place them on the oor
carefully.
NOTE: Do not lift the treadmill out of the carton from
the motor end as your ngers may get squashed!.
1.

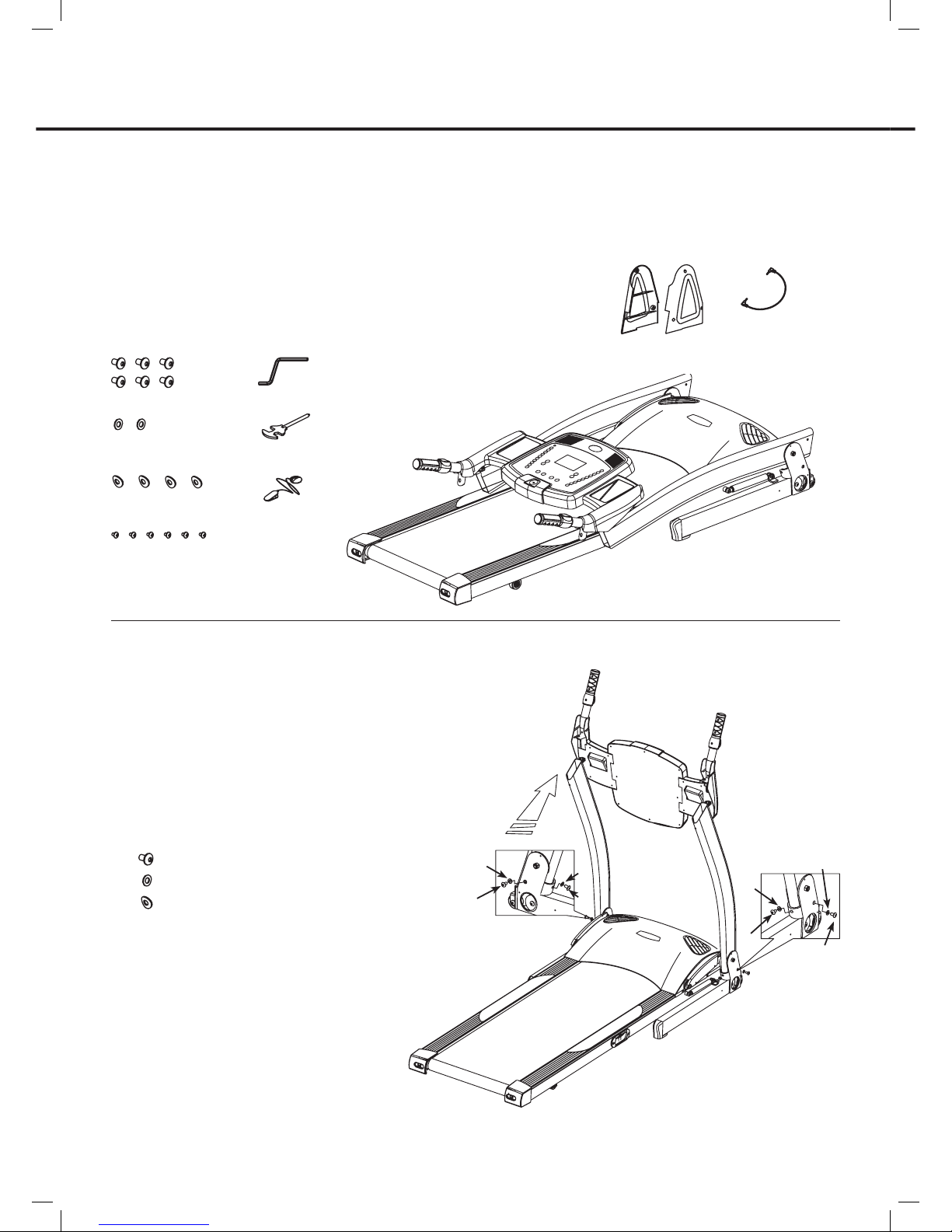

Step 2
Fold the handle bar post assembly up gently until the
xing holes on handle bar post align to the holes on
base brackets as shown.
Secure the handle bar posts to the base brackets by
using four allen head bolts and at washers.
NOTE: Do not fully tighten the bolt until the computer
console has been secured.
C. SCREW x 4
D. WASHER x 2
E. WASHER x 2
1.
2.
A. MAIN FRAME
C. SCREW
D. WASHER
E. WASHER
F. SCREW
G. ALLEN KEY
H. SCREWDRIVER
I. SAFETY KEY
B. UPRIGHT SIDE CAP
J. SPEAKER WIRE
CC
DE
C
D
E
C
PegasusPlus_InstructionManual.in6 6 11/27/08 11:24:51 PM

Pegasus Plus | OWNER’S MANUAL • 7
Step 3
Rotate the computer assembly until the xing holes on
the handle bar bracket align to the holes on handle bar
posts as shown.
Secure the handle bar bracket to the handle bar posts
by using two allen head bolts and two at washers.
C. SCREW x 2
E. WASHER x 2
1.
2.
Step 4
Attach the right handle bar post cover to the right base
frame and secure, using three machine screws.
Attach the left handle bar post cover to the left base
frame and secure, using three machine screws as
shown.
B. UPRIGHT SIDE CAP x 2
F. SCREW x 6
1.
2.
CE
CE
F
BB
F
ASSEMBLY INSTRUCTION
PegasusPlus_InstructionManual.in7 7 11/27/08 11:24:56 PM

8 • Pegasus Plus | OWNER’S MANUAL
Step 6
Fold the main frame up gently until the main frame
is locked in position by the locking device lever and
stand it in the carton base.
Ask someone to help you hold the treadmill on each
side and lift it out from the carton base carefully.
1.
2.
Recheck
Recheck that all of the bolts are tightened securely for
your safety and comfort.
Plug the power cable into a suitable AC outlet
(220~240 Volt 50Hz).
Before you use the treadmill for the rst time, turn on
the power switch. Connect the magnetic safety key
and then allow the treadmill to run for 10 minutes
without anyone on the treadmill. Check that the mat is
tightened properly and runs smoothly.
1.
2.
3.
ASSEMBLY INSTRUCTION
PegasusPlus_InstructionManual.in8 8 11/27/08 11:24:58 PM

Pegasus Plus | OWNER’S MANUAL • 9
OPERATING INSTRUCTIONS
The Magnetic Safety Key
IMPORTANT: The treadmill will not work if the magnetic safety key is not in place. Before starting the treadmill, attach the key
to the computer, then attach the clip on the other end to your clothing (Above the waist). If this key is pulled out whilst you
are running on the treadmill then the mat will stop turning.
When the treadmill is not in use you should remove the safety key and store it somewhere safe, away from the treadmill. This
will prevent any unauthorized use of the treadmill. Store the safety key in a safe place OUT OF REACH OF CHILDREN.
Getting on the Treadmill
The following procedure has been proven to be the safest and easiest method of mounting the treadmill. For your protection,
carefully read and follow these simple steps:
Be sure the treadmill is positioned on a at, level surface.
Make sure the magnetic safety key is not attached then plug in the treadmill power cable to a suitable power socket and
switch on at the socket.
Turn on the treadmill power switch which is located near where the power cable attaches to the treadmill.
Straddle the running mat with your feet rmly planted on the right and left side rails. Stand close enough so you can
extend your arms to touch all the buttons on the console. CAUTION: Do not stand on the mat yet.
Insert the safety key.
Press“START” key to start at the lowest speed.
Starting your exercise
Stand on the running mat.
Once you have selected your workout, the treadmill will slowly increase it’s speed to the desired levels.
Continue to grip the handles until you are walking / running normally.
After gaining stability and condence, release your grip on the handrails and let your arms swing freely and naturally at
your side.
NOTE: Walking straight on the treadmill is aided by focusing on a stationary object across the room in front of you.
Walk as if you were approaching that object.
Getting o the treadmill
The following procedure has been proven to be the safest and easiest method of dismounting the treadmill. For your
protection, carefully read and follow these simple steps:
Turn treadmill to the lowest speed and incline.
Firmly grip the handles to support yourself.
Remove your trailing foot from the walking platform and place it on the foot pad on the side of the treadmill. This is
very easy to do because the natural movement of walking will have shifted your weight onto the foot that just stepped
forward.
Shift your weight to the stationary foot on the foot pad, and remove the other foot from the walking platform and place it
on the other foot pad. You should now be in the starting position.
Press“STOP” key to stop the treadmill and disconnect the safety key then unplug treadmill from the power outlet when
nished.
IN AN EMERGENCY, take hold of the handrails and place your feet on the side rails provided, once you are stable, pull
out the safety key. The treadmill will then begin to decelerate until it stops.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
1.
2.
3.
4.
5.
PegasusPlus_InstructionManual.in9 9 11/27/08 11:24:58 PM

10 • Pegasus Plus | OWNER’S MANUAL
Mat alignment and tension
The alignment and tension of the mat (walking surface) has
been set prior to shipping. Should improper tracking of the
mat occur (walking surface moving too far to right/ left on the
platform) or if you nd that the mat slips when you get on,
these problems can be corrected as follows:
Locate the adjustment screws on the end of the main
frame. CAUTION: Adjust the mat when the treadmill is
running at low speed. Keep others away from the treadmill.
Connect the safety key and set to the lowest speed.
Allow the mat to run for several minutes and watch to see if it runs in the center position properly. If the mat does not run
in the center position, carry out the steps for“MAT MOVES TO LEFT” or “MAT MOVES TO RIGHT”. Be sure that you adjust by
“1/2 turn only each time”to avoid over correcting.
MAT MOVES TO RIGHT: If your mat tends to move to the right, then adjust the right screw by turning it a 1/2 turn clockwise.
We recommend adjustments of 1/2 turn only at a time, then test each time. If your mat continues to move to the right, simply
adjust the left adjustment screw, by turning 1/2 turn counterclockwise, test after each adjustment.
MAT MOVES TO LEFT: If your mat tends to move to the left, then the adjustment of the right screw is necessary by turning
counterclockwise. We recommend adjustments of 1/2 turn only at a time, then test each time. If the mat continues to move to
the left, simply adjust the left adjustment screw, by turning 1/2 turn clockwise, then test each time.
NOTE: For most people, one of your legs is stronger than the other and the treadmill mat may tend to track to that side
because of the extra pressure exerted by your stronger leg. If this occurs then either dismount the treadmill and allow
the mat to track back to the middle, or exert pressure to the side of the mat with the other leg to track the mat back to
the middle. Or adjust the mat to compensate following the instructions for the mat moves to the right or left.
MAT TOO LOOSE: If your mat appears to be loose, simply tighten both screws by an equal amount (1/2 a turn clockwise at a
time) then test.
MAT TOO TIGHT: If it appears tight, simply loosen both screws by an equal amount (1/2 a turn counter-clockwise at a time)
then test.
MAT STICKY (DOES NOT RUN SMOOTHLY): You may feel after a period of time (depending on how often you use the
machine) that the mat feels sticky. We recommend you apply a light covering of Silicone between the mat and the running
board. This procedure may be repeated as necessary.
Mat and deck lubrication
This treadmill is equipped with a pre-lubricated, maintenance deck system. The mat / deck friction may play a major role in the
function and life of your treadmill, this requires periodic lubrication. We recommend a periodic inspection of the deck. If the
deck appears worn, please contact our service department.
We recommend lubrication of the deck according to the following timetable:
Less than 3 hours per week - every 8 months.
3-5 hours per week - every 4 months
More than 5 hours per week - every 2 months.
Proper Lubrication Application
Using a coin to open the top cap covers above the left and right lubricant bottles. Then put half of lubrication that is in the
spare parts box into the left and right bottles. After it is done, put the top cap covers back and tighten them securely.
Start the treadmill and set the speed at the lowest speed. Let the mat run for about 15 minutes in order to spread the
lubrication on the underneath side of the running mat properly.
1.
2.
3.
•
•
•

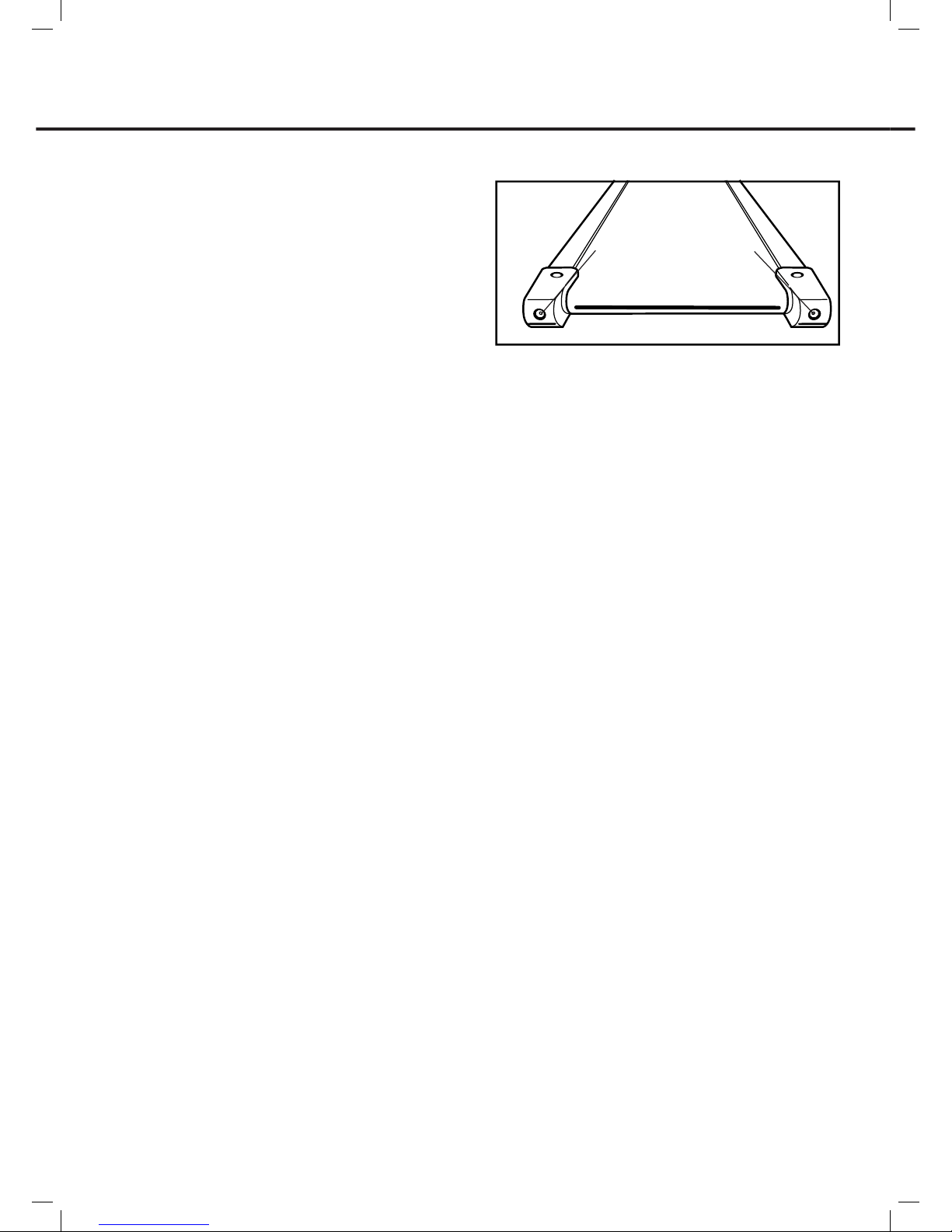

MAT ADJUSTMENT BOLTS
USE ALLEN KEY TO ADJUST MAT
AS INSTRUCTED BELOW.
OPERATING INSTRUCTIONS
PegasusPlus_InstructionManual.in10 10 11/27/08 11:24:59 PM

Pegasus Plus | OWNER’S MANUAL • 11
Your computer is ideal for monitoring your performance and setting
yourself targets. You can monitor your improving condition and
cardiovascular tness closely.

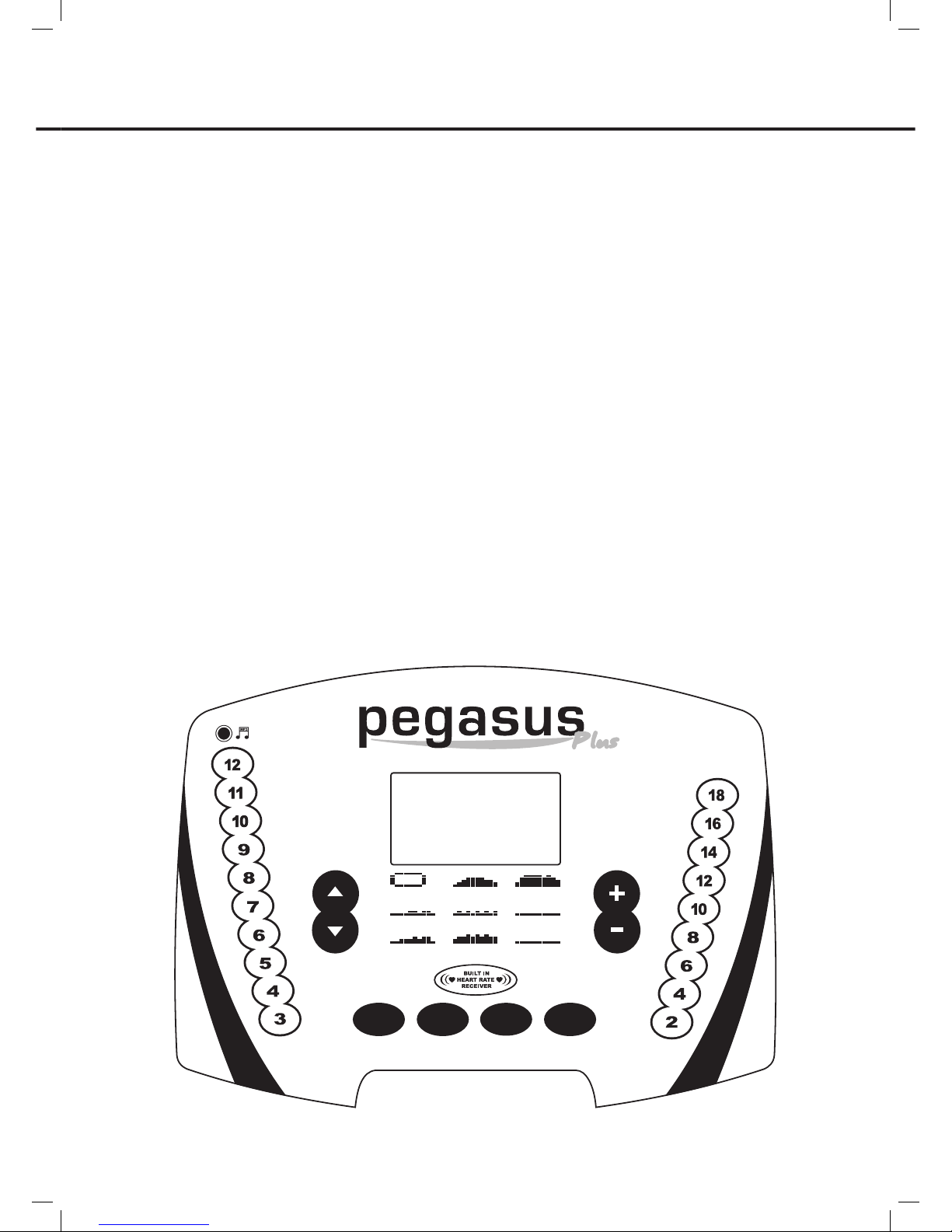

Keys
1. POWER KEY: Press the “POWER” key to activate the treadmill, you must press it rst.
2. START/STOP KEY: Activates the treadmill at the lowest speed and slowly increases until it reaches your training speed.
Slows the running mat gradually to a complete stop.
3. SELECT KEY: Press the “SELECT” key to select the preset or user program proles. Also displays the elevation & elevation
gain values for three seconds during the workout.
4. ENTER KEY: Press the “ENTER” key to conrm your program selection. Also conrms the speed and incline target values
during the user program setting.
5. SPEED KEYS: Select the speed from 0.8 ~ 18kp/h. Press and hold this key continuously for 2 seconds. The speed values
will increase / decrease quickly. Press this key to select through the preset programs.
6. INCLINE KEYS: Select the elevation from 0 ~ 12. Press and hold this key continuously for 2 seconds. The elevation values
will increase / decrease to the desired level quickly. Press this key to select through the preset programs.
7. RAPID SPEED KEYS: 9 preset buttons for rapid speed: 2km/h, 4km/h, 6km/h, 8km/h, 10km/h, 12km/h, 14km/h,
16km/h, 18km/h. User can press any of these 9 buttons to start the treadmill to the preset speed automatically.
8. RAPID ELEVATION KEYS: 12 preset buttons for rapid elevation: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12. User can press any of
these 12 buttons to start the treadmill to the preset elevation automatically.
COMPUTER INSTRUCTIONS
ENTER POWERSELECT STOP / START
INCLINE SPEED
PROGRAM MODE
1. Attach the SAFETY KEY.
2. Press the “POWER” key.
3. Press the SELECT key to
select program mode.
4. Press START key to begin
workout.
MANUAL MODE
1. Attach the SAFETY KEY.
2. Press the “POWER” key.
3. Press START key to begin
workout.
4. Use to adjust speed.
5. Use to adjust incline.
Manual P3 Mountain Peak P6 Jogging
P1 Rolling Hills P4 Calories Burn U1 USER 1
P2 Mountain Pass P5 Walking U2 USER2
PegasusPlus_InstructionManual.in11 11 11/27/08 11:25:00 PM

12 • Pegasus Plus | OWNER’S MANUAL
Function
INCLINE: Current elevation is automatically displayed in % when the YORK® Pegasus Plus treadmill is in use. Enter the
required elevation target by pressing “UP/DOWN” buttons. (MAX 12%)
WARNING: The treadmill must be on 0% before you fold.
PULSE: Your current heart rate is shown, when this pulse function is in use. To obtain a pulse reading you must have your
left and right hands holding the sensors at the same time. Grip the hand sensors normally (NOT TOO TIGHT) during exercise
and after a few seconds the computer will display your pulse reading. It is dicult for the computer to read your pulse rate
accurately during walking or jogging. The user may also need to consult a doctor before using this equipment.
TIME: Counting commences when the YORK® Pegasus Plus is activated. Enter the required time target by pressing “UP/
DOWN” buttons. (MAX 99:00min)
SPEED: Current speed is displayed in KPH when the YORK® Pegasus Plus is in use. (MAX 999.9km)
DISTANCE: Distance is automatically displayed in KM when the YORK® Pegasus Plus is in use. (MAX 999.9km)
CALORIES: Approximate calories burned is displayed when the YORK® Pegasus Plus is in use. (MAX 9999 Cal.) (This data is a
rough guide for comparison of dierent exercise sessions. It should not be used for medical purposes.)
ELEVATION GAIN: Total climbing distance displayed in metres during the current workout. (MAX 9990m) NOTE: This value
will only displayed in Target Elevation Gain program.

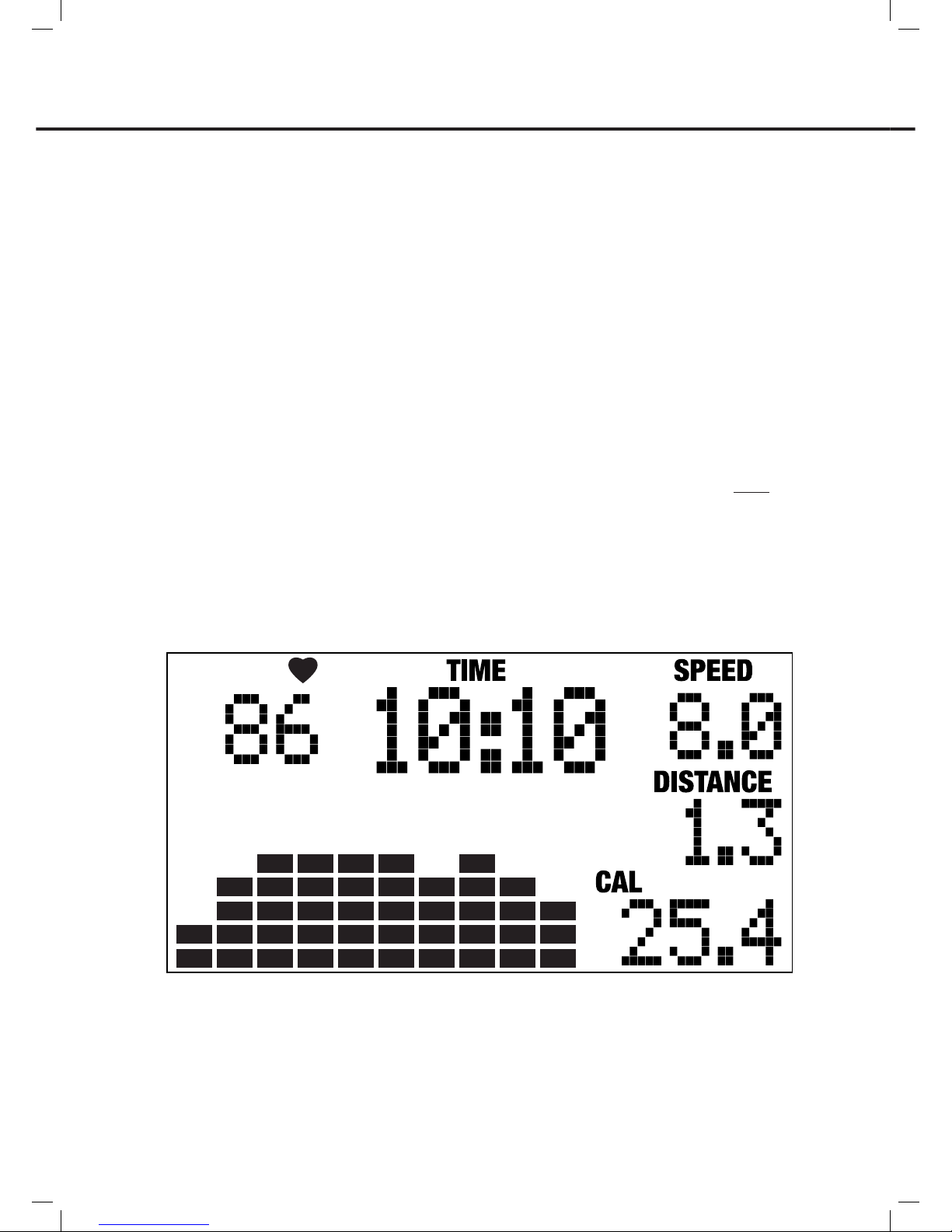

DOT MATRIX: This 8 x 10 dot matrix displays the proles of the 6 x preset programs & 2 x user programs. This dot matrix
displays a 0.4km running track when selected in manual, target distance, target calories, target time or target elevation
gain programs.
COMPUTER INSTRUCTIONS
PegasusPlus_InstructionManual.in12 12 11/27/08 11:25:00 PM

Pegasus Plus | OWNER’S MANUAL • 13
Workout programs
QUICK START
The default settings are 0% elevation and speed of 0.8km/
h you may adjust the speed or elevation any time during
the workout.
Turn the power “ON”.
Check the safety key - Ensure the clip is secured to
your clothing.
Press “START” to begin your workout.
MANUAL PROGRAM
Turn the power “ON”.
Check the safety key - Ensure the clip is secured to
your clothing.
Press “ENTER” to start “MANUAL” program.
Press “START” to begin your workout.
Use the “UP/DOWN” keys to set up your target speed
during the workout.
Use the “UP/DOWN” keys to set up your desired
elevation during the workout.
PRESET INCLINE PROGRAMS - P1 ~ P4
Turn the power “ON”.
Check the safety key - Ensure the clip is secured to
your clothing.
Use the “UP/DOWN” keys to select P1 ~ P4 incline
program.
Use “ENTER” to conrm your program selection.
Use the “UP/DOWN” keys to enter your target speed.
Press “START” to begin your workout.
NOTE: The default time for these programs is 10 minute
segments. The program repeats these 10 minute
segments until you press “STOP” to nish your workout.
PRESET SPEED PROGRAMS - P5 ~ P6
Turn the power “ON”.
Check the safety key - Ensure the clip is secured to
your clothing.
Use the “UP/DOWN” keys to select P1 ~ P4 incline
program.
Use “ENTER” to conrm your program selection.
Use the “UP/DOWN” keys to enter your target speed.
Press “START” to begin your workout.
NOTE: The default time for these programs is 10 minute
segments. The program repeats these 10 minute
segments until you press “STOP” to nish your workout.
1.
2.
3.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
USER PROGRAMS - U1 ~ U2
Before you can use these two workouts you must rst
program and store your routine, following the insturctions
below.
Each workout has 10 segments, and the speed and
elevation settings can be programmed individually for
each segment.
After the workout has been stored, you can perform this
workout again by simply selecting the correct “U1 ~ U2”
program, and then “START”.
TO PROGRAM YOUR PERSONAL EXERCISE ROUTINE
Turn the power “ON”.
Check the safety key - Ensure the clip is secured to
your clothing.
Use the “UP/DOWN” keys to select U1 ~ U2 user
program.
Press “ENTER” to conrm your program selection.
Use the “UP/DOWN” keys to conrm your desired
speed level for the rst segment. - This value will be
shown in the“SPEED” window.
Use the “UP/DOWN” keys to conrm your desired
elevation level for the rst segment. - This value will
be shown in the “ELEVATION” window. NOTE: You
must enter“SPEED” &“ELEVATION” setting before the
next program segment.
Press “ENTER” to conrm the rst etting of your
routine.
Repeat same processes to set up all segments for the
whole program.
Press “START” to begin your workout.
NOTE: The computer will store the values of the speed and
elevation at the end of each segment during the program
and retain these values in the program.
1.
2.
3.
4.
5.
6.
7.
8.
9.
WORKOUT PROGRAMS
PegasusPlus_InstructionManual.in13 13 11/27/08 11:25:00 PM

14 • Pegasus Plus | OWNER’S MANUAL
COMPUTER PROGRAMS
Manual P5 Walking
P1 Rolling Hills P6 Jogging
P2 Mountain Pass U1 User 1
P3 Mountain Peak U2 User 2
P4 Calorie Burn
WORKOUT PROGRAMS
PegasusPlus_InstructionManual.in14 14 11/27/08 11:25:01 PM

Pegasus Plus | OWNER’S MANUAL • 15
ALWAYS CONSULT YOUR DOCTOR BEFORE
UNDERTAKING A NEW EXERCISE REGIME. IF YOU
EXPERIENCE NAUSEA, DIZZINESS OR OTHER
ABNORMAL SYMPTOMS DURING EXERCISE, STOP AT
ONCE AND CONSULT YOUR DOCTOR.
Starting your workout
Begin and end each workout with a Warm Up / Cool Down
session - a few minutes of stretching to help prevent
strains, pulls and cramps.
Get onto the treadmill, using the handrails for
support, and place your feet on the side rails (Either
side of the running mat.).
Activate the treadmill by following this manual.
The treadmill will always start at the lowest speed,
step onto the mat and walk at the same speed and
continue the rest of your workout.
Finishing your workout
Turn to the lowest speed and incline settings.
Using the handrails for support, place your feet on the
side rails (Either side of the running mat).
Stop the treadmill.
Turn the treadmill o at the main power switch and
remove the plug from the electrical outlet.
Remove the safety key.
Wipe the treadmill down with a damp cloth.
End each workout with a Cool Down session - a few
minutes of stretching to help prevent strains, pulls and
cramps.
Correct exercising form
Run in the centre of the running mat.
Keep your head up and look straight ahead.
Shoulders should be square and level, don’t round
your shoulders or swing them forwards or backwards.
Keep your torso erect with the chest up so there’s
plenty of room for the diaphragm to move for proper
breathing action.
Do not lean forwards, backwards or slouch, as all
of these posture deviations can place a lot of stress
on the lower back, interfering with proper running
mechanics and possibly causing lower back injury.
Feet should be pointed straight ahead and land
directly under the hips.
1.
2.
3.
1.
2.
3.
4.
5.
6.
•
•
•
•
•
•
How long should I exercise for?
That really depends on your current level of tness. If
you’re just starting out on a new exercise program, you
should not try to do too much too quickly. 30 minutes,
3 times a week should be enough. You should never feel
overly exhausted during or following exercise.
Heart rate training
To get the most out of your new piece of tness
equipment, you should exercise at the right level of eort,
and that means listening to your heart! Working out to a
target heart rate means you can direct your workout to
achieve dierent goals:
Good health - For those wishing to improve quality of life
and general well being. Your sessions will need to be done
at an intensity of between 50 - 60% of your estimated
maximum heart rate, should last about 30 minutes and
can be done on most days of the week.
Weight loss - To see a signicant reduction in body fat,
your sessions must be a little more intense - between
60 - 70% of your estimated maximum heart rate. These
sessions can also be performed on most days of the week
for up to 30 minutes.
Improving tness levels - These sessions should be
performed at 70 - 80% of your estimated maximum heart
rate and can also involve bouts of interval training that
would have your heart rate peaking for short times near
your maximum heart rate level. These are intense sessions
and will require at least a 48 hour rest between sessions.
Calculating your target heart rate
First, you need to nd your estimated maximum heart rate
using the formula 220 minus your age in ve years. So, if
you are 35 years old your estimated maximum heart rate
is: 220 - 35 = 185 beats per minutes (BPM)
Next to calculate your target heart rate, simply multiply
your estimated maximum heart rate ( 185 BPM ) by the
applicable percentage. So, if your goal is better heart:
185 x 60% = 111 BPM
NOTE: The important issue to remember with all
estimated calculations is that they are just estimates
- if you don’t feel comfortable exercising at your target
then reduce it to a level you are comfortable with. Heart
rate training requires you to monitor your heart rate
throughout the workout. For this we recommend using
a chest strap (if you machine has a wireless receiver ) or
a heart rate monitor. For more information please visit
www.yorktness.com or get in touch using the CONTACT
US details.
FTINESS GUIDE
PegasusPlus_InstructionManual.in15 15 11/27/08 11:25:01 PM

16 • Pegasus Plus | OWNER’S MANUAL
PROBLEM CAUSE CORRECTION
ERR1 on screen: Wrong
reaction of the speed
sensor (If the monitor can
not get the signal from
the speed sensor for a
continual 15 seconds)
Inspect the distance and
position between the speed
sensor and magnet.
Inspect if the cables are
damaged or short circuit.
Inspect the cable jack if it has a
good connection.
1.
2.
3.
Adjust the distance between the magnet and
speed sensor and keep within 3mm.
Change the speed sensor.
Re-plug in the cable jack.
1.
2.
3.
Treadmill will not start
Not plugged in.
Safety key not on correctly.
Treadmill circuit breaker.
Switched o.
Loose connection.
1.
2.
3.
4.
5.
Plug into suitable outlet.
Insert safety key.
Reset circuit breaker.
Turn the switch on.
Un-plug and re-plug electrical cord.
1.
2.
3.
4.
5.
Running mat slipping Running mat loose.
Deck needs lubrication.
1.
2.
Tighten running mat.
Lubricate mat and deck.
1.
2.
Treadmill noisy
Loose hardware.
Motor straining.
Clicking sound - roller
knocking.
1.
2.
3.
Tighten all visible screws, nut and bolts.
Check mat tension - 3 nger test.
Adjust rear rollers - check the tension.
1.
2.
3.
Inaccurate pulse rate
Too much hand movement.
Palms too wet.
Gripping hand grips too tight.
Wearing rings.
1.
2.
3.
4.
Stand on side rails to get accurate pulse reading.
Dry palms.
Grip using moderate pressure.
Remove all rings.
1.
2.
3.
4.
Technical Support
WHEN TO CALL FOR HELP
This treadmill is designed with user safety as the number
one priority. In the event of an electrical failure, the
treadmill will shut o automatically to prevent user injury
and to prevent damage to expensive components such as
the motor.
When you encounter unusual behavior from the treadmill,
simply turn the power switch o and on to reset the
treadmill. This should clear incidental errors and prepare
the treadmill for normal operation again. If, after you have
reset the treadmill by turning the power switch o and on
again, the treadmill is still not operational, then it is time
to call your dealer for advice.
NO SIGNAL ON THE CONSOLE LCD WINDOWS
If there is no signal on the monitor, even after you have
switched the treadmill o and on again to reset, check the
communication cable between the monitor and motor
controller. First, make sure the connections are rmly
connected and that the cable is not pinched or damaged.
If defective, ask your dealer for a replacement cable.
ENGLAND
York Fitness U.K. Ltd.
York Way, Daventry, Northants, NN11 4YB,
England
Tel: [phone]
Help desk Tel: [phone]
Fax: [phone]
Email: helpdesk@yorktness.co.uk
AUSTRALIA
York barbell (aust) pty. ltd.
Unit 1, Lot 2, Swaham Road, Minto, N.S.W.
2566, Australia
Tel: [phone]
YORK® Assist: 1800 730 149
Fax: [phone]
Email: service@yorktness.com.au
TROUBLESHOOTING
PegasusPlus_InstructionManual.in16 16 11/27/08 11:25:02 PM

Pegasus Plus | OWNER’S MANUAL • 17
This product is supplied with a standard warranty as follows:
Lifetime frame
10 year treadmill motor
12 month other parts
12 months labour
This product is warranted for use in a home, personal, family or household environment
Please Note: Warranty details may vary from one market area to another
Warranty Terms
York Barbell Ltd. warrants that the Product you have purchased from an authorised York reseller is free from defects in
materials and workmanship. The Warranty is valid subject to normal and reasonable use in the environment as described
above, and correct assembly of the product during the warranty period. The warranty period extends to the original
purchaser only. It is not transferable to anyone who subsequently purchases the Product from you.
The warranty excludes normal wear and tear on parts.
Your sales receipt, showing the date of purchase of the product, is your proof of the date of purchase.
This warranty becomes valid only if the Product is assembled / installed according to the instructions / directions included
with the product. This warranty does not extend to any product that has been damaged or rendered defective: (a) as a
result of accident, misuse, abuse or lack of reasonable care; (b) by the use of parts not manufactured by York Barbell or sold
by York Barbell; (c) by modication of the product; (d) as a result of service by anyone else other than York Barbell or an
authorised York Barbell warranty service provider.
During the warranty period York Barbell will at no additional charge provide replacement part(s) or repair the product (at
York Barbell’s option) if it becomes defective, malfunctions or otherwise fails to conform with this warranty under normal,
non-commercial, personal, family or household use. In repairing the product, York Barbell may replace defective parts or
at the option of York Barbell, use serviceable used parts that are equivalent to new parts in performance. All exchanged
parts and products replaced under this warranty will become the property of York Barbell. York Barbell reserves the right to
change manufacturers of any part to cover any existing warranty.
If the product must be returned, you must return the Product or defective part to York Barbell in its original container (or
equivalent) with Proof of Purchase. Any evidence of alteration, erasing or forgery of proof of purchase documents will be
cause to void this warranty. You must prepay any shipping charges and you are responsible for insuring any product or
part that is returned. Should any product submitted for warranty service be found to be ineligible, an estimate of repair
cost will be furnished and the repair will be made if requested, upon York Barbell’s receipt of payment or acceptable
arrangement of payment. Under no circumstances will returns be accepted without return authorization by our Customer
Service department.
To obtain warranty service you must provide the following information:
Name of Product, Product Code, Batch No, Date Purchased, and Nature of fault or part number required.
Neither dealer of this product nor any retail establishment selling this product has any authority to make any warranties or
to promise remedies in addition to, or inconsistent with, those stated above. This warranty does not aect your statutory
rights.
Please note that warranty terms may vary from one market area to another.
•
•
•
•
WARRANTY
PegasusPlus_InstructionManual.in17 17 11/27/08 11:25:02 PM

18 • Pegasus Plus | OWNER’S MANUAL

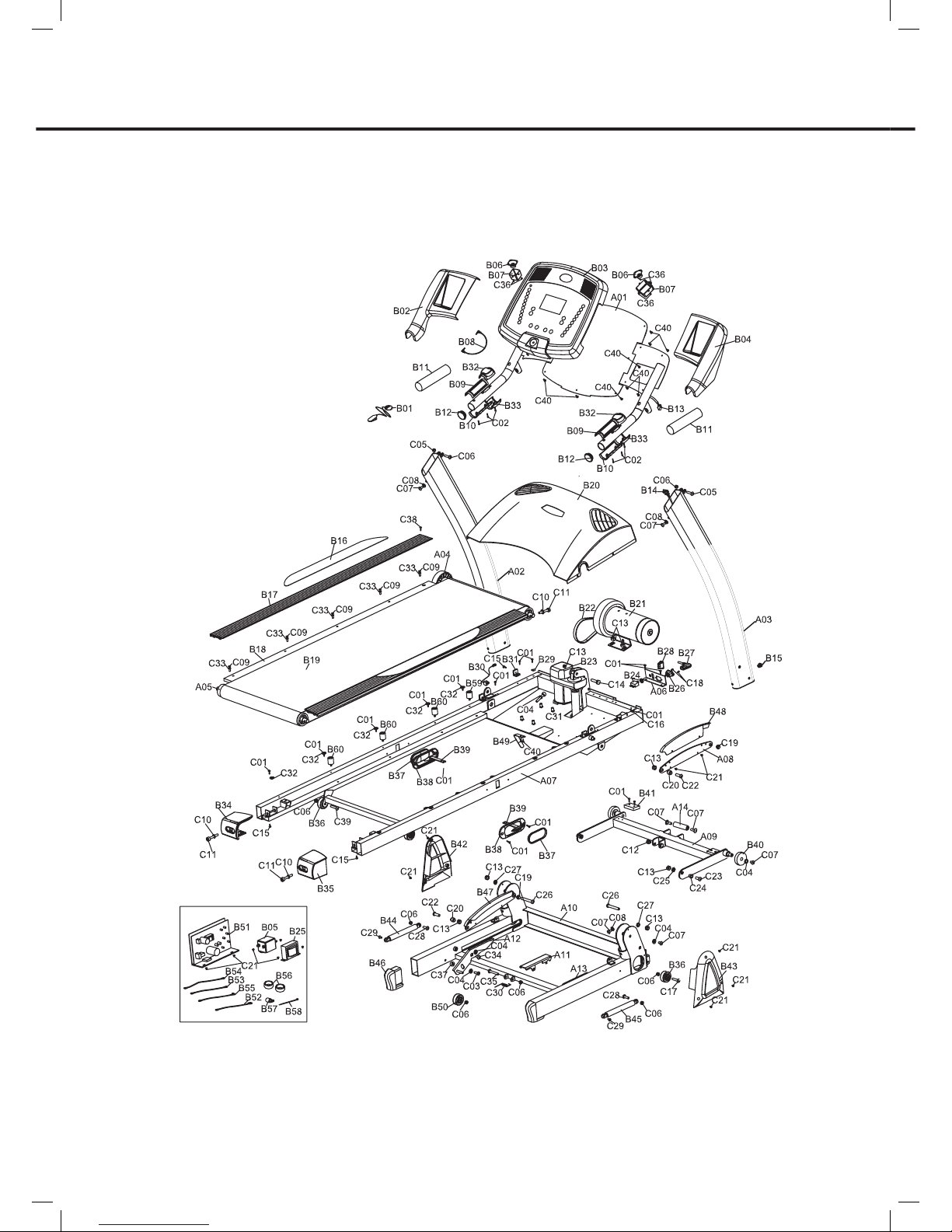

PART LIST
PegasusPlus_InstructionManual.in18 18 11/27/08 11:25:04 PM

Pegasus Plus | OWNER’S MANUAL • 19
KEY NO. DESCRIPTION QTY
A01 CONSOLE BASE 1
A02 LEFT UPRIGHT HANDLEBAR 1
A03 RIGHT UPRIGHT HANDLEBAR 1
A04 FRONT ROLLER 1
A05 REAR ROLLER 1
A06 POWER SWITCH BRACKET 1
A07 FRAME 1
A08 ARC BRACKET 2
A09 INCLINE BRACKET 1
A10 BASE 1
A11 FIXER 1
A12 LEFT WHEEL BRACKET 1
A13 RIGHT WHEEL BRACKET 1
A14 INCLINE TUBE 1
B01 SAFETY KEY 1
B02 LEFT CONSOLE 1
B03 MIDDLE CONSOLE WITH COMPUTER 1
B04 RIGHT CONSOLE 1
B05 FILTER 1
B06 TRUMPET 2
B07 TRUMPET BOX 2
B08 MP3 WIRE 1
B09 HAND PULSE RECEIVER (TOP) 2
B10 HAND PULSE RECEIVER (BOTTOM) 2
B11 FOAM GRIP 2
B12 END CAP 2
B13 UPPER WIRE 1
B14 LOWER WIRE 1
B15 WIRE GROMMET 1
B16 SIDE RAIL SKID PAD 2
B17 SIDE RAIL 2
B18 RUNNING DECK 1
B19 RUNNING BELT 1
B20 MOTOR COVER 1
B21 MOTOR 1
B22 MOTOR BELT 1
B23 INCLINE MOTOR 1
B24 SAFETY SWITCH 1
B25 TRANSFORMER 1
B26 POWER SOCKET 1
B27 POWER CORD 1
B28 ON/OFF SWITCH 1
B29 SENSOR PLASTIC CLIP 2
B30 SPEED SENSOR 1
B31 MOTOR COVER BRACKET 4
B32 TOGGLE CONTROL (TOP) 2
B33 TOGGLE CONTROL (BOTTOM) 2
B34 LEFT REAR END CAP 1
B35 RIGHT REAR END CAP 1
B36 WHEEL - 50 4
B37 CLEAR PLASTIC COVER 2
B38 PLASTIC FRAME 2
B39 INDICATOR 2
B40 INCLINE WHEEL - 60 2
B41 CUSHION 2
B42 LEFT BASE SIDE CAP 1
B43 RIGHT BASE SIDE CAP 1
KEY NO. DESCRIPTION QTY
B44 LEFT SHOCK 1
B45 RIGHT SHOCK 1
B46 BASE END CAP 2
B47 LEFT MOTOR COVER SIDE CAP 1
B48 RIGHT MOTOR COVER SIDE CAP 1
B49 BELT GUIDE 2
B50 WHEEL - 50 2
B51 CONTROLLER 1
B52 WIRE - 12CM 1
B53 WIRE - 12CM 3
B54 WIRE - 18CM 2
B55 WIRE - 12CM 1
B56 CHOCK 2
B57 PLASTIC STAND 2
B58 PLASTIC FIXER 3
B59 CUSHION 2
B60 CUSHION 6
C01 SCREW 34
C02 SCREW 6
C03 SCREW 2
C04 WASHER 9
C05 SCREW 2
C06 NUT 11
C07 SCREW 10
C08 WASHER 4
C09 SCREW 10
C10 WASHER 3
C11 SCREW 3
C12 SCREW 2
C13 NUT 11
C14 SCREW 1
C15 SCREW 8
C16 WASHER 3
C17 SCREW 2
C18 SCREW 2
C19 SCREW FIXING TUBE 2
C20 SCREW FIXING TUBE 2
C21 SCREW 19
C22 SCREW 2
C23 SCREW 2
C24 SCREW FIXING TUBE 2
C25 WASHER 2
C26 SCREW 2
C27 WASHER 2
C28 SCREW 2
C29 SCREW 2
C30 SPRING 1
C31 SCREW 1
C32 WASHER 10
C33 SCREW 10
C34 SCREW 2
C35 SCREW 1
C36 SCREW 16
C37 WASHER 2
C38 SCREW 2
C39 SCREW 2
C40 SCREW 23
PART LIST
PegasusPlus_InstructionManual.in19 19 11/27/08 11:25:05 PM

Owner’s Manual
Model No. 51072
ENGLAND
YORK FITNESS U.K. LTD.
YORK WAY, DAVENTRY, NORTHANTS,
NN11 4YB, ENGLAND
TEL: [phone]
HELP DESK TEL: [phone]
FAX: [phone]
EMAIL: [e-mail]
AUSTRALIA
YORK BARBELL (AUST) PTY. LTD.
UNIT 1, LOT 2, SWAFFHAM ROAD, MINTO,
N.S.W. 2566, AUSTRALIA
TEL: [phone]
YORK® ASSIST: 1800 730 149
FAX: [phone]
EMAIL: [email protected]OM.AU
WWW.YORKFITNESS.COM
PegasusPlus_InstructionManual.in20 20 11/27/08 11:25:08 PM
