YOTRIO BHD128059664001 User manual

Warranty Coverage Requirements:
1. Copy of your Original Store Receipt.
2. Pictures of the damaged parts.
3. You must know the name of your product and any corresponding item
numbers as well as the name of the store where you purchased the item.
4. Please gather all of this informa on BEFORE you call customer service.
DO NOT RETURN TO RETAILER
IF YOU HAVE ANY QUESTIONS OR CONCERNS
PLEASE VISIT OUR WEBSITE
AT:
www.yotrioint.com
www.yotrioint.com
www.yotrioint.com
www.yotrioint.com
OR TOLL FREE AT:
1-866-905-4107
1-866-905-4107
1-866-905-4107
1-866-905-4107
MONDAY-FRIDAY 8:30 AM TO 5:00 PM PACIFIC STANDARD TIME / 11:30
AM TO 8:00PM EASTERN STANDARD TIME
YOTRIO
YOTRIO
YOTRIO
YOTRIO CUSTOMER
CUSTOMER
CUSTOMER
CUSTOMER CARE
CARE
CARE
CARE
1

2
CARING FOR YOUR GAZEBO
Use & Care Instrucons
•Always keep children under close supervision while they are using or around this product. Never leave
children unaended.
•This product is intended for domesc outdoor use only.
•Do not light any fires below or near the product.
•Check all nuts and/or bolts periodically for ghtness. When required, ghten them again.
•Do not shake, lean on, or climb on the frame.
•Remove the canopy if substanal rain or high winds are in the forecast.
Cleaning
•FRAME: Wash with a mild dish soap and water, rinse with clean water, and allow to air dry. Do not
use harsh chemicals or abrasive cleaners, or any other special detergents as they may be harmful to
the product's finish.
•FABRIC: For best results, clean fabric with a damp cloth and allow to air dry thoroughly. Do not
machine wash or dry.
OffSeason
•To extend the life of your product, remove all fabric components and store inside when not in use.
•Do not allow snow accumulaon to collect on the roof.
THREE-YEAR FRAME AND ONE-YEAR FABRIC/FINISH ETC. LIMITED WARRANTY
You must retain the original receipt to obtain warranty service.
Frames are warranted against defects in materials and workmanship for a period of one year from the
date of original purchase.
This warranty does not cover damage to frames or welds due to commercial use, improper assembly, acts
of nature, fire, freezing and abusive use.
Rust, corrosion, and/ or rust stains are not covered by warranty.
Purchased parts are not covered under this warranty.
Fabric on umbrella is warranted one year against separation on at the seams.
Fading, mildew, and color discoloraon due to exposure to the elements, chemicals and spills are not
covered.
The Powder coat and/ or paint are warranted one year against blistering, peeling, or cracking.
Fading due to exposure to elements, chemicals and spills is not covered. Scratches and chips due to
normal wear and use are not covered.
Warranty covers free replacement of item within one year of purchase. Afterone year it remains the
customer's responsibility for freight and packaging charges to and from our service center.
We do not compensate the individual or any outside party for assembling or disassembling the product.
Any replacement of warranted items will be in the original style and color, or similar style and color if the
original is un-available or has been disconnued.

WARNING! TO REDUCE THE RISK OF SERIOUS INJURY, READ THE FOLLOWING
SAFETY.
Caution! Always keep children under close supervision while they are playingaround this product.
Never leave children unattended, Keep pets away whilesetting up the gazebo.
Caution! Check municipal by-laws prior to installing the gazebo.
This product is intended for domestic outdoor use only.
The product should be placed and assembled an flat, horizontal ground.
Consult with your local governing authority/local municipal codes regarding installation of temporary
structures before assembly.
Ensure there is enough clearance around the product. Before assembling the gazebo, make sure to leave a
distance of not less than 6(1.8 m) from any structures or obstructions, such as fences, garages, houses,
overhanging branches, laundry lines, or electrical wires.
Anchor the gazebo to the ground with stakes for added safety. Stakes are provided to secure the gazebo to
the ground. If you wish to secure the gazebo to a concrete or wood surface, use anchors suited for these
surfaces (anchors not included). Do not assemble the gazebo on sandy, muddy or loose soil, as stakes do
not have enough anchorage in these types of soil.
If more than one gazebo is set up, keep a minimum distance of 10'(3 m) between the gazebos.
Any assembly or maintenance of the product must be carried out by adults only.
Make sure there is sufficient manpower when assembling or moving the product,.
Some parts may contain sharp edges. Wear protective gloves if necessary.
Check all nuts and bolts periodically for tightness. When required, tighten them.
Repairing and replacing parts should be done by a qualified technician.
This gazebo is intended for decorative and sunshade purposes only.
The gazebo is not designed to withstand harsh weather, including high winds, rain and snow,
Always remove the gazebo in such heavy weather conditions, otherwise it might tlip over and cause damage
to the product or injuries to bystanders,
During snow days, remove the snow at the top when the snow is thicker than 4" (10 cm). After a period of
time, usually in 2-3 months, tighten all the bolts.
After some time outdoors, the gazebo roof may get dirty. Rinse the top of the gazebo using water. Do not
use harsh cleaning agents.
Do not hang any weights on the roof frame.
Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
After a few years, if the paint peels off, use paint of similar colour. It is recommended to use outdoor paint.
Retain the original packaging to store the gazebo.
If the product will not be used for a long period of time (eng. winter time), it should be disassembled and
stored in a clean, dry environment.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
3

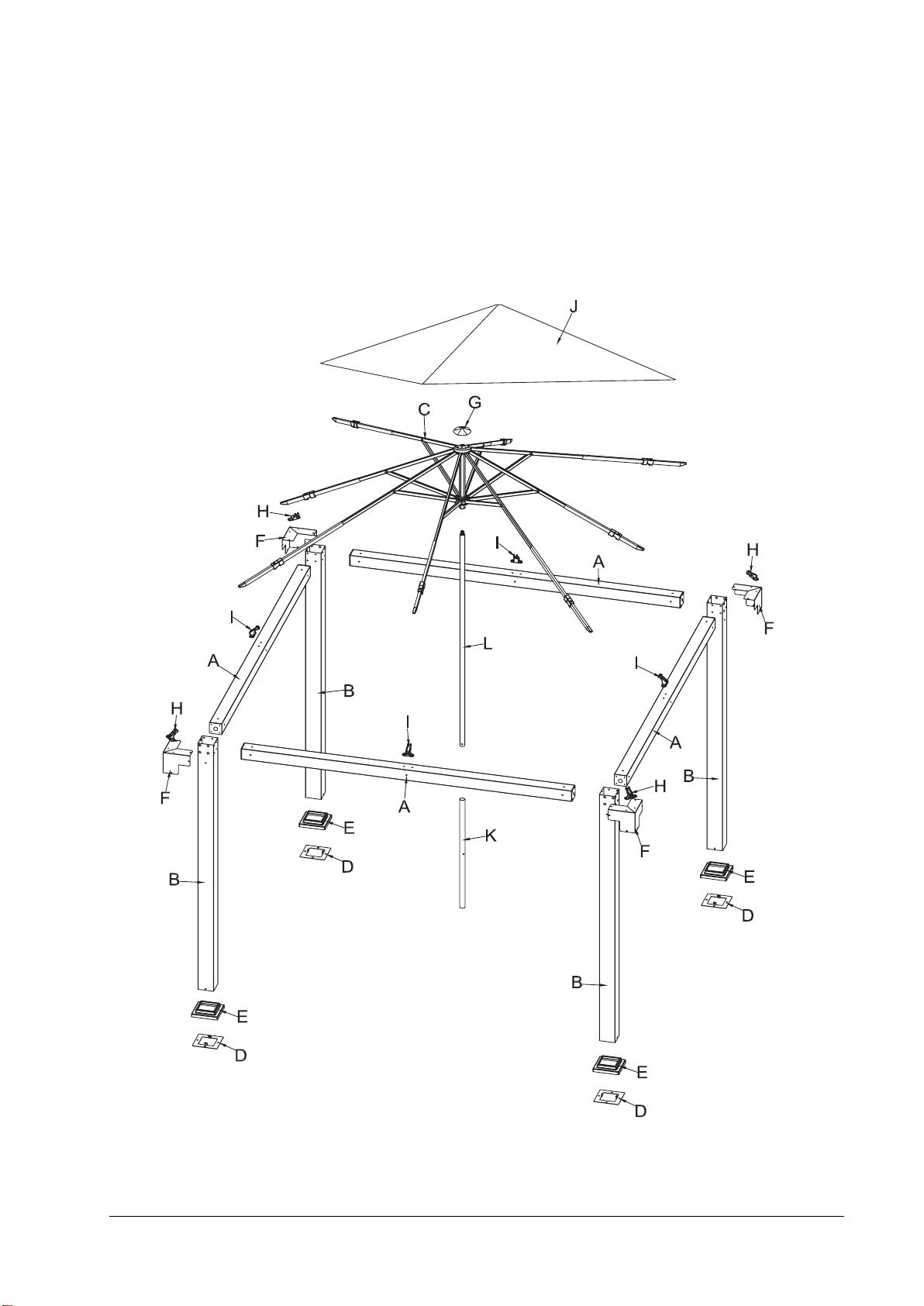

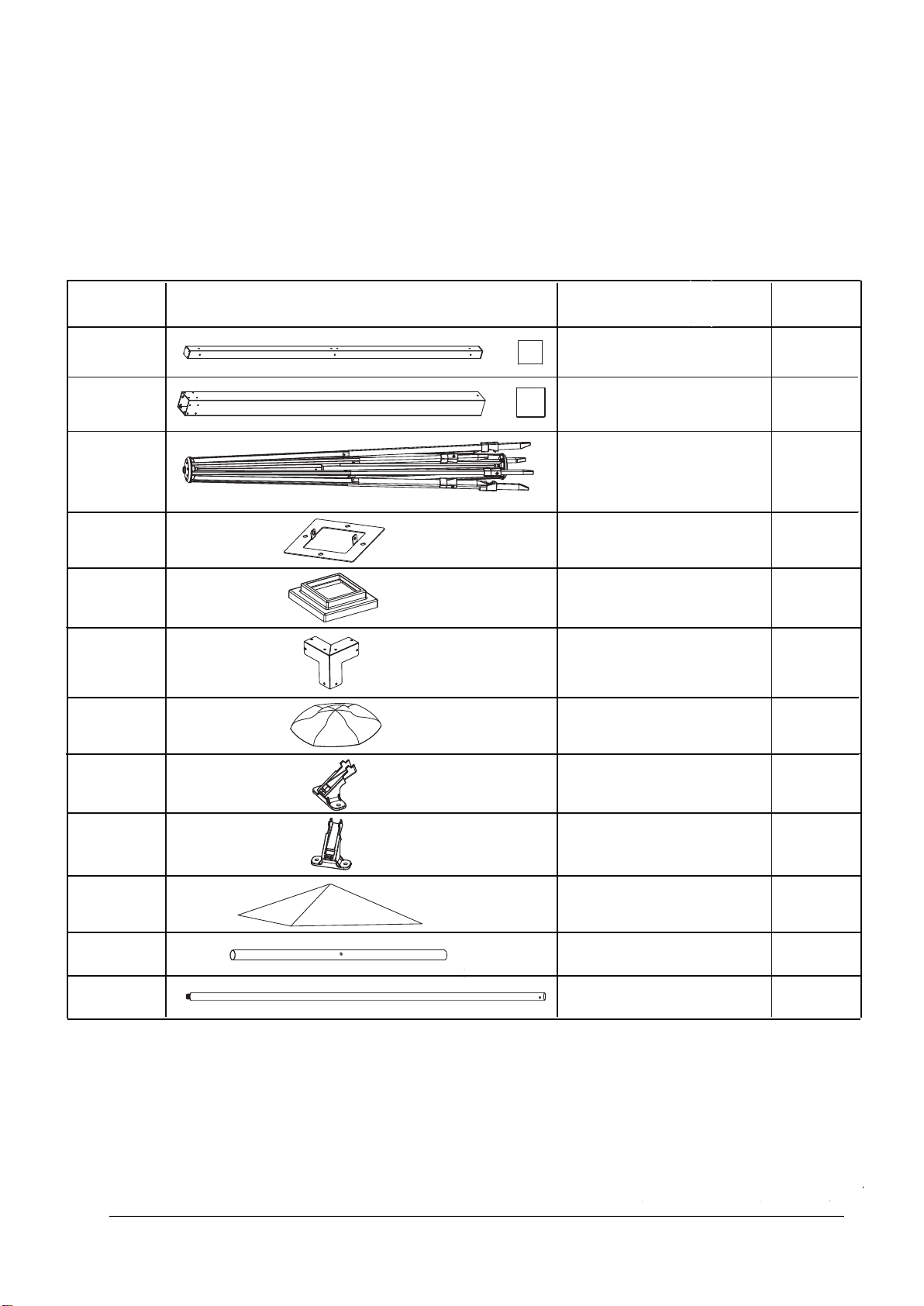

Package Contents
NOTE: Umbrella Poles L & K are only for set-up or removal of the umbrella top.
Keep these parts for later use.
This Gazebo unit is heavy, and may require two adults for safe assembly.
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

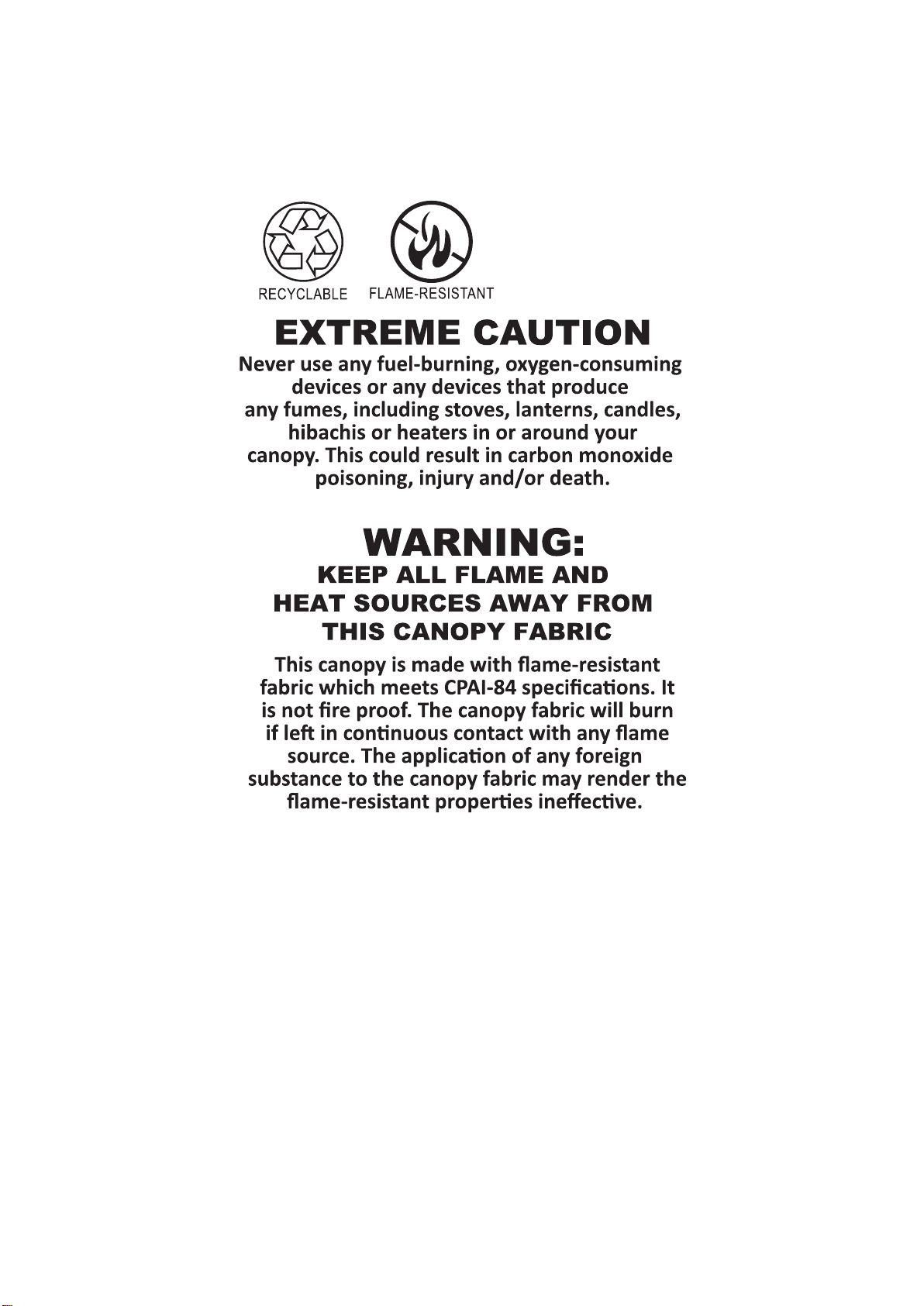

WARNING:
- Keep all flame and heat sources away from the fabric canopy.
- Always remove the umbrella canopy if strong winds, substantial rain, or snow is in the forecast
to avoid damage and extend the life of the product.

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
4
4
1
4
1
A
PART
NO. DECRIPTION QTY
B
C
D
F
E
K
J
I
H
G
L
4
4
4
4
4
1
1
1
Beam
Post
Umbrella Frame
Foot Plate
Foot Plate Cover
Connector
Plastic Clip 1
Plastic Clip 2
Cap
Umbrella Pole 1
Umbrella Pole 2
Umberlla Canopy
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
5

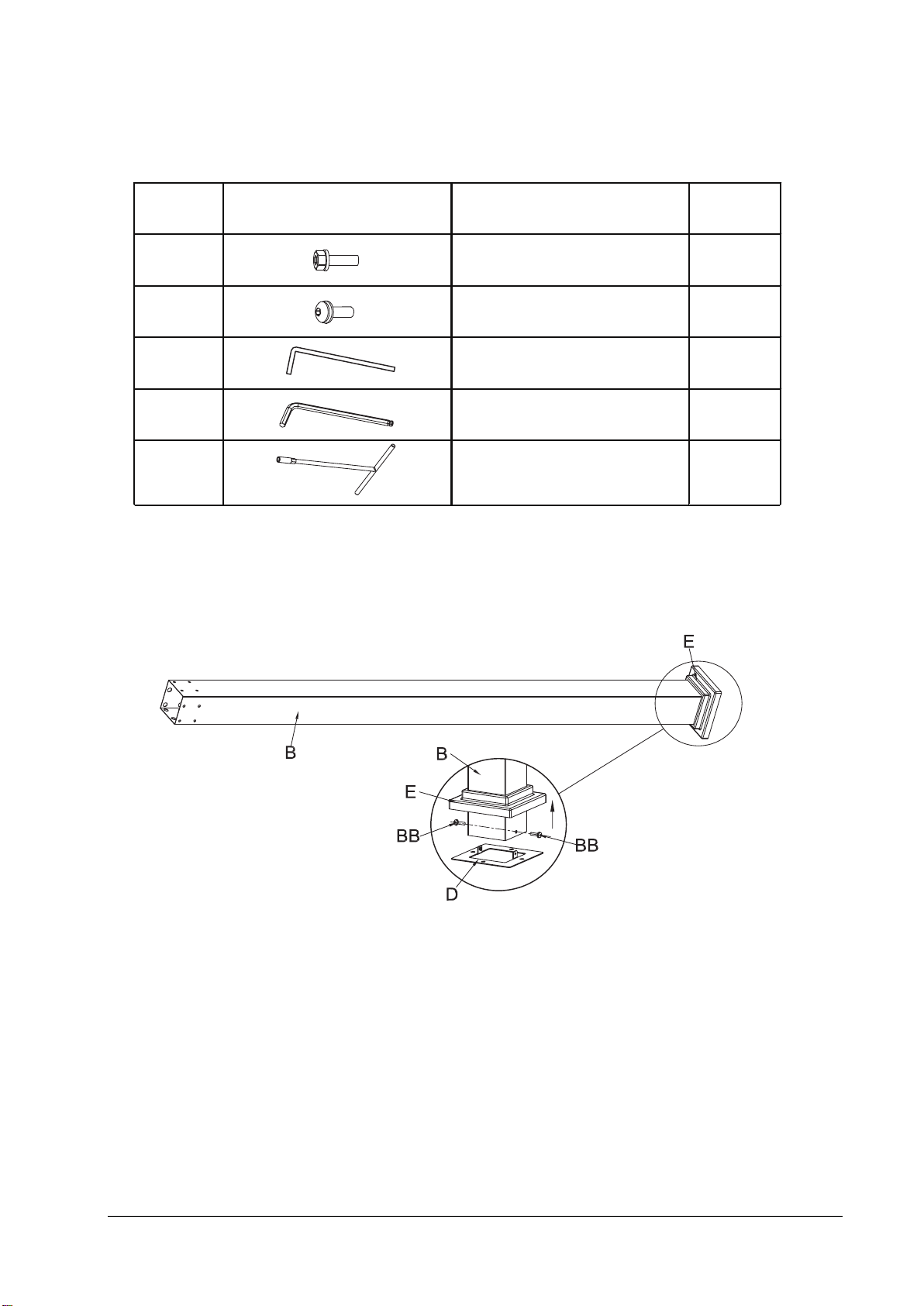

STEP 1
Step 1
- Place the Post (B) on a soft surface.
- Install the Foot Plate Cover (E) to the Post (B).
-Attach the Foot Plate (D) to the Post (B) with M6x15 Bolt & Washer (BB).
- Tighten with Allen Wrench (DD).
- Repeat the same procedure for all Post (B).
PART
NO.
DESCRIPTION QTY
AA M6 x 20 Hex
Bolt & Washer
32+1
BB M6 x 15
Bolt & Washer 48+1
CC 16
DD
EE
Allen Wrench 2
1
Ground Spike
Wrench
NOTE:
Install all bolts by hand loosely threaded BEFORE fully tightening any bolts.
Once all bolts are installed loose
the next step.
ly, then secure the bolts before moving on to
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
6

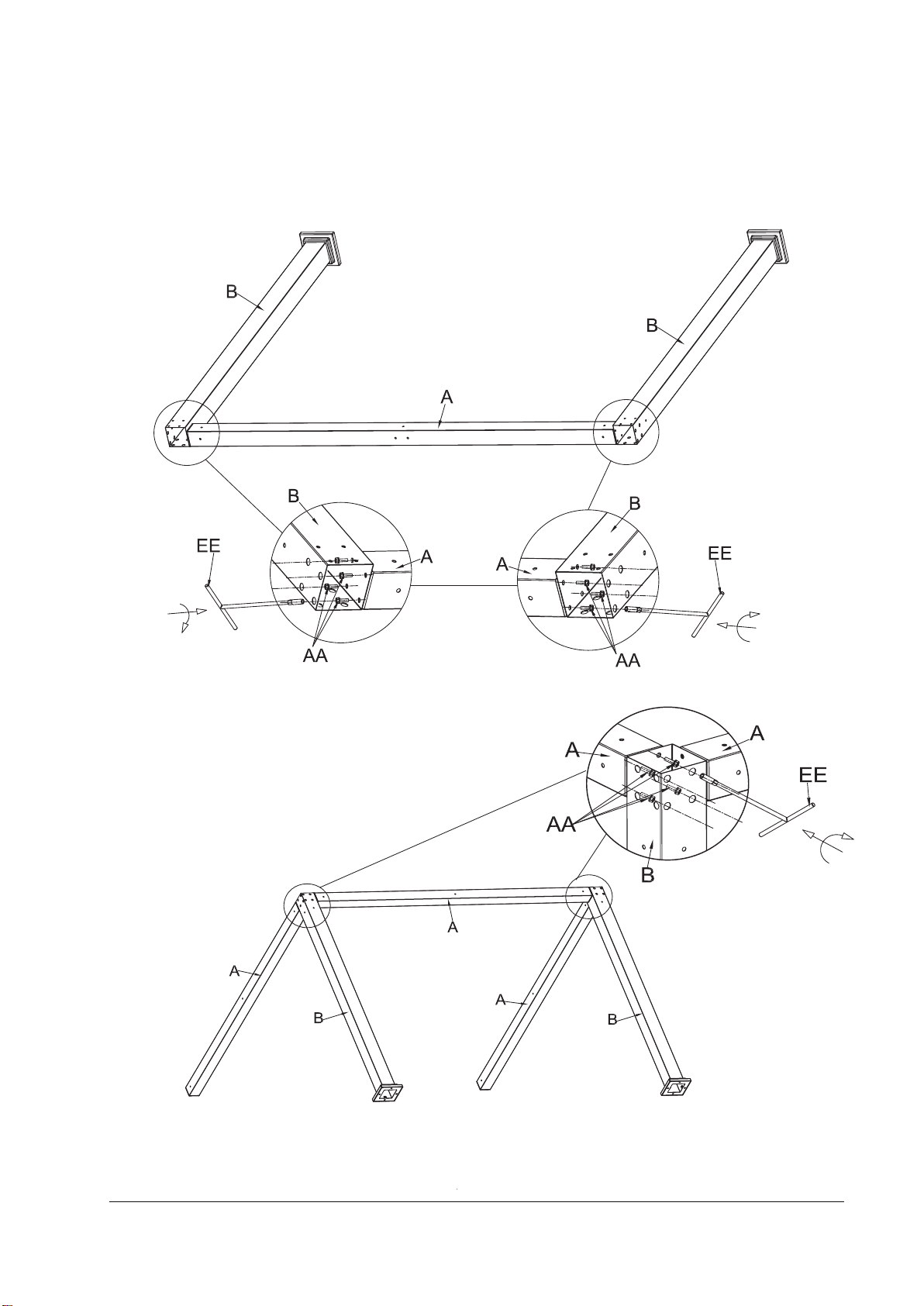

STEP 2
Step 2
- Attach the Post (B) to the Beam (A) with M6x20 Hex Bolt & Washer (AA).
- Completely tighten all bolts with Wrench (EE).
STEP 3
Step 3
- Attach the Beam (A) to the assembled Post (B) and Beam (A) with M6x20 Bolt & Washer (AA)
for both sides as shown in picture.
- Completely tighten all bolts with Wrench (EE).
NOTE:
Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts
are installed loosely, then secure the bolts before moving on to the next step.
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
7
STEP 4
Step 4
- Attach the Connector (F) to the assembled Post (B) and Beam (A) with M6x15 Bolt & Washer (BB) .
- Tighten with Allen Wrench (DD).
STEP 5
Step 5
- Attach the Post (B) to the assembled Beam (A) and Post (B) for both side with M6x20 Bolt & Washer (AA).
- Tighten with Wrench (EE).
NOTE:
Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are
installed loosely, then secure the bolts before moving on to the next step.
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
8
STEP 6
STEP 7
Step 6
- Attach the Connector (F) to the assembled Post (B) and Beam (A) with M6 x 15 Bolt & Washer (BB).
-Tighten with Allen Wrench (DD).
Step 7
- Attach the Plastic Clip (H & I) to the Beam (A) and Connector (F) with M6 x 15 Bolt & Washer (BB).
- Tighten with Allen Wrench (DD).
NOTE:
Install all bolts by hand loosely threaded BEFORE fully tightening any bolts. Once all bolts are
installed loosely, then secure the bolts before moving on to the next step.
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
9

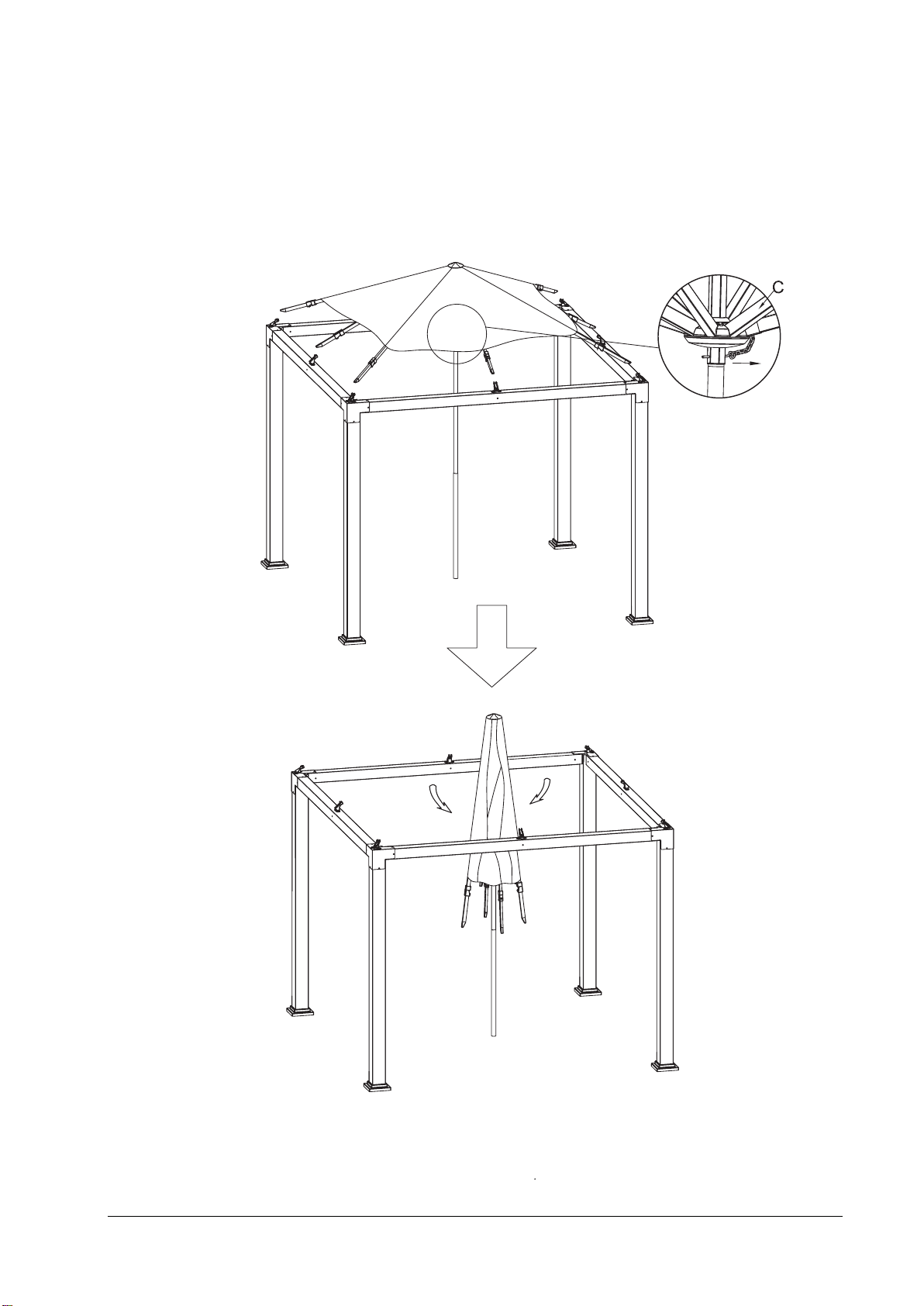

STEP 8
STEP 9
Step 8
- Insert the Umbrella Pole 2 (L) into the Umbrella Pole 1 (K).
- Attach the Umbrella Pole (K& L) into the
Umbrella Frame (C) by turning the Umbrella Pole (K& L)
clockwise until fully tightened.
Step 9
- Place the Umbrella Frame (C & K & L) under the Gazebo.
- Push the umbrella upwards until it reaches to the hole on the top of the Umbrella Frame (C).
- Insert the security pin into the hole on the umbrella frame as shown in the picture.
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
10

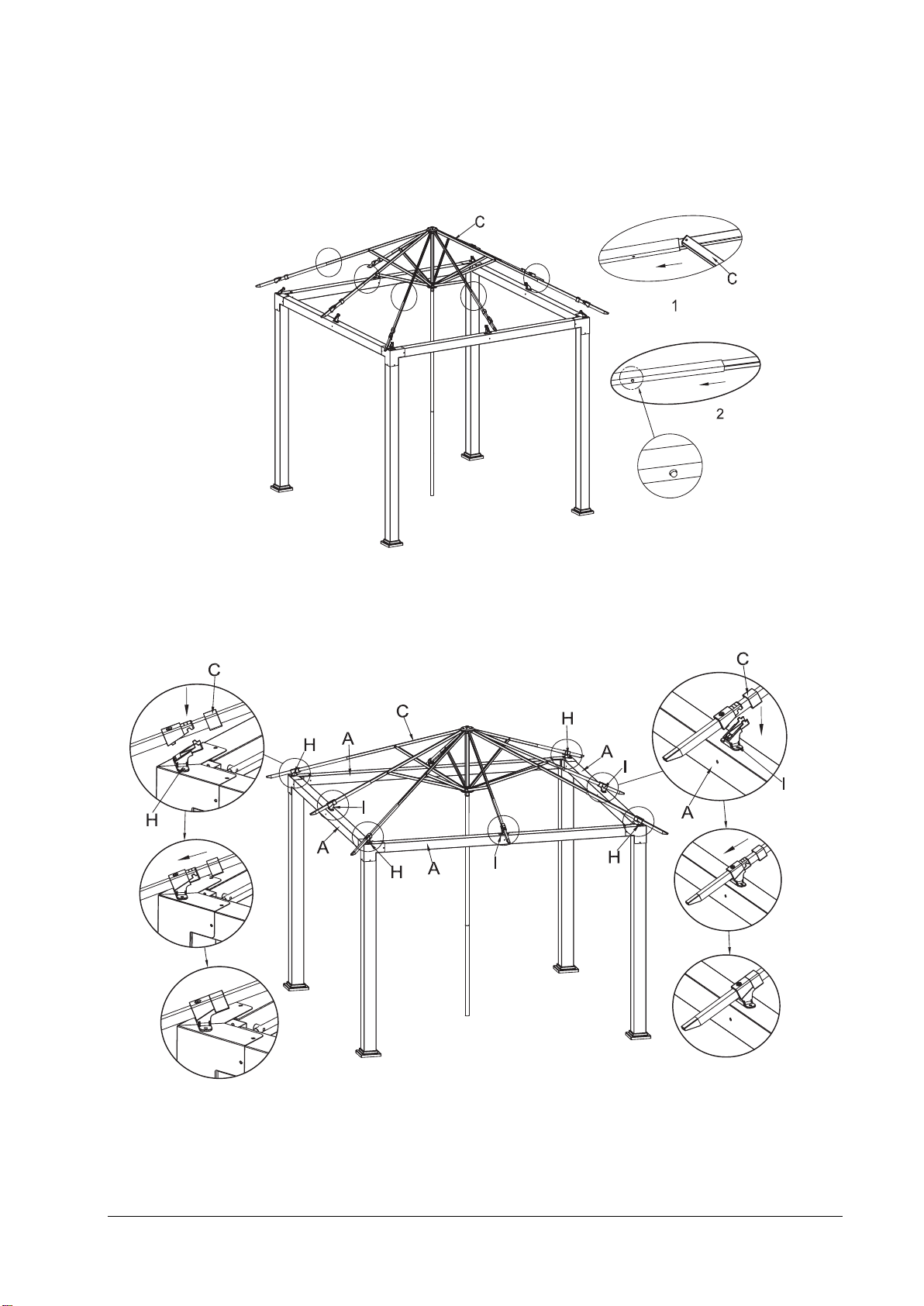

STEP 10
STEP 11
Step 10
- Push the button on the umbrella ribs and stretch the Umbrella ribs
outward to the Plastic Clip (H & I) as shown in the picture.
Step 11
- Bring the plastic clips on the umbrella ribs and Plastic Clips (H & I) together, fix them with
plastic sleeve on the umbrella ribs as shown in the picture.
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
11

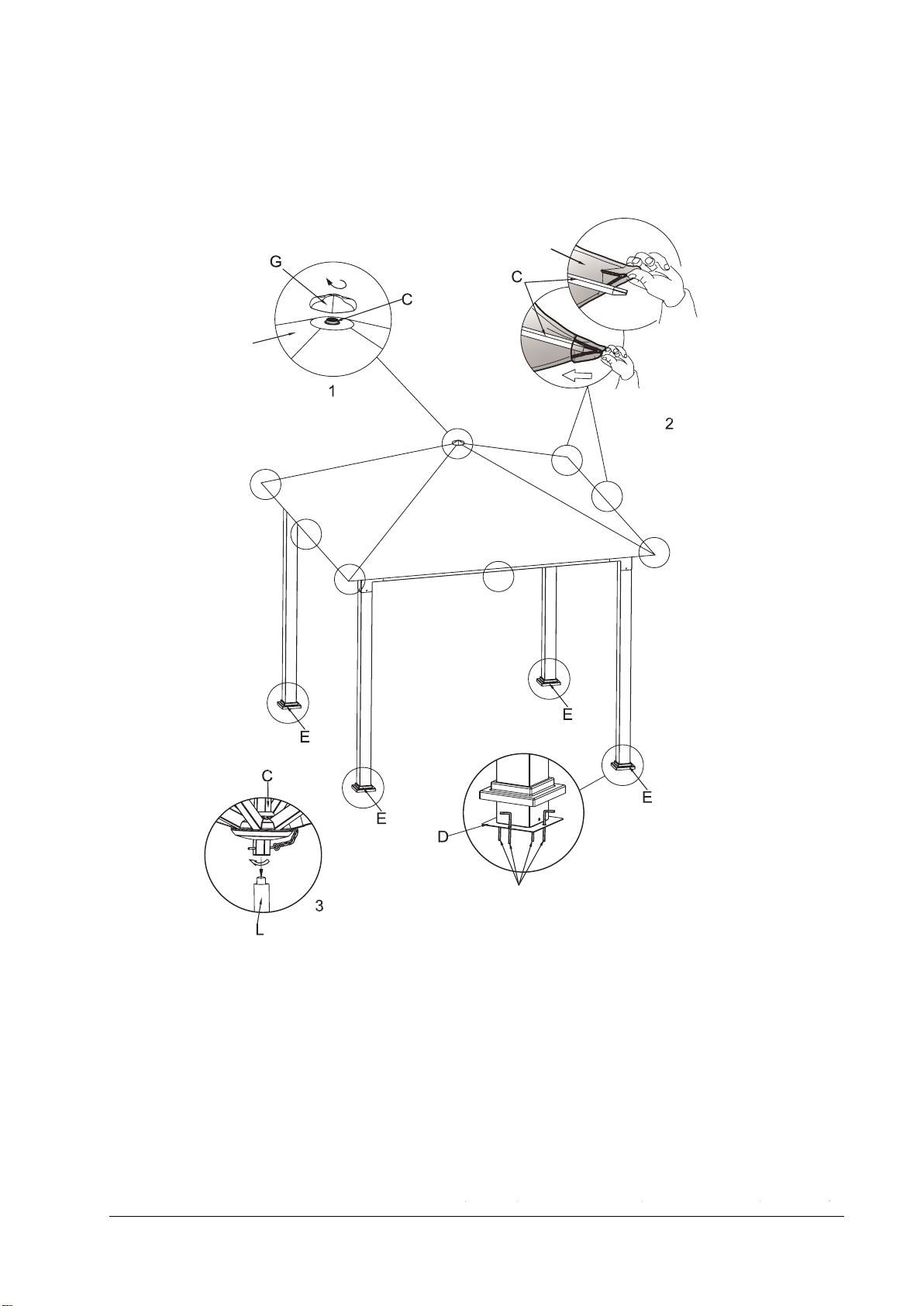

STEP 12
CC
J
Step 12
- Place the Cap (G) on the umbrella top. Fully tighten the Cap (G) in clockwise direction.
- Install the Umbrella Canopy (J) to the Umbrella Frame (C) by fixing the canopy end to the umbrella ribs end.
- Posts should be checked for level and gazebo frame should be checked for squarness before staking it to
the ground.
- Place the Umbrella Canopy (J) on the Umbrella Frame (C).
- Insert the Ground Spikes (CC) into the holes on the Foot Plate (D).
- Completely tighten all bolts with Wrench (EE) and Allen Wrench (DD).
-Make sure all connections are secure.
-Remove the Poles (K & L) by rotating counter-clock wise once the umbrella Frame (C) fixed.
J
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
12
STEP 1
STEP 2
Step 1
- Attach the Umbrella Pole (K& L) into the Umbrella Shade (C) by turning
the Umbrella Pole (K& L) clockwise until fully tightened.
Step 2
- Remove the plastic sleeve on the umbrella ribs upwards as shown in Figure 1 & 3.
- Move the umbrella ribs from the Plastic Clip (H & I) as shown in Figure 2 & 4.
- Push the button on the umbrella rib, then push the umbrella ribs upwards until it reach the short rib
as shown is Figure 5 & 6.
Remove the Umbrella Top
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001

Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at (866) 905 - 4107, 8:30 a.m. - 5:00 p.m. PST/11:30 a.m. - 8:00 p.m., EST, Monday - Friday.
13
STEP 3
Step 3
- Remove the security pin from the hole on the Umbrella Frame (C).
- Pull the umbrella downwards to close the umbrella.
Wal-Mart Assembly Instruction
10 ft. x 10 ft. Umbrella Top Gazebo
Vendor stock No.: BHD128059664001
