Zanussi ZTPTH1 Operator's manual

ZTPTH1 Table Top Patio Heater
Manual & Safety Instructions
WARNING: PLEASE ENSURE YOU HAVE READ THROUGH THE
SAFETY AND OPERATING INSTRUCTIONS BEFORE USE.
PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at zanussiheatingandcooling.uk
Please scan the QR code for step by step video
assembly instructions. Alternatively, you can visit:
zanussiheatingandcooling.uk. From here, please select
the product that you are looking to build and view the
‘How To’ video located at the bottom of the page.

Safety Instructions
3-8
Parts List & Feature Diagram
9
Assembly
10-12
Operating Instructions
13
Maintenance & Care Instructions
14
Troubleshooting
14
Specification
15
Guarantee and Customer Services
16
Notes
17-19
PATIO HEATER
2Revision 1.3

SAFETY INSTRUCTIONS
WARNING: IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Before you start to build and use your patio heater, please read
these instructions thoroughly:
•Please dispose of all plastic bags carefully and keep them
away from children.
•Check all the parts provided against the list in this instruction
manual to make sure you have all of the parts listed. If not,
contact your customer services.
•Take a few moments to familiarize yourself with the contents
and before starting, check all holes are clear of any paint
residue.
•Extra packaging is added to some models for transportation
protection which must be removed before assembly.
•When you are ready to start, make sure that you have plenty
of space and a clean dry area for assembly.
•Using the steps in order and the detailed drawings in the
steps to assemble the outdoor heater.
•Important - Whilst every care is taken in the manufacture of
this product, care must be taken during assembly in case
sharp edges are present.
Please read and follow this advice when assembling your
appliance:
•DO NOT connect the outdoor heater to the electrical supply
until the assembly is complete.
•DO NOT connect the outdoor heater to the electrical supply if
any of the components or power cord is damaged in any
way.
•CAUTION - Risk of Electric Shock. DO NOT open or try to
repair the heater yourself.
3Revision 1.3

SAFETY INSTRUCTIONS
•Please do not use substitute parts. Use only additional or
replacement parts supplied by Zanussi.
•In the unlikely event that this product has missing or
damaged parts, please visit our website
zanussiheatingandcooling.uk
Safety Warnings:
•Warning: This heater is not equipped with a device to
control the room temperature.
•DO NOT use this heater indoors or in small/confined
spaces that are occupied by persons not capable of
leaving on their own, unless constant supervision is
provided.
•Children of less than 3 years should be kept away unless
continuously supervised.
•Children under 8 years shall not plug in, regulate and clean
the appliance or perform user maintenance.
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
of how to use the appliance in a safe way or do not
understand the hazards involved.
•Children should not play with the appliance.
•Cleaning and user maintenance should not be made by
children without supervision.
•Do not use any other tools other than those recommended
to build this product.
•Caution: Some parts of this product can become very hot
and cause burns. Particular attention must be given where
children, vulnerable people and animals are present.
4
WARNING: IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Revision 1.3

•For floor mounted heaters only use the heater on a firm
solid horizontal area where all the feet on the base are in
contact with the floor (Should the heater be tilted or fall
over the auto cut off switch will activate).
•Risk of Electric Shock. DO NOT open or try to repair the
heater yourself.
•Any maintenance or repairs including replacing the tube(s)
should only be carried out by a qualified electrician or by a
qualified service centre.
•Site the heater outside or in a large open area and well
away from any obstructions such as branches or where the
heater is near any objects that can be affected by heat,
such as furniture, curtains or other inflammable objects
(minimum distance 1 metre).
•DO NOT use this heater in the immediate surroundings of a
bath, a shower or a swimming pool. Do not use near water.
•DO NOT use in unventilated areas.
•DO NOT use where gas, petrol, paint or other surely
flammable goods are stored.
•DO NOT push any items through, obstruct or cover the grill
of the heater head.
•DO NOT position immediately above or below an electrical
socket.
•DO NOT move when connected to an electrical supply and
always wait for the patio heater to cool down before
cleaning / storing away.
•DO NOT touch the heater head when in use.
•DO NOT leave turned on and unattended especially when
children and or animals are in the vicinity.
•The indication of the different positions of switches shall
be visible from a distance of 1M.
•The marking concerning covering should be visible after
the heater has been installed. It shall not be placed on the
back of portable heaters
5Revision 1.3

•The unit must be placed with the clearance of 25cm from
side wall and 50cm from anything above.
•The unit must be correctly installed according to the
instructions.
•The unit is at high temperature during operation. It keeps
hot for a period after shut down. Potential danger would
occur when touching it during this period. Unplug the unit
and wait till it cools before cleaning.
•DO NOT place the unit close to curtain and/or other
flammable objects. Otherwise there will be a danger of
catching fire.
•DO NOT cover the unit with anything during operation or a
short time after it is shut down.
•DO NOT wrap the power supply cord on the unit.
•The unit must be handled with care, and avoid vibration or
hitting.
•An apparatus with CLASS I construction shall be
connected to a MAINS socket outlet with a protective
earthing connection.
•DO NOT use if the unit or power cable is damaged.
•DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void your
warranty. The inside of the unit contains no user
serviceable parts. Servicing / Repair should only be
performed by a qualified electrician or qualified service
centre.
•DO NOT use this unit in place where causticity or volatile
air exists, i.e. dust, steam, gas, etc.
•DO NOT use this unit as a cloth drier or towel drier.
•DO NOT use this unit as a sauna heater.
•DO NOT use this unit as a room heater.
•DO NOT use this unit in place of animal propagating and
raising.
6Revision 1.3

•DO NOT immerse this unit into water for cleaning.
•The unit should be plugged in a socket, which is easily
visible and reachable.
•DO NOT use this heater with a programmer, timer or any
other device that switches the heater on automatically,
since a fire risk exists if the heater is covered or positioned
incorrectly.
•Children should be supervised to ensure that they do not
play with the appliance.
•When assembling, keep clear from any board or flammable
material.
•DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the heater.
•The unit is for household use only. It is not safe to use on a
building site, greenhouse, barn or stable where there’s
flammable dust.
•Use only for intended household use as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to
persons. The use of attachments not recommended or
sold by unauthorized dealers may cause hazards.
•Avoid the use of an extension cord because the extension
cord may overheat and cause a risk of fire. However, if you
must use an extension cord, the cord shall be rated to 13A
(Minimum conductor size 1.5mm2) and if the cord is on a
reel it must be fully unwound before use.
•Disconnect the power cable from the electrical supply
when the heater is not in use. If the power cord becomes
damaged, it must be replaced by a qualified electrician.
7Revision 1.3

•One dark point may exist on the surface of the heating
elements during the first few minutes after it is turned on.
This is normal, and will not affect the performance of the
unit.
•To avoid fire or shock hazard, plug the unit directly into a 220-
240V and 13A electrical socket outlet
•WARNING! These appliances must be earthed. Before
installing or replacing the bulb, the appliance must be
disconnected from the 220-240V mains supply.
•Generally the heater must be placed at a safe distance (clear
space) of at least 2.0m from combustible materials and glass
walls. If installed near where inflammable or combustible
paints are used, the heater must be installed at a distance of
at least 4.0m from the source of danger.
•If the heater is placed in areas where spray painting of any
description is taking place, it should not be used during the
painting operations.
•Never use the heater in particularly dusty and explosive
areas.
IMPORTANT NOTE:
Tip Over Switch
•This appliance is fitted with an internal tip over switch, this
means if the unit is tilted more than 45 degrees the unit will
automatically turn off.
•This is a safety feature and is designed to prevent damage, fire
and personal injury.
•If the unit is put back in the upright position the unit will
automatically turn on and will operate as normal.
8Revision 1.3

WHAT’S INCLUDED?
Here’s everything you need
9
1
3
4
2
5
1. Heater head
2. Pull cord switch
3. Pole
4. Weighted base
5. Cable clip
6. 2 x Screws (Φ3.5*14)
You will also need (not included):
Phillips head
screwdriver
6
Revision 1.3

ASSEMBLY
STEP 1

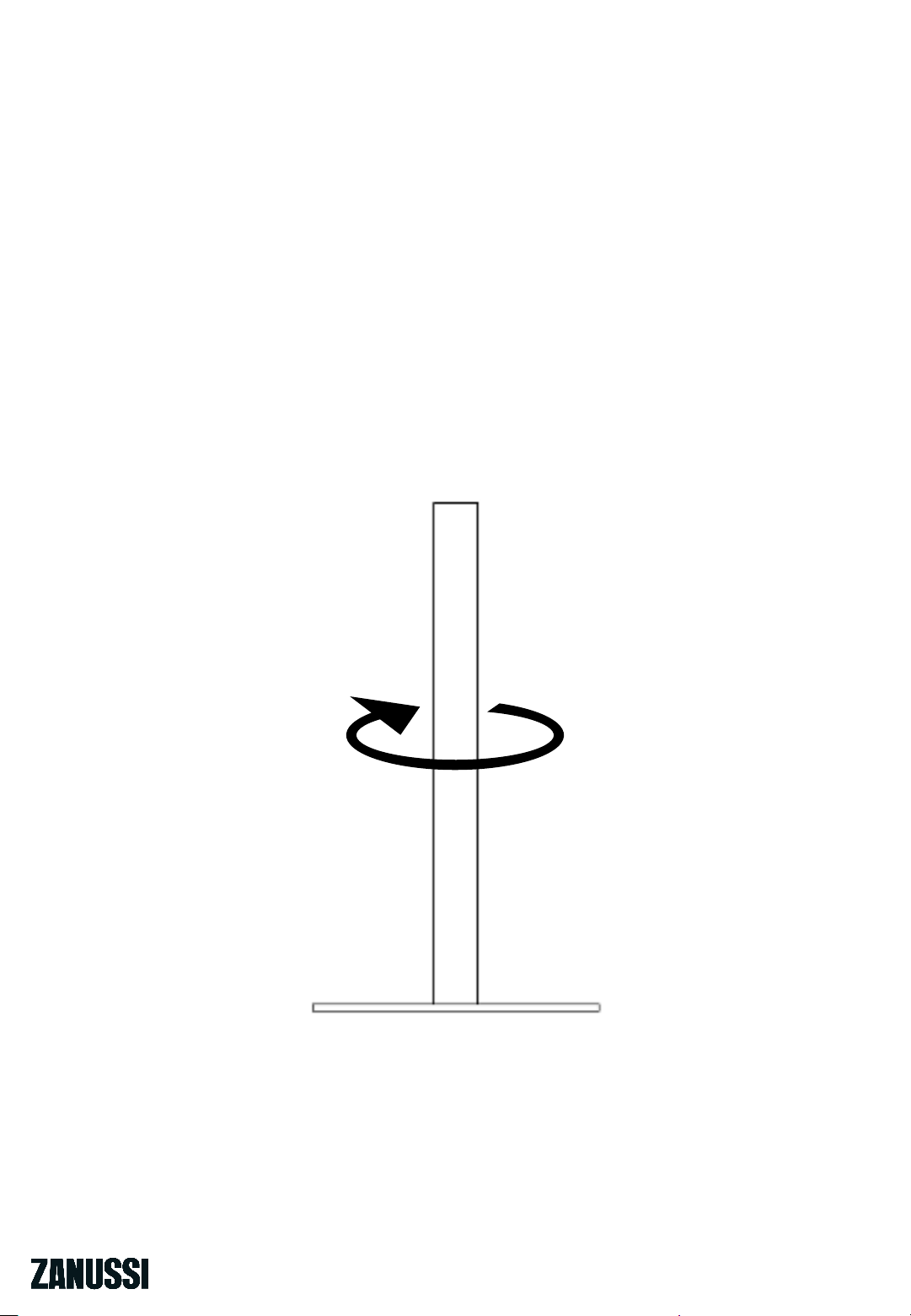

•Fix the tube onto the weighted base by screwing in
the direction shown below.
10 Revision 1.3

ASSEMBLY
STEP 2

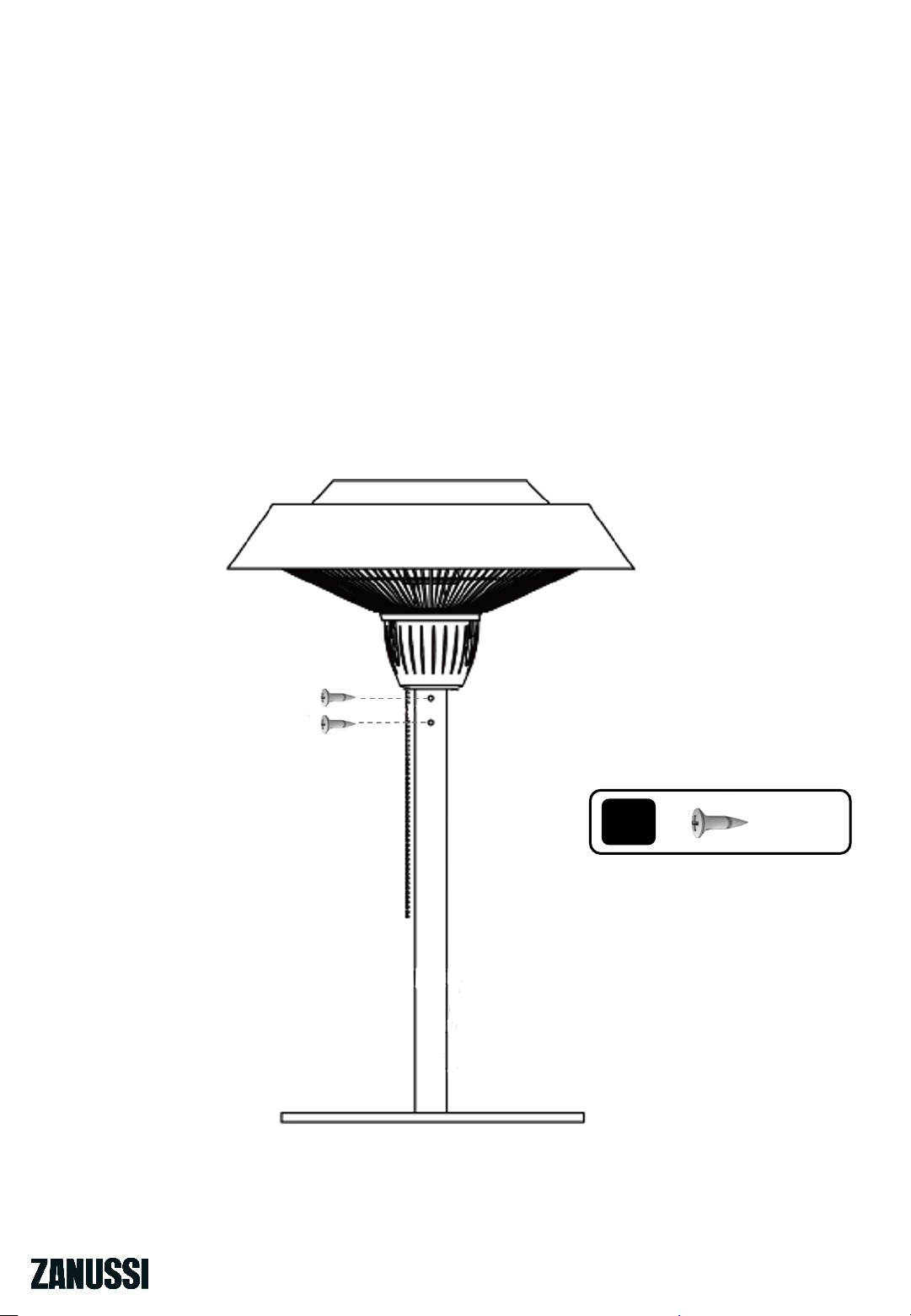

•Place the heater head on top of the tube, making
sure to align the screw holes on the heater body
to the holes on the tube.
•Secure them together using the 2 Φ3.5*14
screws provided and a Phillips head screwdriver.
11
62 PCS
Revision 1.3

ASSEMBLY
STEP 3

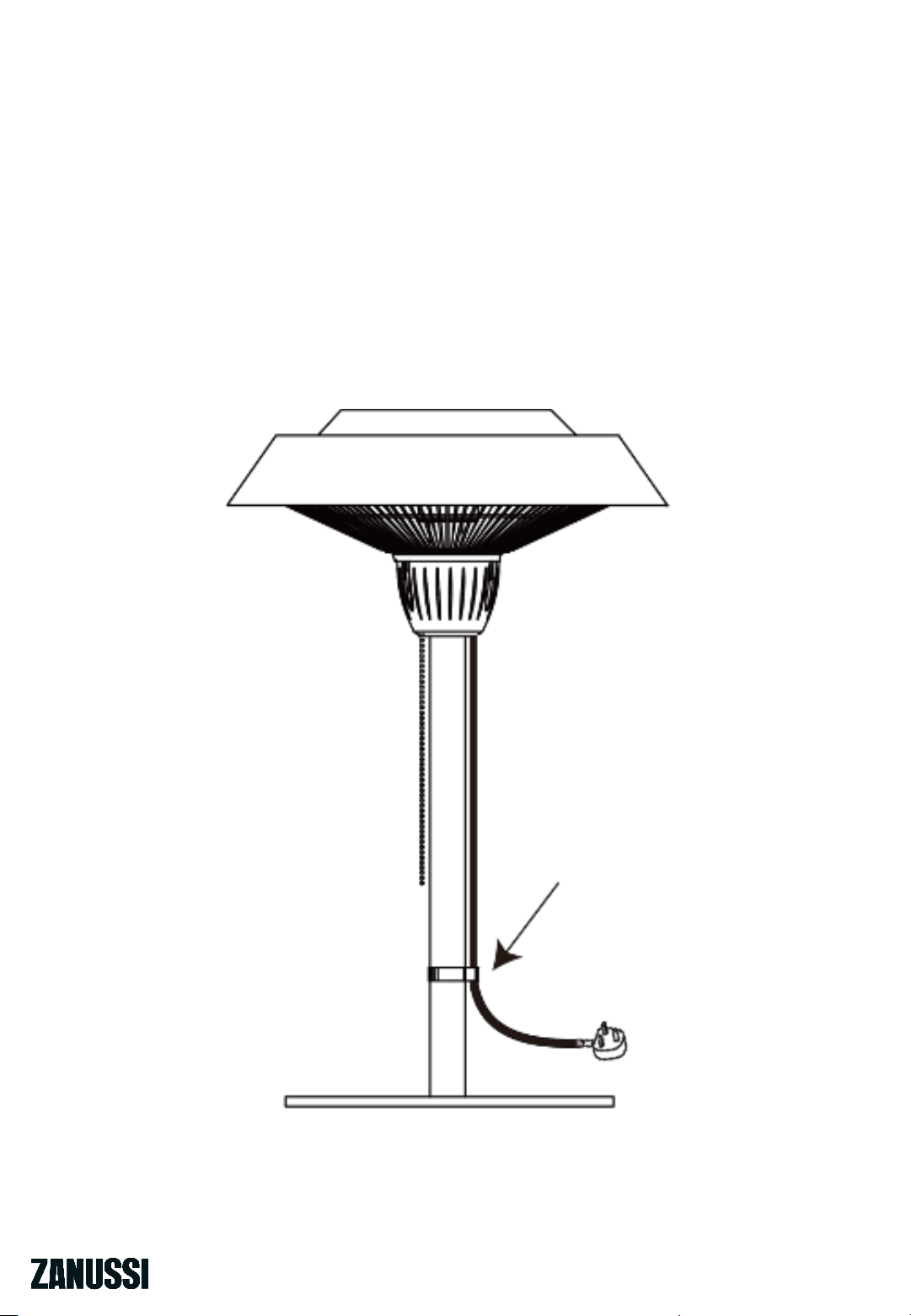

•Attach the cable clip onto the pole, then
secure the cable to the clip as shown in the
diagram below.
12 Revision 1.3

OPERATING INSTRUCTIONS
•Connect the power cable to a 220-240V, 13 amp supply
that is located in a safe, dry area.
•The heater must be properly installed before it is used.
•Only operate the heater when it is in the upright position.
•This unit is equipped with one heat setting: On IOff.
•Pull the pull cord switch once to turn on the patio heater.
•Pull the pull cord switch again to turn the patio heater
off.
•WARNING: Although the patio heater is shower proof, do
not use when raining or in wet conditions.
•WARNING: Always disconnect the power cable from the
electrical supply when the patio heater is not in use.
13

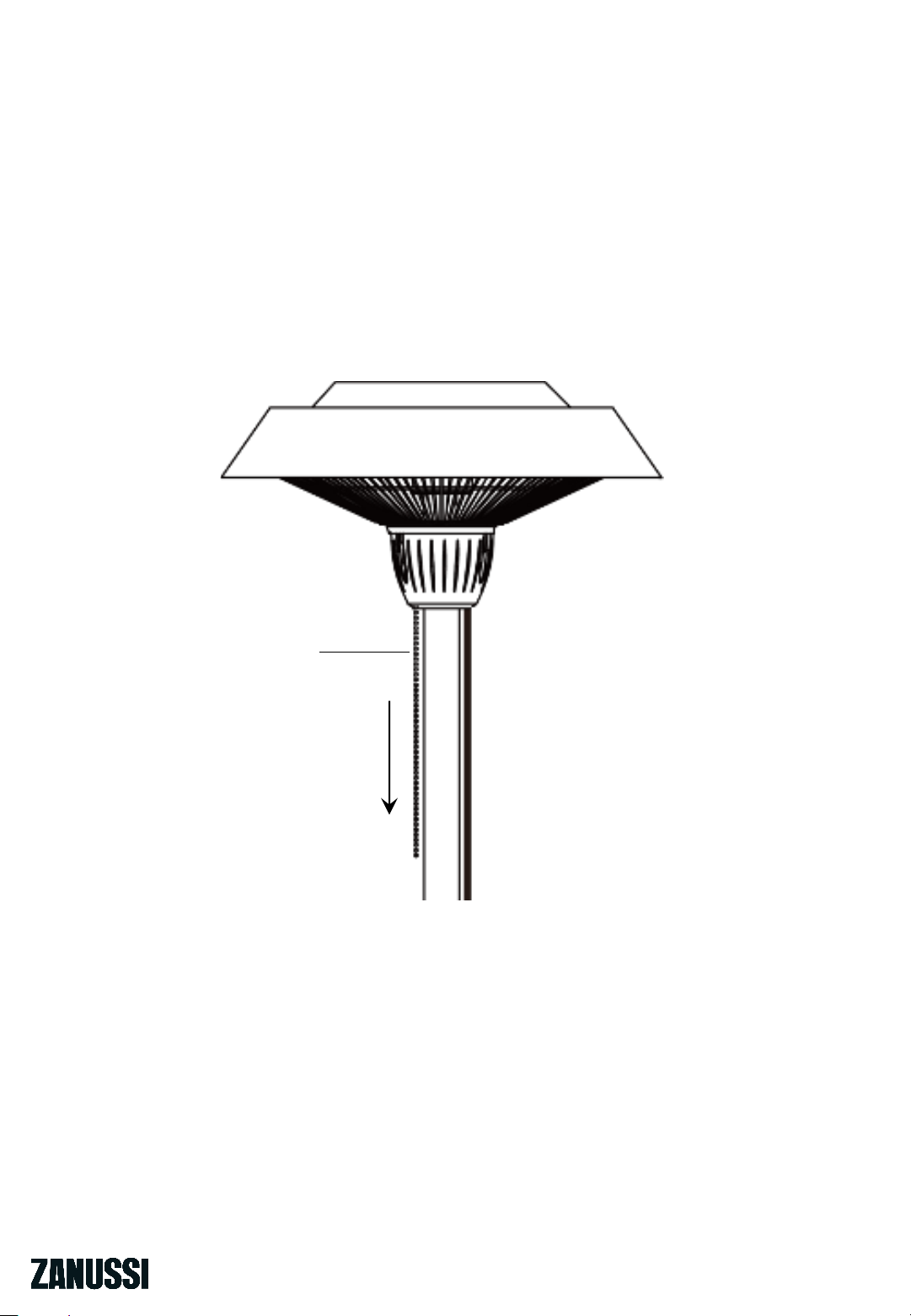

Pull Cord
Switch
Revision 1.3

•Unplug the unit and let it cool completely.
•When disconnected from the electrical supply, clean
the outside of the patio heater with a damp cloth.
Never use corrosive or solvent cleaners or immerse
in water.
•Any maintenance or repairs including replacing the
halogen tube should only be carried out by a
qualified electrician or by a qualified service centre.
Storage
•If the heater will not be used for a long period of
time, store it in a cool, dry location when not in use.
To prevent dust and dirt build-up, use the original
packaging to repack the unit
MAINTAINANCE & CARE INSTRUCTIONS
WARNING: Ensure the appliance is cold before storing.
14
PROBLEM
POSSIBLE CAUSE/SOLUTION
Heater will not
operate
•
Check if the power cord is plugged
into an electrical outlet, if not plug in
•
Check if electricity to the main fuse
is working.
•Make certain the power switches are
turned on. If not, choose a setting
•
Try another mains socket.
TROUBLESHOOTING
If the heater will not operate, please check the following
before seeking repair of service:
Revision 1.3

SPECIFICATION
15
Power supply: 220-240V, 50-60Hz
Wattage: 1500W (max)
Insulation class: I
IP rating IP44
Dimensions (CMs) 69(H) x 42.5(W) x 42.5(D)
Revision 1.3

This product is guaranteed for 12 months from the
date of the original purchase. If any defect arises due
to faulty materials or workmanship, the faulty product
must be returned to the place of purchase.
Refund or replacement is at the discretion of the
retailer.
The following conditions apply:
•The product must be returned to the retailer with
the original proof of purchase.
•The product must be installed and used in
accordance with the instructions contained in this
instruction guide and any other instructions for use
which are supplied.
•It must be used for domestic purposes only and for
its intended use.
•This guarantee does not cover wear and tear,
damage, misuse or consumable parts.
This does not affect your statutory rights.
For Customer Services & Spare Parts please call: 0330 1230 597
Or visit us at zanussiheatingandcooling.uk
GUARANTEE AND CUSTOMER SERVICES
16 Revision 1.3

This page is intentionally blank.
NOTES
17 Revision 1.3

This page is intentionally blank.
NOTES
18 Revision 1.3

This page is intentionally blank.
NOTES
19 Revision 1.3

ZANUSSI is a registered trademark used under license from AB
Electrolux (publ). Made by Product Care Trading Limited, Wigan, WN2
4AY/ PCT (NI) Ltd, Belfast, BT5 5AD.
For Customer Services & Spare Parts please call: 0330 1230 597
Or visit us at zanussiheatingandcooling.uk
The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie
bin Symbol'. When this symbol is marked on a product/batteries,
it means that the product/batteries should not be disposed of
with your general household waste. Only discard electrical/
electronic/battery items in separate collection schemes, which
cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these
schemes and for the protection of the environment. For your
nearest disposal facility, visit www.recycle-more.co.uk or ask in
store for details.
SEDEX –Connecting businesses and their global suppliers to
share ethical data and enabling improvement in ethical
performance. Visit www.sedex.org.uk for further information.
We reserve the right, due to possible changes to design, to alter
the instruction manual without prior notice.
20 Revision 1.3
