ZERO-X nova ZX-NVA User manual

DRONE USER MANUAL
PRODUCT CODE: ZX-NVA
www.zero-x.com.au • www.zero-x.co.nz
••• NOVA •••
v2

1 Welcome ........................................................................................................... 4
Before you get up in the air................................................................................. 4
General Safety.................................................................................................... 4
Battery Safety..................................................................................................... 5
2 Introduction....................................................................................................6
2.1 Package Contents........................................................................................ 6
Fig 2.1.1................................................................................................. 6
2.2 Product Overview ......................................................................................... 7
Nova ............................................................................................................ 7
Fig 2.2.1................................................................................................. 7
Fig 2.2.2................................................................................................. 7
Remote Control ............................................................................................ 7
Fig 2.2.3................................................................................................. 7
Remote Control LCD Screen ........................................................................ 8
Fig 2.2.4................................................................................................. 8
3 Setting up you Zero-X Nova Drone...............................................................8
3.1 Charging the Battery..................................................................................... 8

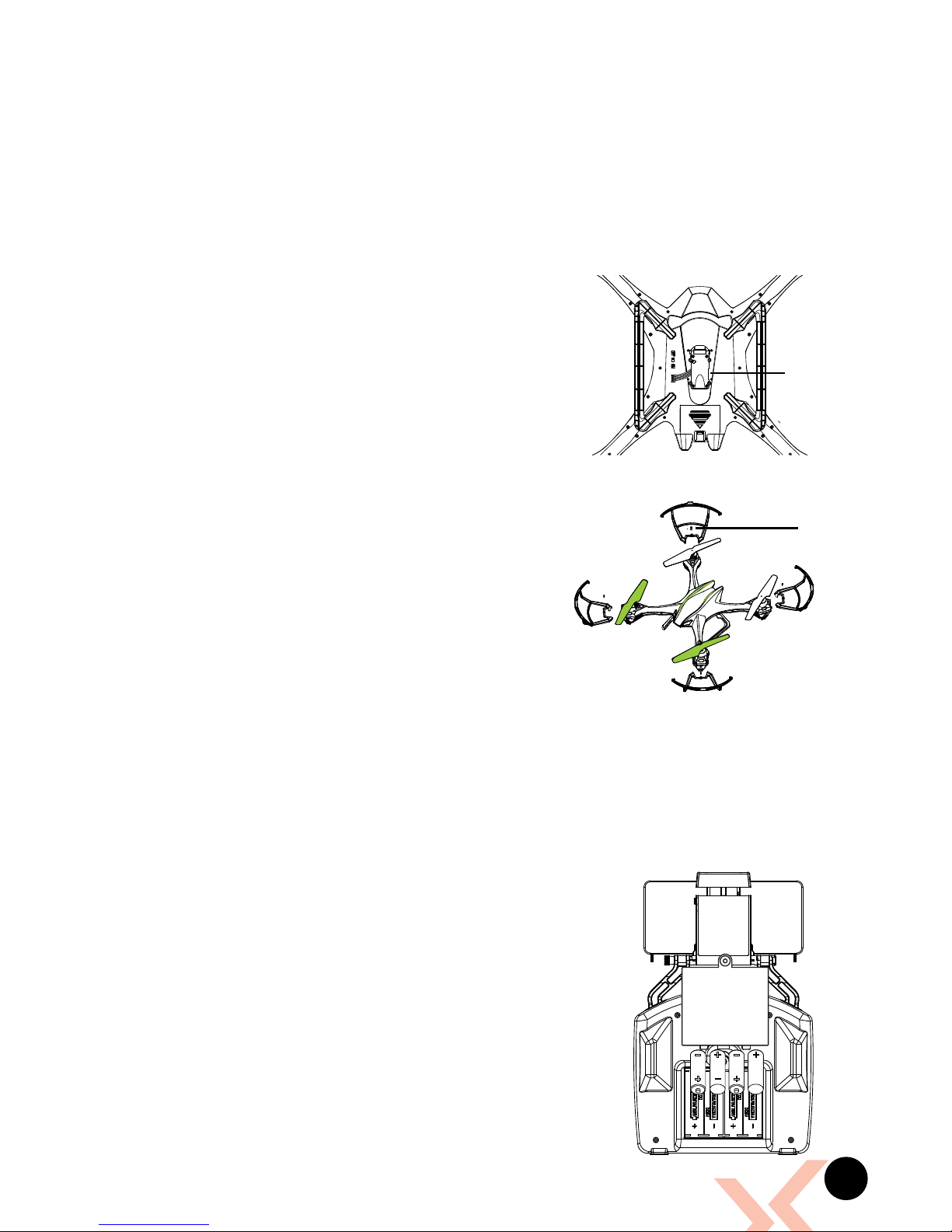

3.2 Installing the Nova Battery ............................................................................ 8
3.3 Camera ........................................................................................................ 9
3.4 Installing a Micro SD Card (Micro SD Card not included) ......................................... 9
Fig 3.4.1................................................................................................. 9
3.5 Installing/Removing Rotor Guards................................................................. 9
Fig 3.5.1................................................................................................. 9
3.6 Remote Control ............................................................................................ 9
Fig 3.6.1................................................................................................. 9
4 Flight Safety.................................................................................................10

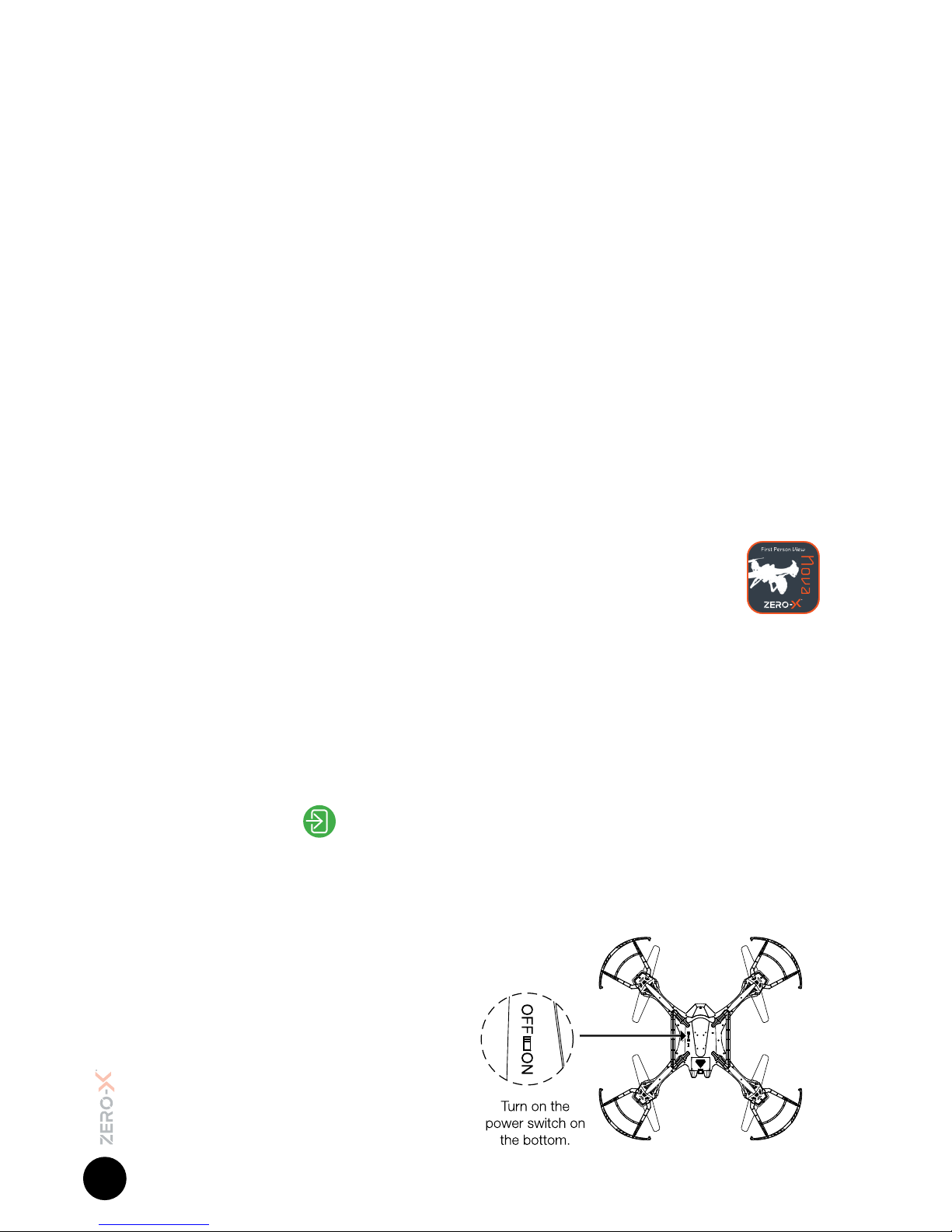

4.1 WiFi Connection & App Set Up................................................................10
4.2 Flying your Nova .................................................................................10-11
Fig 4.2.1 ............................................................................................10
Fig 4.2.2 ............................................................................................11
Fig 4.2.3 ............................................................................................11
Fig 4.2.4 ............................................................................................11
4.3 Trouble Shooting ................................................................................... 11-12
4.4 App Navigation...................................................................................... 12-13
Fig 4.4.1............................................................................................... 11

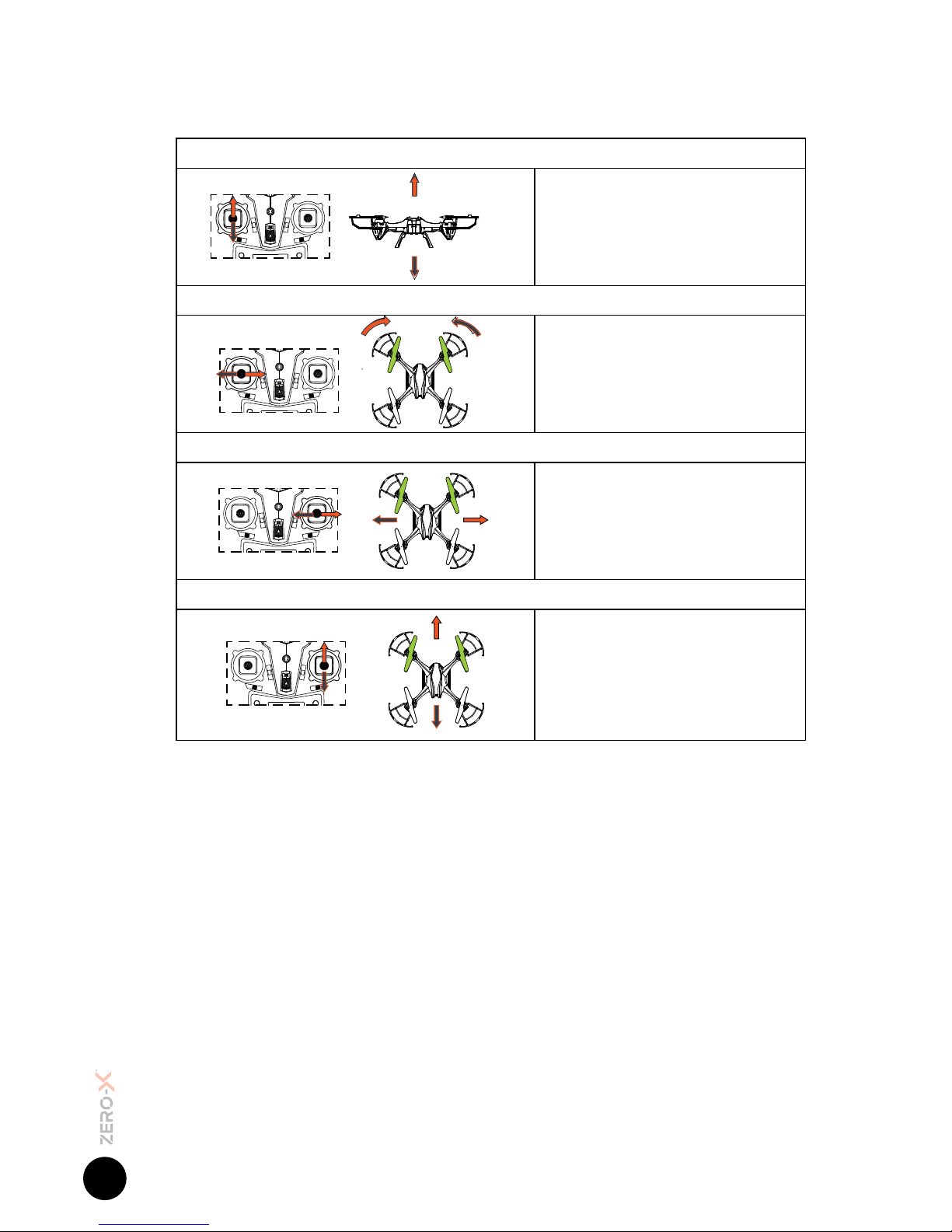

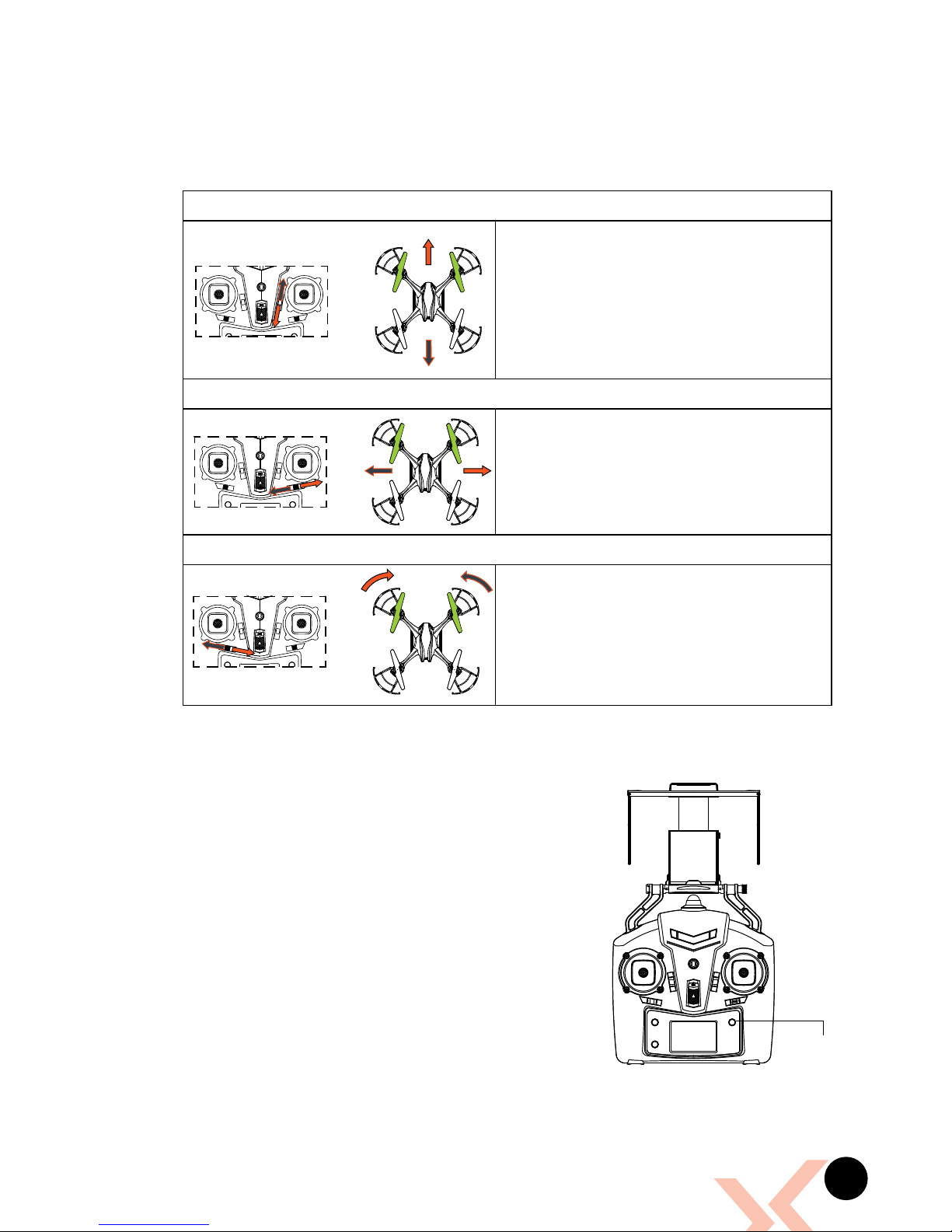

4.5 Controlling your Nova ................................................................................. 14
Basic Controls ............................................................................................ 14
Fig 4.5.1............................................................................................... 14
4.6 Speed Modes............................................................................................. 14
Low Speed................................................................................................. 14
High Speed ................................................................................................ 14

4.7 Trimming .................................................................................................... 15
Fig 4.7.1............................................................................................... 15
4.8 Flipping and Stunt Mode............................................................................. 15
Fig 4.8.1............................................................................................... 15
4.9 Using Diirectional Lock ............................................................................... 16
To Activate Directional Lock........................................................................ 16
4.10 Camera .................................................................................................... 16
Shooting Video ........................................................................................... 16
Shooting Photos......................................................................................... 16
5 Maintenace ..................................................................................................17
5.1 Cleaning .................................................................................................... 17

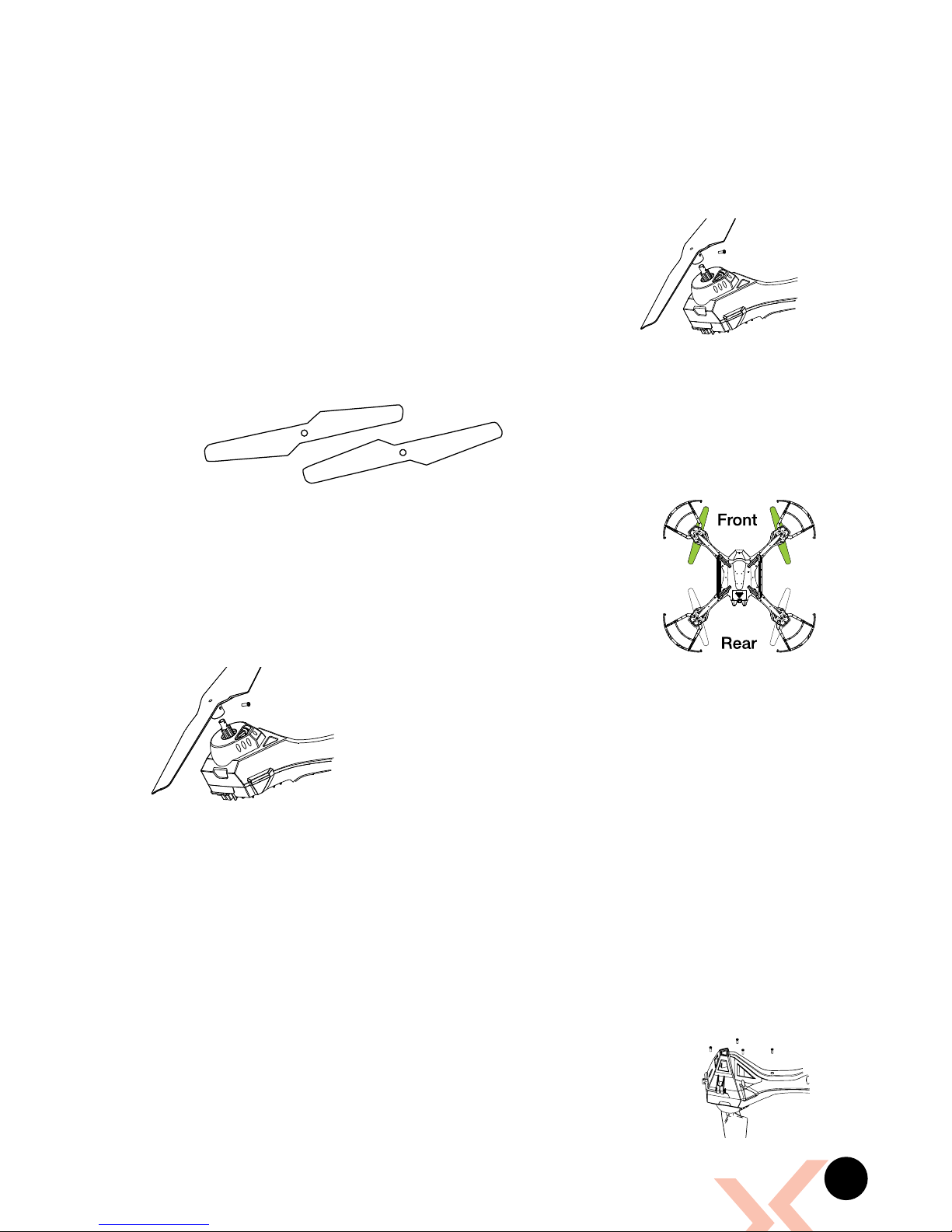

5.2 Rotor Blade Replacement........................................................................... 17
Fig 5.2.1............................................................................................... 17
Fig 5.2.2............................................................................................... 17
Fig 5.2.3............................................................................................... 17
Fig 5.2.4............................................................................................... 17
5.3 Motor Replacement Guide.......................................................................... 17
5.4 Rotor Blade Replacement...................................................................... 17-18
Fig 5.4.1............................................................................................... 17
Fig 5.4.2............................................................................................... 18
Fig 5.4.3............................................................................................... 18
Fig 5.4.4............................................................................................... 18
Fig 5.4.5............................................................................................... 18
Fig 5.4.6............................................................................................... 18
Fig 5.4.7............................................................................................... 18
Fig 5.4.8............................................................................................... 18
Fig 5.4.9............................................................................................... 18
6 Parts and Accesssories...............................................................................19
7 Specifications ..............................................................................................19
8 Warranty.......................................................................................................20

4
1. WELCOME
Thanks for purchasing a Zero-X Nova, get ready to have the time of your life!
We’re sure your Zero-X Nova will bring you a world of great experiences in the
air.
Please take the time to read the following safety warnings and operating
instructions carefully.
BEFORE YOU GET UP IN THE AIR
Connect the Nova battery to the included USB charging cable and insert the
USB charging cable into the supplied USB wall charger. While the battery is
charging the LED on the charging cable will glow red. Once charging is complete
the light will glow green. While the battery is charging take the time to read the
instructions and familiarise yourself with the controls of your Zero-X Nova.
GENERAL SAFETY
Please familiarise yourself with your local legislation regarding drone usage
before you begin using your Zero-X Nova.
Included in the package contents of your Zero-X Nova are the Australian CASA
guidelines, please carefully read and understand this information as operating
a drone outside of these guidelines may result in legal issues. Zero-X takes no
responsibility for operation of this product outside of what is legally permissible
in your local area.
• Do not fly your Nova any closer than 30 metres from people, animals or
buildings and check to make sure you are no closer than 5.5 kilometres from
any airfields or airports.
For more information on CASA’s Australian legislation visit:
http://www.casa.gov.au/ For information outside Australia please visit the
website of your local aviation authority.
• Do not attempt to modify the Nova or any of its components in any way, doing
so will void your warranty and may affect the operation of the drone.
• Do not use the Nova in any conditions that could affect, damage or impair your
view of the Nova including rain, wind, snow, fog or low light.
• Avoid getting your Nova wet, dusty, or sandy. These elements will damage the
components of your Nova.
• Please pay attention to the indication of low battery to avoid damage to your
Nova or your surroundings.
• Please do not attempt to touch the Nova when the Remote Control is powered
on or if the rotor blades are turning.
• When flying your Nova, please keep in mind the privacy of others.

IMPORTANT INFORMATION - PLEASE READ BEFORE USE
BATTERY SAFETY
When handled incorrectly, Lithium polymer batteries can be dangerous and
can potentially harm and do damage to persons or property. Zero-X does
not accept any liability of damage to persons or property if the battery is not
correctly charged, stored or protected.
• Always unwind all cables before charging.
• Do not over charge the battery. Once the charging process is completed,
remove the battery from the charger as soon as possible.
• Only use the included, or replacement Zero-X Nova compatible chargers
and batteries.
• You must charge the Lithium polymer battery in a safe area away from
flammable materials.
• The battery is only to be charged under adult supervision, do not
leave charging batteries unattended. You should always remain in constant
observation to monitor the charging process and react immediately to any
potential problems that may occur.
• Do not charge the battery in temperatures hotter than 40°C or colder than
0°C.
• Do not cover the batteries when charging. Do not leave batteries in direct
sunlight.
• After each flight & or crash, please check battery for any damage or swelling.
• If the battery is damaged, leaking, making noise, punctured or malformed
in any way DO NOT attempt to use it. Please dispose of the battery
immediately and safely in the correct manner.
• Do not bend, puncture, crush or scratch the drone’s battery. Do not store
batteries in your pockets, on your person or in extreme temperatures.
• After flying/discharging the battery you must allow it to cool to ambient/
room temperature before recharging.
• If at any time during the charge or discharge process the battery begins to
balloon or swell, discontinue charging or discharging immediately. Quickly
and safely disconnect the battery, then place it in a safe, open area away
from flammable materials to observe it for at least 15 minutes. Continuing to
charge or discharge a battery that has begun to balloon or swell can result
in a fire. A battery that has ballooned or swollen even a small amount must
be removed from service completely.
• Never plug in a battery and leave it to charge unattended overnight.
• Non-compliance with the above warnings may result in the failure of the
battery.
5

6
2. INTRODUCTION

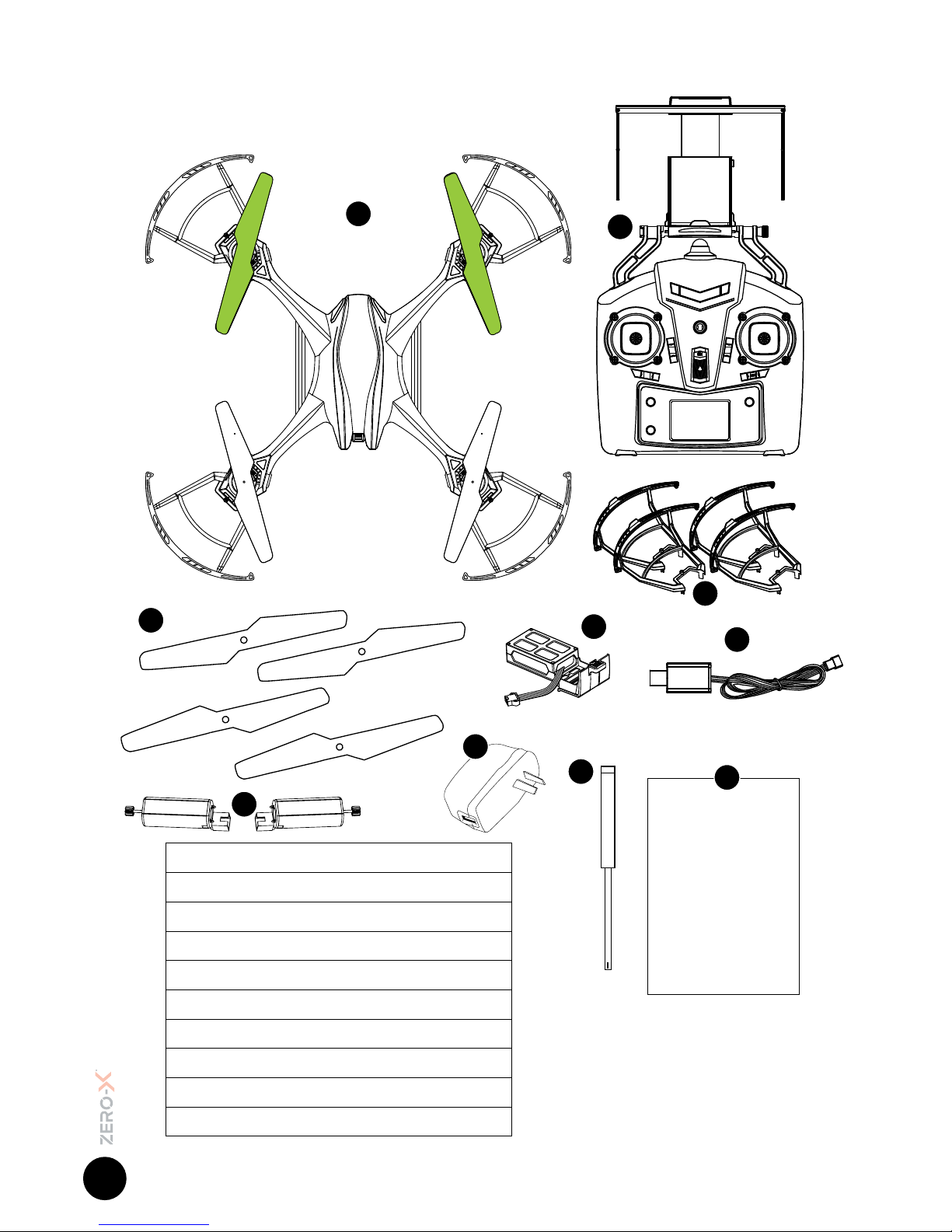

2.1 PACKAGE CONTENTS
2
7
8
1
4
5
3
6
9
1. Nova
2. Remote Control
3. Spare Rotor Blades
4. Spare Motors
5. Drone Battery
6. Drone Charger
7. Rotor Guards
8. Manual
9. Screwdriver
10. USB Wall Charger *Fig 2.1.1
10

7
2.2 PRODUCT OVERVIEW
NOVA DIAGRAM
85
3
6
6
7 7
6
6
4
Under Side
View
1 1
2 2
Top View
REMOTE CONTROL DIAGRAM
1
45
6
7
89
10
11
23
* Micro SD Card not included
1. Front Rotor Blades
2. Rear Rotor Blades
*Fig 2.2.1 *Fig 2.2.2
*Fig 2.2.3
3. Battery
4. Camera
5. Micro SD Card Slot*
6. LED Lights
7. Feet
8. Power Switch
1. Power Switch
2. Left Thumbstick (Acceleration/Yaw)
3. Right Thumbstick (Pitch/Roll)
4. Yaw Trim Controller
5. Roll Trim Controller
6. Pitch Trim Controller
7. View Button
8. Directional Lock Button
9. Flip Button
10. Power Indicator
11. LCD Screen

8
*Fig 2.2.4
REMOTE CONTROL LCD SCREEN DIAGRAM
2 3
1 7 86
4
5
1. Connection Strength
2. Yaw Trim Balance
3. Roll Trim Balance
4. Pitch Trim Balance
5. Acceleration
6. Light Indicator
7. Speed Mode
8. Battery
3. SETTING UP YOUR ZERO-X NOVA
3.1 CHARGING THE BATTERY
PLEASE NOTE: YOUR ZERO-X DRONE COMES WITH A CERTIFIED ZERO-X USB
AC CHARGING ADAPTER FOR 240v CHARGING OF YOUR DRONE BATTERY.
USE OF A NON ZERO-X CERTIFIED USB AC CHARGING ADAPTER WILL VOID
YOUR WARRANTY AND MAY DAMAGE BOTH YOUR BATTERY AND DRONE.
Fully unwind the included USB charging cable and plug the USB end into the
included Zero-X Certified USB AC charging adapter.
When connected to a charging source the LED light in the charger will glow
green. Connect the drone battery to the charging cable and the light will turn
red indicating charging is in process. The LED on the USB charging cable will
begin to glow green again once charging is complete. To keep the battery life
as long as possible avoid removing the battery from the charging cable before
charging is complete. If you have just finished flying your Nova drone, please
allow the battery to cool down for at least 30 minutes before recharging.
• When the Nova battery has finished charging it is advised that the battery is
removed from the charger as soon as possible. Overcharging will damage
the battery and effect the flight time.
• The Nova battery can take up to 90 minutes to fully charge. If the battery has
been on charge for any longer than 2 hours and the indicator on the charging
cable is not showing that the battery is charged please remove the battery
from the charger.
• When connecting the USB cable with the battery, make sure to follow the
guides on the battery connector as these are designed to only be inserted in
one direction. Forcing the connection in the incorrect direction, may cause
damage to the battery and charging cable.
• When flying the Nova, low battery will be indicated when the remote control
starts beeping and the lights on the Nova start flashing.
3.2 INSTALLING THE NOVA BATTERY
• Ensure that the Nova’s power switch (Refer to Fig 2.2.2 on page 7 - number 8) is
in the OFF position.
• Connect the battery cable to the Nova’s power cable ensure that the plug is
inserted in the correct orientation.
• Tuck the cable into the battery opening.
• Insert the fully charged battery with the charging wires facing outwards.
• Close the battery hatch making sure the battery drawer clicks into place.

9
3.3 CAMERA
The camera on the Nova should already be connected. It is advised that this
camera is not removed and reconnected as this can potentially damage the
camera connection.
If it is necessary to plug these cables in make sure that the plugs are facing
the correct way as plugging these in incorrectly could permanently damage
the connection pins on the Nova.
3.4 INSTALLING A MICRO SD CARD
• With the Nova upside down and facing
away from you, insert the Micro SD Card (Micro
SD Card not included) into the side of the camera
ensuring that the text side of the Micro SD Card
is facing up.
• Gently press the card in until you hear the lock
click into place.
3.5 INSTALLING/REMOVING ROTOR GUARDS
• Rotor Guards are an optional fitting on
the Nova, however for safety reasons
we strongly advise you to attach them.
Whether Rotor Guards are attached or
not, please be very careful when handling
the drone. To avoid injury, do not touch
the drone while the blades are turning or
the remote control is powered on.
• Line up the guide pegs on the Rotor
Guards with the holes on the arms of the
Nova so that the screw in the Rotor Guard matches up with the screw
hole in the Nova.
• Firmly press the Rotor guard into position inserting one peg at a time.
• Insert the included screws into the screw holes and use the included
screwdriver tighten the screws making sure not to over tighten.
3.6 REMOTE CONTROL
• Ensure that the Remote Control power switch (1)
is in the OFF (down) position.
• With the included screwdriver unscrew the
battery cover on the rear of the Remote Control.
• Remove the battery cover.
• Insert 4 x AA batteries (AA Batteries not included)
making sure that they are in the orientation
specified.
• Do not mix new and old batteries or different
types of batteries.
Micro SD
Card Slot
1.7*6PB Screw
*Fig 3.4.1
*Fig 3.5.1
*Fig 3.6.1

10
*Fig 4.2.1
4. FLIGHT SAFETY
Before flying your Nova make sure that you are in a safe setting.
CASA restrictions regarding flying drones require the drone be no closer than
5.5kms from any airport or airfield whilst flying. Drones should also not be flown
over populated areas or any closer than 30 metres from vehicles people or
animals.
It is also required that you check your surroundings before taking off making
sure there are no obstacles or dangers in the area, including overhead power
lines and bodies of water. If there are hazards present in your intended area of
flight, please consider an alternative location.
4.1 WIFI CONNECTION AND APP SET UP
To use your Apple or Android smart-phone as a FPV screen you will need to
wirelessly connect to your Nova over WiFi.
This is done during the set up and launching of the Nova and requires you to
have the Zero-X Nova App installed.
1. To find the Zero-X Nova App search ‘Zero-X Nova’ on the Apple App
store if you are using an iPhone, or on the Google Play store if you are
using an Android phone.
2. Download the Zero-X Nova App.
3. Once the App is downloaded and installed on your Smart-
phone, switch on your Nova and move your Smart-phone to
be within two metres of the drone.
4. When the Nova is switched on (without the remote controller switched on)
The lights on the arms of the Nova will flash. While these lights are flashing
the WiFi signal will be available for connection.
5. In your Smart-phone’s WiFi settings find the and select the Zero-X Nova
WiFi connection.
6. Open the Zero-X Nova App.
7. Press the button on screen to access FPV mode.
4.2 FLYING YOUR NOVA
1. After installing a fully charged battery and installing 4 x AA batteries
(AA batteries not included) into the remote control and conducting a
complete check of your
surroundings, turn the Power
Switch (Refer to Fig 2.2.2 on
page 7 - number 8) on the Nova
to the ON position.
2. Once on, the LED lights on the
arms of the Nova should flash
signalling no connection to the
Remote Control.
