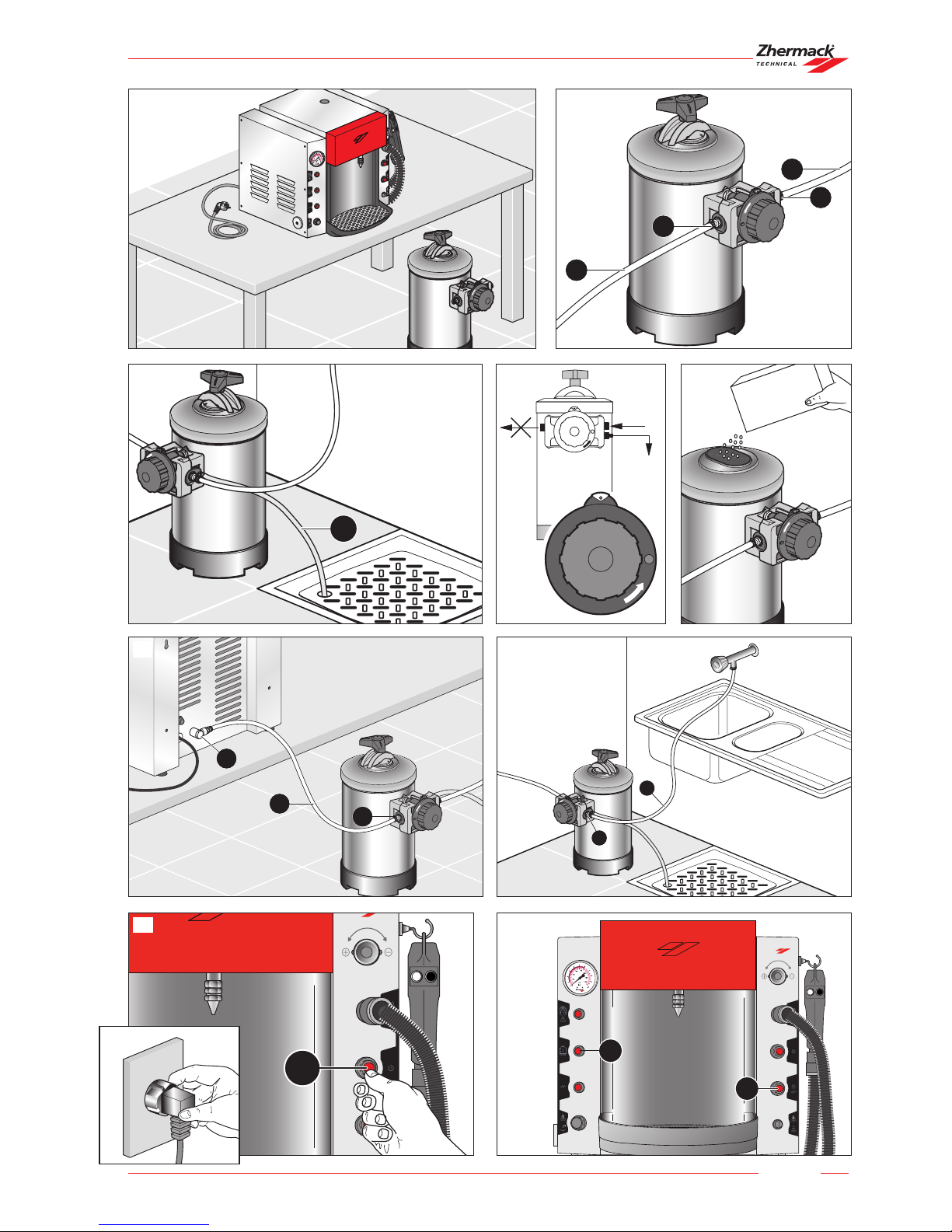

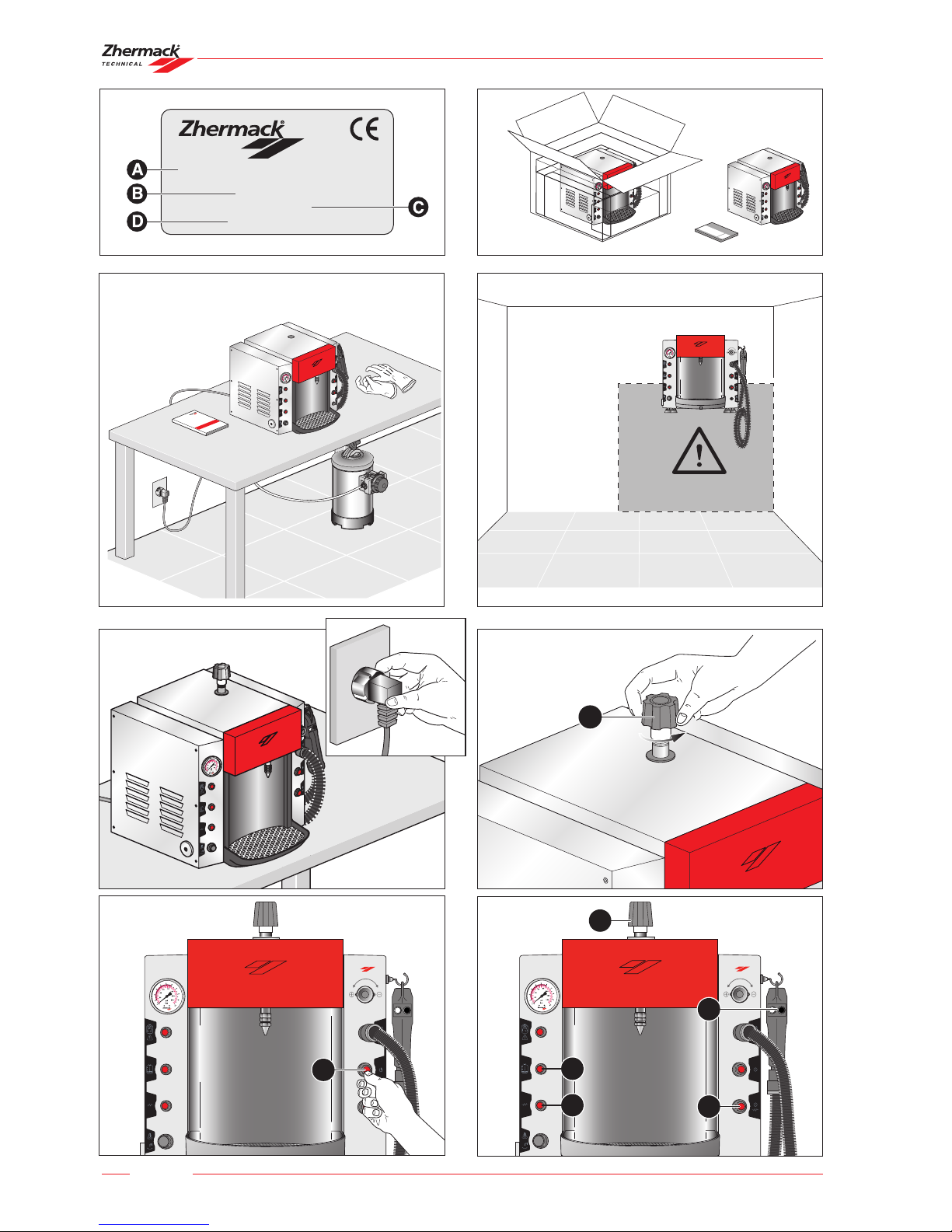

The reference figures can be found on pages 3, 4, 5, 6 of this manual.
INDEX
1. INTRODUCTION
1.1 How to read and use the Use an Maintenance Manual
1.2 Terms and symbols useda
2. GENERAL INFORMATION
2.1 Liability
2.2 Warranty: general standards
2.3 Authorised staff
2.4 General safety provisions
3. DESCRIPTION OF THE EQUIPMENT
3.1 General description of the equipment
3.2 Description of the components VAP 8 - VAP 8A
3.3 Description of the components AD 8
3.4 Identification data
3.4.1 On-equipment labels and symbols
4. TECHNICAL FEATURES
4.1 Technical features and functioning principle
4.2 Technical data
4.2.1 Standard supplies
4.2.2 Weight and overall clearance
5. TRANSPORT AND HANDLING
5.1 General warnings
5.2 Packaging and unpacking
5.3 Transport and handling
5.4 Disposal/Dismantling
6. INSTALLATION AND COMMISSIONING
6.1 Warnings and precautions
6.2 Accepted environmental conditions
6.3 Space necessary for use
6.3.1 Worktop
6.4 Power source connection
6.5 Start-up VAP 8
6.5.1 Filling the boiler with water - VAP 8
6.6 Start-up VAP 8A
6.7 Regenerating the AD 8 water softener
6.8 Declared use
6.9 Non-declared and prohibited use
7. USING THE EQUIPMENT
7.1 General warnings
7.2 Safety system
7.3 Start-up and operation
7.4 Residual risks
8. MAINTENANCE
8.1 Cleaning the equipment
8.2 Routine maintenance
8.3 Extraordinary maintenance
8.3.1 Emptying the water from the boiler
8.3.2 Gun nozzle replacement
8.4 Re-start after long period of inactivity
8.5 How to request after-sales assistance
9. DIAGNOSTICS
9.1 General warnings
9.2 Troubleshooting
10. ATTACHMENTS
10.1 EC Declaration of Conformity (VAP 8 - VAP 8A)
10.2 EC Declaration of Conformity (AD 8)
10.3 Warranty certificate and Identification form
10.4 Technical intervention worksheet
10.5 Water softener regeneration chart
The data given in this Manual can undergo variations without forewarning.
Translation of the original operating instructions

EN
24 vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
CHAPTER 1: INTRODUCTION
1.1 HOW TO READ AND USE THE USE AND
MAINTENANCE MANUAL
This Use and Maintenance Manual provides
information on the utilisation, installation and
maintenance of electronic steam generators VAP 8,
VAP 8A and water softener AD 8, made by Zhermack
S.p.A.
• The equipment must be used in compliance
with that specified in this Manual: it is therefore
recommended that the manual is read carefully
prior to installation and start-up. Make sure that
you read the entire manual and pay particular
attention to messages written in bold type or
items highlighted by boxes and/or symbols, which
highlight dangerous situations or requiring
caution (see paragraph 1.2).
• The respect of standards and recommendations
shown in this Manual will ensure safe use of the
equipment and appropriate interventions on the
same.
• The “Use and Maintenance Manual” is an integral
part of the equipment: it should therefore be
kept together with the equipment so that it
can be consulted as and when necessary (in a
secure dry place away from sunlight, atmospheric
agents, etc.) throughout the working life of the
equipment, even when the equipment is sold or
finally dismantled.
• It is advised to keep the Manual constantly
updated, integrating any amendments, additions
or modifications made by the Manufacturer. Any
notes or comments should be made on the blank
pages at the rear of the Manual (see Attachments:
Notes).
• Use the Manual in a way that its content is not
damaged.
• Do not remove, tear or write on the Manual for
any reason.
• If the Manual is lost or damaged and therefore
becomes illegible, request a new Manual from the
Manufacturer.
This “Use and Maintenance Manual” is aimed
at operators in order to allow correct use of the
product. The Manual contains all useful information
for declared used of the equipment; in particular
the operator will find instructions and indications
regarding:
• correct installation of the equipment;
• a functional description of the equipment and all
parts;
• commissioning;
• correct programmed maintenance;
• attention to the most elementary safety and
accident-prevention regulations.
This Manual is divided into 9 chapters, each
referring to a specific subject inherent to the entire
equipment.
The attachments are found at the rear of the
manual. They complete the documentation.
1.2 TERMS AND SYMBOLS USED
It is fundamental that maximum attention is
paid to the following symbols and their meaning
because they highlight important information
such as, critical situations, practical advice or
straightforward information.
Consult this page if in doubt regarding the meaning
of the symbol when reading the Manual.
• Any operations carried out without compliance
to instructions or tampering with equipment
parts, which can cause serious injury to persons,
will be highlighted with:
DANGER!
This symbol refers to Safety Standards that
MUST be followed in order to guarantee
your safety and that of others and to
prevent damage to the equipment.
• Critical situations concerning dangerous areas,
situations or operations in which failure to comply
with the instructions may render the warranty
null and void, cause damage to equipment,
connected components or the surrounding area,
are highlighted by the symbol:
ATTENTION!
This symbol refers to Safety Standards that
must be followed carefully in order to
guarantee your safety and that of others
and to prevent damage to the equipment.
• Any operations carried out without compliance
to instructions or tampering with equipment
parts, which can cause damage to the equipment
rendering the warranty null and void, will be
highlighted with:
PROHIBITED!
This symbol calls attention to operations
that are prohibited.
• Any general information and/or useful advice
referring to any subject, will be highlighted with:
NOTE!
This symbol highlights information and/or
useful advice.
CHAPTER 2: GENERAL INFORMATION
2.1 LIABILITY
Failure to comply with the instructions contained
in this Use and maintenance manual relieves the
Manufacturer from any liability.
For any information not included or that cannot
be deduced from the Manual, consult the
Manufacturer directly.

EN
25
vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
Zhermack S.p.A.
Via Bovazecchino, 100
45021 Badia Polesine - RO - Italy
Tel. [phone], Fax [phone]
http://www.zhermack.com
e-mail: [email protected]
In particular, if equipment maintenance is carried
out in a way that is not in compliance with the
instructions supplied, or in a way to jeopardise
integrity or modify features, Zhermack S.p.A. is
relieved from any liability inherent to safety of
persons and faulty operation of the equipments.
2.2 WARRANTY: GENERAL STANDARDS
Find the Warranty Certificate and the Identification
Form attached to this Use and Maintenance
Manual, which must be filled in completely.
Generally the warranty is rendered null and void
by the following:
• improper use of the equipment;
• incorrect installation;
• negligence of envisioned maintenance;
• modifications or interventions not authorised by
the Manufacturer (especially on safety devices);
• use of non-original spare parts.
The customer is responsible for ensuring
that the product delivered to the
manufacturer is properly packaged. The
manufacturer is not liable for any defects,
malfunctions or damage to the product due
to the use of packaging that is not suitable
or of the same or higher quality than that
used for the original delivery.
As of this moment Zhermack S.p.A. is
relieved from all liability if any type of
modification or tampering is made on the
equipment without previous written
authorisation from the Manufacturer.
Consequently, any repairs made by
unauthorised staff, use of non-original
spare parts or failure to comply with the
installation standards specified in this
manual shall immediately render the
warranty null or void.
2.3 AUTHORISED STAFF
The staff in charge of the equipment is divided into
the following categories:
Operator - user
Person trained to use the equipment. Person trained
in use of the equipment. Performs all tasks involved
in operation of the device, such as:
use, cleaning, inspection and simple interventions
linked to normal equipment use.
The operator-user must operate with the equipment
mounted according to that stated in this manual.
Before using the equipment or carrying out
any intervention on it, the operator must
read the entire manual carefully. This
manual has been drawn up to provide the
user with essential information on rational,
safe use of the equipment. The user must
comply with the information given at all
times. The user must also use the worksheets,
attached to this manual, to keep a record of
maintenance interventions, component
replacement as well as make notes regarding
anomalous functioning.
Maintenance technician authorised by Zhermack
S.p.A.
Person who operates in all operating conditions and
at all safety levels to perform repairs/ mechanical
and electric adjustments, periodic preventive
maintenance and replacement of any components.
2.4 GENERAL SAFETY PROVISIONS
The operator must comply with the advice and
warnings given below in order to ensure safe, long-
lasting equipment performance:
• do not allow untrained staff to use the equipment;
• prepare an optimal worktop, making sure that
the operational space is free from obstacles, clean
and has suitable lighting;
• avoid distractions when using the equipment;
• it is prohibited to work objects with features
different from those for which the equipment has
been designed;
• in the event of a malfunction follow the advice
given in this manual; if in doubt, stop the
equipment and contact your Authorised After-
Sales Centre immediately;
• do not open equipment compartments containing
electric parts;
• before carrying out any cleaning, routine and/or
extraordinary maintenance, make sure that the
equipment has been unplugged from the mains
power supply;
• do not replace the power supply cable or tamper
with the supplied plug; to replace the same due
to damage or wear, only contact the Authorised
After-Sales Centre;
• always make sure that there are no foreign bodies
inside the work area. These could prevent damage
to the equipment and/or injury to the staff;
• do not use petrol or flammable solvents
as detergents; use only non-flammable, non-
corrosive and non-toxic substances. (see par. 8.1).
• Never use a malfunctioning equipment and always
inform the Maintenance Manager of any faults;
• High temperature steam can cause burns where
the unit is used improperly.
• Do not direct the jet of steam from the gun at
sources of electricity and/or at people.
• (VAP 8) never unscrew the water filler plug if
there is steam in the boiler.
• If you do not intend to use the equipment for
some time always disconnect it from the power
supply.

EN
26 vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
• VAP 8A electronic steam generator with direct
connection to mains water supply (or to an
external tank), designed for steam cleaning
or hot water cleaning of semi-finished
odontotechny products.
• AD 8 water softener, indispensable where the
VAP 8A steam generator is connected directly to
the mains water supply.
3.2 DESCRIPTION OF THE COMPONENTS
VAP 8/VAP 8A - Fig. A
1. Fixed nozzle
2. Pressure gauge
3. Overpressure warning light
4. Water LOW warning light
5. Element ON indicator light
6. Fixed nozzle button
7. Metallic disk (that the operator must touch
in order to discharge static electricity)
8. Water tray
9. Steam flow adjuster knob
10. Gun trigger
11. Gun
12. Gun connection lead
13. Main switch
14. Element switch
15. Water drain plug
16. Fuse
17. Power lead
18. Water filler plug (VAP 8)
19. Water/steam mode selector (VAP 8A)
20. Water filler connection (VAP 8A)
3.3 DESCRIPTION OF THE COMPONENTS
AD 8 - Fig. B
21. Water outlet connector
22. Water outlet hose
23. Water inlet hose
24. Water inlet connector
25. Valve knob
26. Water outlet and steam release hose
27. Open/close lid knob
A valve knob (25) is installed on the AD 8 water
softener: this can be adjusted to four different
positions:
POSITION 1: Used during routine operation.
POSITION 2: Used during steam release and
salt (1 kg) loading for softener
regeneration.
POSITION 3: Used during regeneration.
POSITION 4: Used during backflow.
3.4 IDENTIFICATION DATA
Fig. C: the equipment described in this manual has
a plate giving identification data of the same and
the Manufacturer:
• Have the machine serviced by the Manufacturer at
least once a year.
• (VAP 8A) if the overpressure warning light comes
on repeatedly, switch off the machine via the main
switch and contact an Authorised Service Centre.
• (VAP 8A) if the safety valve opens, switch off
the machine via the main switch and contact an
Authorised Service Centre.
• The AD 8 water softener has been designed to
operate at a working pressure of between 1 and 8
bar and must only be supplied with cold drinking
water.
• To regenerate the water softener use only NaCl;
acid or base substances, such as solvents and
various chemical products must not be used.
• The resins contained in the water softener are
necessary for proper operation and therefore
must not be removed.
• The water softener must be installed in indoor
areas with an ambient temperature higher than
0°C so as to prevent freezing of the water.
• Install the water softener in a place where it is
protected from accidental knocks: this prevents
damage to the cover, valves and taps.
• To prevent damage to the water infeed pump
make sure that water pressure does not exceed
3-4 bar. It is advisable to use a pressure reducer
calibrated between 1 and 2 bar.
• Wear protective gloves and eye goggles when
using the steam generator.
• Personnel using the steam generator must
wear protective eye goggles.
No other persons must be allowed near
the work area as they could be hit by
flying dirt, dust or steam.
• Zhermack S.p.A. cannot be held responsible
for any damage to the equipment owing
to incorrect maintenance performed by
unskilled staff or maintenance that does
not comply with that stated in this manual.
• As of this moment Zhermack S.p.A. is
relieved from any injury/damage to
persons/objects that should occur
following any different use and use not
declared in this manual.
In the event of a fire - no matter how small
- inside the equipment or nearby, only use
powder extinguishers. Do not use water.
CHAPTER 3: DESCRIPTION OF THE EQUIPMENT
3.1 GENERAL DESCRIPTION OF THE EQUIPMENT
This manual describes the following equipment
items:
• VAP 8 electronic steam generator with manual
water fill, designed for the steam cleaning of
semi-finished odontotechny products.

EN
27
vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
• electronic operation with on-gauge pressure
display;
• electronic control of minimum water level with
element shutdown device and warning light;
• working pressure switch;
• dual safety device:
- overpressure switch with element shutdown
device;
- warning light;
• safety valve;
• stainless steel 4-litre boiler with water refill of
about 2.5 litres;
• safety fuse;
• (VAP 8A) 2 work modes are available:
- high temperature steam from gun;
- hot water from gun;
• (VAP 8A) quantity of water or steam exiting the
gun can be adjusted;
• (VAP 8A) connection to the mains water
supply completely managed by an electronic
microprocessor device.
• (VAP 8) boiler is filled with water manually.
The AD 8, instead, is a water softener. Utilisation
of the AD 8 is advisable where the VAP 8A is
connected to a mains water supply. The AD 8
softener has been designed to operate at working
pressures of 1 - 8 bar. It has a stainless steel body. It
should only be supplied with cold drinking water.
Regeneration must be carried out with NaCl only
(common cooking salt).
4.2 TECHNICAL DATA
Technical data VAP 8 - VAP 8A:
Power supply 230 V ~ ± 10% 50 Hz
Max absorbed power
1700 W
Protection rating IP
IPX0
Noise level
<70 dB
Gun voltage
24 V
Boiler capacity
4 l
Boiler refill
2.5 l
Boiler dimensions (cm) 15.5(l)x31(p)x26(h)
Overvoltage category
II
Applicable pollution degree
2
Technical data AD 8:
Working pressure between 1 and 8 bar
Water supply cold drinking water
Regeneration (NaCl)
1 kg
The frequency with which regeneration
needs to be carried out depends on how
often the AD 8 softener is used and the
degree of purity of the water. The installer
will be able to provide information
regarding the hardness of the water at the
installation site.
A Name and address of the Manufacturer
B Equipment code and model
C Serial number
D Power supply information
The equipment has been built in compliance with
the EEC Directives stated in the attached “CE
Declaration of Conformity. Use the identification
data to request spare parts, information and After-
Sales Assistance from authorised centres. If the
plate should deteriorate with use and become
illegible, even partially, request a replacement
from the Manufacturer stating all data.
Do not remove and/or ruin the plate so that
the equipment identification data can be
recognised at all times.
3.3.1 ON-EQUIPMENT LABELS AND SYMBOLS
The following symbols are applied on the machine:
ATTENZIONE! Danger of an electrical
current. Do not open doors or remove
PROTECTIon before you have disconnected
the plug from the electrical source.
On the VAP 8 there is a label on the water filler
plug which says:
EXTREME CAUTION! HOT STEAM! (EXTREME
CAUTION! VERY HOT PRESSURISED STEAM!).
This label informs the user that there is a danger
of high temperature steam escaping when the
water filler plug is unscrewed: always proceed with
maximum caution when unscrewing the plug and
observe the instructions given in this handbook.
CHAPTER 4: TECHNICAL FEATURES
4.1 TECHNICAL FEATURES AND FUNCTIONING
PRINCIPLE
Zhermack S.p.A. creates qualitatively and
technologically advanced work instruments, in
away that the user feels that they are made-to-
measure his everyday working requirements.
Zhermack S.p.A. uses state-of-the-art instruments
in the design field when making these products,
thus ensuring maximum equipment functionality.
The use of top quality materials and performance
of all inspections necessary for operator safety
guarantee Zhermack S.p.A products, making them
competitive at a worldwide level.
The operating principle of the VAP 8, VAP 8A is
based on the production of steam or hot water,
with an operating pressure up to 8 bars. The
technical specifications are:
• high temperature steam production from fixed
nozzle;

EN
28 vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
4.2.1 STANDARD ACCESSORIES
Component Q.ty Code (*)
28. Water filler funnel (VAP 8) 1 XI0020255
29. Fuse 1 XE0802100
30. Gun support hook 1 XI0020030
31. Water inlet/outlet tap
connection hoses (VAP 8A) 2 XF0486320
32. Gun kit 1 XR0020065
(*) Please quote the order code when ordering a
spare part. You may order parts from your local
Authorised Servicing Centre.
4.2.2 WEIGHT AND OVERALL DIMENSIONS
Dimensions VAP 8 - VAP 8A (without packing)
Height (cm) 38
Width (cm) 37
Depth without tray (cm) 33
Depth with tray (cm) 45
Weight (kg) 20
Dimensions AD 8 (without packing)
Height (cm) 40
Width (cm) 30
Depth (cm) 20
Weight (kg) 8.5
CHAPTER 5: TRANSPORT AND HANDLING
5.1 GENERAL WARNINGS
• In order to prevent injury/damage to
persons/objects, pay great care when
handling the equipment, scrupulously
complying with all precautions and
instructions contained in the following
paragraphs.
• The generator must be handled and/or
moved by at least 2 (two) people, holding
the appliance at the bottom.
5.2 PACKAGING AND UNPACKING
Fig. D: All material is carefully controlled by the
Manufacturer before delivery. On receiving the
equipment, make sure that it has not been damaged
during transport and that the packaging has not
been tampered with, resulting in missing parts.
Should any damage or missing parts be noted,
inform the Dealer and the Carrier immediately by
forwarding photographic evidence. The packaging,
made up of a cardboard box with expanded plastic
internal protections, contains:
• the equipment VAP 8 or VAP 8A and eventually
the softener AD 8;
• the material supplied (see par. 4.2.1);
• the Use and Maintenance Manual.
• It is recommended that you keep the
original packaging (see paragraph 5.3).
• The customer is responsible for ensuring
that the product delivered to the
manufacturer is properly packaged. The
manufacturer is not liable for any defects,
malfunctions or damage to the product
due to the use of packaging that is not
suitable or of the same or higher quality
than that used for the original delivery.
5.3 TRANSPORT AND HANDLING
Should it be necessary to move the equipment
proceed as follows:
• disconnect the equipment from the mains power
supply;
• if necessary, empty the boiler (see section 8.3.1);
• (VAP 8A) disconnect the water softener hose (22)
- if any - from the water inlet connector (20);
• disconnect the other softener hose (23) from the
water supply tap;
• hold the equipment, always keeping it in a
vertical position. Regarding this, pay attention to
the weight and clearance of the equipment (see
par. 4.2.2), in order to prevent any type of damage
occurring due to the failure of considering these
values;
• pack the equipment in the original packaging. If
this is not possible, take all necessary precautions
to protect the equipment from knocks and drops,
as the goods are transported at the owner’s risk.
Failure to comply with the rules stated above
relieve the Manufacturer from any liability
regarding equipment malfunctioning and
consequently makes the warranty null and
void. When shipping and/or delivering the
equipment to an Authorised After-Sales
Centre always enclose a copy of the purchase
document and a copy of the properly filled-
in identification form. If the equipment is
transported by carrier, the Postal Service or
rail, it is recommended to insure the
shipment.
5.4 DISPOSAL / DISMANTLING
When disposing of the packaging material the user
must follow the regulations in force in the country
of use relative to the following materials:
• wood/paper: non-polluting materials, but must
be re-cycled correctly;
• polystyrene/plastic: pollutant material, do
not burn (toxic fumes) or dispose of in the
environment. Dispose of these materials in
compliance with the regulations in force in the
country of use.
If the equipment is to be dismantled, the operator
must be in charge of dismantling, elimination and
re-cycling of the following materials in compliance
with the EEC Directives and the laws in force in the
country of use:

EN
29
vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
• plastic parts; steel parts; glass parts; insulated
electric cables; rubber parts.
• there are no toxic or corrosive substances.
The device must not be disposed of as
urban waste. At the end of its working
life, it must be taken to a waste
separation and recycling centre in
compliance with European Directive no.
2002/96/EC or in accordance with the
legislation in force in the country of sale.
CHAPTER 6:
INSTALLATION AND COMMISSIONING
6.1 WARNINGS AND PRECAUTIONS
Before carrying out installation, make sure that all
safety conditions exist and follow the indications
given below carefully.
6.2 ACCEPTED ENVIRONMENTAL CONDITIONS
Unless stated otherwise, at the time of ordering,
it is intended that the equipment must be
envisioned to function regularly in the following
environmental conditions:
Place of Use Indoors
Altitude Up to 2000 m
Working temperature From 10°C to 35°C
Humidity Max 80%
Conditions different to those prescribed can cause
anomalies or sudden breakdown.
Lighting in the installation area of the equipment
must be sufficient to guarantee good visibility in all
points of the equipment.
Luminosity not less than 200 lux must be
guaranteed. The lighting must be uniform without
reflections, which could dazzle the operator.
The equipment itself cannot cause
explosions or fire: the equipment is not
prepared and/or designed to operate in
environments with explosive atmosphere or
with the risk of fire.
The working area lighting plant is an
important factor for the safety of persons
and the quality of work. In Italy this subject
is governed by a Ministerial Decree that
clearly determines the average level of
prescribed lighting. In other countries the
regulations in force are valid regarding
accident-prevention and hygiene in the
workplace.
6.3 SPACE NECESSARY FOR USE
The choice of the place and space required for
installation is an important factor for the quality
of work and safety and for correct maintenance
activities. This area must not only be spacious
enough to allow for optimum equipment operation
- also during cleaning and maintenance phases -
but must also be well lit, aired, not dusty and not
exposed to direct sunlight. Note also that the unit
must be positioned so the connection plug can be
handled/manipulated with ease.
6.3.1 WORKTOP
Fig. E - BENCH VERSION
The equipment has been designed for operation
on a rigid worktop parallel to the floor. Suitable
worktops include service furniture (where the
operator is standing) or modelling tables (where
work is done sitting down). All worktops must be
checked for stability.
Fig. F - WALL-MOUNTED VERSION
The equipment is also designed to be wall-mounted.
Before installation:
- make sure that there are no power sockets
or other objects that may be damaged by
accidental contact with steam/water located
underneath the appliance;
- make sure the holes are aligned
horizontally.
Once drilling is over, introduce the plugs in the
holes and then screw in the screws but not all the
way: let them protrude from the wall by 8-10 mm.
Check that the machine is stable before using it.
The right plugs for installation must be
chosen based on the weight of the appliance,
shown in section 4.2.2, and the type of wall
it is installed on.
Install the AD 8 water softener (where applicable)
in a place where ambient temperature is higher
than 0°C so as to stop the water in it freezing;
the installation site should also protect the
softener against accidental knocks and be perfectly
horizontal.
6.4 CONNECTION TO ENERGY SOURCES
The connection is made using the power supply
cable. Check:
• that mains power supply voltage and frequency
correspond to those indicated on the identification
plate (an incorrect power supply voltage may
damage the equipment);
• that the power supply mains has a suitable earth
connection.
Do not tamper with the power supply cable
and relative plug. For replacement of the
same due to damage and/or wear, only
contact Authorised After-Sales Centres.

EN
30 vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
An earth connection is mandatory.
If an extension must be used
temporarily, it must be in
compliance with the standards in
force in the country of use.
6.5 FIRST-TIME USE VAP 8
The examples shown in the illustrations refer
to the steam generator installed on a work
bench.
Fig. 1: Place the equipment on the work bench.
Connect the lead to the power mains: ensure that
connection is effected as per the instructions given
in section 6.4.
Fig. 2: Unscrew the water filler plug (15) and fill the
boiler with water. If it overflows clean the steam
generator thoroughly, then screw the plug back on.
• To prevent limescale build-up which might
damage the steam generator we
recommend that you use distilled water.
Fig. 3: Press the main switch (13): the LED on the
switch come on.
6.5.1 FILLING THE BOILER WITH WATER - VAP 8
Fig. 4: The first time the VAP 8 steam generator
is switched on or when the water in the boiler is
running out, the “water low” warning light (4)
comes on; simultaneously the element is switched
off, thus causing the “element on” indicator light
(5) to go out. The element will remain off until the
boiler is refilled.
To fill the boiler with water proceed as follows:
• switch off the element via the main switch (14);
• release the steam in the boiler by pressing the gun
trigger (10);
• unscrew, slowly and cautiously, the plug (18) so as
to release any residual steam in the boiler;
• fill the boiler with water;
• replace the plug and tighten it securely (18);
• turn the element switch (14) to ON.
To prevent temperature imbalance, do not
use cold water when filling a boiler that is
still hot.
Failure to comply with any of the above-
stated equipment installation regulations
can lead to equipment malfunctioning and
render the warranty null and void.
6.6 FIRST-TIME USE VAP 8A
To prevent the formation of scale that may
in the long term affect correct operation or
even damage the VAP 8A steam generator,
connect the appliance to the mains water
supply via the AD 8 water softener.
Fig. 5: Place the steam generator on the work
bench and the softener on the floor, making sure
both are level (see section 6.3.1).
Before connecting up the hoses, remove any
rubber plugs inserted in the inlet/outlet
connectors on the AD 8 water softener.
Fig. 6: Connect up the water softener to the mains
water supply by attaching the hoses (23-22) to
the inlet tap (24) and water outlet tap (21) on the
softener itself. Then tighten the hose clips.
Connection to the water softener must only
be effected by qualified, authorised
personnel.
Fig. 7: Connect the water outlet hose (26) on the
softener directly to an open siphon (this must be
below the softener).
Fig. 8: To ensure that the resin in the exchanger
gives the required performance rinse the softener
by turning the knob (25) to position number
“4” (backflow position: see fig. B) for at least 10
minutes until the water outflow is perfectly clear.
When doing this direct the water into the open
siphon (see fig. 7).
Fig. 9: Regenerate the water softener as explained
in section 6.6.1.
Improper regeneration of the water
softener can damage the steam generator.
If you have any doubts, please contact
properly qualified personnel.
Fig. 10: Connect the other end of the softener hose
(22) to the water inlet connector (20) on the steam
generator.
Fig. 11: Connect the other end of the softener hose
(23) to the mains water supply.
Make sure water pressure does not exceed
3/4 bar; it is advisable to fit a pressure
reducer calibrated to 1 - 2 bar.
Fig. 12: Connect the lead to the power mains:
ensure that connection is effected as per the
instructions given in section 6.4.
Fig. 13: Press the main switch (13): the LED on the
switch come on.
Fig. 14: Switch on pump and element by acting on
switch (14); the LED on the switch comes on, the
“water low” warning light 4) comes on and the
pump starts working.
• When filling the first time, it is normal for
the pump to make some noise.
• It is advisable to install a tap between the
mains water supply and the water inlet
hose of the softener so that the water
flow can be closed off if necessary.

EN
31
vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
Failure to comply with any of the above-
stated equipment installation regulations
can lead to equipment malfunctioning and
render the warranty null and void.
6.6.1 REGENERATING THE AD 8 WATER SOFTENER
- Fig. B
Regeneration frequency depends on how
often the AD 8 softener is used and the
degree of purity of the water. The installer
will be able to provide information
regarding the hardness of the water at the
installation site.
To regenerate the AD 8 water softener proceed
as follows:
• turn the water softener knob (25) to position 2.
Loosen the lid knob (27) and wait for the pressure
to be released.
• Remove the lid by unscrewing the knob (27), then
introduce the salt.
• Clean off any salt or resin that may have deposited
on the lid seal, replace the lid and screw it
back in place properly.
• Turn the knob (25) to position 3, and let the salt
water drain
from the hose (26) until it becomes fresh (this
takes about 40 minutes).
• Turn the knob (25) to position 4, wait about 30
seconds, then bring the knob (30) to position 1.
In the intervening 30 seconds the unit will not be
supplied with softened water.
• When regeneration is being carried out
the steam generator connected to the
softener is still supplied with water, but
the latter is not softened.
• To maintain AD 8 water softener
performance use the chart enclosed with
this manual to record regeneration data.
Use only NaCl (common cooking salt) to
regenerate the softener. Do not use acid or
basic substances, solvents or chemical
products.
6.7 DECLARED USE
The VAP 8 and VAP 8A steam generators have been
designed to generate steam or hot water to clean
semi-finished odontotechny products.
The AD 8 water softener has been designed
to soften the mains drinking water to ensure
long-lasting performance of the VAP 8A steam
generator.
6.8 NON-DECLARED/PROHIBITED USE
Using the equipment for any purpose not
considered in paragraph regarding
“Declared use” shall be considered improper
and thus forbidden. The improper use of the
equipment renders the warranty null and
void and Zhermack Spa declines all liability
for any damage to objects and injury to
operators or third parties.
The main reasons for which the warranty is rendered
null and void are given in paragraph 2.2 and in the
“Warranty Certificate” attached to this Manual.
CHAPTER 7: USING THE EQUIPMENT
7.1 WARNINGS
The equipment must not be used with any
of its parts disassembled: before using the
equipment make sure that all its components
are properly in place.
To ensure that work is done in absolute
safety always make sure that you follow the
described procedures with caution.
7.2 SAFETY SYSTEMS
To ensure optimum working reliability, Zhermack
S.p.A. employs only top quality materials and
components for the manufacture of the equipment.
The equipment is also thoroughly tested before
delivery. All materials are of only the highest
quality and are checked on arrival at our plant,
during storage and when they are used so as to
guarantee a product that is free from damage,
deterioration and/or malfunctions. In particular, the
steam generators, in addition to the safety fuse and
safety valve, have:
1. On the VAP 8A.
Automatic pump shutdown if the pump overheats
because of high pressure or lack of water.
To reset the pump proceed as follows:
- turn the element switch to OFF (14);
- switch off the machine via the main switch (13)
and remove the plug from the power socket;
- let the pump cool down, operation will resume
automatically as soon as the temperature falls
back within the safe operating limits.
2. On the VAP 8 and VAP 8A.
Internal safety pressure switch, which shuts down
the machine if working pressure exceeds 8 bar; in
this event the overpressure warning light comes on.
To reset the machine proceed as follows:
- release pressure via the gun until it drops to 1 bar;
- turn the element switch to OFF (14);
- switch off the machine via the main switch;
- switch the machine back on.

EN
32 vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
• If the overpressure warning light comes on
repeatedly, switch off the steam generator
via the main switch and contact an
Authorised Service Centre.
• If the safety valve should open proceed as
follows:
- turn the element switch to OFF (14);
- release the pressure via the gun until it
drops to 1 bar;
- switch off the steam generator via the
main switch and contact an Authorised
Service Centre.
7.3 START-UP AND OPERATION
If you are using the kit (XR0020065 gun kit),
make sure the gasket at the end of the gun
is present. If there is no gasket, replace it
with the one in the kit, making sure the
nozzles are correctly inserted to avoid flow-
back of water and/or steam towards the
user.
After setting up the equipment proceed as follows:
• On the VAP 8 - Fig. 15
Switch the element on via the relevant switch (14):
the on-switch LED comes on. The “water low”
warning light (4) and element ON indicator light
(5) come on simultaneously. After five seconds the
“water low” warning light goes out automatically
while the element ON indicator light (5) stays on
until pressure reaches 8 bar. If, after 5 seconds
the “water low” warning light (4) remains on,
the boiler must be filled with water (see section
6.6.1). Press the trigger button (10) on the gun
and the steam exits the gun nozzle. Adjust steam
outflow as desired by acting on the knob (9); rotate
anticlockwise to increase flow and clockwise to
decrease. When the steam starts flowing out of
the gun the pressure in the boiler drops and the
element ON indicator light (5) comes back on.
• On the VAP 8A - Fig. 16
Switch on pump and element by acting on switch
(14); the LED on the switch comes on, the “water
low” warning light (4) comes on and the pump
starts working. When the water level in the boiler
reaches the minimum level the indicator light (4)
goes out and, at the same time, the element ON
indicator light (5) comes on and stays on until
pressure reaches 8 bar. Select the work mode by
acting on switch (18). Press the trigger button
(10) on the gun and the water (or steam) will exit
the gun nozzle. Adjust steam outflow as desired
by acting on the knob (9); rotate anticlockwise
to increase flow and clockwise to decrease. Once
steam starts flowing out of the gun the pressure in
the boiler drops and the element ON indicator light
(5) comes back on.
To deliver steam from the fixed nozzle, place the
object being processed under the nozzle (1) and
press the fixed nozzle button (6).
• When using the fixed nozzle, the
operator should touch the special metallic
disk (7, Fig. A) located on the side of the
appliance, so as to discharge any static
electricity.
• The steam generator can, however, be
used before the “element ON” indicator
light goes out; in this case, though, the
pressure displayed on the gauge will be
below 8 bar.
• If you are in possession of a VAP 8A note
that it is inadvisable to use the water
function for prolonged periods of time.
• Always empty the boiler if you do not
expect to use the steam generator for
some time (see section 8.3.1).
7.4 RESIDUAL RISKS
Residual risks are:
• a danger that cannot be totally eliminated through
design and the application of safety devices;
• a potential danger that cannot be highlighted.
The steam generator produces steam or hot water
and therefore works at temperatures of over
100°C; the residual risks are thus associated with
the following situations:
• Steam jets exiting an accidentally
triggered gun that has not been properly
connected to its support could cause burns.
• Allowing work to be carried out on the
interior of the machine by unauthorised
personnel or carrying out such work with
the plug inserted in the mains socket.
To prevent accidents always observe the
instructions in this Manual. Should you
have any doubts at all please contact the
Manufacturer or your Authorised Servicing
Centre.
The steam generator, where the user fails
to observe the instructions contained
in this manual, is a potential source of
explosion or fire. Should you have any
doubts whatsoever, always contact the
Manufacturer or an Authorised Service
Centre.
The above-mentioned dangers are indicated
by special labels attached to the equipment, as
described in sub-section 3.4.1.
CHAPTER 8: MAINTENANCE
8.1 CLEANING THE EQUIPMENT
The equipment exterior can normally be kept clean
just by wiping it with a dry cloth. If necessary, wet
the cloth just a little water or use a non-degreasing
detergent (see section 2.4). The operator must

EN
33
vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
ensure that the equipment is kept clean and free
from any foreign bodies such as dirt, water, non-
conducting liquids etc. Cleaning should be carried
out at the end of every work session and must be
done with the equipment switched OFF and stable.
To clean the water tray (8), pull out the bottom
part so as to detach it from the appliance.
If you need to clean the interior of the unit contact
an Authorised Service Centre.
• Before cleaning the equipment exterior
always turn the main switch to OFF. It is
strictly forbidden to clean the equipment
while it is connected to the mains power
supply.
• Never use inflammable, corrosive, alkaline
or toxic liquids when cleaning the
equipment.
If using compressed air for cleaning,
always wear a face protection visor, keep
people away from the appliance, as they
may be struck by the material being
sprayed off, and ensure a minimum
pressure of 2 bars.
8.2 ROUTINE MAINTENANCE
Once the equipment has been cleaned (see
paragraph 8.1), the operator must check for worn,
damaged or loose parts. If any such situations are
detected, contact the Authorised After-Sales Centre.
If any of the previously-described situations
should occur, it is prohibited to re-start the
equipment before the problems have been
solved.
In particular, before moving away from the
equipment, the operator detecting problems of
any nature must place a sign on the it indicating
that equipment maintenance is in progress and
that use is prohibited (EC-compliant signs can be
purchased from the relevant suppliers). Routine
maintenance, cleaning and correct equipment use
are essential factors in guaranteeing long-lasting
equipment performance and safety.
Equipment safety devices/guards must
never be removed except for repair and
maintenance purposes. Such items must be
replaced as soon as the situation which led
to their removal no longer exists and in any
case before the equipment is used again.
8.3 EXTRAORDINARY MAINTENANCE
Extraordinary maintenance includes the repair of
any accidental breakage and the replacement of
worn or malfunctioning parts.
All electrical and mechanical interventions
must only be performed by a Zhermack
S.p.A.-authorised maintenance technician.
Any modification that alters equipment
features from a safety and risk-prevention
point of view can only be carried out by the
Manufacturer who will then certify
conformity of the equipment with safety
standards. Therefore any modification or
maintenance intervention not considered in
this manual is to be considered prohibited.
Any modification, tampering or repair
performed by unauthorised staff along with
the use of non-original spare parts relieve
the Manufacturer from any liability. If the
necessary maintenance interventions are not
considered in this Use and Maintenance
Manual, contact the Authorised After-Sales
Centre.
8.3.1 EMPTYING THE WATER FROM THE BOILER
VAP 8 and VAP 8A are fitted with a plug (15) on the
bottom of the boiler, accessible from the bottom of
the appliance; to drain the water, place a container
underneath the appliance and unscrew the plug.
After emptying the appliance, replace the plug
fitting (15) and make sure the gasket is intact.
To empty the VAP 8A boiler quickly proceed as
follows:
- Turn the main switch (14) to off.
- Select the water function via the mode switch (18).
- Drain the water by pressing the gun trigger
button (10).
If, instead, you are emptying completely the VAP 8
proceed as follows:
- Switch off the machine via the main switch (13)
and disconnect the plug from the mains power
socket.
- Wait for the equipment to cool down completely
(this takes about 40 minutes).
- Unscrew the plug (15) located on the bottom of
the appliance, and pour the water in the boiler
into a suitable container.
- Replace the plug (15).
It is strictly forbidden to empty the machine
as described above when it is switched on or
under pressure. The Manufacturer cannot
be held liable for any damages caused by
any failure to observe the above information
and instructions.
8.3.2 GUN NOZZLE REPLACEMENT
To replace the nozzle proceed as follows:
- remove the old nozzle by pulling it outwards.
- make sure that the rubber seal is inserted correctly
in its seat in the gun.

EN
34 vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
- insert the new nozzle: secure it by pushing the
mobile lock ring all the way down.
8.4 RE-START AFTER LONG PERIOD OF INACTIVITY
If the equipment is re-started after a particularly
long period of inactivity, operate as indicated in
Chapter 6 regarding commissioning.
If the equipment functions anomalously, act as
described in Chapter 9 regarding “Diagnostics”. if the
problem should persist or is not considered, contact
the Authorised After-Sales Centre immediately.
8.5 HOW TO REQUEST AFTER-SALES ASSISTANCE
Choose one of the following options to request
after-sales assistance:
1. contact the Authorised After-Sales Centre;
2. telephone the Zhermack S.p.A. After-Sales
Service at [phone] and proceed as
follows: give personal data (e.g. address and
telephone number); state the information given
on the equipment identification plate (see
paragraph 3.4); explain the problem with the
equipment clearly;
3. fax all of the information stated in the previous
point and the correctly filled-in identification
form (see Attachment 10.3) to the following n°
[phone].
CHAPTER 9: DIAGNOSTICS
9.1 GENERAL WARNINGS
If any of the anomalies described below
should occur, solve the problem, where
allowed, with respect to all instructions
contained in this manual. If the problem
persists, contact the Authorised After-Sales
Centre.
9.2 TROUBLESHOOTING
PROBLEM After switching on the equipment via
the main switch the LED on the key fails
to come on.
CAUSE 1. The power cable is not plugged in.
2. There is no current to the socket.
3. Blown fuse.
4. Electrical fault.
REMEDY 1. Plug in the power cable.
2. Check the socket/electrical panel in
the building.
3. Replace the fuse (T 10 A).
4. Contact an Authorised Service Centre.
PROBLEM During start-up of the VAP 8 the
indicator light (4) stays on for longer
than 5 seconds.
CAUSE 1. No water/not enough water in the
boiler.
2. Electrical fault.
REMEDY 1. Add distilled water to the boiler (see
section 6.6.1).
2. Contact an Authorised Service Centre.
PROBLEM The electric pump on the VAP 8A fails to
fill the boiler with water.
CAUSE 1. Automatic pump shutdown on
account of the overheating caused
by high pressure or no water in the
boiler.
REMEDY 1. Proceed as per point 1 of section 7.2.
PROBLEM Steam generator overpressure warning
light comes on.
CAUSE 1. Safety pressure switch has tripped
because pressure is higher than 8 bar,
thus shutting down the machine.
2. Electrical fault.
REMEDY 1. Proceed as per point 2 of section 7.2.
2. Contact an Authorised Service Centre.
PROBLEM Steam generator safety valve has
opened.
CAUSE 1. Steam generator malfunction.
REMEDY 1. Switch off the equipment and contact
an Authorised Service Centre.
PROBLEM The pressure in the boiler drops
considerably when the gun trigger
button is pressed or noise is heard
inside the boiler when the element is
on.
CAUSE 1. Low pressure inside the boiler due to
steam condensation.
REMEDY 1. Press the gun trigger for a few
seconds with the equipment on.
PROBLEM
the pressure gauge indicates a pressure of more
than 8 bars.
SOLUTION
A certain difference from the nominal value is
normal and is explained by the tolerances of the
internal components (in this specific case, the
pressure switch and pressure gauge). Operation
at a higher pressure, even up to 9 bars, does
not compromise boiler safety. In addition to the
operational pressure switch, the steam generator is
also fitted with a safety pressure switch which trips
at 9.5 bars and a certified safety valve which trips
at 12 bars. Moreover, the boiler is certified to resist
up to 24 bars.
PROBLEM
there are drips from the fixed nozzle or gun.
SOLUTION
drips from the fixed nozzle or gun may have two
main causes. If the drips appear shortly after use,
they are caused by condensation of the steam
in the circuit and are normal. If the drips are
continuous, they are most probably caused by

EN
35
vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
incorrect demineralisation of the water, leading to
leaks of steam from the solenoid valve as a result
of limescale or dirt.
PROBLEM
the steam generator is noisy.
SOLUTION
some noises are normal and attributable to the
technical characteristics of steam generators. When
starting up the VAP 8 A for the first time, you may
hear a sometimes loud noise caused by priming of
the pump. During use of both the VAP 8 and VAP
8 A, it is normal to hear cracks or gurgles during
the steam generation phase. During start-up, their
intensity can be reduced by venting the air in the
circuit by pressing the button on the gun or the
fixed nozzle.
CHAPTER 10: ATTACHMENTS
10.1 EC DECLARATION OF CONFORMITY
The Manufacturer:
Zhermack S.p.A.
Via Bovazecchino, 100
45021 Badia Polesine • RO • Italy
Tel. [phone] • Fax [phone]
Person authorised to compile the technical file:
Zhermack S.p.A.
Via Bovazecchino, 100
45021 Badia Polesine • RO • Italy
Tel. [phone] • Fax [phone]
declares under its sole responsibility that the
product:
Vap 8 - Vap 8A
is in conformity with Directive 2011/65 EU of the
European Parliament and of the Council of 8
June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic
equipment.
It is also in conformity with the laws implementing
the following directives:
Directive 2004/108 EC (EMC Directive) and
subsequent amendments.
Directive 2006/95 EC (Low Voltage Directive) and
subsequent amendments.
Directive 97/23 EC (Pressure Equipment).
Please note that the manufacturer’s liability for
damages caused by a defective product expires 10
years from the date on which the manufacturer
released such product on the market and that such
liability is transferred to the user in accordance with
Directive 85/374/EEC, subsequent amendments and
the laws implementing it.
Badia Polesine, 25/02/2014
Paolo Ambrosini
General Manager
10.2 EC DECLARATION OF CONFORMITY
The Manufacturer:
Zhermack S.p.A.
Via Bovazecchino, 100
45021 Badia Polesine • RO • Italy
Tel. [phone] • Fax [phone]
Person authorised to compile the technical file:
Zhermack S.p.A.
Via Bovazecchino, 100
45021 Badia Polesine • RO • Italy
Tel. [phone] • Fax [phone]
declares under its sole responsibility that the
product:
AD 8
is in conformity with Directive 2011/65 EU of the
European Parliament and of the Council of 8
June 2011 on the restriction of the use of certain
hazardous substances in electrical and electronic
equipment.
It is also in conformity with the laws implementing
the following directives:
Directive 2001/95/CE;
Directive 1992/59/CE;
Directive 85/374/CEE.
Please note that the manufacturer’s liability for
damages caused by a defective product expires 10
years from the date on which the manufacturer
released such product on the market and that such
liability is transferred to the user in accordance with
Directive 85/374/EEC, subsequent amendments and
the laws implementing it.
Badia Polesine, 25/02/2014
Paolo Ambrosini
General Manager
10.3 WARRANTY CERTIFICATE AND IDENTIFICATION
FORM
1. With this document the Manufacturer certifies
that the product has been built correctly, top quality
materials have been used and all inspections necessary
for compliance with European Community Directives
have been performed. The product is covered by
a warranty period of 12 months from the date of
delivery to the user. Proof of this date is provided
from the purchase document and the copy of the
identification form. These documents must be shipped
to the After-Sales Centre with the equipment. Persons
wishing to make use of the warranty must inform
of the fault within 8 days of its discovery for the
effects and purpose of art. 1495 of the Civil Code.
The warranty is limited to replacement or repair of
individual components or pieces with manufacturing
defects and does not cover costs related to transfer of
technical staff, transport, packaging etc. Breakdowns,
faults or damage deriving from poor maintenance,

EN
36 vap 8 - vap 8A - AD8
The reference figures can be found on pages 3, 4, 5, 6 of this manual.
incorrect power supply, negligence, inexperience and
other causes not imputable to the Manufacturer and
parts subject to normal wear are not covered by the
warranty. The warranty does not cover breakdowns
caused by failure to carry out routine maintenance
due to customer negligence. This warranty does not
provide for any reimbursement for direct or indirect
damages of any kind caused to persons or objects due
to equipment inefficiency.
2. The warranty is automatically rendered null and
void whenever the equipment is repaired, modified
or tampered with by the purchaser or unauthorised
third parties. The liability for damage caused by faulty
products expires after 10 years from the date in which
the Manufacturer put the products on the market,
after this time it becomes the user’s responsibility, as
envisioned by the 85/374/EEC Directive.
3. To have work carried out under warranty
the purchaser must only contact the dealer,
Manufacturer-authorised after-sales centres or the
Manufacturer itself. The warranty gives the right
for free replacement of faulty parts. It does not,
however, give the right for replacement of the entire
equipment.
4. In the case of disputes regarding application of
the warranty, quality or conditions of the equipment
delivered, the purchaser cannot suspend or delay
total payment or payment of the instalments.
5. No reimbursement can be requested by the
purchaser for loss of production.
6. The warranty is rendered null and void if:
a. The equipment is damaged by a fall, exposure
to fire, spilt liquids, lightening, natural disasters or,
however, causes not imputable to manufacturing
defects.
b. Incorrect installation.
c. Incorrect mains connection (incorrect power
supply nominal voltage) or suitable protection
devices have not been installed.
d. The serial number has been removed, cancelled or
altered.
7. The components to be replaced under warranty,
must be returned to Zhermack S.p.A. which will then
send the appropriate spare parts. Any changed parts
that are not returned will be charged.
8. The Manufacturer and the Dental Deposit do not
have to supply replacement equipments during the
repair period.
9. For tax purposes spare parts will only be provided
under warranty where the relevant limitations set
out in the terms and conditions of the warranty are
respected.
10. For any other eventuality not provided for by this
Warranty Certificate and the regulations, consult the
Italian Civil Code.
11. Invoices for labour, travel and call-out must be
paid on their receipt.
12. The manufacturer and the dealer will comply
with all data processing laws in force, including
those relative to safety measures and in compliance
with the specifications given in the data processing
information sheet.
IDENTIFICATION FORM
Equipment Model:
..................................................................................
Equipment Serial Number:
..................................................................................
Purchaser:
..................................................................................
Address:
..................................................................................
Town/Post Code:
..................................................................................
Tel:
..................................................................................
Tax Code/VAT Number:
..................................................................................
Dealer:
..................................................................................
Purchaser’s Signature:
..................................................................................
10.4 TECHNICAL INTERVENTIONS SHEET
Date Description of Work Signature
....................... ......................................... ..............
....................... ......................................... ..............
....................... ......................................... ..............
10.5 WATER SOFTENER REGENERATION CHART
Data Description of Work Signature
....................... ............................................... .............
....................... ............................................... .............
....................... ......................................... ..............
