PRECAUTIONS AND GENERAL RECOMMENDATIONS
• HydroChill is for internal use.
• Keep away from water jets.
• Always connect the HydroChill
to a water main that supplies
wholesome (cat 1) drinking water.
• Before rst use, the HydroChill
must be sanitised by an
authorised technician.
• After installation, ensure that the unit is not resting on the power cable.
• Check that the unit is level and that it is resting on a surface with sufcient
load bearing capacity, in an environment that is suitable for its size and use.
• Before any maintenance or cleaning operation is carried out, remove the
mains plug from the socket or disconnect the electrical power supply.
• Ensure that the product is not sited close to sources of heat.
• To guarantee adequate ventilation, leave at least 10cm clearance envelope of
space around the HydroChill.
• Install the HydroChill in a clean, dry, well-ventilated environment. The
HydroChill is designed to function in environments with a temperature range
of between 5°C and 32°C - Climate Class N.
• Take care not to damage the cooling uid circuit, it is lled with R290 gas
, which is highly ammable. It is essential to ensure that the tubes of the
refrigerant circuit are not damaged.
• Ensure that it is possible to disconnect the electrical power supply either by
removing the mains plug or via a double pole isolation switch with a contact
separation of at least 3mm in all poles.
• The Appliance must be protected by an RCD or RCBO.
• Check that the voltage shown on the rating plate corresponds to the
voltage being supplied at the installation site.
• The HydroChill must not be cleaned with a water jet. Do not position other
electrical equipment in the immediate vicinity of the HydroChill.
• Turn off the main water inlet isolation valve if the HydroChill is not to be used
for a long period.
• Keep the areas surrounding the HydroChill dry, to avoid the risk of slipping.
• CO2: You can have serious health problems if breathing air containing
concentrations of CO2up to 15000ppm (1.5%) for more than 10 minutes.
Proper ventilation must be provided to ensure that, in case of escape,
concentrations of CO2remain below this level.
• If the supply cable is damaged, it must be replaced by a Zip service
technician or similarly qualied person in order to avoid a hazard.
• Do not use extension leads or adapters.
• This appliance is not intended to be used by persons (including children
!

4INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
PRECAUTIONS AND GENERAL RECOMMENDATIONS
aged from 8 years) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they are given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• The appliance is only to be installed in locations where it can be
overseen by trained personnel.
• This equipment is to be installed in compliance with the local plumbing
regulations.
• Water pipe connections and xtures directly connected to a wholesome
(cat 1) water supply shall be sized, installed, and maintained in
accordance with local regulations.
• This manual is based on information available when approved for printing.
Continuing design renements could cause changes that may not be included
in it, visit www.zipwater.co.uk

5
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
BEFORE INSTALLING THE HYDROCHILL
• Congratulations for choosing a HydroChill.
• We have designed and manufactured this product with great care to ensure
that it will dispense water of the highest quality.
• In order to get the most out of your HydroChill, please read the instructions in
this manual and retain the manual for future reference.
APPROVALS
This HydroChill is designed, manufactured and marketed in compliance with:
• The safety objectives of the Machinery Directive 2006/42/C.
• The protection requirements of the Electromagnetic Compatibility Directive
2014/30/EU.
The electrical safety of the product is ensured only when it is properly connected
to an efcient, legally compliant grounding circuit.

6INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
PRODUCT DESCRIPTION

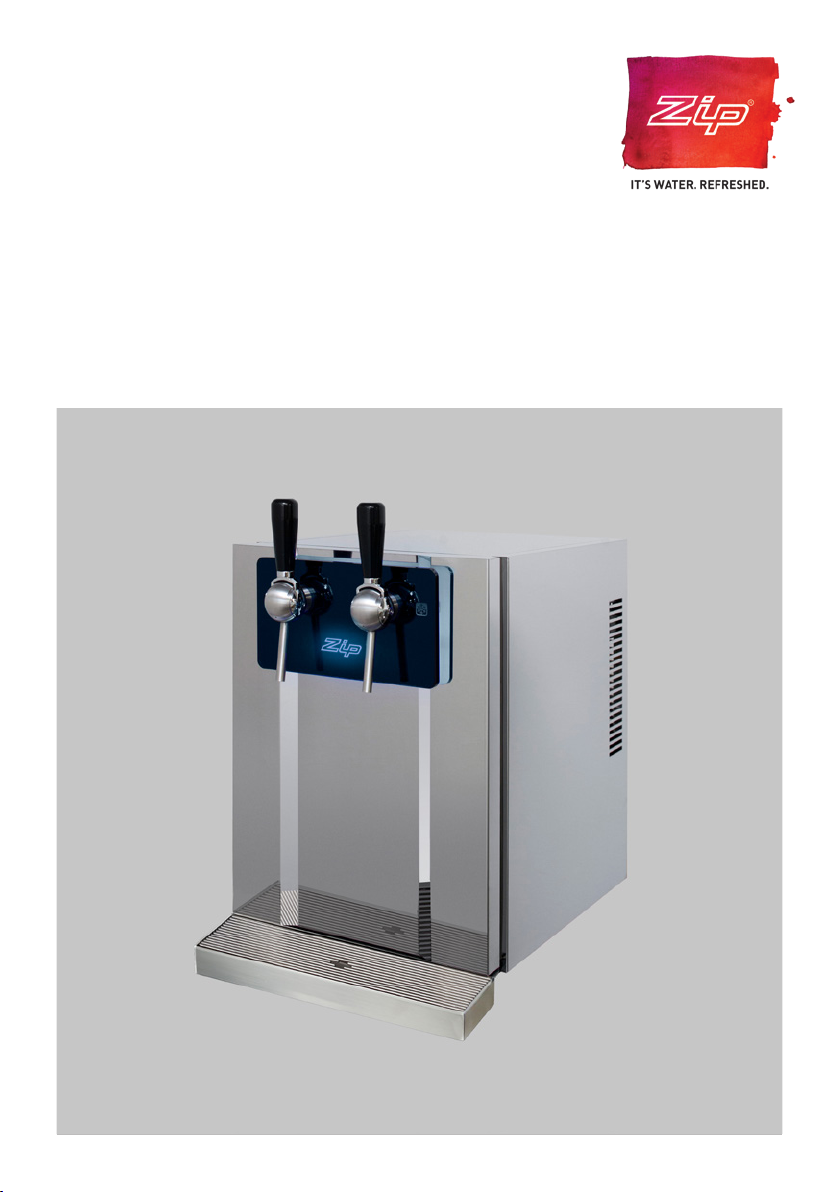

HydroChill — a new water-cooler with a
modern and elegant design.
The main features of the unit are as follows:
Modern design using strong materials
and a front plexi-glass panel with elegant
lighting.
Highly insulated ice-bank
Cooling serpentine coil made with AISI
grade 316 stainless steel for wholesome
water.
2 supply options chilled and sparkling
water or chilled and ambient water
Body and internal fabrication parts made
entirely from stainless steel.
Professional carbonator and dispensing
taps made with AISI 316 stainless-steel.
Easy opening for maintenance.
Dispensing point for bottles of up to
320mm height.
Spout tap models
Push button models

7
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
TECHNICAL FEATURES
Mechanical taps (T models) or
dispensing buttons (IT models)
1
2
3
Front of HydroChill (T model shown)
Removable top cover
Plexi-glass back plate
Drip tray with ice bank drain pipe
Antishock feet
4
5
1
2
5
3
4

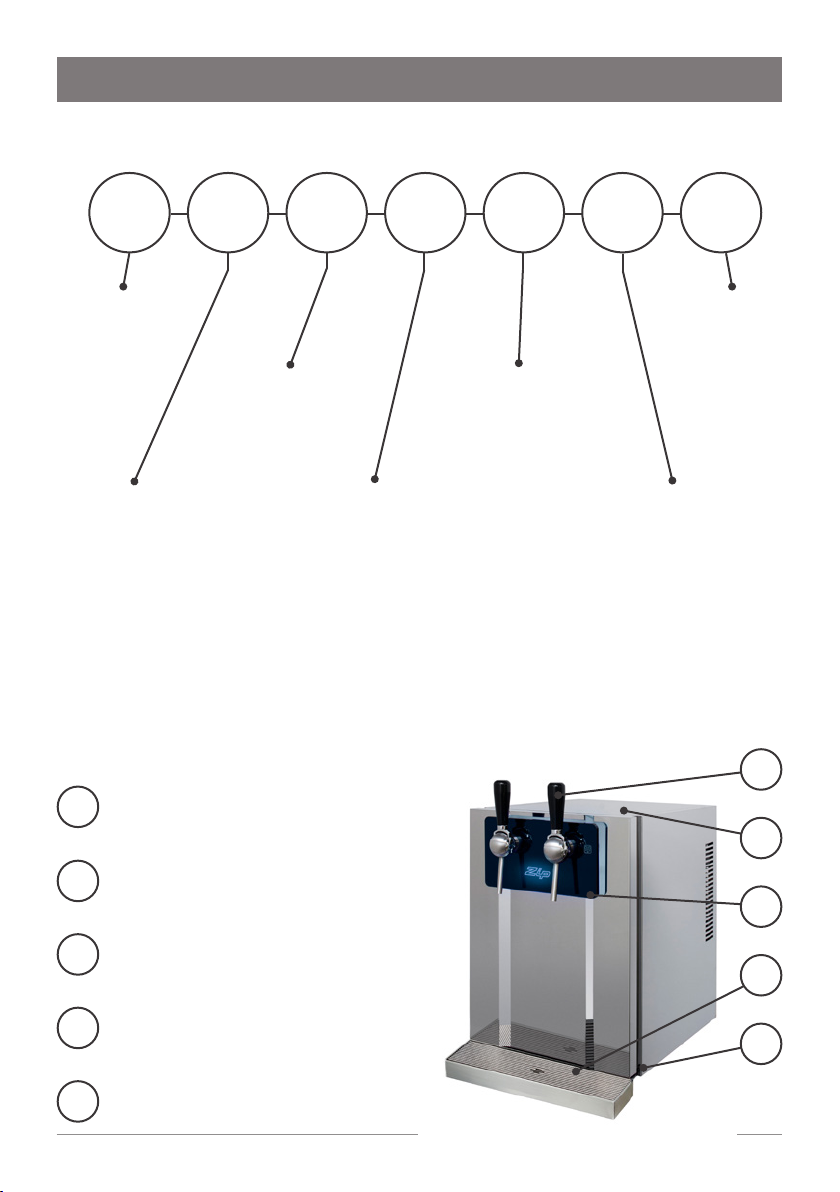

Explanation of HydroChill range product code
HC HydroChill
Range
Product group
10 range
20 range
50 range
C Chilled only
* Chilled sparkling
*T* Dispensing tap
IT* Buttons
BIT Bridge
XX
HC X XXX XXX
Dispensing tap
2A 2 Tap
2P 2 Tap + badge
3A 3 Tap
3P 3 Tap + badge
** None
Control
Conguration
XXX
U With UV
* Without UV
UV FILTRATION
Capacity (l)
30
60
80
150
280
Example
HC50CBITU280 Is a HC50, chilled only, bridge tap, with UV, 280 lire capacity.
* digit suppressed in product code.

8INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
TECHNICAL FEATURES
6
7
4
5
8
1
2
3

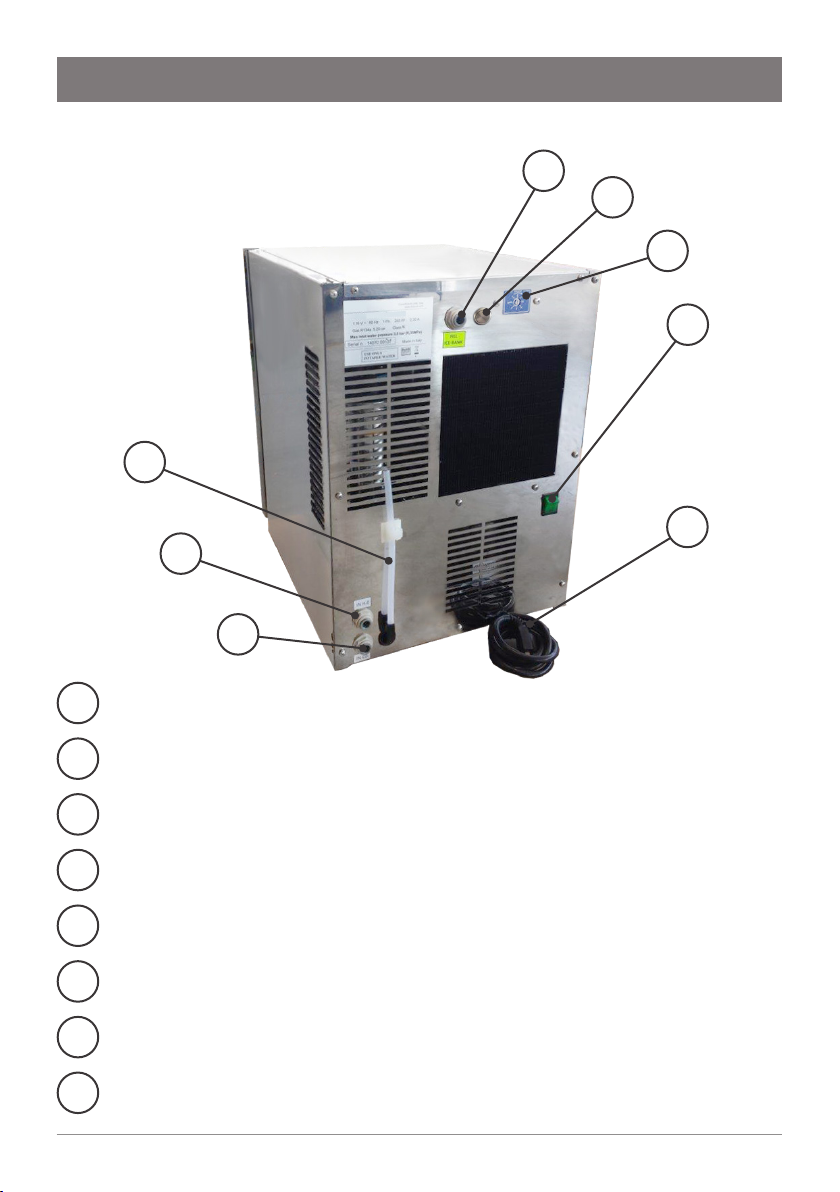

Rear of HydroChill
Ice bank inlet pipe tting Ø8 mm
Wholesome (cat 1) water
inlet pipe tting Ø8 mm
1
2
3
4
5
6
7
8
Energy Saving button (IT 80 model)
Power switch
Ice bank level
Power cable
CO2 inlet pipe tting Ø8 mm
Adjustable thermostat

9
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
TECHNICAL FEATURES
Rating plate
Class N
Made in ItalySerial no.
PRODUCT
230V ~ 50 Hz KW A
RoHS
COMPLIANT
2011/65/EU
wholesome
water only
GAS g
Product identifying
part number
Supply voltage
Unique product
serial number
Refrigerant gas
type & weight
Conformity to EU product
directives
Power rating Current rating
Conformity to EU
environmental
directives
Climate class
Country of origin
Water supply
requirements
(situated on the back
of product)

10 INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
TECHNICAL FEATURES- DIMENSIONS
566
502
321
565
360
618
542
373
606
460
80 litre models
150 litre models

11
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
TECHNICAL DATA
Technical Data Sheet 80 150
Cooling capacity, l/h 80 150
Continuous supply, l 45 80
Cold water temperature°C 5 - 12 *
Cooling technology Ice bank - Single coil Ice bank - Double coil
Ice bank capacity, l 14 18
Ice bank, kg 5 8
Pump
Professional
membrane
carbonation pump
Professional rotary
carbonation pump
Condensation Forced ventilation
Adjustable thermostat Yes
Refrigerant gas R290
Electricity supply, V 230 - 50 Hz
Compressor power, HP 1/5 1/3
Power, W 530 W - 2.3 A 875 W - 3,8 A
Inlet water Pipe, mm (”) Ø 8 (5/16)
Inlet water pressure, bar
(MPa) 2.5 bar (0.25) - 3.5 bar (0.35)
Inlet CO2 pipe, mm (”) Ø 8 (5/16)
Dispensing height, mm 321 373
Dimensions WxDxH (mm) 360x565x566 460x606x618
Net weight (kg) 35 44
Gross weight (kg) 38 49
* rated at a room temp. of 25°C and inlet water temp. of 20°C

12 INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK

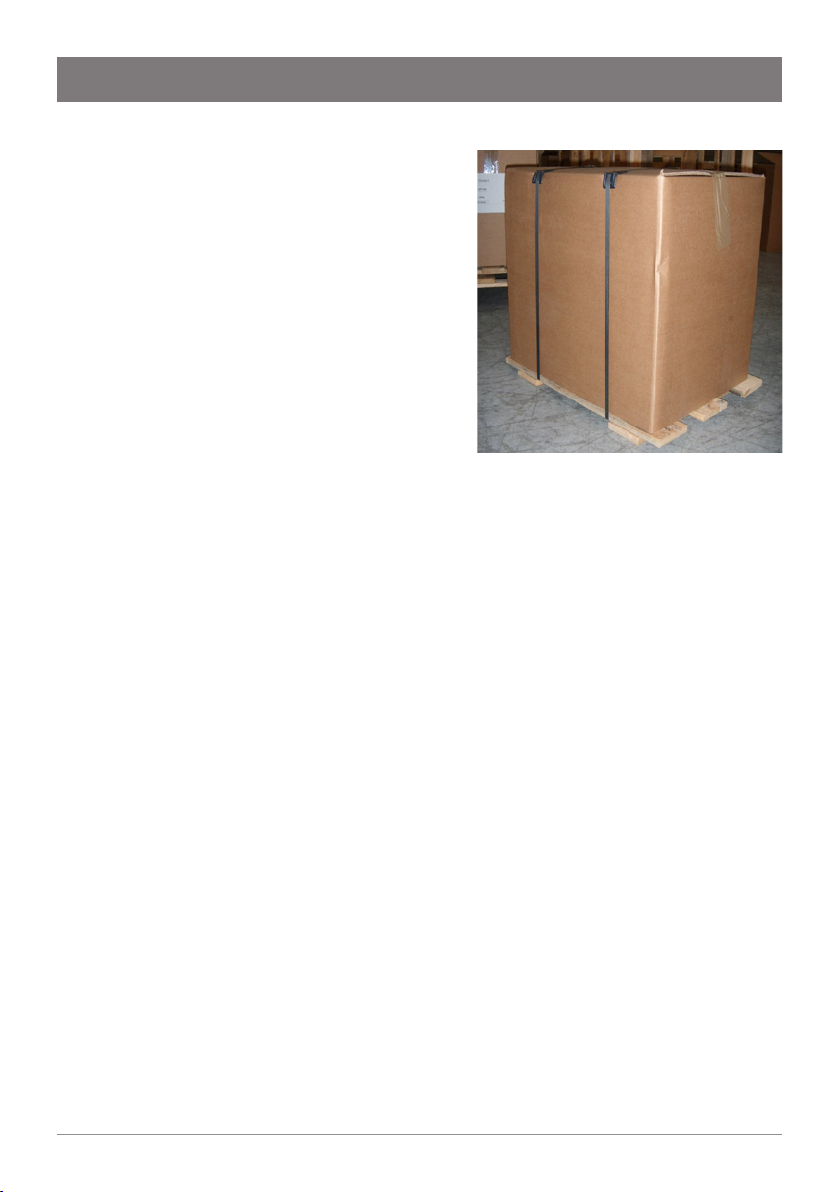

INSTALLATION
Unpacking
• Remove the plastic straps.
• Lift the internal cardboard box up and out
of the cage.
• Once you have unpacked the HydroChill,
check to ensure that it is not damaged.
• If the HydroChill has been shipped
horizontally or at an angle, it will be
necessary to wait at least 8 hours before
setting it up, in order to allow the cooling
circuit to reset itself.
• Ensure that the unit is installed and
connected to the mains water and electricity supplies by a qualied
technician, in compliance with the manufacturer’s instructions and the local
safety regulations.
Note there are no user serviceable part inside the HydroChill.

13
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
INSTALLATION
Siting the product
• Wear safety gloves when handling the
HydroChill.
• Site the HydroChill away from sources
of heat.
• Ensure surface is level.
• Leave at least 10 cm around the
HydroChill to allow for adequate
ventilation.
• Sanitise the HydroChill before rst use
see page 24.
• Tighten the tap knobs, (BT models)
and position the drip tray (4).
Filling the ice bank
• Fill with wholesome (cat 1) water via
the rear tting (1).
• Stop lling the ice bank once you
reach the max level (2) on the ice
bank level pipe (3).
• If you exceed the limit, water comes
out from the frontal drip tray (4).
• Once you have lled the ice bank,
avoid moving the HydroChill.
• If you have to move the HydroChill,
remember to empty the ice bank rst.
Emptying the ice bank
Empty the ice bank through the ice bank
level pipe (3).
1
2
3
4

14 INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
INSTALLATION
Water supply connection kit
Line counter
Ø8mm - Ø1/4”
coupler
1/4” pipe Ø8mm pipe
Filter head
1/4” stem elbow for tight
radius lter head connections
Water block
15mm to 1/2”
coupler
1/2” BSP - 1/4”
push t
Connection to the mains water supply
!
WARNING (also see
precautions pages 3 & 4)
• To connect the HydroChill to the
mains water supply, always use a new
set of connectors, pipes & ttings.
• Mains water pressure limits, see
Technical data page 11.
• Check that the mains pressure is
between 2.5 bar and 3,5 bar.
• To enhance the quality of the sparkling
water dispensed, an incoming
ow rate in excess of 3.5 l/min is
recommended.
• If the water pressure is higher than 3,5
bar it is necessary to install a pressure
reducer.
1

15
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
INSTALLATION
Water supply connection detail, assembled
Incoming cold
mains water
supply
Isolation valve
(not supplied)
Water block
15mm to 1/2”
coupler
1/2” BSP - 1/4”
push t
Filter head
Filter
(supplied)
Line counter
1/4” pipe Ø8mm pipe
To HydroChill
Ø8mm - Ø1/4”
coupler
• Connect Ø8mm incoming water tube (1) to the inlet system, (see page 14 &
above) .
• Once the pipes are attached, turn on the tap. Ensure there are no leaks.
• Before drinking the water from the system sanitise the appliance & thoroughly
purge of the system by dispensing water for 5 minutes, dispense from all taps.

16 INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
INSTALLATION

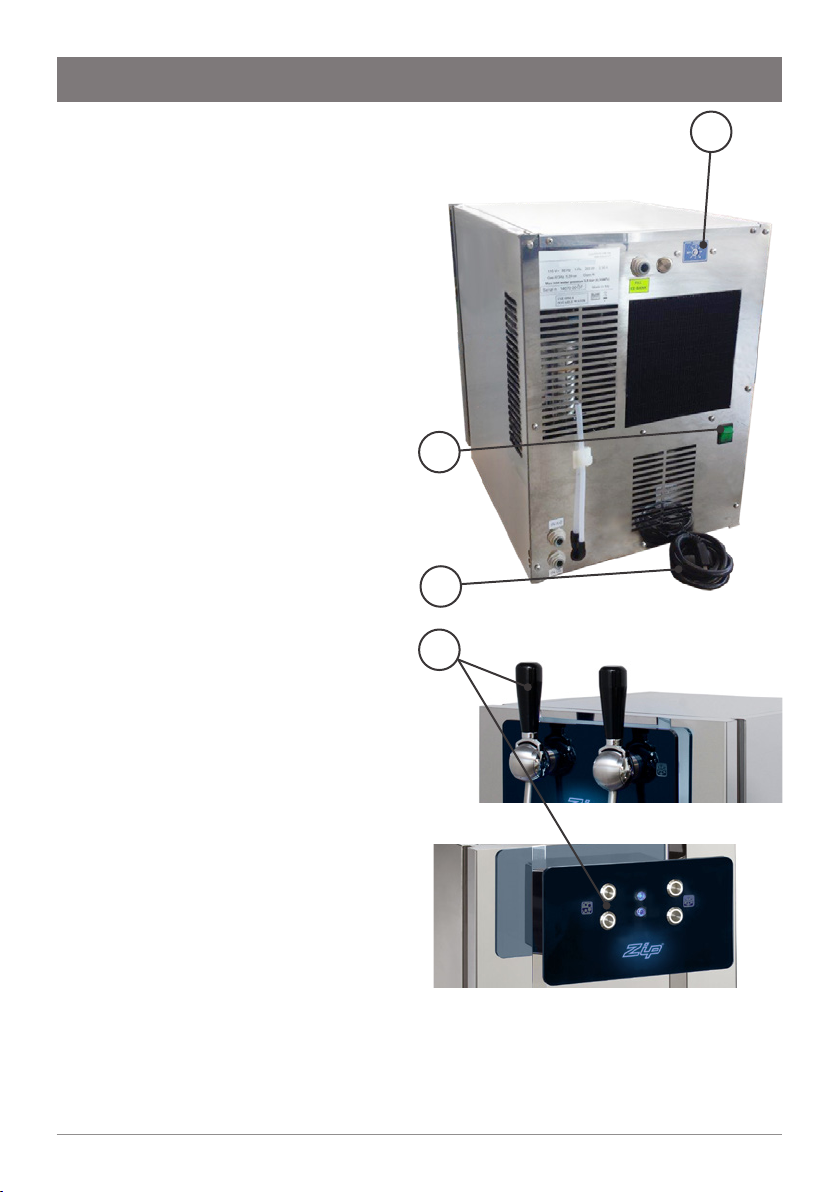

Electrical connection
• The connections must comply with
local regulations.
• The HydroChill must be earthed.
• Connect the power cable (1) to a
mains socket.
• Turn the HydroChill on by selecting
the “I” position on the power switch
(2).
• The ice-bank pump, compressor
and fan are now activated.
• Dispense sparkling water (4) in
order to release any air in the
circuit and to allow the pump to ll
the carbonator with water.
• After around 1-2 minutes, the
sparkling water pump stops.
Thermostat
• The thermostat (3) is set in the
maximum position to control the
ice bank.
• To avoid the formation of ice in the
bank, turn the thermostat screw at
least 1/4” anti-clockwise.
• In the case of freezing of the water
circuit, turn off the unit and keep it
off for at least 12 hours.
1
2
3
4

17
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
INSTALLATION
Installing the CO2cylinder (sparkling models)
(Not supplied by Zip)
!
WARNING (also see precautions
pages 3 & 4)
• The area must be properly
ventilated.
• The CO2cylinder must be used
in a vertical position, and must be
restrained safely, to prevent it falling
over.
• Double check that the cylinder
is the correct CO2gas for this
application :E290 food-grade
carbon dioxide.

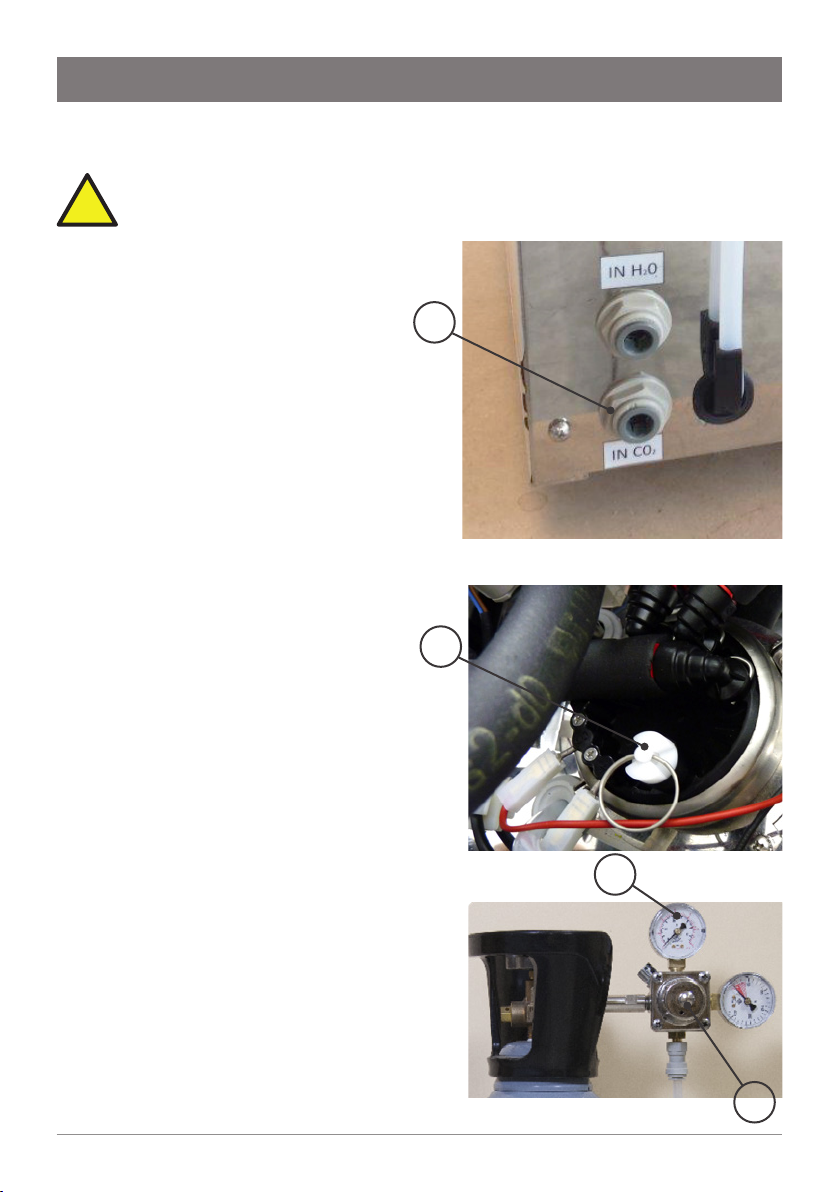

• Once the unit is connected to the
mains water and electricity supplies
, install the CO2cylinder.
• Attach the regulator & CO2pipe to
the cylinder valve.
• Insert the CO2inlet tube from
the cylinder into the tting (1). To
be sure to remove any air in the
hydraulic circuit and to achieve a
good level of carbonation, before
opening the valve on the CO2
cylinder pull the ring of the remote
safety valve (2) until water comes
out of it.
• When the cylinder is open, to
increase or decrease the level
of carbonation of the water, you
need to adjust the screw (3) on the
pressure reducer.
• Turning it clockwise increases the
level of carbonation.
• We recommend that you do not
exceed 4 bar of pressure (4).
• To achieve a good level of
carbonation, you need to wait until
the water is sufciently cold – i.e. at
least one hour after installation.
1
2
4
3

18 INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
CO2(SPARKLING MODELS)
General CO2cylinder safety guidelines
1
2
3
4
5
1Cap
2Valve connection
3Markings
4Shoulder
5Body
• All of the cylinders must be tted with a
valve protector cap, which must be tightly
secured at all times when the cylinder is
not in use.
• The cylinders must be handled with care. It
is essential to avoid:
Clashes with other cylinders or surfaces;
dropping the cylinders; or
subjecting them to mechanical stress.
• All of the above may compromise their
integrity and resistance.
• The cylinders must not be lifted by the
cap, or dragged, rolled or slid along the
oor even if only being moved for short
distances.
• An appropriate hand cart or other suitable
means of transport should be used.
• Do not use magnetic lifters, slings or rope
to lift the cylinder.
!
WARNING (also see precautions
pages 3 & 4)
CO2connection (sparkling models)
CO2cylinder
(not supplied)
CO2regulator
Ø8mm pipe
To
HydroChill

19
INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
FILTER
If the HydroChill is switched off for a long period of time
(e.g. more than a weekend), run water through the chilled
water outlet for at least 5 minutes before consumption.
Caution Water will drip as the cartridge is removed.
Do not tilt the cartridge as water may spill from it if
tilted.
• Isolate the water supply.
• Unpack replacement cartridge and remove sanitary
cap, write today’s date where shown on the label.
Avoid touching the lter o-rings and lter opening as
this may cause bacterial contamination of the cartridge.
• Align the front cartridge label to the left (as shown in
the “insert lter” diagram adjacent), and push the new
cartridge up into the lter head.
• Turn the cartridge a quarter turn anticlockwise until
it comes to a complete stop and locks, with the front
label facing forward.
• Turn on the water supply.
• Flush the lter by dispensing chilled or ambient water
for 5 mins.
• When completed, clean up and dispose of old cartridge
and packaging.
Remove lter
Insert lter
Rotate
Insert
!
WARNING
!
Filter removal, replacement & ush
Rotate
Pull

20 INSTALLATION INSTRUCTIONS & USER MANUAL
T210013 V1.00 FEB 2018 -ZIP HYDROCHILL 20
TECHNICAL SUPPORT TEL: [phone] EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
ULTRAVIOLET (UV) FILTRATION (optional)
!
WARNING
The light emitted by the ultraviolet lamp may cause serious burns to the
eyes and skin.
Installation, repair and maintenance shall only be performed by personnel
qualied to work on UV products.
Sterilizing UV lter
• Alongside the external lter, it is also possible to t a UV-C (λ=254 nm)
sterilizing lter on the dispensing point.
• The UV-C light emitted by the special 4W mercury vapour lamp is lethal for all
micro-organisms (bacteria, viruses, mould, algae, etc.); for this reason, water
treated with the UV-C sterilizer will be micro-biologically pure.
Technical data
• Material AISI 304 and quartz tube
• Power rating 24V AC
• Power consumption 4Wh
• Maximum capacity of the lamp 9.000 h (max 12 months)
The UV sterilizer complies with European quality and safety guidelines.
