Getting to Know Your Device
Appearance
The following figure is only for your reference. The actual product may be different.
1. LED Indicators
2. Power Button
3. WPS Button
4. Micro USB Port
5. (U)SIM Card Slot
6. microSD Card Slot
NOTE: microSD logo is a trademark of SD Card Association.
Indicators
Indicator Status Description
Network
Red solid Error status. Not registered to the mobile
network, no (U)SIM card inserted or no
network service available.
Green solid Registered to the mobile network.
Green blinking Connected to the mobile network and data is
being transferred.
Wi-Fi
Blue solid Wi-Fi is active.
Blue blinking WPS is active.
LED light off Wi-Fi is off or your device is in sleep mode.
Battery
Red solid/ blinking The battery is low. Please charge the battery.
Green blinking The battery is being charged.
Green solid The battery level is middle or high.

ZTE R206-Z Getting Started
4 Confidential and Proprietary Information of ZTE CORPORATION
LED light off Your device is in standby mode and not being
charged, or the battery is not inserted.
Connection Scenario

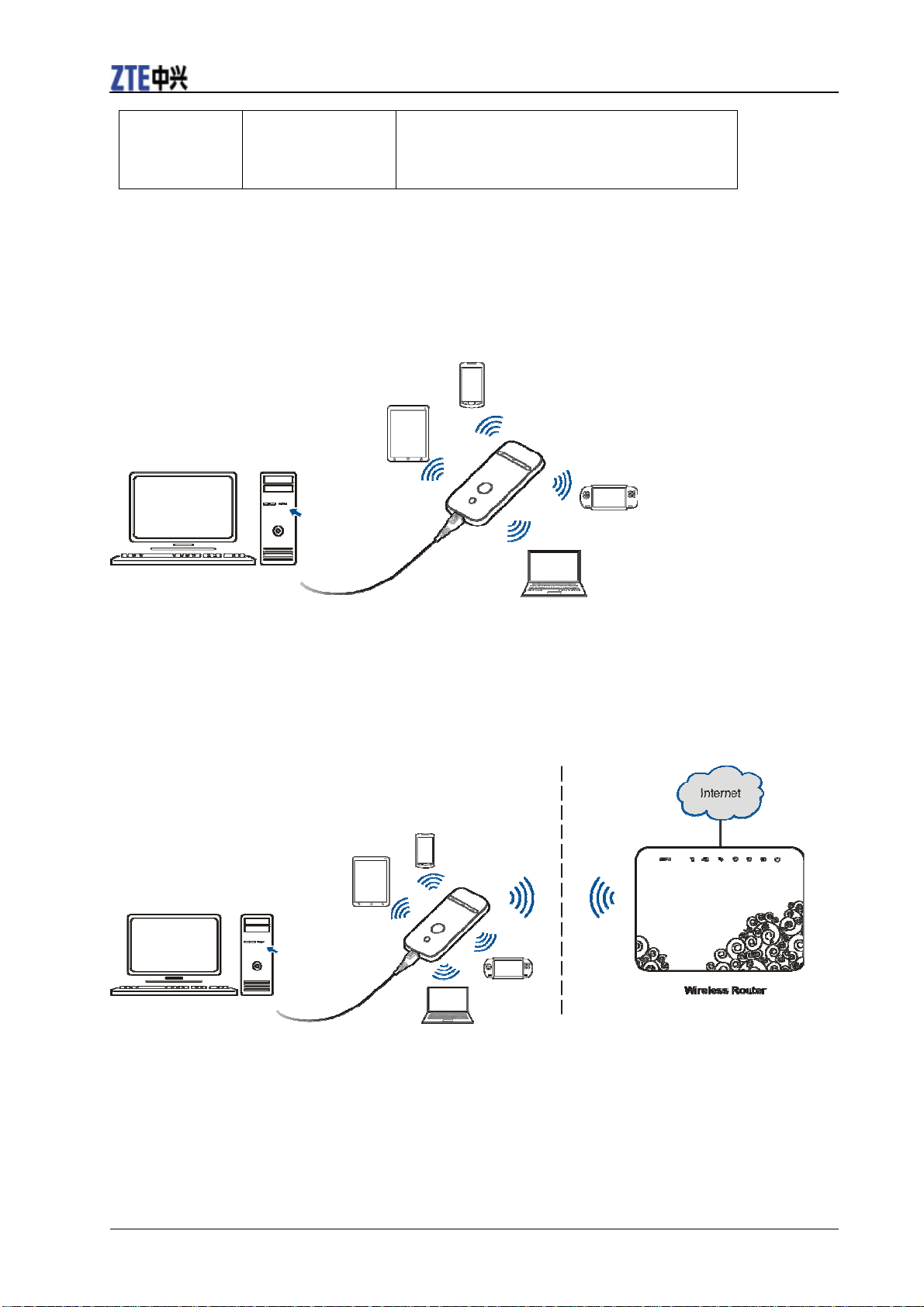

Your device supports two methods to connect to the Internet and supports multi-clients for
surfing on the Internet at the same time. The following figure is only for your reference.
3G Mode: Use your (U)SIM card to access the Internet.
AP Station Mode: Your device will connect to other WLAN device (hotspot device, wireless
router, etc.) via Wi-Fi to access the Internet. The WLAN device has already connected to the
Internet.
NOTE:
The subnets of your device and other WLAN device must be different.
Installing Your Device

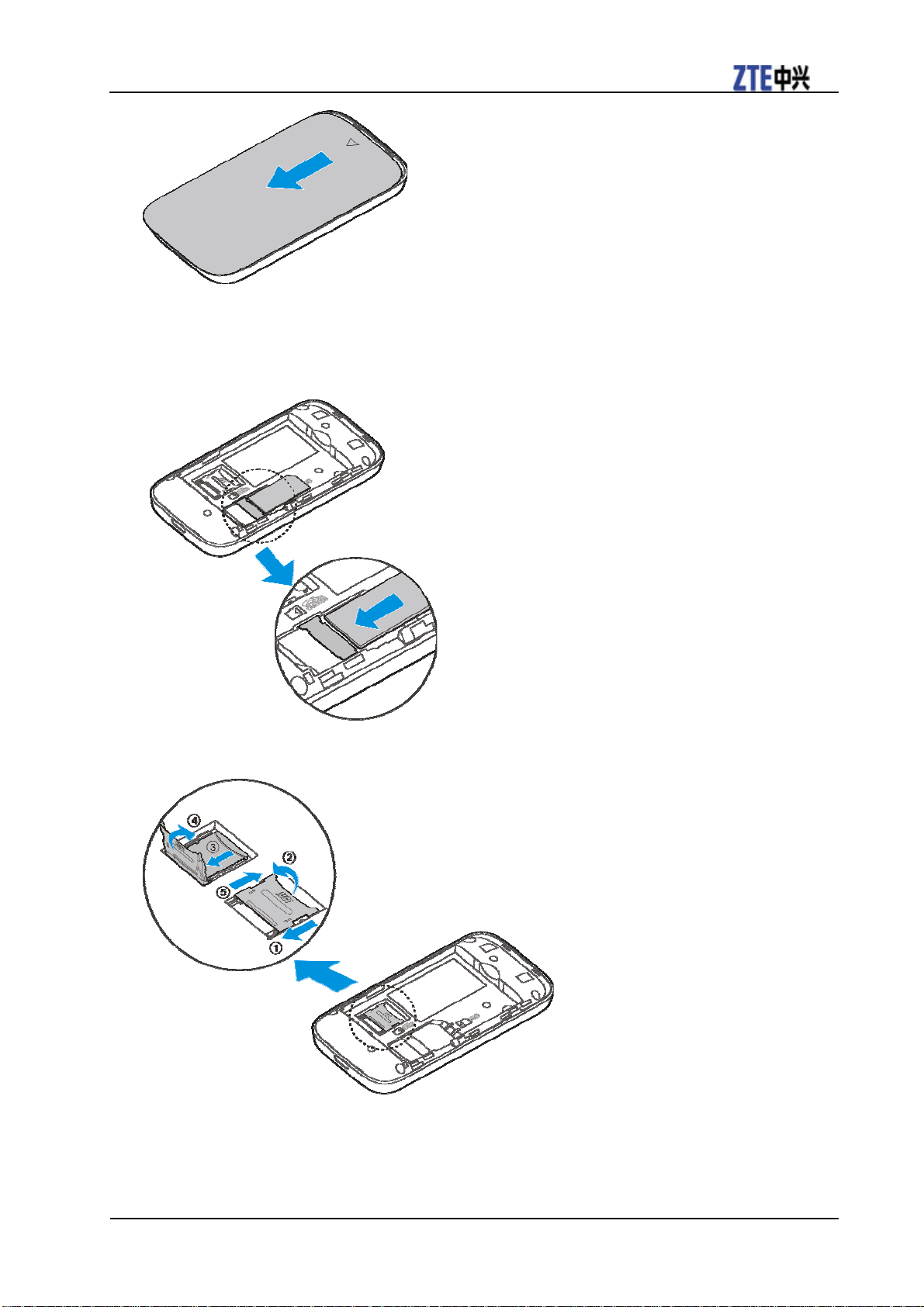

1. Slide the back cover and remove it

ZTE R206-Z Getting Started
Confidential and Proprietary Information of ZTE CORPORATION 5
2. Insert the (U)SIM card.
IMPORTANT: Your device does not support Micro/Nano or any other nonstandard SIM cards. To avoid
device damage, please do not use them.
3. Insert the microSD card if necessary.
4.Insert the battery.

ZTE R206-Z Getting Started
6 Confidential and Proprietary Information of ZTE CORPORATION
5. Close the back cover.
Connecting to Your Device
Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize.
2. Use your normal Wi-Fi application on the client to search for the available wireless networks.
NOTE: Please set the client to obtain an IP address automatically referring to the chapter
“Configuring your PC”, and then the client will get an IP address like “192.168.0.101”.

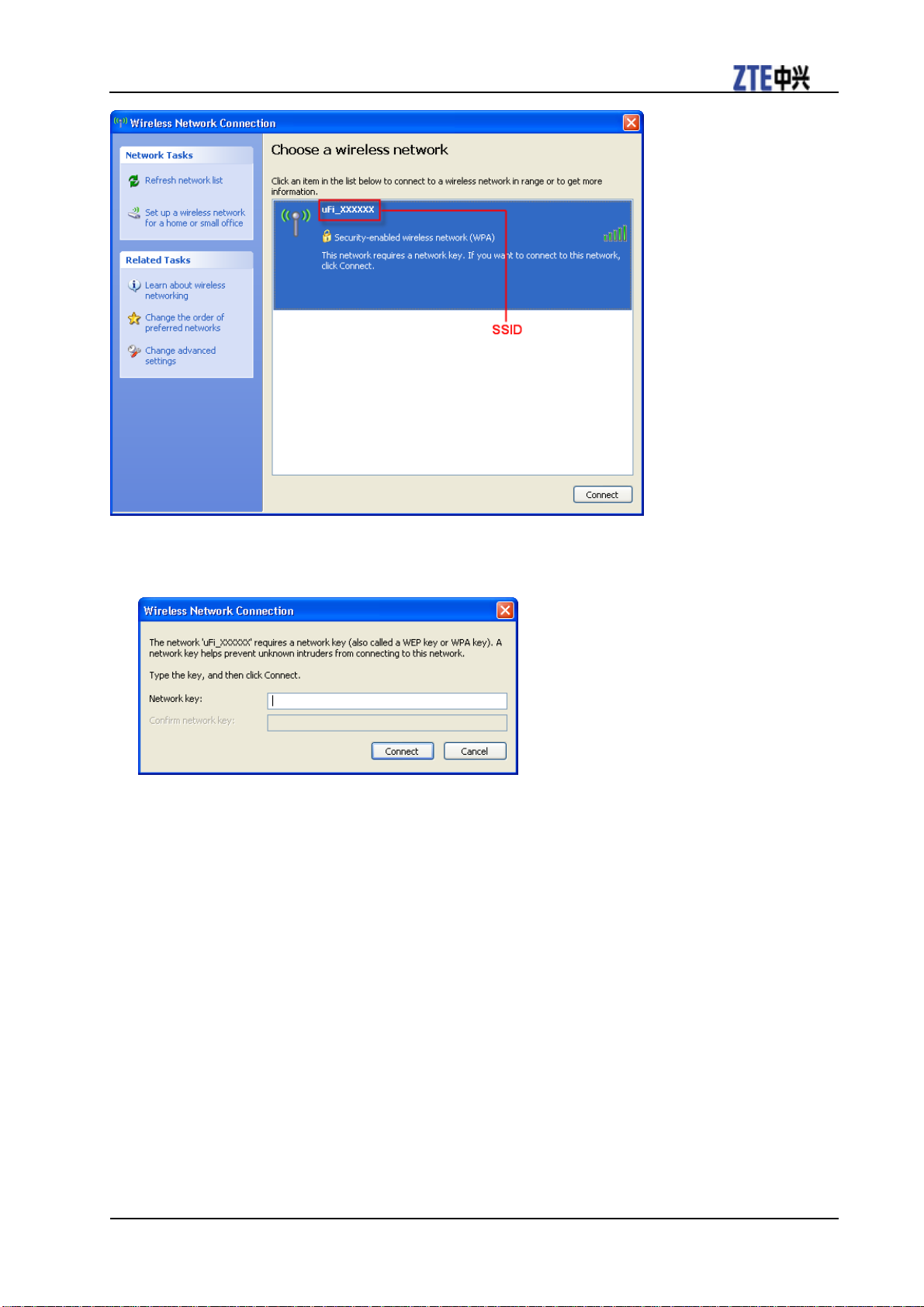

3. Select the SSID of your device, and then click Connect.

ZTE R206-Z Getting Started
Confidential and Proprietary Information of ZTE CORPORATION 7
NOTE:
Please check the label on your device to get the default SSID.
4. Input the password, and then click Connect.
NOTE:
You may need to input the password for Wi-Fi connection. Please check the label on your device to get
the default.
5. Wait a moment, and then the client will connect to your device successfully.

ZTE R206-Z Getting Started
8 Confidential and Proprietary Information of ZTE CORPORATION
Via USB Cable
1. Connect to the device.
2. Power on your device.
3. The OS detects and recognizes new hardware and finishes the installation automatically.
NOTE: If the system does not launch installation automatically, you can run the installation program in
path of My Computer > ZTEMODEM.
4. Wait a moment, and then the client will connect to your device successfully.
Accessing the Internet
3G Mode
After the client connected to your device successfully, you can access the Internet in the
Automatic or Manual mode. The default mode is Automatic.
Mode Operations
Automatic Your device will connect to the Internet automatically, and your
clients can surf on the Internet directly.
Manual Log in the webGUI configuration page, and select Settings > 3G

ZTE R206-Z Getting Started
Confidential and Proprietary Information of ZTE CORPORATION 9
Settings > Network Select > WAN Connection Mode > Manual,
and then click Connect or Disconnect.
NOTE:
If you want to modify the detailed parameters of your device, please log in the webGUI configuration
page by visiting http://192.168.0.1 or http://m.home.The default password is admin.
AP Station Mode
1. Log in the webGUI configuration page.
2. Select Settings > AP Setting.
3. Set the WLAN and WLAN mode, and then click Apply.
NOTE:
You need to set the WLAN On and select Wi-Fi Prior.
4. Connect to the WLAN device.
There are two methods for your reference.
Input the WLAN device information in the WLAN Setting area, and then click Apply.
Click More, select this WLAN device which will be listed, and then click Connect.

ZTE R206-Z Getting Started
10 Confidential and Proprietary Information of ZTE CORPORATION
5. After the client connected to the WLAN device successfully, you can access the Internet.
Configuring Your PC
Follow the following steps and figures for Windows XP to configure the Internet Protocol for
your Wi-Fi connection.
.
1. Right-click My Network Places, and then select Properties.
2. Right-click Wireless Network Connection, and then select Properties.
