Zte 4G LTERouter with Voice User manual

1
U.S. Cellular®Customer Service 1-888-944-9400
Quick Start Guide
4G LTE
™
Router with Voice

2
LEGAL INFORMATION
Copyright . 2014 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic
or mechanical, including photocopying and microlm,
without the prior written permission of ZTE Corporation.
Notice
This guide is published by ZTE Corporation. We reserve
the right to make modications on print errors or update
specications without prior notice. Every effort has been
made in the preparation of this guide to ensure accuracy of
the contents, but all statements, information, and
recommendations in this guide do not constitute a warranty
of any kind, expressed or implied.
We offer self-service for our smart terminal device users.
Please visit the ZTE ofcial website (at www.zteusa.com)
for more information on self-service and supported product
models. Information on the website takes precedence.

3
Disclaimer
4G LTE is not available in all areas. See uscellular.com/4G
for complete coverage details. 4G LTE service provided
through King Street Wireless, a partner of U.S. Cellular.
LTE is a trademark of ETSI.
ZTE Corporation expressly disclaims any liability for faults
and damages caused by unauthorized modications of the
software.
Images and screenshots used in this guide may differ from
the actual product. Content in this guide may differ from the
actual product or software.

4
SIM Card Limited Warranty
Subject to the exclusions contained below, United States
Cellular Corporation (“U.S. Cellular”) warrants to the
original purchaser (“You” or “Your”) of the handset with
which the 4G LTE™ SIM Card was provided that the 4G
LTE SIM Card will be free from defects in material and
workmanship for a period of one (1) year from the date
You purchased the handset (the “Warranty Period”). This
warranty is not transferable. Should a defect appear during
the Warranty Period, U.S. Cellular will send a replacement
4G LTE SIM Card to Your address within the United States
without charge provided that you request the replacement
4G LTE SIM Card during or within thirty (30) days following
the Warranty Period by calling
U.S. Cellular Customer Service at 1-888-944-9400 (or
dialing 611 on Your U.S. Cellular handset) or by visiting a
U.S. Cellular retail store.
REPLACEMENT OF THE 4G LTE SIM CARD AS PROVIDED
HEREIN IS YOUR EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY, AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED INCLUDING,

5
WITHOUT LIMITATION, ANY WARRANTIES OF
TITLE, FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, NON-INFRINGEMENT OR ARISING
FROM COURSE OF DEALING OR USAGE OF TRADE.
NEITHER U.S. CELLULAR NOR ANY OF ITS AFFILIATES
OR RETAILERS SHALL BE LIABLE TO YOU FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, ECONOMIC,
EXEMPLARY, PUNITIVE OR CONSEQUENTIAL
DAMAGES (INCLUDING, WITHOUT LIMITATION,
LOSS OF DATA, LOSS OF REVENUE OR PROFITS,
DAMAGE TO PROPERTY OR LOSS OF USE). IN NO
EVENT SHALL U.S. CELLULAR’S, ITS AFFILIATES’ OR
RETAILERS’ LIABILITY TO YOU OR ANY THIRD PARTY
WITH RESPECT TO THE 4G LTE SIM CARD EXCEED
THE COST OF REPLACING THE 4G LTE SIM CARD.
THIS LIMITED WARRANTY SHALL BE CONSTRUED
UNDER THE LAWS OF THE STATE OF ILLINOIS,
EXCLUDING ITS CONFLICTS OF LAW PROVISIONS.

6
SOME STATES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, OR THE DISCLAIMER OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT
APPLY TO YOU.
No agent, employee, dealer, retailer, representative or
reseller is authorized to modify or extend the terms of this
Limited Warranty.
Version No.: R1.0
Edition Time: June 27, 2014
Manual No.: 079584506679

7
Contents
Getting to Know Your Device ............................... 9
Appearance..................................................................9
Device Installation................................................11
Before You Begin ....................................................... 11
Installing your Router with Voice................................ 11
Indicators....................................................................13
Connecting to your 4G LTE™ Router
with Voice ............................................................. 15
Accessing the Internet........................................ 16
Connecting to Your Device ........................................16
WPS Functionality............................................... 19
Voice Function ..................................................... 21
Making a Call .............................................................21
Answering a Call ........................................................22
Call Forwarding ..........................................................22

8
Call Waiting ................................................................24
Three-Way Calling .....................................................24
Emergency Call..........................................................25
Voicemail....................................................................25
Troubleshooting .................................................. 26

9
Getting to Know Your Device
Appearance

10
1. 4G LTE™ SIM
Card slot Insert your 4G LTE SIM Card.
2. Reset button Reset your router.
3. External
antenna
connector
To get strength Signal.
4. WPS button
This button is used to start/end the Wi-Fi
Protected Setup authentication process
and enable/disable the Wi-Fi function.
*Hold it for 3 seconds to activate the
WPS Function.
*When the WPS function is available,
press it to deactivate the WPS function.
Press it to enable/disable the Wi-Fi WPS
function.
5. Phone Standard RJ11 connector for the telephone.
6. LAN Ethernet connector to computer.
7. Power Socket Connector to the external power supply.
8. Power Switch Turn your router on or off.
9. Indicators Indicate the status of your router.

11
Device Installation
Before You Begin
You can charge your router by using an adapter.
• Insert the charger lead carefully with the plug arrow
facing the bottom of the router.
• Do not use excessive force to insert the plug.
• Make sure the plug is facing the right way, and lined up
correctly. Insert it gently.
Installing your Router with Voice
1. Slide the back cover and remove it.

12
2. Install the battery.
3. Install the 4G LTE™ SIM Card.
IMPORTANT:
Your device only supports the 4G LTE SIM Card. To avoid
damaging the device, please use the card that comes
installed or included in the box of the router.

13

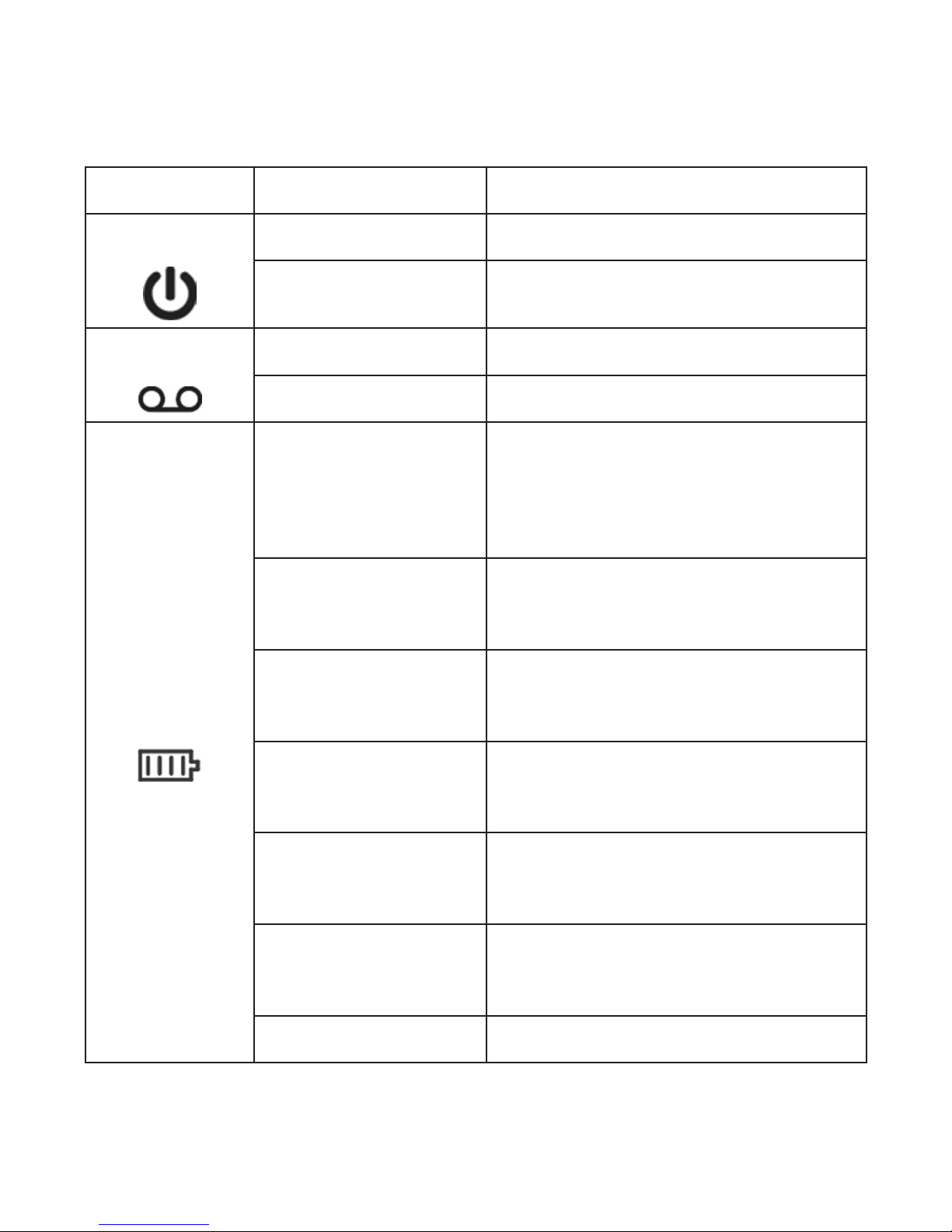

Indicators
Indicator State Description
Power Green steady AC power present
Off No AC power
Voicemail Green blinking New voicemail waiting
Off No new voicemail
Battery
Green steady
More than 50% discharging
(charger not present, or
fully charged)
Green blinking More than 50% charging
(charger present)
Yellow steady 20%-50% discharging
(charger not present)
Yellow blinking 20%-50% charging
(charger present)
Red steady Less than 20% discharging
(charger not present)
Red blinking Less than 20%
Charging (charger present)
Off Battery not present

14

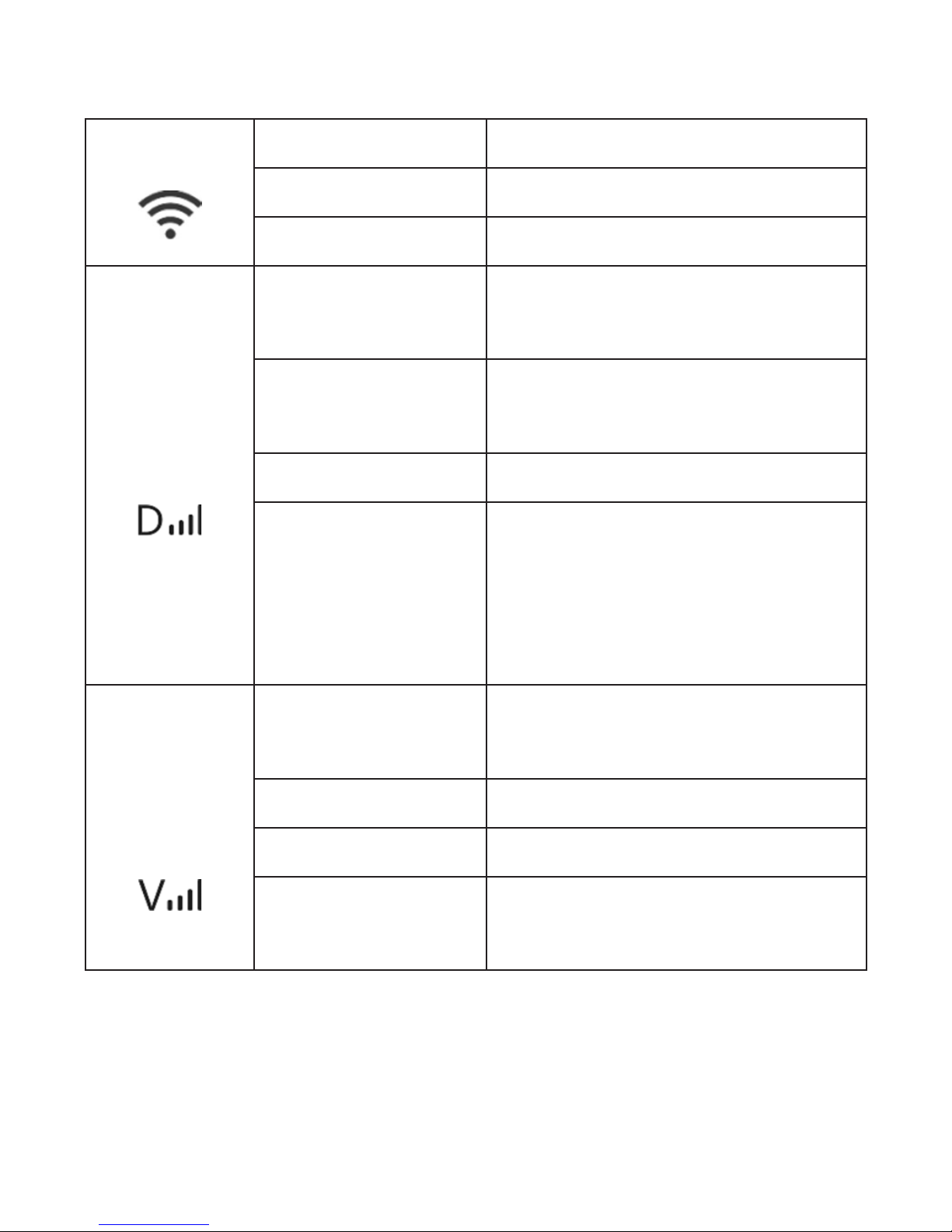

Wi-Fi Green steady Wi-Fi on
Blinking Active data connection
Off Wi-Fi off
Data
Network
Green steady Connected to the LTE
network
Yellow steady Connected to CDMA 1x or
EVDO
Blinking Roaming
Red steady
No service, limited
service, searching, no 4G
LTE™ SIM Card or other
abnormal status
Voice
Signal
Strength
Green steady Strong (3, 4 & 5 bars)
signal
Yellow steady Weak (1 & 2 bars) signal
Blinking Roaming
Red steady No service, limited service,
searching
NOTE:
The phone function needs network support.

15
Connecting to your 4G LTE™ Router
with Voice
Please refer to the following picture for connecting to your
4G LTE Router with Voice. If you want to use the mobile
network to connect to the Internet or use your land line
phone, you need to insert your 4G LTE SIM Card rst.

16
Accessing the Internet
Before accessing the Internet, please make sure that the
following operations are nished:
• Your device is connected via a network cable or Wi-Fi.
• Your PC is congured.
Connecting to Your Device
Via Wi-Fi
1. Power on your device. It will take 1-2 minutes to
initialize.
2. Use your Wi-Fi application on the client to search for
the available wireless networks.

17
3. Select the SSID of your device, and then click Connect.
NOTE:
SSID is printed on the device label beneath the battery
door.
4. Input the password, and then click Connect.

18
NOTE:
The password for the Wi-Fi connection is on the label of
your device located under the battery cover.
5. The client will connect to your device.

19
Via Ethernet port
1. Connect the Ethernet cable to the LAN port and your
computer.
2. Your computer will acquire network connection via 4G
LTE™ Router with Voice and connect to the internet
automatically.
WPS Functionality
Your device supports WPS functionality. You can use this
function to connect the client to your device.
1. Power on your device, and enable the Wi-Fi function
on your device.

20
2. Press the WPS button on your device to start ‘Wi-Fi
Protected Setup’ authentication process.
3. Enable the WPS function on your client to respond to
this authentication process.
4. Follow the system prompts on your client to nish the
connection.
To access Web Portal:
Login to the Web Portal Conguration Page.
1) Launch an Internet browser and enter
http://192.168.1.1 or http://uscc.router in the
address bar. The login page appears.
