ZUMEX PUSH&JUICE User manual

WELCOME
TO A NEW ERA

ZUMEX PRESENTS
A NEW CONCEPT
PUSH&JUICE
Forget everything you know about juicers.
One button will change everything.
Enjuice your life!

PUSH&JUICE
Things were never so easy
Imagine pushing just one button
and having fresh juice squeezed
directly into the glass?
As simple and as natural as that.
Making a juice becomes a breeze
with Soul, giving way to a new era
for professional juicers.
A new concept with which you will
enjoy the essence of a perfect juice.
PUSH&JUICE
Nunca fue tan fácil
¿Imaginas pulsar sólo un botón y tener un
zumo recién exprimido directo en el vaso?
Así de sencillo, así de natural.
Soul simplica al máximo la forma de hacer
un zumo y da paso a una nueva era para las
exprimidoras profesionales.
Un nuevo concepto con el que disfrutarás de
la esencia de un zumo perfecto.
PUSH&JUICE
Jamais cela n’a été aussi facile
Imaginez-vous qu’en appuyant sur un seul
bouton vous obtiendrez un jus fraîchement
pressé, directement dans le verre ?
Si simple, si naturel.
Soul simplie au maximum la façon de faire
un jus de fruit et fait entrer les presse-agrumes
professionnels dans une nouvelle ère.
Un nouveau concept pour apprécier
l’essence d’un jus parfait.
PUSH&JUICE
Nie war es so einfach
Auf einen Tastendruck ein Glas frisch
gepresster Saft?
So einfach, so natürlich.
Soul macht die Saftherstellung zu einem
Kinderspiel und leitet eine neue Ära
der professionellen Saftpressen ein.
Ein neuartiges Konzept für perfekten Saft.
PUSH&JUICE
Non è mai stato così facile
Riesci ad immaginare di avere un succo
appena spremuto direttamente nel
bicchiere, premendo soltanto un pulsante?
Facile e naturale.
Soul semplica al massimo il modo di fare
un succo e apre le porte a una nuova era per
le macchine spremiagrumi professionali.
Un nuovo concetto che ti permetterà di
gustare l’essenza di un succo perfetto.

CONICAL SYSTEM
SOUL IS INSIDE
Cold body and warm soul.
That is the secret of a perfect juice.
The combination of cutting-edge
technology, the cleanest cut and
meticulous care of the fruit leads to
perfection in every drop squeezed
by Soul.
Pat. Pend: P201331180. PCT/EP/2013/070494
CONICAL SYSTEM. EL ALMA ESTÁ DENTRO
Cuerpo frio y alma cálida. Ese es el secreto de un zumo
perfecto. La combinación de la tecnología más avanzada,
el corte más limpio y un cuidado exigente de la fruta,
hace que cada gota exprimida por Soul sea perfecta.
CONICAL SYSTEM. DIE SEELE BEFINDET
SICH IM INNERSTEN
Kühler Körper und warme Seele. Das Geheimnis von
perfektem Saft. Die Kombination von modernster
Technologie, sauberem Schnitt und schonender
Behandlung der Frucht erzielt die Perfektion
von jedem mit Soul ausgepressten Tropfen Saft.
CONICAL SYSTEM. L’ÂME EST L’INTÉRIEUR
Corps froid et intérieur chaud. Tel est le secret d’un jus
parfait. L’alliance entre une technologique d’avant-garde,
une coupe plus propre et un fruit choyé fait que chaque
goutte pressée par Soul est parfaite.
CONICAL SYSTEM. L’ANIMA È DENTRO
Corpo freddo, anima calda. Questo è il segreto di un succo
perfetto. La combinazione della tecnologia più avanzata,
del taglio più pulito e di un trattamento esigente della frutta,
fa in modo che ogni goccia spremuta da Soul sia perfetta.

NOT NEED A MANUAL
IT IS VERY SIMPLE
SHALL WE START?
LET’S GET GOING!
ANY DOUBTS?
Prepare the place where you are going
to put your Soul
Some tips before you start
Push&Juice!
Off
Cleaning
Small problems, drastic measures

THIS IS SOUL AND ITS
IT SQUEEZE CITRUS FRUIT
AUTONOMY FOR THE USER
FEEDER CAPACITY
FRUIT SIZE
FROM 50 TO 82 MM
TECHNICAL DATA
ORANGES
LEMONS
LIMES
3/4 FRUITS
Pat. Pend: P201331180. PCT/EP/2013/070494
Pat. Pend: P201331434. PCT/EP2013/072340
DIMENSIONS
SPEED
1 JUICE IN
260 x 435 x 430 MM.
15´´15´´
1MIN 12FRUITS
*Contact your Distributor for any technical questions you might have.
WEIGHT 17kg 37.4 lb
VOLTAGE 220 V- 240 V50/60Hz 110-120 V50/60Hz
POWER 42W
MAXIMUM CONSUMPTION 2.5A 5A
SOUND PRESSURE LEVEL 70dB
ANTI-HUMIDITY PROTECTION IPX2

EN
1
1
11
11
12
12
15
15
13
13
16
16
14
14
17
18
17
4
4
8
8
2
2
5
5
9
9
3
3
7
7
6
6
10
10
ZUMEX SOUL
GLASS HOLDER BASE
GLASS HOLDER
POWER CABLE
FRONT DOOR
WASTE CONTAINER
JUICE EXTRACTION UNIT
TAP
JUICE EXTRACTION UNIT COVER
SHAFT UNIT WITH CENTRE SUPPORT
FILTER
JUICE EXTRACTION BASE
FEEDER FLANGE
PRESSING UNIT FASTENER
LOWER PRESSING UNIT
UPPER PRESSING UNIT
DRIVE SHAFT COUPLING
JUICE EXTRACTION UNIT COVER FASTENERS
18
Before you start, for your safety, take into account
The specic details about your Zumex Soul juicer (voltage, frequency and other data of interest), can be found on the
Identication Label that you will nd inside the machine.
If you have any technical queries, you must get in touch with your regular Dealer / Ofcial Technical Support
Service, always stating the Serial Number on the machine Identication Label.
Zumex adopts the necessary measures to ensure that the machines placed on the market are selectively collected
and managed in an environmentally respectful manner. Please contact your authorised Zumex dealer to correctly
dispose of these machines.
This appliance is not designed for use by children or by adults with physical, sensorial or mental impairments, or
who lack experience or knowledge, unless they are supervised or have been given instructions on the use of the
appliance by a person responsible for its safety.
Children should be supervised to make sure they do not play with the machine, either for its use, its cleaning or
maintenance.
This machine is designed for squeezing citrus fruit of the sizes indicated in this manual. Do not use other different
fruit or sizes to those specied in the manual.
Before cleaning the machine or carrying out any maintenance, always unplug from the mains.
Be very careful with the cutting elements, to avoid possible accidents.
The parts that are in contact with food must be cleaned according to the instructions that you can read in the
cleaning chapter.
If the power cable is damaged, it must be replaced by the manufacturer, by your after-sales service or by similar
qualied personnel to avoid hazards.
Do not operate the machine from behind, or try to get it to work without safety elements.
The instructions may be updated without prior notice. You can consult them at any time on our website
www.zumex.com, in the section on the selected model.
If you have any suggestions or comments that you believe may improve our machines or service
network, please get in touch with Zumex directly at the address below:
ZUMEX GROUP, S.A. Polígono Ind. Moncada III C/Molí 2. 46113 Moncada. Valencia. Spain.
Tel. [phone] Fax: [phone] / [e-mail] / www.zumex.com

EN
Shall we start?
PREPARE THE PLACE WHERE YOU ARE GOING TO PUT YOUR SOUL
Have you thought about where you are going to put your machine? You can put it wherever you
want and easily move it whenever you want thanks to its 360° design and light weight.
Firstly, make sure that the mains voltage and frequency coincide with the indications given on
the machine identication label that you will nd both on the front page of this manual and
on the actual machine.
Ensure that no obstacles hinder you during the unpacking process.
Then, take the Zumex Soul out of its packaging and put it on the at surface that you have
prepared.
The following components may come separate, and if so, you must put them in their place:
Glass holder base, Glass holder, Power cable.
1
2
3
4
SOME TIPS BEFORE YOU START
You are a step away from starting to extract juice with Soul. First of all, we are going to give you
some tips for you to have a perfect knowledge of your new juicer.
Initial cleaning
Before using for the rst time, we recommend you clean the juice extraction system.
See “Cleaning” section.
Start-up
Check the electrical data of your machine with the electricity supply. Once the machine is installed
correctly, plug it into the mains.
After plugging the machine in and touching the button, a xed white light will appear. This means
that the machine is ready to extract juice.
Check that the Waste container and Front door have been correctly tted; otherwise a ashing
white light will appear.
Remember to open the Tap (lower position)
and put a glass under the juice outlet of your machine.
Place the glass holder under the tap rst.
Loading the feeder
Important! Please never try to access the extraction area from the feeder with your hand,
to avoid possible accidents.
The machine is ready to admit
three oranges in the feeder,
according to the size.
!
Never operate the machine from one side
or from the rear. You must always load the
feeder from the front of the machine.
Glass holder base Glass holder
!

EN
Juice extraction unit
Check that all the elements of the Juice extraction unit have been mounted as indicated in the
“Assembly” section.
Waste area
Make sure that the Waste container is correctly in place. There will be a ashing white light
on the button when the peel container is full and the machine is not extracting juice.
What does Soul want to tell me?
OBSERVE THE LIGHT ON THE BUTTON
WHITE
the machine is ready to extract juice.
FLASHING WHITE
the machine is not ready to extract juice.
Check the waste container and the front door.
ORANGE
the machine is extracting juice correctly.
FLASHING ORANGE
the machine is extracting juice and the waste
container needs to be emptied.
Let’s get going!
PUSH&JUICE!
To extract juice just press the front button. You will see
that the colour of the button will automatically change
from white to orange.
The juice outlet will light up:
You are preparing the most exquisite juice.
OFF
You can switch off your machine as follows:
By pressing the front button for 2”.
By directly disconnecting the power cable.
If the machine does not detect oranges,
it will stop approximately 30” after the last orange has passed through.
a
b

EN
CLEANING

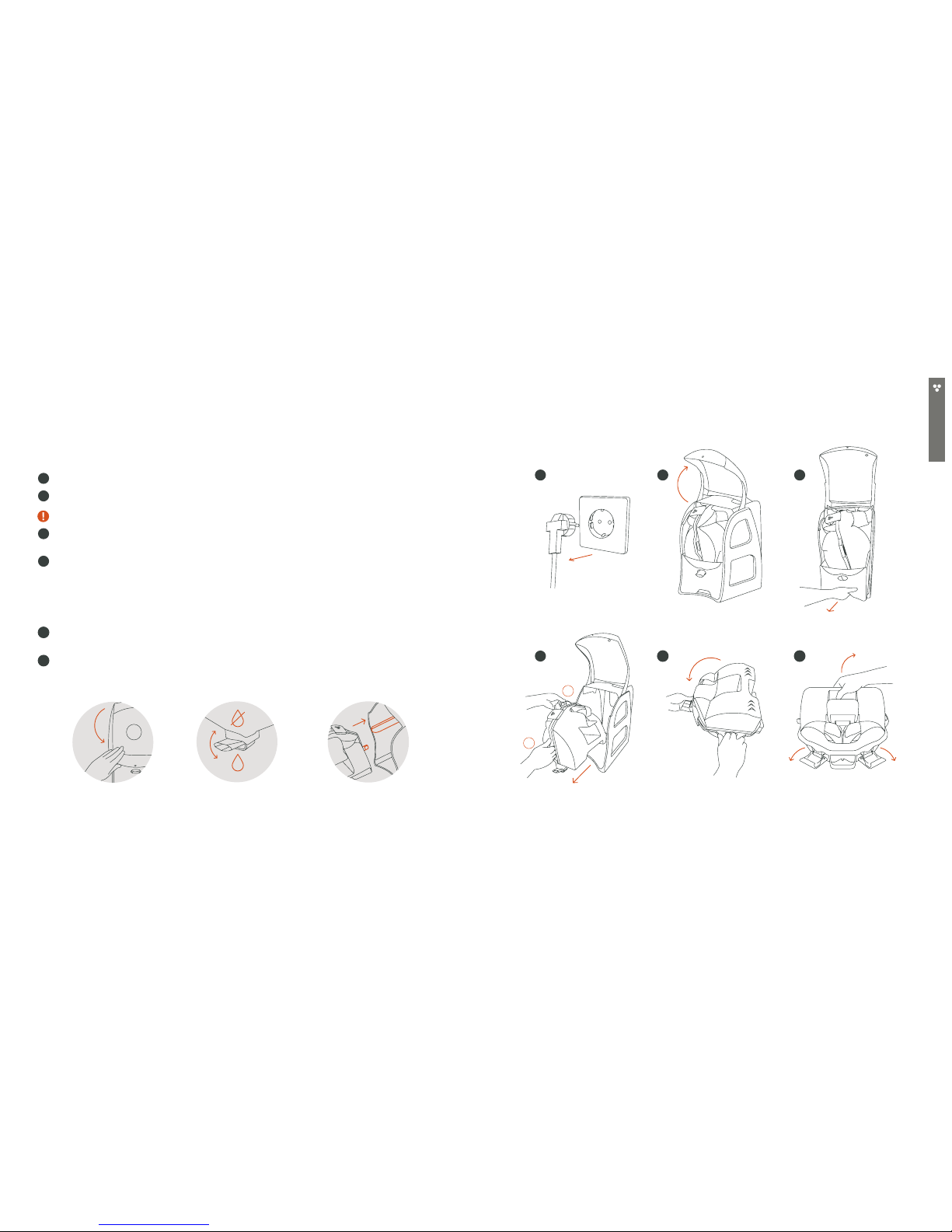

Disconnect the machine from the mains and remove possible obstacles around the machine.
Raise the Front door as far as it will go.
To close it, lower gently until you hear a slight click.
Important! For safety reasons, if the door is not properly closed, the machine will not start up. (A)
Remove the Waste container to empty the peel.
To t it back in again make sure that the Tap is closed (upper position) to avoid knocks. (B)
To remove the Juice extraction unit make sure that the Tap is in closed position.
Hold the handle (a) and carefully pull outwards until you can grasp the upper grip
(b) with the other hand. Pull the juice extraction unit out, sliding it along the guides
until it is fully released, keeping it in the same position to prevent it from dripping.
To put the Juice extraction unit back in again, take the guide that is on the left of the chassis
as reference and insert the unit as far as it will go.
Carefully rest the Juice extraction unit on a at surface to dismantle it, resting the left-hand
side and leaving the fasteners on that same side.
Open the fasteners to remove the Juice Extraction unit cover for cleaning, pulling
upwards as indicated in the drawing, taking care with the anges.
5
6
1
2
3
4
A B C
56
1 2 3
4
a
b

EN
9
7 8
45ºC
113ºF
10
!
After removing the lid, take out the Filter using the adhesive ange. Then remove the entire
pressing unit and shafts, pulling the grip upwards from its central support.
Warning! Be careful with the cutting area!
Be careful with the blade when removing the pressing unit and shafts.
Important! Do not pull the soft ejectors from the lter.
If you consider it necessary, you can also remove the Feeder ange, situated on the other
cover of the Juice extraction unit.
Always remember to put the parts back correctly after cleaning for correct juice extraction.
Cleaning is easy. Rinse the parts with water using your hand or a sponge to remove the
remains of pulp.

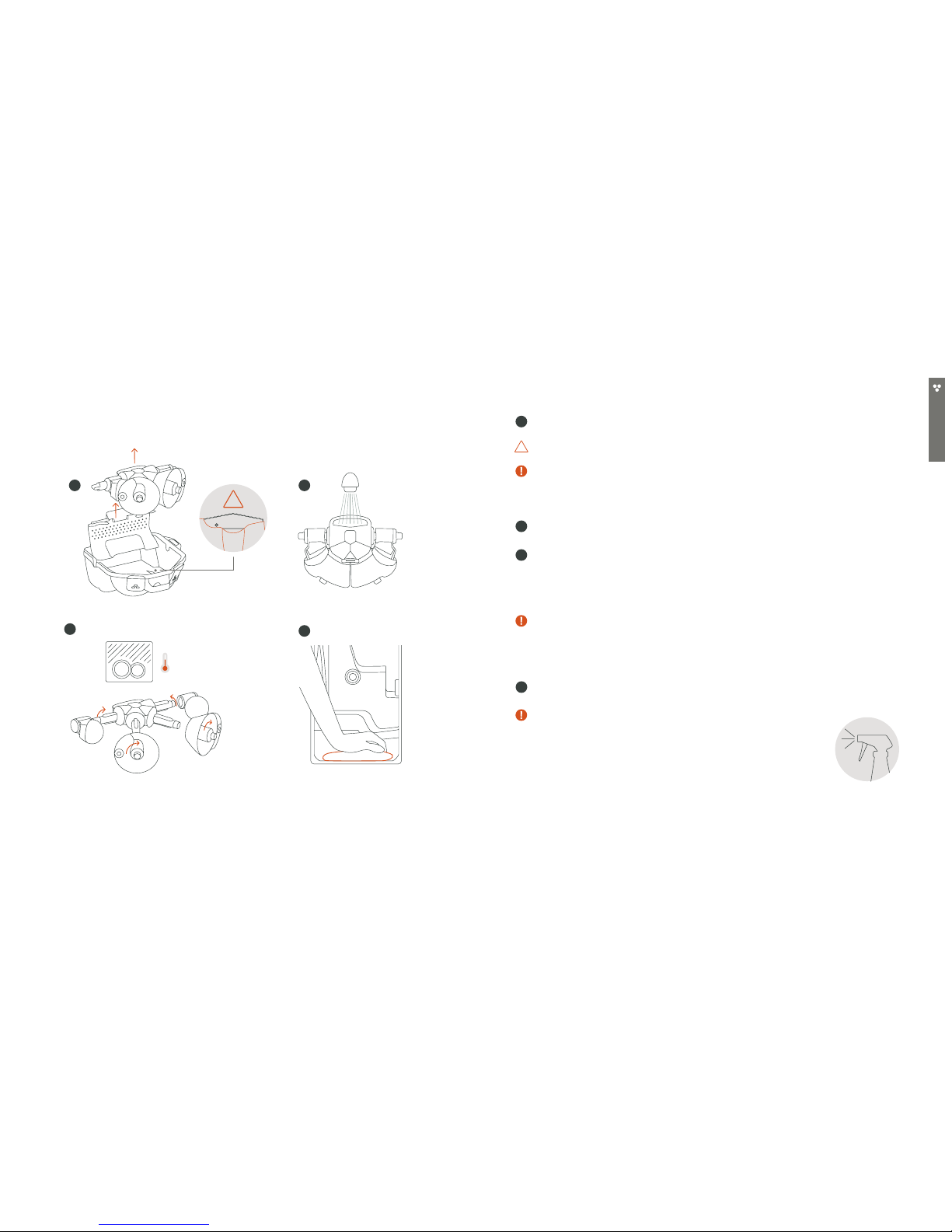

To remove the Pressing units for in-depth cleaning of their parts, turn the Fasteners of the
pressing units a quarter of a turn to remove the Lower pressing unit and the Upper pressing
unit.
You can also put the parts in the dishwasher at a temperature of under 45°, except for the
Shaft unit.
Important! The Shaft unit with its central support is an indivisible unit.
You must not remove it or wash it in a dishwasher or at high temperature.
To assemble, slide the respective pressing unit along the guide until it is in place. Make sure
that both pressing units couple perfectly. Turn the Fasteners of the pressing units a quarter of
a turn and make sure that the Fasteners correctly secure the pressing units.
If necessary, you can clean the inside of the metal chassis with a soapy cloth. Then, rinse and
dry. Do not use a rough cloth as this may damage the machine surface.
Important! The parts can be washed in the dishwasher, although you
must make sure that the maximum temperature does not exceed 45°
and that you use the correct soap, salt and brightener so that the
parts remain shiny.
Never wash the Shaft unit in the dishwasher.
Zumex recommends using CITROCLEAN to improve the cleaning
results of the machine, especially to eliminate waxes.
8
9
10
7
!

EN
Any doubts?
SMALL PROBLEMS, DRASTIC MEASURES. Faq
WHAT HAPPENS TO MY SOUL? HOW CAN I SOLVE?
My Zumex Soul does not come on
My machine does not extract juice.
There is no light on the button.
Why does a
white light appear
on the front button?
Why does a ashing
white light appear?
Please check the fuse. Check that the connection is live and that
there is voltage in the socket. Connect another appliance to the
socket and check it works. If the current connection is correct,
check that you have connected the plug correctly into the
socket, and into the machine. If the button still does not come
on, or ash, touch the button. If the machine does not respond,
replace the fuse with the extra one, which is right next to it.
Check that the machine is connected and touch the button.
Access the Juice extraction unit to check that it is not jammed.
This light indicates that the machine is ready to extract juice.
No fault.
This light appears when the machine is not extracting juice, and:
The Waste container is badly tted.
The Front door is not closed correctly.
If the button does not stop ashing, verify these points well and
make sure that the container is perfectly clean and that there is
no dirt in the detection area. (A)
A
Why does an orange
light appear on the
front button?
Why does a ashing
orange light appear?
No juice comes out of the tap
It makes a noise
but no oranges go in
This light indicates that the machine is extracting juice correctly.
No fault.
This light appears when the machine is extracting juice and the
waste container is full of peel. Please empty the waste container.
Check that the inner lter is not jammed and clean it. If juice still
does not come out, remove and clean the tap and make sure that
it is open. You can check this by pouring a glass of water into the
system through the feeder area.
To remove the Tap press the rear anges to be able to unclip the
tap. (B)
To put it back on again,
match up the openings of the tap support.
Stop the machine and dismantle it. Assemble it again following
the steps and checking that all the parts t perfectly.
B
WHAT HAPPENS TO MY SOUL? HOW CAN I SOLVE?

EN
Get in touch with us
If the anomalies indicated persist, please do not hesitate to
get in touch with our Technical Service. We will be delighted
to help you.
Consult our website www.zumex.com where you will nd
all the information about Zumex Service as well as
the Service Partner contact information in each country.
If you wish, you can contact us:
ZUMEX SERVICE
Tel.[phone]
[email protected]
Or enter the website, in the online Support section.
Welcome to the new era of simplicity,
we hope you will enjoy your Soul juicer.
