ZUMEX PUSH&JUICE Soul User manual

ENGLISH. User’s manual 8
ESPAÑOL. Manual de usuario 30
FRANÇAIS. Manuel de l’utilisateur 52
DEUTSCH. Bedienungsanleitung 74
ITALIANO. Manuale d’uso 96

ZUMEX PRESENTS
A NEW CONCEPT
PUSH&JUICE
Forget everything you know about juicers.
One button will change everything.
Enjuice your life!

PUSH&JUICE
Things were never so easy
Imagine pushing just one button
and having fresh juice squeezed
directly into the glass?
As simple and as natural as that.
Making a juice becomes a breeze
with Soul, giving way to a new
era for professional juicers.
A new concept with which you
will enjoy the essence of
a perfect juice.

PUSH&JUICE
Nunca fue tan fácil
¿Imaginas pulsar sólo un botón y tener un
zumo recién exprimido directo en el vaso?
Así de sencillo, así de natural.
Soul simplica al máximo la forma de
hacer un zumo y da paso a una nueva era
para las exprimidoras profesionales.
Un nuevo concepto con el que disfrutarás
de la esencia de un zumo perfecto.
PUSH&JUICE
Jamais cela n’a été aussi facile
Imaginez-vous qu’en appuyant sur un
seul bouton vous obtiendrez un jus
fraîchement pressé, directement dans
le verre ?
Si simple, si naturel.
Soul simplie au maximum la façon
de faire un jus de fruit et fait entrer les
presse-agrumes professionnels dans une
nouvelle ère.
Un nouveau concept pour apprécier
l’essence d’un jus parfait.
PUSH&JUICE
Nie war es so einfach
Auf einen Tastendruck ein Glas frisch
gepresster Saft?
So einfach, so natürlich.
Soul macht die Saftherstellung zu einem
Kinderspiel und leitet eine neue Ära
der professionellen Saftpressen ein.
Ein neuartiges Konzept für perfekten Saft.
PUSH&JUICE
Non è mai stato così facile
Riesci ad immaginare di avere un succo
appena spremuto direttamente nel
bicchiere, premendo soltanto un
pulsante?
Facile e naturale.
Soul semplica al massimo il modo di fare
un succo e apre le porte a una nuova
era per le macchine spremiagrumi
professionali.
Un nuovo concetto che ti permetterà di
gustare l’essenza di un succo perfetto.

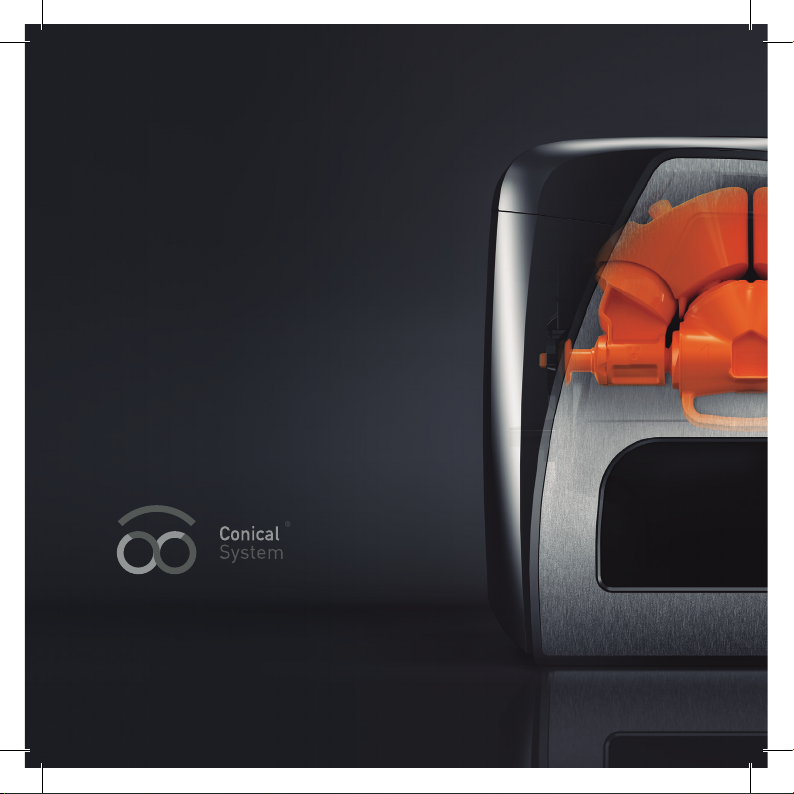

CONICAL SYSTEM
SOUL IS INSIDE
Cold body and warm soul.
That is the secret of a perfect juice.
The combination of cutting-edge
technology, the cleanest cut and
meticulous care of the fruit leads to
perfection in every drop squeezed
by Soul.
Pat. Pend: P201331180. PCT/EP/2013/070494

CONICAL SYSTEM. EL ALMA ESTÁ DENTRO
Cuerpo frío y alma cálida. Ese es el secreto de un zumo
perfecto. La combinación de la tecnología más avanzada,
el corte más limpio y un cuidado exigente de la fruta,
hace que cada gota exprimida por Soul sea perfecta.
CONICAL SYSTEM. DIE SEELE BEFINDET
SICH IM INNERSTEN
Kühler Körper und warme Seele. Das Geheimnis von
perfektem Saft. Die Kombination von modernster
Technologie, sauberem Schnitt und schonender
Behandlung der Frucht erzielt die Perfektion
von jedem mit Soul ausgepressten Tropfen Saft.
CONICAL SYSTEM. L’ÂME EST L’INTÉRIEUR
Corps froid et intérieur chaud. Tel est le secret d’un jus
parfait. L’alliance entre une technologique d’avant-garde,
une coupe plus propre et un fruit choyé fait que chaque
goutte pressée par Soul est parfaite.
CONICAL SYSTEM. L’ANIMA È DENTRO
Corpo freddo, anima calda. Questo è il segreto di un succo
perfetto. La combinazione della tecnologia più avanzata,
del taglio più pulito e di un trattamento esigente della frutta,
fa in modo che ogni goccia spremuta da Soul sia perfetta.

NOT NEED A MANUAL
IT IS VERY SIMPLE

SHALL WE START?
LET’S GET GOING!
ANY DOUBTS?
16 Prepare the place where you are going
to put your Soul
17 Some tips before you start
18 Push&Juice!
18 Off
20 Cleaning
24 Small problems, drastic measures
26 EU Declaration of Conformity

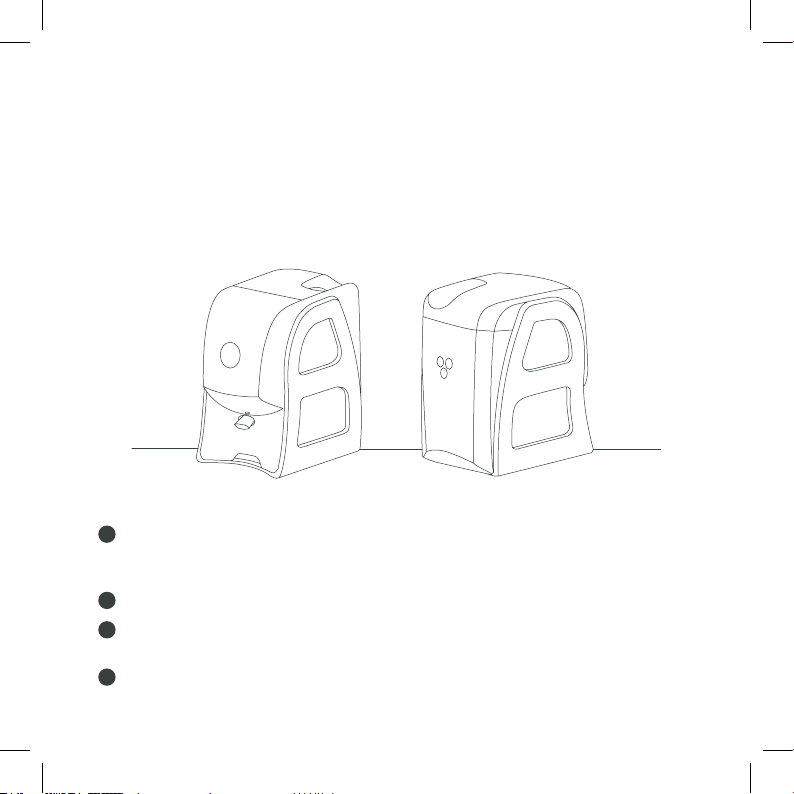

THIS IS SOUL AND ITS
IT SQUEEZE CITRUS FRUIT
AUTONOMY FOR THE USER
FEEDER CAPACITY
FRUIT SIZE
TO 80 MM
TECHNICAL DATA
ORANGES
LEMONS
LIMES
3/4 FRUITS
Pat. Pend: P201331180. PCT/EP/2013/070494
Pat. Pend: P201331434. PCT/EP2013/072340

DIMENSIONS
SPEED
1 JUICE IN
260 x 430 x 435 MM.
15´´15´´
1MIN 12FRUITS
*Contact your Distributor for any technical questions you might have.
WEIGHT 17kg 37.4 lb
VOLTAGE 220 V- 240 V50/60Hz 110-120 V50/60Hz
POWER 90W
MAXIMUM CONSUMPTION 2.5A 1.3A
SOUND PRESSURE LEVEL 54dB
ANTI-HUMIDITY PROTECTION IPX0

1
11
12
15
13
16
14
17 4
8
2
5
9
3
7
6
10
1 10
12
15
13
16
14
17
18
4
8
2
5
9
3
7
6

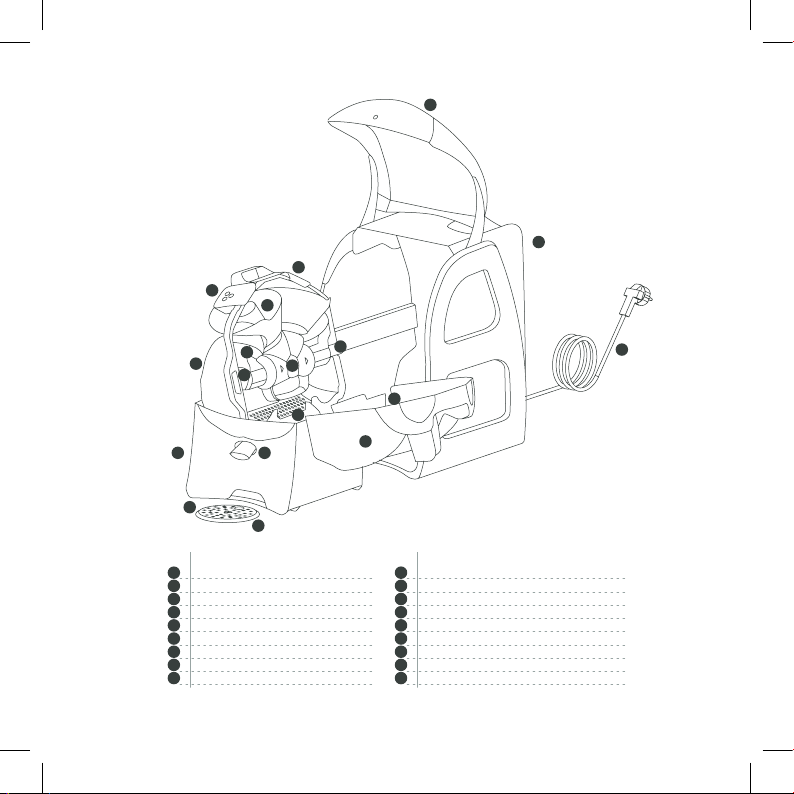

ZUMEX SOUL
GLASS HOLDER BASE
GLASS HOLDER
POWER CABLE
FRONT DOOR
WASTE CONTAINER
JUICE EXTRACTION UNIT
TAP
JUICE EXTRACTION UNIT COVER
SHAFT UNIT WITH CENTRE SUPPORT
FILTER
JUICE EXTRACTION BASE
FEEDER FLANGE
PRESSING UNIT FASTENER
LOWER PRESSING UNIT
UPPER PRESSING UNIT
DRIVE SHAFT COUPLING
JUICE EXTRACTION UNIT COVER FASTENERS
18
11

13
EN
Before you start, for your safety, take into account
The specic details about your Zumex Soul juicer (voltage, frequency and other data
of interest), can be found on the Identication Label that you will nd inside the
machine.
If you have any technical queries, you must get in touch with your regular Dealer /
Ofcial Technical Support Service, always stating the Serial Number on the machine
Identication Label.
Zumex adopts the necessary measures to ensure that the machines placed on the
market are selectively collected and managed in an environmentally respectful
manner. Please contact your authorised Zumex dealer to correctly dispose of these
machines.
This is not a toy, so prevent children from playing with
the appliance.
This appliance can be used by children over the age of 8
or older, if they are supervised or if they have received
instructions relating to the safe use of the appliance and
they can understand the risks entailed. User cleaning and
maintenance must not be carried out by children, unless
they are 8years of age or older and they are supervised.
Keep the appliance and its cable out of reach of children
under the age of 8.

This appliance can be used by people with impaired
physical, sensorial or mental capacities or who lack
experience or knowledge, if they are supervised or have
received adequate training with respect to the safe
operation of the appliance and they understand the risks
entailed.
This machine is designed for squeezing citrus fruit of the
sizes indicated in this manual. Do not use other different
fruit or sizes to those specied in the manual.
Before cleaning the machine or carrying out any
maintenance, always unplug from the mains.
Be very careful with the cutting elements, to avoid
possible accidents.
The parts that are in contact with food must be cleaned
according to the instructions that you can read in the
cleaning chapter.

15
EN
ZUMEX GROUP, S.A. Polígono Ind. Moncada III C/Molí 2. 46113 Moncada. Valencia. Spain.
Tel. [phone] Fax: [phone] / [email protected] / www.zumex.com
If the power cable is damaged, it must be replaced with an
original power supply cable from the same manufacturer,
in order to avoid hazards.
Do not operate the machine from behind, or try to get it
to work without safety elements.
This appliance is intended to be used in household and
similar applications such as:
•Staff kitchen areas in shops, ofces and other working
environments;
•Farm houses;
•By clients in hotels, motels and other residential type
environments;
•Bed and breakfast type environments.
The instructions may be updated without prior notice. You can consult them at any
time on our website www.zumex.com, in the section on the selected model.
Ifyou have anysuggestions orcommentsthat youbelieve may improveour machines
or service network, please get in touch with Zumex directly at the address below:

Shall we start?
PREPARE THE PLACE WHERE YOU ARE GOING TO PUT YOUR SOUL
Have you thought about where you are going to put your machine? You can put it
wherever you want and easily move it whenever you want thanks to its 360° design
and light weight.
Firstly, make sure that the mains voltage coincide with the indications given on the
machine identication label that you will nd both on the front page of this manual
and on the actual machine.
Ensure that no obstacles hinder you during the unpacking process.
Then, take the Zumex Soul out of its packaging and put it on the at surface that
you have prepared.
The following components may come separate, and if so, you must put them in
their place: Glass holder base, Glass holder, Power cable.
1
2
3
4

17
EN
SOME TIPS BEFORE YOU START
You are a step away from starting to extract juice with Soul. First of all, we are going to
give you some tips for you to have a perfect knowledge of your new juicer.
Initial cleaning
Before using for the rst time, we recommend you clean the juice extraction
system. See “Cleaning” section.
Start-up
Check the electrical data of your machine with the electricity supply. Once the
machine is installed correctly, plug it into the mains.
After plugging the machine in, press the button for 1" to switch on the juicer until
a xed white light appears. This means that the machine is ready to extract juice.
Check that the Waste container and Front door have been correctly tted;
otherwise a ashing white light will appear.
Remember to open the Tap (lower position) and put
a glass under the juice outlet of your machine.
Place the Glass holder under the tap rst.
Juice extraction unit
Check that all the elements of the Juice extraction unit have been mounted correctly.
Loading the feeder
The machine is ready to admit 3oranges in the feeder, according to the size.
Waste area
Make sure that the Waste container is correctly in place.
Glass holder base Glass holder

Let’s get going!
PUSH&JUICE!
To extract juice just press the front button.
You will see that the colour of the button will
automatically change from white to orange.

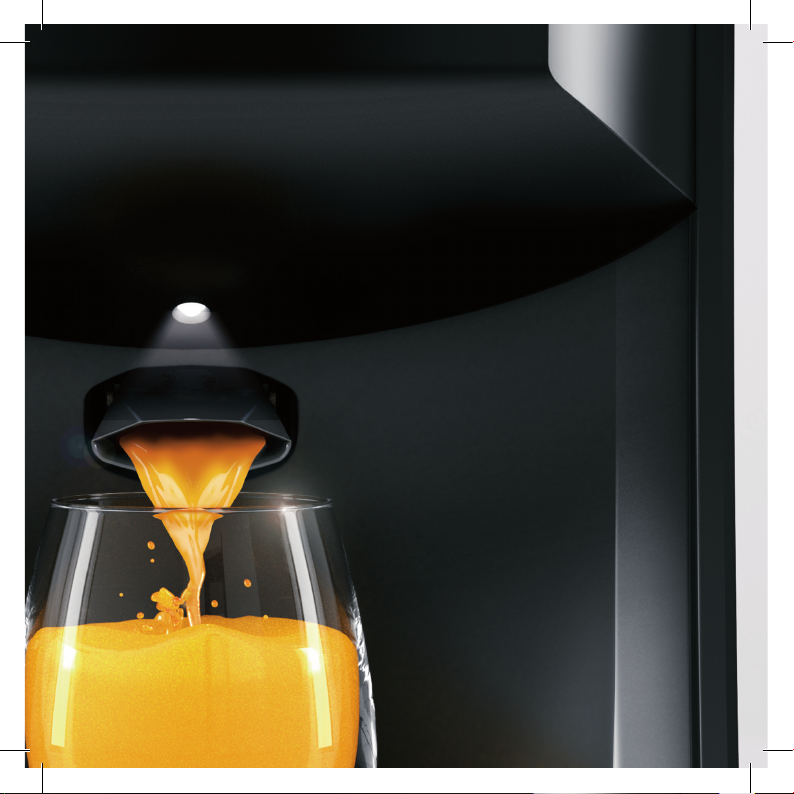

The juice outlet will light up:
You are preparing the most exquisite juice.
OFF
You can switch off your machine as follows:
By pressing the front button for 2”.
By directly disconnecting the power cable.
If the machine does not detect oranges,
it will stop approximately 20” after the last orange has passed through.
a
b

19
EN

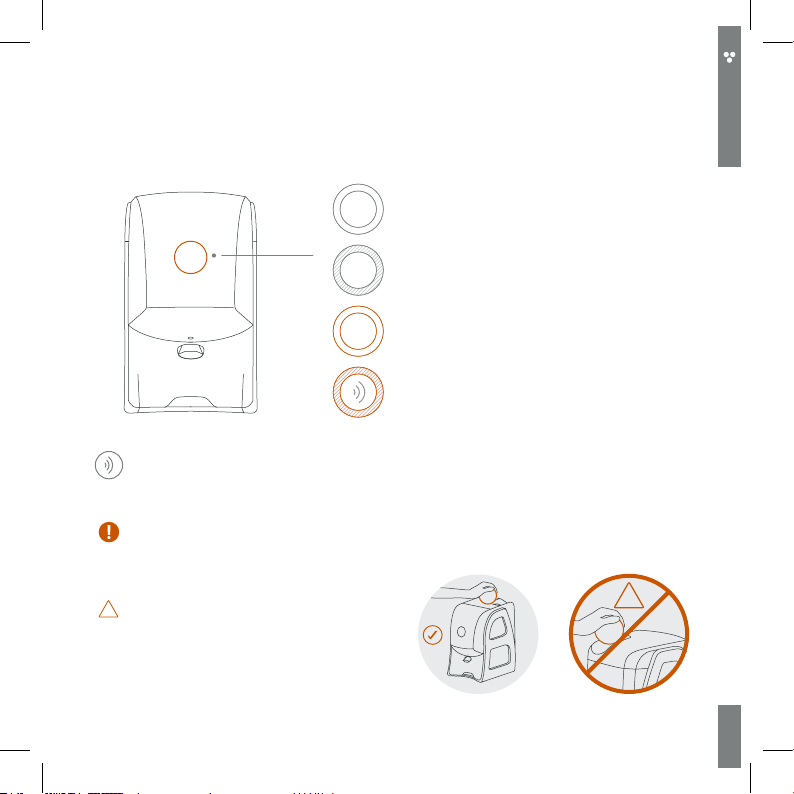

What does Soul want to tell me?
OBSERVE THE LIGHT ON THE BUTTON AND THE SOUND OF THE MACHINE
Important! Please never try to access the extraction area from the feeder with your
hand, to avoid possible accidents.
!
Never operate the machine from one
side or from the rear. You must always
load the feeder from the front of the
machine.
The machine will warn you with a sound/beep when the waste container is full
and needs emptying.
WHITE
the machine is ready to extract juice.
FLASHING WHITE
check if the waste container badly tted,
the front door open or there is an external
element blocking the system.
ORANGE
the machine is extracting juice correctly.
FLASHING ORANGE
the machine is extracting juice and the waste
container needs to be emptied.
!

CLEANING

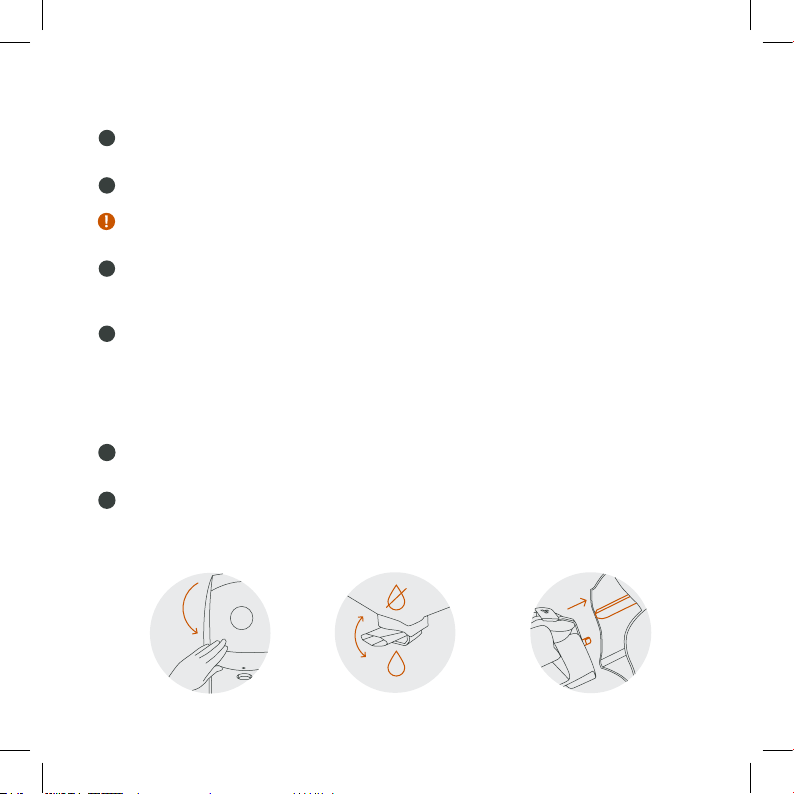

Disconnect the machine from the mains and remove possible obstacles around
the machine.
Raise the Front door as far as it will go.
To close it, lower gently until you hear a slight click.
Important! For safety reasons, if the door is not properly closed, the machine will
not start up. (A)
Remove the Waste container to empty the peel.
To t it back in again make sure that the Tap is closed (upper position) to avoid
knocks. (B)
To remove the Juice extraction unit make sure that the Tap is in closed position.
Hold the handle (a) and carefully pull outwards until you can grasp the upper grip
(b) with the other hand. Pull the juice extraction unit out, sliding it along the guides
until it is fully released, keeping it in the same position to prevent it from dripping.
To put the Juice extraction unit back in again, take the guide that is on the left of
the chassis as reference and insert the unit as far as it will go.
Carefully rest the Juice extraction unit on a at surface to dismantle it, resting the
left-hand side and leaving the fasteners on that same side.
Open the fasteners to remove the Juice Extraction unit cover for cleaning, pulling
upwards as indicated in the drawing, taking care with the anges.
5
6
1
2
3
4
CBA
