ZyXEL Communications WAP3205 v2 User manual

Complying with the 802.11n standard, the ZyXEL WAP3205 v2 Wireless N300 Access Point can
enhance wireless speeds up to 300 Mbps* and extend the coverage.With the AP/Universal
Repeater/Client mode switch, you can setup the operating modes of WAP3205 v2 according to
your needs easily and instantly.
Benefits
Easily enhance wireless performance and coverage
The 802.11n standard-compliant WAP3205 v2 brings you wireless speeds of up to 300 Mbps* for
multimedia streaming.The all-in-one design allows WAP3205 v2 to perform as an AP, a WLAN client,
a universal repeater or a Wireless Distribution System (WDS) according to your needs for wireless
coverage extension and access sharing.
Simply set up wireless network and security
You can easily set up the operating modes of WAP3205 v2 to meet your needs through the AP/Universal
Repeater/Client mode switch without complicated configuration.The one-touch Wi-Fi Protected Setup
(WPS) push button of WAP3205 v2 only takes a few seconds to setup a secured wireless network.
Expend wireless networks effortlessly
Some wired devices such as Set-Top Boxes or network storage devices might not have wireless network
functions built-in; to connect these devices without additional wiring installation or configuration, just
plug an Ethernet cable from the wired devices to the LAN ports of WAP3205 v2 to connect them to the
home network.The WAP3205 v2 makes network connection simple and easier.
• 802.11n compliant with data
transfer rates of up to 300 Mbps*
• Two 5 dBi antennas enhance
wireless signals for stable data
transmission
• Four operating modes to satisfy
different needs for wireless
coverage extension
• AP/Universal Repeater/Client
mode switch simplifies operating
mode setup
• One-touch WPS button for
wireless security setup
• Two Ethernet ports for connecting
wired devices to wireless
networks
• Effortless wireless access control
with wireless on/off button
• Environment-friendly LED light
on/off button
WAP3205 v2
Wireless N300
Access Point
Easily Enhance Wireless Coverage for Your Needs N
300
300

5-100-00212008 06/12
For more product information, visit us on the web at www.ZyXEL.com
Copyright © 2012 ZyXEL Communications Corp. All rights reserved. ZyXEL, ZyXEL logo are registered
trademarks of ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned
are the property of their respective owners. All specifications are subject to change without notice.

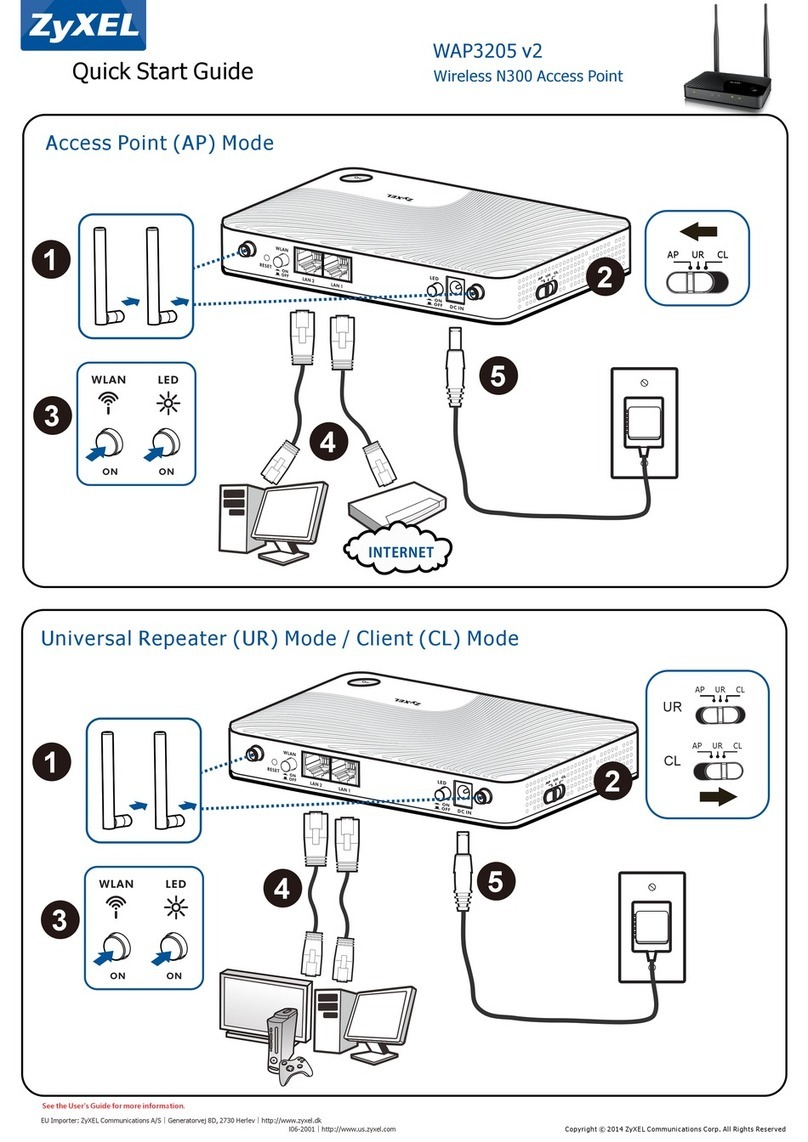

Universal Repeater Mode
AP Mode Client Mode
InternetInternet
WAP3205 v2
Wireless N300
Access Point
NBG-419N v2
Wireless N300
NetUSB Router
Router
WAP3205 v2
Wireless N300
Access Point
Internet
WAP3205 v2
Wireless N300
Access Point
NBG-419N v2
Wireless N300
NetUSB Router
NSA325
2-Bay Power Plus
Media Server
Game
Console
Ethernet HDMI Cable
Application Diagram
System Specifications
Wireless Standard
• 802.11 b/g/n
Wireless Transfer Rate
• Receive: 300 Mbps*
• Transmit: 300 Mbps*
Wireless Security
• 64/128 bit WEP, WPA/WPA2, WPA-PSK/
WPA2-PSK
WLAN Features
• 4-in-1 operation modes, including access
point,WLAN client, universal repeater, and
WDS
• Wi-Fi Protected Setup (WPS)
• Wi-Fi Multimedia (WMM)
• Wireless scheduling
• Wireless output power management
• Auto channel selection
• MAC address filtering
System Management
• HTTP
• Diagnostic logs
• Online firmware upgrade
Hardware Specifications
• LAN:Two 10/100 Mbps Ethernet RJ-45 ports
with auto MDI/MDIX support
• LED indicators:
■Power
■LAN (1 - 2)
■Wireless
■WPS
• Antenna: Two 5 dBi detachable antennas
• Switch: AP/Universal Repeater/Client mode
switch for setting up operation mode
• Button/Switch:
■Wireless on/off button
■LED light on/off button
■WPS button
■Reset button
• Power rating: 12 V DC, 1 A
• Power consumption: 8 watt max.
Physical Specifications
• Item dimensions (WxDxH):
159 x 111 x 23 mm (6.26” x 4.37”x 0.91”)
• Item weight: 255 g (0.56 lb.)
• Packing dimensions (WxDxH):
247 x 61 x 155 mm (9.72” x 2.4”x 6.1”)
• Packing weight: 650 g (1.44 lb.)
Specifications
Environmental Specifications
Operating Environment
• Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 90% (Non-condensing)
Storage Environment
• Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 10% to 95% (Non-condensing)
Certification
Safety
• CE, LVD
EMC
• CE, FCC, IC
Package Contents
• Wireless Access Point
• Two detachable antennas
• Ethernet cable
• Quick start guide
• Support CD
• Warranty card
* The maximum wireless data transfer rate is derived from IEEE Standard
802.11 specifications.Actual data transfer rate will vary from network
environment including: distance, network traffic,building site
materials/construction, interference from other wireless devices,and
other adverse conditions.
WAP3205 v2
Wireless N300 Access Point
