3-form SimpleSpec 200.108 User manual
Contents OverviewContents Overview
Cantilever
Top Rail, 96"
--
(2)
½" Glazing
Channel
--
(10)
Low Proile Glazing
Channel, 96"
--
(2)
Baseplate KIT
---K
(6) = + +
Screw
3152308
(12)
Baseplate
3152110
(6)
Baseplate Cover
3152114
(12) +
VHB Tape Strip
3152416
(24)
(4)
⅜"Varia
Panel
Vertical Post,
2 Glazing Channels
--
(4)
Vertical Post,
1 Glazing Channel
--
(2)
(1)
⅜" Varia
Corner Panel
Self-Tapping
Screw
--
(20)(4)
Installation Template
Spacer Guide
--
(4)
Installation Template
Baseplate Guide
--
(1)
Installation Template
Corner Guide
--
2
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
(2) =
Top Rail End Cap KIT
---K
+ +
Top Rail End Cap
3152116
(2)
Top Rail Low Proile
M6 TNut
3152123
(4)
Screw
3152312
(4)
(6) =
Baseplate Universal
Anchoring KIT
---K
+
Hex Head Wood
Lag Screw
3152310
(24)
M8x105 Concrete
Lag Screw
3-15-2309
(24)
Contents Overview
(1) =
Top Rail Mitered
Corner KIT
---K
+ +
Top Rail Low Proile
M6 TNut
3152123
(4)
Screw
3152312
(4)
Top Rail Mitered
Corner Bracket
3152118
(1)
+
Top Rail Miter B Length
3152177
(1)
Top Rail Miter A Length
3152176
(1)
+
+
Low Proile Glazing
Channel Miter Corner
3152183
(2)
3
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Overview - Divide Partition 10'10' Corner
Cantilever
Top Rail
0-15-2103
+Low Profile
Glazing Channel
0-15-2125
⅜" Varia
Panel
⅜" Varia
Corner Panel
Vertical Post,
1 Glazing Channel
0-15-2183
½" Glazing
Channel
3-15-2009
+
Vertical Post,
2 Glazing Channels
0-15-2181
½" Glazing
Channel
3-15-2009
+
Top Rail
End Cap KIT
3-15-2116-K
Baseplate KIT
3-15-2110-K +Universal
Anchoring KIT
3-15-2119-K
Top Rail Mitered
Corner KIT
3-15-2176-K
4
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Divide Partition Systems also accommodate a number of accessory options to customize the use for your application.
Contact your 3form Elements Dealer for additional information.
Overview - Accessory Options
Post to Post Inset on Hush Mount
Markerboard and Markerboard Shelf Accessory Shelf
5-13"
Hush Bar Shelves and Shelving Bracket
Post Attachment Hush Mount Attachment
Coat HookHush Mount
TV Mount
12" Small
24–1/16" Medium
36−1/8" Large
5
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Installation
Baseplate templates (3152160) and a corner template (3152182) and will be provided. The templates have hole
locations for drilling. Spacers will also be provided, unique to this coniguration.
1Drill Pilot Holes (24)
a
Ø Depth Anchors
Concrete mm min " --
Wood ⁄" min " --
Substrate
Drill Bit
--
--
Following the Installation Template, drill pilot holes. Use
appropriate pilot hole diameter and depth for the type of
substrate you are fastening to.
*3form stocks the drill bits required for the concrete
and wood pilot holes. If you wish to purchase a drill bit,
please contact your 3form sales representative.
b
Required Tools
Drill Drill Bits Hammer Drill Rubber Mallet Saw
Installation Template
Baseplate Guide
3-15-2160
Installation Template
Spacer Guide
3-15-2347 Installation Template
Corner Guide
3-15-2182
6
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Installation
2Assemble Vertical Posts
Cut Glazing Channel
(3152009) to
5' 10" lengths. (10)
a
b
(×2) Screws
3-15-2308
Base Plate
3-15-2110
Vertical Post, 1 Glazing Channel
0-15-2182
½" Glazing
Channel
3-15-2009
Assemble Vertical Posts (0152182). (2)
(×2) Screws
3-15-2308
Base Plate
3-15-2110
Vertical Post, 2 Glazing Channels
0-15-2181
(×2) ½" Glazing
Channels
3-15-2009
Assemble Vertical Post (0152181). (4)
7
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Installation
Use hammer drill to secure post.
Secure First Vertical Post to Floor
3
--
or --
1
--
--
2
4Install First Varia Panel
8
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Installation
5Install Second Vertical Post
--
or --
1
--
--
2
6Install Remaining Posts and Panels
9
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Installation
Low Profile
Glazing Channel
--
Cantilever Top Rail
0-15-2103
b
7Assemble Top Rail
a
Assemble Cantilevered Top Rail Mitered Corner KIT
(3-15-2176-K) as shown below.
c d
(×2) Low Profile Glazing Channel
3-15-2183
Cantilevered Top Rail Mitered Corner KIT
3-15-2176-K
Cut Glazing Channel (0152369) to the
length of the Top Rail (0152103).
10
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Installation
8Connect Top Rail to Vertical Posts
9Attach End Caps (2)
3-15-2116
(×2)
3-15-2312
(×2)
3-15-2123
Self-Tapping
Screws
3-15-2311
11
For more information, please visit 3-form.com/Elements or call 800.726.0126
JUNE 2022 | MANRTG200108 | REV 002 © 2022 3form, Inc. All rights reserved.
SimpleSpec 200.108tm
Divide
Installation
Manual
Table of contents
Other 3-form Indoor Furnishing manuals
3-form
3-form SimpleSpec 650.06 User manual
3-form
3-form SimpleSpec 400.02 User manual
3-form
3-form SimpleSpec 200.48-Seeyond User manual
3-form
3-form SimpleSpec 200.25 User manual
3-form
3-form SimpleSpec 300.01 User manual
3-form
3-form SimpleSpec 400.06 Wovin Wall User manual
3-form
3-form Velo Ceiling Tiles User manual
3-form
3-form SimpleSpec 600.06 User manual
3-form
3-form SimpleSpec 200.52 User manual
3-form
3-form SimpleSpec 200.43 User manual
3-form
3-form Edge SimpleSpec 300.31 User manual
3-form
3-form SimpleSpec 500.04 User manual
3-form
3-form SimpleSpec 400.46-Divy User manual
3-form
3-form SimpleSpec Desk Partition U 200.70 User manual
3-form
3-form Dello SimpleSpec 200.86 User manual
3-form
3-form SimpleSpec 200.49 Seeyond User manual
3-form
3-form SimpleSpec 200.29 User manual
3-form
3-form Elements Divide SimpleSpec 200.104 User manual
3-form
3-form SimpleSpec 400.12 User manual
3-form
3-form SimpleSpec 200.08 User manual
Popular Indoor Furnishing manuals by other brands
homechoice
homechoice San Tropez Double bed Assembly instruction
Regency

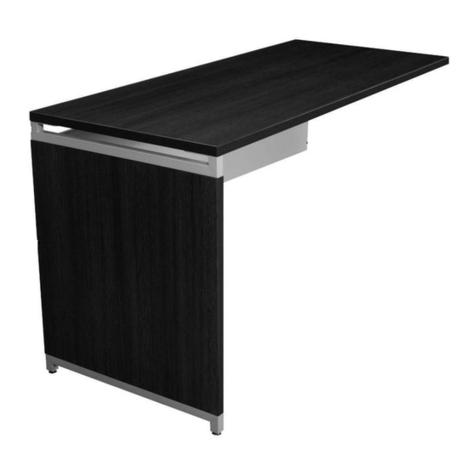

Regency ONRT3624 instructions
Blanco
Blanco BLANCOALTA 157-051 Specifications
Baxton Studio
Baxton Studio Amira Full Bed 20180 Assembly instructions
Ergo Impact
Ergo Impact LeanRite Product usage guide
The Container Store

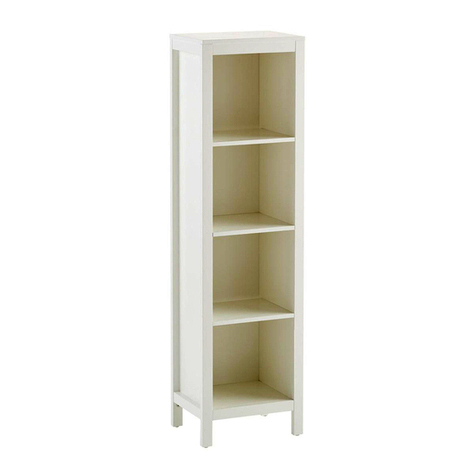

The Container Store Clybourn 4 Cube Cubby Tall Assembly instructions
